Product Type	Built-in Ice Maker
Model	MP15CPP3RP (Panel-Ready Solid Overlay Door, Right Hinge)
Ice Production	Up to 39 lbs (17.7 kg) per day
Ice Storage Capacity	35 lbs (15.9 kg)
Ice Type	Clear, pure, slow-melting cubes
Dimensions (Width x Height x Depth)	14 7/8" x 34 3/4" - 35 3/4" x 21 1/2" (cabinet depth)
Depth with Door at 90°	Overlay door: 38 5/8"
Shipping Weight	127 lbs (57.6 kg)
Electrical Requirements	115V / 60Hz / 15A, 6 ft power cord
Interior Finish	Black
Interior Lighting	Tri-Color Illuminice™ LED (Sapphire Blue, Amber Glow, Arctic White)
Controls	Marvel Intuit™ Integrated Touchpad Controls
Special Modes	Eco Ice™ mode (saves 25% water & energy), Delay Start/Vacation mode (1/4/6/8 hour/day)
Door Features	Soft-close integrated hinge, Close Door Assist System™
Additional Features	Factory-installed drain pump, ice scoop included, audible alerts & cleaning reminders
Warranty	3-year parts & labor, 5-year sealed system parts
Maintenance & Cleaning	Hygienic interior surface; programmed cleaning reminders; wipe with mild soap and water
Safety Notes	Install on dedicated 15A circuit; ensure proper leveling and ventilation
Spare Parts / Repairability	Contact Marvel customer service for replacement parts; repairable with authorized service

Frequently Asked Questions - MP15CPP3RP Marvel

How do I install the MP15CPP3RP panel-ready ice maker?

The MP15CPP3RP is a built-in model requiring a custom overlay panel (not included). Rough-in dimensions: width 15", height 34"-35", depth 24". Ensure a dedicated 115V outlet and proper ventilation. See the owner's guide for detailed installation instructions.

How do I clean the ice maker?

Clean the interior with a mild soap and water solution. Use the programmed cleaning reminder feature. Do not use abrasive cleaners. The drain pump simplifies cleaning; run a cleaning cycle as recommended in the manual.

Can I change the interior light color?

Yes, the Tri-Color Illuminice™ feature lets you switch between sapphire blue, amber glow, and arctic white at the touch of a button. You can also choose full or half illumination.

What is Eco Ice mode?

Eco Ice™ mode reduces ice production to save 25% water (about 91 gallons/month) and 25% energy (approx. $45/year). It's ideal for periods of lower ice demand.

How do I use the Vacation mode?

Use the Delay Start/Vacation option to postpone operation by 1, 4, 6, or 8 hours or days. This prevents wasteful water and energy use while you're away.

How much ice does it produce daily?

The MP15CPP3RP produces up to 39 lbs (17.7 kg) of clear ice per day, equivalent to nearly eight convenience-store bags of ice.

What is the storage capacity?

The large-capacity bin stores 35 lbs (15.9 kg) of ice, preserving quality and ensuring fresh ice is always available.

What are the dimensions of the ice maker?

Cabinet width: 14 7/8", height: 34 3/4" to 35 3/4", cabinet depth: 21 1/2". Depth to front of overlay door without handle: 22 7/8". Total depth with handle: about 26 3/8". Shipping weight: 127 lbs.

Is the door reversible?

This model (MP15CPP3RP) comes with a right hinge. For left hinge, order MP15CPP3LP. The door may be reversible; consult the manual for hinge reversal instructions.

What is the warranty?

Marvel offers a 3-year parts and labor warranty and a 5-year sealed system parts warranty. Register your product for full coverage.

USER MANUAL MP15CPP3RP Marvel

15" Marvel Professional Clear Ice Machine with Tri-Color Illuminice™ Lighting

Model # MP15CP

Performance

• The quietest ice machine you can buy
• Energy-saving options conserve water and energy
- Engineered to consistently produce pure, clear ice with unrivaled clarity, immediate cooling and slower melt
- Its uniform size and compact density prove to be the optimal shape to provide faster cooling, while taking up less space in your glass
- Produces up to 39 pounds of clear ice daily, the equivalent of nearly eight convenience-store bags of ice
- Streamlined componentry and single-connection water fitting for simple installation

Storage Capabilities

• Large-capacity bin stores 35 pounds of clear ice, while preserving quality and assuring fresh ice production
• Ice scoop included
• Easy-to-clean, hygienic interior surface

Touchpad Controls

• Marvel Intuit™ Integrated Controls feature all-new settings for ultimate programmability
• Eco Ice™ mode moderates ice production to conservative usage, saving 25% water (91 gallons monthly) and 25% energy (\$45 annually)**
• Delay Start/Vacation option automatically postpones operation by 1/4/6/8 (hour or day) intervals, preventing wasteful water and energy use
  • Audible alerts and programmed cleaning reminders

Aesthetics

• Illuminice™ feature projects waterproof LED light through clear ice for a dazzling illumination effect
• At the touch of a button, change the interior light color to sapphire blue, amber glow, or arctic white
• Two-stage theater-style lighting offers full or half illumination
• Midnight black interior and the first-ever glass door option add drama to the ice presentation, perfect for entertaining
• Soft-close integrated hinge provides a seamless zero clearance installation and a smooth, gentle close
• Finish options: stainless steel (solid or glass door) or overlay (panel ready)*

Additional Convenience

• Includes factory installed drain pump
• Close Door Assist System™ prevents energy loss by automatically drawing door to a gentle close
• Stainless steel toe kick adjustable to 4" with leveling legs
  • 3-year parts and labor warranty, 5-year sealed system parts warranty

Ordering Options

Solid Stainless Steel Door, Integrated Right Hinge, Professional Handle	MP15CPS3RS
Solid Stainless Steel Door, Integrated Left Hinge, Professional Handle	MP15CPS3LS
Stainless Steel Frame Glass Door, Integrated Right Hinge, Professional Handle	MP15CPG3RS
Stainless Steel Frame Glass Door, Integrated Left Hinge, Professional Handle	MP15CPG3LS
Panel-Ready Solid Overlay Door, Integrated Right Hinge (Handle Not Included)*	MP15CPP3RP
Panel-Ready Solid Overlay Door, Integrated Left Hinge (Handle Not Included)*	MP15CPP3LP

*Easy installation! No panel kit required. Consult your cabinet maker for overlay panel and handle options.

Blue-tinted photo of large, translucent mineral blocks with a 'HANDCRAFTED IN AMERICA' logo in the corner (no other text or symbols)

Finish Options

Stainless Steel Frame

Solid Stainless Steel

Solid Overlay (Panel Ready)*

Product Dimensions

Panel Overlay Dimensions

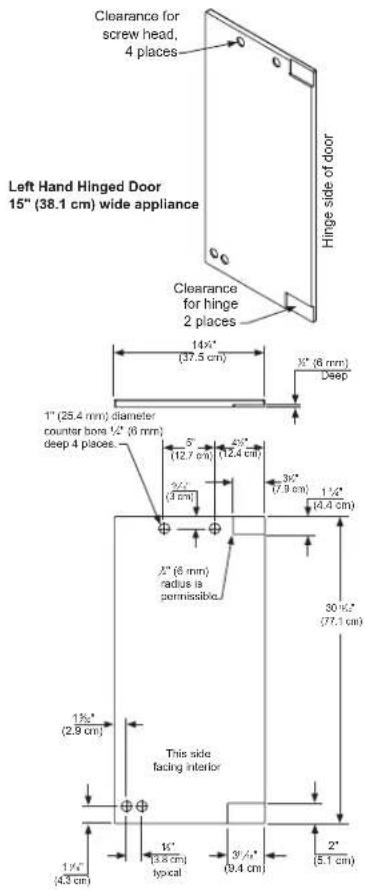

Left Hand Hinged Door 15" (38.1 cm) wide appliance

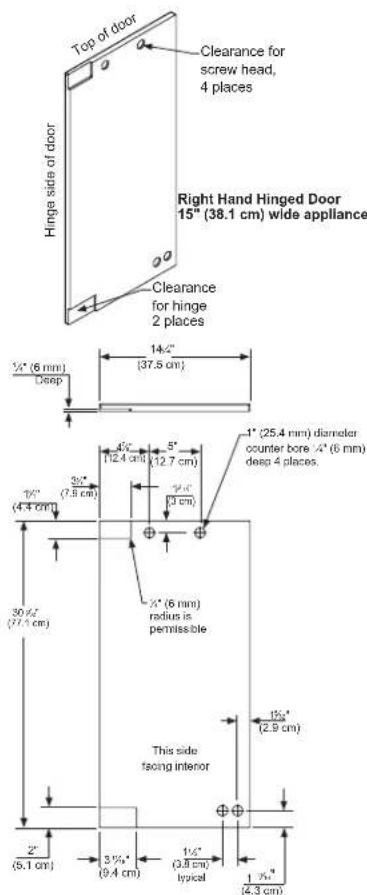

Right Hand Hinged Door 15" (38.1 cm) wide appliance

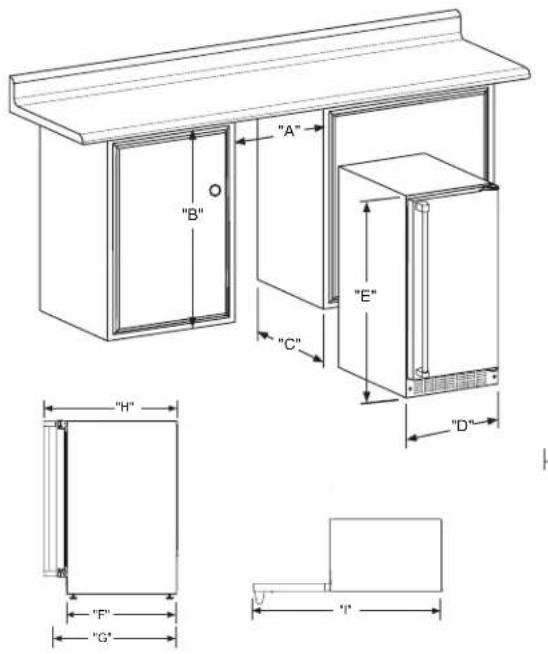

Rough-In Dimensions

A. Rough-In Width 15'
B. Rough-In Height 34" to 35"
C. Rough-In Depth 24"

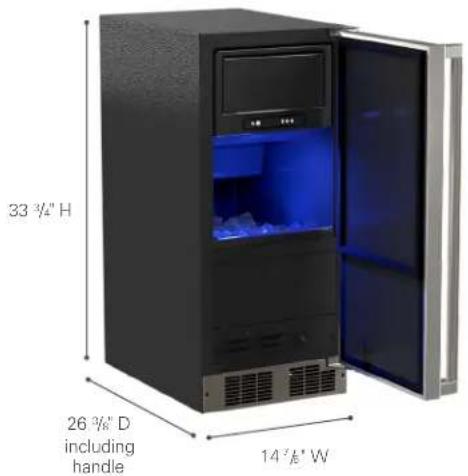

Product Dimensions

D. Width 14 7/8"
E. Height 34 3/4" to 35 3/4"
F. Cabinet Depth 21 1/2"
G. Depth to Front of Door	Solid Door 23 23/32"
	Overlay Door	22 7/8" Without Handle
H. Depth to Handle 26 3/8" (Stainless Steel)
I. Depth with door at 90"	Solid Door 38 7/8"
	Overlay Door 38 5/8"

Product Features

Interior Cabinet Finish Black
Capacity Up to 35 lbs of clear ice
Shelving System NA
Shelf Fronts NA
Other Storage Ice Bin
Interior Lighting	Tri-Color IlluminiceTM LED Lighting
Toe Grill Finish Stainless Steel
Hinge	Soft Close Integrated Hinge
Handle	Professional (Panel Overlay Does Not Include Handle)
Control Type	IntuitTM
Temperature Range	NA
Lock	No
Electrical Requirements	115V / 60Hz / 15A
Length of Power Cord	6"
Shipping Weight 127 lbs
Finishes	Stainless Steel, Overlay
Vacation Mode	Yes
Agency Approvals CSA

For comprehensive installation instructions, please visit www.marvelrefrigeration.com to access the owner's guide.
