Product TypeClear Ice Machine
ModelML15CL1R
BrandMarvel
Ice Production CapacityUp to 39 lbs (17.7 kg) per day
Ice Storage Capacity35 lbs (15.9 kg)
Dimensions (Width x Height x Depth)14 7/8" x 33 3/4"-34 3/4" x 23 5/8" (solid door)
Rough-In Dimensions (W x H x D)15" x 34"-35" x 24"
Weight (Shipping)127 lbs (57.6 kg)
Power Requirements120V / 60Hz / 15A
Power Cord Length6 ft (1.8 m)
Interior LightingIlluminice™ Arctic White LED
Control TypeMarvel Intuit™ Integrated Controls
Eco ModeEco Ice™ saves 25% water and energy
Delay Start / Vacation ModeYes, programmable intervals
Door Assist SystemClose Door Assist System™
HingeClassic Hinge (right hinge version)
Finish OptionsStainless Steel, Black, or Overlay Panel
Warranty1 year parts and labor, 5 years sealed system parts
InstallationGravity drain or pump (pump optional)
Cleaning RemindersProgrammed cleaning alerts
Noise LevelQuietest ice machine available
CertificationsCSA approved

Frequently Asked Questions - ML15CL1R Marvel

How much ice does the ML15CL1R produce per day?
The Marvel ML15CL1R produces up to 39 pounds (17.7 kg) of clear ice daily, equivalent to about eight convenience-store bags of ice.
What is the storage capacity of the ice bin?
The ice bin holds up to 35 pounds (15.9 kg) of clear ice.
What are the dimensions of the ML15CL1R?
Product dimensions: Width 14 7/8", Height 33 3/4" to 34 3/4", Depth (solid door) 23 5/8". Rough-in: 15" W x 34-35" H x 24" D.
Does the ML15CL1R require a drain?
Yes, it is designed for gravity drain applications. However, a factory-installed pump option (model ML15CP) is available for situations where gravity drainage is not possible.
What type of ice does this machine make?
It produces pure, clear ice with uniform size and compact density for slower melting and faster cooling.
How do I clean the ice machine?
The machine has programmed cleaning reminders. For detailed cleaning instructions, consult the owner's guide. The interior surface is easy to clean and hygienic.
What is the Illuminice™ feature?
Illuminice™ projects arctic white LED light through the clear ice for a dazzling illumination effect, enhancing the aesthetic appeal.
What finishes are available for the ML15CL1R?
Finishes include stainless steel, black, and panel-ready overlay to match your cabinetry.
Does the ML15CL1R have a vacation mode?
Yes, a Delay Start/Vacation option automatically postpones operation by 1, 4, 6, or 8 hour or day intervals to prevent wasteful water use.
What is the warranty on the ML15CL1R?
Marvel offers a 1-year parts and labor warranty and a 5-year sealed system parts warranty. See owner's guide for details.

User questions about ML15CL1R Marvel

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Sorbet maker in PDF format for free! Find your manual ML15CL1R - Marvel and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ML15CL1R by Marvel.

USER MANUAL ML15CL1R Marvel

15" Marvel Clear Ice Machine with Arctic White Illuminice™ Lighting

Model # ML15CL & ML15CP

Performance

• The quietest ice machine you can buy
- New energy-saving options conserve water and energy
- Engineered to consistently produce pure, clear ice with unrivaled clarity, immediate cooling and slower melt
- Its uniform size and compact density prove to be the optimal shape to provide faster cooling, while taking up less space in your glass
- Produces up to 39 pounds of clear ice daily, the equivalent of nearly eight convenience-store bags of ice
- Streamlined componentry and single-connection water fitting for simple installation

Storage Capabilities

  • Large-capacity bin stores 35 pounds of clear ice, while preserving quality and assuring fresh ice production
  • Easy-to-clean, hygienic interior surface

Touchpad Controls

  • Marvel Intuit™ Integrated Controls feature all-new settings for ultimate programmability
  • Eco Ice™ mode moderates ice production to conservative usage, saving 25% water (91 gallons monthly) and 25% energy (\$45 annually)**
  • Delay Start/Vacation option automatically postpones operation by 1/4/6/8 (hour or day) intervals, preventing wasteful water use
    • Audible alerts and programmed cleaning reminders

Aesthetics

  • New Illuminice™ feature projects arctic white LED light through clear ice for a dazzling illumination effect
  • First-ever glass door model with white interior adds drama to entertaining at home
  • Easy-to-install panel-ready option includes soft-close integrated hinge
  • Finish options: stainless steel, black or overlay panel

Additional Convenience

  • Close Door Assist System™ prevents energy loss by automatically drawing door to a gentle close
  • Black toe kick adjustable to 4" with leveling legs
  • 1-year parts and labor warranty, 5-year sealed system parts warranty (see owner's guide for details)

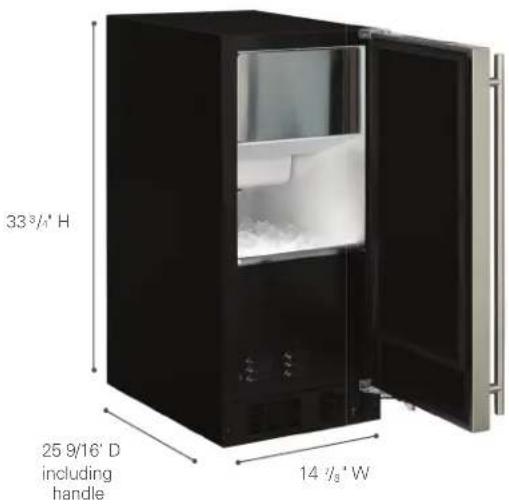

33³/⁴" H 25 9/16' D including handle 14 1/₃" W

Ordering Options

Gravity Drain Applications

Solid Stainless Steel Door, Right Hinge ML15CLS1RS
Solid Stainless Steel Door, Left Hinge ML15CLS1LS
Stainless Frame, Glass Door, Right Hinge ML15CLG1RS
Stainless Frame, Glass Door, Left Hinge ML15CLG1LS
Solid Smooth Black Door, Right Hinge ML15CLS1RB
Solid Smooth Black Door, Left Hinge ML15CLS1LB
Panel-Ready Solid Overlay Door, Integrated Right Hinge*ML15CLP2RP
Panel-Ready Solid Overlay Door, Integrated Left Hinge*ML15CLP2LP

Factory Installed Pump

Solid Stainless Door, Right Hinge ML15CPS1RS
Solid Stainless Door, Left Hinge ML15CPS1LS
Stainless Frame, Glass Door, Right Hinge ML15CPG1RS
Stainless Frame, Glass Door, Left Hinge ML15CPG1LS
Solid Smooth Black Door, Right Hinge ML15CPS1RB
Solid Smooth Black Door, Left Hinge ML15CPS1LB
Panel-Ready Solid Overlay Door, Integrated Right Hinge*ML15CPP2RP
Panel-Ready Solid Overlay Door, Integrated Left Hinge*ML15CPP2LP

*Easy installation! No panel kit required. Consult your cabinet maker for overlay panel and handle options.

Marvel ML15CL1R - Additional Convenience - 2

natural_image Pile of white, irregularly shaped blocks resembling mineral or crystalline fragments (no text or symbols visible)

Finish Options
Marvel ML15CL1R - Additional Convenience - 3
Steel

Marvel ML15CL1R - Additional Convenience - 4
Stainless Steel Frame

Marvel ML15CL1R - Additional Convenience - 5
Solid Overlay (Panel Ready)*

Marvel ML15CL1R - Additional Convenience - 6
BlackSolid Stainless

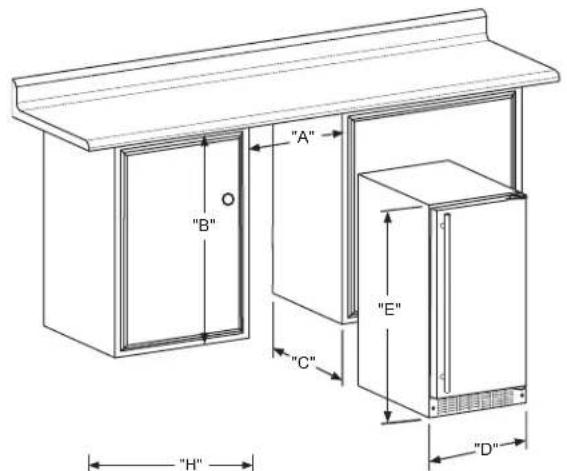

Product Dimensions
"A" "B" "C" "E" "H" "D"

"H" "G"

Marvel ML15CL1R - Additional Convenience - 9

Panel Overlay Dimensions (Frame Door)

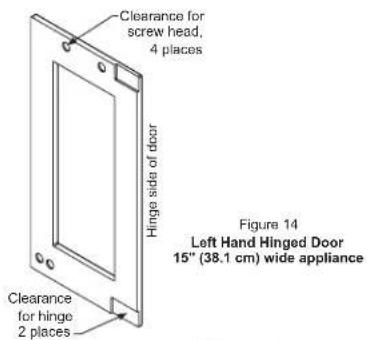

Clearance for screw head, 4 places Hinge side of door Clearance for hinge 2 places Figure 14 Left Hand Hinged Door 15" (38.1 cm) wide appliance

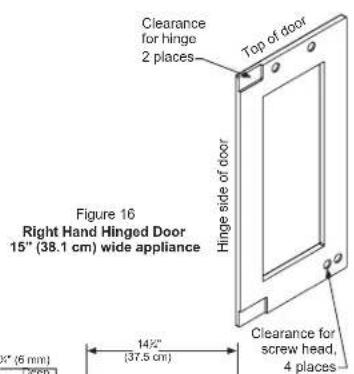

Clearance for hinge 2 places Top of door Hinge side of door Figure 16 Right Hand Hinged Door 15" (38.1 cm) wide appliance 4" (5 mm) Deep 14½" (37.5 cm) Clearance for screw head, 4 places

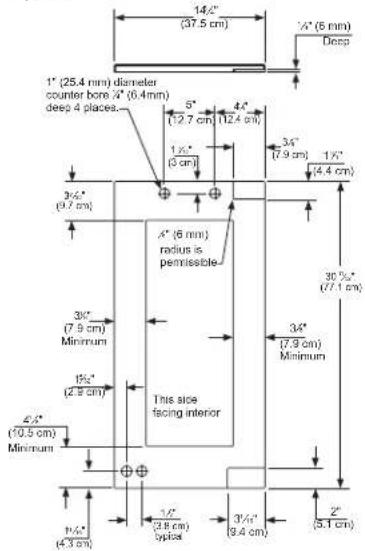

14/2" (37.5 cm) 1" (25.4 mm) diameter counter bore 2" (6.4mm) deep 4 places... 5" (12.7 cm) 4" (12.4 cm) 1½" (3 cm) 3/4" (9.7 cm) 3/8" (7.9 cm) Minimum 1½" (2.9 cm) 4/4" (10.5 cm) Minimum A" (6 mm) radius is permissible This size facing interior 3/4" (7.9 cm) Minimum 30%* (77.1 cm) 3/8" (7.9 cm) Minimum 1½" (3.8 cm) split 3½" (9.4 cm) 2" (3.1 cm)

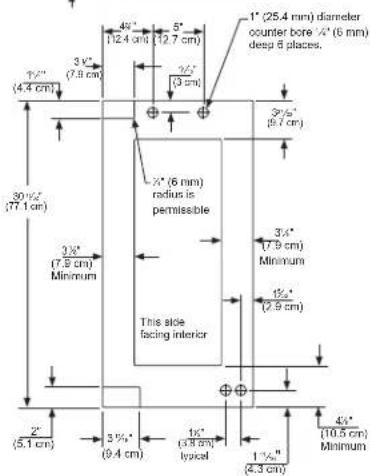

45° (12.4 cm) 5° (12.7 cm) 3½" (7.8 cm) 3½" (3 cm) 3½" (5.7 cm) 30½" (77.1 cm) 3½" (7.9 cm) Minimum 3½" (6 mm) radius is permissible This side facing interior 3¼" (7.9 cm) Minimum 1½" (2.9 cm) 2" (5.1 cm) 3½" (9.4 cm) 1½" (3.8 cm) typical 1½" (2.3 cm) 45° (10.5 cm) Minimum 1" (25.4 mm) diameter counter bore ¼" (6 mm) deep 6 places.

Rough-In Dimensions

A. Rough-In Width 15"
B. Rough-In Height 34" to 35"
C. Rough-In Depth 24"

Product Dimensions

D. Width 14 7/8"
E. Height 33 3/4" to 34 3/4"
G. Depth to Front of DoorSolid Door 23 5/8"
Overlay Door 22 15/16"
H. Depth to Handle 25 9/16'(Stainless Steel)
I. Depth with door at 90°Solid Door 37 13/32"
Overlay Door 38 5/8"

Product Features

Interior Cabinet Finish White
Capacity 35 lbs of Ice Storage
Shelving System NA
Shelf Fronts NA
Other Storage Ice Bin
Interior Lighting IlluminiceTM White LED
Toe Grill FinishBlack
HingeClassic Hinge
HandleSlim Designer Handle (Panel Overlay Does Not Include Handle)
Control TypeIntuitTM
Temperature RangeNA
LockNo
Electrical Requirements120V / 60Hz / 15A
Length of Power Cord6'
Shipping Weight127 lbs
FinishesStainless Steel, Overlay, Black
Vacation ModeYes
Agency Approvals CSA

For comprehensive installation instructions, please visit www.marvelrefrigeration.com to access the owner's guide.

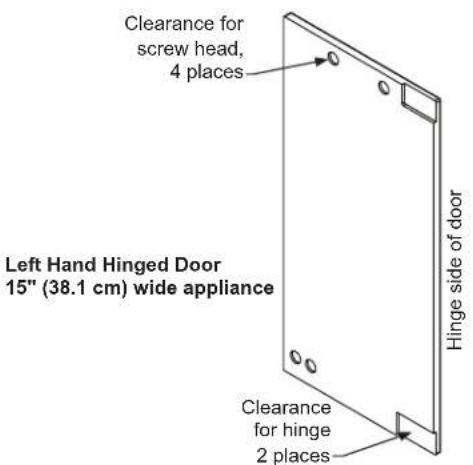

Clearance for screw head, 4 places Left Hand Hinged Door 15" (38.1 cm) wide appliance Hinge side of door Clearance for hinge 2 places

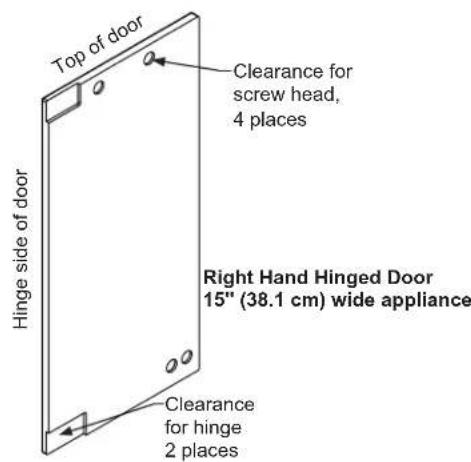

Top of door Clearance for screw head, 4 places Right Hand Hinged Door 15" (38.1 cm) wide appliance Hinge side of door Clearance for hinge 2 places

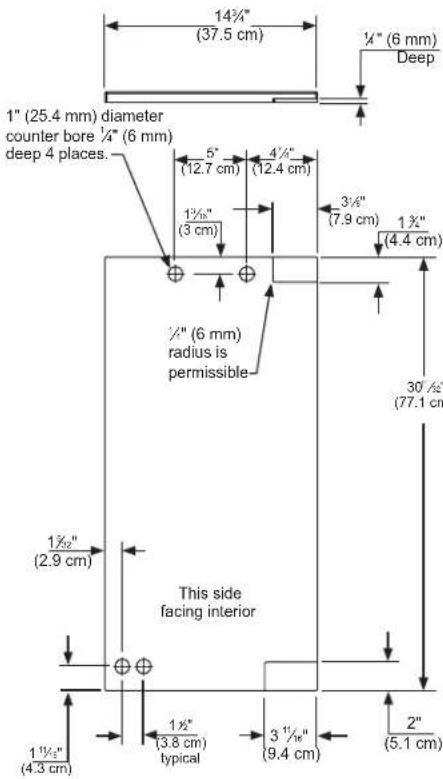

14¾"(37.5 cm) ¼"(6 mm) Deep 1" (25.4 mm) diameter counter bore ¼"(6 mm) deep 4 places. 5"(12.7 cm) 4¾"(12.4 cm) 1¾"(3 cm) 3¾"(7.9 cm) 1¾"(4.4 cm) ½"(6 mm) radius is permissible 30 ½"(77.1 cm) 1½"(2.9 cm) This side facing interior 1½"(3.8 cm) typical 3 ½"(9.4 cm) 2"(5.1 cm)

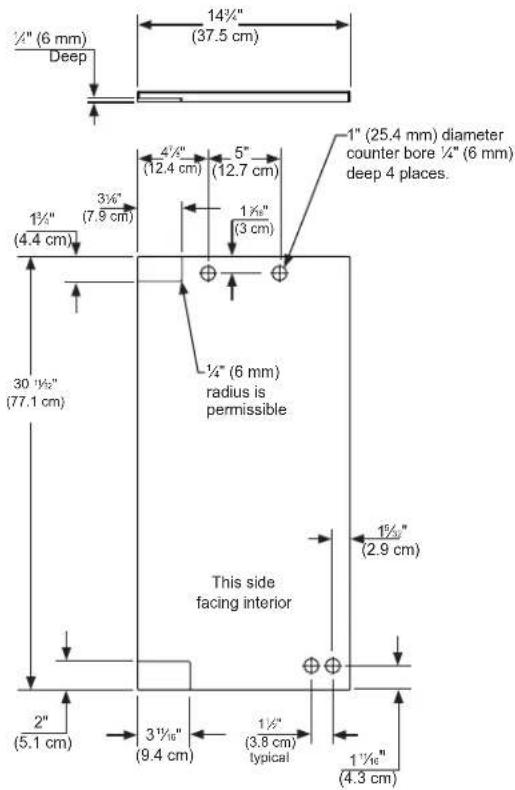

1/4" (6 mm) Deep 14½" (37.5 cm) 4½" (12.4 cm) 5" (12.7 cm) 1" (25.4 mm) diameter counter bore ½" (6 mm) deep 4 places. 1½" (4.4 cm) 3½" (7.9 cm) 1½" (3 cm) 30 ½" (77.1 cm) ½" (6 mm) radius is permissible This side facing interior 1½" (2.9 cm) 2" (5.1 cm) 3½" (9.4 cm) 1½" (3.8 cm) typical 1½" (4.3 cm)

Left Hand Hinged Door 15" (38.1 cm) wide appliance
Right Hand Hinged Door 15" (38.1 cm) wide appliance
