ML15CR1L - Sorbet maker Marvel - Free user manual and instructions

Product Type	Ice Cream Maker
Brand	Marvel
Model	ML15CR1L
Capacity	1.5 quarts (1.4 L)
Dimensions (L x W x H)	9.8 x 9.8 x 12.2 inches (25 x 25 x 31 cm)
Weight	6.6 lbs (3 kg)
Power Supply	120 V, 60 Hz, 150 W
Main Functions	Makes ice cream, sorbet, frozen yogurt; double-insulated freezer bowl; easy-lock lid; transparent lid for monitoring
Operation	Simply pour mixture into pre-frozen bowl, turn on, and mix until desired consistency
Freezer Bowl Material	Double-walled aluminum with freezer gel
Churning Time	Approximately 20-30 minutes per batch
Noise Level	Low noise operation (< 60 dB)
Maintenance & Cleaning	Wipe outer surface with damp cloth; wash removable parts in warm soapy water; do not immerse motor base in water
Safety Features	Automatic shut-off when motor overheats or bowl is not correctly installed; non-slip feet
Spare Parts & Repairability	Replacement bowls, paddles, and lids available; motor base serviceable by authorized technicians
General Information	User manual included; 1-year limited warranty; suitable for home use only

Frequently Asked Questions - ML15CR1L Marvel

How long does it take to make ice cream?

Typically 20-30 minutes depending on the recipe and desired consistency.

Do I need to pre-freeze the bowl?

Yes, the double-insulated freezer bowl must be frozen for at least 12-24 hours before use.

What is the capacity of this ice cream maker?

It can make up to 1.5 quarts (1.4 liters) of ice cream or sorbet per batch.

Can I make sorbet or frozen yogurt?

Yes, the machine is designed for ice cream, sorbet, and frozen yogurt.

How do I clean the ice cream maker?

Wipe the motor base with a damp cloth. Wash the bowl, paddle, and lid in warm soapy water. Do not immerse the base.

Is the motor base dishwasher safe?

No, only the removable parts (bowl, paddle, lid) are dishwasher safe. The motor base must be hand washed.

What happens if the motor overheats?

The unit has an automatic shut-off feature that turns off the motor to prevent damage. Let it cool before restarting.

Can I use the bowl immediately after washing?

No, the bowl must be completely dry and then frozen again for 12-24 hours before next use.

Where can I find spare parts?

Replacement bowls, paddles, and lids are available from Marvel's official website or authorized dealers.

Does the machine come with a warranty?

Yes, it includes a 1-year limited warranty covering manufacturing defects.

USER MANUAL ML15CR1L Marvel

Storage Capabilities

• Stores 15 lbs of crescent ice

Aesthetics

• Easy-to-install panel overlay option
• Finish options: stainless steel, black or overlay (panel ready)

Additional Convenience

• No pump or drain required
• Close Door Assist System™ gently and automatically draws door to a close, ensuring door is never accidentally left ajar
• Black toe kick adjustable to 4" with leveling legs
• Filler kit available for 18" wide opening
  • 1-year parts and labor warranty, 5-year sealed system parts warranty

Glass of white ice cubes on a textured surface (no text or symbols visible)

Finish Options

Solid Overlay (Panel Ready)*

BlackStainless Steel

Ordering Options

Solid Stainless Steel Door, Right Hinge, Stainless Designer Handle	ML15CRS1RS
Solid Stainless Steel Door, Left Hinge, Stainless Designer Handle	ML15CRS1LS
Solid Smooth Black Door, Right Hinge, Black Designer Handle	ML15CRS1RB
Solid Smooth Black Door, Left Hinge, Black Designer Handle	ML15CRS1LB
Panel-Ready Solid Overlay Door, Right Hinge (Handle Not Included)*	ML15CRP1RP
Panel-Ready Solid Overlay Door, Left Hinge (Handle Not Included)*	ML15CRP1LP

*Easy installation! No panel kit required. Consult your cabinet maker for overlay panel and handle options.

Interior view of a modern kitchen with dark wood cabinets and a large stainless steel refrigerator, no visible text or symbols on the main objects.

Product Dimensions

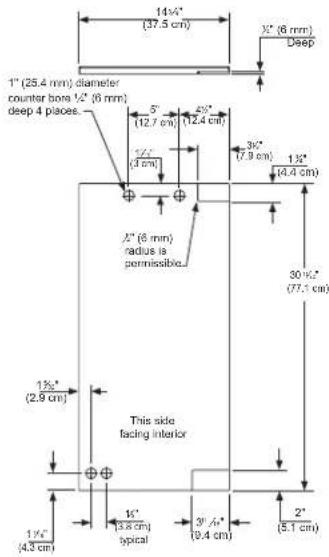

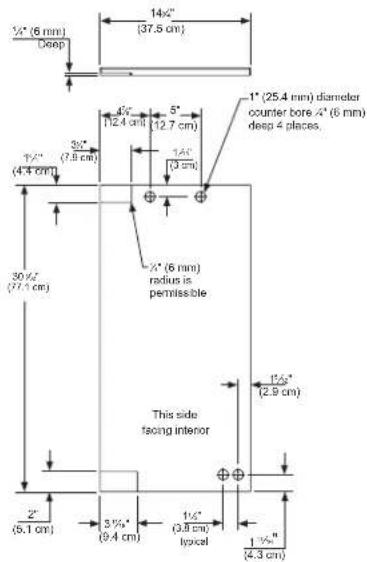

Panel Overlay Dimensions

Left Hand Hinged Door 15" (38.1 cm) wide appliance
Right Hand Hinged Door 15" (38.1 cm) wide appliance

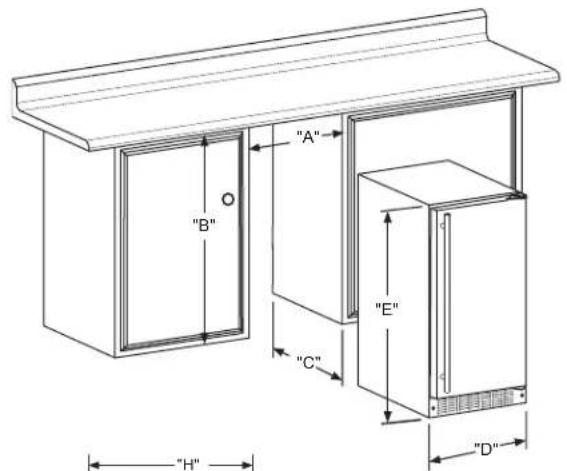

Rough-In Dimensions

A. Rough-In Width 15"
B. Rough-In Height 34" to 35"
C. Rough-In Depth 24"

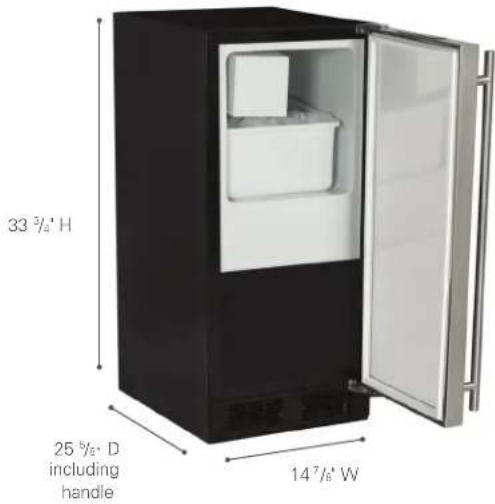

Product Dimensions

D. Width 14 7/8"
E. Height 33 3/4" to 34 3/4"
F. Depth 19 23/32"
G. Depth to Front of Door	Solid Door 21 25/32"
	Overlay Door 21 1/32
H. Depth to Handle 25 7/32" (Stainless Steel)
I. Depth with door at 90°	Solid Door 35 5/8"
	Overlay Door 35 5/8"

Product Features

Interior Cabinet Finish White
Capacity 15 lbs of Ice Storage
Shelving System NA
Shelf Fronts NA
Other Storage Ice Bin
Interior Lighting NA
Toe Grill Finish Black
Hinge	Classic Hinge
Handle	Slim Designer Handle (Panel Overlay Does Not Include Handle)
Control Type	NA
Temperature Range	NA
Lock	No
Electrical Requirements	120V / 60Hz / 15A
Length of Power Cord	6'
Shipping Weight	127 lbs
Finishes	Stainless Steel, Overlay, Black
Vacation Mode	No
Agency Approvals CSA

For comprehensive installation instructions, please visit www.marvelrefrigeration.com to access the owner's guide.
