Product Type	Clear Ice Machine
Brand	Marvel
Model	MP15CP2R
Ice Production	Up to 39 lbs (17.7 kg) daily
Storage Capacity	35 lbs (15.9 kg)
Dimensions (Width x Height x Depth)	14 7/8" x 34"-35" x 21 1/2" (37.8 x 86.4-88.9 x 54.6 cm)
Weight (Shipping)	127 lbs (57.6 kg)
Power Supply	120V / 60Hz / 15A
Interior Lighting	Tri-Color LED (Sapphire Blue, Amber Glow, Arctic White)
Control Type	Marvel Intuit™ Integrated Controls with Touchpad
Door Type	Solid Stainless Steel / Glass Door / Overlay Panel
Hinge	Soft-Close Integrated Hinge (Zero Clearance)
Warranty	3 years parts and labor; 5 years sealed system
Noise Level	Quietest ice machine you can buy
Water Connection	Single-connection water fitting
Drain Pump	Factory installed
Eco Mode	Eco Ice™ saves 25% water and energy
Vacation Mode	Delay Start/Vacation option (1/4/6/8 hour or day intervals)
Cleaning Reminder	Programmed cleaning reminders and audible alerts
Installation	Streamlined componentry; Close Door Assist System™

Frequently Asked Questions - MP15CP2R Marvel

How do I install the Marvel MP15CP2R ice machine?

Installation requires a standard 15" wide cutout. Ensure proper water and drain connections (includes drain pump). Refer to the full installation guide at www.marvelrefrigeration.com for detailed rough-in dimensions and electrical requirements.

How much ice does the MP15CP2R produce per day?

It produces up to 39 lbs (17.7 kg) of clear ice daily, equivalent to nearly eight convenience-store bags of ice.

What is the Illuminice™ feature and how do I change the light color?

Illuminice™ projects waterproof LED light through the clear ice for a dazzling effect. At the touch of a button, you can change the interior light color to sapphire blue, amber glow, or arctic white, with full or half illumination options.

How do I clean and maintain the ice machine?

The interior surface is easy to clean and hygienic. The machine includes programmed cleaning reminders and audible alerts. Refer to the owner's guide for recommended cleaning procedures and intervals.

What is Eco Ice™ mode?

Eco Ice™ mode moderates ice production to conservative usage, saving 25% water (91 gallons monthly) and 25% energy ($45 annually). It can be activated via the touchpad controls.

How does the Delay Start/Vacation mode work?

The Delay Start/Vacation option automatically postpones operation by 1, 4, 6, or 8 hours or days, preventing wasteful water and energy use during vacations or periods of low demand.

Does the ice machine require a drain?

Yes, it includes a factory-installed drain pump. A drain connection is necessary for proper operation.

What are the door finish options available?

The MP15CP2R is available with a solid stainless steel door, a stainless steel frame glass door, or a panel-ready solid overlay door (handle not included). Check ordering codes for hinge side preferences.

What is the warranty coverage?

The ice machine comes with a 3-year parts and labor warranty and a 5-year sealed system parts warranty.

How do I level the ice machine?

The appliance includes adjustable leveling legs and a stainless steel toe kick adjustable to 4". Use a level to ensure proper installation for optimal performance.

USER MANUAL MP15CP2R Marvel

15" Marvel Professional Clear Ice Machine with Tri-Color Illuminice™ Lighting

Model # MP15CP

Performance

• The quietest ice machine you can buy
- New energy-saving options conserve water and energy
- Engineered to consistently produce pure, clear ice with unrivaled clarity, immediate cooling and slower melt
- Its uniform size and compact density prove to be the optimal shape to provide faster cooling, while taking up less space in your glass
- Produces up to 39 pounds of clear ice daily, the equivalent of nearly eight convenience-store bags of ice
- Streamlined componentry and single-connection water fitting for simple installation

Storage Capabilities

• Large-capacity bin stores 35 pounds of clear ice, while preserving quality and assuring fresh ice production
• Sleek scoop design is positioned for easy reach
• Easy-to-clean, hygienic interior surface

Touchpad Controls

• Marvel Intuit™ Integrated Controls feature all-new settings for ultimate programmability
• Eco Ice™ mode moderates ice production to conservative usage, saving 25% water (91 gallons monthly) and 25% energy (\$45 annually)**
• Delay Start/Vacation option automatically postpones operation by 1/4/6/8 (hour or day) intervals, preventing wasteful water and energy use
  • Audible alerts and programmed cleaning reminders

Aesthetics

• New Illuminice™ feature projects waterproof LED light through clear ice for a dazzling illumination effect
• At the touch of a button, change the interior light color to sapphire blue, amber glow, or arctic white
• Two-stage theater-style lighting offers full or half illumination
• Midnight black interior and the first-ever glass door option add drama to the ice presentation, perfect for entertaining
• Soft-close integrated hinge provides a seamless zero clearance installation and a smooth, gentle close
• Finish options: stainless steel (solid or glass door) or overlay (panel ready)*

Additional Convenience

• Includes factory installed drain pump
• Close Door Assist System™ prevents energy loss by automatically drawing door to a gentle close
• Stainless steel toe kick adjustable to 4" with leveling legs
  • 3-year parts and labor warranty, 5-year sealed system parts warranty

Ordering Options

Solid Stainless Steel Door, Integrated Right Hinge, Professional Handle	MP15CPS2RS
Solid Stainless Steel Door, Integrated Left Hinge, Professional Handle	MP15CPS2LS
Stainless Steel Frame Glass Door, Integrated Right Hinge, Professional Handle	MP15CPG2RS
Stainless Steel Frame Glass Door, Integrated Left Hinge, Professional Handle	MP15CPG2LS
Panel-Ready Solid Overlay Door, Integrated Right Hinge (Handle Not Included)*	MP15CPP2RP
Panel-Ready Solid Overlay Door, Integrated Left Hinge (Handle Not Included)*	MP15CPP2LP

*Easy installation! No panel kit required. Consult your cabinet maker for overlay panel and handle options.

Blue-tinted photo of stacked ice cubes with a flag reading 'Built in the USA' in the corner (no other text or symbols)

Finish Options

Stainless Steel Frame

Solid Stainless Steel

Solid Overlay (Panel Ready)*

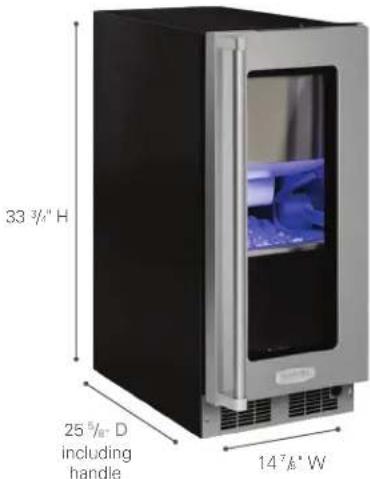

Product Dimensions

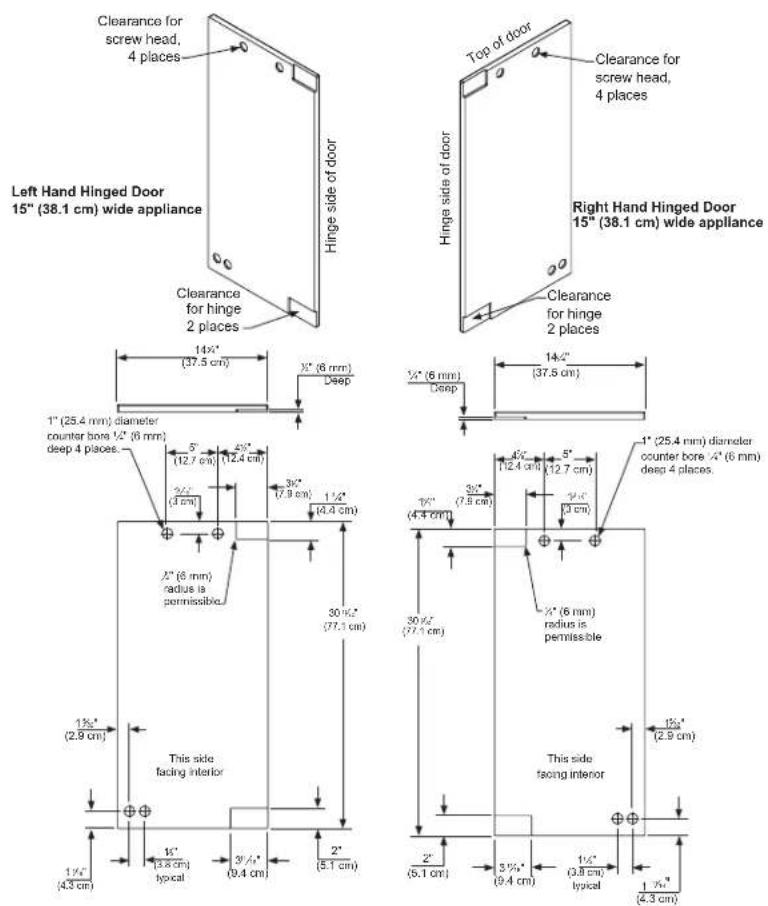

Panel Overlay Dimensions

Left Hand Hinged Door 15" (38.1 cm) wide appliance
Right Hand Hinged Door 15" (38.1 cm) wide appliance

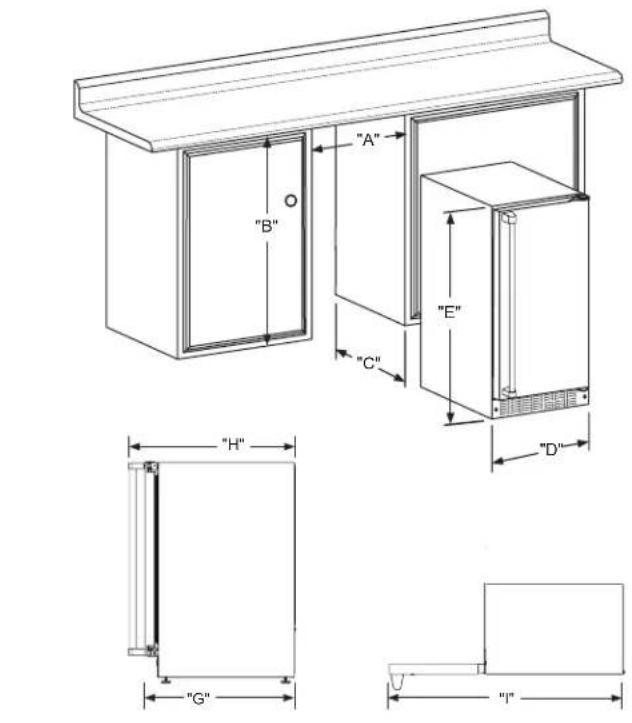

Rough-In Dimensions

A. Rough-In Width 15"
B. Rough-In Height 34 1/4" to 35 1/25"
C. Rough-In Depth 24"

Product Dimensions

D. Width 14 7/8"
E. Height 34" to 35"
F. Depth 21 1/2"
G. Depth to Front of Door	Solid Door 23 23/32"
	Overlay Door	22 7/8" Without Handle
H. Depth to Handle 26 7/32" (Stainless Steel)
I. Depth with door at 90"	Solid Door 37 13/32"
	Overlay Door 37 1/2"

Product Features

Interior Cabinet Finish Black
Capacity Up to 35 lbs of clear ice
Shelving System NA
Shelf Fronts NA
Other Storage Ice Bin
Interior Lighting Tri-Color LED
Toe Grill Finish	Stainless Steel
Hinge	Soft Close Integrated Hinge
Handle	Professional(Panel Overlay Does Not Include Handle)
Control Type	IntuitTM
Temperature Range	NA
Lock	No
Electrical Requirements	120V / 60Hz / 15A
Length of Power Cord	6'
Shipping Weight	127 lbs
Finishes	Stainless Steel, Overlay
Vacation Mode	Yes
Agency Approvals CSA

For comprehensive installation instructions, please visit www.marvelrefrigeration.com to access the owner's guide.
