DH10020KP1WG - Dehumidifier HISENSE - Free user manual and instructions
Find the device manual for free DH10020KP1WG HISENSE in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Dehumidifier |
| Brand | Hisense |
| Model | DH10020KP1WG |
| Capacity | 100 Pints per Day (at 90°F, 90% RH) |
| Dimensions (H x W x D) | 24.6 x 15.2 x 13.5 inches |
| Weight | 48.5 lbs |
| Power Supply | 115V / 60Hz |
| Power Consumption | 780 Watts (approx.) |
| Refrigerant Type | R410A |
| Water Tank Capacity | 2 gallons |
| Noise Level | 56 dB |
| Coverage Area | Up to 4,500 sq. ft. |
| Energy Star Certified | Yes |
| Control Type | Electronic with Digital Display |
| Humidity Setting Range | 30% – 80% RH |
| Fan Speeds | 2 (Low, High) |
| Auto Defrost | Yes |
| Continuous Drain Option | Yes (via standard garden hose) |
| Auto Restart | Yes after power outage |
| Filter Type | Washable, washable mesh |
| Bucket Full Indicator | Yes with auto shutoff |
| Castors | Yes (4 caster wheels) |
| Warranty | 1 year limited (parts and labor) |
Frequently Asked Questions - DH10020KP1WG HISENSE
How do I set the desired humidity level?
Press the Humidity Set button repeatedly to cycle through 30% to 80% RH. The digital display will show the set level.
Can I use continuous drainage without emptying the bucket?

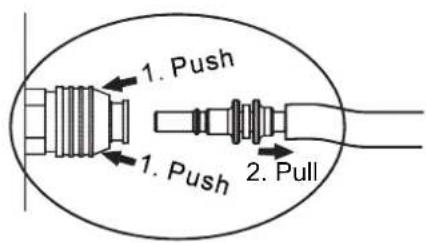

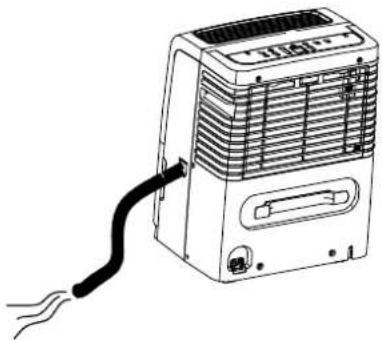

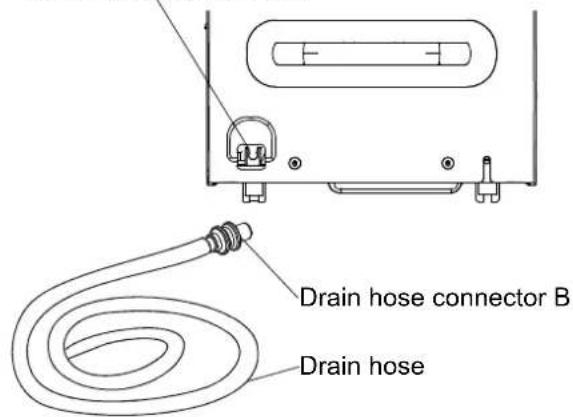

Yes. Attach a standard garden hose (5/8" internal diameter) to the continuous drain outlet on the back. Ensure the hose slopes downward to allow gravity drainage.
How often should I clean the air filter?

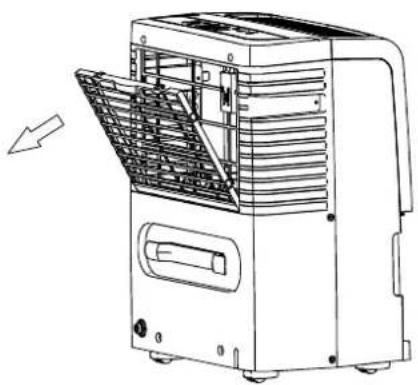

Inspect the filter every 2 weeks and clean when dirty. Remove the filter, vacuum or rinse with warm water, dry thoroughly before reinserting.
What does the 'Bucket Full' indicator mean?
The alarm illuminates and the unit shuts off when the condensate bucket is full. Empty the bucket and replace it securely for the unit to restart.
Why does the dehumidifier sometimes blow warm air?
This is normal. The unit extracts moisture by condensing it over cold coils; heat is exhausted by the fan. The room may feel slightly warmer.
How do I enable auto-defrost?
Auto-defrost is automatic. When frost is detected on the coils, the compressor stops and the fan runs until the frost melts. The unit then resumes normal operation.
What should I do if the dehumidifier displays an error code?
Refer to the manual. Common codes: E1 (humidity sensor error), E2 (coil temperature sensor error). Unplug for 5 minutes and restart; if persists, contact support.
Can I use an extension cord?
Avoid extension cords. If necessary, use a heavy-duty cord (14 AWG or thicker) rated for at least 10 amps and keep it as short as possible.
How much power does the DH10020KP1WG consume?
Approximately 780 watts on normal operation. This may vary based on humidity and fan speed. It is Energy Star certified.
Is the dehumidifier portable?
Yes. It has four caster wheels for easy movement across floors. The weight is about 48.5 lbs, so it can be moved by one person.
