Brand	Pantech
Model	Impact P7000
Product Type	Smartphone
Design	Clamshell with QWERTY keypad
Internal Display	2.6" TFT LCD, 260k colors, 400x240 pixels
External Keypad	Touch keypad (external)
Camera	2.0 MP CMOS, up to 1600x1200 resolution
Video Recording	MPEG4 up to 15 fps at QVGA size
Audio Playback	MP3, AAC, AAC+, WMA, MIDI, AMR, WAV
Network	GSM/GPRS/EDGE 850/900/1800/1900 MHz, UMTS/HSDPA 850/1900/2100 MHz
Battery	Li-Ion 930 mAh
Standby Time	Up to 250 hours
Talk Time	Up to 3 hours
Dimensions	106.5 x 51.8 x 17.7 mm (4.19 x 2.04 x 0.7 in)
Weight	127.3 g (4.49 oz) with standard battery
Memory Card	microSD
Bluetooth	Yes
USB	Yes
PC Suite	Yes (downloadable)
Video Share	Yes (requires 3G)
Mobile Web	Yes
Messaging	SMS, MMS, Email, IM
SAR Value	Compliant with FCC standards
Maintenance	Clean with dry cloth; avoid moisture and extreme temperatures
Safety	Switch off in restricted areas; use authorized accessories
Repairability	Battery is removable; refer to authorized service centers

Frequently Asked Questions - Impact P7000 PANTECH

How do I insert the SIM card and battery?

Turn off the phone and remove the battery cover. Insert the SIM card into the slot with gold contacts facing down. Then insert the battery, aligning the contacts, and press until it clicks. Replace the cover.

How do I use the QWERTY keyboard for typing?

Open the flip to access the QWERTY keyboard. Use the Shift key for uppercase, Fn key for numbers and symbols, and Space key for spaces. The Sym key opens the symbol table.

How can I set up the alarm clock?

Go to Menu > My Stuff > Tools > Alarm Clock. Press Create New, then set the cycle, time, alarm sound, alert type, volume, snooze, and power alarm. Press Save.

How do I take a picture with the camera?

Press the Camera key or go to Menu > My Stuff > Tools > Camera. Focus on the subject and press OK or Capture. The photo is saved automatically to My Stuff > Picture.

How do I connect to Bluetooth devices?

Go to Menu > Settings > Connectivity > Bluetooth. Turn on Bluetooth and set visibility to Show. Then search for devices, select the device, and enter the password to pair. You can send or receive files.

How do I adjust the ringtone volume?

In standby mode, press the Volume Up/Down side keys to adjust ringtone volume. To change the profile, go to Menu > Settings > Profiles and select Normal, Vibrate only, or Silent.

How can I lock the keypad?

Press the Hold key on the right side of the phone to lock the touch screen or external keypad. Press it again to unlock. You can also set auto key lock in Menu > Settings > Security > External Auto Key Lock.

How do I send a multimedia message?

Go to Menu > Messaging > Create Message. Enter text, then press Insert to add pictures, sound, video, or other files. You can also take a new picture. Press Send to and enter the recipient.

How do I update the software?

Go to Menu > Settings > Software > Software Update. Press Check for Update and confirm. If an update is available, download it. You can choose to update now or later (30 min, 1 hour, 4 hours).

What should I do if the phone does not turn on?

First, ensure the battery is charged. Connect the charger and try turning it on. If it still doesn't work, perform a Master Reset (Menu > Settings > Reset, password 1234). If the problem persists, contact customer support.

USER MANUAL Impact P7000 PANTECH

© 2009 AT&T Intellectual Property, as employees subsidiaries x alliades

PANTECH IMPACT

User Guide

at&t

Some of the contents in this manual may differ from your phone

depending on the software of the phone by your service provider © 2009 AT&T Intellectual Property. All rights reserved. Subsidiaries and

affiliates of AT&T Inc. provide products and services under the AT&T brand

Your phone is designed to make it easy for you to access a wide variety of content. For your protection, we want you to be aware that some applications that you enable may involve the location of your phone being shared. For applications available through AT&T, we offer privacy controls that let you decide how an application may use the location of your phone and other phones on your account. However, the AT&T privacy tools do not apply to applications available outside of AT&T. Please review the terms and conditions and the associated privacy policy for each location-based service to learn how location information will be used and protected. In addition, your AT&T phone may be used to access the internet and to download, and/or purchase goods, applications, and services from AT&T or elsewhere from third parties. AT&T provides tools for you to control access to the Internet and certain Internet content. These controls may not be available for certain devices which bypass AT&T controls.

IMPACT USER MANUAL

Thank you for choosing the Pantech IMPACT, our latest 3G mobile phone.

The Pantech IMPACT has many features designed to enhance your mobile experience. From its unique, stylish design and QWERTY keypad, we know you will enjoy the entire IMPACT experience.

This User Guide contains important and useful information that will maximize your familiarity with all that the Pantech IMPACT has to offer.

Specifications

Design

Clamshell with QWERTY keypad

Displays

• 260k colors TFT LCD with 2.6" internal display
• 400*240 resolution
• 5 lines for text in basic mode with 16-point font
• Two soft keys and four-way scroll and selection OK keys

Melodies

MIDI, i -Melody, MP3, AMR, WAV, AAC, AAC+, WMA

Camera

Integrated 2.0M CMOS Camera

• Resolution up to 1600 x 1200 (1,920,000 pixels)
- Mpeg4 Video recording/playing up to 15f/s(QVGA size)
• Self-timer function (5 seconds or 10 seconds)
• Photo album and video album

Dimensions & Weight

• Weight: 127.3g/4.49oz (with standard battery)
- Dimensions: 106.5 mm x 51.8 mm x 17.7 mm 4.19" x 2.04" x 0.7"

Power Management (Performance)

Battery Type	Capacity Standby	Time Talk Time
Standard Lithium-Ion (Li-ion)	Up to 930 mAh	Up to 250 hours	Up to 3 hours

Operating Frequency

• GSM/GPRS/EDGE 850/900/1800/1900 MHz, UMTS/HSDPA 850/1900/2100 MHz networks in North America, South America, Europe, Africa and Asia-Pacific where these networks are supported.
  • Automatic band switching.

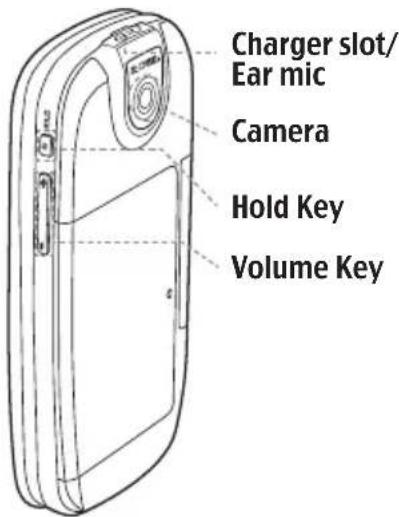

Phone overview

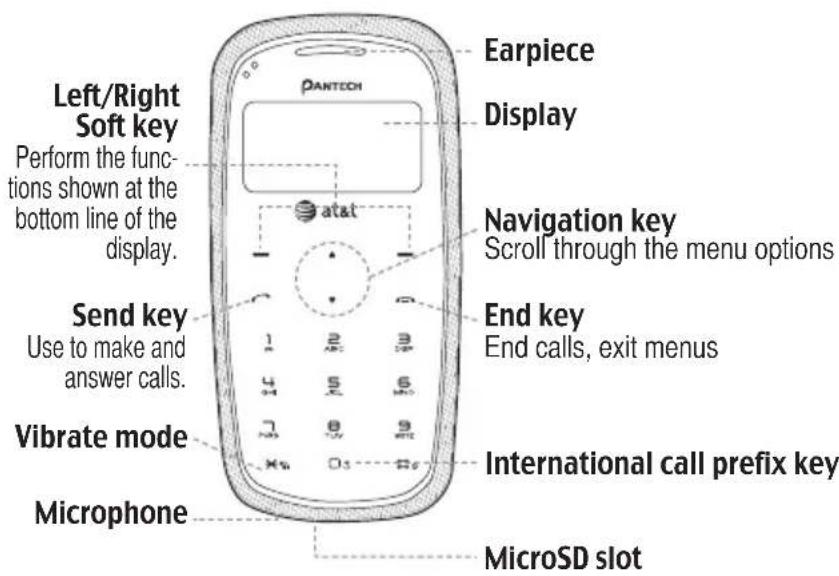

Number pad view

note: Holding the device by the internal antenna area might affect the quality of all calls.

QWERTY keyboard view

Left/Right Soft key

Perform the functions shown at the bottom line of the display

Camera key

CAPS/Shift key

To type a single uppercase letter, press this key then a letter

Function key

To enter a number or a symbol, press the function key, and press the corresponding key

Profiles Key

Multi Tasking key
Space key
Press to enter a space

Massage Key

IM Key

Contacts Key

Send / OK / End key

Press to delete a number or letter

Navigation key

Scroll through the menu option

Navigation center key

Select or access Mobile Web

Enter key

Press to create new line while writing a message

Delete key or access the calendar menu

Press to delete a number or letter

Symbol Key

note: To use the QWERTY keyboard hold the phone horizontally and open the flip, then the external keypad is automatically locked.

Using shortcuts on the internal keypad

Numbered menu items, such as menus, sub-menus, and options can be quickly accessed by using their shortcut numbers. In Menu mode, Main Menus can be accessed by pressing the number keys (1 to 0, ✗, [☐]) corresponding to their location on the screen.

Example: Accessing the Language menu.

1. Press the Menu.
2. Press the ☐ for Settings.
3. Press the ☐ for Phone.
4. Press the ☐ for Language.
5. PressSelect for Screen Text or Predictive.
6. Press the ▲ or ▼ scroll key to display the list of available languages.

Menu overview

Mobile Email

Messaging

Conversations

Create Message

Mobile Email

IM

Outbox

Drafts

Voice Mail

Settings

Templates

Used Space

Address Book

Contacts

Add Contact

Speed Dial

Groups

My Business Card

Memory in Use

My Phone Number

Used Space

Service Numbers\$

FDN List

AT&T Music

Music Player

Shop Music

MusicID

XM Radio

Music Videos

Make-UR-Tones

Community

Music Apps

YPmobile

My Stuff

Applications

Audio

Games


Video

Tools

Other Files

Used Space

Mobile Web

AppCenter AT&T GPS

AT&T Navigator

Where

AllSport GPS Platinum

Shop GPS Apps

Settings

Profiles

Display

Call

Phone

Network Connections

Network ^n

Connectivity

Security\$

Software

Reset

TTY

Quick & easy

Keys Functions

	External touch Keypad Lock/Unlock
	Perform the functions shown at the bottom line of the display by using these soft keys.
	Scroll through the menu options in Menu mode.
	Send or receive a call. Show the recent call list in standby mode.
	Complete the current call.Cancel user input and return to main screen while in Menu mode.
	Enter numbers, letters or special characters. Go to the dial screen if pressed in standby mode.
	Enter or exit from vibrate mode if pressed and held in standby mode.Show the symbol input screen if pressed in text input mode.
	Enter an international dialing prefix if pressed and held in standby mode.Enter the space character in text input mode.

Keys Functions

Adjust the earpiece volume while making a call.

Control the Ringtone volume, vibrate mode and silent all mode in standby.

Mute the ringtone of an incoming call.

Contents

Specifications....2

Phone overview 3

Using shortcuts on the internal

keypad....5

Menu overview ....5

Quick & easy 8

1. Getting Started

SIM card and battery ....14

Turn phone on/off 15

Locking the touch screen .....15

Essential display indications .....16

Memory card....17

Assigning the menu .....18

Updating software ....

Using the QWERTY key pad .....19

PC suite 20

Using the multitask menu .....20

AppCenter

2. Calls and address book

Making, receiving and ending a call ....24

Using video share 26

Options during a call 28

Call settings 29

Settings for video share ....30

Checking all calls 30

Speed dialing 32

Using the address book ....32

Caller identification 34

Using your headset 34

18Service numbers and fixed dialing....34

.3. Messaging

Entering text 38

Messaging 40

Receiving messages 40

Creating and sending text messages....42

Creating multimedia messages .....42

Message templates 44

Message settings 44

Voice message setting 45

Email 45

Using instant messenger .....45

4. Multimedia

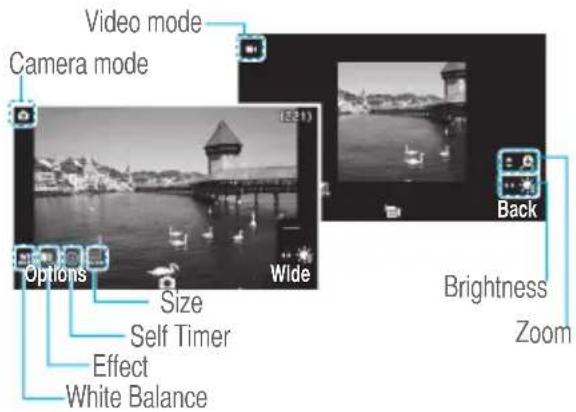

Camera 50

Photo album 53

Video album....54

Audio album....55

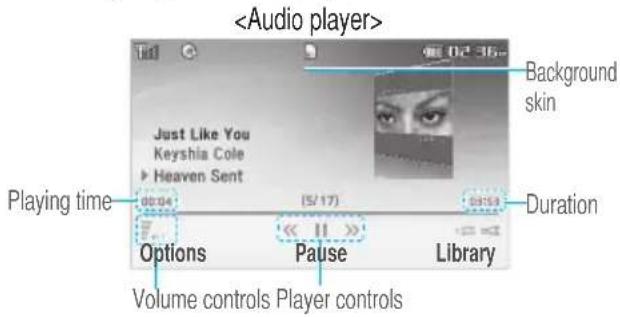

Music Player

Music player settings ....59

Media player

Other files

Managing memory ....

Playing games 61

5. Useful Features

Alarm 64

Calendar 64

Notepad and voice memo ......65

World time 66

Calculator, tip calculator and converter 66

Stop watch and timer ....67

Business card 67

Memory information 68

6. Connectivity

Bluetooth 72

Using the Mobile Web 73

Using the browser 73

Profile settings

7. Settings

Language....78

Time and date 78

Touch sense level 78

Transition Effect....78

Ringtones 78

Decorating the display .....79

Locks 79

To enable fixed dialing .....80

Reset 80

TTY 81

8. Appendix

Alert message....84

Troubleshooting checklist 84

Safety information 85

.7\$afety precautions 85

About the battery usage 86

FCC Hearing-Aid Compatibility

(HAC) Regulations for Wireless

Devices......87

FCC Regulatory Compliance .....88

Warranty 89

IMPACT

1

Blue line drawing of a Dantech phone with keypad and buttons (no text or symbols)

Getting Started

Calls and address book

Messaging

Multimedia

Useful Features

Connectivity

Settings

Appendix

01

02

03

04

05

06

07

08

Getting Started

SIM card and battery

About your SIM card

When you subscribe to your network operator, you receive a SIM (Subscriber Identity Module) card containing your registration information, PIN code, etc. Like a credit card, it should be kept secure and handled carefully. Do not bend, scratch or expose it to moisture. Avoid static electricity. To avoid corrupting your SIM card's memory, always switch off your phone before removing or inserting your SIM card.

About your battery

Your phone uses a Li-Ion battery. Make sure to use an authorized battery and charger only. For more details, please inquire at your nearest dealer.

note: Your phone is powered by a Lithium Ion (Li-Ion) battery. Unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your phone's autonomy due to the "battery memory effect" inherent in those technologies.

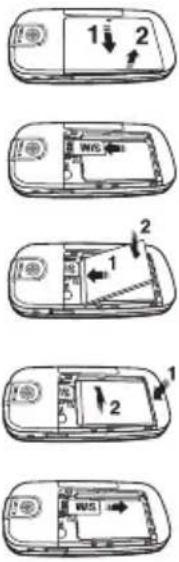

Installing/removing SIM card and battery

1. Remove the battery cover from the unit. To fit the battery cover, put it on the guide rail and push up.
2. Insert the SIM card into the slot. The gold contacts of the SIM card should go against the metal contacts of the phone. Put the contacts of the battery into the hole located at the bottom of the unit insert and press the upper side of the battery until you hear the "click".
3. To remove the battery push the bottom of the battery to upwards(1) and remove(2) the battery. Push the SIM card in the direction of the arrow as shown.

To charge your battery

1. To charge, open the protective cover on the top right side and connect the charger adapter.

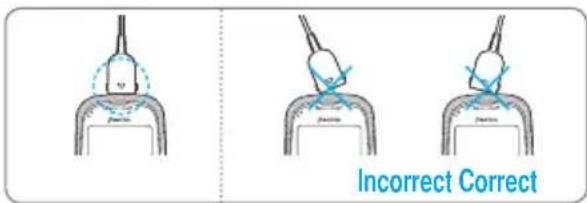

Make sure you align the connector as the image. If not, it will damage the charging connector on the phone and will not charge.

1. To remove the adapter connection press the adapter's side buttons(1) and pull the adapter away(2).

Turn phone on/off

To turn on

1. Press and hold 📞.

To turn off

1. Press and hold 📞.

Locking the touch screen

Locking the keypad

1. Press Hold Key (on the right side of the phone) to lock. note: To avoid accidental key presses, always lock your keypad,

Unlocking the keypad

1. Press Hold Key ☐ (on the right side of the phone) to unlock.

Essential display indications

Using the External Keypad

	Signal strength. The greater the number of bars, the stronger the signal. When network is in searching mode is displayed.
	Incoming calls set to ring only (Normal)
	Incoming calls set to Vibrate and Ring
	Incoming calls set to Vibrate Only
	Incoming calls set to Silent
	Flight Mode is active
	Received one or more text messages
	Received one or more multimedia messages
	Received one or more WAP push messages
	Received one or more configuration messages
	Received one or more voice messages
	A message is being sent
	A message is being received
	A GPRS signal is available. It is displayed when there is an active GPRS session

E	An EDGE signal is available. It is displayed when there is an active EDGE session
E3G	A 3G signal is available. It is displayed when there is an active 3G session
	Battery strengthWhen the battery charge is low, is displayed

Using the Internal Keypad

Tall	Signal strength. The greater the number of bars, the stronger the signal. When network is in searching mode is displayed
	A call is being made. When you are in no service area is displayed
	Call forwarding ^n is active
	Incoming calls set to ring only (Normal)
	Incoming calls set toVibrate and Ring
	Incoming calls set toVibrate Only
	Incoming calls set toSilent
	Flight Modeis active
	Received one or more text messages
	Received one or more multimedia messages
	Received one or more WAP push messages
	Received one or more configuration messages
	Received one or more voice messages
	A message is being sent
	A message is being received
	An alarm is set
	Bluetooth is active
	Headset is connected
	USB is connected
	TTY is active
	A GPRS signal is available. It is displayed when there is an active GPRS session
	An EDGE signal is available. It is displayed when there is an active EDGE session
	A 3G signal is available. It is displayed when there is an active 3G session
	WAP is connected. When the security is set is displayedWhen the contents download is in progress, is displayed
	Battery strengthWhen the battery charge is low, is displayed
	Available, Away, Invisible Status of AIM

	Online, Away, Busy, Offline Status of MSN
	Available, Busy, Invisible Status of YAHOO
	You have received one or more IM messages

^n Network dependent

Memory card

You can use microSD card as a memory card. It gives you more space to save pictures, videos, music, etc.

Inserting and removing the memory card

1. Open the memory card slot.
2. Insert the card. The "Icon will be display."
3. Press the card to remove.

Using memory card

You can save, move and delete the files between your phone and external memory card. You can also move and copy the files to computer from your phone.

Getting Started

Resetting the card

1. Press Menu > Settings > Reset.
2. Enter the password > External Memory Reset.

note: The default password is '1234'.

To copy the file to the card

1. Select the file > Options > Copy to External Memory.
2. To copy the file back to phone, press Options > Copy to Phone.

To move the file to the card

1. Select the file > Options > Move to External Memory.
2. To move the file back to phone, press Options > Move to Phone.

To delete the file from the card

1. Select the file from the card > Options > Delete.

To move the file from the card to the computer

1. Connect the data cable with mobile and the computer.

2. Press Menu > Settings > Connectivity.

3. Press Select USB Mode.

4. Select Music Player, Mass Storage or Ask on Connection.
5. Follow the instruction on your computer screen.

note: Select Music Player when you want to add music to the playlist in your device. When you select Ask on Connection, it will ask you to select either the Music Player or Mass Storage every time you connect your device with your computer.

Assigning the menu

You can set the most commonly used menu in Options in standby mode.

1. Press Shortcuts in standby mode > select Unassigned.
2. Press Add.
3. Select the menu and sub menu.

note: You can assign up to 12 Shortcuts.

Updating software

You can update your software without visiting your nearest dealer.

To update the software

1. Press Menu > Settings > Software > Software Update.
2. Press Check for Update > Yes to check whether or not you need to update the software.

note: After downloading the software, the device will ask you whether to update the software now or later. If you choose to update the software now, it will restart the handset. If you postpone updating the software, you can select between 30 mins, 1 hour or 4 hours in the Options. After selecting the updating time, you will be sent back to standby mode. If you go to Software Update while you are in postponing, press Continue Update.

To view the version of software

1. Press Menu > Settings > Software.
2. Press Phone Information and scroll down to Software Version.

Using the QWERTY key pad

Your phone has QWERTY keypad which provides a superior typing experience on a small handheld for easy and comfortable texting. You can use all of the phone functions with the QWERTY keypad opened.

Key Function
	Perform the functions shown at the bottom line of the display by using these soft keys.
	Enter characters, symbols or numbers.Press and hold to enter special symbols or numbers.
	Press to change ab Ab AB at the text editing screen.Multi-tap abc Abc ABC ab Ab Ab AB 123 (all small caps / first letter caps / all caps).
	Delete a character to the left of the text cursor in text editing screen.Press to access the Calendar menu.
	Insert a carriage return in text input mode.
	Press to change type to alphabet, special character and number, special character and number on lock, at the applicable key pad.
	Press and hold for about 3 second to activate Vibrate Mode.
	Press to access the Multitask menu.
	Enter the space character in text input mode.
	Press to access the Contact List.
	Press to access Instant Messaging.
	Press to access the Messaging.
	Enter a special character that is not placed on the keypad.

PC suite

PC suite is a Windows-based PC program that allows you to easily manage personal data and multimedia files by connecting your Phone to a PC. The PC suite application can be downloaded at http://www.pantechusa.com/.

System requirements

Microsoft Windows 2000 or XP family and VISTA 32bit.

At least 300MB of free disk space.

Interface devices such as USB and Bluetooth for the connection with the Phone.

PC suite features

• PC Suite Launcher
- Connection Manager

• Contact Manager
• Message Manager
• PC Sync
• File Manager
• Image Editor
• Video Editor
• MMS Composer
• Internet Access

Using the multitask menu

Press the Multitask key ☐ to launch the Multitask menu that can be activated from within any active window or page on the phone. There is no need to stop what you are doing, if you quickly want to jump out and activate another common feature. The idea is to allow you to temporarily exit from your current location to access a group of common functions such as: Call, Messaging, Mobile Web, Music player and Games & Apps. This key keeps you from having to completely exit from your current task or window, whether that be a text message, a web page, or an active call, quickly do something else.

Multitask functions

To using multitask function, press the Multitasking key on the QWERT Keypad. You can choose from one of the following function:

• Call: Make a voice call while using the handset for other tasks. If Music Player is active, it is muted during the call.
• Messaging: Send a text or multimedia message while using the handset for other tasks.
• MobileWeb: Launch the browser while using the handset for other tasks.
• MusicPlayer: Launch the Music Player while using the handset for other tasks. If an incoming call is received or you want to make a call, the Music Player is muted.
• New Games & Apps: Access Games and Applications while using the handset for other tasks.

AppCenter

AppCenter

1. Press Menu > AppCenter.

Shopping Applications

1. Press Menu > My Stuff > Applications > Shop Applications.

Shopping Tones

1. Press Menu > My Stuff > Audio > Shop Tones.
2. Press Menu > My Stuff > Audio > Answer Tones.

Shopping Games

1. Press Menu > My Stuff > Games > Shop Games.

Shopping Graphics

1. Press Menu > My Stuff > Picture > Shop Graphics.

Shopping Videos

1. Press Menu > My Stuff > Video > Shop Videos.

Shopping Music

1. Press Menu > AT&T Music > Shop Music.

Getting Started

IMPACT

2

Blue line drawings of various phone models including a Dantech keypad and two others, with no visible text or symbols.

Getting Started

Calls and address book

Messaging

Multimedia

Useful Features

Connectivity

Settings

Appendix

01

02

03

04

05

06

07

08

Calls and address book

Making, receiving and ending a call

Using the External Keypad

To unlock touch keypad, press and hold the Hold Key 📄 on the right side of the phone.

Making a call

1. Tap the area code and phone number.
2. Tap 🔍 key.

Answering a call

1. Tap ☐.

Ending a call

1. Tap ☐.

Once the call is complete, a call summary is displayed.

Rejecting a call

1. Tap 📄 or Ignore.

Making a call using call list

Your phone logs up to 20 dialed, received and missed call numbers.

1. Tap Menu > Recent Calls.
2. Select a number to call by tapping the ▲/▼ key.
3. Tap ↻ to dial the selected number.

note: To redial the last number in the Recent Calls list, tap 📞.

Making a call during a call

1. Tap the phone number or look it up in Address Book.
2. Tap ☐ to dial the second call. The first call is automatically put on hold.

Switching between two calls

1. Press Option > Swap.

Making an international call

1. Tap and hold ☐± key for the international prefix until the '+' character appears.
2. Type the country code, area code, and phone number.
3. Tap ↻.

Making an emergency call

You can make emergency calls even if your phone does not have a SIM card.

1. Tap Emergency Number, or press SOS if your phone does not have a SIM card.
2. Tap ↻.

Replying to a missed call

1. Tap View to display the list of missed calls.
2. Select a number to call by tapping the ▲▼ key.
3. Tap ↻.

Answering a second call ^n

1. Tap Option > Swap. The first call is automatically put on hold.
2. Tap ↻.
3. Tap Option > End to end the second call.

The call on hold is automatically reconnected.

note: When you open the folder during call, it will automatically switch to speaker phone.

Using the Internal Keypad

Making a call

1. Enter the area code and phone number.
2. Press ☐ key.

Answering a call

1. Press ☐.

Ending a call

1. Press 📞.

Once the call is complete, a call summary is displayed.

note: When you close the folder during speaker phone call, it will automatically switch to normal call.

Rejecting a call

1. Press 📞 or Ignore.

Making a call using call list

Your phone logs up to 20 dialed, received and missed call numbers.

1. Press 🔍 to display the Recent Calls list.
2. Select All Calls, Missed Calls, Received Calls, Dialed

Calls & address book

Calls or Call Ranking, pressing the ◀/▶.

1. Select a number.
2. Press ☐ to dial the selected number.

note: To redial the last number in the Recent Calls list, press 📞.

Making a call during a call

1. Enter the phone number or look it up in Address Book.
2. Press ☐ to dial the second call. The first call is automatically put on hold.

Switching between two calls

1. Press Swap.

Making an international call

1. Press and hold 'key' for the international prefix until the '+' character appears.
2. Type the country code, area code, and phone number.
3. Press ☐.

Making an emergency call

You can make emergency calls even if your phone does not have a SIM card.

1. Press Emergency Number, or press SOS if your phone does not have a SIM card.
2. Press ☐.

Replying to a missed call

1. Press View to display the list of missed calls.
2. Select a number to call by pressing the ▲/▼ key.
3. Press ☐.

Answering a second call ^n

1. Press ☐. The first call is automatically put on hold.
2. Press ☐ to end the second call.

The call on hold is automatically reconnected.

Using video share

You can share live or recorded video while on a call. You can send or receive video.

note: Video Share is not available in all markets. Both parties must be in a 3G service area—a 3G icon must appear by the signal bars prior to a call being placed, and both

parties must remain in the 3G coverage area for the duration of the Video Share.

Making video share call

1. Enter the area code and phone number > ☐.
2. Press Options > Video Share.
3. Select Live or Recorded.

note: To use video share in the Recent Calls, press Options >Video Share.

Turning off the speakerphone

1. Press OK or press Options > Speakerphone Off during video share mode.
2. Press Options > Mute to mute the sound.

Increasing or decreasing the brightness

1. Press Options > Brightness.
2. Adjust the brightness by pressing ◀/▶.

Zoom in and out

1. Press Options > Zoom. It ranges from x1 to x3.

Stopping the recording

1. Press Options > Stop Record.

For details on setting for automatic recording, see page 30.

Stopping or ending video share

1. Press Stop to end the video share.
2. It will ask you whether you will stop video share > Yes to stop.

note: Even you end video share or close the folder, the call will not be ended. Press ☐ to end the call. The recorded video will be saved in My Stuff > Video.

Receiving video share

1. After receiving video share, it will ask you whether to accept or reject the video share > Yes to accept and No for reject.

2. Press Options > Full Screen to enlarge the video to fill the entire screen.

note: When the fl ip is closed, open the fl ip to accept or tap Reject to reject video share.

Options during a call

Microphone off and on

Switching your phone's microphone off

1. Press Options > Mute [ ✉].

Switching your phone's microphone back on

1. Press Options > Unmute.

Talking on speaker

1. Press Speaker Phone [ ]

Putting a call on hold and returning ^n

Putting a call on hold

1. Press Options > Hold or press ↗.

Returning to a held call

1. Press Options > Unhold or press 📄 again.

Multi-party calls ^®

You can talk with more than one person or have conference call.

Making a multi-party call

1. Call the first participant.
2. Call the second participant. The first call is automatically put on hold.
3. Press Options > Join.

Having a private conversation with one participant

1. Press Options > Split.
2. Press OK.
3. Select the participant and press OK.

All of the multi-party call participants can now hear each other.

Removing one participant from a multi-party call

1. Press Options > End.
2. Select the participant and press OK.

The call ends with that participant, but you can continue to talk to the other participants.

Searching for a number in the address book during a call

1. Press ▼ or press Options > View Contacts.
2. Select a number > ☐.

Searching for a name or group in the address book

Enter the first letters of the name for Name Search. The entries are displayed starting with the first entry matching your input.

Finding a name manually in the address book

1. Press the ▲▼ key.

Viewing the details of the highlighted entry in the address book

1. Press OK.

For details on address book, see page 32.

Reading a message during a call

1. Press Options > View Message.
2. Select a message > OK.

Viewing calendar during a call

1. Press Options > View Calendar.

Writing a notepad during a call

1. Press Options > Notepad.

Voice recording

1. Press Options > Voice Recording.

Setting DTMF

1. Press Options > DTMF On or Off.

Call settings

Setting auto redial

1. Press Menu > Settings > Call > Auto Redial.
2. Select On or Off.

Answering by pressing any key

1. Press Menu > Settings > Call > Any Key Answer.
2. Select Answer with Any Key.

note: You can answer with any key except ☐ and Ignore.

Answering by pressing send key

1. Press Menu > Settings > Call > Any Key Answer.

Calls & address book

1. Select Answer with Send Key.

Settings for video share

Turning the alert on/ off

1. Press Menu > Settings > Call > Video Share.
2. Press Alerts.
3. Select On or Off > Select.

Setting for automatic recording

1. Press Menu > Settings > Call > Video Share.
2. Press Auto Record.
3. Select On or Off > Select.

Setting for service

1. Press Menu > Settings > Call > Video Share.
2. Press Service.
3. Select On or Off > Select.

note: Turn your phone off and back on again.

Setting for profile

1. Press Menu > Settings > Call > Video Share.
2. Press Profile.
3. Select AT&T IMS or Mobile Web > Select.

note: This menu can be activated on the video share service mode.

Setting recording location

1. Press Menu > Settings > Call > Video Share.
2. Press Recording Location.
3. Select Phone Memory or External Memory > Select.

Checking all calls

You can view information about all Recent Calls. For more options for all, missed, received and dialed calls press

Shortcut in internal keypad.

You can also view the call history simply by pressing 📞.

Using the External Keypad

Viewing all missed, received and dialed calls

1. Tap Menu > Recent Calls > OK.

Using the Internal Keypad

Viewing missed calls

1. Press Shortcut > Recent Calls in standby mode or press Menu > My Stuff > Tools.
2. Press Recent Calls > Missed Calls.

Viewing received calls

1. Press Shortcut > Recent Calls in standby mode or press Menu > My Stuff > Tools.
2. Press Recent Calls > Received Calls.

Viewing dialed calls

1. Press Shortcut > Recent Calls in standby mode or press Menu > My Stuff > Tools.
2. Press Recent Calls > Dialed Calls.

Viewing call ranking

1. Press Shortcut > Recent Calls in standby mode or press Menu > My Stuff > Tools.
2. Press Recent Calls > Call Ranking.

Deleting call logs

1. Press Shortcut > Recent Calls in standby mode or press Menu > My Stuff > Tools.
2. Press Recent Calls > Delete Call Logs.
3. Select All Calls > Yes.

Viewing call time

1. Press Shortcut > Recent Calls in standby mode or press Menu > My Stuff > Tools.
2. Press Recent Calls > Call Time.
3. Press ▲/▼ to view Last Call, Received Calls, Dialed Calls and Total Calls.

Resetting all call times

1. Press Shortcut > Recent Calls in standby mode or press Menu > My Stuff > Tools.
2. Press Recent Calls > Call Time.
3. Press Reset > Yes.
4. Enter password > OK.

note: The default password is '1234'.

Viewing data transmitted information

1. Press Shortcut > Recent Calls in standby mode or press Menu > My Stuff > Tools.

2. Press Recent Calls > Packet Counter.

3. Current Info: You can view transmitted data in the current session, in Kbytes. Sent, Received, Total and Duration information are also available.

4. Last Info: You can view Sent, Received, Total and Duration information of the previous session's transmitted in Kbytes.
5. Total Info: You can view all the Sent, Received, Total and Duration transmitted data in Kbytes.
6. Clear Logs: The default password is '1234'.

Speed dialing

You can dial quickly using speed dialing. Up to 8 phone numbers can be programmed using numbers 2 to 9.

Using the External Keypad

1 : Voice mail
☐± : Prefix for international call

Using the Internal Keypad

^8 : Voice mail
: Prefix for international call

Setting speed dial

1. Press Menu > Address Book > Speed Dial.
2. Select an empty entry and press Add.
3. Select a person and press OK or Select.

Changing speed dialing person

1. Press Menu > Address Book > Speed Dial.
2. Select a number > OK or Change.
3. Select a person > OK or Select.

Removing from speed dial

1. Press Menu > Address Book > Speed Dial.
2. Select a number > Delete.

Using the address book

You can save names, phone numbers, and information on the SIM or phone. Entries can depend on the capacity of the SIM card.

Using the External Keypad

To unlock touch keypad, press and hold the Hold Key 📄 on the right side of the phone.

Viewing the contact list

1. Tap Menu > Address Book.

Searching for a phone number

1. Tap Menu > Address Book.
2. Input the first letter or two of the person's name and scroll with ▲/▼.

Calling from the contact list

1. Tap Menu > Address Book.
2. Select a number to call by tapping the ▲/▼ key.
3. Tap

Using the Internal Keypad

Viewing the contact list

1. Press ▼ or press Menu > Address Book > Contacts.

Searching for a phone number

1. Press ▼ or press Menu > Address Book > Contacts.
2. Input the first letter or two of the person's name and scroll with ▲/▼.
3. Press OK to view the detailed information.
4. To update information, press Options > Edit.

Calling from the contact list

1. Press ▼ or press Menu > Address Book > Contacts.
2. Select a person to call.
3. Press ☐.

Forwarding contact details

1. Press ▼ or press Menu > Address Book > Contacts.
2. Select a contact > Options > Send This Card.
3. You can send the information using Multimedia Message or Bluetooth.

Deleting a contact

1. Press ▼ or press Menu > Address Book > Contacts.
2. Select a contact > Options > Delete.

Adding a contact

1. Press Menu > Address Book > Add Contact.
2. Select Phone or SIM.
3. Input the fields.
4. Press OK or Save.

Making groups

1. Press Menu > Address Book > Groups.
2. You can select Phone Groups or SIM Groups. There will be defaulted groups.
3. To add new group, press Options > Add Group.
4. To edit group press, Edit Group. You can also set a specific ringtone by selecting Ringtone > OK > select the ringtone.
5. To delete group press, Delete Group.

Caller identification

Caller identification ^n

1. Press Menu > Settings > Call > Display My Number.
2. Select Network Default, Show or Hide > Select.

Using your headset

You can send or receive a call using your headset.

When you connect your headset to the jack the button on the headset works as follows.

note: You need to use the headset designed for this device, and it is optional item. Also not every headset has a button.

While in standby mode

1. Press the button once to list recent calls.
2. Press the button twice to redial the last call.

While the phone is closed

1. Press the button once to receive a call.
2. Press the button once to end the call.

Service numbers and fixed dialing

Calling your service numbers\$

You can see the service number to reach the service provider.

1. Press Menu > Address Book > Service Numbers.
2. Select a number > press 📞.

Viewing the fixed dialing list

Fixed dialing is a service that limits your access to specific numbers in the address book list recorded on the SIM. Input the PIN2 to set up or cancel this service.

1. Press Menu > Address Book > FDN List.
2. Select a number > press ☐.

note: PIN2 must be correctly entered within 3 attempts. If you input the incorrect code three times in a row the PIN2 code will be blocked. If the PIN2 code is blocked please contact your service provider. PIN2 code supplied with the SIM card.

01

02

03

04

05

06

07

08

IMPACT

3

Blue line drawing of a vintage mobile phone with control panel and keypad (no text or symbols)

Getting Started

Calls and address book

Messaging

Multimedia

Useful Features

Connectivity

Settings

Appendix

01

02

03

04

05

06

07

08

Messaging

Entering text

Messaging

Receiving messages

Creating and sending text messages

Creating multimedia messages

Message templates

Message settings

Voice message setting

Email

Using instant messenger

Entering text

You can enter text with multi-tap, predictive, numeric or symbol.

Useful keys

Using the External Keypad

To unlock touch keypad, press and hold the Hold Key 📋 on the right side of the phone.

	Display symbols
	Adding space
	Press to change capital mode.Press to change ab Ab AB and press to change from multi to predictive to NumberMulti-tap ab Ab AB (all small caps / first letter caps / all caps)Number 12

For details on using QWERTY key pad, see page 19.

Key characters by language

Each of the following keys will scroll through these sequential options listed by language.

Key English French Spanish
1., - ? ! / ' @ :
2	a b c ç à	ä á ã ç
3	d e f é è	é
4	g h i í
5	j k l
6	m n o ô	ñ ó ñ
7	p q r s β
8	t u v ù ü	ú ü
9	w x y z

Alphabet input mode

Press the key labeled with the target letter once for the first letter; press it twice for the second letter, and so on.

1. Tap 2ABC to 9WXYZ to input text repeatedly. To write the letter "C", press 2ABC 3 times. To write number 2 press 2ABC 4 times.

Numeric mode

You can input numbers in this mode.

1. Tap ☐ to ☐ 3 or 4 times to input numeric.

2. Or ☐ to ☐ long tap and hold to input numeric.

Symbol mode

You can input symbols.

1. Tap ✗ to view the symbols.

2. Tap ▲/▼ to select symbol and Tap 1 to ① to input symbol.

Using the Internal Keypad

Sym	Display symbols
Space	Adding space
	Press to change capital mode.Press to change abc Abc ABC and press to change from multi to predictive to NumberMulti-tap abc Abc ABC (all small caps / first letter caps / all caps)Predictive ab Ab AB (all small caps / first letter caps / all caps)Number 123

For details on using QWERTY key pad, see page 19.

Predictive mode

The predictive mode automatically compares your keystrokes with an internal linguistic dictionary to determine the correct word. It will display the most commonly used word first. The most commonly used word will appear first. To save a word not listed in phone's dictionary, press Options > Predictive Settings > Selection List > On.

1. Press to change the mode to predictive.

2. For example, to write 'hello' press Hand E L to select Hello and press OK.

Numeric mode

You can input numbers in this mode.

1. Press to change the mode to 123.

2. Press to and to input numbers.

Symbol mode

You can input symbols.

1. Press to view the symbols.

2. Press ▲/▼/◄/► to select symbol and press Insert.

Messaging

You can send, receive and save the text messages and multimedia messages.

Using the External Keypad

To unlock touch keypad, press and hold the Hold Key ☐ on the right side of the phone.

Managing memory

When the message box is full the messages full icon will appear. All messages share memory.

When It	means
	Text message is full (SIM and Phone messages)

Replying to a message

1. Select a message > Reply.

Using the Internal Keypad

Managing memory

When the message box is full the messages full icon will

appear. All messages share memory.

When It	means
	Text message is full (SIM and Phone messages)

Deleting a message in a mailbox

1. Select a message > Options > Delete > Yes.

Replying to a message

1. Select a message > Options > Reply.

Viewing memory space information

1. Press Menu > Messaging > Used Space.
2. Press ◀/▶ to view Phone and SIM memory.

Receiving messages

Using the External Keypad

To unlock touch keypad, press and hold the Hold Key 📄 on the right side of the phone.

Viewing a new message

1. Tap View or tap OK.

Reading a message from the Inbox

1. Tap Menu > Messaging > Inbox.
2. Select a sender > View.

Listening to voice message

1. Tap and hold 1m .

note: It will automatically call the voice mail center.

Using the Internal Keypad

Viewing a new message

1. Press View or press OK.

Reading a message from the conversations box

1. Press Menu > Messaging > Conversations.
2. Select a sender > Open.

Saving a number or e-mail from a received message

1. Select a sender number > Open.
2. Select a received message > Options > Save.
3. Select New Contact or select Update Contact.

Saving the object in the received multimedia message

1. Open the multimedia message.
2. Select an object.
3. Press Options > Use > Save.

note: It will be saved in one of the categories in the My Stuff folder.

For details on photo album, see page 53.

Listening to voice message

1. Press Menu > Messaging > Voice Mail.

note: It will automatically call the voice mail center.

Loading URL using Push message

1. Press Menu > Messaging > Conversations > Open.
2. Press Options > Load URL.

Save connection setting using Configuration message

1. Press Menu > Messaging > Conversations > Open.
2. Press Options > Install.

Creating and sending text messages

Using the External Keypad

To unlock touch keypad, press and hold the Hold Key 📋 on the right side of the phone.

Sending new text message

1. Tap Menu > Messaging > Create Message.
2. Enter the message.
3. Tap Send to.

Using the Internal Keypad

Sending new text message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter the message.
3. Press Send to.
4. To view sent message press Menu > Messaging > Conversations.

note: All successfully send messages will be saved in Conversations while the messages that failed to be sent will

save in the Outbox.

Finding all sent messages

1. Press Menu > Messaging > Conversations.

Creating multimedia messages

Using the Internal Keypad

You can create new multimedia message. Capacity is 100Kb, 300Kb, 600Kb and an error message will alert you once you exceed the capacity.

Adding a saved picture to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Picture > Picture > Camera > Select a file.
4. To preview the current page, press Options > Preview > Current.
5. To preview the whole message, press Options > Preview > Whole Message.
6. To edit the text message, press ▲/▼ to select the text box.
7. Press Send to.

Adding a new picture to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Take New Picture.
4. Focus on the object > press ☐.
5. Press Send to.
   For the taking picture, see page 51.

Adding a recorded voice memo to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Sound > Audio > My voice.
4. Press Play to listen the recorded memo.
5. Press Pause to stop listening.
6. To select other recorded memo press Back and select another memo.
7. Press Send to.

Adding a new voice memo to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Record New Sound.

4. Press Record to record the sound.

5. To stop and save press Stop.

6. Press Send to.
   For the recording voice memo, see page 65.

Adding a saved video to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Video > Video > Select a video.
4. To preview the video, press Play.
5. Press Select.
6. To preview the current page, press Options > Preview > Current.
7. To preview the whole message, press Options > Preview > Whole message.
8. To stop press Stop.
9. Press Send to.

Adding a new video to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Record New Video.
4. Focus on the object > Record.

5. To stop recording and save press Stop.

6. Press Send to.

For the recording video, see page 52.

Adding other file to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Other Files > Other Files.
4. Select the file > Select.
5. Press Send to.

Message templates

When you often use the same phrases, you can save the message under template messages.

Adding the message as a template

1. Press Menu > Messaging > Templates.
2. Press Options > Add New.
3. Enter the frequently used message > Options > Save.

Sending a message with template

1. Press Menu > Messaging > Templates.
2. Select the message > Select.

note: You can add a template while entering a message.

Enter a message > Insert > Templates. Choose text and press select the message to add.

Message settings

Setting message center

1. Press Menu > Messaging > Settings.
2. Press Text Message.
3. Enter new Center Address.
4. Press Save.

Setting profiles for multimedia message

1. Press Menu > Messaging > Settings.
2. Press Multimedia Message > MMS Profiles.
3. Select a profile.

Setting for sending multimedia message

1. Press Menu > Messaging > Settings.
2. Press Multimedia Message > Sending Settings.
3. You can set the Validity Period, Delivery Time, Priority, Creation Mode and Max Message Size.

Setting for receiving multimedia message

1. Press Menu > Messaging > Settings.
2. Press Multimedia Message > Receiving Settings.
3. You can set the Automatic Download, Allow Delivery Reply, Allow Read Reply and Accepted Messages.

Setting e-mail gateway

1. Press Menu > Messaging > Settings.
2. Press Email Gateway.
3. Enter new gateway for sending text messages with email address.
4. Press Save.

Setting for receiving notice for push message

1. Press Menu > Messaging > Settings.
2. Press Push Message >Receive.
3. Select On or Off > Save.
   note: When you receive push message the [icon will displays.

Voice message setting

Setting for receiving voice message

1. Press Menu > Messaging > Settings.
2. Press Voice Mail.
3. Enter the number of the voice mail center > Save.

note: This number may be pre-configured by the service provider upon activation.

Email

You can receive emails from your service provider.

Receiving an email

1. Press Menu > Messaging > Mobile Email.
2. Select an email > OK.

Using instant messenger

Use Instant Messenger (IM) to send and receive short, simple messages that are delivered immediately.

Starting an instant messenger

1. Press Menu > Messaging > IM.

2. Select the IM application > Select.

3. Enter login and password > Sign In.

Viewing the conversation log

You can view the conversations log in the Instant Messenger Saved Conversations.

IMPACT

4

Blue line drawing of a Dantech phone with keypad and buttons (no text or symbols)

Getting Started

Calls and address book

Messaging

Multimedia

Useful Features

Connectivity

Settings

Appendix

01

02

03

04

05

06

07

08

Multimedia

Camera

You can take pictures and record movies using the built-in camera. The photos and video clips can be saved and sent via multimedia messages.

Setting camera settings

1. Press Menu > My Stuff > Tools.

2. Press Camera.

3. Press Options > Settings to change settings prior to taking a picture.

In the options menu for camera

Icons Name Description
[4V73]	White Balance	Auto ( ), Day Light ( ) Tungsten ( Fluorescent ( )
	Effect	Normal ( Sepia ( ) SEP Negative ( ) B&W ( ) EM
	Self Timer Off ( ), 5 secs ( ), 10 secs ( )
	Picture Size	1600x1200( ),1280x1024( ), 1024x768 ( ),640x480 ( ), 320x240
	Advanced	Picture Quality, Save Location, Shutter Sound, Timer Sound, Default File Name

In the options menu for video camera

Icons Name Description
	White Balance	Auto (Day Light (),Tungsten (Fluorescent ( )
	Effect	Normal (Sepia (),Negative (B&W ( )
	Self Timer Off (), 5 secs( ), 10 secs( )
[DX30]	Resolution	176x144 (MMS) ( ), 176x144 [IMAGE]320x240 ( ), [IMAGE]Video Share( )
[CA6Y]	Advanced	Video Quality, Sound Recording, Save Location, Timer Sound, File Format, Default File Name

Zoom in and out

1. Press ▲/▼. It ranges from +1 to +4.

Increasing or decreasing the brightness

1. Press ◀/▶. It ranges from -2 to +2.

Taking a picture

1. Press ☐ in standby mode or press Menu > My Stuff > Tools.
2. Press Camera.
3. Focus on the object > OK or press Options > Capture.
4. Press -to return to the viewer.

note: Your photo will be saved automatically to My Stuff > Picture > Camera.

Changing to video camera mode

1. Press ☐ in standby mode or press Menu > My Stuff > Tools > Camera.
2. Press Options while camera mode is activated.
3. Press Video Camera Mode.

note: Your video will be saved automatically to My Stuff > Video.

Viewing the taken picture

1. Press ☐ in standby mode or press Menu > My Stuff > Tools > Camera.
2. Press Options > Photo Album.
3. Select the picture > View.

After taking pictures

To Press
Set as wallpaper	Options > Set as > Wallpaper
Set as address book	Options > Set as > Caller ID
Send a multimedia message	Options > Send > as Multimedia Message
Send using Bluetooth	Options > Send > via Bluetooth

To Press

Upload photos on the web	Options > Send to HP's Snapfish
Rename	Options > Rename
Multiple Select	Options > Multiple Select
Delete	Options > Delete
Delete All	Options > Delete All
Copy to External Memory	Options > Copy to External Memory
Move to External Memory	Options > Move to External Memory
Slide Show	Options > Slide Show
View photo's information	Options > Properties
View by Grid	Options > View by Grid

Recording a video

1. Press Menu > My Stuff > Tools > Video Camera.
2. Focus on the object > OK or press Options > Record.
3. Press Stop to stop.
4. Press Options > Play to play the video clip.
5. Press -to return to the viewer.

Changing to camera mode

1. Press Menu > My Stuff > Tools > Video Camera.

2. Press Options while video camera mode is activated.

3. Press Camera Mode.

For details on taking a picture, see page 51.

Viewing the recorded video clip

1. Press Menu > My Stuff > Tools > Video Camera.
2. Press Options > Video Album.
3. Select the video clip > Play.

After saving recorded video clips

To Press
Send a multimedia message	Options > Send > as Multimedia Message
Send using Bluetooth	Options > Send > via Bluetooth
Rename	Options > Rename
Multiple Select	Options > Multiple Select
Delete	Options > Delete
Delete All	Options > Delete All
Copy to External Memory	Options > Copy to External Memory
Move to External Memory	Options > Move to External Memory

To Press

View the information Options > Properties

View by Grid Options > View by Grid

During recording a video

To Press

Receive an incoming call

Stop recording Stop

Photoalbum

You can view, send, save to your phone or an external memory card and also delete photos. JPEG format is supported, and other formats are saved in the Picture folder.

note: To access Picture, press Menu > My Stuff > Picture.

Viewing the saved pictures

1. Press Menu > My Stuff.
2. Press Picture > Camera.
3. Select a picture > View.

Setting as wallpaper in the display

1. Press Menu > My Stuff.

2. Press Picture > Camera.

3. Select a picture > Options > Set as > Wallpaper.

Setting as caller identification

1. Press Menu > My Stuff.
2. Press Picture > Camera.
3. Select a picture > Options > Set as > Caller ID.

Sending pictures using multimedia message

1. Press Menu > My Stuff.
2. Press Picture > Camera.
3. Select a picture.
4. Press Options > Send > as Multimedia Message.

For details on creating a multimedia message, see page 42.

Deleting multiple pictures

1. Press Menu > My Stuff.
2. Press Picture > Camera.
3. Press Options > Multiple Select.
4. Press OK to select more than one picture.
5. Press OK to deselect.
6. Press Options > Delete.

Viewing file information

1. Press Menu > My Stuff.
2. Press Picture > Camera.
3. Select a picture.
4. Press Options > Properties.

Video album

You can view, send, save and delete videos.

Playing the saved video clips

1. Press Menu > My Stuff.
2. Press Video.
3. Select a video clip > Play.

Using video player controls

To Press
Play & Pause	OK
Rewind	Hold◀
Fast forward	Hold◀
Mute Options > Mute

To Press
Set Repeat	Options > Repeat On/Off
View the information	Options > Properties
Control volume	Side key up or down or ▲/▼

Sending video clip using multimedia message

1. Press Menu > My Stuff.
2. Press Video.
3. Select a video.
4. Press Options > Send > as Multimedia Message.

For details on creating a multimedia message, see page 42.

Deleting multiple video clips

1. Press Menu > My Stuff.
2. Press Video.
3. Press Options > Multiple Select.
4. Press OK to select more than one video.
5. Press OK to deselect.
6. Press Options > Delete.

Audio album

You can play, send, delete, moves to external memory or to

phone the saved sounds. The supported formats are MP3, AAC, AAC+, and WMA.

Listening the recorded sound

1. Press Menu > My Stuff > Audio.
2. Press My Voice > select a sound > Play.

Using sound controls

To Press

Play & Pause OK

Stop Options > Stop

Rewind Hold ◀

Mute Options > Mute

Set Repeat Options > Repeat On/Off

View the information Options > Properties

Fast forward Hold ▶

Control volume Side key up or down or ▲/▼

Setting as a ring tone

1. Press Menu > My Stuff > Audio.
2. Select a sound > Options > Set as Ring Tone.

Moving or copying multiple sound to external memory

1. Press Menu > My Stuff > Audio.
2. Press Options > Multiple Select.
3. Press OK to select more than one sound file.
4. Press Options > Copy to External Memory or Move to External Memory. The selected sound will copy to Audio folder in external memory card.

Sending sound file using multimedia message

1. Press Menu > My Stuff > Audio.
2. Select a sound file.
3. Press Options > Send > as Multimedia Message.

Music Player

You can listen MP3 and audio files even your device is closed. It can be only play audio files saved in MP3, .AAC, .AAC+ and WMA,.

Using the External Keypad

To unlock touch keypad, press and hold the Hold Key 📄 on the right side of the phone.

When It means
	Music is playing
	Music has been paused
	Music has been stopped

Playing the music

1. Tap Menu > AT&T Music > Music Player.
2. Select the categorize using ▲/▼ to play the music.
3. Select the file using ▲/▼ then tap Play.
4. Tap Library to view another music list while listening to music
5. Tap Pause to stop playing.

note: To stop playing music in the standby mode, tap

☐. When receiving a call press ☐ and music will stop without asking.

Using the Internal Keypad

When It means
	Music is playing
	Music has been paused
	Music has been stopped

note: microSD card must be inserted to transfer music to your device.

Adding music from Windows Media Player™

1. Connect the USB cable to the device and the computer.
2. Select Music Player > Select.
3. Open the Sync tab in Windows Media Player ^TM in your computer.
4. Select the music from the list and drag and drop to your device.

note: Windows Media Player™ 10, 11 and Window XP version is required.

Playing the music

1. Press Menu > AT&T Music > Music Player.

2. Select the categorize using ▲/▼ to play the music.

3. Select the file using ▲/▼ then press OK.
4. Press Options > Add to Playlist to add to the playlist.
5. Press Options > Stop to stop playing.

note: To stop playing music in the standby mode, press

When receiving a call press and music will stop without asking.

Icons for player

Icon Name Description
4-7	Volume
<<>>	PreviousNext	Short Press : Previous, Next
<>	RewindFast Forward	Long Press : Fast Rewind, Fast Forward
▶	PlayPause
☐	Repeat Single TracksRepeat All TracksRepeat Off

Icon Name	Description
	Shuffle On/Shuffle Off

Making playlist

1. Press Menu > AT&T Music > Music Player.
2. Press Playlists > New Playlist.
3. Select All Music, Albums, Artists or Genres.
4. Select the music file using ▲/▼ then press OK to add to playlist.
5. Press Done > name the playlist.

Add music to playlist

1. Press Menu > AT&T Music > Music Player.
2. Press Playlists.
3. Select the playlist to add music > Options > Add Tracks.
4. Select the music to add > OK > Done.
5. To remove tracks press Options > Remove Tracks > select the music by pressing OK > Remove.
6. To rename the playlist press Options > Rename Playlist.
7. To delete the playlist press Options > Delete.

Listening music with Bluetooth headset

1. While music is playing in the standby mode, Menu > AT&T Music > Music Player.

2. Press Now Playing > Options > Transfer to B/T Headset.

Viewing the information

1. Press Menu > AT&T Music > Music Player.
2. Select the categorize using ▲/▼ to play the music.
3. Select the file using ▲/▼ then press OK.
4. Press Options > Properties.
5. Use ▲/▼ to view Track Number, Title, Artist, Album, Genre, Duration, File Name, File Size, Location, Format, Bit Rate, Created, License and Sharing.

Setting as ringtone

1. Press Menu > AT&T Music > Music Player.
2. Select the categorize using ▲/▼ to play the music.
3. Select the file using ▲/▼ then press Options > Set as Ring Tone.

note: During playing the music the fi le can not be set as ring tone. You cannot set a fi le which is larger than 300 Kb as a ringtone.

Deleting music

1. Press Menu > AT&T Music > Music Player.
2. Select the music from the list.
3. Press Options > Delete.

note: If the music is playing you cannot delete.

Shopping the music

1. Press Menu > AT&T Music.
2. Press Shop Music.
3. To go to previous page press

Using music identification

1. Press Menu > AT&T Music.
2. Press MusicID.
3. Hold the phone close to the music. Your phone will analyze the music and display the artist, title and album.

note: For the cost plan contact your nearest carrier.

Listening the radio

1. Press Menu > AT&T Music.
2. Press XM Radio.

Watching the music video

1. Press Menu > AT&T Music.
2. Press Music Videos.

Customizing ringtones from Mspot

1. Press Menu > AT&T Music.
2. Press Make - UR - Tones.

Launching to community

1. Press Menu > AT&T Music.
2. Press Community.

Launching more applications

1. Press Menu > AT&T Music.
2. Press Music Apps.

Music player settings

Shuffling music

1. Press Menu > AT&T Music > Music Player.
2. Press Settings.
3. Select Shuffle.
4. Select Shuffle On or Shuffle Off > OK.

Repeating the music

1. Press Menu > AT&T Music > Music Player.
2. Press Settings.
3. Select Repeat.
4. Select Repeat All Tracks, Repeat Single Track or Repeat Off > OK.

Setting equalizer

1. Press Menu > AT&T Music > Music Player.
2. Press Settings.
3. Select Equalizer.
4. Select the category by using ◀/▶> OK.

Setting auto full screen

1. Press Menu > AT&T Music > Music Player.
2. Press Settings.
3. Select Auto Full Screen.
4. Select On or Off > OK.

Removing

1. Press Menu > AT&T Music > Music Player.
2. Press Settings.
3. Select Remove.

Multimedia

4. Select License Data File or All Music Contents > Yes.

Media player

You can play video clips with the media player.

note: Do not use this feature illegally. Sound and video can be protected by copyright. It is illegal to copy such sound / video tracks for the purpose of selling or distribution.

Pantech does not in any way support the unauthorized use of content on your phone media player.

Icons for player

Icon Name Description
	Volume
	Mute
	Previous Next	Short Press : Previous, Next
	Rewind Fast Forward	Long Press : Fast Rewind, Fast Forward
	Play Pause

Icon Name Description
	Repeat OnRepeat Off

Playing the video clip

1. Press Menu > My Stuff.
2. Press Tools > Media Player.
3. Press Video.
4. Select a file > Play.

Playing the audio file

1. Press Menu > My Stuff
2. Press Tools > Media Player
3. Press Audio.
4. Select the folder > select a file > Play.

For the audio player control see page 54.

Other files

You can manage files in unsupported formats saved on your phone. It also lists files received via Bluetooth from other devices.

Viewing the list of the files

1. Press Menu > My Stuff.
2. Press Other Files.

Managing memory

Viewing memory status

1. Press Menu > My Stuff.
2. Press Used Space.
3. Use ◀/▶ to view Phone and External memory.

Playing games

You can download games to play with. It is easy to download and you can preview them beforehand. You will only be able to view games that are available on your mobile.

Shop games

1. Press Menu > My Stuff.
2. Press Games.
3. Select Shop Games > Select.
4. Play the demo and press BUY to download the complete game.

IMPACT

5

Blue line drawing of a vintage mobile phone with control panel and keypad (no text or symbols)

Getting Started	01
Calls and address book	02
Messaging	03
Multimedia	04
Useful Features	05
Connectivity	06
Settings	07
Appendix	08

Useful Features

Alarm

Setting an alarm

1. Press Menu > My Stuff > Tools > Alarm Clock.
2. Press Create New for new alarm for the first time.
3. Set the Cycle, Time, Alarm Sound, Alert Type, Volume, Snooze and Power Alarm > Save.

Viewing the saved alarms

1. Press Menu > My Stuff > Tools > Alarm Clock.

Editing existing alarms

1. Press Menu > My Stuff > Tools > Alarm Clock.
2. Select an alarm > Edit.
3. Press Options > Delete to delete an alarm.
4. Press Options > Create New to add new alarm.

Calendar

Calendar helps you manage your schedule including your time for calls or special days. You can set a reminder on any given date with this function.

Viewing calendar

1. Press Menu > My Stuff > Tools > Calendar.

note: Monthly view is displayed as default.

In the monthly view

To Press
Move to another day	◀ for Previous▶ for Next
Move to another week	▲ for Previous▼ for Next
View other month	Side key up for PreviousSide key down for Next

Creating a new event and edit

1. Select a day > Options > New Event.
2. Select Schedule, Task or Note.
3. Input the events > Save.

note: You can create events for dates from 01/01/2000 to 12/31/2099.

Notepad and voice memo

Using notepad

1. Press Menu > My Stuff > Tools > Notepad.
2. Press Create New for the first time. To add new note press Create New or Options > Create New.
3. To edit memo press Edit.
4. Press Save to save.
5. If you want place a note on idle, press Options > Place on Wallpaper.
6. If you want remove the note from idle, press Options > Remove from Wallpaper.

Recording voice memo

1. Press Menu > My Stuff > Tools > Voice Memo.
2. Press New Record for the first time. To add new note press New Record or Options > New Record.
3. Press Record.

4. Press Play to listen.

5. Press Stop to stop recording. It will automatically save on My Voice.

note: To access My Voice, press Menu > My Stuff > Audio > My Voice.

Listening the recorded sound

1. Press Menu > My Stuff > Audio > My Voice.
2. Select a sound > Play.

Using sound controls

1. Press Menu > My Stuff > Tools > Voice Memo.

2. Select to Play.

To Press

Pause OK

Play OK

Control volume Side key up or down or ▲/▼

StopOptions > Stop

MuteOptions > Mute

RepeatOptions > Repeat on /off

Property Options > Properties

World time

Using world time

1. Press Menu > My Stuff > Tools > World Time.
2. Select the city by using the up or down navigation key.
3. Press Save to save.

note: If you want to set dual time in idle mode, press Menu > Settings > Display > Home Screen > Clock Type > Internal Clocks > Clock Type5.

Calculator, tip calculator and converter

Using the calculator

1. Press Menu > My Stuff > Tools > Calculator.
2. Use ◀/▶/▲/▼/ OK to calculate.
3. Press -to erase one digit.
4. Press Reset to reset.

1. Press z to use the decimal point.

Using tip calculator

1. Press Menu > My Stuff > Tools > Tip Calculator.
2. Enter values for all variable fields (Bill(\), Tip(%), Split) and the corresponding calculation fields (Tip(\), Total(\$), You Pay) are u
3. Press Reset to reset.
4. Press to use the decimal point.

Using the converter

1. Press Menu > My Stuff > Tools > Converter.
2. Select the categories.
3. Select current unit and enter figure. Then other unit fields are updated automatically.

Stop watch and timer

Using stop watch

1. Press Menu > My Stuff > Tools > Stop Watch.
2. Press Start to start.
3. Press Stop to stop.
4. Press Continue to restart.
5. Press Reset to clear.
6. To change to lap time, press Mode > Lap Time Mode.
7. To split the stopwatch, press Mode > Split Time Mode.

note: In Basic Mode, when you go out another menu or idle while stopwatch is working, you can see the clock icon on idle that means stopwatch is still working. And you enter the menu again, you can see it still working.

Using timer

1. Press Menu > My Stuff > Tools > Timer.
2. Press Set to input the time.
3. Enter the hour, minute and second > OK.
4. Press Start to start.
5. Press Restart to restart.

Business card

You can send your information by sending it as multimedia message.

Creating your own business card

1. Press Menu > Address Book > My Business Card.
2. If you don't have any business card, you can see the following message, "Empty. Create New One?".
3. To create your business card, press Yes.
4. Edit the each options > Save.

Forwarding

1. Press Menu > Address Book > My Business Card.
2. Press Options > Send This Card > Multimedia Message or Bluetooth.
3. Write a message for Multimedia Message.
4. Press Send to.

Updating information

1. Press Menu > Address Book > My Business Card.
2. Press Edit.
3. Update information.
4. Press Save.

Useful Features

Memory information

You can view the information of your phone for Used, Audio, Games, Applications, Picture, Video, Other Files and System.

Viewing the information

1. Press Menu > My Stuff > Used Space.

IMPACT

6

Blue line drawing of a Dantech phone keyboard and camera module (no text or symbols)

Getting Started

Calls and address book

Messaging

Multimedia

Useful Features

Connectivity

Settings

Appendix

01

02

03

04

05

06

07

08

Connectivity

Bluetooth

Using the Mobile Web

Using the browser

Profile settings

Bluetooth

Bluetooth technology enables free wireless connections between electronic devices within a maximum range of 33 feet (10 meters). Bluetooth connection can be used to send images, text, business cards, calendar and notes or to connect to computers using Bluetooth technology.

Your mobile phone supports:

• Connect to PC to access internet.
• Connect to Hands-Free.
• Connect to electronic devices.

Icons for Bluetooth

	Bluetooth is active
	Transmitting file using Bluetooth
	Bluetooth is active and the headset is connected
	USB is connected

Activating

1. Press Menu > Settings > Connectivity > Bluetooth > Activation.
2. Select On or Off.

Adding a device

1. Press Menu > Settings > Connectivity > Bluetooth > My Devices.
2. Press Search for Devices > Search.
3. The available device will display.
4. To select the device press Select or OK. To view the details press View.
5. Enter password.

note: The other device must be in pairing mode.

Sending an object

1. Select the file from Menu > My Stuff > Audio, Picture, Video or Other Files.
2. Press Options > Send > via Bluetooth.
3. Press Search or press OK.
4. Select the device > Select.

note: If the other Bluetooth device requests pairing, the object is sent after pairing is completed. Locked object or ones containing original rights may not be forwarded.

Receiving an object

The receiving an object starts only when the receipt has been approved.

The received file will be saved in each place. For example, if you received contacts information from the sender, it will be saved in your phone's memory.

Setting the visibility

1. Press Menu > Settings > Connectivity > Bluetooth > Visibility.
2. Select Hide or Show.

Naming the phone

1. Press Menu > Settings > Connectivity > Bluetooth > My Bluetooth Info.
2. Select the Name > Edit > edit the field > press Save or OK.

note: This is what others will see in their device's display for your phone when searching for your device.

Using the Mobile Web

Accessing Mobile Web

1. Press OK in standby mode or press Menu > Mobile Web.

note: It will access ATT.NET homepage.

Using the browser

Accessing browser

1. Press Menu > My Stuff > Applications > Brower > Home.

note: It will access provider's homepage.

Viewing bookmarks

1. Press Menu > My Stuff > Applications > Brower > Bookmarks.
2. To open the site, press Go.
3. To send via text message, press Options > Send by MSG.

Setting new bookmarks

1. Press Menu > My Stuff > Applications > Brower > Bookmarks.
2. Press Options > Create New.
3. Enter the field > Save.

Entering address

1. Press Menu > My Stuff > Applications > Brower > Enter Address.

Connectivity

1. Enter the web address > Go.

Viewing history

1. Press Menu > My Stuff > Applications > Brower > History.

Setting advanced options

1. Press Menu > My Stuff > Applications > Brower > Manage > Options.
2. Select the category > Select.
3. Select the option > Select.

Viewing certificates

1. Press Menu > My Stuff > Applications > Brower > Manage > Security > Certificates.

Using memory operations

1. Press Menu > My Stuff > Applications > Brower > Manage > Private Data.
2. To clear the cache, press Clear Cache > Yes.
3. To clear the cookies, press Clear Cookies > Yes.
4. To clear the history, press Clear History > Yes.

Viewing status of downloading

1. Press Menu > My Stuff > Applications > Brower > Manage > Download Manager.

Profile settings

You can set profile and view Profile Name, Home URL, Connection Type, Proxy Address and Proxy Port.

Adding new profile

1. Press Menu > My Stuff > Applications > Brower > Manage > Profiles.
2. Press Options > Create.
3. Enter the fields > Save.

Editing profile

1. Press Menu > My Stuff > Applications > Brower > Manage > Profiles.
2. Select other profile > Options > Edit.

Viewing default profile

1. Press Menu > My Stuff > Applications > Brower > Manage > Profiles.
2. Select Mobile Web > Options > View.

Deleting profile

1. Press Menu > My Stuff > Applications > Brower > Manage > Profiles.
2. Select a profile > Options > Delete.

01
02
03
04
05
06
07
08

IMPACT

7

Blue line drawing of a Dantech phone keyboard and remote control device (no text or symbols)

Getting Started	01
Calls and address book	02
Messaging	03
Multimedia	04
Useful Features	05
Connectivity	06
Settings	07
Appendix	08

Settings

Language

Setting up

1. Press Menu > Settings > Phone > Language.
2. Select Screen Text or Predictive.
3. Select the language > Select.

Time and date

Setting up

1. Press Menu > Settings > Phone > Time & Date.
2. Select the category > Select.
3. Select the options > Select.

Touch sense level

Setting Sensitivity Level

1. Press Menu > Settings > Phone > Touch Key.
2. Select Sensitivity Level.
3. Select the Sensitivity level using ◀/▶ > Save.

Setting Vibration Strength

1. Press Menu > Settings > Phone > Touch Key.
2. Select Vibration Strength.
3. Select the vibration level using ◀/▶ > Save.

Transition Effect

Setting up

1. Press Menu > Settings > Display > Transition Effect.
2. Select On or Off.

Ringtones

Setting ringtones

1. Press Menu > My Stuff > Audio > Ring Tones.
2. Select Options > Set as Ring Tone.

Setting sound profile

1. Press Menu > Settings > Profiles.
2. Select Normal, Vibrate and Ring, Vibrate only, Silent or Flight Mode.

Decorating the display

Setting the display

You can set the Wallpaper, Clock Type and Text.

1. Press Menu > Settings > Display > Home Screen.

Setting the menu type

1. Press Menu > Settings > Display > Menu Type.

Setting the color theme

1. Press Menu > Settings > Display > Color Theme.

Setting the font

1. Press Menu > Settings > Display > Font Style.

Setting the brightness

1. Press Menu > Settings > Display > Brightness.

note: Modifying brightness may affect battery life.

Setting time for backlight

1. Press Menu > Settings > Display > Backlight Timer.

note: Modifying backlight time may affect battery life.

Locks

Locking the phone

1. Press Menu > Settings > Security > Phone Lock > Phone Lock.

2. Select On.

note: The default password is '1234'. To change the password press Menu > Settings > Security > Phone Lock > Change Password.

Locking the PIN

The Personal Identification Number is the security code that protects the phone or SIM against unauthorized use.

1. Press Menu > Settings > Security > PIN > PIN Lock.

2. Enter PIN code > OK.

note: To change the PIN code press Menu > Settings > Security > PIN > Change PIN.

Changing PIN 2

1. Press Menu > Settings > Security > Change PIN2.

Locking the keypad automatically

You can set locking keypad automatically to prevent mistaken key presses.

1. Press Menu > Settings > Security > External Auto Key Lock.
2. Select On.

Unlocking Auto Key Lock

1. Press Menu > Settings > Security > External Auto Key Lock.
2. Select Off.

Changing hidden key

The hidden key is a security code for USIM Contact. You can lock the person's information in the USIM Contacts with the hidden key.

1. Press Menu > Settings > Security > Change Hidden Key.

note: The default password is dependent by SIM card. (either depends on the SIM card or determined by the SIM card).

To enable fixed dialing

Enabling and disabling

1. Press Menu > Settings > Security > FDN.

2. Select On or Off.

For details on fixed dialing, see page 34.

Reset

Resetting the phone

1. Press Menu > Settings > Reset.

2. Enter password > Master Reset.

note: It will return configuration settings to default. The default password is '1234'.

Clearing the phone

1. Press Menu > Settings > Reset.

2. Enter password > Master Clear.

note: It will change the setting as default and erase all personal data. The default password is '1234'.

TTY

The teletypewriter (TTY) is a telecommunications device that allows people who are deaf or hard of hearing, or who have speech or language disabilities, to communicate via a telephone.

Setting teletypewriter

1. Press Menu > Settings > TTY.
2. Select Disable, TTY Full, TTY Talk or TTY Hear.
   • Disable: TTY mode is disabled.
3. TTY Full: User who cannot talk and hear, sends and receives a text message.
4. TTY Talk: User who can talk but cannot hear, receive a text message and send voice message.
5. TTY Hear: User who can hear but cannot talk, sends a text message and receive voice message.

IMPACT

8

Blue line drawing of a Dantech phone keyboard and remote control device (no text or symbols)

Getting Started

Calls and address book

Messaging

Multimedia

Useful Features

Connectivity

Settings

Appendix

01

02

03

04

05

06

07

08

Appendix

Alert message

Troubleshooting checklist

Safety information

Safety precautions

About the battery usage

FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices

FCC Regulatory Compliance

Warranty

Alert message

If you experience any problem while using your mobile phone, please refer to the following checklist. If the problem still persists, contact your dealer or nearest carrier.

When the "Insert SIM Card" message appears:

Make sure the SIM card is correctly installed. Check to see if the SIM card is working properly. If it does not work, try to clean the contact points of the card with a dry cloth. If it is out of order, take it to your service provider.

When the "Messages full" message appears:

The received or saved messages are full in your phone memory. You need to delete the message.

When the "Phone and SIM messages is full. Delete Messages" message appears:

The received or saved messages are full in your phone and SIM card memory. You need to delete the message.

When the "Password" message appears in Phone locked state:

Enter the phone password. The default password is "1234". If you cannot remember the password, contact the nearest carrier.

When the "Enter PIN1" message appears:

Input PIN1. If you cannot remember it, contact your service provider. You can still receive calls even if your mobile phone becomes locked after entering the incorrect PIN1 on three consecutive attempts.

When the "No Service" or "Network Search" appears:

If you cannot make/receive a call when you are indoors or undergrounds where the signal strength is poor, move toward a window or go out to an open area. If you still cannot make a connection, contact your service provider.

Troubleshooting checklist

When audio quality is poor:

End a call and try again.

When the other party cannot hear you speaking:

Your phone may be set to MUTE. Disable the MUTE function. Or your hand may be covering the microphone located below the ⚠️ key.

When battery lifetime is shorter than usual:

This may happen when you are in an area with low signal strength. Turn off your phone when it is not in use. Change the battery when battery energy is exhausted.

When your mobile phone does not turn on:

Make sure your battery is charged. Check to see if your phone works while recharging the battery.

When you are unable to send a message:

Either you are not registered to receive an SMS service, or you may be in an area where your network service provider cannot provide such a service.

When you are unable to make a call:

Your phone may be set to "fixed dial." Cancel the "fixed dial" function.

When you are unable to charge the battery:

This may be the result of one of the following three cases.

1. Your charger may be out of order. Contact your nearest dealer.
2. You may be attempting to use the phone in an overly hot/cold temperature. Try changing the charging environment.
3. Your battery may have not been connected to the charger properly. Check the connector.

When you are unable to input data into your Address Book:

Your Address Book memory may be full. Try deleting some entries from your Address Book.

When you are unable to select a certain function:

You may not have subscribed to that function, or your network service provider may be in an area where such service cannot be provided. Contact your local service provider.

Safety information

The following list shows how to maintain your mobile phone, together with precautions to take.

• Keep your mobile phone and its accessories out of the reach of children and pets.

• Maintain your mobile phone in dry conditions and keep it within normal operating temperatures. Temperatures higher than 55^ (131°F) or lower than -20^ (-4°F) may damage your phone.

• Do not try to dry your phone in a microwave oven. If not, sparks can occur and cause an explosion or fire.

• Do not use or store your mobile phone in dusty, dirty areas.
• Do not attempt to disassemble your mobile phone.
• Do not drop or cause severe impact to your mobile phone.
• Do not use chemical products, cleaning solvents or detergents to clean your mobile phone.
• If your mobile phone does not work properly, contact your dealer immediately.
• Use only authorized batteries, battery chargers and accessories. Any malfunction or damage caused by the use of unauthorized batteries, battery chargers and accessories will void the limited product warranty.
• Ensure that the battery and battery charger do not come in contact with conductive objects.

Safety precautions

Using a mobile phone while driving may be prohibited.

Please check local laws and regulations with regard to the prohibition of mobile phone use while driving, and comply with them.

Use of your phone while you are driving may disturb your concentration and so cause an accident. Always switch your phone off to drive safely. You should use your phone in an emergency, either use a hands free device built into your car or pull over in a safe place first.

Switch off in restricted areas

Always switch your phone off in areas where mobile phone use is restricted.

Switch off in explosive or dangerous areas

Always switch your phone off in areas with explosive or dangerous materials (such as fuels, fuel stations or areas containing chemical goods) and obey any instructions or signals. Do not remove your mobile phone's battery in such areas.

Switch off in aircraft

Always switch your phone off or select Flight Mode (press the Menu > Settings > Profiles > Flight Mode) when you are in an aircraft. The electromagnetic waves emitted by your phone may affect the electronic navigation equipment in the aircraft.

Switch off in hospitals and near medical equipment

Always switch your phone off in hospitals, and obey the regulations or rules of the hospital. Switch your phone off when using medical equipment for private purposes, if possible. Always consult with the medical equipment's manufacturer or an expert regarding phone use near the medical equipment.

Installing a hands free device in your vehicle

Install vehicle hands free devices away from the steering wheel and airbag expansion area, otherwise injury may result.

Mobile phones and other electronic devices

Mobile phones emit electromagnetic waves that may affect nearby electronic devices. When it is switched on, do not place your phone close to delicate electronic equipment.

About the battery usage

Your phone is powered by a Lithium Ion (Li-Ion) battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your phone's autonomy due to the "battery memory effect" inherent in those technologies.

• Do not use a damaged battery or charger.
• Do not disassemble or open crush, bend or deform, puncture or shred.
• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard.
• Do not put your battery into contact with conductive objects.
• Dispose of and recycle used batteries in accordance with local regulations. Do not dispose of batteries by burning; they may explode.
• Do not use an unauthorized charger.
• Only use the battery for the device for which it is specified.
• Only use the battery with a charging device that has been qualified with the device per this standard. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.
• Do not short circuit a battery or allow metallic conductive objects to contact battery terminals.
• Replace the battery only with another battery that has been qualified with the device per this standard, IEEE-Std-1725-2006. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard.
  – Promptly dispose of used batteries in accordance with local regulations

• Battery usage by children should be supervised.

• Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.

• Use your battery for the specified purpose only.
• The closer you are to your network's base station, the longer your phone usage time because less battery power is consumed for the connection.
• The battery recharging time varies depending on the remaining battery capacity and the battery and charger type you use.
  – Battery life inevitably shortens over time.
• Use an authorized battery and charger only.
• Since overcharging may shorten battery life, remove the phone from its charger once it is fully charged. Unplug the charger, once charging is complete. Leaving the battery in hot or cold places, especially inside a car in summer or winter, may reduce the capacity and life of the battery. Always keep the battery within normal temperatures.
• To prevent injury or burns, ensure that no metal objects come into contact with the + and - terminals of the battery.

FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices

On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities.

While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.

The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label located on the box.

The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.

•M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.
•T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. T4 is the better/higher of the two ratings.

Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. The hearing aid and wireless phone rating values are then added

Appendix

together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use.

In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equal M5. This is synonymous for T ratings. This should provide the hearing aid user with “normal usage” while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined as a signal quality that is acceptable for normal operation.

The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.

To ensure that the Hearing Aid Compatibility rating for your phone is maintained, secondary transmitters such as Bluetooth and WLAN components must be disabled during a call. See page 72 for instructions to disable these components.

FCC Regulatory Compliance

FCC Regulatory Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Your mobile device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile devices. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements (NCRP), and International Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your phone complies with the FCC guidelines and applicable.

Statement according to FCC part 15.105

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Statement according to FCC part 15.21

Modifications not expressly approved by this company could void the user's authority to operate the equipment.

RF exposure FCC

For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 15mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided.

This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

Health and Safety Information FCC

This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures

specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *.
* In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in.
** This device contains 1800 MHz GSM functions that are not operational in U.S. Territories; this filing is applicable only for 850 MHz GSM and 1900 MHz PCS operations.

Warranty

Protect Your Warranty

Read your Warranty carefully, with the special consideration to paragraph seven of the Limited Warranty for your unit.

"Warranty does not apply to... or to any product or part thereof which has suffered through alteration... mishandling, misuse, neglect or accident".

Many companies are making look alike accessories and in some cases, promoting that their product is equal to or better than the Pantech product. Be careful. Some of these products may not be compatible to use with your Pantech product and may damage the unit or cause it to

Appendix

malfunction.

If service is required on your unit and it is determined that a non-Pantech accessory has created the problem with your unit, the Warranty will not apply. In addition, if the unit has already suffered irreversible damage by reason of a non-compatible accessory, the Warranty will be voided. To protect your Warranty, use only compatible accessories which cannot damage or interfere with the functioning of your Pantech product.

12 Month Limited Warranty

Pantech Wireless, Inc. (the Company) warrants to the original retail purchaser of this Pantech handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) months period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company's option, without charge for parts or labor directly related to the defect(s).

The antenna, key pad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase. This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable.

This Warranty does not apply to:

(a) Product subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage;

(b) Product whose mechanical serial number or electronic serial number has been removed, altered or defaced.
(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts;
(f) Product damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source.

The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole.

To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer's return address, daytime phone number and/or fax number and complete description of the problem, transportation prepaid, to the Company by calling the number listed below or to the place of purchase for repair or replacement processing.

To locate Pantech Authorized Service Center, call: [phone] or email [e-mail].

Please have the following information available when you send the phone in for repair:

– A valid original Proof of Purchase
- Return address

– Daytime phone number or fax number
- Model #
- IMEI # (Look for the 15 digit IMEI # behind the battery of the device.)
- Complete description of the problem
– Transportation prepaid

Other Warranty Program

You may have other warranty program with your purchase, such as warranty exchange. If so, please refer to equipment package or the original point of sale.

THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.

ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY

OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.

No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.

Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.

For technical support in the U.S. & Canada, call [phone].

Or email: [e-mail].

Or visit the web site: www.pantechusa.com

For all other inquiry, write to:

PANTECH WIRELESS, INC.

5607 Glenridge Dr. Suite 500 Atlanta, GA 30342

MANUAL DEL USUARIO DE IMPACT

Perform the functions shown at the bottom line of the display.

Tecla Enviar

Line drawing of a mobile phone with a scroll wheel and labeled ports (no text or symbols)

Blue line drawing of a vintage mobile phone with control panel and keypad (no text or symbols)

Inicio

Blue line drawing of a vintage mobile phone with control panel and keypad (no text or symbols)

Inicio

Blue line drawing of a vintage mobile phone with control panel and keypad (no text or symbols)

Inicio

Blue line drawing of a Dantech phone keyboard and camera module (no text or symbols)

Inicio

Blue line drawing of a vintage mobile phone with control panel and keypad (no text or symbols)

Inicio

Blue line drawing of a Dantech phone with keypad and buttons (no text or symbols)

Inicio

Blue line drawing of a Dantech phone keyboard and remote control device (no text or symbols)

Inicio

Blue line drawing of a Dantech phone keyboard and remote control device (no text or symbols)

Inicio
