USER MANUAL Verse PANTECH

PANTECH | VERS Manual de Usario PanTech 02.00 Message (actions) 1x Yus Doyle Xus Cellular

US Cellular PanTech | VERSSE SUO00664C0A REV.00 OM804SUS

U.S. Cellular 1x 02:00 Message Contacts PANTEDI OK GUR PANTECH | VERSE User Manual

User Guide

VERSE

USCellule PANTECH OK CLR Space SPX SPX

- contents

CHAPTER 1. BEFORE USING

BEFORE USING....7

HANDSET DESCRIPTIONS 8

KEY DESCRIPTIONS 8

DISPLAY INDICATORS 12

INSTALL BATTERY....16

REMOVE BATTERY 17

CHARGING YOUR BATTERY 17

USING A microSD™ CARD 19

BATTERY HANDLING INFORMATION....19

AVAILABLE OPTIONS DURING A CALL....34

MAKING AN EMERGENCY CALL 34

DIALING LETTERS 35

FAVORITES MENU....36

CHAPTER 3. MEMORY FUNCTION

MEMORY FUNCTION 37

STORING A PHONE NUMBER....38

EDITING CONTACT ENTRIES 41

DEFAULT NUMBERS....43

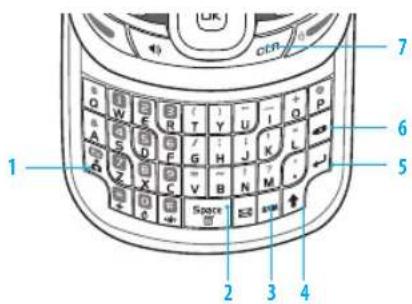

ENTERING LETTERS, NUMBERS & SYMBOLS....44

ONE, TWO, THREE-TOUCH DIALING 45

CHAPTER 4. MENU FUNCTION

CONTACTS 48

NEW CONTACT....48

CONTACT LIST 48

MY CONTACTS BACKUP 49

GROUPS 50

SPEED DIALS....54

FAVORITE CONTACTS 55

contents

MY NAME CARD....57

CALL HISTORY....59

MISSED CALLS 59

RECEIVED CALLS....59

DIALED CALLS....60

ALL CALLS....60

CALL TIMERS....61

easyedge ^SM 62

easyedge ^5M 62

YOUR NAVIGATOR....62

BROWSER 64

BROWSER....64

TONE ROOM DELUXE 65

TONE ROOM DELUXE 65

PAC-MAN 65

PAC-MAN 65

TOOLS 66

VOICE COMMANDS....66

CALCULATOR....71

TIP CALCULATOR 72

CALENDAR....73

E-DIARY 75

ALARM CLOCK 77

STOPWATCH 79

WORLD CLOCK....79

NOTEPAD + 80

USB MASS STORAGE 82

SETTINGS 83

SOUNDS SETTINGS 83

DISPLAY SETTINGS 87

PHONE SETTINGS 90

CALL SETTINGS 94

MEMORY 96

BLUETOOTH ^ 100

USB MODE....103

PHONE INFO 104

CHAPTER 5. MULTIMEDIA

MULTIMEDIA....107

PICTURE & VIDEO 108

SOUNDS....111

RINGTONES....113

MUSIC....114

CHAPTER 6. MESSAGING

MESSAGING 117

WHEN A NEW MESSAGE ARRIVES....118

NEWMESSAGE....118

MESSAGES....122

INBOX 124

SENT 125

DRAFTS....126

ERASE ALL 126

VOICEMAIL 127

MOBILE E-MAIL....127

SETTINGS....129

CHAPTER 7. SAFETY AND WARRANTY

SAFETY 134

SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES 134

SAFETY INFORMATION FOR FCC RF EXPOSURE 139

SAR INFORMATION....140

HEARING AID COMPATIBILITY (HAC) FOR WIRELESS TELECOMMUNICATIONS

DEVICES....142

FDA CONSUMER UPDATE 144

AVOID POTENTIAL HEARING LOSS 152

FCC COMPLIANCE INFORMATION....154

WARRANTY 155

12 MONTH LIMITED WARRANTY 155

1

This chapter provides important information about using the

VERSE including:

Handset Descriptions

Key Descriptions

Display Indicators

Install Battery

Remove Battery

Charging Your Battery

Using a microSD™ Card

Battery Handling Information

Abstract blue background with white curved lines and a central bright point labeled 'VERSE' (no other text or symbols)

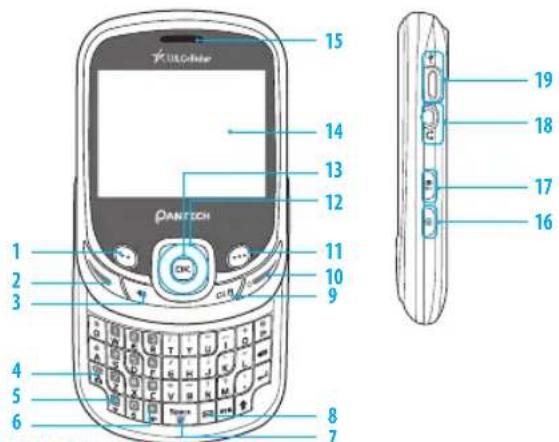

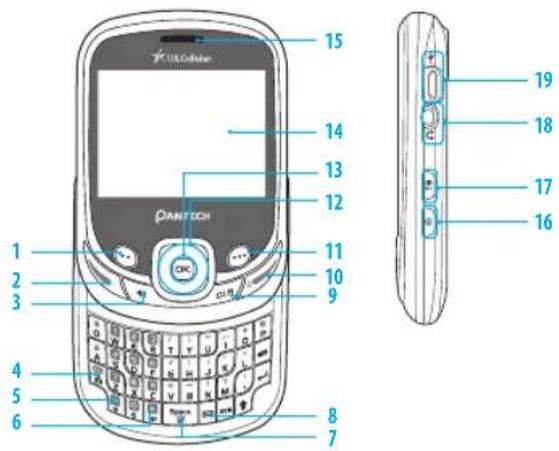

HANDSET DESCRIPTIONS

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 PANTECH 19 18 17 16

KEY DESCRIPTIONS

1. LetSoKey: From the idle mode, press to display the Message menu or access the function listed above the key.
2. SEND Keypress to make or receive a call. From the idle mode, press to access the All Calls list.
3. Speakerphone Keypress to turn Speakerphone On or Off.
4. Favorites Key / Mode Change Key: from the idle mode, press to access the Favorites menu. In text entry mode, press to change the character input type.

5. International Dial KeyPress to enter an asterisk (*) character for calling features. Press and hold to display the plus sign (+) for international dialing.

6. VibrationModeKey: Press to enter the (#) character for calling features. From the idle mode, press and hold to turn Vibration Mode on or off.

7. Notepad + / Space KeyPress to access the Notepad + menu or to add a space between characters.
8. TXTComposerKey: Press to access the New TXT Message Composer.
9. CLRKey: Press to clear a character from the display. Press and hold to clear all characters. Within a menu, press to return to the previous menu.
10. END / POWER Key: Press to end calls or close applications. Press and hold to power your phone on or off.
11. Right Soft Key: From the home screen, press to display the Contacts menu or access the function listed above the key.
12. Directional Key: Press to scroll through phone menu options and provides a shortcut to phone functions from idle mode.
13. OK Key: Press to access the menu screen. It also allows you to accept choices when navigating through a menu.
14. Display Screen: Displays the digital clock, messages, phone status and indicator icons.
15. Earpiece: Allows you to hear the other caller.
16. Camera Key / Video Key: Press to access the built-in camera. Press and hold to activate the Video Camera.
17. Task Bar Key: Press to access the Task Bar menu.
18. Headset Jack: Plug in an optional headset for convenient, hands-free conversations or for listening to music.
19. Charging / Data Port: Connects the phone to the USB/Wall Charger, or other compatible accessories.

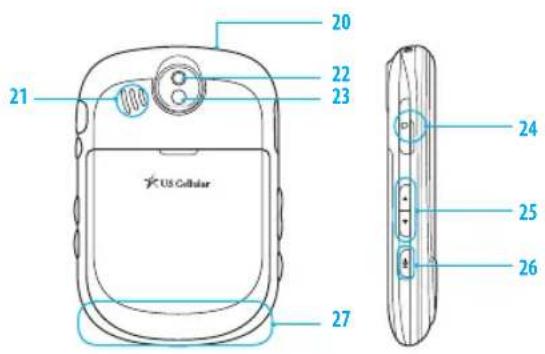

HANDSET DESCRIPTIONS

20 21 22 23 24 25 26 US Cellular

1. Wrist Strap Eyelet: Accessory eyelet (attach optional straps and lanyards - purchased separately).
2. External Speaker: Music, Ringtones and Sounds are played through the speaker.
3. Camera Lens: The lens of your built-in camera/camcorder.
4. Self-Portrait Mirror: Displays your reflection when taking pictures or videos.
5. microSD™ Card Slot: Insert a microSD™ Card(sold separately) here to increase memory capacity.
6. Volume Keys: Press to adjust master volume from the idle mode, adjust the earpiece volume during a call or adjust the volume when playing music.

7. Voice Commands Key: Press to launch the VOICE COMMANDS menu.

8. Internal Antenna Area


Correct Incorrect

Holding the device by the internal antenna area might affect the quality of calls.

DISPLAY INDICATORS

Icon Icon Descriptions
1x..ll	“1x” Signal Strength: Indicates your phone is in the CDMA 1x network. More bars indicate a stronger signal.
D..ll	“D” Signal Strength: Indicates your phone is receiving digital data. More bars indicate a stronger signal.
OFF	Airplane Mode: Transmitting and receiving information is restricted.
▲	Roaming: The phone is outside of the home service area.
S	SSL (Secured Socket Layer): Indicates that secure communication between client and server has been established during data communication using encryption.
P	Voice Privacy: Indicates Voice Privacy mode is active.
E	Data Call: Indicates a Data Session is in progress.
÷	Dormant: Indicates phone is in a dormant state during a data call. Phone reverts to Dormant mode when there hasn't been activity on a page for some time - the connection is still active and you can make and receive calls.
R	No Service: Phone cannot receive signal from the system.
m	TTY: TTY mode is active.
B	Voice Call: A call is in progress.* No icon indicates the phone is in idle mode.
♥	E911: Global Positioning Service (GPS) for E911 is set to On for emergency calls only.
♥)	Location On: GPS is set to On for Location Service and E911 calls.

Icon Icon Descriptions
	Keypad Lock: Indicates external keys are locked.
	Bluetooth®: Indicates Bluetooth® mode.
	Bluetooth Active: Indicates Bluetooth Active mode.
	Bluetooth Connected: Indicates a Bluetooth Device is connected.
ONLY	Music Only: Indicates your phone is in Music Only mode.
	Playing Music: Indicates that music is playing.
	Pause Music: Indicates that music playback has been paused.
	Numeric Entry Mode: Enter numbers by pressing the corresponding key on the keypad.
	Alphabetical Entry Mode: Enter characters by pressing the key with the desired characters.
	Battery Level: Battery charging level - the more blocks, the stronger the charge.
	AVR Active: AVR mode is active.
	AVR Listening: Indicates AVR listening.
	All Sounds Off: All sounds are set to off.
	Alarm Only: Phone will alert you only with an alarm tone.
	Vibrate Only: Indicates the Ringer Volume is set to Vibrate On.
	Speaker: Speakerphone mode is active.

BEFORE USING

Icon Icon Descriptions
	Missed Calls: Indicates you have missed calls.
	Message: Indicates you have a new message.
	MessageUrgent: Indicates you have urgent message.
	Calendar Appointment: Event Alarm is active.
	Voicemail: Indicates you have a voice mail message.
	Alarm On: Appears when an alarm is set.

Call History Icons
☒	Dialed Call Missed Call	☒
☑	Received Call

New Contact Icons
	Mobile 1 Message Tone
	Mobile 2 Fax
	Home Speed Dial
	Business Home Address
	Personal Email Work Address
	Work Email Company
	Group Title
	Picture/Video Birthday

New Contact Icons
	Ringtone Notes
Other Icon
	DST (Daylight Saving Time)
Message Icons
	New/Unread Message Pending	Message Sent
	Opened/Read Message Unread	MMS
	Message Delivered Read MMS
	Incomplete Delivery Sent Message
	Sent Message, Delivery Failed
	Message Locked Unread WAP Push
	Text Message Draft Read WAP Push
	Picture Message Draft
	Priority
	Unread MMS Notification
	Read MMS Notification
	Corrupt Message

INSTALL BATTERY

1. Insert your finger tip into the slot (1), then push down on top of the battery cover and slide it off to remove (2).
2. Slide the battery into the slot (3) by aligning the contacts and press down (4) until you hear the "click".

CorrectIncorrect

1. Align the cover tabs with the slots on the back of the device (1) and slide the battery cover onto the unit until it snaps into place (2).

If the battery is not correctly placed in the compartment, the handset will not turn on and/or the battery may detach during use.

IncorrectCorrect

REMOVE BATTERY

1. To remove the battery cover, insert your finger tip into the slot (1), then push down on top of the battery cover and slide it off (2).
2. Insert your fingernail into the slot and lift the battery (3), and pull the battery (4).
3. Align the cover tabs with the slots on the back of the device and slide the battery cover onto the unit until it snaps into place.

CHARGING YOUR BATTERY

1. Connect the USB data cable into the cableless wall adapter.
2. Plug the USB data cable into the phone's Charging/Data Port (making sure to align the connector as it appears in the image to the right) and the wall adapter end into an electrical outlet.

• If the battery connector is not properly aligned, damage could occur to the charging connector and the phone may not charge.
• The main plug is used as the disconnect device and remains readily operable.

CorrectIncorrect CorrectIncorrect

3. To remove the Wall Charger, gently pull the charger from the device.

When you charge the battery with the handset powered off you will see a charging status screen. After the charging has completed, the Charge Complete message appears. You cannot operate the phone until it is powered on. To turn your phone on, press and hold the END/POWER Key until your display turns on.

• The battery is not fully charged at the time of purchase. Fully charge the battery before use.
• It is more efficient to charge the battery with the handset powered off.
• Battery operating time gradually decreases over time.
• If the battery fails to perform normally, you may need to replace the battery.

USING A microSD™ CARD

A microSD™ Card stores sounds, videos, images, photos, music, and other files.

INSTALLING A microSD™ CARD

To install your microSD ^™ Card:

1. Remove the cover of microSD Card Slot.
2. Press the microSD Card into the slot with the gold contacts facing up.
3. Replace the cover of microSD Card Slot.

REMOVING A microSD™ CARD

To remove the microSD Card:

1. Remove the cover of microSD Card Slot.
2. Gently push the exposed edge of the microSD Card with your fingertip to release it from the slot.
3. Remove the microSD Card.
4. Replace the cover of microSD Card Slot.

BATTERY HANDLING INFORMATION

CAUTIONS: THERE IS A RISK OF EXPLOSION IF AN INCORRECT BATTERY IS USED. DISPOSE OF USED BATTERY ACCORDING TO LOCAL LAWS.

DO'S

• Only use the battery and charger approved for use with the VERSE.
• Only use the battery for the system for which it is specified.
• Only use or replace the battery with a charging system or another battery that has been qualified with the
  system per this standard, IEEE Std 1725-2006. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.
• Only use the battery for its original purpose. As an improper battery use may result in a fire, explosion or other hazard.

• Try to keep batteries in a temperature between 36°F (0°C) and 95°F (35°C). If the battery is stored in temperatures above or below the recommended range, give it time to warm up or cool down before using.

• Store the discharged battery in a cool, dark, and dry place.
  • Purchase a new battery when its operating time gradually decreases after fully charging.
  • Properly and promptly dispose of the battery according to local laws.

• Battery usage by children should be supervised.

DON'TS

• Do not attempt to disassemble or open the battery – it is a sealed unit with no serviceable parts.
• Do not crush, bend or deform, puncture or shred the battery.
• Do not drop the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
• Do not leave the battery in extremely hot or cold temperatures. Otherwise, it could significantly reduce the capacity and lifetime of the battery.
• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard.
• Do not accidentally short-circuit the battery by carrying it in your pocket or purse with other metallic objects such as coins, clips and pens. This may critically damage the battery.
• Do not short-circuit a battery or allow metallic conductive objects to contact battery terminals.
• Do not dispose of the battery by placing into a fire.

BASIC OPERATION

2

This chapter addresses and explains the basic features for

VERSE including:

Turning the Phone On/Off

Accessing the Menu

Using the Task Bar

Quick Switching

Menu Summary

Making a Call

Answering Calls

Missed Call Notification

Wait/Pause Feature

Making an International Call

3-Way Calling

Call Waiting Function

Calling a Number from Contacts

Adjusting Volume

Caller ID Function

Vibrate Mode

Speakerphone Mode

Using Auto Keypad Lock Function

Available Options During a Call

Making an Emergency Call

Dialing Letters

Favorites Menu

Abstract blue background with white curved lines and a central bright point labeled 'VERSE' (no text or symbols beyond the label)

1. Press and hold the END/POWER Key until the display turns on.

- If "ENTER LOCK CODE" appears on the display, press the ☑ Key to unlock the keypad, and enter your 4-digit lock code and press the ☑ Key. - The default lock code is the last 4 digits of your phone number.

1. Press the END/POWER Key then press the Key in less than three seconds to unlock the keypad. Press and hold the END/POWER Key until your display turns off.

- Immediately change or recharge the battery when "BATTERY LOW" appears on the display. Memory may possibly be damaged if the phone turns off due to the battery completely draining. - Turn the phone off before removing or replacing the battery. If the phone is on, unsaved data may be lost. - To turn off your device while a Daily Perks alert window is open, Slide the phone up and press and hold the END/POWER Key until your display turns off.

ACCESSING THE MENU

Your phone can be customized via the menu. Each function can be accessed by pressing the Directional Key or by pressing the number that corresponds with the menu item.

1. To access the menu, slide the phone up and press the Key [MENU].
2. To scroll through the menu, press the Directional Key ⓔ left, right, up or down or press the number that corresponds to the desired menu item.
3. To return to the previous page, press the CLR Key. To exit the current menu and return to the idle mode, press the END/POWER Key.
4. From the idle mode, press the END/POWER Key , then press the key in less than three seconds to unlock the keypad. Press the Left Soft Key [Message] to open the Messages menu or press the Right Soft Key [Contacts] to open your Contact List.

This manual assumes that Menu Type is set to Grid, which are the default settings.

USING THE TASK BAR

The Task Bar is an alternative way to cycle through menus, requiring fewer key presses. Toggle between the following menus:

DIALING, FAVORITES, CALL HISTORY, MESSAGING, MUSIC, PICTURES, CONTACTS, TOOLS

1. From the idle mode, press the END/POWER Key then press the Key in less than three seconds to unlock the keypad. Press the Task Bar Key (located on the right side of the device).
2. Press the Directional Key left or right to scroll through Task Bar menus. Press up or down to choose a sub menu.
3. Select a desired task and press the ☑ Key.

- Task Bar is not available for certain circumstances such as receiving an incoming call or message, displaying a notification message or displaying the main menu.

QUICK SWITCHING

While a menu is being accessed, you can quickly switch between the other menu options.

1. Slide the phone up and press the Key [MENU], then select a desired menu from the following main menus:
   Contacts, Messaging, Call History, Multimedia, easyedge, Browser, Tone Room Deluxe, PAC-MAN, Tools & Settings.
2. Press the Key.
3. Once a menu is selected, press the Directional Key left or right to switch between the menus (except easy edge, Browser, Tone Room Deluxe, PAC-MAN).

MENU SUMMARY

Main Menu 2	ND DEPTH 3	RD DEPTH 4	TH DEPTH
1. Contacts 1. New Contact
		112. Reserved211. Reserved311. Reserved411. Directory Assistance
2. Messaging 1. New Message		1. TXT Message2. Picture Message3. Video Message4. Voice Message
3. Call History	1. Missed Calls
	2. Received Calls
	3. Dialed Calls
	4. All Calls

BASIC OPERATION

Main Menu 2	^ND DEPTH 3	^RD DEPTH 4	^TH DEPTH
3. Call History	5. Call Timers 1. Last Call	2. All Calls3. Received Calls4. Dialed Calls5. Roaming Calls6. Transmit Data7. Received Data8. Total Data9. Last Reset10. Lifetime Calls11. Lifetime Data Counter
4. Multimedia	1. Picture & Video 1. Pictures	2. Videos3. Take Picture4. Record Video
	2. Sounds 1. Record New
	3. Ringtones
	4. Music 1. All Songs
		2. Playlists3. Artists4. Genres5. Albums6. Manage Music 1. Erase	2. Lock3. Unlock4. Move To Card5. Move To Phone
		7. Music Settings 1. Repeat	2. Shuffle3. Player Skin4. Music Only Mode
5. easyedge 1.	easyedge
6. Browser 1. Browser
7. Tone Room Deluxe	1. Tone Room Deluxe

BASIC OPERATION

Main Menu 2	^ND DEPTH 3	^RD DEPTH 4	^TH DEPTH
8. PAC-MAN 1.PAC-MAN
9. Tools & Settings 1. Tools 1. Voice Commands
		2. Calculator3. Tip Calculator4. Calendar5. E-Diary6. Alarm Clock7. Stopwatch8. World Clock9. Notepad +0. USB Mass Storage
	2. Sounds Settings 1. Call Sounds 1. Call Ringtone
			2. Call Vibrate3. Caller ID Readout
		2. Alert Sounds 1. TXT Message
			2. Multimedia Message3. Voicemail4. Emergency Tone5. Missed Call
		3. Keypad Sounds
		4. Keypad Volume
		5. Digit Dial Readout
		6. Service Alerts 1. Minute Beep
			2. Call Connect3. Software Update
		7. Device Connect
		8. Power On/Off 1. Power On
			2. Power Off
		9. Open/Close Sounds
		0. Master Volume
	3. Display Settings	1. Banner

Main Menu 2	^ND DEPTH 3	^RD DEPTH 4	^TH DEPTH
9. Tools & Settings 3. Display Settings 2. Backlight 1. Display
			2. Keypad
			3. Wallpaper 1. Pictures
			2. Videos
			3. Animated Wallpapers
			4. Menu Type
			5. Font Type
			6. Dial Font Size
			7. Menu Font Size
			8. Clock Format
			9. Data Charge Popup
			4. Phone Settings
			1. Airplane Mode
			2. Language
			3. Location
			4. Security 1. Edit Codes
			1. Phone Only
			2. Calls & Services
			2. Restrictions
			1. Location Setting
			2. Calls
			1. Incoming
			2. Outgoing
			3. Text Messages
			1. Incoming
			2. Outgoing
			4. Picture Messages
			1. Incoming
			2. Outgoing
			5. Data Connection
			3. Phone Lock Setting
			4. Lock Phone Now
			5. Factory Reset
			5. System Select
Main Menu 2	^16 DEPTH 3	^16 DEPTH 4	^17 DEPTH
9. Tools & Settings	5. Call Settings 1. Answer Options
			2. Auto Retry
			3. TTY Mode
			4. One Touch Dial
			5. Voice Privacy
			6. DTMF Tones
			7. Slide Close
	6. Memory 1. Save Options 1. Pictures		2. Videos3. Sounds
			2. Phone Memory 1. Phone Memory Usage2. Pictures3. Videos4. Sounds5. Music6. Contacts7. Move All To Card
			3. Card Memory 1. Card Memory Usage2. Pictures3. Videos4. Sounds5. Music6. Contacts7. Move All To Phone
	7. Bluetooth* 1. Add New Device
	8. USB Mode
	9. Phone Info 1. My Phone Number
			2. SW/HW Version
			3. MEID / pESN

Main Menu 2	^ND DEPTH 3	^RD DEPTH 4	^TM DEPTH
9. Tools & Settings 9.	Phone Info 4. Icon Glossary
		5. Software Update 1. Status	2. Check for Update
		6. Operating System

MAKING A CALL

1. Slide the phone up and enter the phone number (include the area code if needed).

• To erase one digit at a time, press the CLR Key
• To erase the entire number, press and hold the CLR Key
- When you place or receive a call from phone numbers stored in your Contact List with a contact name, the name will be displayed.

1. Press the SEND Key

2. To end a call, press the END/POWER Key

• If you activate the AUTO RETRY function, the phone will automatically re-dial the number (Refer to page 94).
• You can also place calls using Voice-Activated Dialing. Please refer to page 66 for more details.

ANSWERING CALLS

1. When your phone rings or vibrates, slide the phone up or press the Key and the SEND Key to answer the incoming call. (Depending on your Answer Options, you may also answer incoming calls by pressing any key. Slide Open, Send Key is the default setting for this device.)

2. To ignore incoming calls, press the Right Soft Key [Ignore].

3. To end a call, press the END/POWER Key

If Answer Options is set to "Auto with Handsfree", calls are answered automatically after about five seconds (Refer to page 94).

MISSED CALL NOTIFICATION

When an incoming call is not answered, the Missed Call notification appears on the display.

TO DISPLAY THE MISSED CALL ENTRY FROM THE NOTIFICATION SCREEN:

1. Highlight View Now and press the Key.

2. Press the OK Key [OPEN] to view the call details.

TO DISPLAY A MISSED CALL ENTRY FROM IDLE MODE:

1. Slide the phone up, press the Key [MENU], select 3. Call History, then press the Key.

2. Press1. Missed Calls

3. Highlight the entry you wish to view, and then press the OK Key [OPEN].

4. To dial the phone number, press the SEND Key

WAIT/PAUSE FEATURE

Pauses are used for automated systems (i.e., voicemail or calling cards). Insert a pause after a phone number and then enter another group of numbers. The second set of numbers is dialed automatically after the pause. This feature is useful for dialing into systems that require a code.

Add Wait

The phone stops dialing until you press the SEND Key or [SEND] Key to advance to the next number.

1. Slide the phone up and enter the phone number.
2. Press the Right Soft Key ⚠️ [Options].
3. Select 2. Add Wait and press the Key.
4. Enter additional number(s).
5. Press the SEND Key to dial or press the Left Soft Key [Save] to save.

Add 2-Sec Pause

The phone waits 2 seconds before sending the next string of digits automatically.

1. Slide the phone up and enter the phone number.
2. Press the Right Soft Key ⚙ [Options].
3. Select 1. Add 2-Sec Pause and press the Key.
4. Enter additional number(s) (pin number or credit card number).
5. Press the SEND Key to dial or the Left Soft Key [Save] to save.

MAKING AN INTERNATIONAL CALL

1. Slide the phone up, then press and hold the *Key The + required for international calls appears.
2. Enter the country code, area code, and phone number, then press the SEND Key
3. To end the call, press the END/POWER Key

3-WAY CALLING

With 3-Way Calling, you can talk to two people at the same time. When using this feature, normal airtime rates will be applied for each of the two calls.

1. Slide the phone up, enter the phone number you wish to call, then press the SEND Key 📋.
2. Once you have established the connection, enter the second phone number you wish to call and then press the SEND Key
3. When you're connected to the second party, press the SEND Key again to begin your 3-Way call.

If one of the people you called hangs up during your call, you and the remaining caller stay connected. If you initiated the call and are the first to hang up, all three calls will be disconnected.

CALL WAITING FUNCTION

If you are on a call and you receive another incoming call, you will hear a beep and the caller's phone number will appear on the display. With Call Waiting, you may put the active call on hold while you answer the other incoming call.

To answer another call while on the phone, press the SEND Key This places the first call on hold. To switch back to the first caller, press the SEND Key again.

CALLING A NUMBER FROM CONTACTS

1. From idle mode, press the END/POWER Key, then press the Key in less than three seconds to unlock the keypad. Press the Right Soft Key [Contacts].

2. Select the Contact entry and press the Key [VIEW], then select the desired phone number.

3. Press the SEND Key to place the call.

Selecting the Contact entry and then pressing the Send Key will dial the Default Number of the Contact entry automatically.

ADJUSTING VOLUME

TO ADJUST THE MASTER VOLUME:

1. From idle mode, press the END/POWER Key then press the Key in less than three seconds to unlock the keypad. Press the Volume Keys / up or down (located on the left side of the device).
2. Select one of the following options and press the OK Key [SET] to save it.
3. All Sounds Off
4. Alarm Only
   • Vibrate Only
5. Low/ Medium Low / Medium / Medium High / High

Press the Volume Keys / ↓ up or down (located on the left side of the device) to adjust Earpiece volume during a call.

CALLER ID FUNCTION

Caller ID displays the number of the person calling when your phone rings. If the caller's identity is stored in Contacts, the name appears on the screen. The caller ID is stored in the Call History menu.

VIBRATE MODE

Vibrate Mode mutes key tones and alerts for an incoming call or message. To activate Vibrate Mode:

1. Slide the phone up, then press and hold the Vibration Mode Key (#) activate vibration mode.
2. To deactivate vibration mode, press and hold the Vibration Mode Key (#)

SPEAKERPHONE MODE

The Speakerphone feature lets you hear audio through the speaker and talk without holding the phone.

To activate, press the END/POWER Key, then press the Key in less than three seconds to unlock the keypad. Press the Speakerphone Key. To deactivate, press the Speakerphone Key again.

USING AUTO KEYPAD LOCK FUNCTION

When the slide is closed the Side Keys and the Directional Key are locked. To unlock them, press any key on the external display with the phone in the closed position "Keypad Locked (Press END)" displays. "PRESS OK TO UNLOCK KEYPAD" will be displayed on the screen, then press the OK Key to unlock the keypad.

AVAILABLE OPTIONS DURING A CALL

During a phone call, you can access the following features by pressing the Right Soft Key [Options]:

1. New Message To access the Messages Menu during a call. Press the Right Soft Key [Options], select 1. New Message and press the Key.
2. ContactList: To view your Contact List during a call. Press the Right Soft Key [Options], select 2. Contact List and press the Key.
3. Call History: To view your Call History list during a call. Press the Right Soft Key [Options], select 3. Call History and press the Key.
4. Bluetooth: To access the Bluetooth® Menu during a call. Press the Right Soft Key [Options], select 4. Bluetooth and press the Key.

If a Bluetooth® Audio device is connected, Audio To Phone / Audio To Device is displayed in the options menu instead of Bluetooth.

1. Main Menu: To access the Main Menu during a call. Press the Right Soft Key [Options], select 5. Main Menu and press the Key.
2. Notepad +: To compose notes during a call. Press the Right Soft Key [Options], select 6. Notepad+ and press the Key.
3. Voice Privacy: To turn the voice privacy feature On or Off. Press the Right Soft Key [Options], select 7. Voice Privacy and press the Key.

The settings of Voice Privacy does not apply in GSM Mode.

1. DTMF On/Off: To access the DTMF On/Off during a call. Press the Right Soft Key [Options], select 8. DTMF On/Off and press the Key.

MAKING AN EMERGENCY CALL

The E911 feature automatically places the phone in Emergency Call Mode when you dial the preprogrammed emergency number, 911". It also operates in Lock Mode and out of the service area.

911 IN LOCK MODE

To make an emergency call in Lock Mode:

1. Slide the phone up, enter "911", and then press the SEND Key
2. The call connects.
3. The phone maintains Emergency Mode for 5 minutes. After the 5 minutes, the phone returns to Lock Mode.

911 USING ANY AVAILABLE SYSTEM

To make an Emergency Call using any available system:

1. Slide the phone up, enter "911", and then press the SEND Key
2. The call connects.
3. The phone will stay in Emergency Mode for 5 minutes. While the phone is in the Emergency Mode the phone can receive an incoming call or you can make outgoing calls even in the Emergency Callback Mode. After the 5 minutes, finish the Emergency mode.

DIALING LETTERS

Allows you to dial the number associated with a specific word.

For example, to call "1-800-FLOWERS":

1. Slide the phone up, enter "1-800", then press and hold the Mode Change Key
2. Enter FLOWERS" with the QWERTY Keypad and press the SEND Key to connect.

- If the Alphabetical Entry Mode icon is turned on, only capital letters will be appeared. - Pressing the Mode Change Key will change between Numeric Entry Mode and Alphabetical Entry Mode.

FAVORITES MENU

To assign up to 9 contacts as Favorites:

1. Slide the phone up and press the Favorites Key, press the Key [ASSIGN].
2. Select the desired contact and press the Key [MARK/UNMARK]. When finished, press the Left Soft Key [Done].
   To remove the assigned contacts from Favorites:
3. Slide the phone up and press the Favorites Key
4. Select the desired contact and press the Right Soft ⚙️ Key [Options].
5. Press 1. Remove or 2. Remove All and select Yes and press the OK Key.

MEMORY FUNCTION 3

This chapter addresses memory functions including:

Storing a Phone Number

Editing Contact Entries

Default Numbers

Entering Letters, Numbers & Symbols

One, Two, Three-Touch Dialing

Abstract blue background with white curved lines and a central 'VERSE' logo (no text or symbols beyond the logo)

STORING A PHONE NUMBER

The Contact List stores up to 1000 entries.

ADDING A NEW CONTACT

1. Slide the phone up and enter the phone number you want to save (up to 32 digits).
2. Press the Left Soft Key [Save].
3. Select 1. Add New Contact and press the Key.
4. Press the Directional Key up or down to select the type of phone number you want to save, then press the Key.
   Mobile 1 / Mobile 2 / Home / Business / Fax

Use Update Existing to add another phone number to a contact already stored in memory.

1. Enter a name for the phone number (up to 32 characters), then press the OK Key [SAVE].

2. "CONTACT SAVED" displays, then the phone number reappears on the screen. Press the END/POWER Key to exit, or press the SEND Key to call the number.

OPTIONS TO CUSTOMIZE YOUR CONTACTS

Once the basic phone number and name information is stored in your Contacts, you can edit and/or customize the entries.

1. Slide the phone up and press the Right Soft Key 📋 Contacts], then highlight the Contact entry you want to edit.
2. Press the Left Soft Key [Edit] to access the Edit Contact screen.
3. Select the information field you want to customize. Fields include: Name / Mobile 1 / Home/ Business/Mobile 2 / Fax/ Personal Email/ Work Email / Pic/Video/Ringtone / Message Tone/ Group / Home Address / Work Address / Company /Title / Birthday/ Notes
4. Change the data as necessary, then press the Key [ SAVE] to update the contact entry.

ADDING OR CHANGING GROUPS

To organize your Contacts into groups:

1. Slide the phone up, press the Right Soft Key [Contacts], then highlight the desired Contact entry.
2. Press the Left Soft Key [Edit].
3. Highlight Group and press the Left Soft Key [Set / Edit]
4. Select Personal or Business, then press the Key [ MARK/UNMARK]. To create a new group, press the Right Soft Key [New], enter the new group name, then press the Key [SAVE].
5. Press the Left Soft Key ⚙ [Done] to set the group.
6. Press the Key [ SAVE] to update the contact entry.

CHANGING THE CALL RINGTONE

To identify who is calling by setting different ringtones for different phone numbers in your Contacts:

1. Slide the phone up and press the Right Soft Key ⚙ [Contacts], then highlight the desired entry.

2. Press the Left Soft Key [Edit].

3. HighlightRingtone, then press the Left Soft Key ⏻ [Set].

4. Select the new ringtone, then press the OK Key.

5. Press the Left Soft Key 🎨 [Play] to listen to a highlighted ringtone or press the Right Soft Key 🎨 [Options] to view the file information before you press the Ⓧ Key.

6. To remove the ringtone, press the Right Soft Key - [Remove]. "REMOVE RINGTONE?" appears on the screen. Select Yes and press the OK Key.

7. Press the Key [ SAVE] to update the contact entry.

ADDING OR CHANGING THE PICTURE/VIDEO ID

To select a picture or video to assign to a Caller ID:

1. Slide the phone up and press the Right Soft Key 📍 Contacts], then highlight the desired entry.
2. Press the Left Soft Key ⚙ [Edit].
3. Highlight Pic/Video, and press the Left Soft Key [Set].
4. Select 1. Pictures or 2. Videos, then press the Key.
5. Press the Directional Key up, down, left or right to select a picture or a video, and then press the OK Key.

- To remove the picture or video, press the Right Soft Key [Remove]. "REMOVE PICTURE FROM CONTACT?" appears on the screen. Select Yes and press the Key.

1. When completed, press the Key [ SAVE] to update the contact entry.

ADDING OR CHANGING AN E-MAIL ADDRESS

To enter or add an e-mail address to a Contact entry:

1. Slide the phone up, press the Right Soft Key ⚙ [Contacts], then highlight the desired entry.
2. Press the Left Soft Key [Edit].
3. Highlight Personal Email / Work Email
4. Enter an e-mail address using the QWERTY Keypad, then press the Key [SAVE] to update the contact entry.

ADDING A SPEED DIAL ENTRY

To add an entry to Speed Dial:

1. Slide the phone up and press the Right Soft Key [Contacts], then highlight a desired entry.
2. Press the Left Soft Key [Edit].

3. Highlight the phone number you want to add to Speed Dial, then press the Right Soft Key [Options].

4. Select 1. Set Speed Dial, then press the Key.

5. Select a Speed Dial location, then press the Key [SET].
6. Select Yes and press the Key.
7. Press the OK Key [SAVE] to update the contact entry.

Using the QWERTY Keypad press the corresponding speed dial number to select the desired speed dial location.

EDITING CONTACT ENTRIES

ADDING A PHONE NUMBER FROM IDLE MODE

1. Slide the phone up and enter the phone number you want to save (up to 32 digits).
2. Press the Left Soft Key ⚙ [Save].
3. Highlight 2. Update Existing, then press the Key.
4. Highlight the existing Contact entry, then press the OK Key.
5. Highlight the following phone number type, then press the Key. Mobile 1 / Mobile 2 / Home / Business / Fax
6. If a phone number is already assigned to the type you selected, selectYes to overwrite the existing entry, then press the OK Key.
7. CONTACT UPDATED" displays, then the phone number reappears on the screen. Press the END/POWER Key to exit, or press the SEND Key to call the number.

ADDING A PHONE NUMBER FROM THE CONTACT LIST SCREEN

1. Slide the phone up and press the Right Soft Key [Contacts].
2. Highlight the Contact entry you want to edit, then press the Left Soft Key [Edit].
3. Highlight the phone number field and enter the number, then press the Key [SAVE] to update the contact entry. A confirmation message appears.

EDITING STORED PHONE NUMBERS

1. Slide the phone up and press the Right Soft Key [Contacts].
2. Highlight the Contact entry you want to edit, then press the Left Soft Key [Edit].
3. Select the phone number you want to edit.
4. Edit the phone number as necessary, and then press the OK Key [SAVE] to update the contact entry.

EDITING STORED NAMES

1. Slide the phone up, then press the Right Soft Key [Contacts].
2. Highlight the Contact entry you want to edit, then press the Left Soft Key [Edit].
3. Edit the name as necessary, and then press the Key [ SAVE] to update the contact entry.

DELETING A PHONE NUMBER FROM A CONTACT

1. Slide the phone up and then press the Right Soft Key [Contacts].
2. Highlight the Contact entry, then press the Left Soft Key [Edit].
3. Select the desired phone number to be deleted.
4. Press and hold the Clear Key 📄 to delete the number.
5. Press the OK Key [SAVE] to update the contact entry. A confirmation message appears.

DELETING A CONTACT ENTRY

1. Slide the phone up and press the Right Soft Key [Contacts].
2. Select the desired Contact entry to be deleted.
3. Press the Right Soft Key [Options], select 2. Erase and press the Key.
4. Select Yes and press the Key. A confirmation message appears.

DELETING A SPEED DIAL

1. Slide the phone up and press the Right Soft Key ⚙ [Contacts].
2. Highlight the entry that has a speed dial to be deleted.
3. Press the Left Soft Key ⚙ [Edit].
4. Highlight the phone number that has a speed dial to be deleted.
5. Press the Right Soft Key [Options], select 1. Remove Speed Dial and press the OK Key.
6. Select Yes and press the Key. A confirmation message appears.
7. Press the OK Key [SAVE] to update the contact entry.

DEFAULT NUMBERS

The phone number saved when a Contact is created is the Default Number. If more than one number is saved in a Contact entry, another number can be set as the Default Number.

The Default Number cannot be deleted. The entire Contact entry can be deleted or another number can be assigned as the Default Number allowing you to delete the original number and keep the Contact entry.

CHANGING THE DEFAULT NUMBER

1. Slide the phone up and press the Right Soft Key [Contacts].
2. Highlight the Contact entry you want to edit, then press the Left Soft Key [Edit].
3. Highlight the phone number you want to assign as the Default Number, then press the Right Soft Key [Options].
4. Select2. Set As Default, then press the Key.
5. SelectYes and press the Key. A confirmation message appears.
6. Press the Key [ SAVE] to update the contact entry.

ENTERING LETTERS, NUMBERS & SYMBOLS

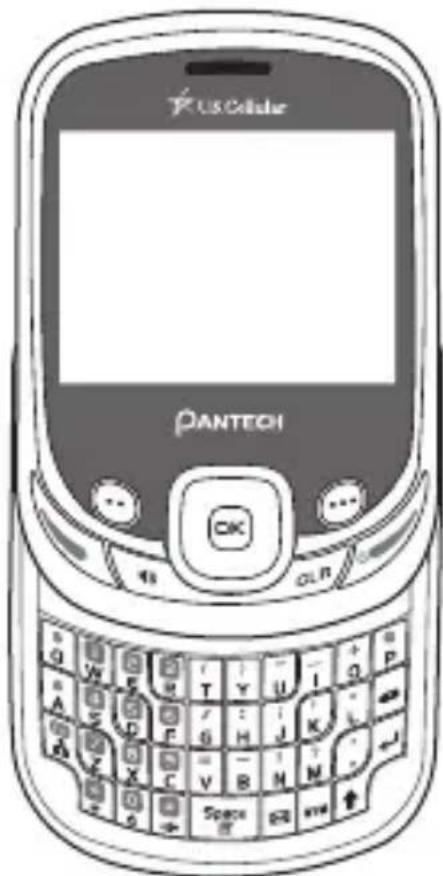

Your device has a QWERTY Keypad that provides a superior typing experience on a small handheld device for easy and comfortable input.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99

1. [ ] Mode Change Key:

• When in Numeric entry mode
• Press to change between entering numbers and letters that appear on the same key.
• When in Text entry mode
• Press to change between entering numbers and letters that appear on the same key.

• Press and hold to lock in numeric or text entry mode.

• [1] Space Key: Press to accept a word and add a space while entering letters.

• [ ] Symbols Key: Press to open the symbols list.

• Caps Key: Press to select a letter case for the standard text [Abc] input mode. [Abc], [ABC] and [abc] indicate the standard text input.

• [ ] Enter Key: Press to insert a carriage return.

• Delete Key: When in a Text entry field and in entry mode, press to delete the character to the left of the cursor. Press and hold to delete the entire word or character string that was just entered.

• [1]CLR Key: When in a Text entry field and in entry mode, press to delete the character to the left of the cursor. Press and hold to delete the entire word or character string that was just entered.

For best performance in low-light environments, your handset includes a backlight feature that can illuminate both the display and the keypad so you can keep reading and typing. (Please refer to page 87 for more details on Backlight.)

ONE, TWO, THREE - TOUCH DIALING

Once you have assigned speed dial numbers to your contact entries, use the following steps to use your speed dials:

ONE - TOUCH DIALING:

1-9: Slide the phone up, then press and hold the number you wish to connect to for more than 1 second. (Voicemail) is already assigned to your voicemail box.

TWO - TOUCH DIALING:

10-99: Slide the phone up, then press the first digit and press and hold the second digit of the number to dial.

THREE - TOUCH DIALING:

100-500: Slide the phone up, press the first and second digits, then press and hold the third digit of the number to dial.

112, 211, 311: Speed Dial entry 112, 211, 311 (Reserved) is already assigned.

411: Speed Dial entry 411 (Directory Assistance) is already assigned.

MENU FUNCTION

4

This chapter addresses accessing the menu and using its functions and features to customize your VERSE.

CONTACTS

New Contact

Contact List

My Contacts Backup

Groups

Speed Dials

Favorite Contacts

My Name Card

Dialed Calls

All Calls

Call Timers

easyedge ^SM

easyedge

Your Navigator

BROWSER

Browser

CALL HISTORY

Missed Calls

Received Calls

PAC-MAN

PAC-MAN

Notepad+

USB Mass Storage

TOOLS

Voice Commands

Calculator

Tip Calculator

Calendar

E-Diary

Alarm Clock

Stopwatch

World Clock

SETTINGS

Sounds Settings

Display Settings

Phone Settings

Call Settings

Memory

Bluetooth®

USB Mode

Phone Info

U.S.Cellular VERSE

NEW CONTACT

To add a new number to your Contact List:

Using this submenu, the number is saved as a new Contact. To save the number into an existing Contact, edit the Contact entry.

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 1. New Contact.

2. In the Name field, enter a name for the Contact.

To change the input mode, press the Left Soft Key [Abc], select the desired option, and press the Key.

1. Press the Directional Key down to enter information in other fields for the contact. Fields include: Mobile 1 / Home/ Business/ Mobile 2 / Fax/ Personal Email/ Work Email / Pic/Video/ Ringtone/ Message Tone/ Group / Home Address / Work Address / Company / Title/ Birthday/ Notes

2. Press the Key [ SAVE] to create the contact entry.

CONTACT LIST

You can review all the entries stored in your Contact List or quickly find an entry by entering a name or its character string in the Go To field.

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 2. Contact List.

Shortcut: From idle mode, slide the phone up and press the Right Soft Key [Contacts]. The list of names in your contacts is displayed alphabetically.

1. Enter a name or part of a name in the Go To field at the bottom of the screen or press the Directional Key 📋 up or down to scroll through your Contact List.

2. To edit the entry, press the Left Soft Key [Edit]. To view contact details, press the OK Key [VIEW].

- By pressing the Right Soft Key ⚙ [Options], you can choose from the following:

1. New Contact: Add a new contact to your contact list.

2. Erase: Deletes the contact from your contact list.

3. New Message: You have the option to send a TXT, Picture, Video or Voice Message.

4. Call: Dial the contact.

5. Manage Contacts: Allows you to manage your contacts with the following options:

6. Erase/ 2. Lock / 3. Unlock/ 4. Copy to Card

7. Send Name Card: Allows you to send a name card via Picture Message, Video Message, Voice Message or Via Bluetooth ^® .

8. To dial the selected number, press the Right Soft Key [Option], press the Directional Key up or down to select Call and press the Key or press the SEND Key to place a call.

MY CONTACTS BACKUP

Download My Contacts Backup, so if your phone is lost or stolen, you can easily transfer your numbers to a new phone.

ACCESSING PRE-LOADED MY CONTACTS BACKUP

1. Accessthe easyedge Main Menu via the device idle mode shortcut or from device menu options.

2. My Contacts Backup should appear within the list of applications downloaded on the device. Select My Contacts Backup – application launches.

SETTING UP MY CONTACTS BACKUP

1. After the application is launched, you will come to the Welcome Screen Select next to continue. You must accept the terms and conditions to proceed to the set up screen.

2. At the set up screen, you will be prompted to enter your PIN. By default, the PIN will be the last 4 digits of your Cellular Telephone Number. (You can change your PIN later via the Set Up menu by selecting Change PIN). Select OK.

3. If you have contacts saved to your device, you can back up contacts stored on the device to My Contacts Backup server by selecting Backup from the application main screen.

4. Within the Set Up menu, you can view your account information, you can set automatic backups to occur, change PIN, change language, and view the help section of the application.

My Contacts Backup: easyedge ^SM Pay-As-You-Go users who incur data access charges for MCB while roaming should dial 611 for a bill credit.

GROUPS

Groups allow you to classify phone entries into groups with up to 20 members in each group. The default groups include Business and Personal and they cannot be erased or renamed.

TO ADD NEW GROUP

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 3. Groups.
2. Press the Left Soft Key [New].
3. Enter a new group name and press the Key [ SAVE].

TO ASSIGN PHONE NUMBER TO GROUP

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 3. Groups.
2. Press the Directional Key up or down to select the group where you want to add the contact, and then press the Right Soft Key [Options].
3. Press the Directional Key up or down to select 7. Add and press the Key.
4. Your contact entries will be displayed in alphabetical order. Select the contact you want to add then press the OK Key [MARK/UNMARK].
5. Press the Left Soft Key [Done]. "MEMBER LIST UPDATED" will be displayed.

TO CHANGE GROUP NAME

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 3. Groups.
2. Press the Directional Key 📋 up or down to select the group you want to rename then press the Right Soft Key ⚙ [Options].
3. Press the Directional Key up or down to select 5. Rename and press the Key.
4. Enter the new group name, then press the OK Key [SAVE].

ERASE GROUP

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 3. Groups.
2. Press the Directional Key 📋 up or down to select the existing group name that you want to erase, and then press the Right Soft Key 🔗 [Options].
3. Press the Directional Key up or down to select 6. Erase Group and press the OK Key.
4. "ERASE GROUP?" will appear on the screen.
5. Press the Directional Key up or down to select Yes and press the Key. A confirmation message appears.

TO SEND A TXT MESSAGE TO A GROUP

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 3. Groups.
2. Press the Directional Key up or down to select the group you want to send a message to, then press the Right Soft Key [Options].
3. Press 1. New TXT Message.

4. Input your message in the Text field and then press the Right Soft Key [Options] to select from the following: Insert Quick Text, Save As Draft, Add, Priority Level or Cancel Message.

5. To send the TXT message, press the Key [SEND] or press the SEND Key

TO SEND A PICTURE MESSAGE TO A GROUP

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 3. Groups.

2. Press the Directional Key 📋 up or down to select the group you want to send a message to, then press the Right Soft Key ⚙ [Options].

3. Press2. New Picture Message.

4. UnderText, input your message and then press the Directional Key down.

5. Under Picture, press the Left Soft Key 📋 [Pictures], select the picture you would like to send then press the OK Key. Press the Directional Key down

6. Under Sound, press the Left Soft Key 🎨 [Sounds], press the Directional Key 🎨 up or down to select the sound you would like to send then press the Key. Press the Directional Key 🎨 down.

7. UnderName Card, press the Left Soft Key [Add], press the Directional Key up or down to select 1. My Name Card or 2. From Contacts then press the Key. If 2. From Contacts is selected, select the desired Contact and press the Key [MARK, UNMARK] then press the Left Soft Key Done]. Press the Directional Key down.

8. Under Subject, input a subject using the QWERTY Keypad.

9. Press the Right Soft Key [Options] to select from the following: Preview, Save As Draft, Insert Quick Text, Add Slide, Add Address From Contacts, Priority Level, or Cancel Message.

These options will vary depending on the message contents chosen.

1. To send the Picture Message, press the Key [SEND] or press the SEND Key

TO SEND A VIDEO MESSAGE TO A GROUP

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 3. Groups.

2. Press the Directional Key 📋 up or down to select the group you want to send a message to, then press the Right Soft Key ⚙ [Options].

3. Press 3. New Video Message

4. UnderText, input your message and then press the Directional Key down.

5. Under Video, press the Left Soft Key [Videos], select the video you would like to send then press the Key. Press the Directional Key down.

6. Under Name Card, press the Left Soft Key [Add], press the Directional Key up or down to select 1. My Name Card or 2. From Contacts then press the Key. If 2. From Contacts is selected, select the desired Contact and press the Key [MARK/UNMARK] then press the Left Soft Key Done]. Press the Directional Key down.

7. Under Subject, input a subject using the QWERTY Keypad.

8. Press the Right Soft Key [Options] to select from the following: Preview, Save As Draft, Insert Quick Text, Priority Level or Cancel Message.

These options will vary depending on the message contents chosen.

1. To send the Video Message, press the Key [SEND] or press the SEND Key

TO SEND A VOICE MESSAGE TO A GROUP

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 3. Groups.

2. Press the Directional Key 📞 up or down to select the group you want to send a voice message to, then press the Right Soft Key ⚙ [Options].

3. Press 4. New Voice Message

4. To record a new Voice Memo, press the Key to start recording, then press the Key [STOP] to finish recording and save the voice memo.

5. UnderVoice, your recorded file name will appear. Press the Directional Key down.

6. UnderText, input your message then press the Directional Key down.
7. Under Name Card, press the Left Soft Key [Add], press the Directional Key up or down to select 1. My Name Card or 2. From Contacts then press the Key. If 2. From Contacts is selected, select the desired Contact and press the Key [MARK/UNMARK] then press the Left Soft Key Done]. Press the Directional Key down.
8. Under Subject, input a subject using the QWERTY Keypad.
9. Press the Right Soft Key [Options] to select from the following: Review, Save As Draft, Insert Quick Text, Priority Level or Cancel Message.

These options will vary depending on the message contents chosen.

1. To send the Voice Message, press the Key [SEND] or press the SEND Key

SPEED DIALS

From idle mode, calls can be placed to numbers stored in speed dials by sliding the phone up, and pressing & holding the location number on the keypad.

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 4. Speed Dials
2. Highlight the desired Speed Dial position, or enter the Speed Dial digit(s), then press the Key [ SET].
3. Select the desired Contact entry, then press the Key.
4. Highlight the number you wish to set to speed dial then press the Key.
5. ASSIGN SPEED DIAL TO CONTACT?" appears on the screen. Select Yes and press the OK Key. A confirmation message appears.

"Unassigned" appears if the location is available.

TO ERASE A SAVED SPEED DIAL

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 4. Speed Dials.
2. Select the Speed Dial entry you want to erase.
3. Press the Right Soft Key [Remove].
4. REMOVE SPEED DIAL?" appears on the screen. SelectYes and press the OK Key. A confirmation message appears.

FAVORITE CONTACTS

Allows you to save your most frequently accessed contacts for quick access.

TO ASSIGN FAVORITE CONTACTS

1. Slide the phone up and press the Task Bar Key (located on the right side of the device), swipe the Directional Key left or right to scroll to FAVORITES, then press the Key. Or slide the phone up, press the Key [MENU], then press 1. Contacts, 5. Favorite Contacts.

Shortcut: From idle mode, slide the phone up, press the Favorites/Mode Change Key

1. Swipe the Directional Key ⓔ left, right, up or down to select an empty field, then press the ⏻ Key [ASSIGN].
2. Select the contact you want to assign, then press the OK Key [MARK].
3. Press the Left Soft Key [Done].

TO VIEW FAVORITE CONTACTS

1. Slide the phone up and press the Task Bar Key (located on the right side of the device), swipe the Directional Key ☑ left or right to scroll to FAVORITES, then press the OK Key. Or slide the phone up, press the Key [MENU], then press 1. Contacts 5. Favorite Contacts.

Shortcut: From idle mode, slide the phone up, press the Favorites/Mode Change Key

1. Swipe the Directional Key ☑ left, right, up or down to select a desired contact.

2. Press the Left Soft Key [Messages]. Or, press the Right Soft Key

[Options] to choose from the following:

- Remove: Removes a contact from Favorites.

- Remove All: Removes all contacts from Favorites.

1. Press the Key [ VIEW].

TO ERASE FAVORITE CONTACTS

1. Slide the phone up and press the Task Bar Key (located on the right side of the device), swipe the Directional Key ☐ left or right to scroll to FAVORITES, then press the 🔗 Key. Or slide the phone up, press the Key [MENU], then press

2. Contacts, 5. Favorite Contacts.

Shortcut: From idle mode, slide the phone up, press the Favorites/Mode Change Key

1. Swipe the Directional Key Ⓠ left, right, up or down to select a desired contact, then press the ⏻ Key [VIEW].

2. Press the Left Soft Key [Erase].

3. ERASE CONTACT?" will be displayed on the screen. SelectYes and press the Key. A confirmation message appears.

TO EDIT FAVORITE CONTACTS

1. Slide the phone up and press the Task Bar Key (located on the right side of the device), swipe the Directional Key ☑ left or right to scroll to FAVORITES, then press the Ⓧ Key. Or slide the phone up, press the Key [ MENU], then press 1. Contacts, 5. Favorite Contacts.

Shortcut: From idle mode, slide the phone up, press the Favorites/Mode Change Key

1. Swipe the Directional Key ☑ left, right, up or down to select a desired contact, then press the OK Key VIEW].

2. Press the OK Key [EDIT].

To edit the contact, please refer to page 48 for more details on Contact List.

TO CALL A FAVORITE CONTACT ENTRY OR SEND A MESSAGE

1. Slide the phone up and press the Task Bar Key (located on the right side of the device), swipe the Directional Key ☑ left or right to scroll to FAVORITES, then press the OK Key. Or slide the phone up, press the Key [MENU], then press 1. Contacts, 5. Favorite Contacts.

Shortcut: From idle mode, slide the phone up, press the Favorites/Mode Change Key

1. Swipe the Directional Key ☐ left, right, up or down to select a desired contact.
2. To make a call, press the SEND Key ☐. To send a text message to the contact, press the TXT Composer Key ☐.
3. Swipe the Directional Key ☐ left, right, up or down to select a desired contact, then press the ☐ Key [VIEW].

Press the Right Soft Key [Options] to choose from the following: • New TXT Message / New Picture Message / New Video Message / New Voice Message / Set Speed Dial / Call / Copy to Card / Copy All to Card.

MY NAME CARD

A Name Card with the handset's mobile number automatically appears.

EDIT MY NAME CARD

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 6. My Name Card.
2. Press the Left Soft Key [Edit].
3. Edit the My Name Card options and then press the Key to save your changes.

SEND MY NAME CARD

1. Slide the phone up, press the Key [MENU], then press 1. Contacts, 6. My Name Card.
2. Press the Right Soft Key [Send].

3. Press1. Send via Picture Message, 2. Send via Video Message, 3. Send via Voice Message or 4. Send via Bluetooth.

4. Send via Picture Message: Allows you to send picture messages with the Name Card as an attachment.

5. Send via Video Message: Allows you to send video messages with the Name Card as an attachment.
6. Send via Voice Message: Allows you to send voice messages with the Name Card as an attachment.
7. Send via Bluetooth: Allows you to send Name Card to another Bluetooth ^∞ device.

MISSED CALLS

Displays information about the 90 most recently missed calls. Place a call to a missed call by simply pressing the SEND Key

1. Slide the phone up, press the Key [MENU], then press 3. Call History, 1. Missed Calls.

2. Highlight an entry and perform one of the following options:

3. Press the Key [ OPEN] to view the entry.

4. Press the Send Key to place a call to the number.
5. Press the Right Soft Key ⚠️ [Options] to select:

Save to Contacts: Save the contact.

Details: Displays details about the caller if entered in Contacts.

Erase: Deletes the call from Missed calls list.

Lock/Unlock: Locks or unlocks the entry.

Erase All: Deletes all entries from Missed calls list.

Call Timers: Displays usage time.
- Press the Left Soft Key 📄 [Message] to select:
TXT Message / Picture Message / Video Message / Voice Message

After 90 missed calls, the oldest call will automatically be erased from the history.

RECEIVED CALLS

Displays information about the 90 most recently received calls. Place a call to a received call by simply pressing the SEND Key

1. Slide the phone up, press the Key [MENU], then press 3. Call History, 2. Received Calls.
2. Highlight an entry and do one of the following options:

- Press the Key [OPEN] to view the entry.

• Press the Send Key to place a call to the number.
• Press the Right Soft Key ⚙ [Options] to select:

Save to Contacts: Save the contact.

Details: Displays details about the caller if entered in Contacts.
Erase: Deletes the call from Received call list.
Lock/Unlock: Locks or unlocks the entry.

Erase All: Deletes all entries from Received calls list.

Call Timers: Displays usage time.

- Press the Left Soft Key ⚠ [Message] to select:

TXT Message / Picture Message / Video Message / Voice Message

After 90 received calls, the oldest call will automatically be erased from the history.

DIALED CALLS

Displays information about the 90 most recently dialed numbers. Place a call to a dialed call by simply pressing the SEND Key

1. Slide the phone up, press the Key [MENU], then press 3. Call History, 3. Dialed Calls.

2. Highlight an entry and do one of the following options:

- Press the Key [ OPEN] to view the entry.

- Press the Send Key to place a call to the number.

- Press the Right Soft Key ⚫ [Options] to select:

Save to Contacts: Save the contact.

Details: Displays details about the caller if entered in Contacts.

Erase: Deletes the call from Dialed calls list.

Lock/Unlock: Locks or unlocks the entry.

Erase All: Deletes all entries from Dialed calls list.

Call Timers: Displays usage time.

- Press the Left Soft Key - [Message] to select:

TXT Message / Picture Message / Video Message / Voice Message

After 90 dialed calls, the oldest call will automatically be erased from the history.

ALL CALLS

Displays information about the most recently received, dialed and missed calls.

1. Slide the phone up, press the Key [MENU], then press 3. Call History, 4. All Calls.

2. Highlight an entry and select from the following options:

3. Press the [Key |OPEN] to view the entry.

- Press the Send Key to place a call to the number.

- Press the Right Soft Key ⚙ [Options] to select:

Details: Displays details about the caller if entered in Contacts.

Erase: Deletes the call from All call list.

Lock/Unlock: Locks or unlocks the entry.

Erase All: Deletes all entries from All calls list.

Call Timers: Displays usage time.

Press the Left Soft Key ⚙ [Message] to select:

TXT Message / Picture Message / Video Message / Voice Message

• After the 270 received, dialed or missed calls, the oldest call will automatically be erased from the history.

• To view a quick list of all your calls, press the Send Key from idle mode.

CALL TIMERS

Checks the usage time and manages your calls within the limit you set. To view 11 timers (Last Call, All Calls, Received Calls, Dialed Calls, Roaming Calls, Transmit Data, Received Data, Total Data, Last Reset, Lifetime Calls, Lifetime Data Counter):

1. Slide the phone up, press the Key [MENU], then press 3. Call History, 5. Call Timers.

2. Highlight a call list. Call timers include: Last Call / All Calls / Received Calls / Dialed Calls / Roaming Calls / Transmit Data / Received Data / Total Data / Last Reset / Lifetime Calls / Lifetime Data Counter

- Press the Left Soft Key ⚙ [Reset] to reset highlighted timer.

- Press the Right Soft Key [Reset All] to reset all timers.

- You cannot reset the Last Reset, Lifetime Calls and Lifetime Data Counter.

easyedge ^SM

easyedge ^TM allows you to do more than just talk on your phone. easyedge is a technology and service that allows you to download and use applications on your phone. With easyedge, it is quick and easy to personalize your phone to suit your lifestyle and tastes. Just download the applications that appeal to you. From ringtones and wallpapers to games and productivity tools, you can be assured you will find something useful, practical, or downright entertaining. There are new applications constantly available for your use.

DOWNLOADING APPLICATIONS

You can download applications and useeasyedge where service is available.

INCOMING CALLS

When using applications, an incoming call will automatically pause the application and allow you to answer the call. When you complete your call, you can resume using the application.

1. Slide the phone up, press the Key [MENU], then press 5. easyedge.

Shortcut: From idle mode, slide the phone up and press the Directional Key down.

YOUR NAVIGATOR

With Your Navigator, get all of the features of an advanced car navigation system on your mobile phone with voice turn-by-turn navigation enabled by GPS. Search for any destination including gas stations, ATMs, restaurants, and more. Get detailed maps of any location.

DOWNLOAD INSTRUCTIONS FOR YOUR NAVIGATOR FROM easyedge ^SM

1. Select easyedge by going into the phone menu and selecting (Show easyedge star).
2. Use the up/down arrows to navigate to the shopping cart icon and select (may vary by navigation options). Select Catalog.

3. Scroll to the Navigation folder.

4. Select purchasing option.

5. Select Phone or Card.
6. Download will commence and application will install on device.

LAUNCHING YOUR NAVIGATOR APPLICATION

1. Access the easyedge Main Menu via device idle mode shortcut or from device menu options.
2. Your Navigator should appear within the list of applications downloaded on the device. Select Your Navigator – application launches.

FROM THE YOUR NAVIGATOR IDLE MODE YOU CAN SELECT

• You can select Drive To for turn by turn direction to an address, airport, contacts addresses and more.
• You can select Places to search for nearby businesses, the cheapest gas prices and more.
• You can select Maps & Traffic to see where you currently are located on a map and what traffic is in the area.

BROWSER

VISITING A NEW WEB PAGE

Use the web browser feature to access the Internet and surf the web.

1. Slide the phone up, press the Key [ MENU], then press 6. Browser.
2. From the U.S. Cellular ^® screen, press the Left Soft Key [Menu].
3. Press the Directional Key down to highlight the Opera tab on the toolbar.
4. Press the OK Key to display the Opera menu.
5. Press the Directional Key down to select Start Page. Press the Key.
6. The url entry box is highlighted. Press the Key. Use the keypad to enter the url address you want. Press the Key [Go].
7. The new web page is displayed.

ADDING A BOOKMARK

The Bookmark feature makes it easy to visit your favorite websites. Bookmarked web pages can be quickly launched to re-visit at any time. You can bookmark any currently displayed web page.

1. From a web page, press the Left Soft Key ⚪️ Menu].
2. Press the Directional Key down to highlight the Opera tab on the toolbar.
3. Press the Key to display the Opera menu.
4. Press the Directional Key down to select Bookmarks. Press the Key.
5. Press the Directional Key up to highlight the web page you want to add (+) as a bookmark. Press the OK Key.
6. The Add Bookmark screen is displayed. Press the Directional Key down to select the folder.
7. Press the Left Soft Key [Save].
8. The bookmark is now listed. Press the Directional Key up or down to highlight it.
9. Press the Left Soft Key [Manage]. You can open it in a new tab, delete, edit, or save it in a new folder.

TONE ROOM DELUXE

Tone Room Deluxe is a service that enables you to access the latest and hottest content from your favorite artists for ringtones and ringback tones from your phone or the Web. This easy to use service features a music catalog with tens of thousands of titles for you to discover. Personalize your experience and express yourself by subscribing to Tone Room Deluxe and use ringback tones to customize music for your friends and family to hear when they call you.

1. Slide the phone up, press the Key [MENU], then press 7. Tone Room Deluxe.

This app is only made available to U.S. Cellular customers.

PAC-MAN

Allows you to use the preloaded PAC-MAN application.

1. Slide the phone up, press the Key [MENU], then press 8. PAC-MAN.

User charges may apply.

VOICE COMMANDS

Your phone is equipped with an Advanced Voice Commands (AVC) feature. This feature allows you to make calls or use the phone's functions by simply using your voice. All you have to do is talk into the phone and then the phone will recognize your voice and complete tasks by itself.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 1. Voice Commands.

Shortcut: From idle mode, press the Voice Commands Key (located on the left side of the device) to access the Voice Commands menu.

1. The phone displays the Voice Commands menu and prompts you to say the name of the command you want to use. To complete your task, simply follow the voice prompts. You can speak the name of the command after you hear a beep.

2. Select one of the following options, then press the Key. Call / Send Text / Send Picture / Send Video / Lookup / Go To

   / Redial / Play / Check

Voice Commands menu information appears, press the Left Soft Key 🎨 [Tutorial]. Press the Right Soft Key 🎨 [Settings] to access Voice Commands Settings. Please refer to page 69 for more details on Voice Commands Settings.

1. When it recognizes one of these commands, the phone launches the associated application. If the phone does not hear a command within approximately eight seconds, AVC mode will turn itself off.

CALL

Use the Call command to voice dial a name from your Contact List or a phone number. When dialing a number, pronounce each digit, but do not pause noticeably between the digits.

1. You will he say a Command and the Voice Commands menu will be displayed.

2. If calling a contact from your Contact List, say Call . Your phone will ask you to confirm the name you said. Say "Yes" if it was repeated correctly. That phone number will be dialed. If there is more than one number saved for that contact, you will be asked to confirm which number to dial. Example: Call John Smith Mobile

SEND TEXT < NAME OR #>

Use the Send Text command to send a text message to a specified name or number.

1. You will hear Say a Command and the Voice Commands menu will be displayed.

2. Say "Send Text" followed immediately by Text Message. Example: Send Text Tom Smith.

SEND PICTURE

Use the Send Picture command to send a multimedia message to a specified name or number.

1. You will hear Say a Command and the Voice Commands menu will be displayed.

2. Say "Send Picture" followed immediately by Picture Message. Example: Send Picture Tom Smith.

SEND VIDEO

Use the Send Video command to send a multimedia message to a specified name or number.

1. You will hear Say a Command and the Voice Commands menu will be displayed.

2. Say "Send Video" followed immediately by Video Message. Example: Send Video Tom Smith.

LOOKUP

Use the Lookup command to retrieve and display information for any name stored in your Contacts.

1. You will heaBay a Command and the Voice Commands menu will be displayed.
2. Say 'Lookup'.
3. The contact name will be displayed.

GO TO

Use the Go To command to open an application on your phone. You can say "Go To" by itself and be prompted to say the application name, or you can skip the prompt by saying "Go To" followed by the application name.

1. You will have a Command and the Voice Commands menu will be displayed.
2. To access a menu within the phone, say "Go To" followed by the menu. Example: "Go To Calendar". If no menu option is stated, a list of options will be provided.

REDIAL

Use the Redial command to make a call to the last number you dialed.

1. You will hea say a Command and the Voice Commands menu will be displayed.
2. Say "Redial".
3. Your phone will make a call to the last number you dialed.

PLAY

Say "Play" followed by a playlist title and then your phone will play back the recognized playlist for you.

1. You will hear a Command and the Voice Commands menu will be displayed.

2. Say "Play" to play back individual playlist or say "All Songs" to play back all songs saved in your phone.

CHECK

The Check command lets you check status information for your phone. You can say "Check" or Check Status" to see and hear all status information.

1. You will hear Say a Command and the Voice Commands menu will be displayed.
2. Say "Check" followed immediately by one of the following items: Status / Voicemail / Messages / Missed Calls / Time / Signal Strength / Battery My Phone Number / Volume

VOICE COMMANDS SETTINGS

CONFIRMATION

When the phone does not recognize your voice command, it will ask you to repeat your voice command. If it does not recognize the name or number, it will display a list of up to three choices and speak each one in turn. You can control how often the phone asks you to confirm the recognized name or number.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 1. Voice Commands

Shortcut: From idle mode, press the Voice Commands Key (located on the left side of the device) to access the Voice Commands menu and press the Right Soft Key [Settings].

1. Press the Right Soft Key ⚙ [Settings] and then press 1. Confirmation.
2. Press the Directional Key up or down to select Automatic, Always Confirm or Never Confirm, then press the Key.

To view information about each option, press the Left Soft Key... [Help].

ADAPTATION

Voice Commands are speaker independent, which means that no training or adaptation is required. Some users with heavy accents or unusual voice characteristics may find difficulty in achieving high accuracy with speaker independent Voice Commands, so the Adapt Voice feature allows users to dramatically improve the recognition accuracy after adapting their voices. Users who get acceptable recognition accuracy will find no additional benefit to performing the Adapt Voice feature.

1. Slide the phone up, press the Key [MENU], then press
2. Tools & Settings, 1. Tools, 1. Voice Commands.
3. Press the Right Soft Key ⚙ [Settings] and then press 2. Adaptation.
4. Select 1. Adapt Voice then press the Key.
5. Adapt Voice: Requires that you make recordings of your voice to customize the voice recognition system. It will take a few minutes.
6. ResetVoice: Once you finish the adaptation process, you can reset the adaptation to factory default. Reset Voice option only appears after you finish the Adapt Voice process.
7. "Adaptation will take a couple of minutes to complete. Adapt in a quiet room. Press Start to begin." will appear on the screen. Press the Left Soft Key [Start Over]. Wait for the beep, and then repeat the sentences using a normal tone of voice.
8. When you are finished with a full session, you will reach a screen that reads "Adaptation Complete".

AUDIO MODES

Allows you to select audio modes for the voice command.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 1. Voice Commands

2. Press the Right Soft Key ⚙ [Settings] and then press 3. Audio Modes.

3. Select the voice command system mode from the following:

4. ExpertMode: For handset to provide beeps only for audio guidance.
5. PromptMode: For handset to prompt for required information (default).
6. ReadoutMode: For handset to prompt for required information and readout the contents of the screen.

SPEAKERPHONE

Allows you to select how the system uses the speakerphone.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 1. Voice Commands.

2. Press the Right Soft Key ⚙ [Settings] and then press 4. Speakerphone.

3. Select the speakerphone mode from the following:

4. Always Or Allows audio playback to play through the speakerphone.

5. AwayOf Allows audio playback to play through the internal speaker.

ABOUT

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 1. Voice Commands

2. Press the Right Soft Key ⚙ [Settings] and then press 5. About.

3. The Nuance version appears.

4. To return to the previous screen, press the CLR Key or the Right Soft Key [Back].

CALCULATOR

The Calculator allows you to perform simple mathematical calculations. To access the calculator:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 2. Calculator.

2. Follow the instructions below to calculate 8×6÷4-2.5=9.5

3. Input 8 and then press the Directional Key right.

4. Input 6 and then press the Directional Key ☐ left.

5. Input 4 and then press the Directional Key down.

6. Input 2 and then press the 🔒 to input (.).
7. Input 5 and then press the Ⓞ Key and you will see the answer (9.5).

3. To reset, press the Left Soft Key [Clear].

• Directional Key right: X
- Directional Key down:
- Directional Key left :
- Directional Key up: +
.*Key:
- Left Soft Key; Clear
• OK Key :
- To change the displayed number from positive (+) to negative (-) and vice versa, press # Key.
- Press the Right Soft Key ⚙ [Operator] to use parenthesis 1. (2.) and 3. Exponent.

TIP CALCULATOR

Allows you to calculate the tip and determine how much each person should pay for the bill.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 3. Tip Calculator.
2. Input the amount in the Total Bill field and press the Directional Key down.
3. Select the percentage of tip in the Tip (%) field by pressing the Directional Key left or right. Press the Directional Key down.
4. In the Split field, input the number of persons by pressing the Directional Key left or right. The tip amount and cost per person is shown.
5. The amount of a tip will be displayed in the tip (\$) field.
6. Press the Left Soft Key [Reset] to clear the fields. Press the Right Soft Key [Close] to return to the previous menu.

CALENDAR

The Calendar tool provides easy and convenient access to your schedule. Simply store your appointments and your phone will alert you.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 4. Calendar.

Shortcut: From idle mode, slide the phone up and press the Directional Key left.

1. Highlight the scheduled day.
2. Press the Left Soft Key 🔗 [New].

3. TheSubject field is highlighted. Enter the name of the event using the QWERTY Keypad. Press the Directional Key down to set the other fields for the event:

4. Start Time: Press the Left Soft Key [Set], set the start time and press the Key.
   • End Time: Press the Left Soft Key [Set], set the end time and press the Key.

5. Start Date: Press the Left Soft Key [Set], set the start date and press the OK Key.
6. End Date: Press the Left Soft Key [Set], set the end date and press the Key.
7. Recurrence: Press the Left Soft Key [Set] and select the recurrence of the event from the following, and press the OK Key. None / Daily / Every X Days / Weekly / Monthly / Yearly

- Alert Time: Press the Left Soft Key [Set] and select the alert time before the event takes place from the following, and press the Key. On time / 15 minutes before / 30 minutes before / 45 minutes before / 1 hour before / 3 hours before / 5 hours before / 1 day before

• Reminder: Press the Left Soft Key [Set] and select a reminder before the event from the following, and press the OK Key. Off / Once / Every 2 minutes / Every 15 minutes
• Alert Tone: Press the Left Soft Key [Set] to select a new ringtone. Press the Left Soft Key [Play] to play a ringtone and press the OK Key [Set].
• Vibrate: Press the Left Soft Key ⏻ [Set] and select On or Off, and press the ⏻ Key.

- Event Type: Press the Left Soft Key 📄 |Set| and select a event type from the following, and press the ⬆ Key.

Event (default) / Important / Meal / Game/Practice/Exercise / Vacation/Holiday / Birthday / Anniversary / Business / Social / Medical/Dental / School / Concert/Performance / Play Date / Picnic/Outing / Personal / Phone Call / Must Attend / Travel Required / Needs Preparation / Woman / Man / Girl / Boy / Family

• Attachment: Press the Left Soft Key [Add] and select Pictures or Videos to attach, and press the Key. Select the desired picture or video and press the Key.
• Location: Enter the information of location. Press the Left Soft Key [Abc] to select the entry mode and press the [OK] Key.

• Notes: Enter memo of the schedule. Press the Left Soft Key [Abc] to select the entry mode and press the OK Key.

• Press the Key [ SAVE] to save it. The date of the event will be marked on your calendar.

VIEW SAVED EVENT

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 4. Calendar.
2. Choose the event then press the OK Key [VIEW].

ERASE SAVED EVENT

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 4. Calendar.
2. Choose the event then press the Key [ VIEW].
3. Press the Right Soft Key ⚙ [Options], 4. Erase
4. "ERASE EVENT?" appears on the display. Press the Directional Key up or down to select Yes and press the Key.

ERASE ALL PAST EVENTS

Allows you to delete past events from today.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 4. Calendar.
2. Choose the event then press the OK Key [VIEW].
3. Press the Right Soft Key ⚙ [Options], select 6. Erase All Old and press the ⏻ Key.
4. "ERASE ALL PAST EVENTS?" appears on the display. Press the Directional Key up or down to select Yes, then press the Key.

E-DIARY

E-Diary is a simple diary application designed to be easy to understand and convenient for everyday use.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 5. E-Diary.
2. Press the Left Soft Key [New].
3. In the Weather & Feelingfield, press the Left Soft Key [Set], then select an icon and press the OK Key.
4. Press the Directional Key down to set the other fields for the E-diary:

TITLE

Enter the title of the diary.


Press the Left Soft Key [Set] to select an image stored in Pictures and press the OK Key. Please refer to page 108 for more details on PICTURES.

TEXT

Enter the message for the diary.

BACKGROUND

Press the Directional Key left or right to select one of the following backgrounds:

Blackboard / Essay/ Sky / Letter

1. Press the Right Soft Key ⚙ [Options] then press 1. Preview to preview the setting you selected or 2. Cancel E-Diary to discard your new E-diary.
2. Press the Key [ SAVE] to save your E-diary.

SEND AN E-DIARY

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 5. E-Diary.
2. Highlight an E-Diary, then press the Right Soft Key ⚙ [Options].
3. Press the Directional Key 📋 up or down to select 1. Send and press the Ⓧ Key, then compose a Picture Message and press the Ⓧ Key [SEND]. Please refer to page 119 for more details on Picture Message .

EDIT AN E-DIARY

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 5. E-Diary.
2. Highlight an E-Diary, then press the Right Soft Key ⚠ [Options].
3. Press the Directional e up or down to select 2. Edit and press the Key then modify the E-Diary.
4. Press the Key [SAVE] to save your modifications.

ERASE E-DIARY

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, S. E-Diary.
2. Highlight an E-Diary, then press the Right Soft Key ⚙ [Options].

3. Press the Directional Key up or down to select 3. Erase to erase an E-Diary or 4. Erase All to erase all the E-Diary entries, then press the Key.

4. Press the Directional Key up or down to select Yes and press the Key.

ALARM CLOCK

The Alarm Clock tool allows you to set up to three alarms. When you set an alarm, the current time is displayed on the top of the idle mode. When the alarm goes off, the alarm will be displayed on the LCD screen and the alarm will sound.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings 1. Tools, 6. Alarm Clock.

Shortcut: From idle mode, press the Directional Key right to access MY SHORTCUTS and then press 1. Alarm Clock.

1. Highlight an Alarm (1, 2 or 3), then press the Key.
2. Press the Directional Key down to set the fields for the alarm:

ON/OFF

Press the Directional Key left or right to select On or Off.

TIME

Use the keypad to set a time for the alarm and highlight am or pm, then press the Left Soft Key am or pm

FREQUENCY

Press the Directional Key Left or right to select a setting from the following: Once / Daily / Weekdays / Weekends

RINGTONE

Press the Left Soft Key [Set] then select the alert tone you wish to set. Press the Left Soft Key [Play] to play a ringtone. Press the Key [SET] to make your selection.

1. Press the OK Key [SAVE] to set the alarm.

TURN ON/OFF THE ALARM SETTING

1. Slide the phone up, press the Key [ MENU], then press 9. Tools & Settings, 1. Tools, 6. Alarm Clock.
2. Highlight an Alarm (1, 2 or 3), then press the Right Soft Key [Options].
3. Press the Directional Key up or down to select 1.Turn On or 1.Turn Off then press the OK Key.

RESET THE ALARM SETTING

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 6. Alarm Clock.
2. Highlight an Alarm (1, 2 or 3), then press the Right Soft Key ⚙ [Options].
3. Press the Directional Key up or down to select 2. Reset Alarm, then press the OK Key.
4. RESET ALARM (1, 2 or 3)?" will appear on the screen. Press the Directional Key □ up or down to select Yes and press the Key.

RESET ALL ALARM SETTINGS

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 6. Alarm Clock.
2. Highlight anAlarm (1, 2 or 3), then press the Right Soft Key [Options].
3. Press the Directional Key up or down to select 3. Reset All, then press the Key.
4. RESET ALL ALARMS? " will appear on the screen. Press the Directional Key up or down to select Yes and press the Key.

TURN ON/OFF, RESET ALARM and RESET ALL ALARM are available on the Options menu for alarms previously set.

STOPWATCH

Simultaneously times up to eight different events. To operate the Stopwatch:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 7. Stopwatch
2. To start the Stopwatch, press the OK Key [START].
3. To pause it, press the OK Key[STOP].
4. To resume it, press the OK Key [START].
5. To reset it, press the Right Soft Key ⬇ [Reset].

TO TIME UP TO EIGHT EVENTS AT ONCE

1. To start the Stopwatch, press the Key [ START].
2. To stop a time period and continue measuring another one, press the Left Soft Key [Lap].
3. To stop the second and continue measuring a third one, press the Left Soft Key [Lap].
4. To measure up to eight time periods, repeat the above steps.
5. To stop the Stopwatch, press the Key [ STOP].
6. To view the lap times, press the Left Soft Key [View].
7. To reset it, press the Right Soft Key ⚙️ [Reset], then press the CLR Key 📄 to finish using the Stopwatch and return to the previous menu.

WORLD CLOCK

To display the time and date in pre-programmed cities:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 8. World Clock.

2. Press the Direction Key Left or right to select the desired city on the world map.

3. Press the Left Soft Key [Cities] to access the CITIES LIST. Press the Direction Key [Cities] up or down to select the desired city, then press the Key.

4. The world map appears with the city, its date and time.
5. Press the CLR Key to return to the previous menu.

DAYLIGHT SAVING TIME (DST) SETTING

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings 1. Tools, 8. World Clock
2. With the desired location selected, press the Right Soft Key [DST] to set Daylight Saving Time, the DST icon appears.
3. To turn off DST, press the Right Soft Key ⚙ [DST] again.

The DST option will adjust clocks forward one hour.

NOTEPAD +

Your phone includes an internal notepad that can be used to compose and store reminders and notes. To create a note:

1. Slide the phone up, press the Key [ MENU], then press 9. Tools & Settings 1. Tools, 9. Notepad +.
   Shortcut: Slide the phone up and press the Notepad + Key
2. Press the Left Soft Key [New] to enter a new note.
3. Enter the text for a new note.
4. To create a note with a picture, video or sound, press the Directional Key down to scroll through Picture/Video/Sound, press the Left Soft Key [Add], select 1. Picture, 2. Video or 3. Sound, then press the Key. Select your desired picture, video or sound and press the Key.
5. To save the note, press the Right Soft Key... [Save].

VIEW SAVED MEMO

To view a saved memo:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 9. Notepad +.
2. Press the Directional Key up or down to select a note, then press the OK Key [VIEW].

SEND SAVED MEMO

To send a saved memo:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings; 1. Tools, 9. Notepad +.
2. Press the Directional Key 📋 up or down to select a note, press the Right Soft Key 🔗 [Options], then press 2. Send.
3. Press the Directional Key up or down to select 1. TXT Message, 2. Picture Message, 3. Video Message or 4. Voice Message, then press the Key.

If a note has a picture, video or sound attachment, the corresponding message window will be opened automatically.
4. Compose the message, then press the Key [SEND].

ERASE SAVED MEMO

To erase a saved memo:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 9. Notepad +.
2. Press the Directional Key 📋 up or down to select a note, press the Right Soft Key 🔗 [Options] then select 3. Erase and press the Key.
3. ERASE NOTEPAD+?" will be displayed. Press the Directional Key up or down to select Yes and press the Key.

ERASE ALL SAVED MEMOS

To erase all saved memos:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 9. Notepad +.
2. Press the Right Soft Key [Options], then press the Directional Key up or down to select 4. Erase All and press the Key.
3. ERASE All NOTEPAD+?" will be displayed. Press the Directional Key up or down to select Yes and press the Key.

USB MASS STORAGE

USB Mass Storage allows you to transfer files to or from your PC.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 1. Tools, 0. USB Mass Storage

2. Follow the on-screen prompts.

Connect the Charging/Data port on your phone and the USB port on your PC with the included USB cable.

SOUNDS SETTINGS

CALL SOUNDS

To set ringtones for types of incoming calls:

CALL RINGTONE

1. Slide the phone up, press the Key [MENU], then press
2. Tools & Settings, 2. Sounds Settings, 1. Call Sounds, 1. Call Ringtone.
3. Press the Directional Key 📍 up or down to select a ringtone, then press the ⏻ Key [SET]. To play the ringtone, press the Left Soft Key ⏻ [Play].

CALL VIBRATE

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 2. Sounds Settings, 1. Call Sounds, 2. Call Vibrate
2. Press the Directional Key up or down to select On or Off, then press the OK Key [SET].

CALLER ID READOUT

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 2. Sounds Settings, 1. Call Sounds, 3. Caller ID Readout.
2. Press the Directional Key up or down to select Ring Only, Caller ID + Ring or Name Repeat, then press the Key [ SET].

ALERT SOUNDS

To select the alert type for a new message:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 2. Sounds Settings, 2. Alert Sounds.

2. Press the Directional Key up or down to select 1. TXT Message, 2. Multimedia Message, 3. Voicemail or 5. Missed Call, then press the OK Key.

3. Press the Directional Key up or down to select 1. Tone, 2. Vibrate or 3. Reminder, then press the Key.

• 1. Tone: Press the Directional Key 📋 up or down to select a ringer, then press the Key [SET]. To play the alert tone, press the Left Soft Key ⏻ [Play].
- 2. Vibrate: Press the Directional Key 📋 up or down to select On or Off, then press the ⏻ Key [ SET].
• 3. Reminder: Press the Directional Key up or down to select Once, Every 2 minutes, Every 15 minutes or Off, then press the Key [ SET].

EMERGENCY TONE

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 2. Sounds Settings, 2. Alert Sounds, 4. Emergency Tone.
2. Press the Directional Key 📋 up or down to select Alert, Vibrate or Off, then press the OK Key [SET].
3. To view the help for Emergency Tone, press the Right Soft Key [Help].

KEYPAD SOUNDS

To select keypad sounds when using the Keypad.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings 2. Sounds Settings 3. Keypad Sounds.
2. Press the Directional Key up or down to select DTMF, Cloud or Simple, then press the OK Key [SET].

DTMF is the default setting for this device.

KEYPAD VOLUME

To set the keypad volume:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings 2. Sounds Settings A. Keypad Volume.

2. Adjust the volume by pressing the Directional Key up or down, then press the OK Key [SET] to save the setting. To test the volume level, press the Left Soft Key 🤒 [Play].

DIGIT DIAL READOUT

The Digit Dial Readout setting controls if digits are read out loud when you enter a phone number with the QWERTY Keypad.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 2. Sounds Settings, 5. Digit Dial Readout.
2. Press the Directional Key 📊 up or down to select On or Off, then press the OK Key [SET].

SERVICE ALERTS

To set any of the three Alert options to either On or Off:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 2. Sounds Settings, 6. Service Alerts.
2. Press the Directional Key up or down to select one of the following options, then press the Key.

• Minute Beep: Alerts you every minute during a call.
- Call Connect: Alerts you when the call is connected.
- Software Update: Alerts you when a software update is available.

1. Press the Directional Key up or down to select On or Off, then press the OK Key [SET].

DEVICE CONNECT

Allows you to turn the Device Connect On or Off:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 2. Sounds Settings, 7. Device Connect.
2. Press the Directional Key up or down to select On or Off, then press the OK Key [SET].

POWER ON/OFF

To set the phone to sound a tone when the phone is powered on or off:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 2. Sounds Settings, 8. Power On/Off.
2. Press1. Power On or 2. Power Off.
3. Press the Directional Key □ up or down to select On or Off, then press the OK Key [SET].

OPEN/CLOSE SOUNDS

To set the phone to sound a tone when the slide is open or closed:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 2. Sounds Settings, 9. Open/Close Sounds.
2. Press the Directional Key up or down to select Music, Simple, Beep or Off, then press the OK Key [SET].

MASTER VOLUME

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 2. Sounds Settings, 0. Master Volume.
2. Select one of the following options and press the Key [ SET] to save it.

• All Sounds Off
• Alarm Only
• Vibrate Only

- Low / Medium Low / Medium / Medium High / High

Press the Volume Keys/□ up or down (located on the left side of the device) to adjust Earpiece volume during a call.

- To play/stop a ringtone, press the Left Soft Key [Play/Stop].

[Play/Stop].

DISPLAY SETTINGS

Allows you to customize the display.

BANNER

The Banner can be up to 16 characters and is displayed on your phone's screen from idle mode.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 3. Display Settings, 1. Banner.
2. Enter the banner text (up to 16 characters), select a desired font color, then press the OK Key [SET].

BACKLIGHT

To set the duration for backlight illumination of the Main Screen and Keypad:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 3. Display Settings, 2. Backlight.
2. Press 1. Displayor 2. Keypad.
3. Press the Directional Key up or down to select: 7 Seconds/15 Seconds/30 Seconds/Always On, then press the Key [ SET].

WALLPAPER

To choose the kind of background to be displayed on the phone:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 3. Display Settings, 3. Wallpaper.
2. Press1. Pictures 2. Videosor 3. Animated Wallpapers.
3. To view the image, press the Left Soft Key ⚙ [View/Play].
4. Select a desired screen, then press the OK Key [SET].

MENU TYPE

To change Main menu type:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 3. Display Settings, 4. Menu Type.

2. To preview/list the selected menu type, press the Left Soft Key Ⓧ Preview/List].

3. PressGrid or List, then press the Key [ SET].

FONT TYPE

To set the font type:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 3. Display Settings, 5. Font Type.
2. To preview/list the selected font type, press the Left Soft Key [Preview/List].
3. Press the Directional Key up or down to select or Episode Font, then press the Key [ SET]. Dandy Font, Modern Font

DIAL FONT SIZE

To set the dial font size:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 3. Display Settings, 6. Dial Font Size.
2. To preview/list the selected dial font size, press the Left Soft Key [Preview/List]
3. Press the Directional Key up or down to select Normal or Large Only, then press the OK Key [SET].

MENU FONT SIZE

To set the menu font size:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 3. Display Settings, 7. Menu Font Size.
2. Press the Directional Key 📋 up or down to select Normal or Large, then press the ⏻ Key [SET].

CLOCK FORMAT

To choose the kind of clock to be displayed on the LCD screen:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 3. Display Settings, 8. Clock Format.
2. Press the Directional Key ☐ left or right to select Analog, Large Analog, Basic Digital, Digital, Large Digital or Off, then press the Directional Key ☐ down.
3. Press the Left Soft Key [Preview/List] to preview the selected clock format, press the Right Soft Key [Help] to view the help for Clock Format.
4. Press the Directional Key left or right to select the font color and then press the OK Key [SET].

Basic Digital is the default setting for this device.

DATA CHARGE POPUP

To set the data charge popup:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 3. Display Settings, 9. Data Charge Popup.
2. Press the Directional Key up or down to select On or Off, then press the OK Key [SET].

PHONE SETTINGS

AIRPLANE MODE

In Airplane Mode, all menu functions can be accessed except making calls, receiving calls, data connection and Bluetooth ^® . Activating Airplane Mode will disable all wireless communications. Services that support Location On functions are temporarily disabled.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 4. Phone Settings, 1. Airplane Mode.
2. Press the Directional Key ☑ up or down to select On or Off, then press the ⏻ Key [SET].

LANGUAGE

To set the bilingual feature to either English or Español:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 4. Phone Settings, 2. Language.
2. Press the Directional Key up or down to select either English or Español, then press the OK Key SET.

LOCATION

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 4. Phone Settings, 3. Location.
2. The LOCATION guide will be displayed on your phone, you will reach a screen that reads.
3. Press the Key to set the Location.
4. Select one of the following settings, then press the OK Key [SET].

- Location On: Your location is now available to the network.

• E911 Only: Your location will be hidden from the network and applications, except for 911.

When Lock Setting is set for Location Setting under Restrictions on the Phone Security menu, you will need to enter a lock code. The default lock code is the last 4 digits of your phone number.

SECURITY

The Security menu allows you to electronically secure the phone.

The default lock code is the last 4 digits of your phone number.

EDIT CODES

To set a new lock code:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings 4. Phone Settings, 4. Security.
2. Enter the four-digit lock code and press the OK Key.
3. Press 1. Edit Codes.

4. Press the Directional Key up or down to select one of the following settings, then press the Key.

5. Phone Only: Allows you to edit the lock code for Security. (The default lock code is the last 4 digits of your phone number.)

6. Calls & Services: Allows you to edit the lock code for Restrictions. (The default lock code is the last 4 digits of your phone number.)

7. IfPhone Only is selected, enter the new four-digit code in the Enter New Code field. Enter the new four-digit code again in the Re-enter New Code field to confirm your input, then press the Key [SET].

8. IfCalls & Services is selected, enter the current lock code in the Enter Current Code field. Enter the new four-digit code in the Enter New Code field. Enter the new four-digit code again in the Re-enter New Code field, then press the Key[SET].

RESTRICTIONS

Use the following procedure to configure Location Setting, Calls, Messages restrictions and Data Connection.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 4. Phone Settings, 4. Security.

2. Enter the four-digit lock code and press the OK Key.

3. Press 2. Restrictions.

4. Enter the four-digit lock code and press the OK Key again.
5. Press the Directional Key☐ up or down to select one of the following settings:

- Location Setting: Unlock Setting/Lock Setting.

- Calls: Incoming/Outgoing.

For Incoming Calls, set Allow All, Allow Contacts or Allow None.

For Outgoing Calls, set Allow All, Allow Contacts or Allow None.

• Text Messages: Incoming/Outgoing.

For Incoming Messages, set Allow All, Allow Contacts or Allow None.

For Outgoing Messages, set Allow All, Allow Contacts or Allow None.

• Picture Messages: Incoming/Outgoing

For Incoming Messages, set Allow All, Allow Contacts or Allow None.

For Outgoing Messages, set Allow All, Allow Contacts or Allow None.

• Data Connection:

Set Allow All or Allow None.

1. Press the Key [SET].

In emergency mode, the settings of Incoming Calls does not apply.

PHONE LOCK SETTING

This setting specifies whether the phone should be locked whenever it is turned on. Lock Mode prevents the unauthorized use of your phone. Once the phone is locked, it is in restricted mode until the lock code is entered. You can still make emergency calls.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 4. Phone Settings 4. Security.

2. Enter the four-digit lock code and press the Key.

3. Press 3. Phone Lock Setting.

4. Press the Directional Key 📄 up or down to select one of the following settings, then press the OK Key [SET].

- Unlocked: Phone is unlocked.

- On Power Up: Phone will lock when it is turned on.

LOCK PHONE NOW

Lock the phone now.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 4. Phone Settings, 4. Security.

2. Enter the four-digit lock code and press the OK Key.

3. Press 4. Lock Phone Now.

4. To unlock the phone from idle mode, slide the phone up, then press the Right Soft Key [Unlock] and enter the four-digit lock code and press the OK Key.

Unlock code is not needed unless the user sets it.

FACTORY RESET

To delete all User Data and restore all settings to their initial defaults:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 4. Phone Settings, 4. Security.

2. Enter the four-digit lock code and press the OK Key.

3. Press 5. Factory Reset.

4. A confirmation message appears in the display, press the Directional Key up or down to select Yes, and then press the Key.

5. Enter the four-digit lock code. The phone will turn off and then back on again automatically.

SYSTEM SELECT

You can set your phone to search or roam on another network when you are not in your home area. Leave this setting as default unless you want to alter the system selection as instructed by your service provider.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 4. Phone Settings, 5. System Select.

2. Press the Directional Key up or down to select Home Only or Automatic, then press the OK Key.

• Home Only: Network is available only within your home area or home affiliated area.

• Automatic: Scans radio channels based on the Automatic setting.

The automatic setting can be displayed as Automatic depending on PRL.

CALL SETTINGS

ANSWER OPTIONS

To determine how to answer an incoming call:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 5. Call Settings, 1. Answer Options.

2. Press the Directional Key® up or down to select Slide Open, Send Key, Any Key or Auto with Handsfree then press the Key [MARK/UNMARK].

Slide Open, Send Key is the default setting for this device.

1. Press the Left Soft Key ⚙ [Done].

- Auto with Handsfree will function after about five seconds. - Auto with Handsfree is available only when a headset or handsfree device is connected.

AUTO RETRY

To set a period of time the phone waits before automatically redialing when an attempted call fails:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 5. Call Settings, 2. Auto Retry.

2. Press the Directional Key up or down to select one of the following settings, then press the OK Key SET].

10 Seconds / 30 Seconds / 60 Seconds / Off

TTY MODE

You can attach a TTY device to your phone enabling you to communicate with parties also using a TTY device. A phone with TTY support is able to translate typed characters to voice. Voice can also be translated into characters and then displayed on the TTY.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 5. Call Settings, 3. TTY Mode.

2. Press the Directional Key 📋 up or down to select one of the following settings, then press the ⚫ Key [SET].

TTY Full / TTY + Talk / TTY + Hear / TTY Off

ONE TOUCH DIAL

To initiate a speed dial call by holding down the speed dial digit:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 5. Call Settings, 4. One Touch Dial.

2. Press the Directional Key 📋 up or down to select On or Off, then press the ⏻ Key [ SET ].

If One Touch Dial is disabled, a speed dial call will function by entering the speed dial number on the QWERTY Keypad, and then press the Send Key.

VOICE PRIVACY

Voice Privacy provides advanced voice encryption to prevent eavesdropping. To turn the voice privacy feature On or Off:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 5. Call Settings, 5. Voice Privacy.

2. Press the Directional Key up or down to select On or Off, then press the OK Key [SET].

DTMF TONES

To set the Key Tone length:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 5. Call Settings, 6. DTMF Tones.

2. Press the Directional Key up or down to select one of the following settings, then press the OK Key [SET].

- Normal: Sends out a tone for a fixed period of time even if you continue to press the key. - Long: Sends out a continuous tone for the duration the key is pressed and held.

SLIDE CLOSE

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 5. Call Settings, 7. Slide Close.

2. Press the Directional Key up or down to select Continue Call or End Call, then press the OK Key [SET].

MEMORY

SAVE OPTIONS

To select whether to save the Phone Memory or the Card Memory when saving files:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 6. Memory, 1. Save Options.

2. Press the Directional Key up or down to select 1. Pictures, 2. Videos or 3. Sounds, then press the Key.

3. Press the Directional Key up or down to select Phone Memory or Card Memory, then press the Key.

PHONE MEMORY

Allows you to manage the memory usage for pictures, videos, music, sounds and contacts on your Phone Memory.

PHONE MEMORY USAGE

To check the available Phone Memory capacity, used capacity and total capacity:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 6. Memory, 2. Phone Memory.

2. Press 1. Phone Memory Usage.

3. Press the OK Key to return to the previous screen.

DELETING AND MOVING FILES

To delete files stored in Phone Memory or to move files from Phone Memory to Card Memory:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 6. Memory, 2. Phone Memory.

2. Press the Directional Key 📋 up or down to select 2. Pictures, 3. Videos, 4. Sounds, 5. Music or 6. Contacts then press the Key.

3. Press the Right Soft Key ⚙ [Options].

4. Select1. Erase to delete a file or 2. Move to move a file to Card Memory, then press the Key.

If you have selected Contacts, you can select 1. View, 2. Copy or 3. Erase after pressing the Right Soft Key [Options].

1. Press the Directional Key 📋 up or down to select a file, press the ⚫ Key [MARI] or the Right Soft Key ⚙ [Mark All], then press the Left Soft Key ⚙ [Done].

2. Press the Directional Key up or down to select Yes and press the Key.

MOVING ALL FILES

To move all files saved in Phone Memory to Card Memory (memory card sold separately).

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 6. Memory, 2. Phone Memory.

2. Press the Directional Key up or down to select 7. Move All To Card, then press the OK Key.

3. Press the Directional Key up or down to select Yes and press the Key.

Do not remove the memory card from the phone while a file or files are being moved to Card Memory.

CARD MEMORY

Allows you to manage the memory usage for pictures, videos, music, sounds and contacts on your Card Memory. The memory card (sold separately) must be inserted into the phone to perform these functions.

CARD MEMORY USAGE

To check the available Card Memory capacity, used capacity and total capacity:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 6. Memory, 3. Card Memory.
2. Press 1. Card Memory Usage.
3. Press the Key to return to the previous screen.

FORMAT CARD

To format the card inserted:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 6. Memory, 3. Card Memory.
2. Press1. Card Memory Usage, then press the Right Soft Key [Options].
3. Press1. Format card, enter your 4-digit lock code and press the Key.
4. Press the Directional Key up or down to select Yes and press the Key.

DELETING AND MOVING FILES

To delete files stored in Card Memory or to move files from Card Memory to Phone Memory:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 6. Memory, 3. Card Memory.

2. Press the Directional Key up or down to select 2. Pictures, 3. Videos, 4. Sounds, 5. Music or 6. Contacts then press the Key.

3. Press the Right Soft Key ⚙ [Options].
4. Press the Directional Key ☑ up or down to select 1. Erase to delete a file or 2. Move to move a file to Phone Memory, then press the Key.

If you have selected Contacts, you can select 1. Copy or 2. Erase after pressing the Right Soft Key [Options].

1. Press the Directional Key 📋 up or down to select a file, press the ⚗ Key [MARK] or the Right Soft Key ⚙️ [Mark AI], then press the Left Soft Key ⚙️ [Done].
2. Press the Directional Key up or down to select Yes and press the Key.

MOVING ALL FILES

To move all files saved in Card Memory to Phone Memory:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 6. Memory, 3. Card Memory.
2. Press the Directional Key up or down to select then press the Key.
3. Move All To Phone
4. Press the Directional Key up or down to select Yes and press the Key.

Do not remove the memory card from the phone while a file or files are being moved to Card Memory.

BLUETOOTH®

Bluetooth® technology connectivity enables wireless connections between electronic devices. If connected with a Bluetooth handsfree device, you can use your phone more freely. Since devices with Bluetooth connectivity communicate using radio waves, your phone and the other device do not need to be in direct line-of-sight. The two devices only need to be within 10 meters (30 feet) of each other. The connection can be subject to interference from obstructions such as walls or other electronic devices. This device is compliant with Bluetooth specification 3.0, supporting the following profiles: Headset, Handsfree, Stereo, Phonebook Access, Basic Printing, Basic Imaging, Object Push and Browse/Get Files. To ensure interoperability between other devices supporting Bluetooth technology, use approved enhancements for this model. Check with the manufacturers of other devices to determine their compatibility with this phone. There may be restrictions on using Bluetooth technology in some locations. If you want more information on this function, visit the Bluetooth Technology organization Web site: https://www.bluetooth.org/.

Important: Features using Bluetooth technology, or allowing such features to run in the background while using other features, increase the demand on battery power and reduce battery life.

BLUETOOTH® ON/OFF

To toggle Bluetooth power On/Off:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 7. Bluetooth
2. Press the Left Soft Key [Turn On/Turn Off]. A confirmation window appears.

ADD NEW DEVICE

Pairing is the process that allows the handset to locate, establish and register a 1-to-1 connection with the target device.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 7. Bluetooth 1. Add New Device.

2. If the Bluetooth power is switched off, the following message will appear on the LCD screen "BLUETOOTH POWER ON".

3. The handset will prompt you with the following message on the LCD screen: "PLACE DEVICE YOU ARE CONNECTING TO IN DISCOVERABLE MODE" Press the Key.
4. The device will appear in the ADD NEW DEVICE menu. Select the device you wish to pair to, then press the OK Key [PAIR].
5. The handset will prompt you with the following message on the LCD screen: CONFIRM THE PASSKEY ON [DEVICE NAME]? . Select Yes and press the OK Key. If you would like to always confirm before connecting to the Bluetooth device, select Always Ask, then press the Key. If you do not wish to confirm every time before connecting to the Bluetooth device, select Always Connect, then press the Key.

- The handset may prompt you for the passkey. Consult the Bluetooth accessory (sold separately) instructions for the appropriate passkey (typically "0000" — 4 zeroes). Enter the passkey, then press the Key. - You do not need to input the passkey for pairing when the passkey of the Bluetooth headset or hands-free kit is 0000. (except when Auto Pair Handsfree is Off)

1. Once connected, you will see the device listed in the Bluetooth menu and the Bluetooth device connected icon will appear at the top of the screen when connected to the Bluetooth device.

- In the Bluetooth menu, you can turn off the device by pressing the Left Soft Key [Turn Off]. Conversely, you can turn on by pressing the Left Soft Key [Turn On]. - If multiple devices are displayed, select the device you want to connect to.

OPTIONS

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 7. Bluetooth.
2. Select the paired device.

3. Press the Right Soft Key ⚙ [Options].

4. Press the Directional Key ☑ up or down to select one of the following options, then press the OK Key.

5. Remove Device: Removes a device from the pairing list.

6. Rename Device: Renames a paired device.

7. Incoming Security: Sets permissions for connecting an incoming device.
   • Service Discovery: Searches for the services that the selected device supports.
   • Device Info: Displays device information.

8. Or, press the Key to access 1. Send Name Card, 2. Send Picture, 3. Send Video, 4. Send Sound, 5. Send Calendar Event, 6. Get Name Card, 7. Exchange Name Card or 8. Browse/Get Files.

SETTINGS

MY PHONE NAME

To edit the Bluetooth ^® name of your phone:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 7. Bluetooth.
2. Press the Right Soft Key ⚙️ [Options].
3. Press 1. My Phone Name.
4. Use the QWERTY Keypad to enter a new custom name.
5. Press the OK Key [SET] to save and exit.

DISCOVERY MODE

To set whether your device is able to be searched for by other Bluetooth ^® devices in the area:

1. Slide the phone up, press the key [MENU], then press 9. Tools & Settings, 7. Bluetooth.
2. Press the Right Soft Key ⚙️ Options ].
3. Press 2. Discovery Mode.

If Bluetooth power is not on, it will be turned on automatically.

1. Press the Directional Key up or down to select On or Off, then press the OK Key [SET].

SUPPORTED PROFILES

To view brief descriptions of the profiles supported by the phone:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 7. Bluetooth.
2. Press the Right Soft Key ⬙ [Options].
3. Press 3. Supported Profiles.

4. Press the Directional Key 📊 up or down to select one of the following profiles, then press the ⏻ Key [VIEW] for information.

5. Headset / 2. Handsfree / 3. Stereo / 4. Phonebook Access /

6. Basic Printing / 6. Basic Imaging / 7. Object Push /

7. Browse/Get Files

AUTO PAIR HANDSFREE

To set Auto Pair Handsfree On/Off:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 7. Bluetooth.
2. Press the Right Soft Key ⚙ [Options].
3. Press 4. Auto Pair Handsfree.
4. Press the Directional Key up or down to select On or Off, then press the Key [SET].

USB MODE

You can use a USB data cable to transfer data between the device and a compatible PC.

Important: To activate your device for data transfer, select USB Mode before connecting the USB data cable.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 8. USB Mode.

2. Press the Directional Key up or down to select Charge Only or Mass Storage, then press the Key [ SET].

3. Charge Only: Allows you to only charge when connected to your computer.

4. Mass Storage: Allows you to use your phone as a mass storage for your computer when connecting with a USB data cable.

- Mass Storage is the default setting for this device.

PHONE INFO

MY PHONE NUMBER

To view your phone number:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 9. Phone Info, 1. My Phone Number.
2. The following information appears. MDN / MIN

SW/HW VERSION

To view your device SW/HW information:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 9. Phone Info, 2. SW/HW Version.
2. Software Version / PRL Version / PRI Version / Browser Version / HW Version / Software Update Client are displayed.
3. Press the ☑ Key to return to the previous screen.

MEID / PESN

To view your MEID / pESN:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 9. Phone Info, 3. MEID / pESN.
2. MEID(Dec) / MEID(Hex) / pESN(Hex) are displayed.
3. Press the OK Key to return to the previous screen.

ICON GLOSSARY

To view all the icons and their meanings:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 9. Phone Info, 4. Icon Glossary.
2. Press the OK Key to return to the previous screen.

Please refer to Display Indicators on page 12 for more details about the icons.

SOFTWARE UPDATE

The Software Update option allows you to download and update the software in your phone automatically. Only the internal software is updated; Contact entries or other information saved to your phone will NOT be deleted.

STATUS

Check the latest Software Download/Update status.

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings 9. Phone Info, 5. Software Update
2. Press 1. Status.

CHECK FOR UPDATE

To check Download Server for new Software updates:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings 9. Phone Info, 5. Software Update
2. Press 2. Check for Update.

OPERATING SYSTEM

To view information about your phone's operating system:

1. Slide the phone up, press the Key [MENU], then press 9. Tools & Settings, 9. Phone Info, 6. Operating System.
2. Press the OK Key to return to the previous screen.

MULTIMEDIA 5

This chapter addresses Picture & Video, Sounds, Ringtones, Music functions:

Picture & Video

Sounds

Ringtones

Music

U.S. Cellular VERSE

PICTURE & VIDEO

PICTURES

The Pictures menu allows you to view all the pictures you have taken, store selected images in your phone, send pictures to the Online Album, delete images and access additional picture options.

1. Slide the phone up, press the Key [MENU], then press 4. Multimedia, 1. Picture & Video, 1. Pictures.

2. Select the desired picture, then press the Right Soft Key ⚙ [Options] to access the following options.

3. Send: Allows you to send a picture with following options:

4. Picture Message / 2. To Online Album/3. Via Bluetooth
5. Set As: Assigns the selected picture to display for specific tasks (Wallpaper / Picture ID).
   • Take Picture: Take a new picture.
6. Manage Pictures: To manage your picture files with following options:
7. Erase /2. Lock /3. Unlock /4. Move To Phone /5. Move To Card
8. Rename:Rename the selected picture.
9. File Info: Displays the following information about the selected picture: File Name / Date /Time / Resolution /Size
   • Full View: To full view the picture.

DELETING A PICTURE

1. Slide the phone up, press the Key [MENU], then press 4. Multimedia, 1. Picture & Video, 1. Pictures.
2. Select the picture you want to erase, then press the Left Soft Key [Erase].
3. "ERASE PICTURE?" will appear on your display.
4. Select Yes and press the Key. A confirmation message appears.

VIDEOS

The Videos menu allows you to view all the videos you have recorded, store selected videos in your phone, send videos to the Online Album, delete videos and access additional video options.

1. Slide the phone up, press the Key [MENU], then press 4. Multimedia, 1. Picture & Video, 2. Videos.

2. Select the desired video, then press the Right Soft Key [Options] to access the following options.

3. Send: Allows you to send a picture with following options:

4. Video Message /2. To Online Album /3. Via Bluetooth
5. Set As: Set the selected video as a Wallpaper or a Video ID.
   • Record Video: Record a new video.
6. Manage Videos: To manage your video files with following options:
7. Erase / 2. Lock / 3. Unlock / 4. Move To Phone/ 5. Move To Card
8. Rename: Rename the selected video
9. File Info: Displays the following information about the selected video: Name / Date/ Time / Duration / Size

DELETING A VIDEO

1. Slide the phone up, press the Key [MENU], then press4. Multimedia, 1. Picture & Video,2. Videos.
2. Select the video you want to erase, then press the Left Soft Key 📄 Erase].
3. "ERASE VIDEO?" will appear on your display.
4. Select Yes and press the Key. A confirmation message appears.

TAKE PICTURE

1. Slide the phone up, press the Key [MENU], then press 4. Multimedia,

2. Picture & Video, 3. Take Picture

Shortcut: From idle mode, if the keypad is locked, press the END/POWER Key, then press the Key in less than three seconds to unlock the keypad. Press the Camera Key (located on the right side of the device) to access the camera viewfinder.

1. Point the camera lens at your subject. You can check the picture framing through the display screen.

- Press the Directional Key ☐ left or right to zoom in or out (except when resolution is set to 1600x1200).

- Press the Right Soft Key ⚙ [Options], and choose from the following and press the ⚡ Key [SET]:

1. Resolution: 1600X1200 / 1280x960 / 640x480 / 320x240 / 160x120

2. Self Timer: Off / 3 Seconds / 5 Seconds / 10 Seconds

3. Brightness: Press the Directional Key ☐ left or right to adjust the brightness from the following: -2 / -1 / 0 / +1 / +2

4. White Balance: Press the Directional Key ☐ left or right to select from the following: Auto / Sunny / Cloudy / Tungsten / Fluorescent

5. Shutter Sound: Allows you to select the shutter sound from the following: Shutter / Silent / Say "Cheez" / Ready! 123

6. Color Effects: Press the Directional Key left or right to select color effects from the following: Normal / Antique / Black & White / Negative

7. Capture Mode: Set the capture mode to take picture from the following: Landscape / Portrait

8. Memory: Set the memory to save the captured picture from the following: Phone / Card

9. Press the Key [TAKE] to take the picture.

10. After taking the picture, it will be displayed. To save the picture, press the Left Soft Key [Save]. To take another picture without saving the picture you just took, press the Right Soft Key [Erase]. To send the picture to someone, press the Key [SEND].

RECORD VIDEO

1. Slide the phone up, press the Key [MENU], then press 4. Multimedia, 1. Picture & Video, 4. Record Video.

Shortcut: From idle mode, if the keypad is locked, press the END/POWER Key, then press the ⚫ Key in less than three seconds to unlock the keypad. Press and hold the Camera Key (located on the right side of the device) to access the video camera viewfinder. To switch from the video camera to camera or vice versa, press and hold the Camera Key (located on the right side of the device).

1. Point the camera lens at your subject. You can check the video framing through the display screen.

- Press the Directional Key ☐ left or right to zoom in or out.

- Press the Right Soft Key [Options] and choose from the following and press the Key [SET]:

1. Brightness: Press the Directional Key ☐ left or right to adjust the brightness from the following: -2 / -1 / 0 / +1 / +2

2. White Balance: Press the Directional Key ☑ left or right to select from the following: Auto / Sunny / Cloudy / Tungsten / Fluorescent

3. Shutter Sound: Allows you to turn Shutter Sound On or Off.

4. Recording Time: Limit the recording time to 15 Seconds for Video MSG or 1 Hour for Save.

5. Memory: Set the memory to save the recorded file from the following: Phone / Card

6. Press the Key [ REC ] to record a video.

7. To pause/resume it, press the Left Soft Key [Pause/Resume].

8. To mute/unmute it, press the Right Soft Key ⚫ [Mute/Unmute].

9. When finished recording, press the OK Key [STOP].

10. After recording the video, press the Left Soft Key [Save] to save the video. To record another video without saving the video you just recorded, press the Right Soft Key [Erase]. To send the video to someone, press the Key [SEND].

SOUNDS

To select a desired sound:

1. Slide the phone up, press the Key [MENU], then press 4. Multimedia, 2. Sounds.

2. Highlight the desired sound, then press the OK Key [PLAY] to hear the sound. Press the OK Key [STOP] to stop playing the sound.

3. Press the Right Soft Key ⚙ [Options] to access the following options:

- Send: Allows you to send a sound with following options: 1. Sound Message /2. Via Bluetooth

• Rename: Renames the sound.
• Move: Allows you to move the selected sound to the memory card or the phone. This option only appears if a memory card is inserted.
• Lock/Unlock: Locks or unlock the current sound for a downloaded sound.
• Erase: Deletes the sound.
• Erase All: Deletes all the sounds from your phone or memory card.
• File Info: Displays information about the selected sound Name /Size /Type

1. Slide the phone up, press the Key [MENU], then press 4. Multimedia, 2. Sounds.
2. Press 1. Record New.
3. Press the Key to begin recording. When done, press the Key [STOP] to finish recording. The recording is automatically saved to your Sound list.
4. Your recording is saved with a number. To rename your recording, press the Directional Key 📋 up or down to select the Sound you want to rename, then press the Right Soft Key 🙏 [Options].
5. Press 2. Rename.
6. Press and hold the CLR Key to erase the number, enter the new name for your recording, then press the OK Key.

SETTING SOUNDS

1. Slide the phone up, press the Key [MENU], then press 4. Multimedia, 2. Sounds.

2. Select the sound you want to set, press the Left Soft Key [Set As], then select one of the following options and press the OK Key.

3. Ringtone: Set as a ringtone. A confirmation message appears.

4. Contact ID: The SET AS CONTACT ID screen appears. Select the Contact you want to assign the ringtone to, then press the OK Key.

5. Alert Sounds: Press the corresponding number key to set the ringtone for one of the following options:

6. All Messages/2. Text Messages/3. Multimedia Messages/4. Voicemail

RINGTONES

TO PLAY DOWNLOADED TUNES OR TONES:

1. Slide the phone up, press the ☑ Key [MENU], then press 4. Multimedia, 3. Ringtones.
2. Select the tune or tone you want to play, then press the OK Key [PLAY].
3. To stop, press the ☐ Key [STOP].

TO ERASE DOWNLOADED TUNES OR TONES:

1. Slide the phone up, press the ☑ Key [MENU], then press 4. Multimedia, 3. Ringtones.
2. Select the tune or tone to erase and press the Right Soft Key [Options].
3. Select Erase and press the OK Key.
4. Select Yes and press the OK Key.

The preloaded Ringtones cannot be erased.

TO ASSIGN DOWNLOADED TUNES OR TONES:

1. Slide the phone up, press the ☑ Key [MENU], then press 4. Multimedia, 3. Ringtones.
2. Select the desired ringtone, then press the Left Soft Key ⚙ [Set As].

3. Select one of the following options, then press the OK Key.

4. 1. Ringtone: Set as a ringtone. A confirmation message appears.
5. 1. Contact ID: TheSET AS CONTACT ID screen appears. Select the Contact you want to assign the ringtone to, then press the Key.
      • 3. Alert Sounds: Press the corresponding number key to set the ringtone for one of the following: 1. All Messages/2. Text Messages /3. Multimedia Messages /4. Voicemail

MUSIC

Music menu allows you to playback and manage music files stored in your phone's memory and on a memory card (sold separately).

1. Slide the phone up, press the OK Key [MENU], then press 4. Multimedia, 4. Music.
2. Select one of the following options and press the OK Key.

- Resume: Dynamic Options. This options shall be available if the Music Player has been used at least once.

• Play All Songs: Dynamic Options. This options shall be available if songs.
  • 1. All Songs: Allows you to view or play songs.
  • 2. Playlists: Allows you to create or view playlists. Once you have created playlists, you can play songs by playlists.
  • 3. Artists: Allows you to view or play your songs by artists.
  • 4. Genres: Allows you to view or play your songs by genres.
  • 5. Albums: Allows you to view or play your songs by albums.
• 1. Manage Music: Allows you to manage your music files with following options:
• Erase / 2. Lock / 3. Unlock / 4. Move To Card / 5. Move To Phone
• 1. Music Settings: Allows you to set following player settings:
• Repeat/2. Shuffle/3. Player Skin/4. Music Only Mode

NATIVE MUSIC PLAYER

Album jacket image I Gotta Feeling The Black Ribbon Pears 0000/0000 Volume value Shuffle / Repeat Key Guide Play time / Total Time Playing Icon Album Jacket information Index Play Status Bar Options

Icon Name		Descriptions
	Volume value Indicates current music volume level
	Previous / Next	Press: Previous, NextPress and Hold: Rewind, Fast Forward
	Pause/Play Indicates player's status
	Repeat	Repeat AllRepeat OneOff
	Shuffle	OnOff

PLAYING MUSIC

1. With the phone closed, press the END/POWER Key ☑, then press the OK Key in less than three seconds to unlock the keypad. Or slide the phone up, press the OK Key [MENU], then press 4. Multimedia, 4. Music.
2. Select1. All Songs, press the OK Key, then select the desired song and press the OK Key [PLAY]. To pause the song, press the OK Key again.

3. Press the Left Soft Key ⚙ [Mute] to mute or press the Right Soft Key ⚙ [Options] to select from the following options:

4. Exit Player: Exits the music player and returns to previous screen.
   • Music Only Mode: Sets Music Only Mode On to disable all wireless communications.
   • Song Info: Displays the music file information.

5. Repeat: SelectRepeatAll, Repeat One or Off for the player's repeat mode.
6. Shuffle: Select On or Off for the player's shuffle mode.

MESSAGING

6

This chapter addresses Voicemail, TXT, Picture, Video, Voice

Messaging functions including:

When a New Message Arrives

New Message

Messages

Inbox

Sent

Drafts

Erase All

Voicemail

Mobile e-mail

Settings

U.S. Cellular VERSE

WHEN A NEW MESSAGE ARRIVES

1. The following display appears when a new message arrives.
2. To display the message, select View Now and then press the OK Key.

NEW MESSAGE

TXT MESSAGE

1. Slide the phone up, press the Left Soft Key [Message], then press New Message. Or slide the phone up, press the Key [MENU], then press 2. Messaging 1. New Message.
2. Press1.TXT Message.

Shortcut: From idle mode, press the TXT Composer Key

1. UnderTo, input the phone number or e-mail address of the recipient, then press the OK Key.

2. By pressing the Right Soft Key [Add], you can choose from the following:

3. From Contacts: Search for a phone number which is stored in the Contact List.
4. Call History: Search for a phone number which is stored in the Call History menu.
5. Groups: Search for a group stored in the Groups menu.

6. To Contacts Save the number or e-mail address to the Contact List that you have entered in the To field.

7. Under Text, input your message.

8. By pressing the Right Soft Key [Options], you can choose from the following:

9. Insert Quick Text: Inserts predefined sentences in the text message.
10. Save As Draft: Save the text message to Drafts.
11. Add Allows you to add a Address From Contacts.
12. Priority Level: Set the level of the priority to High or Normal.

13. Cancel Message: Cancel the message and select whether to save it in Drafts.

14. When completed, press the Key [SEND] to send the text message.

These options will vary depending on the message contents chosen.

PICTURE MESSAGE

1. Slide the phone up, press the Left Soft Key [Message], then press New Message. Or slide the phone up, press the Key [MENU], then press 2. Messaging, 1. New Message.
2. Press 2. Picture Message.

3. UnderTo, input the phone number or e-mail address of the recipient, then press the OK Key.

4. By pressing the Right Soft Key ⚠ [Add], you can choose from the following:

5. From Contacts: Search for a phone number which is stored in the Contact List.
6. Call History: Search for a phone number which is stored in the Call History menu.
7. Groups: Search for a group stored in the Groups menu.
8. To Online Album: Send the picture message to your Online Album.

9. To Contacts Save the number or e-mail address to the Contact List that you have entered in the To field.

10. UnderText, input your message, then press the Directional Key down.

11. UnderPicture, press the Left Soft Key [Pictures] to select the picture you would like to send, then press the OK Key. Press the Directional Key down.

12. UnderSound, press the Left Soft Key 🙏 Sounds ] to select the sound you would like to send, then press the OK Key. Press the Directional Key down.

13. UnderName Card, press the Left Soft Key [Add], press the Directional Key up or down to select 1. My Name Card or 2. From Contacts then press the OK Key. If 2. From Contacts is selected, select the desired Contact and press the OK Key [MARK/UNMARK] then press the Left Soft Key Done]. Press the Directional Key down.

14. Under Subject, input the message subject.

15. Press the Right Soft Key ⚙ [Options] to access the following:

• Preview: Shows the picture message before it is sent.
- Save As Draft:Save the picture message to Drafts.
- Insert Quick Text: Inserts predefined sentences in the picture message.

• Add Slide: Allows you to insert multiple picture messages.
  • Priority Level: Set the level of the priority to High or Normal

• Cancel Message: Cancel the message and select whether to save it in Drafts.

• When completed, press the Key [SEND] to send the picture message.

These options will vary depending on the message contents chosen.

VIDEO MESSAGE

1. Slide the phone up, press the Left Soft Key [ ] Message], then press New Message. Or slide the phone up, press the Key [ MENU], then press 2. Messaging, 1. New Message.
2. Press3. Video Message .
3. UnderTo, input the phone number or e-mail address of the recipient, then press the OK Key.

- By pressing the Right Soft Key ⚙ [Add], you can choose from the following:

1. From Contacts: Search for a phone number which is stored in the Contact List.
2. Call History: Search for a phone number which is stored in the Call History menu.
3. Groups: Search for a group stored in the Groups menu.
4. To Online Album: Send the video message to your Online Album.

5. To Contacts: Save the number or e-mail address to the Contact List that you have entered in the To field.

6. UnderText, input your message, then press the Directional Key down.

7. UnderVideo, press the Left Soft Key [Videos] to select the video you would like to send, then press the Key. Press the Directional Key down.
8. UnderName Card, press the Left Soft Key [Add], press the Directional Key up or down to select 1. My Name Card or 2. From Contacts then press the Key. If 2. From Contacts is selected, select the desired Contact and press the Key [MARK/UNMARK] then press the Left Soft Key Done]. Press the Directional Key down.

9. Under Subject, input the message subject.

10. Press the Right Soft Key ⚙ [Options] to access the following:

11. Preview: Shows the video message before it is sent.

12. Save As Draft: Save the video message to Drafts.
13. Insert Quick Text: Inserts predefined sentences in the video message.
    • Priority Level: Set the level of the priority to High or Normal.

14. Cancel Message: Cancel the message and select whether to save it in Drafts.

15. When completed, press the Key [SEND] to send the video message.

These options will vary depending on the message contents chosen.

VOICE MESSAGE

1. Slide the phone up, press the Left Soft Key [ ] Message ], then press New Message . Or slide the phone up, press the Key [ ] MENU], then press 2. Messaging, 1. New Message.
2. Press 4. Voice Message.
3. Press the OK Key to start recording a voice memo, then press the OK Key [STOP] to finish recording and insert the voice memo into the voice message.
4. UnderTo, input the phone number or e-mail address of the recipient, then press the OK Key.

- By pressing the Right Soft Key [Add], you can choose from the following:

1. From Contacts: Search for a phone number which is stored in the Contact List.
2. Call History: Search for a phone number which is stored in the Call History menu.
3. Groups: Search for a group stored in the Groups menu.
4. To Online Album: Send the voice message to your Online Album.

5. To Contacts: Save the number or e-mail address to the Contact List that you have entered in the To field.

6. UnderText, input your message, then press the Directional Key down.

7. Under Name Card, press the Left Soft Key [Add], press the Directional Key up or down to select 1. My Name Card or 2. From Contacts then press the Key. If 2. From Contacts is selected, select the desired Contact and press the Key [MARK/UNMARK] then press the Left Soft Key Done]. Press the Directional Key down.

8. Under Subject, input the message subject.

9. Press the Right Soft Key ⚙ [Options] to access the following:

10. Review: Shows the voice message before it is sent.

11. Save As Draft: Save the voice message to Drafts.
12. Insert Quick Text: Inserts predefined sentences in the voice message.
    • Priority Level: Set the level of the priority to High or Normal.

13. Cancel Message: Cancel the message and select whether to save it in Drafts.

14. When completed, press the Key [SEND] to send the voice message.

These options will vary depending on the message contents chosen.

MESSAGES

TheMessages menu is displayed when Inbox View is set to By Contact which is the default setting. All received and sent messages are stored under theMessages menu by contact name. By Contact is the default setting.

1. Slide the phone up, press the Left Soft Key [Message] Or slide the phone up, press the Key [MENU], then press 2. Messaging, 2. Messages
2. Select a message and press the OK Key [OPEN] to view the message. To reply to the sender, press the Left Soft Key [Reply], select 1. TXT Message, 2. Picture Message, 3. Video Message or 4. Voice Message, then press the OK Key.
3. Press the Directional Key up or down to highlight the text entry field, enter the message and press the Key [SEND] to reply. Or press the Directional Key up or down to highlight the message contents, press the Directional Key left or right to view the next or previous message.
   Press the OK Key[OPEN] to view the message with full screen or press the OK Key [Reply] to reply to the sender.

4. While viewing the message with full screen, press the Key [REPLY] to reply. To erase the message, press the Left Soft Key [Erase], select Yes, then press the Key.

5. When navigating through theMessages menu, press the Right Soft Key [Options] to display the following available options. Options are dependent on the message type and may be different from each field.

6. Erase Sent/Received Allows you to delete unlocked sent and received messages.

7. Erase Drafts Allows you to delete unlocked messages stored in Drafts.
8. Erase All Messages: Allows you to delete unlocked messages stored in your phone.
9. Add To Contacts: Saves the phone number to the Contact List.
10. Manage Messages: Allows you to manage messages with following options:
11. Erase: Deletes the messages.
12. Lock: Locks the messages.
13. Unlock: Unlocks the messages.
14. Mark as Read: Marks the messages as read.
15. Mark as Unread: Marks the messages as unread.
16. Sort Alphabetically/Sort By Time: Sorts the list in alphabetical order or by time.
17. Messaging Menu: Returns to the previous Messaging screen.
18. Insert Quick Text: Inserts predefined sentences in the message.
19. Save As Draft: Save the message to Drafts.
20. Add: Allows you to add a Address From Contacts.
21. Add Recipient: Allows you to add multiple recipients in the To field.
    • Priority Level: Set the level of the priority to High or Normal.
22. Cancel Message: Cancels the message and select whether to save it in Drafts.
    • Forward: Forwards the message to another recipient.
23. Reply w. copy: Allows you to reply to the recipient including the original message.
24. Save As Quick Text: Allows you to save the received message as quick text.
25. Lock: Locks the message.
26. Extract Addresses: Allows you to extract contacts from the message, then you can save them to the Contact List, make a call or send the message.
    •Message Info: Shows the message information.

INBOX

The Inbox menu is displayed when Messages View is set to By Time. If By Contact is set, you cannot see the Inbox menu. The Inbox manages received text, picture, voice, video and web alert messages.

1. Slide the phone up, press the Left Soft Key [Message], then press 2. Inbox. Or slide the phone up, press the Key [MENU], then press 2. Messaging, 2. Inbox.

2. Select a message and press the ⏻ Key [OPEN] to view the message. To delete the message, press the Left Soft Key ⏻ [Erase], select Yes, then press the ⏻ Key.

3. Press the Directional Key left or right to view the previous or next message.

4. To reply to the sender, press the Key [REPLY], select 1. TXT Message, 2. Picture Message, 3. Video Message or 4. Voice Message, then press the OK Key.

5. When navigating through the nbox menu, press the Right Soft Key [Options] to display the following available options. Options are dependent on the message type and may be different from each field.

- Reply: Allows you to reply to the recipient.

- Reply w. copy: Allows you to reply to the recipient including the original message.

- Forward: Forwards the message to another recipient.

- Add To Contacts: Saves the phone number to the Contact List.

- Extract Addresses: Allows you to extract contacts from the message, then you can save them to the Contact List, make a call or send the message.

- Message Info: Shows the message information.

- Manage Inbox: Allows you to manage messages with following options:

- Erase: Deletes the message.

-Lock:Locks the messages.

- Unlock Unlocks the messages.

- Mark as Read: Marks the messages as read.

- Mark as Unread Marks the messages as unread.

- Sort By Sender: Sorts the list by sender.

- Sort By Time: Sorts the list by time.

- Sort By Size: Sorts the list by size.

• View By Contacts: Changes the Inbox View setting to Contacts.

- Lock: Locks the message.

SENT

The Sent menu is displayed when Messages View is set to By Time. If By Contact is set, you cannot see the Sent menu. Sent manages already sent or waiting to be sent messages.

1. Slide the phone up, press the Left Soft Key [Message], then press 3. Sent. Or slide the phone up, press the Key [MENU], then press 2. Messaging, 3. Sent.

2. Select a message and press the OK Key [OPEN] to view the message. To delete the message, press the Left Soft Key [Erase], select Yes, then press the OK Key.

3. Press the Directional Key ☑ left or right to view the previous or next message.

4. To send the message, press the OK Key[SEND].

5. When navigating through the Sent menu, press the Right Soft Key [Options] to display the following available options. Options are dependent on the message type and may be different from each field.

• Forward: Forwards the message to another recipient.

- Resend:Resends the message.

- Lock / Unlock:Locks or unlocks the message.

- Add To Contacts: Saves the phone number to the Contact List.

- Erase Sent: Allows you to delete unlocked messages stored in Sent.

- Message Info: Shows the message information.

DRAFTS

The Drafts menu manages draft messages. If message composition is interrupted by a voice call or other events, the message being composed is automatically saved in Drafts.

1. Slide the phone up, press the Key [MENU], then press 2. Messaging, 4. Drafts.
2. Select a message and press the OK Key [EDIT] to edit the message. To delete the message, press the Left Soft Key 🎨 [Erase], select Yes, then press the OK Key.

3. When navigating through Drafts menu, press Right Soft Key [Options] to display the following available options.

4. SendSends the message.

5. Lock/Unlock:Locks or unlocks the message.
6. Add To Contacts: Saves the phone number to the Contact List.
7. Erase Drafts: Allows you to delete unlocked messages stored in Drafts.

ERASE ALL

To erase all messages stored in your phone:

1. From the idle mode, press Key [MENU], then select 2. Messaging.

2. Press the Right Soft Key ⚙ [Options] to display the following available options.

3. Erase Inbox: SelectAll Messagesor Only Read Messages, then press the Key.

4. Erase Sent: Select Yes or No, then press the Key.
5. Erase DraftsSelect Yes or No, then press the Key.

6. Erase AllSelect All Messages including Unreador All except Unread Messages, then press the OK Key.

7. A confirmation message appears.

Locked messages cannot be erased.

VOICEMAIL

The Voicemail menu shows the number of new voicemail message recorded in your voicemail box.

1. Slide the phone up, press the Key [MENU], then press 2. Messaging 5. Voicemail.
2. To delete information about new voicemail, press the Left Soft Key [Clear], select Yes, then press the Key.

ACCESSING YOUR VOICEMAIL BOX

1. Slide the phone up, press the Key [MENU], press 2. Messaging, 5. Voicemail, then press the Key [CALL]. Or dial my phone number and press the SEND Key
2. Follow the prompts to enter your password and retrieve your messages.

Shortcut: Slide the phone up, press and hold 1 or *86 and press SEND Key to access your voicemail box.

MOBILE E-MAIL

Mobile e-mail gives you access to your personal e-mail accounts such as Yahoo!, MSN, AOL and Gmail. Mobile e-mail works with any e-mail solution, even if your e-mail service provider is not listed, you can manually enter in the e-mail server address to add your account. Mobile e-mail even notifies you when a new message arrives in your inbox.

DOWNLOAD INSTRUCTIONS FOR MOBILE E-MAIL FROM easyedge ^SM CATALOG

1. From the device main screen, selectMenu.
2. From menu options, select the easyedge icon.
3. Use the up/down arrows to navigate to the shopping cart icon and select (may vary by navigation options). Select Catalog.

4. Scroll to the appropriate folder (Mobile e-mail will be found in Mobile Internet) and select.

5. Scroll to and select Free Mobile Email.

6. Select purchasing option free. Select Phone or Card.
7. Download progress will be shown.

AUTOMATIC E-MAIL ACCOUNT SET UP

1. Launch application and follow prompts through to the mail account provider screen. Select an e-mail account provider.
2. Enter user identification and password – account will sync and display e-mail inbox.

POP AND IMAP E-MAIL ACCOUNT MANUAL SET UP

1. Launch application and follow prompts through to the mail account provider screen. Scroll to and select more. Scroll to and select other.
2. In the text fields, enter e-mail address, password and user name. Next you will be prompted to define account details from your e-mail provider. Select next
3. Select protocol (MAP or POP).
4. Enter incoming server settings. Selectnext.
5. Enter outgoing server settings. Select next.
6. Account will sync and display e-mail inbox.

SETTINGS

The Settings menu allows you to configure settings for messages sent or received on your phone. To access message settings:

1. Slide the phone up, press the Key [MENU], then press 2. Messaging, 6. Settings.

2. Select one of the following menus, then press the OK Key.

Following menus:1. Messages View/ 2. Entry Mode / 3. Auto Save Sent/ 4. Auto Erase Inbox / 5. Messaging Font Size / 6. TXT Auto View / 7. Multimedia Auto Receive / 8. Quick Text /9. Voicemail # / 0. Callback # / *. Signature / #. Delivery Receipt

MESSAGES VIEW

Select By Time or By Contact, then press the Key.

• By Time: Sorts received and sent messages into Inbox and Sent folders by time.
• By Contact: Groups all received and sent messages by each contact.

ENTRY MODE

Allows you to set the default Entry Mode for messaging. For example, if Abc mode is set to Entry Mode, its icon will appear in the text entry field as default.

Select Abc, ABC or 123, then press the Key.

AUTO SAVE SENT

Select On, OfferPrompt, then press the Key.

•On: All sent messages are saved in Sent.
-Off: All sent messages are not saved in Sent.
- Prompt: The Yes or No dialogue box will be displayed after sending a message.

AUTO ERASE INBOX

Allows you to set whether Inbox messages are deleted automatically when new messages arrive and Inbox is full.

Select On or Off, then press the Key.

• On: The oldest message will be deleted from the Inbox automatically once full.
  -Off: The oldest message will not be deleted automatically from the Inbox once full.

MESSAGING FONT SIZE

Allows you to set the message font size.

Select Small, Normal or Large, then press the Key.

TXT AUTO VIEW

Select On or Off, then press the Key.

• On: TXT messages are displayed automatically when received.
• Off: TXT messages are displayed by going into the Inbox, or by responding to the message prompt.

MULTIMEDIA AUTO RECEIVE

Select On or Off, then press the Key.

• On: Picture, Video and Voice messages are downloaded automatically.
• Off: Picture, Video and Voice messages must be retrieved from the Inbox or by responding to the message prompt.

QUICK TEXT

Allows you to create a new Quick Text or edit the predefined Quick Text.

1. To create a new Quick Text, press the Right Soft Key [Options], then press 1. New. Enter the new text and press the Key [SAVE].
2. To edit the predefined Quick Text, select the Quick Text from the list, then press the Ⓑ️ Key [EDIT].
3. To change the Quick Text position, press the Right Soft Key [Options], then press 2. Move. Press the Directional Key up or down to scroll to desired position, then press the OK Key [SAVE].
4. To erase a saved Quick Text, press the Left Soft Key [Erase]. Select Yes and press the OK Key.

VOICEMAIL #

1. Enter a new voicemail number or edit the voicemail number then press the OK Key.
2. Press the Left Soft Key [Add], then press 1. Wait or 2. 2-Sec Pause. Please refer to page 30 for more details on WAIT/PAUSE FEATURE

CALLBACK#

Allows you to use or edit the default callback number so that the recipient can callback or reply.

1. Select On or Off, then press the Key.
2. IfOn is selected, enter a new callback number then press the Key.

SIGNATURE

Allows you to create a signature that can be automatically inserted at the end of each message.

1. To deactivate Signature function, select None and press the Key.
2. To insert a Signature, select Custom, enter your signature in the text entry field then press the Key.

DELIVERY RECEIPT

Allows you to set delivery receipts for sent messages.

SelectOn or Off, then press the Key.

• On: Request to receive the delivery acknowledgement.
• Off: Do not request to receive the delivery acknowledgement.

SAFETY AND WARRANTY

7

This chapter addresses the safety guidelines and precautions to follow when operating your phone. Before operating your phone, please be aware of all the safety details. This chapter contains the terms and conditions of services and the warranty for your phone. Please review them thoroughly.

SAFETY

Safety Information for Wireless

Handheld Phones

Safety Information for FCC RF Exposure

SAR Information

Hearing Aid Compatibility (HAC) for

Wireless Telecommunications Devices

FDA Consumer Update

Avoid Potential Hearing Loss

FCC Compliance Information

WARRANTY

12 Month Limited Warranty

U.S. Cellular VERSE

SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES

READ THIS INFORMATION BEFORE USING YOUR HANDHELD PORTABLE CELLULAR TELEPHONE

EXPOSURE TO RADIO FREQUENCY SIGNALS

Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radiofrequency energy (RF) signals. In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies:

ANSI C95.1 (1992) *

NCRP Report 86 (1986) *

ICNIRP (1996) *

Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C951).

The design of your phone complies with the FCC guidelines (and those standards).

1: American National Standards Institute.
2: National Council on Radiation Protection and Measurements.
3: International Commission on Nonionizing Radiation Protection.

ANTENNA SAFETY

Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Please contact your local dealer for replacement antenna.

Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna.

DRIVING SAFETY

Talking on the phone while driving is extremely dangerous and is illegal in some states. Remember, safety comes first. Check the laws and regulations on the use of phones in the areas where you drive. Always obey them. Also, if using your phone while driving, please:

• Give full attention to driving. Driving safely is your first responsibility.
• Use hands-free operation, if available.
• Pull off the road and park before making or answering a call, if driving conditions so require.

If you must use the phone while driving, please use one-touch, speed dialing, and auto answer modes.

An airbag inflates with great force. DO NOT place objects, including both installed or portable wireless equipment, in the area over the airbag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.

WARNING: Failure to follow these instructions may lead to serious personal injury and possible property damage.

ELECTRONIC DEVICES

Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency radiofrequency energy (RF) signals. Most modern electronic equipment is shielded from RF energy. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Therefore, use of your phone must be restricted in certain situations.

PACEMAKERS

The Health Industry Manufacturers Association recommends that a minimum separation of six (6") inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. Persons with pacemakers:

• ALWAYS keep the phone more than six inches from your pacemaker when the phone is turned on.
• Do not carry the phone in a breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for interference.
• If you have any reason to suspect that interference is taking place, turn your phone OFF immediately.

HEARING AIDS

Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your service provider (or call the customer service line to discuss alternatives). Excessive sound pressure from earphones can cause hearing loss.

OTHER MEDICAL DEVICES

If you use any other personal medical device, consult the manufacturer of your device to determine if they are adequately shielded from external radiofrequency energy (RF).

Your physician may be able to assist you in obtaining this information. Turn your phone OFF in healthcare facilities when any regulations posted in these areas instruct you to do so. Hospitals or healthcare facilities may be using equipment that could be sensitive to external RF energy.

VEHICLES

RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.

POSTED FACILITIES

Turn your phone OFF where posted notices so require.

OTHER SAFETY GUIDELINES

AIRCRAFT

FCC regulations prohibit using your phone while in the air. Turn your phone OFF before boarding an aircraft. Always request and obtain prior consent and approval of an authorized airline representative before using your phone aboard an aircraft.

Always follow the instructions of the airline representative whenever using your phone aboard an aircraft, to prevent any possible interference with airborne electronic equipment.

BLASTING AREAS

To avoid interfering with blasting operations, turn your phone OFF when in a "blasting area" or in areas posted: "Turn off two-way radio." Obey all signs and instructions.

POTENTIALLY EXPLOSIVE ATMOSPHERES

Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.

Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include fueling areas such as gas stations; below deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such as propane or butane); areas where the air contains chemicals or particles, such as grain, dust, or metal powders; and any other area where you would normally be advised to turn off your vehicle's engine.

PRECAUTIONS

Your Handheld Portable Telephone is a high quality piece of equipment. Before operating, read all instructions and cautionary markings on (1) Wall/USB Charger (2) Battery and (3) Product Using Battery.

Failure to follow the directions below could result in serious bodily injury and/or property damage due to battery liquid leakage, fire or rupture.

• DO NOT use this equipment in an extreme environment where high temperature or high humidity exists.
• DO NOT abuse the equipment. Avoid striking, shaking or shocking. When not using, lay down the unit to avoid possible damage due to instability.
• DO NOT expose this equipment to rain or spilled beverages.
• DO NOT use unauthorized accessories.
• DO NOT disassemble the phone or its accessories. If service or repair is required, return unit to an authorized PCD cellular service center. If unit is disassembled, the risk of electric shock or fire may result.
  • DO NOT short-circuit the battery terminals with metal items etc.

SAFETY INFORMATION FOR FCC RF EXPOSURE WARNING! READ THIS INFORMATION BEFORE USING

CAUTIONS

In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards.

BODY-WORN OPERATION

This device was tested for typical body-worn operations with the back of the phone kept 2.0 cm. from the body. To maintain compliance requirements, use only belt-clips, holsters or similar accessories that maintain a 2.0 cm separation distance between the user's Body and the back of the phone, including the antenna.

The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC radiofrequency energy (RF) exposure requirements, and should be avoided.

For more information about RF exposure, please visit the FCC website at www.fcc.gov.

SAR INFORMATION

THIS MODEL PHONE MEETS THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency energy (RF) set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.

Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 1.25 W/kg and when worn on the body, as described in this user

guide, is 1.17 W/kg (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure.

The SAR testing for Body-worn operation was performed with a belt clip that provided a 20mm separation. The User's Manual indicates that any holsters/clips used with this device should contain no metallic components.

The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.

SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/ea after searching on JYCBUDDY.

Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) web-site at http://www.ctia.org.

* In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

HEARING AID COMPATIBILITY (HAC) FOR WIRELESS TELECOMMUNICATIONS DEVICES

PCD'S COMMITMENT

PCD believes that all of our customers should be able to enjoy the benefits of digital wireless technologies.

We are committed to providing a selection of compatible devices for our customers who wear hearing aids.

HAC RATING OF THIS PHONE - TXT8045(BASIC) : M3/T3, TXT8045US(CLASS II) : M4/T3

WHAT IS HEARING AID COMPATIBILITY?

The Federal Communications Commission has implemented rules and a rating system designed to enable people who wear hearing aids to more effectively use these wireless telecommunications devices. The standard for compatibility of digital wireless phones with hearing aids is set forth in American National Standard Institute (ANSI) standard C63.19. There are two sets of ANSI standards with ratings from one to four (four being the best rating): an "M" rating for reduced interference making it easier to hear conversations on the phone when using the hearing aid microphone, and a "T" rating that enables the phone to be used with hearing aids operating in the telecoil mode thus reducing unwanted background noise.

HOW WILL I KNOW WHICH WIRELESS PHONES ARE HEARING AID COMPATIBLE?

The Hearing Aid Compatibility rating is displayed on the wireless phone box.

A phone is considered Hearing Aid Compatible for acoustic coupling (microphone mode) if it has an "M3" or "M4" rating. A digital wireless phone is considered Hearing Aid Compatible for inductive coupling (telecoil mode) if it has a "T3" or "T4" rating.

This phone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider about its return and exchange policies and for information on hearing aid compatibility.

HOW WILL I KNOW IF MY HEARING AID WILL WORK WITH A PARTICULAR DIGITAL WIRELESS PHONE?

You'll want to try a number of wireless phones so that you can decide which works the best with your hearing aids. You may also want to talk with your hearing aid professional about the extent to which your hearing aids are immune to interference, if they have wireless phone shielding, and whether your hearing aid has a HAC rating.

FOR MORE INFORMATION ABOUT HEARING AIDS AND DIGITAL WIRELESS PHONE

- FCC Hearing Aid Compatibility and Volume Control – http://www.fcc.gov/cgb/dro/hearing.html

• Hearing Loss Association of America –http://www.hearingloss.org/
  • CTIA – http://www.accesswireless.org/Disability-Categories/Hearing.aspx
  • Gallaudet University, RERC –http://tap.gallaudet.edu/voice

FDA CONSUMER UPDATE

U.S. FOOD AND DRUG ADMINISTRATION - CENTER FOR DEVICES AND RADIOLOGICAL HEALTH CONSUMER UPDATE ON WIRELESS PHONES

1. Do wireless phones pose a health hazard?

The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radiofrequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the idle mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.

2. What is FDA's role concerning the safety of wireless phones?

Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radiofrequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists. Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:

• Support needed research into possible biological effects of RF of the type emitted by wireless phones;
- Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and
• Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.

FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:

• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration

The National Institutes of Health participates in some inter-agency working group activities, as well. FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions about wireless phones. FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the subject of the safety questions discussed in this document.

3. What kinds of phones are the subject of this update?

The term "wireless phone" refers here to hand-held wireless phones with built-in antennas, often called "cell," "mobile," or "PCS" phones. These types of wireless phones can expose the user to measurable radiofrequency energy (RF) because of the short distance between the phone and the user's head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called "cordless phones," which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures far below the FCC safety limits.

4. What are the results of the research done already?

The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radiofrequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be predisposed to develop cancer in the absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don't know with certainty what the results of such studies mean for human health. Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic

neu-roma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phone RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.

5. What research is needed to decide whether RF exposure from wireless phones poses a health risk?

A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but 10 or more years' follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do -may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual radiofrequency energy (RF) exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.

6. What is FDA doing to find out more about the possible health effects of wireless phone RF?

FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radiofrequency energy (RF). FDA has been a leading participant in the World Health Organization International Electromagnetic Fields (EMF) Project since its

inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues. FDA and the Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.

7. How can I find out how much radiofrequency energy exposure I can get by using my wireless phone?

All phones sold in the United States must comply with Federal Communications Commission (FCC) guidelines that limit radiofrequency energy (RF) exposures. FCC established these guidelines in consultation with FDA and the other federal health and safety agencies. The FCC limit for RF exposure from wireless telephones is set at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC limit is consistent with the safety standards developed by the Institute of Electrical and Electronic Engineering (IEEE) and the National Council on Radiation Protection and Measurement. The exposure limit takes into consideration the body's ability to remove heat from the tissues that absorb energy from the wireless phone and is set well below levels known to have effects. Manufacturers of wireless phones must report the RF exposure level for each model of phone to the FCC. The FCC website (http://transition.fcc.gov/oet/rfsafety/) gives directions for locating the FCC identification number on your phone so you can find your phone's RF exposure level in the online listing.

8. What has FDA done to measure the radiofrequency energy coming from wireless phones?

The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical standard for measuring the radiofrequency energy (RF) exposure from wireless phones and other wireless handsets with the participation and leadership of FDA scientists and engineers. The standard, "Recommended Practice for Determining the Spatial-Peak Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques," sets forth the first consistent test methodology for measuring the rate at which RF is deposited in the heads of wireless phone users. The test method uses a tissue-simulating model of the human head. Standardized SAR test methodology is expected to greatly improve the consistency of measurements made at different laboratories on the same phone. SAR is the measurement of the amount of energy absorbed in tissue, either by the whole body or a small part of the body. It is measured in watts/kg (or milliwatts/g) of matter. This measurement is used to determine whether a wireless phone complies with safety guidelines.

9. What steps can I take to reduce my exposure to radiofrequency energy from my wireless phone?

If there is a risk from these products—and at this point we do not know that there is—it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radiofrequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.

- If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance.

For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna. Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.

10. What about children using wireless phones?

The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radiofrequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure. Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.

11. What about wireless phone interference with medical equipment?

Radiofrequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This

standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested hearing aids for interference from handheld wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that that no interference occurs when a person uses a "compatible" phone and a "compatible" hearing aid at the same time. This standard was approved by the IEEE in 2000. FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.

12. Where can I find additional information?

For additional information, please refer to the following resources:

• FDA web page on wireless phones (http://www.fda.gov/Radiation-EmittingProducts/RadiationEmittingProductsandProcedures/HomeBusinessandEntertainment/CellPhones/default.htm)
• Federal Communications Commission (FCC) radiofrequency energy (RF) Safety Program ( http://www.fcc.gov/oet/rfsafety)
  • International Commission on Non-Ionizing Radiation Protection (http://www.icnirp.de)
  • World Health Organization (WHO) International EMF Project (http://www.who.int/em)
  • National Radiological Protection Board (UK) (http://www.hpa.org.uk/radiation/)

AVOID POTENTIAL HEARING LOSS

Prolonged exposure to loud sounds (including music) is the most common cause of preventable hearing loss. Some scientific research suggests that using portable audio devices, such as portable music players and cellular telephones, at high volume settings for long durations may lead to permanent noise-induced hearing loss. This includes the use of headphones (including headsets, earbuds and Bluetooth® or other wireless devices). Exposure to very loud sound has also been associated in some studies with tinnitus (a ringing in the ear), hypersensitivity to sound and distorted hearing. Individual susceptibility to noise-induced hearing loss and other potential hearing problems varies.

The amount of sound produced by a portable audio device varies depending on the nature of the sound, the device, the device settings and the headphones. You should follow some commonsense recommendations when using any portable audio device:

• Set the volume in a quiet environment and select the lowest volume at which you can hear adequately.
• When using headphones, turn the volume down if you cannot hear the people speaking near you or if the person sitting next to you can hear what you are listening to.
• Do not turn the volume up to block out noisy surroundings. If you choose to listen to your portable device in a noisy environment, use noise-cancelling headphones to block out background environmental noise.
• Limit the amount of time you listen. As the volume increases, less time is required before your hearing could be affected.
• Avoid using headphones after exposure to extremely loud noises, such as concerts, that might cause temporary hearing loss. Temporary hearing loss might cause unsafe volumes to sound normal.

- Do not listen at any volume that causes you discomfort. If you experience ringing in your ears, hear muffled speech or experience any temporary hearing difficulty after listening to your portable audio device, discontinue use and consult your doctor.

YOU CAN OBTAIN ADDITIONAL INFORMATION ON THIS SUBJECT FROM THE FOLLOWING SOURCES:

AMERICAN ACADEMY OF AUDIOLOGY

11730 Plaza American Drive, Suite 300

Reston, VA 20190

Voice: 800-AAA-2336

E-mail: [e-mail]

Internet: http://www.audiology.org/

NATIONAL INSTITUTE ON DEAFNESS AND OTHER COMMUNICATION DISORDERS NATIONAL INSTITUTES OF HEALTH

31 Center Drive, MSC 2320

Bethesda, MD 20892-2320

Voice: [phone]

E-mail: [e-mail]

Internet: http://www.nidcd.nih.gov/

NATIONAL INSTITUTE FOR OCCUPATIONAL SAFETY AND HEALTH

1600 Clifton Rd. Atlanta, GA 30333, USA

Voice: 800-CDC-INFO (800-232-4636)

E-mail: [e-mail]

Internet: http://www.cdc.gov/

FCC COMPLIANCE INFORMATION

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received. Including interference that may cause undesired operation.

INFORMATION TO THE USER

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful Interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful Interference to radio communications. However, there is no guarantee that interference will not occur in a particular Installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet of a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

CAUTION:

Changes or modification not expressly approved by the party responsible for Compliance could void the user's authority to operate the equipment. Connecting of peripherals requires the use of grounded shielded signal cables.
- Excessive sound pressure from earphones can cause hearing loss.

12 MONTH LIMITED WARRANTY

Personal Communications Devices, LLC (the "Company") warrants to the original retail purchaser of this cellular handset or wireless device (Product), that should this Product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in the Product's failure within the first twelve (12) month period from the date of purchase (proof of purchase required), such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company's option, without charge for parts or labor directly related to the defect(s).

The antenna, keypad, display, rechargeable battery and battery charger, if included with the Product, are similarly warranted for twelve (12) months from the date of purchase.

This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable.

This Warranty does not apply to:

(a) Product subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage;
(b) Product whose mechanical serial number or electronic serial number has been removed, altered or defaced;
(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts;

(f) Product damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source;
(g) Product subjected to unauthorized modifications to the software of the Product or to the Product itself;
(h) Product subjected to the unauthorized opening or repair of the Product;
(i) Product subjected to hacking, password-mining, jail breaking, the unlocking of the boot loader using the fast boot program or the tampering with or short-circuiting of the battery; or
(j) Product that has been modified to alter functionality or capability of the Product without the written permission of the Company.

The Company disclaims liability for removal or reinstallation of the Product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole.

When sending your wireless device to the Company for repair or service, please note that any personal data or software stored on the Product may be inadvertently erased or altered. Therefore, we strongly recommend you make a back up copy of all data and software contained on your Product before submitting it for repair or service. This includes all contact lists, downloads (i.e. third-party software applications, ringtones, games and graphics) and any other data added to your Product. In addition, if your Product utilizes a SIM or Multimedia card, please remove the card before submitting the Product and store for later use when your Product is returned. The Company is not responsible for and does not guarantee restoration of any third-party software, personal information or memory data contained in, stored on, or integrated with any other wireless device, whether under warranty or not, returned to the Company for repair or service.

To obtain repairs or replacement within the terms of this Warranty, the Product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer's return address, daytime phone number and/or fax number and complete description of the problem, transportation prepaid, to the Company at the address shown below or to the place of purchase for repair or replacement processing. In addition, for reference to an authorized Warranty station in your area, you may telephone in the United States 1-800-229-1235, and in Canada 1-800-465-9672 (in Ontario call 416-695-3060).

THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.

ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR AN SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.

No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.

Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province to province.

WARRANTY

IN USA: Personal Communications Devices

555 Wireless Blvd.

Hauppauge, New York 11788

1-800-229-1235

IN CANADA: Personal Communications Devices, LLC

5535 Eglinton Avenue West, Suite 210

Toronto, Ontario

M9C 5K5

1-800-465-9672

NOTE

Guía del Usuario

VERSE

USCellule PANTECH OK CLR Space SPX SPX

INDICE

CAPITULO 1. ANTES DE USAR

ANTES DE USAR....7

DESCRIPCIONES DEL TELEFONO 8

DESCRIPCION DE LAS TECLAS....8

INDICADORES EN LA PANTALLA....12

INSTALACION DE LA BATERIA....16

REMOCION DE LA BATERIA 17

CARGA DE SU BATERIA 17

Abstract blue background with white curved lines and a central bright point labeled 'VERSE' (no other text or symbols)

DESCRIPCIONES DEL TELEFONO

15 14 13 12 11 10 9 8 7 1 2 3 4 5 6 PANTECH 19 18 17 16

DESCRIPCION DE LAS TECLAS

Abstract blue background with white curved lines and a central bright star labeled 'VERSE' (no text beyond the label)

PARA ENCENDER/APAGAR EL TELEFONO (ON/OFF)

PARA ENCENDER EL TELEFONO

Abstract blue background with white curved lines and a central 'VERSE' logo (no text or symbols beyond the logo)

ALMACENAMIENTO DE UN NUMERO TELEFONICO

US Cellular VERSE

NUEVO CONTACTO

U.S.Cellular VERSE

IMAGEN Y VIDEO

IMAGENES

U.S. Cellular VERSE

CUANDO SE RECIBE UN NUEVO MENSAJE

U.S. Cellular VERSE

• FCC Hearing Aid Compatibility and Volume Control – http://www.fcc.gov/cgb/dro/hearing.html
• Hearing Loss Association of America – http://www.hearingloss.org/
• CTIA – http://www.accesswireless.org/Disability-Categories/Hearing.aspx
  • Gallaudet University, RERC –http://tap.gallaudet.edu/voice

FDA U.S. FOOD AND DRUG ADMINISTRATION

11730 Plaza American Drive, Suite 300

Reston, VA 20190

Voz: 800-AAA-2336

E-mail: [e-mail]

Internet: http://www.audiology.org/

EN CANADA: Personal Communications Devices, LLC

5535 Eglinton Avenue West, Suite 210

Toronto, Ontario

M9C 5K5

1-800-465-9672

• NOTA
