XPG SX8100 - SSD Drive ADATA - Free user manual and instructions

Product Type	Solid State Drive (SSD)
Brand	ADATA
Model	XPG SX8100
Interface	PCIe Gen3x4
Form Factor	M.2 2280
Capacities Available	256GB, 512GB, 1TB, 2TB, 4TB
NAND Flash Type	3D NAND
Sequential Read Speed	Up to 3500 MB/s
Sequential Write Speed	Up to 3000 MB/s (3000 MB/s for 1TB/2TB/4TB; 2400 MB/s for 512GB; 1000 MB/s for 256GB)
Random Read IOPS (4K)	Up to 300K IOPS (290K-300K depending on capacity)
Random Write IOPS (4K)	Up to 240K IOPS
DRAM Cache Buffer	Yes
SLC Caching	Yes
Error Correction	Advanced LDPC ECC
Data Encryption	AES 256-bit
NVMe Support	NVMe 1.3
Power Consumption (Active)	0.33W Typical
Power Consumption (Slumber)	0.14W Typical
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Shock Resistance	1500G / 0.5ms
MTBF	2,000,000 hours
Dimensions (L x W x T)	80 x 22 x 3.5 mm
Weight	8g / 0.28 oz
Warranty	5-year limited warranty
Certifications	RoHS, CE, FCC, BSMI, RCM, KC, Morocco
Care and Cleaning	Handle by edges to avoid static discharge. Clean contacts with isopropyl alcohol if necessary. Do not use water or abrasive cleaners.
Safety	Use only in compatible M.2 slots. Do not disassemble. Operate within specified temperature range to prevent damage.
Spare Parts and Repairability	No user-serviceable parts. Contact ADATA support for warranty service. Not repairable by end user.
General Information	Designed for gaming and high-end desktop systems. Compact M.2 2280 form factor.

Frequently Asked Questions - XPG SX8100 ADATA

What capacities are available for the ADATA XPG SX8100?

The XPG SX8100 is available in 256GB, 512GB, 1TB, 2TB, and 4TB capacities. Check the model number for your specific capacity.

Is the XPG SX8100 compatible with my motherboard?

It uses the M.2 2280 form factor and PCIe Gen3x4 interface. Ensure your motherboard has an M.2 slot that supports PCIe NVMe drives. It is backward compatible with PCIe Gen2 and Gen1, but speeds will be lower.

What is the maximum sequential read/write speed?

Sequential read speeds up to 3500 MB/s and write speeds up to 3000 MB/s (for 1TB and higher capacities). Lower capacities may have lower write speeds.

Does the XPG SX8100 support hardware encryption?

Yes, it supports AES 256-bit encryption to help protect your data. You may need software support (e.g., ADATA SSD ToolBox) to enable encryption.

What is the operating temperature range?

The operating temperature range is 0°C to 70°C. Storage temperature is -40°C to 85°C. Ensure adequate cooling in your system to stay within limits.

How do I install the XPG SX8100?

Insert the drive into an M.2 slot at a 30-degree angle, then secure it with the screw. Ensure the slot supports PCIe NVMe. Refer to your motherboard manual for correct installation.

Can I use this SSD with a PS5 or Xbox?

The XPG SX8100 is an M.2 NVMe SSD but may not meet the requirements for PS5 (requires PCIe Gen4 and heatsink). For Xbox, external USB drives are typically used. It is best suited for PCs and laptops.

What is the warranty period?

The XPG SX8100 comes with a 5-year limited warranty. Warranty terms may vary by region. Check with ADATA for details.

Does the drive support TRIM?

Yes, TRIM is supported for maintaining performance over time. TRIM is enabled by default in modern operating systems like Windows 10/11.

What is the lifespan (TBW) of the XPG SX8100?

TBW (Total Bytes Written) varies by capacity: 256GB - 160TB, 512GB - 320TB, 1TB - 640TB, 2TB - 1280TB, 4TB - 2560TB. This indicates the total amount of data that can be written before the drive may wear out.

USER MANUAL XPG SX8100 ADATA

XPG SX8100 PCIe Gen3x4 M.2 2280 Solid State Drive

THINK FAST

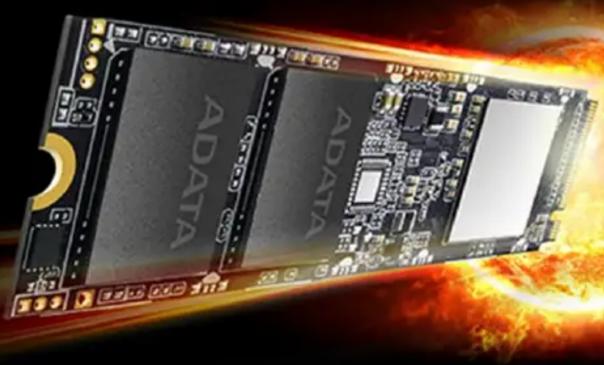

Close-up of a black ADATA memory chip with glowing energy burst background (no readable text or symbols)

XPG SX8100 PCIe Gen3x4 M.2 2280 Solid State Drive

Utilizing PCIe Gen3x4, 3D NAND Flash, and featuring 3500/3000MB/s read and write, the SX8100 M.22280 SSD gives DIY enthusiasts, overclockers and graphics professionals the performance they need.

Features

• Ultra-fast PCIe Gen3x4 interface
  • R/W speed up to 3500/3000MB/s
• NVMe 1.3 support
• Capacity up to 4TB
• Advanced LDPC ECC Technology
• SLC Caching and DRAM cache buffer
  • AES 256-bit encryption support

- Compact M.2 2280 form factor – ideal for gaming and high-end desktops

• 3D NAND Flash for higher capacity and durability

Ordering Information

Capacity	Model Number	EAN Code
256GB	ASX8100NP-256GT-C	4710273773681
512GB	ASX8100NP-512GT-C	4710273773698
1TB	ASX8100NP-1TT-C	4710273773704
2TB	ASX8100NP-2TT-C	4710273773711
4TB	ASX8100NP-4TT-C	4710273776002

Specifications

• Capacities: 256GB / 512GB / 1TB / 2TB / 4TB
  • NAND Flash: 3D NAND
• Interface: PCIe Gen3x4
  • Form Factor: M.2 2280
  • MTBF: 2,000,000 hours
• Dimensions (L x W x T): 80 x 22 x 3.5mm

• Weight: 8g / 0.28oz

• Power Consumption: 0.33W Active (Typical), 0.14W Slumber (Typical) (*measured by power meter)

• Operating Temperature: 0^ 70^
• Storage Temperature: -40°C\~85°C
• Shock Resistance: 1500G/0.5ms
  • Certifications: RoHS, CE, FCC, BSMI, RCM, KC, Morocco
• Warranty: 5-year limited warranty

Performance

Capacity	ATTO Seq. Read (MB/sec)	ATTO Seq. Write (MB/sec)	CDM (QD32-T1) Seq. Read (MB/sec)	CDM (QD32-T1) Seq. Write (MB/sec)	AS SSD Seq. Read (MB/sec)	AS SSD Seq. Write (MB/sec)	4K Random Read IOPS	4K Random Write IOPS	TBW
256GB	3500	1200	3500	1000	2800	1100	160K	140K	160TB
512GB	3500	1900	3500	2400	2950	1600	300K	240K	320TB
1TB	3500	1900	3500	3000	2950	1600	290K	240K	640TB
2TB	3500	1900	3500	3000	2950	1600	290K	240K	1280TB
4TB	3500	1900	3500	3000	2950	1600	290K	240K	2560TB

* Test system configuration: M/B : ASUS Prime X299-Deluxe II, CPU : Intel® Core™ i9-9820X, CDM ver. : 5.1.2 x64
*Performance may vary based on SSD capacity, hardware test platform, test software, operating system and other system variables

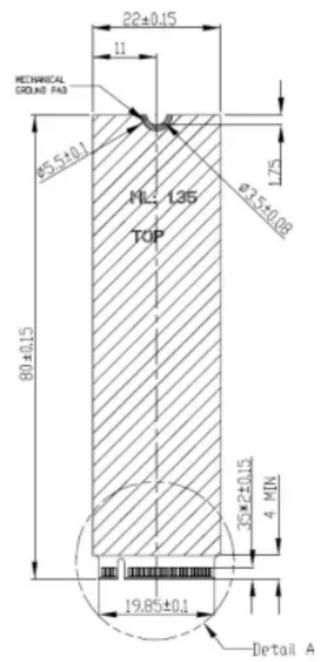

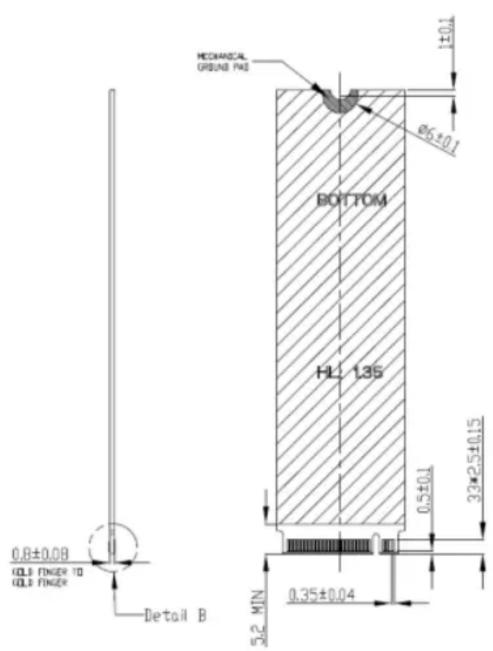

Schematics
