Product Type	Solid State Drive (SSD)
Model	Ultimate SU750
Brand	ADATA
Form Factor	2.5 inch
Interface	SATA III 6Gb/s
Capacities Available	240GB, 480GB, 960GB
Dimensions (L x W x H)	100.45 x 69.85 x 7.0 mm
Weight	Approx. 50g
Operating Voltage	5V ± 5%
Power Consumption (Active)	2.5W typical
Power Consumption (Idle)	0.5W typical
Sequential Read Speed	Up to 560 MB/s
Sequential Write Speed	Up to 520 MB/s
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Shock Resistance	1500G / 0.5ms
MTBF	2,000,000 hours
Warranty	3 years limited
Key Features	High-speed boot and load, low power consumption, silent operation, shockproof

Frequently Asked Questions - Ultimate SU750 ADATA

How do I install the ADATA Ultimate SU750 SSD?

Physically mount the 2.5-inch drive in a compatible bay or use a 3.5-inch bracket. Connect the SATA data cable to the motherboard and the SATA power cable from the PSU. Then, initialize the drive in Disk Management (Windows) or Disk Utility (macOS) and format it.

Is the SU750 compatible with my laptop?

Most laptops with a 2.5-inch SATA drive bay are compatible. Check your laptop's specifications for a 7mm thick drive support. If your laptop requires a 9.5mm drive, a spacer may be needed.

What is the maximum read/write speed of the SU750?

Sequential read speeds can reach up to 560 MB/s and sequential write speeds up to 520 MB/s, depending on the capacity and system configuration.

Does the SU750 support TRIM?

Yes, the SU750 fully supports the TRIM command which helps maintain performance over time by efficiently managing unused data blocks. Ensure TRIM is enabled in your operating system.

Can I use the SU750 as an external drive?

Yes, you can place the SSD in an external USB 3.0 enclosure to use it as a portable drive. Note that performance may be limited by the enclosure's interface.

What is the lifespan of the SU750?

The SSD has an MTBF of 2,000,000 hours and a write endurance rating (TBW) specific to each capacity. For example, 480GB model typically has 240 TBW. Actual lifespan depends on usage.

How do I clone my existing hard drive to the SU750?

Use cloning software such as Acronis True Image (often included with ADATA SSDs) or free tools like Clonezilla. Connect both drives, select source and destination, and start cloning.

Is the SU750 compatible with Windows 7?

Yes, the SU750 works with Windows 7, but for optimal performance and TRIM function, it is recommended to install the appropriate drivers and enable AHCI mode in BIOS.

What should I do if my computer does not detect the SU750?

First, check all connections: SATA cable and power. Then, go to Disk Management to see if the drive appears as uninitialized. If not, try a different SATA port or cable. Ensure the drive is properly seated.

Does the SU750 require any special maintenance?

No regular maintenance is required. Avoid exposure to extreme temperatures, moisture, and static electricity. Periodically check for firmware updates on ADATA's website to ensure peak performance.

USER MANUAL Ultimate SU750 ADATA

INSTALLING AN 2.5" SATA SSD ON A DESKTOP PC

BEFORE INSTALLATION

Interior view of a computer tower case with visible internal components and a small electronic device on the right (no text or symbols)

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdriver, and ADATA 2.5" SATA SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case.

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Hand inserting a rack into a server rack with visible socket and ventilation slots (no text or symbols)

4. SWITCH OFF THE POWER SWITCH AND UNPLUG POWER CORD

This action is necessary to discharge residual power that can damage your PC and its components.

INSTALLATION

Hand interacting with a black CPU tower case, showing internal components and a digital display (no visible text or symbols)

1. REMOVE THE PC CASE

Use the standard Philips screwdriver to remove the screws and then remove the PC case

Interior view of a computer motherboard showing CPU socket, drive bays, and cable (no visible text or labels)

2. CONFIRM THE POSITION OF THE 2.5" SLOT AND REMOVE THE BRACKET

*Please check the side of the motherboard to find the unused 2.5" bracket

Close-up of hands installing a red cable and plastic clip on an electronic device (no visible text or symbols)

3. REMOVE THE BRACKET AND CABLE

*Each PC has different ways to fix drives. There may be drawers or brackets to place the solid state hard drives. The way to remove them will involve pulling out the bracket or support frame.

**When removing the stand, please check the screws on the top or side carefully, these screws may be fixed on it.

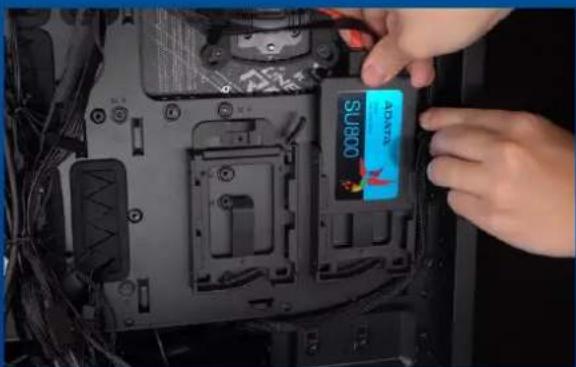

4. CONNECT CABLES AND ATTACH BRACKET TO THE NEW 2.5" SATA SSD. PUT THE BRACKET IN THE SLOT TO FIX DRIVES

There is a row of pins on the cable as well as on the SSD. Align to the correct orientation and place the bracket back into the slot.

*The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot.. Do not insert it forcibly to avoid damage to the product.

Close-up of a hand inserting a device into a black server room with visible internal components and a small electronic device on the right (no text or symbols)

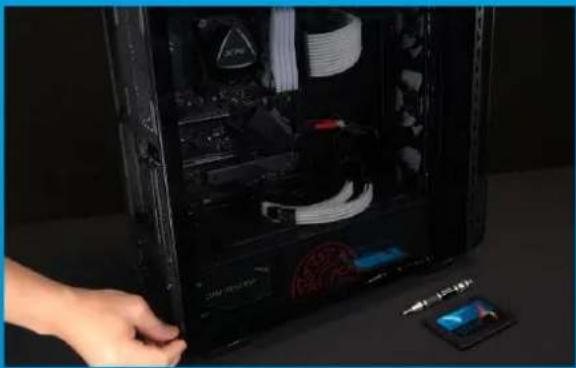

5. RESEMBLE THE CASE

*Do not overtighten the screws as it may damage the screws ad back plate

Hand pointing at a black server rack with ventilation grilles and connectors (no visible text or symbols)

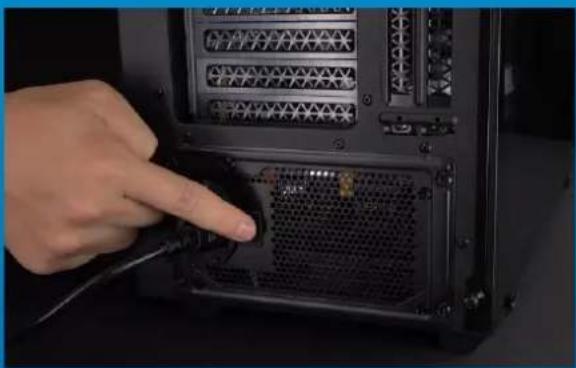

6. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION
