Product Type	Outdoor access point (PMP/PTP radio)
Brand	Cambium Networks
Model	ePMP 3000
Frequency bands	5 GHz: 5470-5725 MHz (30 dBm max) and 5725-5875 MHz (36 dBm max, depending on license)
Maximum power (EIRP)	1 W (30 dBm) in EU low band, 4 W (36 dBm) in EU high band
Antennas	Integrated or external antenna via 2 female SMA connectors (max gain subscriber 25 dBi, sector 17 dBi)
Power supply	Power over Ethernet (PoE) via included power adapter, Cat5e cable
Connectivity	RJ45 Ethernet port for data and power
Configuration	Web interface at IP address 169.254.1.1 (credentials admin/admin)
Firmware	System version 3.5.5 or 4.1.X or later
Safety	Mandatory grounding, minimum safety distance 10 cm
Certifications	EU compliant (Directive 2014/53/EU), WEEE
Usage	Fixed outdoor, professional installation recommended
Maintenance	Power off before maintenance; clean with a soft dry cloth
Operating temperature	Estimated: -30°C to +60°C (not officially specified)
Weight	Estimated: about 1.5 kg (not specified)
Dimensions	Not specified (estimated: 30 x 20 x 8 cm)
Package contents	ePMP 3000 unit, PoE power supply, documentation

Frequently Asked Questions - ePMP 3000 Cambium Networks

How to configure the PC IP address to access the ePMP 3000 interface?

In your PC's Ethernet properties, assign a static IP address in the 169.254.x.x network (e.g., 169.254.1.3) with a subnet mask of 255.255.0.0. Leave the default gateway empty.

What is the initial connection procedure to the interface?

Connect the ETH port of the outdoor unit (ODU) to the PoE port of the power supply, then the PC to the LAN port of the power supply. Power on, open a browser and type 169.254.1.1. Log in with admin/admin.

What are the essential safety rules during installation?

Ensure proper grounding, maintain a safety distance of at least 10 cm from the body, cut power before maintenance, and pay special attention to working at heights near power lines.

Which frequency bands are allowed in the EU and at what powers?

In the EU, the 5470-5725 MHz band is allowed with a max power of 1 W (30 dBm) EIRP. The 5725-5875 MHz band is allowed with 4 W (36 dBm) EIRP, but subject to licensing in some countries (e.g., AT, BG, CZ, CY, FR, HR, IT, LU, LV, NL, PL, TR do not allow it).

How to update the firmware of the ePMP 3000?

Download the latest firmware version (version 3.5.5 or 4.1.X or later) from the Cambium Networks support site. Log in to the web interface and use the update option in the Administration menu.

Can I use an external antenna with the ePMP 3000?

Yes, via the 2 female SMA connectors. The maximum allowed gain is 25 dBi for subscriber modules and 17 dBi for access point sectors. Configure the antenna gain in the web interface under Configuration > Radio > Power Control.

How to perform proper grounding?

The unit and mounting structure must be properly grounded according to national regulations. Use appropriate grounding components and consult a professional installer if necessary.

What cables are recommended for outdoor connections?

Use Cat5e cables with outdoor-rated RJ45 connectors. Cables not designed for outdoor use may compromise safety. Cambium recommends its specific cables.

What to do in case of non-compliance with local regulations?

The installer is responsible for compliance. Make sure to configure the correct country code in the web interface (Configuration > Radio > General) and respect the power and antenna gain limits. Any use outside regulations is prohibited.

How to dispose of the equipment at end of life?

Do not dispose of the device with household waste. Follow the WEEE directive (Waste Electrical and Electronic Equipment). In the EU, contact your local supplier or the Cambium Networks support center for collection points.

USER MANUAL ePMP 3000 Cambium Networks

Street surveillance camera mounted on a multi-lane elevated highway, with blurred traffic and vehicles in the background (no visible text or symbols)

Cambium Networks™

Evening aerial view of a town nestled on rocky terrain with illuminated buildings, overlooking a river valley (no visible text or symbols)

Young girl in blue shirt using tablet in classroom setting (no visible text or symbols)

Overhead view of people sitting at a coffee table with laptops and coffee cups (no visible text or symbols)

Nighttime landscape with a tall spire illuminated on a road, surrounded by arid hills and cloudy sky (no text or symbols visible)

QUICK START GUIDE

ePMP SERIES

ePMP 3000L/ePMP 3000/ePMP Force 300-16/ePMP Force 300-25/ePMP Force 300 CSM/Force 130/Force 300-13/Force 300-19/Force 300-19R

Aerial view of a coastal industrial or port facility with ships, docks, and green fields under a partly cloudy sky (no visible text or symbols)

Man working at a wooden mill with a mug and laptop, surrounded by workbenches (no visible text or symbols)

Content

ENGLISH (UK, IE, NO) 4

Intended Use | Installation | Operation 5

Installation | Operation | Safety 5

Safety....6

Power Supply 6

Mounting....7

Configuration....7

Operating in the EU 7

Waste Electrical and Electronic Equipment (WEEE) directive 8

Cambium Networks 9

CZECH (CZ)....10

English (UK, IE, NO)

Accuracy

While reasonable efforts have been made to assure the accuracy of this document, Cambium Networks assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. Cambium Networks reserves the right to make changes to any products described herein to improve reliability, function, or design, and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Cambium Networks does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Cambium Networks products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Cambium Networks intends to announce such Cambium Networks products, programming, or services in your country.

Copyrights

This document, Cambium Networks products, and 3rd Party software products described in this document may include or describe copyrighted Cambium Networks and other 3rd Party supplied computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Cambium Networks, its licensors, and other 3rd Party supplied software certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted material of Cambium Networks, its licensors, or the 3rd Party software supplied material contained in the Cambium Networks products described in this document may not be copied, reproduced, reverse engineered, distributed, merged or modified in any manner without the express written permission of Cambium Networks. Furthermore, the purchase of Cambium Networks products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Cambium Networks or other 3rd Party supplied software, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product.

Restrictions

Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Cambium Networks.

License Agreements

The software described in this document is the property of Cambium Networks and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement.

High Risk Materials

Cambium and its supplier(s) specifically disclaim any express or implied warranty of fitness for any high risk activities or uses of its products including, but not limited to, the operation of nuclear facilities, aircraft navigation or aircraft communication systems, air traffic control, life support, or weapons systems (“High Risk Use”). Any High Risk is unauthorized, is made at your own risk and you shall be responsible for any and all losses, damage or claims arising out of any High-Risk Use

Cambium Networks™

www.cambiumnetworks.com

Cambium Networks and the stylized circular logo are trademarks of Cambium Networks, Ltd. All other trademarks are the property of their respective owners.

© Copyright 2019 Cambium Networks, Ltd. All rights reserved.

Intended Use | Installation | Operation

The Cambium Networks ePMP radio products support data transmission over Point to Multipoint (PMP) and Point to Point (PTP) microwave links. This radio equipment is intended for professional applications for fixed outdoor installations only. These radios are available with an integrated antenna.

Connectorized units can operate with a selection of separately-purchased dual-polarity external antennas through 2 x SMA-type female connectors. The installer is responsible to operate the radio equipment and the accessories as intended and according to the description provided by the antenna manufacturer. The maximum antenna gain allowed for external antennas is 25 dBi for subscriber modules and 17 dBi for access point sectors.

Installation and operation of this product is complex, and Cambium therefore recommends professional installation and management of the system to ensure that operation complies with the regulations of the region where the product is installed. Please follow the instructions in this leaflet. Further guidance on PMP / PTP installation and operation is available in the product user guide.

The installer must have sufficient skills, knowledge and experience to perform the installation task and is responsible for:

• Familiarity with current applicable national regulations including radio regulations, electrical installation regulations, surge protection regulations and ‘working at heights’ regulations
  • Installation in accordance with Cambium Networks instructions
• Confirming that the equipment settings are compliant with national or regional regulations

Installation | Operation | Safety

Please observe the following important instructions during installation. This will set the equipment in compliance with national regulatory regulations.

• Ensure that the equipment is fitted with the latest firmware version (System Release 3.5.5 or 4.1.X or later). The software is available from the Cambium Support Center web site.
• During equipment set-up, verify that the correct region code is set (the region code is pre-set in the factory for EU products) and then select the correct country code for the particular country where the product is being deployed.
• For connectorized units, enter the antenna gain into the 'Antenna Gain' setting under the 'Configuration > Radio' menu.

Observe the following safety rules:

• Ensure that the device and the structure to which it is mounted is capable of withstanding the maximum wind speeds at a proposed site.
• Always power down and unplug the equipment before servicing. The ePMP power supply is the primary disconnect device.

• Strong radio frequency (RF) fields will be present close to the antenna when the transmitter is on. Always turn off the power to the device before undertaking maintenance activities in front of the antenna.

• Observe the minimum safe distance limit for ePMP products provided below.

• Ensure that equipment is installed in a position avoiding any radiation hazard to humans.

- Exercise extreme care when working at heights. Observe national ‘working at heights’ regulations. Use trained ‘competent’ staff.

• Exercise extreme care when working near power lines.

Safety

• ePMP devices and mounting structures must be properly grounded to protect against lightning. It is the user's responsibility to install the equipment in accordance with national regulations. It is recommended that installation be contracted to a professional installer.
• Always use the specified ePMP platform power supply units (PSU) to power the equipment. Failure to use the specified Cambium supplied PoE could result in equipment damage and may cause a safety hazard.

• Structures, equipment and people must be protected against electrostatic discharge:

• by siting equipment in a lightning protection zone

• by installation of appropriate lightning conductors to conduct the surge current to ground via a separate preferential solid path.
• The enclosure may be hot to the touch when in operation.
• Safety may be compromised if outdoor rated cables are not used for connections that will be exposed to the outdoor environment. Install Cambium recommended cables.

Power Supply

The power supply is an indoor unit that is connected to the ePMP module and network terminating equipment using Cat5e cable with RJ45 connectors. It is also plugged into an AC or DC power supply so that it can inject Power over Ethernet (PoE) into the module. It is recommended to use the Power Supply included with the unit.

Mounting

Refer to the Mounting ideogram for mounting instructions.

Configuration

Configuring the management PC

1 Select Properties for the Ethernet port. In Windows 7 this is found in Control Panel > Network and Internet > Network Connections > Local Area Connection.
2 Select Internet Protocol (TCP/IP):
3 Click Properties.
4 Enter an IP address that is valid for the 169.254.X.X network, avoiding 169.254.0.0 and 169.254.1.1. A good example is 169.254.1.3:
5 Enter a subnet mask of 255.255.0.0. Leave the default gateway blank.

Connecting to the PC and powering up

1 Check that the ODU ETH port is connected to the Ethernet + Power port of the power supply.
2 Connect the PC Ethernet port to the LAN port of the PSU using a standard (not crossed) Ethernet cable.
3 Apply mains or battery power to the PSU. The green Power LED should illuminate continuously.
4 Check that the ODU red Ethernet LED illuminates continuously.
5 Open a web browser and type: 169.254.1.1 When prompted, enter admin/admin to login to the GUI and complete the configuration.

Conforming to the limits

Ensure the link is configured to conform to local regulatory requirements by configuring the Country parameter (located in the web management interface at Configuration > Radio > General).

When using connectorized devices with external antennas, also ensure that the antenna gain is configured correctly in the device (the Antenna Gain parameter is located in the web management interface at Configuration > Radio > Power Control).

Operating in the EU

In the EU, the 5 GHz ePMP products operate in the following frequency bands up to the maximum power shown:

Operating Frequency Band	EU Standard	Maximum Power Limit (EIRP)	Permitted usage	5 GHz units that support this frequency band
5470 - 5725 MHz	EN 301 893	1 Watt / 30 dBm	Available for general usage within all EU nations	All EPMP
5725 - 5875 MHz	EN 302 502	4 Watts / 36 dBm	Permitted in some EU nations, see notes 1 - 5	All EPMP

Note 1: Operation in the 5.8 GHz band is not permitted in the following European countries: AT, BG, CZ, CY, FR, HR, IT, LU, LV, NL, PL, TR. In other countries, government licenses may be required to allow operation, please check your national government website.
Note 2 The radio applies national frequency allocations, power and DFS settings for each country code.

Note 3: In the UK and Ireland, light licensing applies. Obtain a license from your government web-site.

Note 4: For Norway, use of the 5725-5795 MHz and 5815-5850 MHz frequency bands is authorized.

Note 5: 5725 -5875 MHz operation is enabled by downloading and applying a license key from the Cambium web-site.

For ePMP products deployed in the EU, the minimum safe distance between the equipment and humans is 10 cm.

Restrictions & requirements for authorization for use

• This radio equipment is for outdoor use only.
- The ePMP products can be configured to operate in unlicensed frequency bands subject to frequency planning within individual countries. Operators / End users must ensure that the equipment is installed and operated in accordance with the regulations applicable to the country of operation and obtain any necessary licenses or permits.

Simplified EU declaration of conformity

Hereby, the manufacturer Cambium Networks Ltd, declares that the radio equipment types ePMP 3000 5 GHz Access Point / 3000L 5 GHz Access Point / 2000 5 GHz Connectorized Access Point (Full and Lite) / 1000 5 GHz Connectorized Radio with Sync (Full and Lite) / 5 GHz 1000 Connectorized Radio / 1000 5 GHz Integrated Radio / ePMP 5 GHz Force 300-25 High Gain Radio / 5 GHz Force 300-19 / 5 GHz Force 300-19R / 5 GHz Force 300-16 Radio / 5 GHz Force 300-13 / 5 GHz Force 300 CSM Radio / 5 GHz Force 200AR-25 High Gain Radio / 5 GHz Force 190 Subscriber Module / 5 GHz Force 180 Integrated Radio / 5 GHz Force 130 Integrated Radio are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.cambiumnetworks.com/ec_dofc

Waste Electrical and Electronic Equipment (WEEE) directive

Please do not dispose of Electronic and Electric Equipment or Electronic and Electric Accessories with your household waste. In some countries or regions, collection systems have been set up to handle waste of electrical and electronic equipment. In European Union countries, please contact your local equipment supplier representative or Cambium Networks Support Centre for information about the waste collection system in your country.

Cambium Networks

Cambium Networks provides professional grade fixed wireless broadband and microwave solutions for customers around the world. Our solutions are deployed in thousands of networks in over 153 countries, with our innovative technologies providing reliable, secure, cost-effective connectivity that's easy to deploy and proven to deliver outstanding performance.

Our award-winning Point to Point (PTP) radio solutions operate in licensed, unlicensed and defined use frequency bands including specific FIPS 140-2 solutions for the U.S. Federal market. Ruggedized for 99.999% availability, our PTP solutions have an impeccable track record for delivering reliable high-speed backhaul connectivity even in the most challenging non-line-of-sight RF environments.

Our flexible Point-to-Multipoint (PMP) solutions operate in the licensed, unlicensed and federal frequency bands, providing reliable, secure, cost effective access networks. With more than three million modules deployed in networks around the world, our PMP access network solutions prove themselves day-in and day-out in residential access, leased line replacement, video surveillance and smart grid infrastructure applications.

Cambium Networks solutions are proven, respected leaders in the wireless broadband industry. We design, deploy and deliver innovative data, voice and video connectivity solutions that enable and ensure the communications of life, empowering personal, commercial and community growth virtually everywhere in the world.

User Guides: http://www.cambiumnetworks.com/guides

Technical training: https://learning.cambiumnetworks.com

Support website: https://support.cambiumnetworks.com

Address: Cambium Networks Limited, Linhay Business Park, Eastern Road Ashburton, Devon, TQ13 7UP United Kingdom

Czech (CZ)

Správnost

Linhay Business Park,

Eastern Road

Ashburton,

Devon, TQ13 7UP

Velká Británie

French (FR)

Formation technique : https://learning.cambiumnetworks.com

Site web d'assistance : https://support.cambiumnetworks.com

Adresse : Cambium Networks Limited, Linhay Business Park, Eastern Road Ashburton, Devon, TQ13 7UP Royaume-Uni

Spanish (ES)

Linhay Business Park,

Eastern Road

Ashburton,

Devon, TQ13 7UP

Reino Unido

Italian (IT)

Accuratezza

Indirizzo: Cambium Networks Limited, Linhay Business Park, Eastern Road Ashburton, Devon, TQ13 7UP United Kingdom

Polish (PL)

Dokładność

Adres: Cambium Networks Limited, Linhay Business Park, Eastern Road Ashburton, Devon, TQ13 7UP Birleşik Krallık

Hungarian (HU)

ePMP 3000 Pole or Wall Mount

Force 300-25

x1

m = 311

x1

x1

x1

x2

x2

Force 300-16

Package Contents

x1

xl

xl

x1

x1

Pole Mount
1

Mechanical assembly diagram showing a connector with a cable and directional arrow (no text or symbols)

3

Diagram of a mechanical device with blue airflow or fluid flow arrows, enclosed in a circular frame (no text or symbols)

Powering Up

DHCP /192.168.0.1 (Master) /192.168.02 (Slave)

admin/admin

https://cloud.cambiumnetworks.com

https://support.camblumnetworks.com

Force 300 CSM

Package content

x1

x1

x1

x2

x1

x2

Assembly
1

Technical diagram of a mechanical assembly with no visible text or symbols

Pole Mount
2

Mechanical assembly diagram showing a connector with attached parts and directional arrows indicating flow or movement (no text or symbols present)

Force 300-13 Pole Mount

Pole Mount
1

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

3

Diagram of a mechanical assembly with scissors and tool, no visible text or symbols

4

Line drawing of a smartphone rear panel with internal components and a blue arrow indicating upward motion (no text or symbols)

5

Diagram of a mechanical device with internal components and a blue arrow indicating direction (no text or symbols)

6

2

Mechanical assembly diagram showing a lever and shaft assembly (no text or labels)

Package Content

x1

Force 300-19 Pole Mount

Force 300-19 Wall Mount

Force 190

ePMP Force 190 Installation Video Demonstration

Force 180

Force 200

Package Contents

1

2

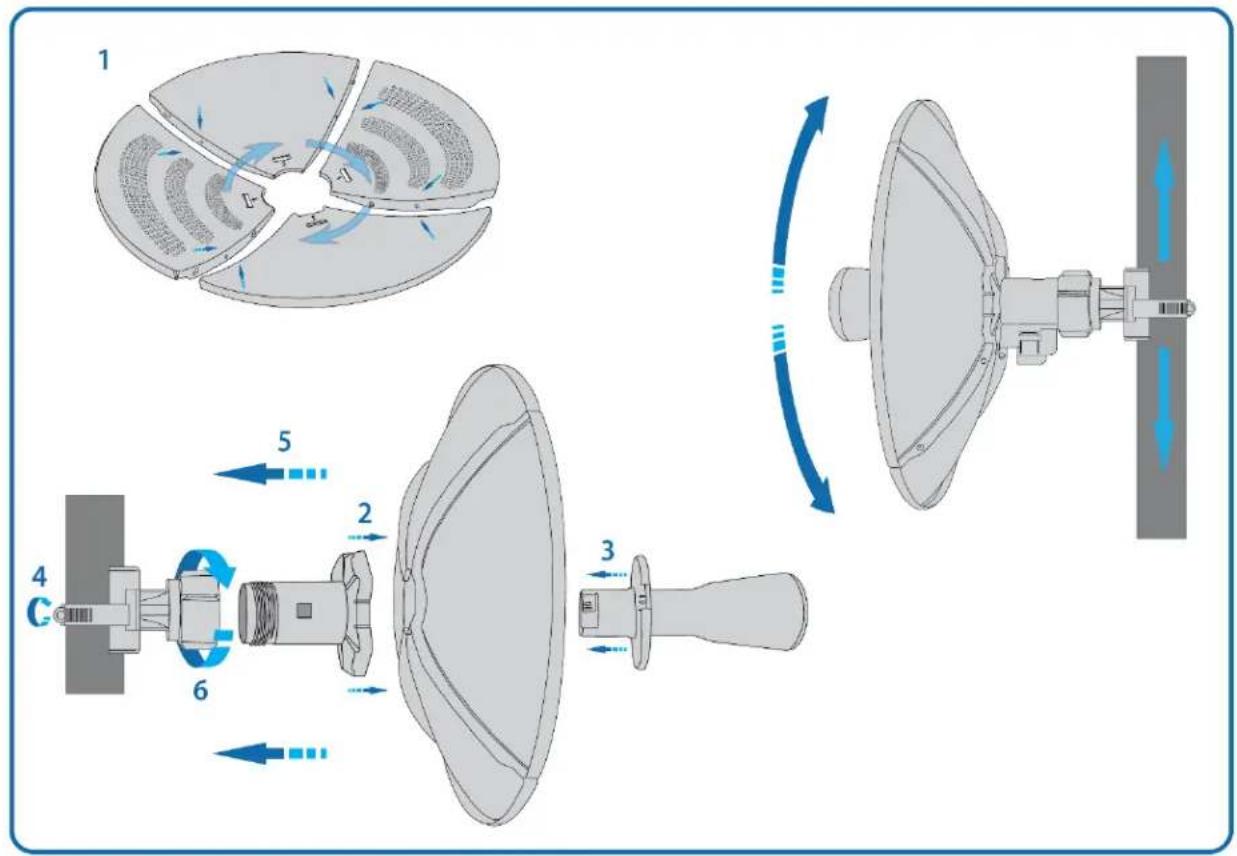

Mechanical assembly diagrams showing two views (a and b) of a clamp mechanism with motion arrows, no text or symbols present.

c

Mechanical clamp assembly with blue motion arrows indicating force or motion (no text or symbols)

3

Technical line drawing of a mechanical device with a circular base and attached clamping bracket (no text or symbols)

4

Diagram of a medical or mechanical device with a rotating ear and blue directional arrows indicating motion (no text or symbols)

Force 130

Pole Mount
1

Technical line drawing of a door handle assembly with internal components and blue flow indicators (no text or symbols)

3

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

4

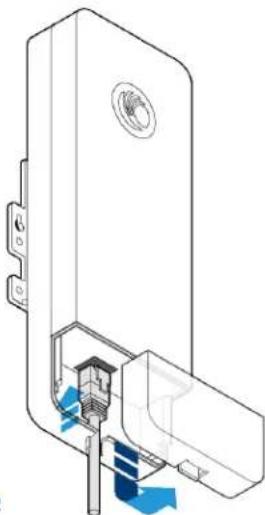

Technical line drawing of a mechanical or electrical component with mounting holes and wires (no text or symbols)

5

Technical line drawing of a mechanical assembly with no visible text or symbols

2

Technical line drawing of a mechanical clamp or tool inside a circular frame (no text or symbols)

Package Content

x1

x2
