Product Type	Blood Pressure Monitor
Brand	Walgreens
Model	WGNBPA-960BT
Connectivity	Bluetooth 4.0
Power Source	4 AAA batteries (included) or AC adapter (optional)
Battery Life	Approximately 300 measurements
Measurement Method	Oscillometric
Measurement Range	Systolic: 60-260 mmHg, Diastolic: 30-170 mmHg, Pulse: 40-200 beats/min
Accuracy	Blood pressure: ±3 mmHg, Pulse: ±5%
Memory	Up to 60 readings per user for 2 users
Display	LCD with large digits, backlight
Voice Announcement	Yes (English)
Cuff Size	Adult, arm circumference 9-17 inches (23-43 cm)
Cuff Type	Velcro closure, wrap-around
Irregular Heartbeat Detection	Yes
WHO Classification Indicator	Yes
Dimensions (Monitor)	4.5 x 3.5 x 2.5 inches
Weight (Monitor)	Approximately 0.9 lb
Case Included	Yes (storage case)
Cleaning	Wipe with a soft, dry cloth; do not immerse in water
Safety	Not intended for use on persons with pacemakers; consult physician
Warranty	1 year limited

Frequently Asked Questions - WGNBPA-960BT Walgreens

How do I pair the monitor with my smartphone?

Download the Walgreen Health app, enable Bluetooth on your phone, and press the Bluetooth button on the monitor. The devices should pair automatically.

What cuff size is included?

The monitor comes with a standard adult cuff (9-17 inches arm circumference). A larger cuff is available separately.

How do I clean the monitor and cuff?

Wipe the monitor with a soft, dry cloth. The cuff can be cleaned with a damp cloth and mild soap; air dry before reuse. Do not immerse any part in water.

What kind of batteries does it use?

It uses 4 AAA batteries. Alkaline recommended. An optional AC adapter (6V, 600mA) can also be used.

Can the monitor detect irregular heartbeat?

Yes, during measurement it detects irregular heartbeats and displays a warning icon. Consult a doctor if you see this frequently.

How many readings can it store?

It stores up to 60 readings per user for two users (120 total) with date and time stamps.

Is the monitor accurate?

It meets ISO 81060-2 standards with accuracy of ±3 mmHg for blood pressure and ±5% for pulse rate.

Can I use it if I have a pacemaker?

No, it is not recommended. Consult your physician before use if you have a pacemaker or are pregnant.

How do I reset the monitor?

Remove the batteries, wait 30 seconds, then reinsert them. This will reset the device and clear memory.

Where can I find the user manual?

The manual is available for download on notice-facile.com or the Walgreens website. You can also view it directly on the product page.

USER MANUAL WGNBPA-960BT Walgreens

• 5-Year Limited Warranty

INTRODUCTORY INFORMATION:

Important Product Notices and Safety

Instructions ....3

About Blood Pressure....5

Blood Pressure Standard....5

How This Blood Pressure Monitor Works ......7

USAGE INFORMATION:

Name/Function of Each Part......8

Display Explanations....9

Installing Batteries ....11

Using the AC Adapter....12

Date & Time Set Procedure....13

Bluetooth® Operation....15

Using Rest Assure Function....16

Using Triple-Check (Multi-Read) Function .....16

Using the UltraSoft™ Upper Arm Cuff......17

Measurement Procedure....21

Transmit Readings To Your Mobile Device .....26

Earn Balance® Reward Points ......28

Risk Category Index......29

Irregular Heartbeat Detector....30

Using the Memory Function....31

Clearing Values from Memory 33

Important Notes Regarding Your

Blood Pressure Measurement....34

Care, Maintenance & Cleaning ....35

Potential for Electromagnetic Interference .....37

Electromagnetic Compatibility (EMC)....38

Troubleshooting......41

Specifications 42

5 Year Limited Warranty....43

IMPORTANT PRODUCT NOTICES AND SAFETY INSTRUCTIONS

When using your blood pressure monitor, basic precautions should always be followed. Please read and follow all instructions and warnings before using this product. Save these instructions for future reference.

• Please note that this is a home healthcare product only and it is not intended to serve as a substitute for the advice of a physician or medical professional.
• This device uses the oscillometric method to measure systolic and diastolic blood pressure, as well as heart rate.
• Do not use this device for diagnosis or treatment of any health problem or disease. Measurement results are for reference only. Consult a healthcare professional for interpretation of pressure measurements. Contact your physician if you have or suspect any medical problem. Do not change your medications without the advice of your physician or healthcare professional.
• Proper cuff size is critical for accurate measurements. Follow the instructions in this manual and printed on the arm cuff to ensure the arm cuff is used properly.
• This product is not suitable for people with arrhythmias. This device may have difficulty determining the proper blood pressure for pregnant women and for users with irregular heartbeat, diabetes, poor circulation of blood, kidney problems or for users who have suffered from a stroke.

• Excessive use may result in blood overflow interference, which is likely to cause uncomfortable sensations, such as partial subcutaneous hemorrhage, or temporary numbness to your arm. In general, these symptoms should not last long. However, if you do not recover in time, please seek advice from a medical professional.

• The pulse display is not suitable for checking the frequency of heart pacemakers.

• Electromagnetic interference: The device contains sensitive electronic components. Avoid strong electrical or electromagnetic fields in the direct vicinity of the device (e.g. mobile telephones, microwave ovens). These may lead to temporary impairment of measurement accuracy.
• Consider the electromagnetic compatibility of the device (ex. power disturbance, radio frequency interference etc.) Please use this device indoors only.
• Use blood pressure monitor only for its intended use.
• Do not wrap the cuff around body parts other than your arm.
  • Not for use by or on persons under the age of 18.
• Do not use this device on infants, children, or those who cannot express their own intention.
• Do not plug or unplug the adapter power cord with wet hands.
• Please use only the AC adapter included with this monitor or 1.5V "AA" alkaline batteries for power supply.

Blood pressure measurements determined with this device are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultatory method, within the accuracy limits prescribed by the American National Standard, Manual, electronic, or automated sphygmomanometers.

ABOUT BLOOD PRESSURE

What is Blood Pressure?

Blood pressure is the pressure exerted on the artery walls while blood flows through the arteries. The pressure measured when the heart contracts and sends blood out of the heart is systolic (highest) blood pressure. The pressure measured when the heart dilates with blood flowing back into the heart is called diastolic (lowest) blood pressure.

Why Measure Your Blood Pressure?

Among today's various health problems, those associated with high blood pressure are very common. High blood pressure dangerously correlates with cardiovascular diseases. Therefore, blood pressure monitoring is important for identifying those at risk.

Why Do My Readings Vary?

Blood pressure is a body parameter that is subject to normal variations throughout the day. A single reading that is different from yours or your doctor's readings are not necessarily inaccurate. The average of several readings, taken under similar conditions, using the same arm is preferred for accurate blood pressure readings.

Why Are My Readings Different Than Those Taken at My Doctor's Office?

Many experience a phenomenon called “White Coat Hypertension” when measured by a doctor. White Coat Hypertension refers to blood pressure that rises above its usual level when measured in a clinical setting, such as a doctor’s office.

BLOOD PRESSURE STANDARD

The table on page 6 contains defined levels for hypertension that are publicly available from the National Heart Lung and Blood Institute at the U.S. National Institutes of Health (NIH) (http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_WhatIs.html).

Users can compare their own blood pressure readings against these defined levels to determine if they may be potentially at increased risk.

This table is applicable to most adults aged 18 and older.

Category	Systolic (mmHg)		Diastolic (mmHg)
Normal Less than 120 and Less than 80
Prehypertension 120-139 or 80-89
High Blood Pressure
Stage 1 140-159 or 90-99
Stage 2 160 or higher or 100 or higher

Blood pressure tends to go up and down, even in people who normally don't have high readings. If your numbers stay above the "normal" range most of the time, you may be at increased risk and should consult your physician.

Although one can easily find where their own blood pressure readings fall on this table, this monitor comes equipped with a Risk Category Index that automatically compares each reading to the defined levels and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. See page 29 for more information on this feature.

Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience to help you understand your non-invasive blood pressure reading as it relates to the NIH information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

HOW THIS BLOOD PRESSURE MONITOR WORKS

This monitor uses innovative GentleInflate™ technology to detect your blood pressure. With one touch of a button, the monitor automatically takes the reading during inflation, then deflates, delivering a quick, comfortable and quiet measurement every time.

Please note that any muscle movement during inflation will cause measurement error. When measurement is complete, the monitor will display your systolic pressure, diastolic pressure, and pulse readings.

Before measurement, it is suggested that you sit quietly for 15 minutes before measurement as measurements taken in a relaxed state have greater accuracy. The Rest Assure Function provides a helpful countdown of the last 5 minutes of this suggested time*. Refer to page 16 for more information on this feature.

The Triple-Check (Multi-Read) Function automatically takes and averages three readings for accuracy you can trust. Refer to page 16 for more information on this feature.

The monitor automatically finds where your measurement results fall on the NIH's National Heart Lung and Blood Institute's table and provides a cue if your reading falls into one of the stages that could potentially indicate increased risk. Please refer to page 29 for more information on this feature.

The appearance of the IHB icon indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Refer to page 30 for more information on the Irregular Heartbeat Detector.

*JNC7: The Seventh Report of the Joint National Committee on Prevention, Detection, Evaluation, and Treatment of High Blood Pressure. NIG Publication No. 04-5230 August 2004.

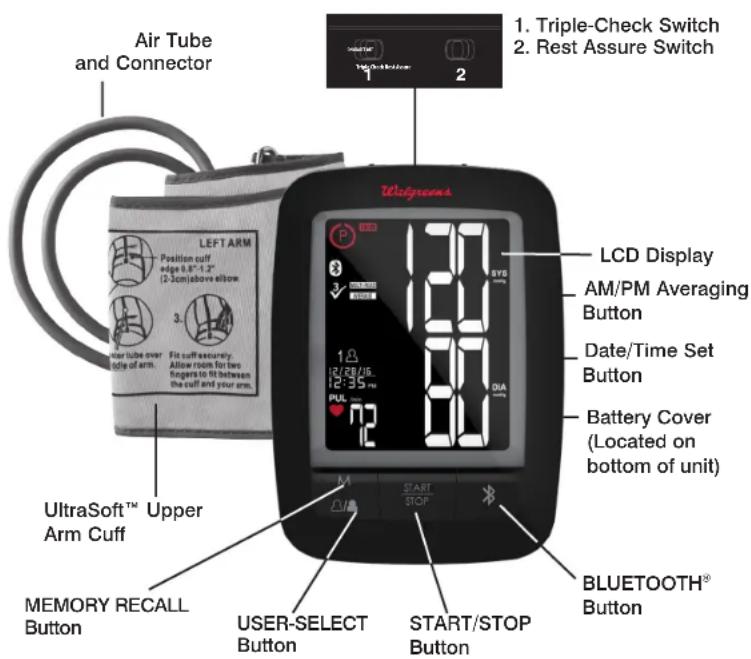

NAME/FUNCTION OF EACH PART

Other Accessories Included :

• 1 6V DC Output AC Adapter
• 4 "AA" size, 1.5V alkaline batteries
Note: Please remove the batteries when operating with the AC adapter for an extended period of time.

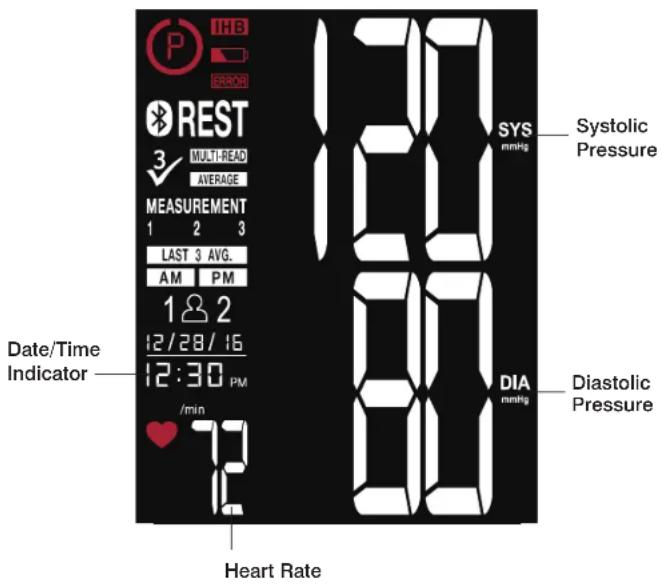

DISPLAY EXPLANATIONS

Display Symbols:

	User 1: Appears when the monitor is operated by User 1.
	User 2: Appears when the monitor is operated by User 2.
	Weak Battery Symbol: Appears when batteries should be replaced.
	Pulse Symbol: Shows the heart rate per minute.
	Risk Category Index: See page 29 for more information.
	Irregular Heartbeat Detector: See page 30 for more information.
	Data Transmitting Symbol: Appears when data is transmitting to your mobile device.
	Rest Assure ON: The REST symbol will appear on monitor, then will countdown for 5 minutes before starting single measurement.Triple-Check Function ON: The REST symbol will flash among 3 measurements during countdown.
	Memory Average: Displays average of last 3 readings.
	AM/PM Averaging: Indicates the reading being displayed is an average from the last 3 morning or last 3 evening measurements.
	Multi-Read Symbol: Appears when Triple-Check (Multi-Read) Function is turned ON.
	Average Symbol: Displayed when viewing a Triple-Check average.
	Measurement Indicator: Indicates which measurement is being taken, or which measurement is being viewed from a Triple-Check average reading.

If ERROR and any of the following letters and numbers appear in the area that systolic pressure should be displayed, an error has occurred with your reading. See Troubleshooting section of this manual for more information.

EE	Measurement Error: Wrap the cuff correctly and keep arm steady during measurement. Take new measurement.
E1	Air Circuit Abnormality: Check cuff connection. Take new measurement.
E2	Pressure Exceeding 300 mmHg: Turn the unit off to clear, then take new measurement.
E3	Error Determining Measurement Data: Take new measurement.
E4	Data Transmission Error: Monitor cannot connect to the mobile device to transmit data. Make sure Bluetooth is ON.
EP	System Error: Take new measurement.

INSTALLING BATTERIES

1. Press forward on latch and lift the battery cover to open the battery compartment.
2. Install or replace 4 "AA" sized alkaline batteries in the battery compartment according to the indications inside the compartment.
3. Close the battery cover by pushing in the top end of the battery door.

Battery Cover

Diagram showing a battery plug inserted into a device with a cable, alongside two batteries (no text or symbols present)

Replace the batteries if:

• The weak battery symbol appears.
- When any button is pressed and nothing is displayed on the screen.

Note:

• If the batteries are removed or replaced, the date and time will need to be re-set either manually or automatically using your Bluetooth mobile device.
• Replace all batteries at one time (as simultaneous set). Use only 1.5V "AA" alkaline batteries.
• When the batteries are removed, the measurement values are retained.
• Remove batteries when unit is not in use for extended periods of time.
• Clean contacts on battery and in battery compartment with a soft dry cloth each time you install batteries.
• Batteries are hazardous waste. Do not dispose of them together with the household garbage.

USING THE AC ADAPTER

1. Connect the AC adapter with the AC adapter jack as shown below.
2. Please use only the AC adapter included with this monitor.

Note:

• When the AC adapter is your main power supply, make sure the adapter plug can be easily removed from the unit.
• Please unload the batteries when operating with an AC adapter for an extended period of time. Leaving the batteries in the compartment for a long time may cause leakage, which may lead to damage to the unit.
• No batteries are needed when operating with an AC adapter.
• Date and time will need to be reset if AC adapter is unplugged and unit is without batteries.

Connect AC adapter here

AC Adapter

Input: 100-240V\~0.18A-0.20A 50/60Hz
Output: 6V DC 1A 6W Max

DATE & TIME SET PROCEDURE

Date & time can be set by two methods, either sync automatically using your Bluetooth mobile device, or set manually using the SET buttons on the monitor (⑨+).

If setting the date & time by syncing with your mobile device, it is important that this is done prior to taking any measurements to ensure the date & time are accurate.

To set using your device with Bluetooth® wireless technology:

1. Before taking the first measurement, open the Walgreens Connect App on your device. If you have not already installed the Walgreens Connect App onto your device, it is available to download on the App Store ^SM and on Google Play ^TM . Make sure you have the app downloaded and open on your mobile device before trying to sync the date & time.
2. Press the Bluetooth button ⚙ on the monitor to enable the connection.
3. Once the Bluetooth connection is established, the date & time will automatically update on the blood pressure monitor.

Note:

• Once the date & time have been successfully synced, future readings will automatically have the correct date & time.
• If you are having trouble automatically syncing the date & time, make sure the Bluetooth is ON on your device and ON on the blood pressure monitor.

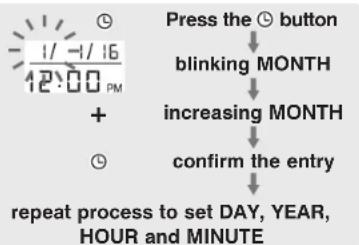

To Set Manually:

1. To set the date and time, press the DATE/TIME SET button Ⓤ.

1. The display will show a blinking number showing the MONTH. Change the MONTH by pressing the + button. Each press will increase the number by one in a cycling manner. Press the DATE/TIME SET button ⏻ again to confirm the entry, and the screen will show a blinking number representing the DAY.
2. Change the DAY, YEAR, HOUR and MINUTE as described in Step 2 above, using the + button to change the numbers and the DATE/TIME SET button ⏻ to confirm the entries.

This monitor has Bluetooth function ON for your convenience. This will allow your readings to automatically transmit to the Walgreens Connect App. By turning this function OFF, the measurements cannot be transmitted.

Turning Bluetooth® Function OFF:

While the screen is off (nothing is shown on the screen), press and hold the Bluetooth button Ⓧ for 3 seconds to turn Bluetooth OFF.

Bluetooth Function OFF

- When Bluetooth ^ is OFF, measurements cannot be transmitted to the Walgreens Connect App.

Turning Bluetooth® Function ON:

While the screen is off (nothing is shown on the screen), press and hold the Bluetooth button ⚙ for 3 seconds to turn Bluetooth® ON.

Bluetooth Function ON

• When Bluetooth is ON, readings can automatically and manually be tranmistted to the App.
• The Walgreens Connect App must be open on your mobile device in order to establish a connection with the monitor.

Bluetooth QDID Profile Information:

QDID: 45008, 51582, & 52727

USING REST ASSURE FUNCTION

This blood pressure monitor features the Rest Assure Function. It is suggested you sit quietly for 15 minutes prior to measurement. The Rest Assure Function will count down the last 5 minutes before automatically starting the measurement*. To turn this feature OFF, slide the switch on the back to the OFF position.

USING TRIPLE-CHECK (MULTI-READ) FUNCTION

The Triple-Check (Multi-Read) Function automatically takes and averages three readings in a row, with 1 minute rest intervals in between each measurement. To deactivate this feature and take only a single reading, slide the switch on the back to the OFF position.

*JNC7: The Seventh Report of the Joint National Committee on Prevention, Detection, Evaluation, and Treatment of High Blood Pressure. NIG Publication No. 04-5230 August 2004.

USING THE ULTRASOFT™ UPPER ARM CUFF

Very Important:

Proper cuff size is critical to accurate measurement.

This monitor comes with one UltraSoft™ Upper Arm Cuff that fits arm sizes 9"-17" (23cm - 43cm).

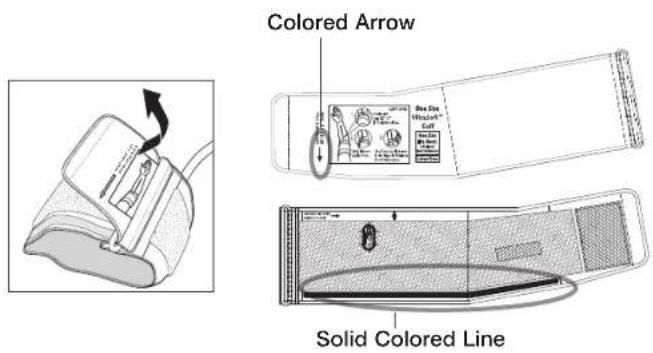

The appropriate cuff is suitable for your use if the colored arrow falls within the solid color line as shown below.

1. If the cuff is not assembled, pass the end of the cuff furthest away from the tubing through the metal D-ring in order to form a loop. The smooth side without the felt material should be on the inside of the cuff loop.

1. Plug the cuff tube into the left side of the unit.

1. Open the arm cuff so that your arm may be placed through it.

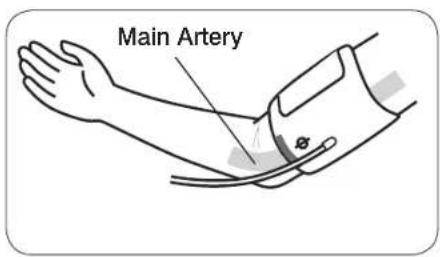

2. Remove tight fitting clothing from your upper left arm so that the cuff can be wrapped around your exposed arm.

3. Position cuff edge 34 -1 14 inches (2-3 cm) above elbow.

4. Center tube over middle of arm.

5. Pull the end of the cuff so that it tightens evenly around your arm. Press the hook and loop material together to secure. Allow room for 2 fingers to fit between the cuff and your arm.

6. Lay your arm on a table (palm upward) so the cuff is at the same height as your heart. Make sure the tube is not kinked.

Note:

- This device should not be used when your arm is injured or wounded.

- If it is not possible to fit the cuff on your left arm, it can also be placed on your right arm. However, all measurements should be made using the same arm.

- To use on the right arm, you must position the artery symbol “Φ” over the main artery. Locate the main artery by pressing with two fingers approximately 1” (2 cm) above the bend of your elbow on the inside of your right arm. Identify where the pulse can be felt the strongest. This is your main artery.

MEASUREMENT PROCEDURE

Important Notes:

• Blood pressure changes with every heartbeat and is in constant fluctuation throughout the day.
• Blood pressure measurement can be affected by the position of the user, his or her physiologic condition and other factors.

Before Measurement:

To help ensure an accurate reading, follow these instructions before taking a measurement:

• Wait 1 hour after exercising, bathing, eating, drinking beverages with alcohol or caffeine, or smoking to measure blood pressure.
• Sit quietly and rest for 15 minutes.
• Stress raises blood pressure. Avoid taking measurements during stressful times.
  • Take your reading in a comfortable environment as measurements can be affected by hot or cold temperatures. Take your blood pressure at normal body temperature.

During Measurement:

• Donot talk or move your arm or hand muscles.
• Do not cross your legs. Sit with feet flat on the floor.
• Do not touch cuff or monitor during measurement.

If you are using this blood pressure monitor for the first time, please remove the protective film from the screen.

Using Single Measurement Mode:

1. Please make sure the Triple-Check switch, located on the back of the unit, is in the OFF position.
2. Press the USER-SELECT button to choose User 1 or User 2.

After the user number is selected, press the START/STOP button to confirm the chosen user.

1. With the cuff wrapped around your arm, press the START/STOP button. Do not inflate the cuff unless it is wrapped around your arm. All digits will light up to check the display functions. The checking procedure will be completed after about 3 seconds.

Note:

If the Rest Assure Function is ON, the 5 minute countdown will begin after the checking procedure is complete.

1. After all symbols disappear, the display will show "00". The monitor is "Ready to Measure" and will automatically inflate the cuff to begin measurement.
2. When the measurement is completed, the cuff will deflate entirely. Systolic pressure, diastolic pressure and pulse will be shown simultaneously on the LCD screen. The measurement is then automatically stored into memory.

Note:

• This monitor automatically returns to standby mode approximately 60 seconds after last operation. You may also press the START/STOP button to return to standby mode.
• To interrupt the measurement, you may press the START/ STOP button. The cuff will deflate immediately after a button is pressed.

Using Triple-Check Measurement:

1. Please make sure the Triple-Check switch, located on the back of the unit, is in the ON position.

1. Press the USER-SELECT button. After the user number is selected, press the START/STOP button to confirm the chosen user.
2. With the cuff wrapped around your arm, press the START/STOP button. Do not inflate the cuff unless it is wrapped around your arm. All digits will light up to check the display functions. The checking procedure will be completed after about 3 seconds.

Note:

If the Rest Assure feature is ON, the 5 minute countdown will begin after checking procedure is complete.
4. After all symbols disappear, the display will show "00". The monitor is "Ready to Measure" and will automatically inflate the cuff to begin measurement.

1. When the measurement is completed, the cuff will deflate entirely. Once the cuff is fully deflated, a 1 minute countdown will begin before starting the second measurement automatically. This process will continue until the end of the third measurement.

Note:

• If an ERROR code is displayed during measurement, the monitor will repeat the measurement up to 3 times during the consecutive measurement process.

• Remain still until all 3 measurements are completed.

• At the conclusion of the third measurement, the Triple-Check average will be displayed.

To review your individual results that make the Triple-Check average, press the + button.

press the + button

TRANSMIT READINGS TO YOUR MOBILE DEVICE

This monitor syncs your blood pressure readings to the Walgreens Connect App that is free to download on the App Store ^SM and on Google Play ^TM . Make sure you have the Walgreens Connect App downloaded, and open on your mobile device before trying to transmit your blood pressure measurements.

Before attempting to sync the blood pressure monitor with your mobile device, make sure Bluetooth is turned ON, on both your mobile device and the monitor.

Automatically transmit readings:

After a measurement is taken, the Bluetooth icon Ⓤ will appear on the screen as the monitor automatically transmits your blood pressure readings to the App.

Manually transmit readings:

Press the Bluetooth button 8. The readings will automatically be transmitted to the App. The Bluetooth icon will appear on the screen as the monitor transmits your blood pressure readings to the App.

If the transmission(s) were successful, the Bluetooth icon ⚙ will be displayed on the screen. See Fig. 1.

If the transmission(s) were unsuccessful, E4 and the ERROR symbol will be displayed on the screen. See Fig. 2.

Fig. 2

Note:

• The measurement is stored in the monitor's memory even if the reading is not transmitted to your mobile device.
• The Walgreens Connect App must be open on your mobile device in order to transmit your measurements.
• Only new readings will be accepted by the App.
• The blood pressure monitor can only be assigned to one Walgreens user account.
• To ensure readings transmitted to the App have the correct date and time, it is important that the correct date and time is set on the blood pressure monitor before taking measurements.
  • Measurements transmitted to the App cannot be edited.
• For a complete list of compatible mobile devices please visit www.walgreens.com/connectapp.

EARN BALANCE® REWARDS POINTS\*

Earn Balance® Rewards points for taking blood pressure readings when you sync this device to your smartphone, and use the Walgreens Connect App.

*Balance®Rewards:
- Limitations apply to earning points.
- Limit 20 points per blood pressure test, one log per day.
- Information provided to Walgreens online is covered by the terms of our Online Privacy and Security Policy and the terms and conditions of Balance® Rewards.
- Personally identifiable information reported to earn points is not covered under HIPAA or the Walgreens Notice of Privacy Practices.

See full terms and details at www.walgreens.com/healthychoices.

RISK CATEGORY INDEX

This monitor comes equipped with a Risk Category Index that automatically compares each reading to defined levels established by the U.S. National Institutes of Health's (NIH) National Heart Lung and Blood Institute as described earlier in this manual, and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience to help you understand your non-invasive blood pressure reading as it relates to the NIH information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

Stage 2 Hypertension

Prehypertension

Stage 1 Hypertension

Normal (No Symbol)

IRREGULAR HEARTBEAT DETECTOR (IHB)

The appearance of the IHB icon indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Usually this is not a cause for concern. However, if the symbol appears often, we recommend you seek medical advice. Please note that the device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.

Irregular Heartbeat Detector

Movement, shaking or talking during the measurement can result in pulse irregularities that may cause the appearance of this icon. Therefore, it is of great importance to not move or talk during measurement.

To determine the presence of an irregular heartbeat, the average of the heartbeat intervals is calculated with the first 3 normal effective heartbeat values. It is important to note that the average is not a strict mathematical averaging of all recorded intervals. At least 3 beats with 25% or greater difference from the average heartbeat interval will generate the IHB icon on the screen.

Important Information:

This blood pressure monitor is not designed for use by people with arrhythmias nor for diagnosing or treating an arrhythmia problem. As a safeguard, we recommend that if you have arrhythmias such as atrial or ventricular premature beats and atrial fibrillation or any other special conditions you should check with your physician before using your blood pressure monitor.

USING THE MEMORY FUNCTION

This monitor can be used by 2 users. Each user can store up to 120 measurements.

This monitor features an advanced memory mode to provide you with a variety of options for reviewing your measurement history, including AM/PM Averaging. Reviewing your morning (AM) and nighttime (PM) measurements can provide important information about how your blood pressure changes throughout the day.

	Displays average of last three readings.
	Displays average of last 3 morning readings.(AM is defined as 4:00 AM – 12:00 PM).
	Displays average of last 3 nighttime readings.(PM is defined as 6:00 PM – 2:00 AM).
	Indicates reading is an average of a Triple-Check measurement. Press the + button to review individual readings that make up the Triple-Check average.

Note:

A Triple-Check average and the 3 measurements that make this average, count as 4 readings when stored in memory.

To use the memory function:

1. Press the USER-SELECT button to select User 1 or User 2.

1. Press the M button to access memory.

1. The monitor will first display the calculated average applied to the last 3 memories.

Note:

• If the last 3 readings was a Triple-Check average, then the Triple-Check average will be displayed.
  • Memory averaging function will only average individual readings.
• Every new press of the M button will recall a previous reading. The latest reading will be recalled first.

Note:

While reviewing the readings, the Triple-Check Average icon may appear on the screen. Press the + button to review individual readings that make up the Triple Check average.

To use the AM/PM averaging function:

1. Press the USER-SELECT button to select User 1 or User 2.

2. Press the AM/PM button once to access last 3 AM averages.

1. Press the AM/PM button twice to access last 3 PM averages.

CLEARING VALUES FROM MEMORY

1. Press the USER-SELECT button to select User 1 or User 2.
2. Press the M button to enter into memory recall mode.
3. Press and hold the DATE/TIME and + buttons (①+) at the same time and the data for the selected user will be erased automatically.

Note: Once deleted, your readings cannot be restored.

IMPORTANT NOTES REGARDING YOUR BLOOD PRESSURE MEASUREMENT

• It is suggested that you take your measurements at the same time each day and use the same arm for consistency.
• Users should wait a minimum of 5 minutes before taking additional measurements. More time may be necessary depending upon your physiology.
• The measurement results that users receive are for reference only. If users have any blood pressure concerns, please consult a physician.
• Once inflation reaches 300 mmHg, the unit will deflate automatically for safety reasons.
• This product is not suitable for people with arrhythmias.
• This device may have difficulty determining the proper blood pressure for pregnant women and for users with irregular heartbeat, diabetes, poor circulation of blood, kidney problems, or for users who have suffered a stroke.

CARE, MAINTENANCE & CLEANING

• Clean the blood pressure monitor body and cuff carefully with a slightly damp, soft cloth. Do not press. Do not wash cuff or use chemical cleaner on it. Never use thinner, alcohol or petrol (gasoline) as cleaner.
• Leaky batteries can damage the unit. Remove the batteries when the unit will not be used for a long time.
• Follow local ordinances and recycling instructions regarding disposal or recycling of the device and device components, including batteries.
• If the unit is stored near freezing, allow it to acclimate to room temperature before use.
• This blood pressure monitor is not field serviceable. You should not use any tool to open the device nor should you attempt to adjust anything inside the device. If you have any problems with this device, please contact HoMedics Consumer Relations (contact information can be found on the warranty page).
• Do not immerse the unit in water as this will result in damage to the unit.
• Do not subject the monitor or cuff to extreme temperatures, humidity, moisture, or direct sunlight. Protect from dust.
• Do not fold the cuff and tubing tightly.

• Do not disassemble the monitor or cuff. If in need of repair, refer to the warranty section of this manual.

• Do not subject the monitor to extreme shocks (do not drop on floor).

• Do not inflate the cuff unless wrapped around arm.
• Do not wrap the cuff around body parts other than your arm.
• Do not drop or insert any object into any opening or hose.
• To avoid accidental strangulation keep this product away from children. Do not drape tube around neck.
• This monitor may not meet its performance specifications if stored or used outside of these temperature and humidity ranges:

- Storage/Transportation • Operating Environment Environment

Temperature:

-13°F\~158°F (-25°C\~70°C)

Temperature:

41^ 104^ (5°C \~40°C)

Humidity:

less than 93% RH

Humidity:

15% \~ 93% RH

POTENTIAL FOR ELECTROMAGNETIC INTERFERENCE

To avoid inaccurate results caused by electromagnetic interference between electrical and electronic equipment, do not use the device near a cell phone or microwave oven. For most wireless communication devices, it is recommended to maintain a distance of 10.8 feet (3.3m) inorder to avoid electromagnetic interference.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE STATEMENT Changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

ELECTROMAGNETIC COMPATIBILITY (EMC)

• Guidance and manufacturer's declaration – electromagnetic emissions
The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments:

Emissions test Compliance	Electromagnetic environment – guidance
RF emissions CISPR 11 Group 1 RF energy is used only to maintain device's operation.
RF emissions CISPR 11 Class B	Therefore, its RF emissions are so low that it's not likely to cause any interference in nearby electronic equipment.
Harmonic emissions IEC 61000-3-2	Class A The device is suitable for use in all establishments, including domestic establishments, and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Voltage fluctuations/ flicker emissions IEC 61000-3-3	Complies

• Guidance and manufacturer's declaration – electromagnetic immunity
The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments:

Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance
Electrostatic discharge (ESD)IEC 61000-4-2	± 6 kV contact± 8 kV air	± 6 kV contact± 15 kV air	The relative humidity should be at least 30 %.
Power frequency (50/60 Hz)magnetic fieldIEC 61000-4-8	3 A/m 30A/m		Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.Ir= ...... (m)188Where I is the current in amperes in a power bus or an appliance wire and r is the recommended separation distance between your device and the power bus or appliance wire, in meters (m).
Electrical fast transient/burstIEC 61000-4-4	± 2 kV for power supply lines± 1 kV for input/output lines	± 2 kV for power supply lines± 1 kV for input/output lines	Mains power quality should be that of a typical commercial or hospital environment.
SurgeIEC 61000-4-5	± 1 kV line(s) to line(s)± 2 kV line(s) to earth	± 1 kV line(s) to line(s)± 2 kV line(s) to earth	Mains power quality should be that of a typical commercial or hospital environment.
interruptions and voltage variations on power supply input linesIEC 61000-4-11	<5 % UT (>95 % dip in UT) for 0.5 cycle40 % UT (60 % dip in UT) for 5 cycles70 % UT (30 % dip in UT) for 25 cycles<5 % UT (>95 % dip in UT) for 5 sec	<5 % UT (>95 % dip in UT) for 0.5 cycle40 % UT (60 % dip in UT) for 5 cycles70 % UT (30 % dip in UT) for 25 cycles<5 % UT (>95 % dip in UT) for 5 sec	Mains power quality should be that of a typical commercial or hospital environment. If the user of the device requires continued operation during power mains interruptions, it is recommended that the device be powered from an uninterruptible power supply or a battery.

• Recommended separation distances between portable and mobile RF communication equipment and the device.
  The device is intended for use in an electromagnetic environment where radiated RF disturbances are under control. User can help prevent electromagnetic interference by keeping the device at a minimum distance from portable and mobile RF communications equipment (transmitters). Below table details the maximum output power of transmitter:

Rated maximum output power of transmitter W	Separation distance according to frequency of transmitter m
	150 kHz to 80 MHzd = 1.2	80 MHz to 800 MHzd = 1.2	800 MHz to 2.5 GHzd = 2.3
0.01 0.12 0.12	0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

• Guidance and manufacturer's declaration – electromagnetic immunity
The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments:

Immunity test	IEC 60601 test level	Compliance level	Electromagnetic environment – guidance
Conducted RFIEC 61000-4-6	3 Vrms150 kHz to80 MHz	6 Vrms	Portable and mobile RF communications equipment should be used no closer to any part of the device, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance d = 1.2 d = 1.2 80 MHz to 800 MHz d = 2.3 800 MHz to 2.5 GHz where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m).Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, a should be less than the compliance level in each frequency range.bInterference may occur in the vicinity of equipment marked with the following symbol:[IMAGE]
Radiated RFIEC 61000-4-3	3 V/m80 MHz to2.5 GHz	10 V/m
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the device is used exceeds the applicable RF compliance level above, the device should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the device.b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 10 V/m.

TROUBLESHOOTING

If any abnormality arises during use, please check the following points:

SYMPTOMS	POSSIBLE CAUSES	CORRECTION
Unit does not turn on when the START/STOP button is pushed.	Batteries have run down. Replace them with four new "AA" alkaline batteries.
	Battery polarities (+/-) have been positioned incorrectly.	Re-insert the batteries in the correct positions. See page 11.
EE measurement error symbol shown on display or the blood pressure value is displayed excessively low (or high).	The UltraSoftTM Upper Arm Cuff has been positioned on the arm incorrectly.	Re-wrap the cuff properly so that it is positioned correctly. Take new measurement.
	Did you talk or move during measurement?	Keep arm steady during measurement. Measure again. Refer to "Measurement Procedure" instructions, see page 21.
	Shaking of the arm with the cuff on.
E1 error symbol shown on display.	Air circuit abnormality. Cuff tube may not be plugged into monitor correctly.	Check cuff connection. See page 18. Take new measurement.
E2 error symbol shown on display.	Inflation pressure exceeding 300 mmHg.	Switch the unit off and then turn back ON. Take new measurement.
E3 error symbol shown on display.	Error determining measurement data.	Re-wrap the cuff properly so that it is positioned correctly. Take new measurement.
E4 - Data transmission error symbol shown on the display.	Bluetooth function is turned OFF, on your mobile device.	Turn Bluetooth ON, on your mobile device, and try again.
	Bluetooth function is turned OFF, on the blood pressure monitor.	Turn the Bluetooth function ON, on your blood pressure monitor (see page 15), then try again.
	Mobile device does not pair with the blood pressure monitor.	Make sure Bluetooth is ON, on the mobile device and the blood pressure monitor, and try again.
		Requires compatible mobile device. This blood pressure monitor is compatible with mobile devices that are running IOS 5.0 or newer, or Android ^ 4.3 and newer. For a complete list, go to www.walgreens.com/connectapp.
	The App on the mobile device is not open.	Make sure the app is open on the mobile device, and try again.
	The blood pressure monitor and mobile device are out of transmitting range.	Make sure the mobile device and blood pressure monitor are within the acceptable range of 32 feet (10 meters).
	Unexpected loss of electrical/mechanical integrity.	Make sure your last reading is stored in memory and the App is open and try again. See page 26.
		Remove batteries, re-insert, and try again.
		Return the device to your local distributor or importer.
EP error symbol shown on display.	System Error.	Remove batteries. After 1 minute, re-insert the batteries. Take new measurement.

Note: If the unit still does not work, contact HoMedics Consumer Relations. Under no circumstance should you disassemble or attempt to repair the unit by yourself. Contact information for HoMedics Consumer Relations Department can be found on the warranty page.

SPECIFICATIONS

Power Source:	(4) 1.5V DC “AA” alkaline batteries or 6V DC AC adapter
Measurement Method:	Oscillometric
Measurement Range:	Pressure: 40~280 millimeters Mercury (mmHg)Pulse: 40~199 beats/minute
Accuracy:	Pressure: ±3 mmHgPulse: ±5% of reading
Pressure Sensor:	Semi-conductor
Inflation:	Pump driven
Deflation:	Automatic Pressure release valve
Memory Capacity:	120 memories for each User (240 total)
Operation Environment:	Temperature: 41°F~104°F (5°C ~40°C)Humidity: 15% ~ 93% RH
Storage/Transportation Environment:	Temperature: -13°F~158°F (-25°C~70°C)Humidity: Less Than 93% RH
Weight:	0.74 lb (330 g) (without batteries)
Arm Circumference:	UltrasoftTM Upper Arm Cuff Size: 9"- 17"(23-43cm)
Dimensions:	4.65"(L) x 6.46"(W) x 1.89"(H)118mm(L) x 164mm(W) x 48mm(H)
Accessories:	(4) “AA” alkaline batteries, 6V DC AC adapter, instruction manual, 1 arm cuff with tube
	Internally Powered equipmentType BF EquipmentIP22- Degrees of protection provided by enclosures.Not suitable for use in presence of flammable anesthetic mixture with air, oxygen or nitrous oxide.Continuous operation with short-time loading.
	Follow instructions for use.

Note: These specifications are subject to change without notice.

Made exclusively for

Walgreens

For service or repair, do not return this unit to the retailer. Contact HoMedics Consumer Relations at:

Email:

cservice@

homedics.com

Phone:

1-800-466-3342

Business Hours:

8:30am-7pm ET

Monday-Friday

Distributed by

HOMEDICS

HoMedics, LLC

3000 Pontiac Trail

Commerce Township, MI

48390

Printed in China

Learn more at:

www.walgreensbp.com

LIMITED FIVE YEAR WARRANTY

HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of five years from the date of original purchase, except as noted below. HoMedics warrants that its products will be free of defects in material and workmanship under normal use and service. This blood pressure monitor meets the simulated measurement cycles test requirement per EN1060-3, part 8.10. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your HoMedics product, contact a Consumer Relations Representative by telephone at 1-800-466-3342 for assistance. Please make sure to have the model number of the product available.

HoMedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate HoMedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of HoMedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO

LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or rescaled products, including but not limited to sale of such products on Internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of HoMedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from state to state. Because of individual state regulations, some of the above limitations and exclusions may not apply to you.

The Bluetooth ^* word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Walgreen Company is under license. Other trademarks and trade names are those of their respective owners.

Android™ and Google Play™ are trademarks of Google, Inc.

HoMedics ^1 is a registered trademark of HoMedics, LLC.

UltraSoft™ is a trademark of HoMedics, LLC. ©2016 HoMedics, LLC. All rights reserved

App Store ^™ is a service mark of Apple Inc.

IB-WGNBPA960BT

P/N: 323102830 VER: 001

QDID: 45008, 51582, & 52727

Bluetooth®

Well at Walgreens

Diagram showing a battery with three batteries and an open switch, no text or symbols present

Nota:

presione el botón +

71 72

CÓMO TRANSMITIR SUS LECTURAS AL DISPOSITIVO MOVIL

HoMedics, LLC 3000 Pontiac Trail Commerce Township, MI 48390

Impreso en China

GARANTÍA LIMITADA POR CINCO AÑOS
