Brand	Walgreens
Model	WGNBPA-540
Product Type	Deluxe Arm Blood Pressure Monitor
Measurement Method	Oscillometric
Display Type	LCD
Memory Capacity	60 readings per user (2 users, total 120)
Power Source	4 AA batteries (1.5V) or 6V DC AC adapter
Dimensions	6.34 x 4.37 x 2.37 inches (161.6 x 111 x 60.2 mm)
Weight	0.56 lb (255.5 g) without batteries
Arm Cuff Sizes	Standard: 9-13 inches (23-33 cm); Large: 13-17 inches (33-43 cm)
Pressure Accuracy	±3 mmHg
Pulse Accuracy	±5% of reading
Measurement Range (Pressure)	40-280 mmHg
Measurement Range (Pulse)	40-199 beats/min
Inflation	Automatic (pump driven)
Deflation	Automatic pressure release valve
Auto Shut-Off	1 minute after last operation
Operating Environment	Temperature: 50°F-104°F (10°C-40°C); Humidity: 15%-90% RH
Storage Environment	Temperature: -4°F-158°F (-20°C-70°C); Humidity: <90% RH
Warranty	5-year limited
Accessories Included	6V DC AC adapter, arm cuff, pouch
Special Features	Risk Category Index, Irregular Heartbeat Detector, User Select (2 users)

Frequently Asked Questions - WGNBPA-540 Walgreens

How do I set the date and time on the WGNBPA-540?

Press the Set button. The hour will blink. Use the + button to adjust, then press Set to confirm. Repeat for minute, month, day, and year.

How should I clean the blood pressure monitor?

Clean the monitor body and cuff with a slightly damp, soft cloth. Do not use chemical cleaners, thinner, alcohol, or gasoline. Do not immerse in water.

What does the Irregular Heartbeat Detector (IHB) icon mean?

The icon indicates a pulse irregularity consistent with an irregular heartbeat was detected during measurement. If it appears often, consult your physician. Movement or talking can also cause this icon.

How many readings can be stored in memory?

Each user can store up to 60 measurements. The monitor supports two users, so a total of 120 readings can be stored.

Can I use the cuff on my right arm?

Yes, you can use the right arm. Position the artery symbol over the main artery. Locate the main artery by pressing about 1 inch (2 cm) above the elbow bend on the inside of the right arm. Ensure consistent use of the same arm.

What should I do if an error E1 appears on the display?

Error E1 indicates an air circuit abnormality. Check that the cuff tube is properly connected to the monitor, then measure again.

Is this blood pressure monitor suitable for people with arrhythmias?

No, this product is not suitable for people with arrhythmias. It may have difficulty determining proper blood pressure for individuals with irregular heartbeat, diabetes, poor circulation, kidney problems, or those who have suffered a stroke.

How do I replace the batteries?

Press down on the latch and lift the battery cover. Replace all four batteries with new AA alkaline batteries, observing correct polarity. Close the cover. Reset the date and time if needed.

What is the Risk Category Index?

The Risk Category Index automatically compares your reading to NIH blood pressure criteria and shows a cue if the reading falls into a stage that may indicate increased risk (e.g., prehypertension, stage 1 or 2 hypertension). No cue is shown for normal readings.

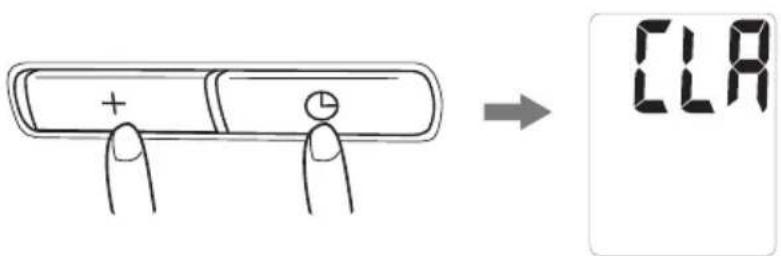

How do I clear all stored readings from memory?

Press the User-Select button to choose User 1 or User 2. While in memory recall mode, press and hold both Date & Time set buttons simultaneously. The data for the selected user will be erased.

USER MANUAL WGNBPA-540 Walgreens

Color palette bar with grayscale gradient from black to white (no text or symbols)

Walgreens

Deluxe Arm

Blood Pressure Monitor

5 year limited warranty

TABLE OF CONTENTS

INTRODUCTORY INFORMATION:

Important Product Notices and Safety

Instructions ....3

About Blood Pressure ....5

What is Blood Pressure?

Why Measure Your Blood Pressure?

Blood Pressure Standard ....5

How This Blood Pressure Monitor Works ......7

USAGE INFORMATION:

Name/Function of Each Part ....8

Display Explanations ......9

Installing Batteries ....11

Using the AC Adapter 12

Date & Time Set Procedure....13

Using the Cuff ....14

Measurement Procedure ....18

Risk Category Index 21

Irregular Heartbeat Detector 21

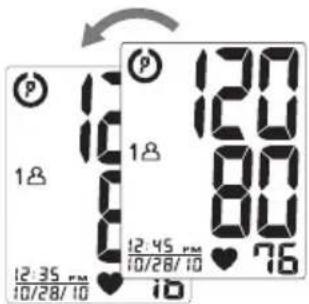

Recalling Values from Memory......23

Color palette bar with grayscale gradient from black to white (no text or symbols)

Clearing Values from Memory ......24

Important Notes Regarding Your

Blood Pressure Measurement ....25

Care, Maintenance & Cleaning ......26

Potential for Electromagnetic Interference .....28

Troubleshooting 29

Specifications 30

5 Year Limited Warranty ....31

IMPORTANT PRODUCT NOTICES AND SAFETY INSTRUCTIONS

When using your blood pressure monitor, basic precautions should always be followed. Please read and follow all instructions and warnings before using this product.

Save these instructions for future reference.

• Please note that this is a home healthcare product only and it is not intended to serve as a substitute for the advice of a physician or medical professional.
• Do not use this device for diagnosis or treatment of any health problem or disease. Measurement results are for reference only. Consult a healthcare professional for interpretation of pressure measurements. Contact your physician if you have or suspect any medical problem. Do not change your medications without the advice of your physician or healthcare professional.
• Proper cuff size is critical for accurate measurements. Follow the instructions in this manual and printed on the arm cuff to ensure the appropriate size of cuff is being used.
• This product is not suitable for people with arrhythmias. This device may have difficulty determining the proper blood pressure for individuals with irregular heartbeat, diabetes, poor circulation of blood, kidney problems or for users who have suffered from a stroke.

Color palette bar with grayscale and multicolor sections, no text or symbols present

• The pulse display is not suitable for checking the frequency of heart pacemakers.
• Electromagnetic interference: The device contains sensitive electronic components. Avoid strong electrical or electromagnetic fields in the direct vicinity of the device (e.g. mobile telephones, microwave ovens). These may lead to temporary impairment of measurement accuracy.
  • Use blood pressure monitor only for its intended use.
• Do not wrap the cuff around body parts other than your arm.
  • Not for use by or on persons under the age of 18.
• Do not plug or unplug the adapter power cord with wet hands.
• Please use only the AC adapter included with this monitor or 1.5V AA alkaline batteries for power supply.

Blood pressure measurements determined with this device are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultatory method, within the limits prescribed by the American National Standard, Manual, electronic, or automated sphygmomanometers.

Color palette bar with grayscale and multicolor sections, no text or symbols present

ABOUT BLOOD PRESSURE

What is Blood Pressure?

Blood pressure is the pressure exerted on the artery walls while blood flows through the arteries. The pressure measured when the heart contracts and sends blood out of the heart is systolic (highest) blood pressure. The pressure measured when the heart dilates with blood flowing back into the heart is called diastolic (lowest) blood pressure.

Why Measure Your Blood Pressure?

Among today's various health problems, those associated with high blood pressure are very common. High blood pressure dangerously correlates with cardiovascular diseases. Therefore, blood pressure monitoring is important for identifying those at risk.

BLOOD PRESSURE STANDARD

The table on page 6 is criteria for hypertension that is publicly available from the National Heart Lung and Blood Institute at the U.S. National Institutes of Health (NIH) (http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_WhatIs.html). Users can compare their own blood pressure readings against these established criteria to determine if they may be potentially at increased risk.

This table is applicable to most adults aged 18 and older.

Blood pressure tends to go up and down, even in people who normally don't have high readings. If your numbers stay above the “normal” range most of the time, you may be at increased risk and should consult your physician.

Category	Systolic (mmHg)	Diastolic (mmHg)
Normal Less than 120	and Less than 80
Prehypertension 120-139 or 80-89
High Blood Pressure
Stage 1 140-159 or 90-99
Stage 2 160 or higher or 100 or higher

Although one can easily find where their own blood pressure readings fall on this table, this monitor comes equipped with a Risk Category Index that automatically compares each reading to this criteria and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. See page 21 for more information on this feature.

Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience to have access to the NIH information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

HOW THIS BLOOD PRESSURE MONITOR WORKS

This monitor uses innovative technology to detect your blood pressure. This technology enables the monitor to automatically inflate and deflate at the appropriate level for each individual. With one touch of a button, the cuff will automatically inflate to block the blood flow through your artery. Next, the deflation process starts. Please note that any muscle movement during inflation or deflation will cause measurement error. When measurement is complete, the monitor will display your systolic pressure, diastolic pressure, and pulse readings.

The monitor automatically finds where your measurement results fall on the NIH's National Heart Lung and Blood Institute's table and provides a cue if your reading falls into one of the stages that could potentially indicate increased risk. Please refer to page 21 for more information on this feature.

The appearance of the Hoxn indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Refer to page 21 for more information on the Irregular Heartbeat Detector.

Color palette bar with grayscale and yellow swatches (no text or symbols)

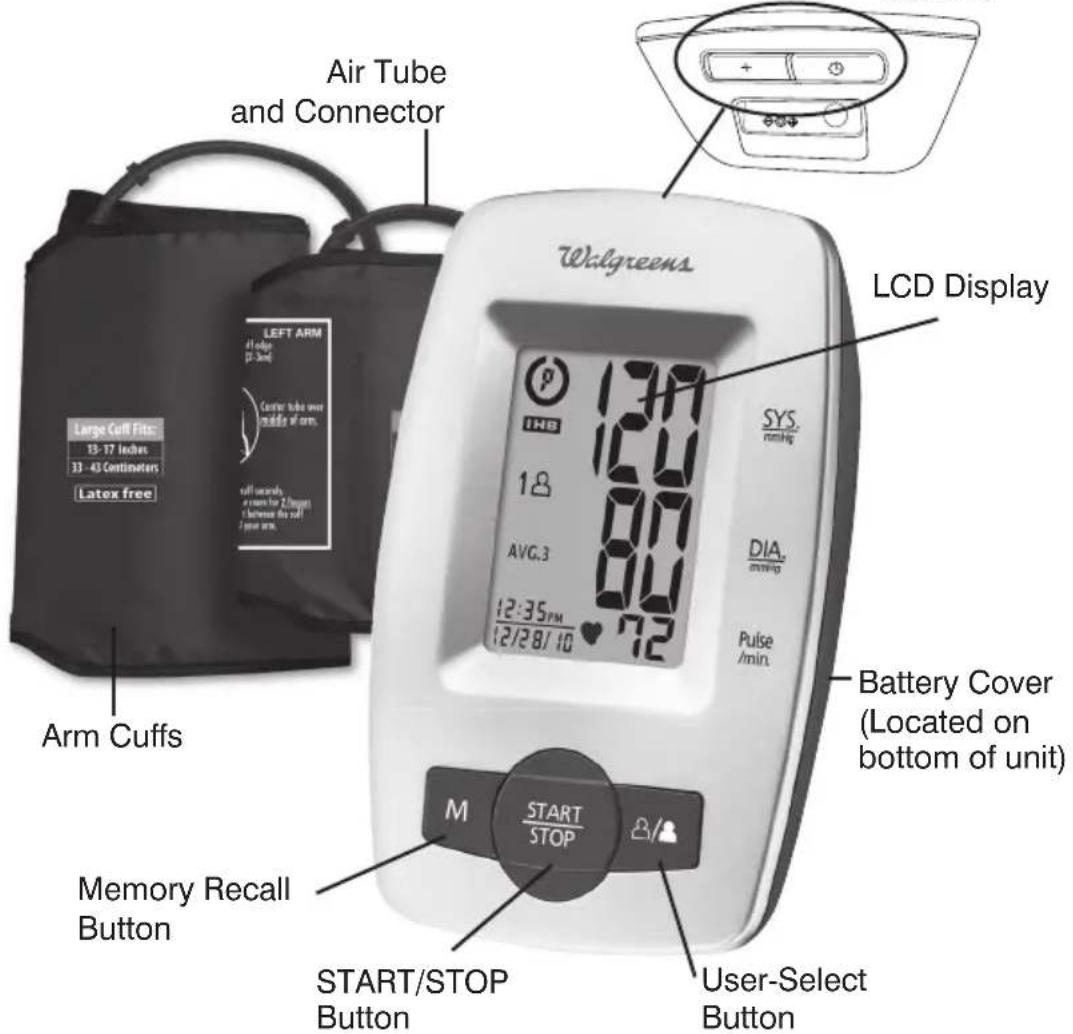

NAME/FUNCTION OF EACH PART
Date/Time Set Buttons

Other Accessories:

1 6V DC Output AC Adapter

4 "AA" size, 1.5V alkaline batteries (not included)

Note: Please unload the batteries when operating with the AC adapter for an extended period of time

Color palette bar with grayscale and multicolor swatches, no text or symbols present

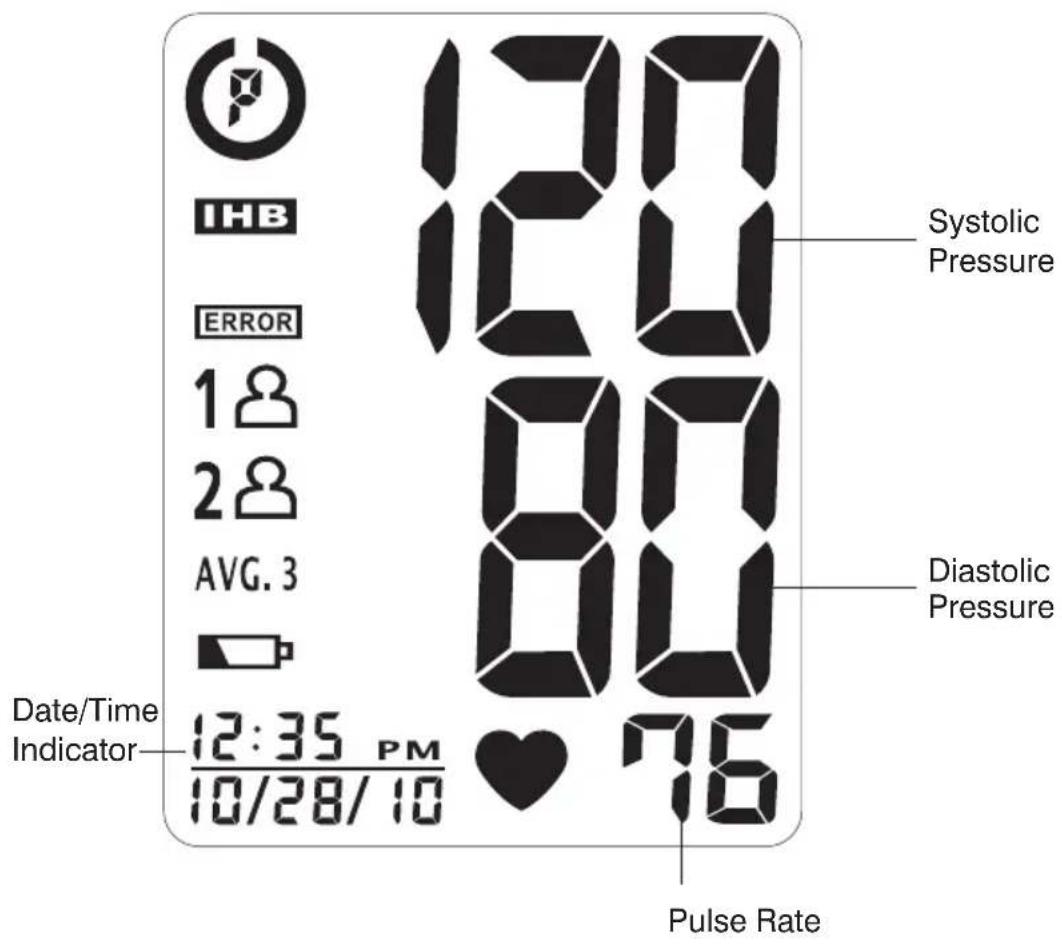

DISPLAY EXPLANATIONS

Display Symbols:

1	User 1: Appears when the monitor is operated by User 1.
2	User 2: Appears when the monitor is operated by User 2.
	Weak Battery Symbol: Appears when batteries should be replaced.
	Pulse Symbol: Shows the pulse rate per minute.
	Irregular Heartbeat Detector: Refer to page 21 for more information.

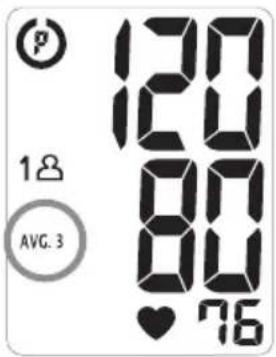

	Memory Average: Displays average of last 3 readings
	Risk Category Index: See page 21 for more information.

If EAR or any of the following letters and numbers appear in the area that systolic pressure should be displayed, an error has occurred with your reading. See Troubleshooting section of this manual for more information.

EE	Measurement Error: Measure again. Wrap the cuff correctly and keep arm steady during measurement.
E1	Air Circuit Abnormality: Check cuff connection. Measure again.
E2	Pressure Exceeding 300 mmHg: Turn the unit off to clear, then measure again.
E3	Error Determining Measurement Data: Measure again.

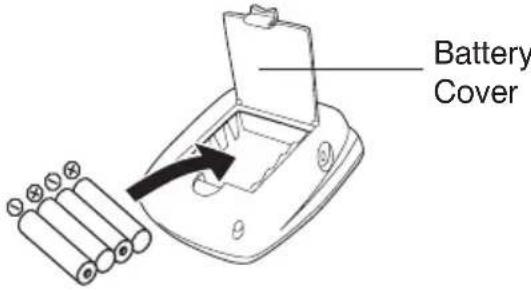

INSTALLING BATTERIES

1. Press down on latch and lift the battery cover to open the battery compartment.

2. Install or replace 4 "AA" sized batteries in the battery compartment according to the indications inside the compartment.

3. Close the battery cover by pushing in the top end of the battery door.

Replace the batteries if:

1. The weak battery symbol appears on the display.

2. Nothing appears on the display when the power is switched on.

Replace all batteries at one time (as simultaneous set). Use only 1.5V AA alkaline batteries. Remove batteries when unit is not in use for extended periods of time. Date and time will need to be reset if batteries are removed or replaced. Clean contacts on battery and in battery compartment with a soft dry cloth each time you install batteries.

Note: Batteries are hazardous waste. Do not dispose of them together with the household garbage.

USING THE AC ADAPTER

Note:

• Please unload the batteries when operating with an AC adapter for an extended period of time. Leaving the batteries in the compartment for a long time may cause leakage, which may lead to damage to the unit.
• No batteries are needed when operating with an AC adapter.

• Date and time will need to be reset if AC adapter is unplugged and unit is without batteries.

• Connect the AC adapter with the AC adapter jack in the back of the unit as shown below.

• Please use only the AC adapter included with this monitor.

Connect
AC Adapter
here
AC Adapter

Input: 100-240V\~0.2A 50/60Hz
Output: 6V DC 1A 6W Max

Simple line drawings of a capacitor and a medical device (no text or symbols)

Color palette bar with grayscale gradient from black to white (no text or symbols)

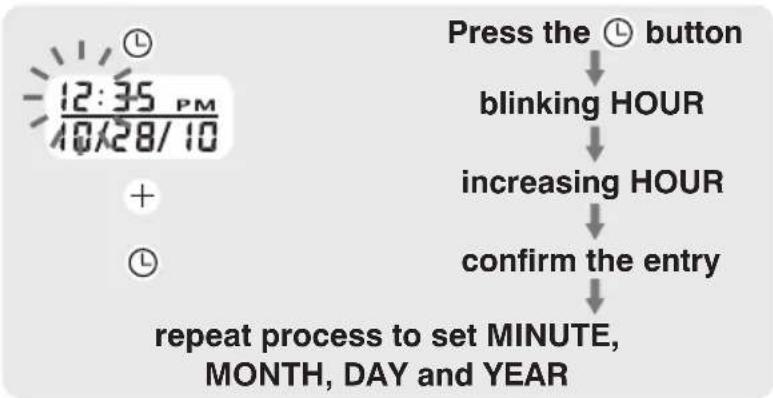

DATE & TIME SET PROCEDURE

1. To adjust the date/time, press the Set button ^① .

1. The display will show a blinking number showing the HOUR. Change the HOUR by pressing the +button. Each press will increase the number by one in a cycling manner. Press the Set button @again to confirm the entry, and the screen will show a blinking number representing the MINUTE.
2. Change the MINUTE, MONTH, DAY and YEAR as described in Step 2 above, using the + button to change the numbers and the Set button Ⓤ to confirm the entries.

Color palette bar with grayscale and multicolor swatches, no text or symbols present

USING THE ARM CUFF

Very Important: Proper cuff size is critical to accurate measurement.

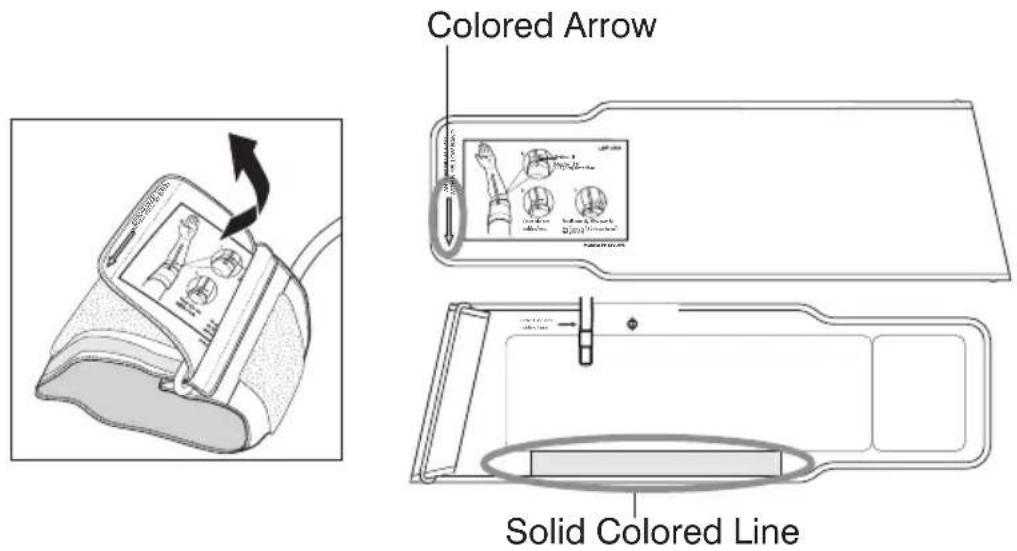

This monitor comes with two sizes of arm cuffs: Standard Size Fits 9"-13" (23 cm - 33 cm) Large Size Fits 13"-17" (33 cm - 43 cm)

The appropriate cuff is suitable for your use if the colored arrow falls within the solid color line as shown below.

Color palette bar with grayscale and RGB swatches, no text or symbols present

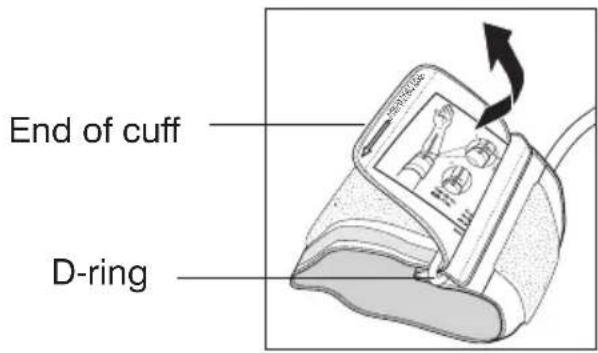

1. If the cuff is not assembled, pass the end of the cuff furthest away from the tubing through the metal D-ring in order to form a loop. The smooth side without the felt material should be on the inside of the cuff loop.

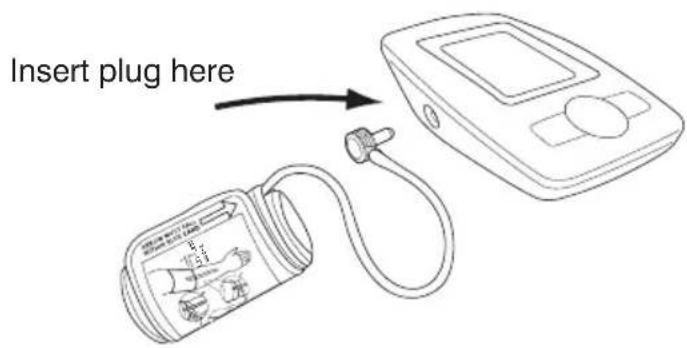

1. Plug the cuff tube into the left side of the unit.

1. Open the arm cuff so that your arm may be placed through it.
2. Remove tight fitting clothing from your upper left arm so that the cuff can be wrapped around your exposed arm.

1. Position cuff edge 0.8-1.2 inches (2-3cm) above elbow.

Simple line drawing of a mechanical or anatomical component inside a circle (no text or symbols)

1. Center tube over middle of arm.

Simple line drawing of a curved mechanical or anatomical structure inside a circle (no text or symbols)

1. Pull the end of the cuff so that it tightens evenly around your arm. Press the hook and loop material together to secure. Allow room for 2 fingers to fit between the cuff and your arm.

Diagram of a hand operating a tool on a curved mechanical component, enclosed in a circle (no text or symbols)

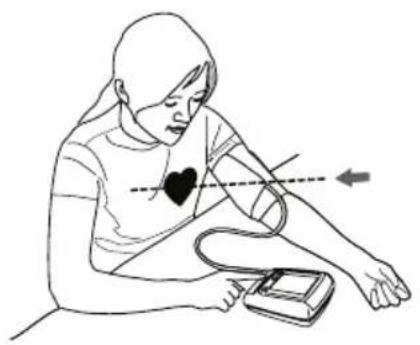

1. Lay your arm on a table (palm upward) so the cuff is at the same height as your heart. Make sure the tube is not kinked.

Line drawing of a person measuring blood pressure using a ECG monitor (no text or symbols)

Color palette bar with grayscale and multicolor sections, no text or symbols present

Note:

If it is not possible to fit the cuff to your left arm, it can also be placed on your right arm. However, all measurements should be made using the same arm.

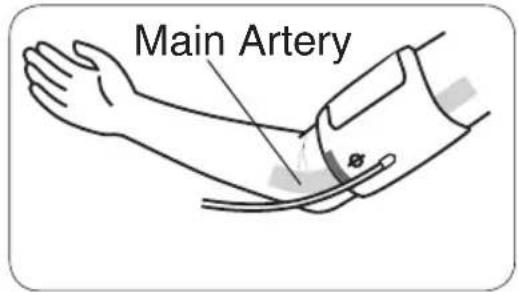

To use on the right arm, you must position the artery symbol “Φ” over the main artery. Locate the main artery by pressing with two fingers approximately 1” (2 cm) above the bend of your elbow on the inside of your right arm. Identify where the pulse can be felt the strongest. This is your main artery.

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

MEASUREMENT PROCEDURE

Important Notes:

• Blood pressure changes with every heartbeat and is in constant fluctuation throughout the day.
• Blood pressure measurement can be affected by the position of the user, his or her physiologic condition and other factors. For greatest accuracy, wait 1 hour after exercising, bathing, eating, drinking beverages with alcohol or caffeine, or smoking to measure blood pressure.
• Before measurement, it is suggested that you sit quietly for 15 minutes as measurements taken during a relaxed state will have greater accuracy. You should not be physically tired or exhausted while taking a measurement.
• During the measurement, do not talk or move your arm or hand muscles.
• See page 25 for additional notes regarding your blood pressure measurement.

If you are using this blood pressure monitor for the first time, please remove the protective film from the screen.

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

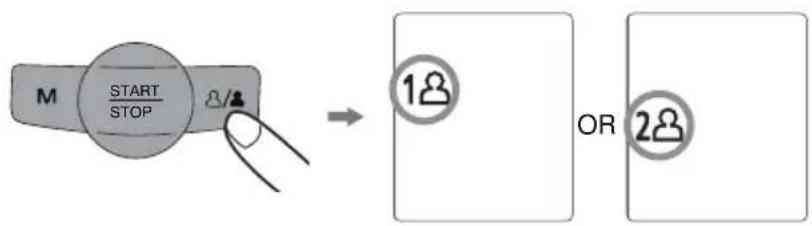

1. Press the User Select Button to choose User 1 or User 2.


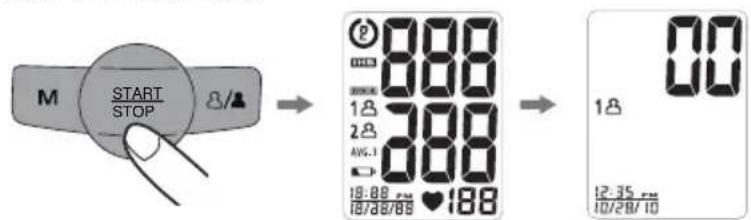

1. With the cuff wrapped around your arm, press the START/STOP button. Do not inflate the cuff unless it is wrapped around your arm. All digits will light up to check the display functions. The checking procedure will be completed after about 3 seconds.

1. After all symbols disappear, the display will show "00". The monitor is "Ready to Measure" and will automatically inflate the cuff to start measurement.

19

Color palette bar with grayscale and magenta sections, no text or symbols present

1. The cuff will begin deflating as measurement continues.

Note: This monitor will re-inflate automatically if the system detects that your body requires more pressure for measurement.

1. When the measurement is completed, the cuff will

deflate entirely. Systolic pressure, diastolic pressure and pulse will be shown simultaneously on the LCD screen. The measurement is then automatically stored into memory.

Note:

1. This monitor automatically turns off approximately 1 minute after last operation. You may also press the START/STOP button to turn the unit off.
2. To interrupt the measurement, you may press the START/STOP (recommended), "M," User-Select or Date & Time Set ( Ⓧ buttons. The cuff will deflate immediately after a button is pressed.

RISK CATEGORY INDEX

This monitor comes equipped with a Risk Category Index that automatically compares each reading to criteria established by the U.S. National Institute of Health's (NIH) National Heart Lung and Blood Institute as described earlier in this manual, and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. No cue is shown if the reading falls in the normal range as defined by NIH. Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience to have access to the NIH information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

Stage 2 Hypertension

Prehypertension

Stage 1 Hypertension
Normal (No Symbol)

IRREGULAR HEARTBEAT DETECTOR (IHB)

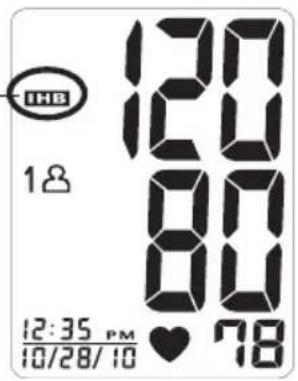

The appearance of the icon indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Usually this is not a cause for concern. However, if the symbol appears often, we

recommend you seek medical advice. Please note that the device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.

Irregular Heartbeat Detector

Movement, shaking or talking during the measurement can

result in pulse irregularities that may cause the appearance of this icon. Therefore, it is of great importance to not move or talk during measurement.

To determine the presence of an irregular heartbeat, the average of the heartbeat intervals is calculated with the first 3 normal effective heartbeat values. It is important to note that the average is not a strict mathematical averaging of all recorded intervals. At least 3 beats with 25% or greater difference from the average heartbeat interval will generate the icon on the screen.

Important Information:

This blood pressure monitor is not designed for use by people with arrhythmias nor for diagnosing or treating an arrhythmia problem. As a safeguard, we recommend that if you have arrhythmias such as atrial or ventricular premature beats and atrial fibrillation or any other special conditions you should check with your physician before using your blood pressure monitor.

Color palette bar with grayscale gradient from black to white (no text or symbols)

RECALLING VALUES FROM MEMORY

This monitor can be used by two individuals.

Each user can store up to 60 measurements.

1. Press the User-Select button.

1. Choose User 1 or User 2.

1. Press the "M" button to access the memory.

1. The monitor will first display the calculated average applied to the last 3 memories.

Color palette bar with grayscale and magenta squares, no text or symbols present

1. Every new press of the "M" button will recall a previous reading. The latest reading will be recalled first.

CLEARING VALUES FROM MEMORY

1. Press the User-Select button to select User 1 or User 2.

1. Press and hold the Date & Time set buttons (① at the same time while in memory recall mode, and the data for the selected user will be erased automatically.

24

IMPORTANT NOTES REGARDING YOUR BLOOD PRESSURE MEASUREMENT

• Take your reading in a comfortable environment as measurements can be affected by hot or cold temperatures. Take your blood pressure at normal body temperature.
- Do not move or talk during measurement as this can elevate readings.
- Do not move or cross legs during measurement. Keep feet flat on floor.
- Do not touch cuff or monitor during measurement procedure.
- It is suggested that you take your measurements at the same time each day and use the same arm for consistency.
- Users should wait a minimum of 5 minutes before taking additional measurements. More time may be necessary depending upon your physiology.
- The measurement results that users receive are for reference only. If users have any blood pressure concerns, please consult a physician.
- Once inflation reaches 300 mmHg, the unit will deflate automatically for safety reasons.
- This product is not suitable for people with arrhythmias.

Color palette bar with grayscale and multicolor sections, no text or symbols present

- This device may have difficulty determining the proper blood pressure for users with irregular heartbeat, diabetes, poor circulation of blood, kidney problems, or for users who have suffered a stroke.

CARE, MAINTENANCE & CLEANING

1. Clean the blood pressure monitor body and cuff carefully with a slightly damp, soft cloth. Do not press. Do not wash cuff or use chemical cleaner on it. Never use thinner, alcohol or petrol (gasoline) as cleaner.
2. Leaky batteries can damage the unit. Remove the batteries when the unit will not be used for a long time.
3. If the unit is stored near freezing, allow it to acclimate to room temperature before use.
4. This blood pressure monitor is not field serviceable. You should not use any tool to open the device nor should you attempt to adjust anything inside the device. If you have any problems with this device, please contact HoMedics Consumer Relations (contact information can be found on the warranty page).
5. Do not immerse the unit in water as this will result in damage to the unit.
6. Do not subject the monitor and cuff to extreme temperatures, humidity, moisture, and direct sunlight. Protect from dust.
7. Do not fold the cuff and tubing tightly.

Color palette bar with grayscale and multicolor sections, no text or symbols present

1. Do not disassemble the monitor or cuff. If in need of repair, refer to the warranty section of this manual.
2. Do not subject the monitor to extreme shocks (do not drop on floor).
3. Do not inflate the cuff unless wrapped around arm.
4. Do not wrap the cuff around body parts other than your arm.
5. Do not drop or insert any object into any opening or hose.
6. To avoid accidental strangulation keep this product away from children. Do not drape tube around neck.
7. This monitor may not meet its performance specifications if stored or used outside of these temperature and humidity ranges:

- Storage Environment

Temperature:

-4^ 158^ (-20^ 70^)

Humidity:

less than 90% RH

- Operating Environment

Temperature:

50^ 104^ ( 10^ 40^ )

Humidity:

15% \~ 90%

Color palette bar with grayscale and multicolor swatches, no text or symbols present

POTENTIAL FOR ELECTROMAGNETIC INTERFERENCE

To avoid inaccurate results caused by electromagnetic interference between electrical and electronic equipment, do not use the device near a cell phone or microwave oven.

TROUBLESHOOTING

If any abnormality arises during use, please check the following points

SYMPTOMS	POSSIBLE CAUSES	CORRECTION
Unit does not turn on when the START/ STOP button is pushed.	Batteries have run down.	Replace them with four new AA alkaline batteries.
	Battery polarities have been positioned incorrectly.	Re-insert the batteries in the correct positions.
EE measurement error symbol shown on display or the blood pressure value is displayed excessively low (or high).	Cuff has been placed incorrectly.	Wrap the cuff properly so that it is positioned correctly.
	Did you talk or move during measurement?	Measure again. Keep arm steady during measurement.
	Shaking of the arm with the cuff on.
E1 error symbol shown on display	Air circuit abnormality. Cuff tube may not be plugged into monitor correctly.	Check cuff connection. Measure again.
E2 error symbol shown on display	Inflation pressure exceeding 300 mmHg.	Switch the unit off, then measure again.
E3 error symbol shown on display	Error determining measurement data.	Measure again.

Note: If the unit still does not work, contact HoMedics Consumer Relations. Under no circumstance should you disassemble or attempt to repair the unit by yourself. Contact information for HoMedics Consumer Relations Department can be found on the warranty page.

SPECIFICATIONS

Power Source:	Four 1.5V DC (AA) batteries or 6V DC AC adapter
Measurement Method:	Oscillometric
Measurement Range:	Pressure: 40~280 millimeters mercury (mmHg)Pulse: 40~199 beats/minute
Accuracy:	Pressure: ±3 mmHgPulse: ±5% of reading
Pressure Sensor:	Semi-conductor
Inflation:	Pump driven
Deflation:	Automatic Pressure release valve
Memory Capacity:	60 memories for each User (120 total)
Auto-shut-off:	1 minute after last button operation
Operation Environment:	Temperature: 50°F~104°F (10°C ~40°C)Humidity: 15% ~ 90% RH
Storage Environment:	Temperature: -4°F~158°F (-20°C~70°C)Humidity: Less Than 90% RH
Weight:	0.56 lb (255.5 g) (without batteries)
Arm Circumference:	Standard size cuff: 9”-13” (23-33 cm)Large size cuff:13”-17” (33-43 cm)
Dimensions:	6.34”(L) x 4.37”(W) x 2.37”(H)161.6mm(L) x 111mm(W) x 60.2mm(H)
Accessories:	6V DC AC adapter, arm cuff with tube, pouch
	Internally Powered equipmentType BF EquipmentIPx0-No special protection against the ingress of waterNot suitable for use in presence of flammable anesthetic mixture with air, oxygen or nitrous oxide.Continuous operation with short-time loading.

Note: These specifications are subject to change without notice.

Made exclusively for

Walgreens

For service or repair, do not return this unit to the retailer. Contact HoMedics Consumer Relations at:

Mail:

HoMedics, Inc.

Service Center

Dept. 168

3000 Pontiac Trail

Commerce Township, MI 48390

Email:

cservice@

homedics.com

Phone:

1-800-466-3342

Business Hours:

8:30am-5pm ET

Monday-Friday

Distributed by

HOMEDICS®

HoMedics, Inc.

3000 Pontiac Trail

Commerce Township, MI 48390

Printed in China

LIMITED FIVE YEAR WARRANTY

HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of five years from the date of original purchase, except as noted below. HoMedics warrants that its products will be free of defects in material and workmanship under normal use and service. This blood pressure monitor meets the simulated measurement cycles test requirement per EN1060-3, part 8.10. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your HoMedics product, mail the product and your dated sales receipt (as proof of purchase), postpaid, to the following address:

HoMedics Consumer Relations

Service Center Dept. 168

3000 Pontiac Trail

Commerce Township, MI 48390

No COD's will be accepted.

HoMedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate HoMedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of HoMedics. This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on Internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of HoMedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from country to country. Because of individual country regulations, some of the above limitations and exclusions may not apply to you.

©2009 HoMedics, Inc. and its affiliated companies, all rights reserved. HoMedics is a registered trademark of HoMedics, Inc. and its affiliated companies. All rights reserved.

IB-WGNBPA540

P/N: 323101184 VER:001

Color palette bar with grayscale gradient from black to white (no text or symbols)

Walgreens

Color palette bar with grayscale and multicolor sections, no text or symbols present

Color palette bar with grayscale and multicolor sections, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color palette bar with grayscale gradient from black to white (no text or symbols)

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Diagram of a battery holder with an arrow pointing to its internal structure, alongside a stack of cylindrical batteries (no text or symbols present)

Simple line drawing of a capacitor and a medical device (no text or symbols)

Color palette bar with grayscale gradient from black to white (no text or symbols)

Color palette bar with grayscale and multicolor swatches, no text or symbols present

USO DEL BRAZALLETE

Simple line drawing of a medical or anatomical structure inside a circle, showing a curved pipe or tube with a central shaft (no text or symbols)

Simple line drawing of a curved mechanical or anatomical structure inside a circle, with no text or symbols present.

Diagram of a hand pressing down on a curved mechanical component within a circular frame (no text or symbols)

Line drawing of a person performing a medical or health procedure with an arrow indicating pressure direction (no text or symbols)

Nota:

48

Color palette bar with grayscale and multicolor sections, no text or symbols present

Color palette bar with grayscale and RGB swatches, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

ÍNDICE DE CATEGORÍA DE RIESGO

Color palette bar with grayscale gradient from black to white (no text or symbols)

DETECTOR DE LATIDOS IRREGULARES

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color palette bar with grayscale and magenta squares, no text or symbols present

Color palette bar with grayscale and multicolor sections, no text or symbols present

CÓMO BORRAR LOS VALORES DE LA MEMORIA

Color palette bar with grayscale and multicolor sections, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

POTENCIAL DE INTERFERENCIA ELECTROMAGNÉTICA

Commerce Township, MI 48390

Impreso en China

HoMedics Consumer Relations

Service Center Dept. 168

3000 Pontiac Trail

Commerce Township, MI 48390
