Product Type	Blood Pressure Monitor
Brand	Walgreens
Model	WGNBPW-520
Dimensions (L x W x H)	3.23 x 2.68 x 1.18 inches (82 x 68 x 30 mm)
Weight (without batteries)	0.22 lbs (100.7 g)
Power Source	Two 1.5V DC (AAA) alkaline batteries
Measurement Method	Oscillometric
Measurement Range (Pressure)	40-280 mmHg
Measurement Range (Pulse)	40-199 beats/min
Accuracy (Pressure)	±3 mmHg
Accuracy (Pulse)	±5% of reading
Memory Capacity	60 readings per user (2 users, total 120)
Auto-Shut-Off	1 minute after last operation
Wrist Circumference	5.3 - 7.7 inches (13.5 - 19.5 cm)
Display Features	Risk Category Index, Irregular Heartbeat Detector, Date/Time, Memory Average
User Selection	2 users, each with separate memory
Accessories Included	2 AAA alkaline batteries, instruction manual, hard plastic storage case
Operation Environment	Temperature: 50°F-104°F (10°C-40°C), Humidity: 15%-90% RH
Storage Environment	Temperature: -4°F-158°F (-20°C-70°C), Humidity: less than 90% RH
Cleaning and Care	Clean with a slightly damp, soft cloth; do not use chemicals or submerge in water
Safety Notices	Not suitable for people with arrhythmias; avoid strong electromagnetic fields; use only for intended purpose
Warranty	5-year limited warranty

Frequently Asked Questions - WGNBPW-520 Walgreens

How do I set the date and time on the WGNBPW-520?

Press the Set button on top of the monitor. The hour will blink. Use the + button to adjust, then press Set to confirm. Repeat for minutes, month, day, and year.

How should I apply the wrist cuff for accurate reading?

Remove any wrist jewelry and roll up sleeve. Place the cuff on your left wrist with palm facing up. The edge should be 1/4 to 1/2 inch from the palm. Fasten securely so no extra space remains.

What is the correct posture during measurement?

Sit upright with your elbow on a table so the cuff is at heart level. Keep your palm upward, relax, and avoid talking or moving during measurement.

What does the Irregular Heartbeat Detector (IHB) symbol mean?

The IHB icon appears if an irregular heartbeat is detected during measurement. This is common and not a cause for alarm, but if it appears frequently, consult your physician.

How do I clear stored measurements from memory?

Select the desired user (1 or 2) using the User-Select button. While in memory recall mode, press and hold the Set and M buttons simultaneously until the display shows 'CLA', clearing all data for that user.

What should I do if an error code like E1 or EE appears?

EE: Measure again; ensure cuff is correctly placed and you stay still. E1: Air circuit problem; measure again. E2: Pressure exceeded 300 mmHg; turn unit off and retry. E3: Data error; measure again. If persists, contact HoMedics support.

Can this monitor be used by two people?

Yes, the monitor supports two users. Press the User-Select button to choose User 1 or User 2 before measuring. Each user has their own memory storing up to 60 readings.

How do I clean and maintain the blood pressure monitor?

Clean the monitor and cuff with a slightly damp, soft cloth. Do not use thinners, alcohol, or petrol. Do not immerse in water. Remove batteries if not used for a long time.

What causes inaccurate readings?

Common causes: cuff not at heart level, moving or talking during measurement, improper cuff placement, weak batteries, or electromagnetic interference from nearby devices like cell phones.

Is this monitor suitable for people with arrhythmia?

No, this monitor is not suitable for individuals with arrhythmias. It may not determine proper blood pressure accurately. Consult your physician before use if you have such conditions.

USER MANUAL WGNBPW-520 Walgreens

5year limited warranty

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

TABLE OF CONTENTS

INTRODUCTORY INFORMATION:

Important Product Notices and

Safety Instructions 3

About Blood Pressure 6

What is Blood Pressure?

Why Measure Your Blood Pressure?

Blood Pressure Standard 7

How This Blood Pressure

Monitor Works 8

USAGE INFORMATION:

Name/Function of Each Part 10

Display Explanations 11

Installing Batteries 13

Date & Time Set Procedure 15

Applying the Cuff 16

Correct Measurement Posture 18

Measurement Procedure 20

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Risk Category Index 25

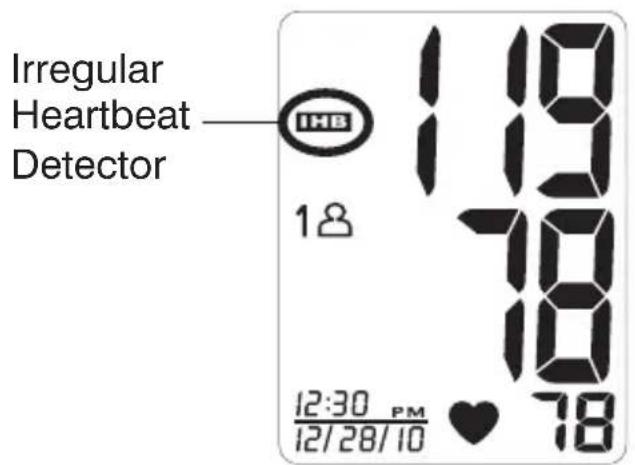

Irregular Heartbeat Detector (IHB) 26

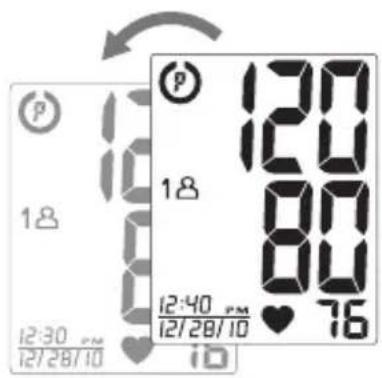

Recalling Values from Memory 28

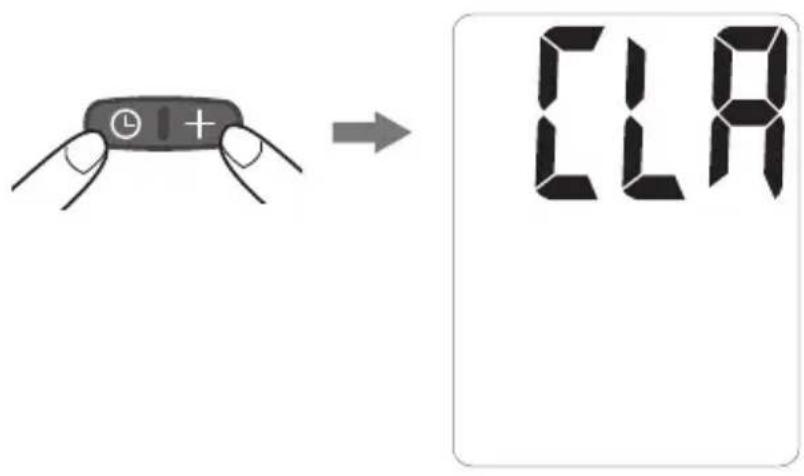

Clearing Values from Memory 30

Important Notes Regarding Your Blood Pressure Measurement .... 31

Care, Maintenance & Cleaning 33

Potential for Electromagnetic Interference 35

Troubleshooting 36

Specifications 37

5 Year Limited Warranty 39

Color palette bar with grayscale and multicolor swatches, no text or symbols present

IMPORTANT PRODUCT NOTICES AND SAFETY INSTRUCTIONS

When using your blood pressure monitor, basic precautions should always be followed. Please read and follow all instructions and warnings before using this product. Save these instructions for future reference.

• Please note that this is a home healthcare product only and it is not intended to serve as a substitute for the advice of a physician or medical professional.
• Do not use this device for diagnosis or treatment of any health problem or disease. Measurement results are for reference only. Consult a healthcare professional for interpretation of blood pressure measurements. Contact your physician if you have or suspect any medical problem. Do not change your medications without the advice of your physician or healthcare professional.

Color palette bar with grayscale and multicolor swatches, no text or symbols present

• This product is not suitable for people with arrhythmias. This device may have difficulty determining the proper blood pressure for individuals with irregular heartbeat, diabetes, poor circulation of blood, kidney problems or for users who have suffered from a stroke.
• Consult your physician before measuring blood pressure at the wrist if you have any of the following conditions: Severe hypertension, severe diabetes, severe arteriosclerosis, severe kidney disease or vascular disease that may compromise circulation.
• The pulse display is not suitable for checking the frequency of heart pacemakers.
• Electromagnetic interference: The device contains sensitive electronic components. Avoid strong electrical or electromagnetic fields in the direct vicinity of the device (e.g. mobile telephones, microwave ovens). These may lead to temporary impairment of measurement accuracy.
• Use blood pressure monitor only for its intended use.

Color palette bar with grayscale and multicolor swatches, no text or symbols present

• Do not wrap the cuff around body parts other than your wrist.
  • Not for use by or on persons under the age of 18.
• Use only 1.5V AAA alkaline batteries for power supply.

Blood pressure measurements determined with this device are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultatory method, within the limits prescribed by the American National Standard, Manual, electronic, or automated sphygmomanometers.

Color calibration bar with grayscale and color swatches, no text or symbols present

ABOUT BLOOD PRESSURE

What is Blood Pressure?

Blood pressure is the pressure exerted on the artery walls while blood flows through the arteries. The pressure measured when the heart contracts and sends blood out of the heart is systolic (highest) blood pressure. The pressure measured when the heart dilates with blood flowing back into the heart is called diastolic (lowest) blood pressure.

Why Measure Your Blood Pressure?

Among today's various health problems, those associated with high blood pressure are very common. High blood pressure dangerously correlates with cardiovascular diseases. Therefore, blood pressure monitoring is important for identifying those at risk.

Color palette bar with grayscale and multicolor swatches, no text or symbols present

BLOOD PRESSURE STANDARD

The table below is criteria for hypertension that is publicly available from the National Heart Lung and Blood Institute at the U.S. National Institutes of Health (NIH) (http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_Whatls.html). Users can compare their own blood pressure readings against these established criteria to determine if they may be potentially at increased risk.

This table is applicable to most adults aged 18 and older. Blood pressure tends to go up and down, even in people who normally don't have high readings. If your numbers stay above the “normal” range most of the time, you may be at increased risk and should consult your physician.

Category	Systolic (mmHg)		Diastolic (mmHg)
Normal Less than 120 And Less than 80
Prehypertension 120-139 Or 80-89
High Blood Pressure
Stage 1 140-159 Or 90-99
Stage 2 160 or higher Or 100 or higher

Although one can easily find where their own blood pressure readings fall on this table, this monitor comes equipped with a Risk Category Index that automatically compares each reading to this criteria and provides a helpful cue if your

Color palette bar with grayscale and multicolor swatches, no text or symbols present

reading falls into one of the stages that could potentially indicate increased risk. See page 25 for more information on this feature.

Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience to have access to the NIH information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

HOW THIS BLOOD PRESSURE MONITOR WORKS

This monitor uses innovative technology to detect your blood pressure. This technology enables the monitor to automatically inflate and deflate to the appropriate level for each individual. With one touch of a button, the cuff will automatically inflate to block the blood flow through your artery. Next, the deflation process starts.

Please note that any muscle movement during inflation or deflation will cause measurement error. When measurement is complete, the monitor will display your systolic pressure, diastolic pressure, and pulse readings.

Color calibration bar with grayscale and color swatches, no text or symbols present

The monitor automatically finds where your measurement results fall on the NIH's National Heart Lung and Blood Institute's table and provides a cue if your reading falls into one of the stages that could potentially indicate increased risk. See page 25 for more information on this feature.

The appearance of the Itron indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Refer to page 26 for more information on the Irregular Heartbeat Detector.

9

Color calibration bar with grayscale and color swatches, no text or symbols present

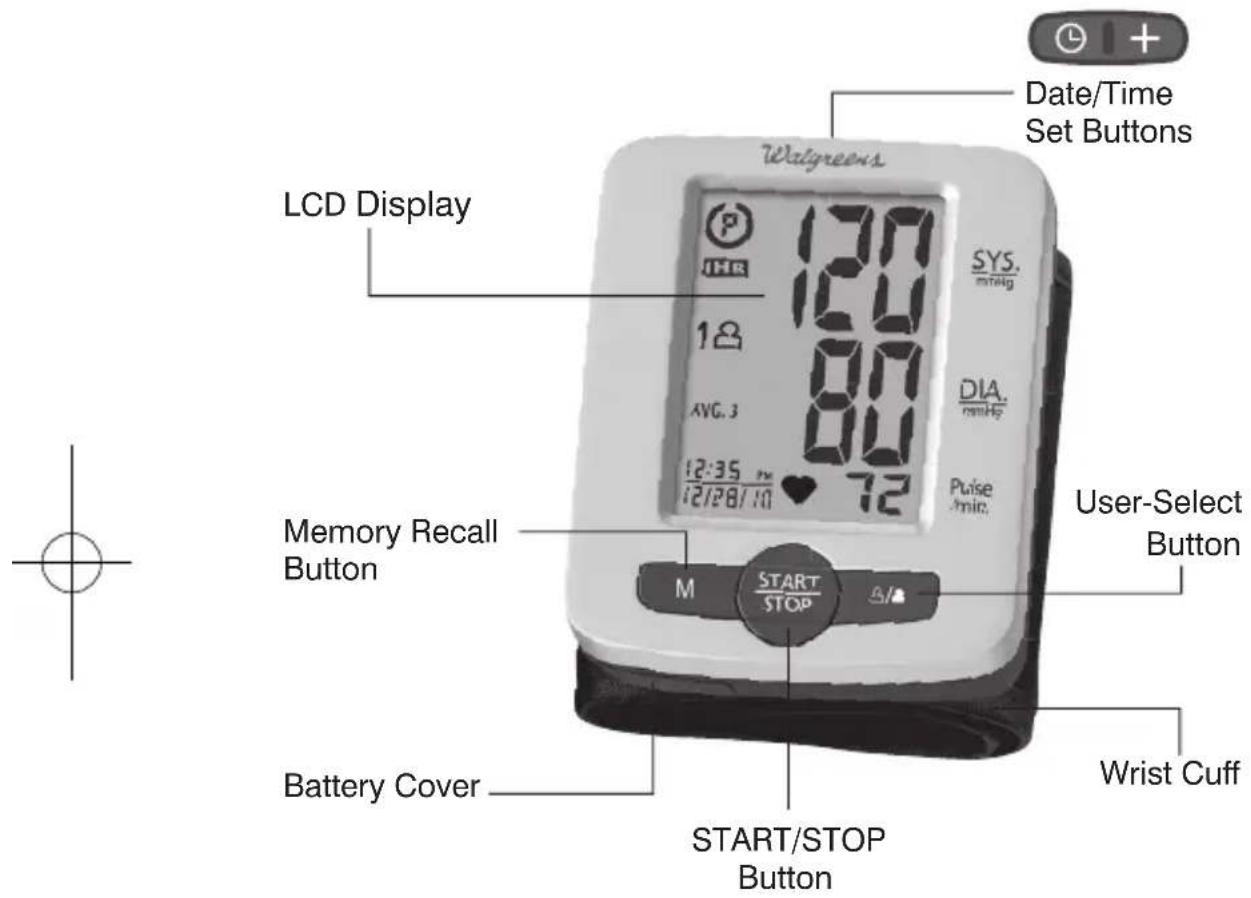

NAME/FUNCTION OF EACH PART

Accessories for unit :

2 "AAA" size, 1.5V alkaline batteries included in the carrying case with the unit.

10

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

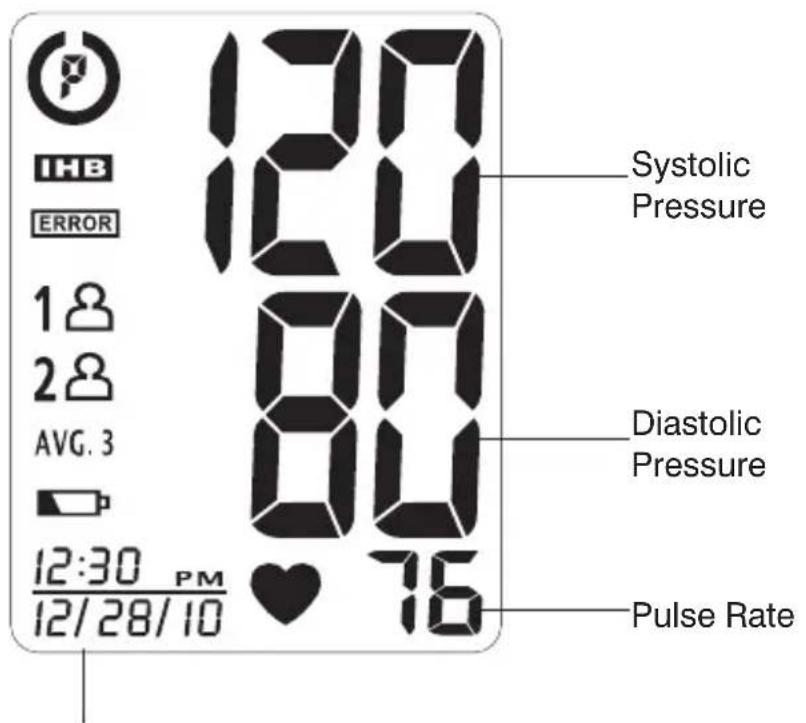

DISPLAY EXPLANATIONS

Date/Time Indicator

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Display Symbols:

1	User 1: Appears when the monitor is operated by User 1
2	User 2: Appears when the monitor is operated by User 2
	Weak Battery Symbol: Appears when batteries should be replaced
	Pulse Symbol: Shows the pulse rate per minute
IHB	Irregular Heartbeat Detector: Refer to page 26 for more information.

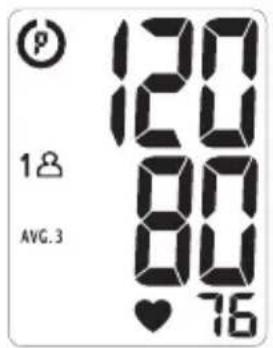

AVG. 3	Memory Average: Displays average of last 3 readings
	Risk Category Index: See page 25 for more information

If ERROR and any of the following letters and numbers appear in the area that systolic pressure should be displayed, an error has occurred with your reading. See Troubleshooting section of this manual for more information.

EE	Measurement Error: Measure again. Wrap the cuff correctly and keep wrist steady during measurement.
E1	Air Circuit Abnormality: Measure again.
E2	Pressure Exceeding 300 mmHg: Switch the unit off to clear, then measure again.
E3	Error Determining Measurement Data: Measure again.

Color palette bar with grayscale and multicolor swatches, no text or symbols present

INSTALLING BATTERIES

1. The battery cover is located along the bottom side of the monitor. Remove battery cover by pressing down and pulling away from the monitor.
2. Install batteries according to the polarity indications inside the compartment (as shown in figure 2). Battery Type: 2 Alkaline LR03 (AAA) size

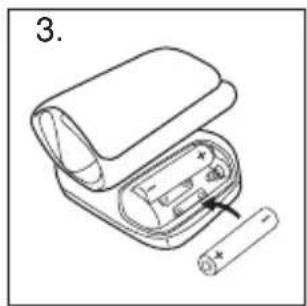

3. Insert the other battery, according to the polarity indications inside the compartment (as shown in figure 3).
4. Replace the cover by inserting it back into place.

Line drawing of a device with an open lid and internal casing, no text or symbols present

Line drawing of a battery pack with two batteries and an open casing, no text or symbols present

Line drawing of a battery pack with an open casing and a cylindrical battery, no text or symbols present

Line drawing of a medical device with an arrow indicating direction (no text or symbols)

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Replace the batteries if:

1. The weak battery symbol appears in the display.
2. Nothing appears in the display when the power is switched on.

As the supplied batteries are for test only, they may be discharged earlier than batteries you buy in stores. Replace all batteries at one time (as simultaneous set). Use only 1.5V AAA alkaline batteries. Remove batteries when unit is not in use for extended periods of time. Date and time will need to be reset if batteries are removed or replaced. Clean contacts on battery and in battery compartment with a soft dry cloth each time you install batteries.

Note: Batteries are hazardous waste. Do not dispose of them together with the household garbage.

Color calibration bar with grayscale and color swatches, no text or symbols present

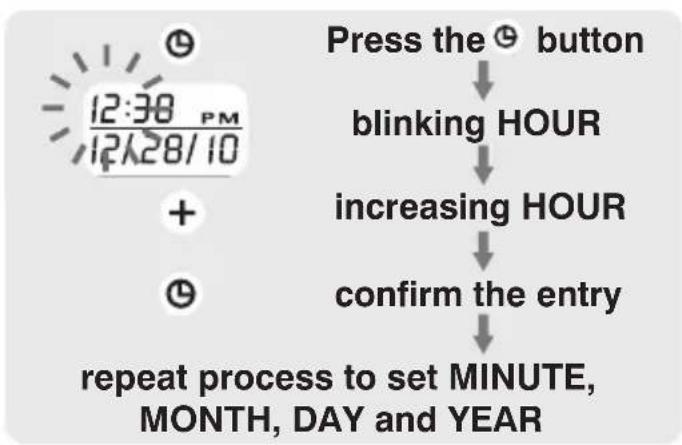

DATE & TIME SET PROCEDURE

1. To adjust the date/time, press the Set button ② located on the top of the monitor.
2. The display will show a blinking number showing the HOUR. Change the HOUR by pressing the + button. Each press will increase the number by one in a cycling manner. Press the Set button 📁 again to confirm the entry, and the screen will show a blinking number representing the MINUTE.
3. Change the MONTH, DAY and YEAR as described in Step 2 above, using the + button to change the numbers and the Set button ⏻ to confirm the entries.

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

APPLYING THE CUFF

1. Remove all watches, wrist jewelry, etc. prior to attaching the wrist monitor. Clothing sleeves should be rolled up and the cuff should be wrapped around bare skin for correct measurements.

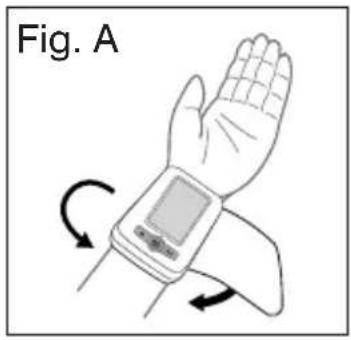

2. Apply cuff to left wrist with palm facing up as shown in Fig. A.

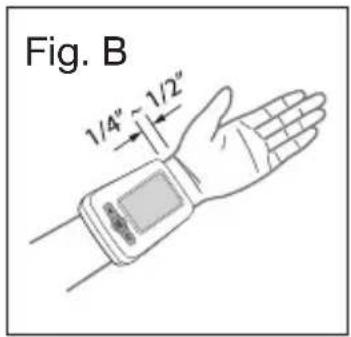

3. Make sure the edge of the cuff is about 1/4"\~1/2" (1 cm) from the palm as shown in Fig. B.

Color palette bar with grayscale and multicolor swatches, no text or symbols present

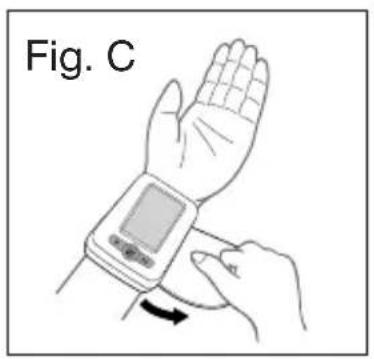

1. In order to insure accurate measurements, fasten the hook and loop strap securely around your wrist so there is no extra space between the cuff and the wrist as shown in Fig. C. If the cuff is not wrapped tight enough, the measurement values will not be accurate.

2. If your physician has diagnosed you with poor circulation in your left arm, place the cuff around your right wrist as shown in Fig. D.

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

CORRECT MEASUREMENT POSTURE

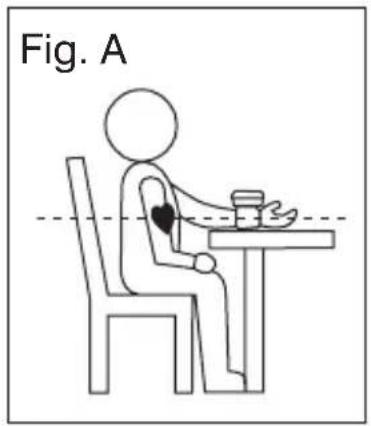

1. Place your elbow on a table so that the cuff is at the same level as your heart as shown in Fig. A. Relax your entire body, especially between your elbow and fingers.

Note: Your heart is located slightly below your armpit.

1. If the cuff is not at the same level as your heart or if you cannot keep your arm completely still throughout the reading, use a soft object such as a folded towel to support your arm as shown in Fig. B.

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

1. Turn your palm upwards.

2. Sit upright in a chair, and take 5-6 deep breaths.

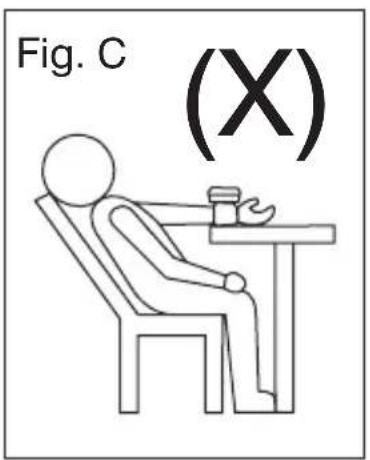

Avoid leaning back while the measurement is being taken as shown in Fig. C.

Color palette bar with grayscale and multicolor swatches, no text or symbols present

MEASUREMENT PROCEDURE

Important Notes:

• Position the monitor at the same level as your heart during measurement to ensure accurate readings.
• Blood pressure changes with every heartbeat and is in constant fluctuation throughout the day.
• Blood pressure measurement can be affected by the position of the user, his or her physiologic condition and other factors. For greatest accuracy, wait 1 hour after exercising, bathing, eating, drinking beverages with alcohol or caffeine, or smoking to measure blood pressure.
• Before a measurement, it is suggested that you sit quietly for 15 minutes as measurements taken during a relaxed state will have greater accuracy. You should not be physically tired or exhausted while taking a measurement.

Color palette bar with grayscale and multicolor swatches, no text or symbols present

• During the measurement, do not talk or move your arm or hand muscles.
  • See page 31 for additional notes regarding your blood pressure measurement.

If you are using this blood pressure monitor for the first time, please remove the protective film from the screen.

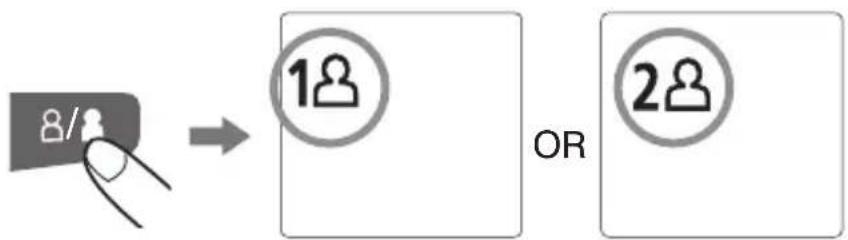

1. Press the User Select button to choose User 1 or User 2.

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

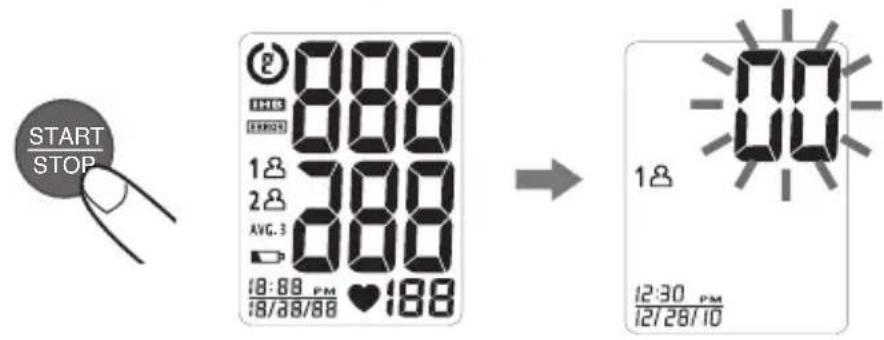

1. With the cuff wrapped around your wrist, press the START/STOP button. Do not inflate the cuff unless it is wrapped around your wrist. All digits will light up, checking the display functions. The checking procedure will be completed after about 3 seconds.

1. After all symbols disappear, the display will show "00". The monitor is "Ready to Measure" and will automatically inflate the cuff to begin measurement. The cuff will then begin deflating as measurement continues.

22

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

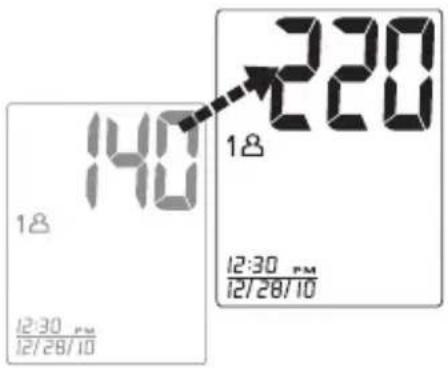

Note: The monitor will re-inflate automatically if the system detects that your body requires more pressure for measurement.

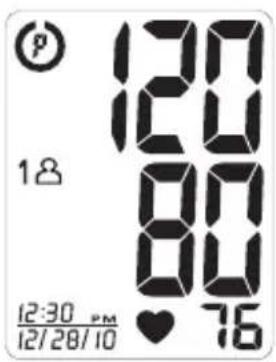

When the measurement is completed, the cuff will deflate entirely and systolic pressure, diastolic pressure and pulse will be shown simultaneously on the LCD screen. The measurement is then automatically stored into memory.

23

WGNBPW-520-manual.indd 23 2009/11/2 下午 4:17

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Note:

1. This monitor automatically turns off approximately 1 minute after last operation. You may also press the START/STOP button to turn the unit off.

2. To interrupt the measurement, you may press the START/STOP button (recommended), "M", User-Select or Date/Time Set (8/2/ 📋) buttons. The cuff will deflate immediately after.

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

RISK CATEGORY INDEX

This monitor comes equipped with a Risk Category Index that automatically compares each reading to criteria established by the U.S. National Institute of Health's (NIH) National Heart Lung and Blood Institute as described earlier in this manual, and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. No cue is shown if the reading falls in the normal range as defined by NIH. Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience to have access to the NIH information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

Stage 2 Hypertension

Prehypertension

Stage 1 Hypertension

Normal (No Symbol)

Color palette bar with grayscale and multicolor swatches, no text or symbols present

IRREGULAR HEARTBEAT DETECTOR (IHB)

The appearance of the 📋 indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Usually this is not a cause for concern. However, if the symbol appears often, we recommend you seek medical advice. Please note that the device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.

Movement, shaking or talking during the measurement can result in pulse irregularities that may cause the appearance of this icon. Therefore, it is of great importance to not move or talk during measurement.

26

Color palette bar with grayscale and multicolor swatches, no text or symbols present

IRREGULAR HEARTBEAT DETECTOR (IHB), CONTINUED

To determine the presence of an irregular heartbeat, the average of the heartbeat intervals is calculated with the first 3 normal effective heart beat values. It is important to note that the average is not a strict mathematical averaging of all recorded intervals. At least 3 beats with 25% or greater difference from the average heart beat interval will generate the iCB on the screen.

IMPORTANT INFORMATION:

This blood pressure monitor is not designed for use by people with arrhythmias nor for diagnosing or treating an arrhythmia problem. As a safeguard, we recommend that if you have arrhythmias such as atrial or ventricular premature beats and atrial fibrillation or any other special conditions you should check with your physician before using your blood pressure monitor.

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

RECALLING VALUES FROM MEMORY

This monitor can be used by two individuals. Each user can store up to 60 measurements.

1. Press the User-Select button.

1. Choose User 1 or User 2

1. Press the "M" button to access the memory.

28

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

1. The monitor will first display the calculated average applied to the last 3 memories ("AVG. 3").

1. Every new press of the "M" button will recall a previous reading. The latest reading will be recalled first.

29

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

CLEARING VALUES FROM MEMORY

1. Press the User-Select button to select User 1 or User 2.

1. Press and hold the Ⓗ and buttons at the same time while in memory recall mode and the data for the selected user will be erased automatically.

30

Color palette bar with grayscale and multicolor swatches, no text or symbols present

IMPORTANT NOTES REGARDING YOUR BLOOD PRESSURE MEASUREMENT

• Take your reading in a comfortable environment as measurements can be affected by hot or cold temperatures. Take your blood pressure at normal body temperature.
- Do not move or talk during measurement as this can elevate readings.
- Do not move or cross legs during measurement. Keep feet flat on floor.
- Do not touch cuff or monitor during measurement procedure.
- It is suggested that you take your measurements at the same time each day and use the same wrist for consistency.
- Users should wait a minimum of 5 minutes before taking additional measurements. More time may be necessary depending upon your physiology.

Color palette bar with grayscale and multicolor swatches, no text or symbols present

• The measurement results that users receive are for reference only. If users have any blood pressure concerns, please consult a physician.
• Once inflation reaches 300 mmHg, the unit will deflate automatically for safety reasons.
  • This product is not suitable for people with arrhythmias.
• This device may have difficulty determining the proper blood pressure for users with irregular heartbeat, diabetes, poor circulation of blood, kidney problems, or for users who have suffered a stroke.

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

CARE, MAINTENANCE & CLEANING

1. Clean the blood pressure monitor body and cuff carefully with a slightly damp, soft cloth. Do not press. Do not wash cuff or use chemical cleaner on it. Never use thinner, alcohol or petrol (gasoline) as cleaner.
2. Leaky batteries can damage the unit. Remove the batteries when the unit will not be used for a long time.
3. If the unit is stored near freezing, allow it to acclimate to room temperature before use.
4. This blood pressure monitor is not field serviceable. You should not use any tool to open the device nor should you attempt to adjust anything inside the device. If you have any problems with this device, please contact HoMedics Consumer Relations (contact information on warranty page).
5. Do not immerse the unit in water as this will result in damage to the unit.
6. Do not subject the monitor and cuff to extreme temperatures, humidity, moisture, and direct sunlight. Protect from dust.

Color palette bar with grayscale and multicolor swatches, no text or symbols present

1. Do not fold the cuff tightly.

2. Do not disassemble the monitor or cuff. If in need of repair, refer to the warranty section of this manual.

3. Do not subject the monitor to extreme shocks (do not drop on floor).

4. Do not inflate the cuff unless wrapped around wrist.

5. Do not wrap the cuff around body parts other than your wrist.

6. Do not drop or insert any object into any opening.

7. This monitor may not meet its performance specifications if stored or used outside of these temperature and humidity ranges:

• Storage Environment

Temperature:

-4^ F 158^ F

(-20^ 70^)

Humidity:

Less than 90% RH

Operation Environment

Temperature:

50^ F 104^ F

(10°C \~40°C)

Humidity:

15 \~ 90% RH

Color palette bar with grayscale and multicolor swatches, no text or symbols present

POTENTIAL FOR ELECTROMAGNETIC INTERFERENCE

To avoid inaccurate results caused by electromagnetic interference between electrical and electronic equipment, do not use the device near a cell phone or microwave oven.

35

WGNBPW-520-manual.indd 35 2009/11/2 下午 4:17

Color palette bar with grayscale and multicolor swatches, no text or symbols present

TROUBLESHOOTING

If any abnormality arises during use, please check the following points:

SYMPTOMS	POSSIBLE CAUSES	CORRECTION
Unit does not turn on when the START/STOP button is pushed.	Batteries have run down.	Replace them with two new AAA alkaline batteries.
	Battery polarities have been positioned incorrectly.	Re-insert the batteries in the correct positions.
EE measurement error symbol shown on display or the blood pressure value is displayed excessively low (or high).	Cuff has been placed incorrectly.	Wrap the cuff properly so that it is positioned correctly.
	Did you talk or move during measurement?	Measure again.Keep wrist steady during measurement.
	Shaking of the wrist with the cuff on.
E1 error symbol shown on display	Air circuit abnormality.	Measure again.
E2 error symbol shown on display	Inflation pressure exceeding 300 mmHg	Switch the unit off, then measure again.
E3 error symbol shown on display	Error determining measurement data.	Measure again.

Note: If the unit still does not work, contact HoMedics Consumer Relations. Under no circumstance should you disassemble or attempt to repair the unit by yourself. Contact information for HoMedics Consumer Relations Department can be found on the warranty page (See page 39).

Color calibration bar with grayscale and color swatches, no text or symbols present

SPECIFICATIONS

Power Source:	Two 1.5V DC (AAA) Alkaline batteries
Measurement Method:	Oscillometric
Measurement Range:	Pressure: 40~280 millimeters Mercury (mmHg)Pulse: 40~199 beats/minute
Accuracy:	Pressure: ±3 mmHgPulse: ±5% of reading
Pressure Sensor:	Semi-conductor
Inflation:	Pump driven
Deflation:	Automatic Pressure release valve
Memory Capacity:	60 memories for each User (120 total)
Auto-shut-off:	1 minute after last button operation
Operation Environment:	Temperature: 50°F~104°F (10°C~40°C)Humidity: 15% ~ 90% RH
Storage Environment:	Temperature: -4°F~158°F (-20°C~70°C)Humidity: Less than 90% RH

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

SPECIFICATIONS (continued)

Weight:	0.22 lbs (100.7 g) (without batteries)
Wrist Circumference:	5.3” - 7.7” (13.5cm - 19.5cm)
Accessories:	2 AAA alkaline batteries, instruction manual, hard plastic storage case
Dimensions:	3.23”(L) x 2.68”(W) x 1.18”(H)82mm(L) x 68mm(W) x 30mm(H)
	Internally Powered equipmentType BF EquipmentIPx0-No special protection against the ingress of water.Not suitable for use in presence of flammable anesthetic mixture wth air, oxygen or nitrous oxide. Continuous operation with short-time loading.

Note: These specifications are subject to change without notice.

Made exclusively for

Walgreens

For service or repair, do not return this unit to the retailer. Contact HoMedics Consumer Relations at:

Mail:

HoMedics, Inc.

Service Center Dept. 168

3000 Pontiac Trail

Commerce Township, MI 48390

Email:

cservice@

homedics.com

Phone:

1-800-466-3342

Business Hours:

8:30am-5pm ET

Monday-Friday

Distributed by

HOMEDICS

HoMedics, Inc. 3000 Pontiac Trail Commerce Township, MI 48390

Printed in China

LIMITED FIVE YEAR WARRANTY

HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of five years from the date of original purchase, except as noted below. HoMedics warrants that its products will be free of defects in material and workmanship under normal use and service. This blood pressure monitor meets the simulated measurement cycles test requirement per EN1060-3, part 8.10. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your HoMedics product, mail the product and your dated sales receipt (as proof of purchase), postpaid, to the following address:

HoMedics Consumer Relations

Service Center Dept. 168

3000 Pontiac Trail

Commerce Township, MI 48390

No COD's will be accepted.

HoMedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate HoMedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturers recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of HoMedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

5year limited warranty

Made exclusively for

Walgreens

For service or repair, do not return this unit to the retailer. Contact HoMedics Consumer Relations at:

Mail:

HoMedics, Inc.

Service Center Dept. 168

3000 Pontiac Trail

Commerce Township,

MI 48390

Email:

[e-mail]

Phone:

1-800-466-3342

Business Hours:

8:30am-5pm ET

Monday-Friday

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on Internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of HoMedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from country to country. Because of individual country regulations, some of the above limitations and exclusions may not apply to you.

Distributed by

HOMEDICS

HoMedics, Inc.

3000 Pontiac Trail

Commerce Township,

MI 48390

©2009 HoMedics, Inc. and its affiliated companies, all rights reserved. HoMedics is a registered trademark of HoMedics, Inc. and its affiliated companies. All rights reserved.

IB-WGNBPW520

P/N: 323101181 VER: 001

Printed in China

5year limited warranty

WGNBPW-520-manual.indd 41 2009/11/2 下午 4:17

Walgreens

Color palette bar with grayscale and multicolor swatches, no text or symbols present

ÍNDICE

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color palette bar with grayscale and RGB swatches, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color palette bar with grayscale and multicolor sections, no text or symbols present

Illustration of a closed medical device with an arrow pointing to a smaller internal component (no text or symbols)

Line drawing of a device with battery pack and cylindrical components (no text or symbols)

Line drawing of a battery pack with an open casing and a cylindrical battery inserted (no text or symbols)

Line drawing of a medical device with an arrow pointing to the internal part (no text or symbols)

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color palette bar with grayscale gradient and a central crosshair (no text or symbols)

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

ÍNDICE DE CATEGORÍA DE RIESGO

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Pure geometric lines forming an L-shape with no text or symbols

69

Color calibration bar with grayscale and color swatches, no text or symbols present

CÓMO RECUPERAR LOS VALORES DE LA MEMORIA

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

CÓMO BORRAR LOS VALORES DE LA MEMORIA

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

CUIDADO, MANTENIMIENTO Y LIMPIEZA

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

77

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

ESPECIFICACIONES

HoMedics Consumer Relations

Service Center Dept. 168

3000 Pontiac Trail

Commerce Township, MI 48390

Color calibration bar with grayscale and color swatches, no text or symbols present

IB-WGNBPW520

P/N: 323101181 VER: 001
