LA-MFT-CEF - Lens Adapter Vello - Free user manual and instructions

Product Type	Lens Adapter
Compatibility	Canon EF/EF-S lenses to Micro Four Thirds (MFT) camera bodies
Material	Metal and high-grade plastic
Dimensions (Approx.)	2.5 in (63.5 mm) diameter x 0.8 in (20 mm) thickness
Weight (Approx.)	1.5 oz (42 g)
Camera Mount	Micro Four Thirds
Lens Mount	Canon EF / EF-S
Infinity Focus	Retained
Aperture Control	Manual (stop-down metering)
Electronic Communication	None (manual exposure required)
Alignment Notch	Yes (red for EF, white for EF-S)
Release Pin	Yes
Camera Setting Required	Enable "Shoot without Lens" on MFT cameras
Care	Clean with a soft, dry cloth
Warranty	1-year limited warranty
Brand	Vello (Gradus Group)
Model Number	LA-MFT-CEF

Frequently Asked Questions - LA-MFT-CEF Vello

How do I mount the Vello LA-MFT-CEF lens adapter?

Line up the alignment notch on the adapter with the lens's alignment dot (red for EF, white for EF-S). Rotate the adapter clockwise until it locks onto the lens. Then line up the dots on the adapter and camera body, and rotate the entire assembly clockwise until it locks.

How do I remove the lens adapter from the camera?

Press the lens release button on the camera, then rotate the lens assembly counterclockwise to release the lens from the camera. Then lift and hold the release pin on the adapter and rotate the adapter counterclockwise to remove it from the lens.

Will autofocus work with this adapter?

No. The adapter does not transmit electronic signals, so autofocus, autoexposure, and other electronic functions will not work. You must focus manually and set exposure manually or use aperture priority (stop-down) metering.

Does the lens retain infinity focus?

Yes, infinity focus is retained when using this adapter.

Which lenses are compatible with the LA-MFT-CEF adapter?

The adapter is designed for Canon EF and EF-S lenses. It mounts them onto Micro Four Thirds (MFT) camera bodies.

Do I need to change any camera settings to use this adapter?

Yes, on MFT cameras you must enable the 'Shoot without Lens' function in the menu. For Sony E-mount (NEX) cameras, enable 'Release without Lens'.

Will the adapter work with Sony PXW-FS7 camcorder?

No, the manual specifically states that the LA-NEX-CEF (and likely similar models) will not work with the Sony PXW-FS7 XDCAM Camcorder.

What materials is the adapter made of?

The adapter is constructed from metal and high-grade plastic for a secure yet easy-to-remove fit.

How should I clean the lens adapter?

Clean the adapter with a soft, dry cloth. Avoid using liquids or abrasive materials that could damage the surfaces.

What is the warranty on this Vello lens adapter?

The Vello LA-MFT-CEF comes with a one-year limited warranty against defects in materials and workmanship under normal consumer use.

USER MANUAL LA-MFT-CEF Vello

Close-up of a black VELLO brand helmet with visible branding and mounting points (no text beyond brand name)

INTRODUCTION

Thank you for choosing a Vello Lens Adapter. Vello lens adapters allow you to use lenses from manufacturers other than the maker of your camera body, so you can mount a lens on a camera body with which it would otherwise be incompatible. Vello Lens Adapters fit securely to the lens, but not so tightly that they are difficult to remove. Please follow these instructions to mount and remove your Vello Lens Adapter.

Although the lens will fit physically, automatic diaphragm (AE metering), and other functions dependent on communication between the camera body and lens, will be disrupted by a lens adapter. You will need to set exposures manually or meter in aperture priority (stop-down) mode. If the lens does not have a manual aperture collar, the aperture will be stopped to its largest f/stop. Focusing to infinity is retained.

Note: the LA-NEX-CEF will not work with the Sony PXW-FS7 XDCAM Camcorder.

All images are for illustrative purposes only.

TO MOUNT THE LENS ADAPTER

Note: Place the lens on a stable, flat surface when mounting or removing your Vello Lens Adapter.

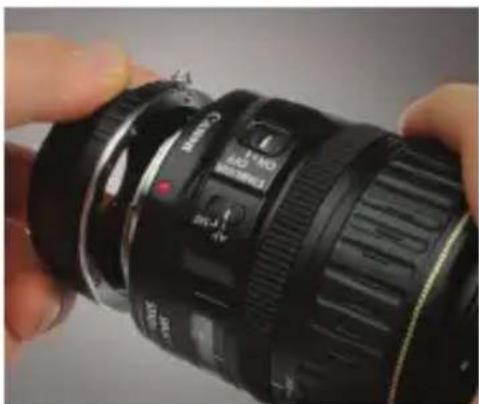

Close-up of a black Canon EF-190 DSLR camera lens held in hand, showing focal point and aperture details (no text or symbols visible on the lens itself)

1. Line up the alignment notch on the lens adapter with the alignment marking on the lens. Canon EF lenses will have a red alignment dot, and Canon EF-S lenses will have a white alignment dot.

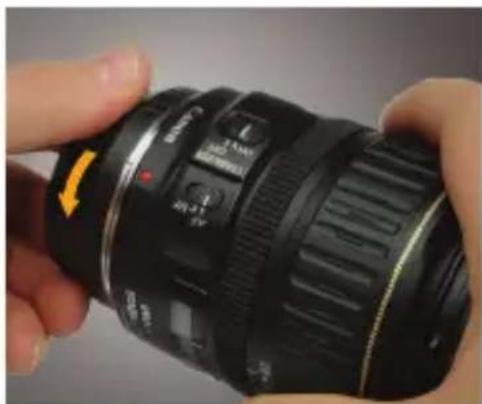

Close-up of a black NF-300 camera lens being held, with no visible text or symbols on the lens itself.

1. Rotate the lens adapter clockwise until it locks into place.

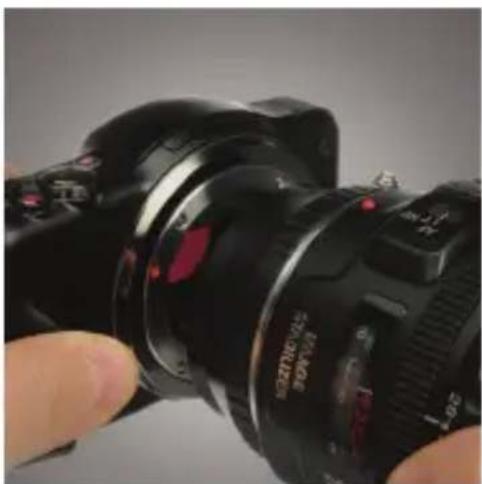

Close-up of a black DSLR camera with lens and adjustment knobs, held by a finger (no visible text or symbols on the device itself)

1. Line up the alignment dots on the lens adapter and the camera.

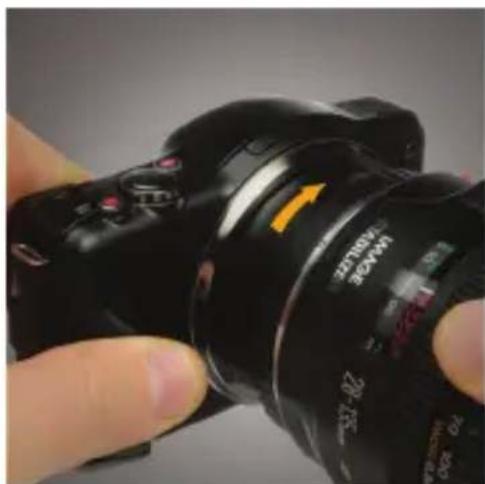

Close-up of a hand holding a black DSLR camera with a yellow directional arrow indicating rotation (no text or symbols on the device itself)

1. Rotate the lens assembly clockwise until it locks into place.

TO REMOVE THE LENS ADAPTER

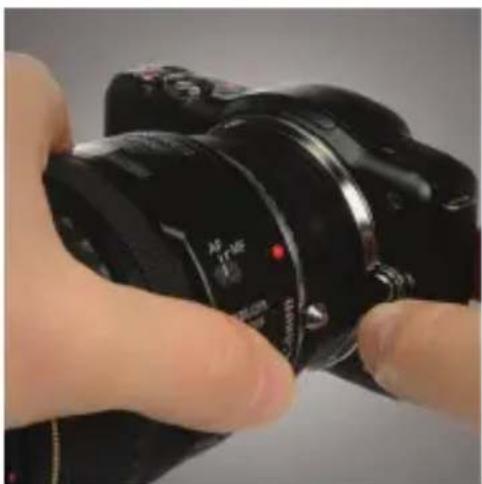

Close-up of a hand holding a black DSLR camera with a red indicator light (no visible text or symbols)

1. Press the lens release button on the camera.

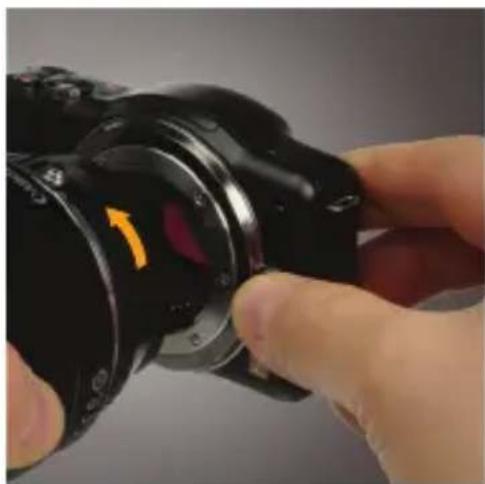

Close-up of a hand holding a black DSLR camera with a yellow arrow indicating rotation (no text or symbols visible)

1. Rotate the lens assembly counterclockwise to release.

6

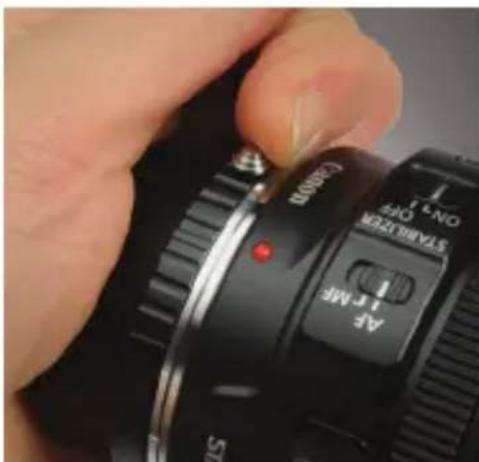

Close-up of a hand holding a DSLR camera dial with settings like 'STAMUZER ON-T OFF' and 'AP 1-F-MS', no readable text beyond labels.

1. Lift and hold the release pin on the lens adapter.

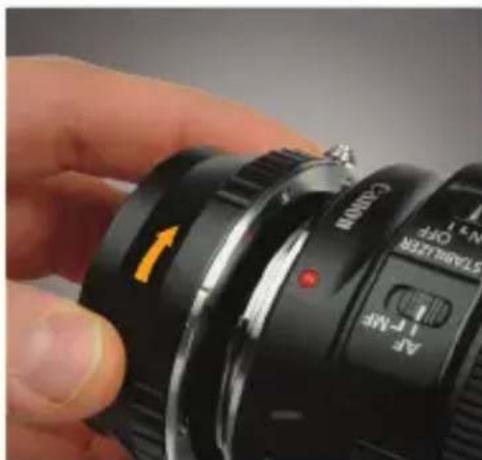

Close-up of a hand holding a Canon EF 1-F-MF lens, showing the camera's left-hand rule and control buttons (no readable text beyond labels)

1. Rotate the lens adapter counterclockwise to release.

For Sony E-mount (NEX) cameras, enable the “Release without Lens” function in the menu of the camera. For Micro Four-Thirds (MFT) cameras, enable the “Shoot without Lens” function in the menu of the camera.

ONE-YEAR LIMITED WARRANTY

This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state. To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.vellogear.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

VELLO is a registered trademark of the Gradus Group.

© 2015 Gradus Group LLC. All Rights Reserved.
