Product Type	Lens Adapter
Brand	Vello
Model	LAE-CR-CEF
Compatible Lenses	Canon EF and EF-S lenses
Compatible Cameras	Canon EOS R series (RF mount)
Front Mount	Canon EF/EF-S lens mount
Rear Mount	Canon RF mount
Dimensions (H × W × D)	5 × 2.8 × 1.6 in (8.8 × 7.1 × 4 cm) without caps
Weight	Approximately 3.2 oz (90 g) without caps
Autofocus (AF) Support	Yes
Autoexposure (AE) Support	Yes
Metadata Transfer	Yes
Stray Light Coating	Yes (interior coated to reduce reflections)
Tripod Foot	Removable, compatible with most ball heads
Package Contents	Lens Adapter, Front Cap, Rear Cap, Removable Tripod Foot, User Manual
Warranty	One-year limited warranty
Cleaning Instructions	Wipe with a soft, dry cloth; do not use solvents
Safety Precautions	Avoid disassembly, dust, water, and flammable substances

Frequently Asked Questions - LAE-CR-CEF Vello

Is the Vello LAE-CR-CEF compatible with Canon EF-S lenses?

Yes, the adapter supports both Canon EF and EF-S lenses on Canon RF mount cameras.

Does the adapter support autofocus and autoexposure?

Yes, it maintains autofocus (AF) and autoexposure (AE) functions, as well as transferring lens metadata.

How do I mount the lens adapter to my camera?

Turn the camera off, align the red dots on the adapter and camera, insert the adapter, and rotate clockwise until it locks. Then mount the lens onto the adapter similarly.

Can I use the adapter with a tripod?

Yes, the adapter includes a removable tripod foot that works with most ball heads. For lenses with a built-in tripod collar, use the lens collar instead.

How do I remove the lens adapter from the camera?

Turn the camera off, press and hold the lens release button, rotate the adapter counterclockwise, and carefully detach it. Reattach caps for storage.

What should I do if the adapter is not focusing correctly?

Ensure the adapter and lens are properly mounted and locked. Check that the camera and lens contacts are clean. If issues persist, consult your camera's manual or contact Vello support.

Can I clean the adapter with alcohol or solvents?

No, use only a soft, dry cloth to clean the adapter. Solvents like benzene or alcohol may damage the coating.

Does the adapter work with all Canon RF mount cameras?

The adapter is designed for Canon EOS R series cameras with RF mount, such as the EOS R, EOS RP, etc.

What is the warranty period?

The Vello LAE-CR-CEF comes with a one-year limited warranty against defects in materials and workmanship.

Can I use third-party EF lenses with this adapter?

The adapter is officially compatible with Canon EF and EF-S lenses. Third-party lenses may work but compatibility is not guaranteed; test with your specific lens.

USER MANUAL LAE-CR-CEF Vello

Canon EF/EF-S Lens to

Canon RF Mount

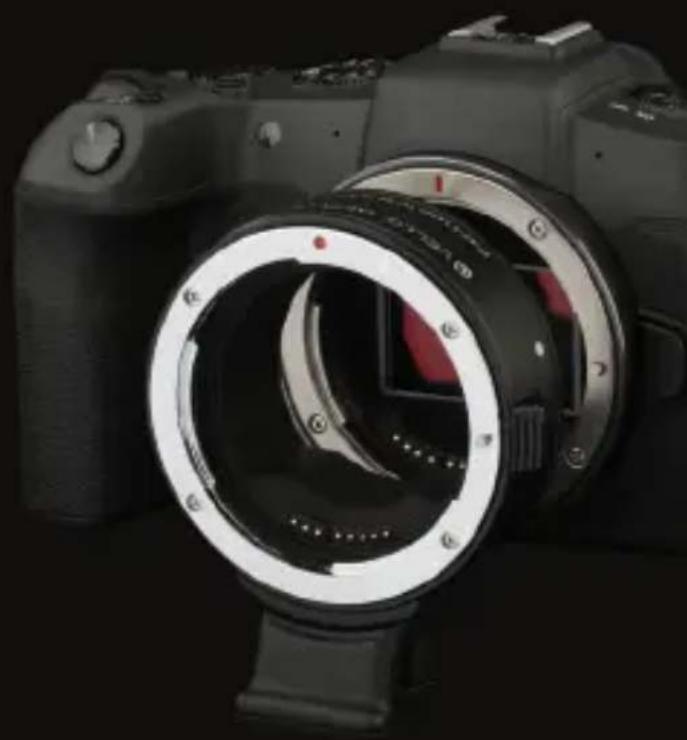

Close-up of a black DSLR camera with a circular lens and red adjustment knobs (no visible text or symbols)

VELLO

THANK YOU FOR CHOOSING VELLO

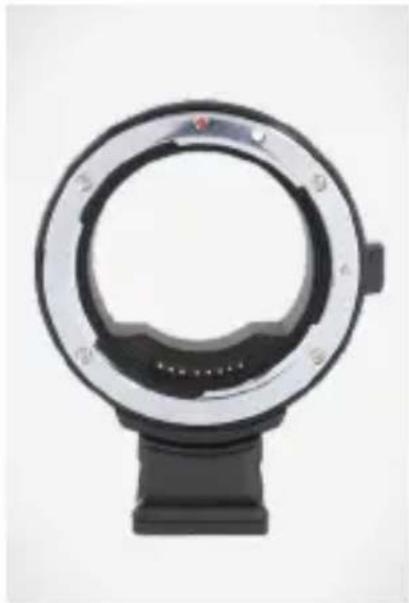

This Vello Auto Lens Adapter is for attaching Canon EF and EF-S lenses to a Canon RF mount. It maintains autoexposure (AE) and autofocus (AF), as well as delivering metadata for your pictures.

The inside of the adapter is coated to reduce any stray reflections and maximize picture quality. The tripod foot is detachable and will work with most brands of ball heads.

Close-up of a black circular mechanical component with mounting base and central ring (no visible text or symbols)

PRECAUTIONS

• Do not attempt to disassemble or repair the equipment—doing so will void the warranty, and Vello will not responsible for any damage.
• Avoid sandy or dusty environments when using this adapter.

• Handle the adapter with care—don't drop it, and avoid bumps and shocks.

• Clean the adapter by wiping it with a soft, dry cloth.

• Do not use solvents such as benzene, alcohol, or detergents to clean the adapter.
• Be sure to read the operating instructions for your digital camera.

• Keep this unit away from children.

• Keep this unit away from water and flammable gases or liquids.

• Handle the unit with care.
• Please read and follow these instructions, and keep this manual in a safe place.
  • All images are for illustrative purposes only.

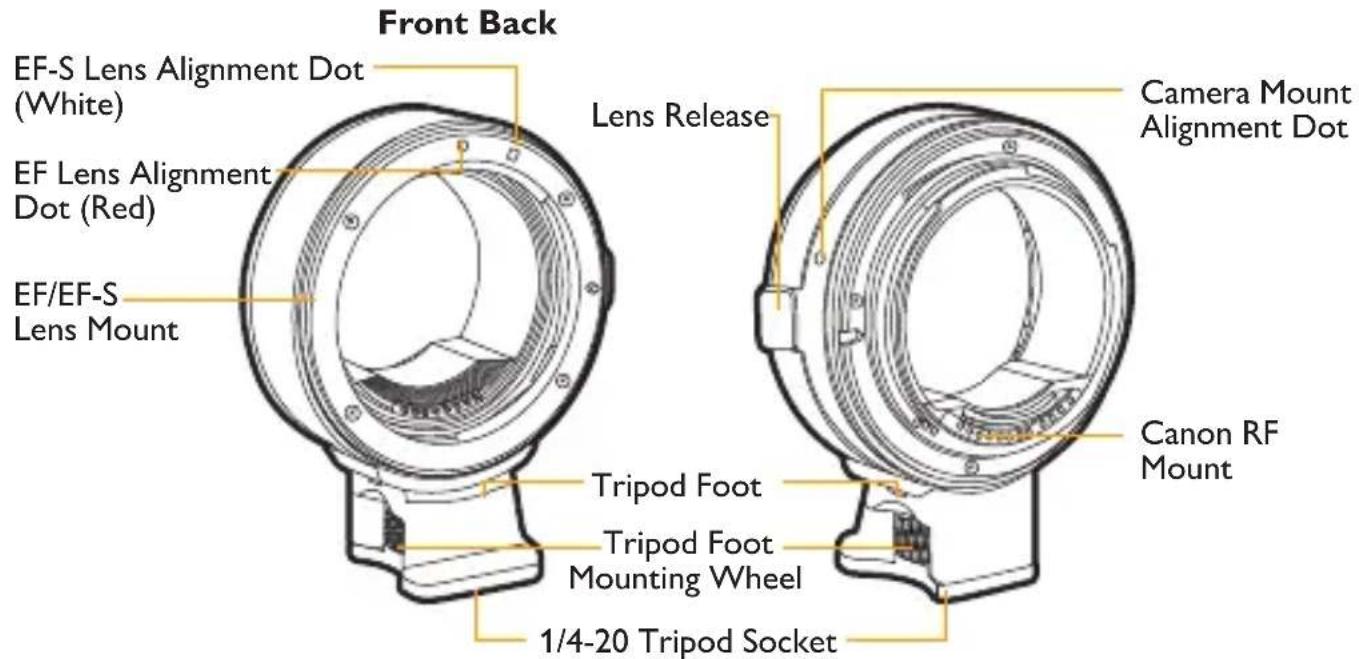

OVERVIEW

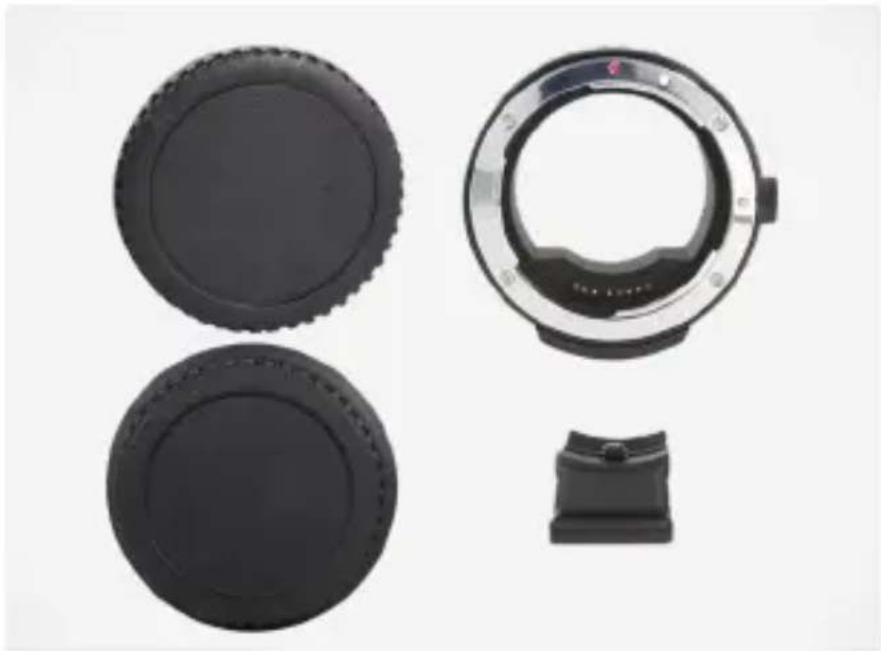

CONTENTS

• Vello LAE-CR-CEF Lens Adapter for Canon EF/EF-S lens to Canon RF mount
- Front and Rear Caps
- Removable Tripod Foot
- User Manual

Four black circular components with textured caps, one showing a camera lens and the other a small bracket (no text or symbols visible)

MOUNTING THE LENS ADAPTER

Note: Place the lens and camera on a stable, flat surface when mounting or removing the lens adapter.

1. Turn the camera's power off.
2. Remove all caps before mounting.

Close-up of a hand holding a black DSLR camera lens, showing the aperture and grip (no text or symbols visible)

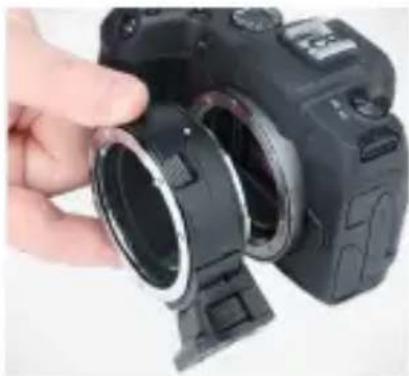

1. Line up the alignment dots on the lens adapter and the camera.

2. Carefully insert the lens adapter into the camera, and rotate the adapter clockwise until it locks into place.

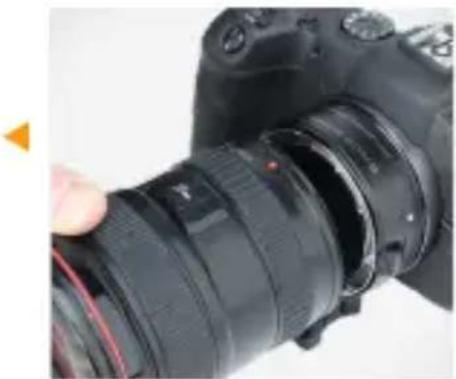

3. Line up the alignment dot on the lens with the alignment dot on the lens adapter.

4. Carefully insert the lens into the lens adapter, and rotate the lens clockwise until it locks into place.

Close-up of a black DSLR camera with visible lens and adjustment knobs (no text or symbols)

REMOVING THE LENS ADAPTER

1. Turn the camera's power off.

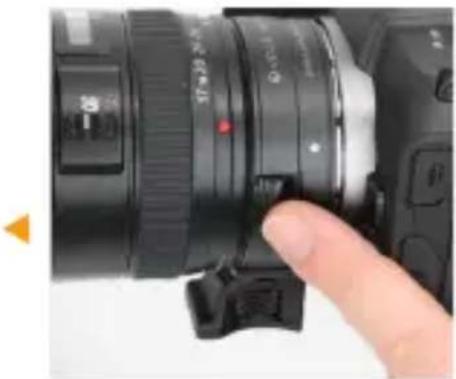

2. Press and hold the release pin on the lens adapter.

Close-up of a black DSLR camera with a finger pointing to the lens (no visible text or symbols)

1. Rotate the lens counterclockwise to release, and carefully detach the lens from the lens adapter.

2. Reattach the front lens cap to the lens adapter.

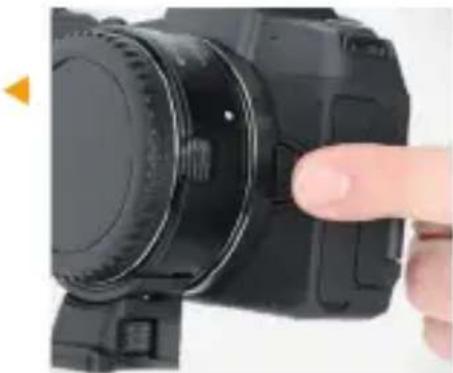

3. Press and hold the lens release button on the camera.

4. Rotate the lens adapter counterclockwise to release, and carefully detach the lens adapter from the camera.

Close-up of a black DSLR camera with a finger pointing to the lens (no visible text or symbols)

1. Reattach the back lens cap to the lens adapter.

REMOVING THE TRIPOD FOOT

To remove the tripod foot, rotate the mounting wheel counterclockwise until the foot is loose enough to remove from the lens adapter.

Close-up of hands holding a black mechanical component (no visible text or symbols)

Note: If your lens has a built-in tripod collar, use the collar on the lens to mount the assembly to the tripod.

SPECIFICATIONS

Compatible Lenses	EF and EF-S
Compatible Cameras	n EOS R
Front Mount
Rear Mount
Tripod Mount
Dimensions (H × W × D)	5 × 2.8 × 1.6 in. (8.8 × 7.1 × 4 cm) without protective caps
Weight	out protective caps

One-Year Limited Warranty

This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.vellogear.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

VELLO is a registered trademark of the Gradus Group.

© 2021 Gradus Group LLC. All Rights Reserved.
