Product Type	Lens Mount Adapter
Brand	Vello
Model	LAE-SE-NFV5
Compatible Lens Mount	Nikon F-mount (G-type compatible)
Compatible Camera Mount	Sony E-mount (Full-frame and APS-C)
Dimensions (Diameter x Length)	69 mm x 26 mm
Weight	115 g
Material	Brass mount rings with aluminum alloy body
Color	Black
Aperture Control	Manual aperture ring with click stops at 1/3 steps; allows control of G-type lenses
Infinity Focus	Yes, maintains infinity focus on compatible lenses
Autofocus	No (manual focusing only)
Stabilization	No lens stabilization; uses camera body stabilization if available
Electrical Contacts	No (no electronic communication)
Cleaning	Use a soft, dry cloth to wipe exterior; avoid solvents or abrasive cleaners
Storage	Keep in a cool, dry place; use lens caps when not in use
Safety Note	Ensure adapter is locked securely before mounting; do not force rotation
Spare Parts	Not available separately; replace entire adapter if damaged
Warranty	1-year limited warranty
Included Accessories	Adapter body, front and rear lens caps

Frequently Asked Questions - LAE-SE-NFV5 Vello

What cameras and lenses are compatible with the Vello LAE-SE-NFV5 adapter?

The adapter is designed to mount Nikon F-mount lenses (including G-type) onto Sony E-mount cameras (full-frame and APS-C). It supports lenses with a mechanical aperture ring and manual focus.

Does this adapter support autofocus?

No, the LAE-SE-NFV5 is a manual-only adapter. It does not have electrical contacts, so autofocus and electronic aperture control are not supported. You must focus manually and adjust the aperture using the lens ring.

Can I control the aperture of G-type Nikon lenses?

Yes, the adapter includes a manual aperture ring that allows you to set the aperture on G-type lenses (which lack a physical ring). The ring has click stops at 1/3 steps for precise control.

Will image stabilization work?

The adapter does not transmit communication, so lens-based stabilization (VR) will not function. However, if your Sony camera has in-body stabilization (IBIS), you can use it manually by entering the lens focal length in the camera menu.

Does the adapter maintain infinity focus?

Yes, the adapter is designed to maintain infinity focus with most Nikon F lenses. However, some adapted lenses may have slight focus shifts due to tolerance variations.

How do I mount and remove the adapter?

To mount, align the red dot on the adapter with the camera mount index, then rotate gently until it clicks. To remove, press the release button and rotate counterclockwise. Ensure the lens is properly locked to the adapter before use.

Can I use this adapter with Nikon DX (APS-C) lenses?

Yes, DX lenses work on both APS-C and full-frame Sony E-mount cameras. On a full-frame camera, the lens may vignette; you can use the camera's crop mode to avoid it.

How should I clean and maintain the adapter?

Use a soft, dry cloth to wipe the exterior. Avoid liquids or abrasive materials. Store in a cool, dry place with caps on to prevent dust. Check for any debris on the mount surfaces before each use.

What is the weight and build quality of the adapter?

The adapter weighs approximately 115 g and features brass mount rings with an aluminum alloy body for durability and smooth rotation.

Does the Vello LAE-SE-NFV5 come with a warranty?

Yes, Vello provides a 1-year limited warranty against defects in materials and workmanship. Keep your receipt as proof of purchase.

USER MANUAL LAE-SE-NFV5 Vello

Nikon F-Mount to Sony E-mount Camera

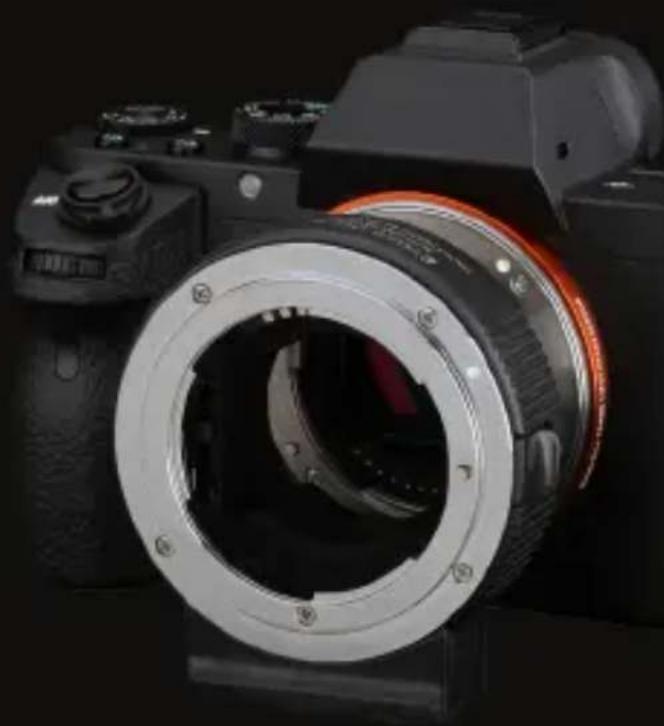

Close-up of a black DSLR camera with visible lens and mounting bracket (no text or symbols)

VELLO

THANK YOU FOR CHOOSING VELLO

The Vello LAE-SE-NFV5 Auto Lens Adapter is designed to attach Nikon F-Mount lenses to Sony's full-frame and APS-C E-mount cameras. For Sony cameras that use Focal Plane Phase Detection AF, the adapter offers support of autofocus, AE, aperture control, and Exif data transfer functionality with select Nikon G-type

and E-type (AF) lenses. For other Sony E-mount cameras, the adapter supports AE, aperture control, and Exif data transfer functionality with select Nikon lenses. Nikon prime, telephoto, or wide-angle lenses can now be used with Sony's mirrorless E-mount camera bodies, and the settings can be adjusted from the camera.

The adapter is constructed of durable and lightweight metal, and the inside has a matte finish coating to reduce internal reflections. This finish ensures that the light coming through the lens does not flare and ruin your exposure.

CONTENTSCOMPATI

Please reference the lens compatibility chart on our website www.vellogear.com for a full list of tested cameras and lenses. We will conduct future lens testing and post upgraded firmware to our website.

Sony cameras with Focal Plane Phase Detection AF: Support of AF, AE, aperture control, and Exif data with select Nikon

G-type and E-type (AF) lenses. Select Nikon D-type lenses support AE, aperture control, and Exif data.

Select Sony E-mount cameras without Focal Plane Phase Detection AF: Support of AE, aperture control, and Exif data with select Nikon G-type, E-type (AF), and D-type lenses.

• Vello LAE-SE-NFV5 Auto Lens Adapter for Nikon F-Mount to Sony E-mount Camera

- Front and Rear Caps

- User Manual

PRECAUTIONS

• Avoid sandy or dusty environments when using this adapter.
• Clean the adapter by wiping it with a soft, dry cloth.
• Keep this unit away from children.

• Be sure to read the operating instructions for your digital camera.

• Do not use solvents such as benzene, alcohol, or detergents to clean the adapter.

• Handle the unit with care.
• Keep this unit away from water and flammable gases or liquids.

• Use only parts provided by the manufacturer.

• Do not attempt to disassemble or repair the equipment—doing so will void the warranty, and Vello will not be responsible for any damage.

• Please read and follow these instructions, and keep this manual in a safe place.
  • Images are for illustrative purposes only.

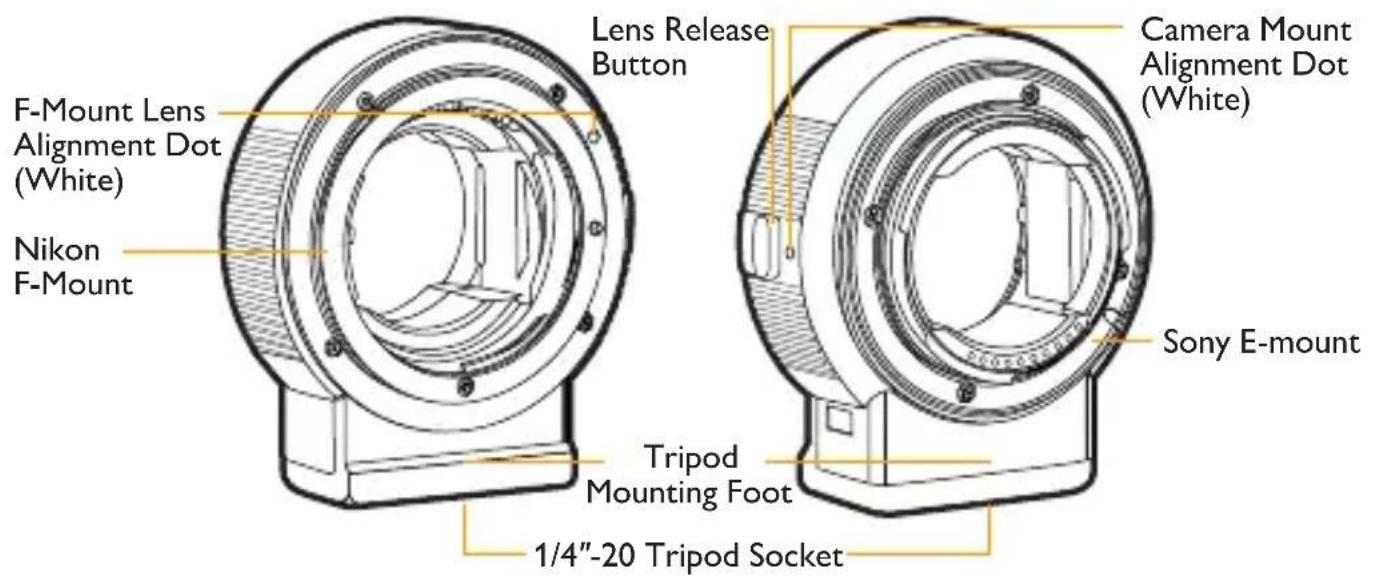

OVERVIEW

Front Back

MOUNTING THE LENS ADAPTER

Note: Place the lens and camera on a stable, flat surface when mounting or removing the lens adapter.

1. Turn the camera's power off.
2. Remove all caps before mounting.

Close-up of a hand holding a black digital camera with a lens (no visible text or symbols)

Close-up of a hand holding a black DSLR camera with a circular lens (no visible text or symbols)

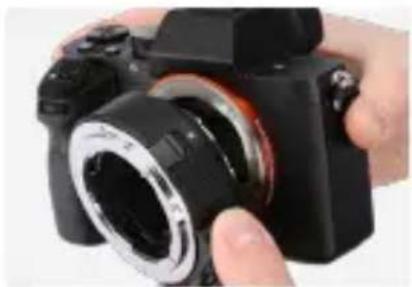

1. Line up the white alignment dots on the lens adapter and the camera.

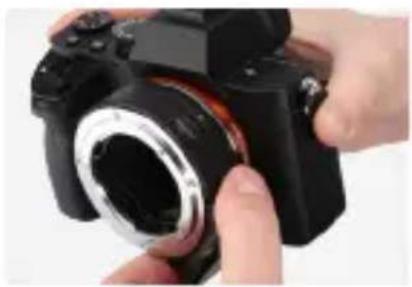

2. Carefully insert the lens adapter into the camera, and rotate clockwise until it locks into place.

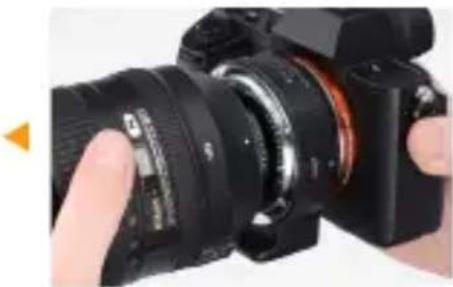

3. Line up the alignment dot on the lens with the alignment dot on the lens adapter.

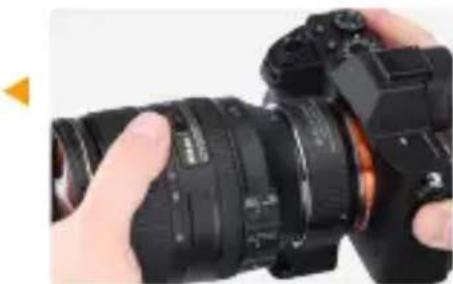

4. Carefully insert the lens into the lens adapter, and rotate the lens assembly counterclockwise until it locks into place.

Close-up of a DSLR camera with lens and adjustment knobs being applied (no visible text or symbols)

Close-up of a hand holding a black DSLR camera lens, no visible text or symbols on the lens or background.

Important: When using a Nikon lens with an aperture ring (for example, a Nikon D-type lens) you must lock the aperture ring on the lens. If you want to control the aperture, you can adjust it from the camera in aperture priority or manual mode.

REMOVING THE LENS ADAPTER

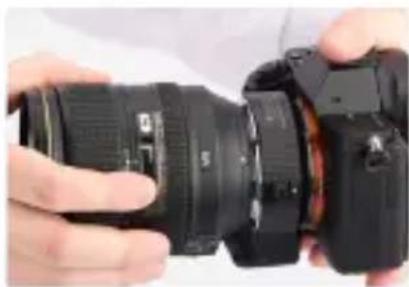

1. Turn the camera's power off.
2. Press and hold the release button on the lens adapter.

Close-up of hands holding a black DSLR camera lens (no visible text or symbols)

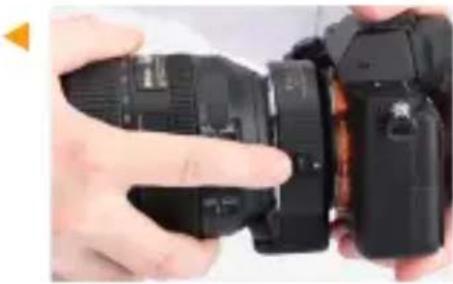

1. Rotate the lens clockwise to release, and carefully detach the lens from the lens adapter.

Close-up of hands holding a DSLR camera lens, no visible text or symbols on the device itself

1. Reattach the front cap to the lens adapter.

2. Press and hold the lens release button on the camera.

3. Rotate the lens adapter counterclockwise to release, and carefully detach the lens adapter from the camera.

Hand holding a black digital camera with lens and control buttons (no visible text or symbols)

Close-up of hands holding a black DSLR camera with lens (no visible text or symbols)

1. Reattach the rear cap to the lens adapter.

Note: If your lens has a built-in tripod collar, use the collar on the lens to mount the assembly to the tripod.

UPGRADING THE FIRMWARE

To upgrade the firmware, visit our website vellogear.com and follow the instructions.

SPECIFICATIONS

Front Mount
Rear Mount
Tripod Mount	1/4"-20 threaded socket
Dimensions (H × W × D)	(8 × 7.3 × 4.8 cm)
Weight

ONE-YEAR LIMITED WARRANTY

This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.vellogear.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group. www.gradusgroup.com

VELLO is a registered trademark of the Gradus Group. © 2017 Gradus Group LLC. All Rights Reserved.

VELLO

A Gradus Group Brand

www.vellogear.com

All other trademarks are the property of their respective owners.

© Copyright 2017 Gradus Group GG1
