VC8630 - Vacuum Cleaner Khind - Free user manual and instructions

Product Type	Bagless Vacuum Cleaner
Model	VC8630
Brand	Khind
Power Consumption	1200 W
Dust Capacity	1.5 L
Filtration System	HEPA Filter
Noise Level	75 dB
Cord Length	5 m
Weight	4 kg
Dimensions (L x W x H)	30 x 25 x 20 cm
Attachments Included	Crevice tool, Upholstery brush, Floor brush
Type of Floor	Hard floor and carpet
Bagless	Yes
Filter Washable	Yes
Power Cord Retractable	No
Handle Type	Top handle
Wheels	4 swivel wheels
Warranty	1 year
Maintenance	Clean dust cup and filter regularly

Frequently Asked Questions - VC8630 Khind

How do I clean the filter on the Khind VC8630?

Turn off and unplug the vacuum. Remove the dust cup, take out the HEPA filter, and tap it gently to remove dust. Rinse with water if washable, and let it dry completely before reinstalling.

What is the dust capacity of the VC8630?

The dust cup has a capacity of 1.5 liters. Empty it when the dust reaches the 'MAX' line to maintain suction.

Can the Khind VC8630 be used on carpets?

Yes, it comes with a floor brush suitable for both hard floors and low-pile carpets. For high-pile carpets, use the crevice tool to avoid clogging.

How do I replace the HEPA filter?

The HEPA filter is washable and reusable. If it becomes damaged or lost, contact Khind customer service for a replacement part.

Why is my vacuum losing suction?

Check if the dust cup is full, the filter is clogged, or there is a blockage in the hose. Empty the cup, clean the filter, and inspect the hose for obstructions.

How long is the power cord?

The power cord is 5 meters long, allowing a decent range without changing outlets.

Is the Khind VC8630 bagless?

Yes, it is a bagless vacuum cleaner with a transparent dust cup for easy visibility of dirt level.

What accessories are included?

The package includes a crevice tool, upholstery brush, and a floor brush.

How do I maintain the vacuum cleaner?

Empty the dust cup after each use, clean the filter monthly, and check for blockages. Store the vacuum in a dry place.

What is the warranty period?

Khind offers a 1-year warranty against manufacturing defects. Keep your purchase receipt for service claims.

USER MANUAL VC8630 Khind

Abstract grayscale graphic with white silhouettes of a human figure and globe, no text or symbols present

••• Vacuum Cleaner / 吸尘机 / Pembersih Vakum

Instruction Manual/说明指示书/Buku Panduan

Important/重要/Mustahak

Please read this manual carefully before operating this product. Keep this manual handy for further reference. 请在使用此产品前，详读此说明书，并将之收藏以作日后参考。

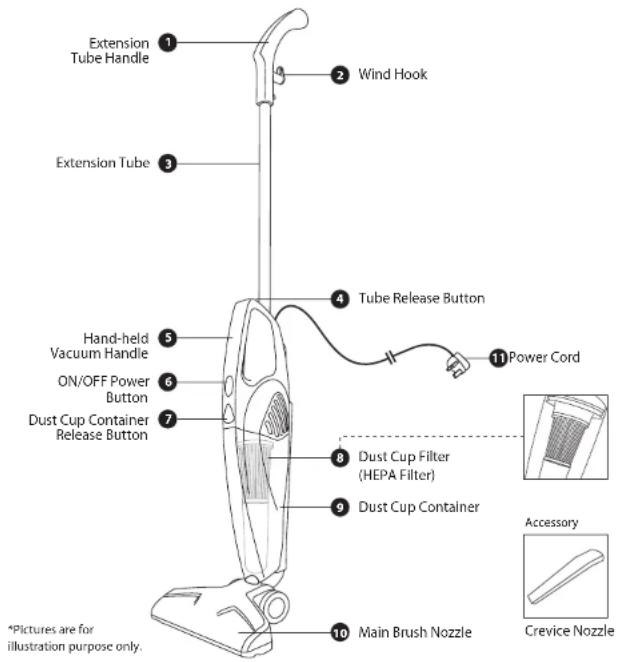

Parts Identification Caution

Specifications

Model	VC8630
Voltage	220-240V~50/60Hz
Power	600W
Dust Container Capacity	0.5 Litres
Cable Length	5 Meters
Noise Level	70dB
Suction Power	105W; 15kPa
Net Weight	1.7kg
Product Dimension (LxWxH)	260x190x1100mm

*Specifications are subject to change without prior notice

1. Read the instruction manual carefully and follow the instruction closely.
2. Use only the attached parts which are supplied by the manufacturer.
3. This appliance is intended for household use only, commercial use will void warranty.
4. Do not leave the appliance unattended while it is connected to the main power outlet.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Do not pull, lift or carry the appliance by its power cord. In order to avoid damages to the cord, do not pull the cord around sharp corners and edges.
7. Always switch off the power before unplugging the unit from the socket. Do not unplug by pulling and jerking the cord with force.
8. Do not handle the plug or the appliance with wet hands.
9. Do not vacuum the followings: corrosive or inflammable liquids, lighted cigarette butts, ash or matches, sharp objects or objects which could block and get stuck in the tube.
10. Do be more cautious when you want to clean and vacuum the staircase area.
11. Make sure the household voltage is the same as that indicated on the rating label of the unit.
12. Do not use appliance without the filters.
13. Hold plug when rewinding onto hook. Do not allow plug to whip when rewinding.
14. Kept the appliance dry to protect against electric shock.
15. Keep appliance away from ovens and stoves etc.
16. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
    Children should be supervised to ensure that they do not play with the appliance.

Cleaning & Maintenance

1. Always unplug the power cord and turn off the AC main before performing any cleaning.
2. Do not clean the appliance's surface with metal sourcing pads as it may scratch the surface or cause electrical shock. Use only a damp soft cloth to clean it.
3. Do not immerse the appliance into the water or other liquids when cleaning.
4. Do not use abrasive chemicals, cleaning solvents like petrol, thinner or benzene to clean the appliance.

Cleaning and Replacement of the Dust Cup Filter

In order to achieve the best performance, empty the dust cup container and clean the dust cup filter after each use.

1. To remove the dust cup container, press down on the dust cup container release button and separate the dust cup container from the main unit.
2. Pull out the dust cup filter.
3. Empty the dust from the dust cup container.
4. Rinse the dust cup filter in cold water, and then let it air dry for 24 hours before replacing it back in the dust cup container.

Cleaning & Maintenance

Important Note: DO NOT use a washing machine to clean the dust cup filter. Do not use a hair dryer to dry it. AIR DRY ONLY.

1. Replace the dust cup filter carefully into the dust cup compartment. NEVER operate the vacuum without the dust cup filter in place.
2. Attach the dust cup container to the main body of the unit.

Important Note: Make sure that ALL filters are completely dry before re-installing back in the vacuum.

Note: The Dust Cup Filter is washable. It is recommended to replace the dust cup filter every three (3) months (depending on usage) to ensure optimum performance of the unit.

How To Use

Caution:

The suction hole opening must be open and free of any obstructions at all times. Otherwise, the motor will overheat and could become damaged.

Power switch

- slide down the power button to turn on the unit. - slide up the power button to turn off the unit.

Using the Unit as an Upright Stick Vacuum

• Insert the extension tube into the hand-held vacuum.
• Choose the appropriate accessory (crevice nozzle or main brush nozzle) and attach it to suction hole opening on the hand-held vacuum.

Using the Unit as a Hand-held Vacuum

- Detach the extension tube from the hand-held vacuum by pressing handle release button.

Winding/releasing the power cord

The vacuum has upper and lower hook. It helps winding or releasing power cord on it.

How To Use

Note:

• Do not use detergents to clean Dust Cup Filter. The Dust Cup Filter must be thoroughly dry before starting operations.
  • The Dust Cup Container will not lock into place if the Dust Cup Filter assembly is not fitted correctly.

Suggestion:

In case of long operation, it is recommended that after every 30 minutes of usage, a short interval of rest is taken.

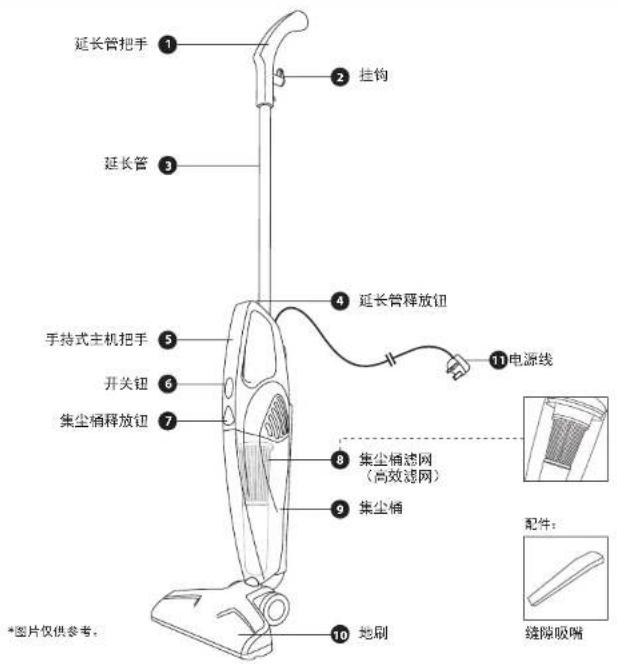

零件名称 注意事项
