NVR-TAB101 S3 (8GB) - Tablet NEVIR - Free user manual and instructions

Product Type	Tablet
Brand	Nevir
Model	NVR-TAB101 S3 (8GB)
Operating System	Android 4.1
Processor	AM8726MXS Dual-Core ARM Cortex A9 @1.5GHz
Memory (RAM)	1 GB DDR3
Internal Storage	8 GB
Display Size	10.1 inches (25.65 cm)
Display Resolution	1024 x 600 pixels
Touch Panel	Capacitive (G+G)
Wi-Fi	802.11 b/g/n
USB Port	1 x USB 2.0 OTG
Memory Card Slot	TF card up to 32 GB
Front Camera	0.3 MP
Rear Camera	2.0 MP
Audio Jack	3.5 mm stereo
Speakers	8Ω/1W x 2
Battery Capacity	5600 mAh Li-Polymer
Power Adapter	DC 5V 2.5A
Dimensions (W x D x H)	268 x 176 x 10 mm
Weight	Approximately 500 g
Safety Warnings	Do not expose to water or moisture; use only included AC adapter; keep away from heat sources.
Cleaning	Wipe with a soft dry cloth; do not use liquids or aerosols.
Repairability	No user-serviceable parts; refer to qualified personnel for servicing.

Frequently Asked Questions - NVR-TAB101 S3 (8GB) NEVIR

How do I turn on the Nevir NVR-TAB101 S3 tablet?

Press and hold the Power button for about 4 seconds until the boot logo appears.

How can I connect to a Wi-Fi network?

Go to Settings > Wireless & networks > Wi-Fi. Turn on Wi-Fi, then select your network and enter the password if required.

How do I charge the tablet?

Connect the included DC 5V 2.5A adapter to the DC in port. The battery is a 5600 mAh Li-Polymer.

Can I expand the storage?

Yes, insert a TF card (up to 32 GB) into the TF-Card slot for additional storage.

How do I take a screenshot?

Press and hold the Power button and Volume down button simultaneously until a shutter sound is heard.

What should I do if the tablet freezes?

Press the Reset button (small hole) with a paperclip or similar object to restart the device.

How can I adjust the screen brightness?

Go to Settings > Display > Brightness and slide the bar to your preferred level.

Can I use the tablet while charging?

Yes, you can use the tablet while it is charging, but it may charge slower if heavily used.

Does the tablet support Bluetooth?

The specifications do not mention Bluetooth. It only supports Wi-Fi 802.11 b/g/n for wireless connectivity.

How do I clean the tablet?

Turn off the device and gently wipe the screen and body with a soft, dry cloth. Do not use liquids or abrasive cleaners.

USER MANUAL NVR-TAB101 S3 (8GB) NEVIR

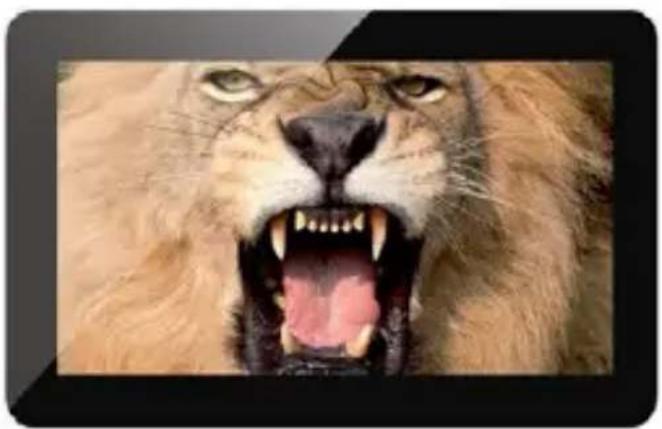

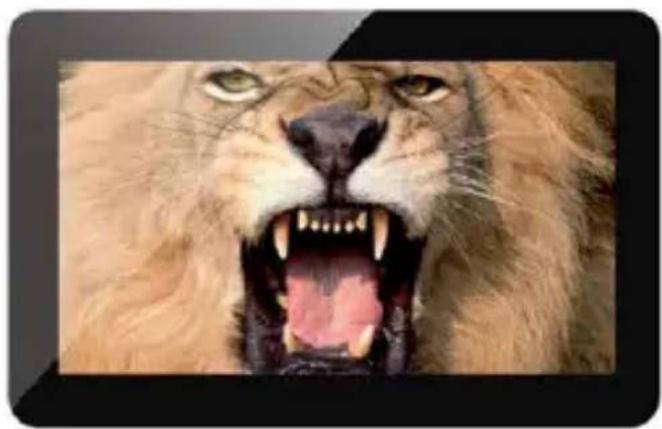

Close-up of a lion's face with open mouth and intense teeth (no text or symbols visible)

3. Escritorio

ES-7

5. Música

6. Ajustes

6. Ajustes de pantalla

6.2 Fecha y hora

6.4 Conexión Wi-Fi

Especificaciones

nevir®

TABLET 10.1"(25,65 cm) É 8GB

NVR-TAB101 S3 (8GB)

Close-up of a lion's face showing its open mouth and teeth, with no visible text or symbols.

MANUAL DE INSTRUÇÕES

Índice

3. Menu inicial

4. Aplicação

PT-7

5. Música

6. Definições

6.2 Data e hora

6.4 Ligação Wi-Fi

Especificações

SO	Android 4.1
CPU AM8726MXS	Dual-Core ARM Cortex A9CPU@1.5GHz
Memória	1G DDR3
Armazenamento	8GB
Visor Painel digital de 10.1 polegadas (25.654 cm)
Resolução	1024x600
Painel de toque Capacitivo (G+G)
WI-FI	802.11b/g/n
USB 1 x USB 2.0	OTG
Cartão TF Até 32GB
Câmara 0.3M pixéis / 2.0M pixéis
Auricular	3,5mm, estéreo
Adaptador da DC 5V 2.5A
Pilha 5600mAh, Li Polímero
Altifalante	8Ω/1W x 2
Tamanho	268x176x10(mm)

10.1" (25,65cm) MID and 8GB

NVR-TAB101 S3 (8GB)

Close-up of a lion's face showing its open mouth and tongue, with no visible text or symbols.

USER MANUAL

Please read this User Manual carefully to ensure proper use of this product and keep this manual for future reference.

Table of Contents

Important Safety Instructions....2

Connectors....4

User Operations....5

1. Boot and shutdown.... 5
2. Screen of opening and closing....5
3. Home.menu....5
4. Application 6
5. Music....7
6. Settings....7

Specification....10

Important Safety Instructions

• Warning: To reduce the risk of electricshock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.
• Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.
• Do not expose the Adaptor and MID to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.
• Keep the MID away from direct sunlight and heatsource such as radiators or stoves.
• Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your MID on a cushion, sofa or other similar surface.
• Do not place the MID on unstable cart, stand, tripod, bracket ortable. The unit may fall, resulting in possible damage or injury.
• Never place heavy or sharp objects on the LCD panel or frame.
• Only use the AC adapterincluded with MID. Using any other adapter will void your warranty.
• Unplug the power from the outlet when the unit is not in use.
• Attention should be drawn to the environmental aspects of battery disposal.
• WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heatsuch as sunshine, fire or the like.
• WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.
• WARNING: Only use attachments/accessories specified provided by the manufacturer, the MID is supplied by AC adapter, the AC adapter is used as disconnect device, the disconnect device shall remain readily operable.
• WARNING: The excessive sound pressure from earphones and headphones can cause hearing loss.
  Caution: Danger of explosion if battery is incorrectly replaced, replaced only with the same or equivalent type(Lithium battery)
  • To prevent possible hearing damage, do not listen at high volume levels of long periods.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

CAUTION:

When the apparatus was in electrostaticcircumstance, it may be malfunction and need to reset by user.

The USB memorystick should be plug in the unit directly. USB extension cables should not be used to avoid failing of data transferring and interference caused.

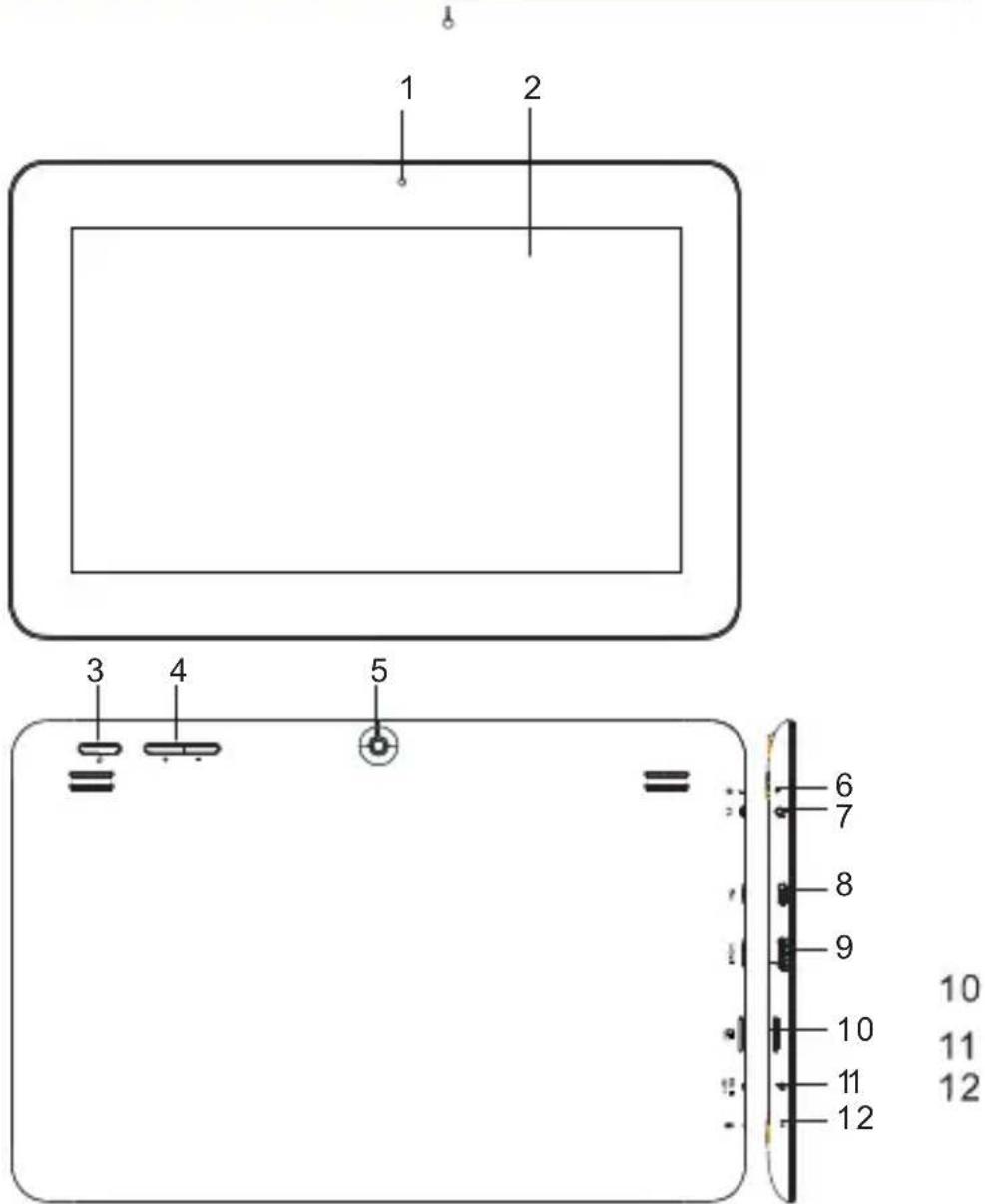

Connectors

1. Front Camera
2. LCD Display+Touch Panel
3. Power
4. Vol+ / Vol-
5. Back Camera
6. Reset
7. Earphone
8. USB
9. HDMI
10. TF-Card
11. DC in
12. Mic

User Operations

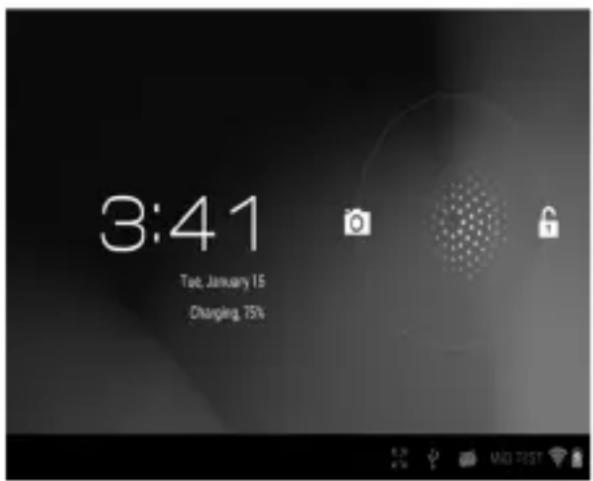

1. Boot and shutdown

Boot

After long pressing 4 seconds for the power button, you can see the boot logo. Thesystem is access into screen locking status after opening.

Shutdown

1. Long press the power button, then will popup the "Power off" options.
2. Click "OK" button to shutdown.

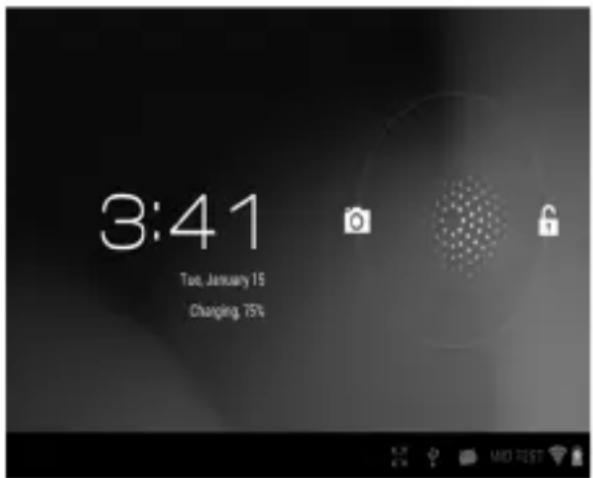

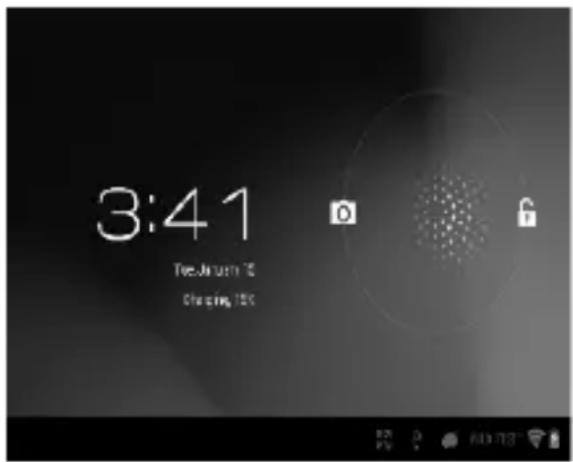

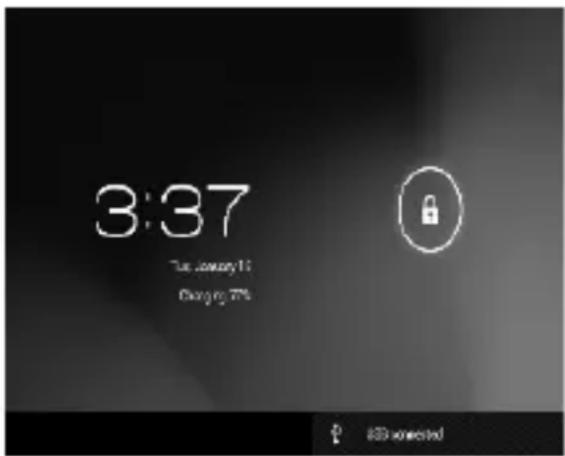

2. Screen of opening and closing

It will be closed during the screen idling.

1. After idling period of time, screen will be automatically closed to save the battery
2. In the screen opening condition, press the power button, the screen can immediately shutdown. Opening in screen closed condition. If screen is in the closed position, you can long press power button to activate the screen. Enter locked condition after opening it, press "lock" icon and slide right for unlocking.

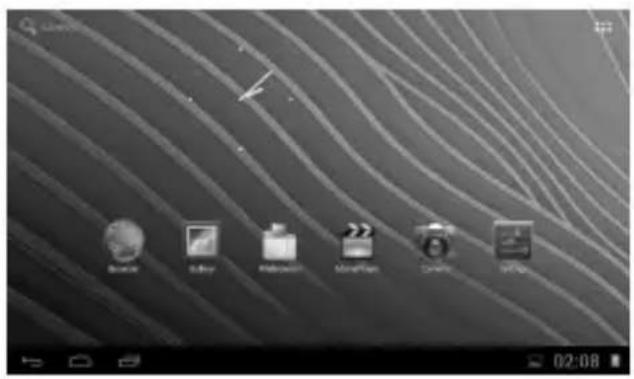

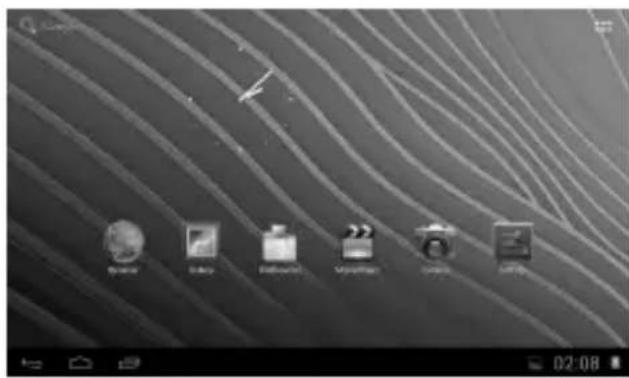

3. Home menu

The home menu screen will show the common application. You can use the application short cut and customize your home menu interface. and press the application icon can directly run the application.

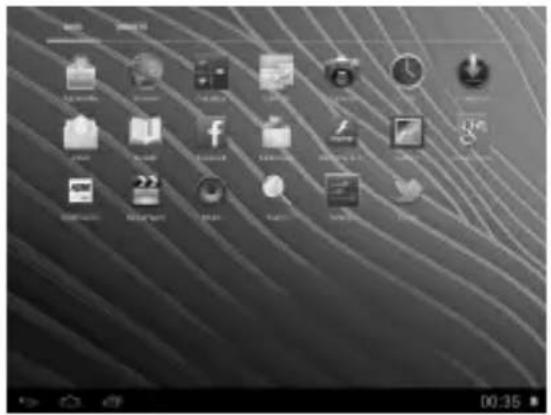

4. Application

1. Choose to visit the application.
2. If you want to quit the application menu, press the return icon to a page or press home icon to directly returns home menu.

4.1 Install Applications

(1) Install the apk file in external mass storage device byAppInstaller.
(2) Download and install various applications in Android market or local app market.

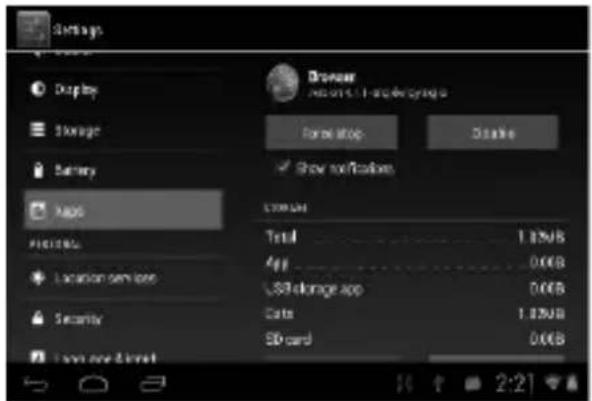

4.2 Uninstall Applications

Enter Settings application, select Apps->All, then select theapplication which you want to uninstall thenpress Disable button.

EN-6

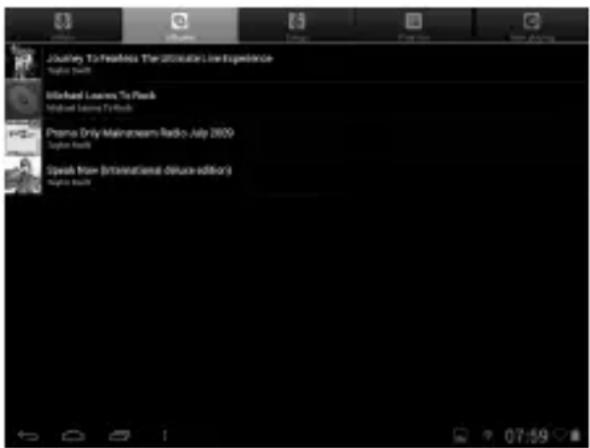

5. Music

Press the Music item to enter music player, choose the musicfiles, then start to playback the file.

Your music is divided into five categories: artists, albums, songs, playlists and .Now playing.Choose a

classification to check list contents. If you enter a classification, always choose until you

have to play songs. For example, if you choose the artist category, you will see A to Z

sequence of a list of namesof art. If you choose a artist, the list will be presented artist

album songs and lists.

6.Settings

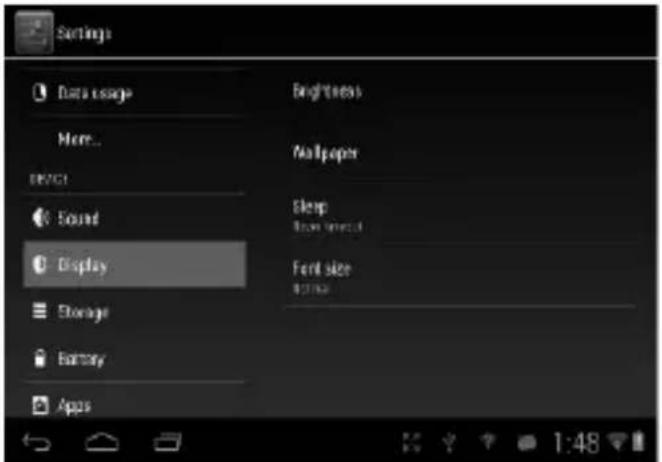

6.1 Display Settings

Adjust screen brightness

1. On the application interface, press the menu button to popup setting menu.
2. Click Settings.
3. Click Display.
4. Click the brightness.
5. Popup Brightness Settings panel, drag to bright slideradjust bright degree.
6. Click sure.

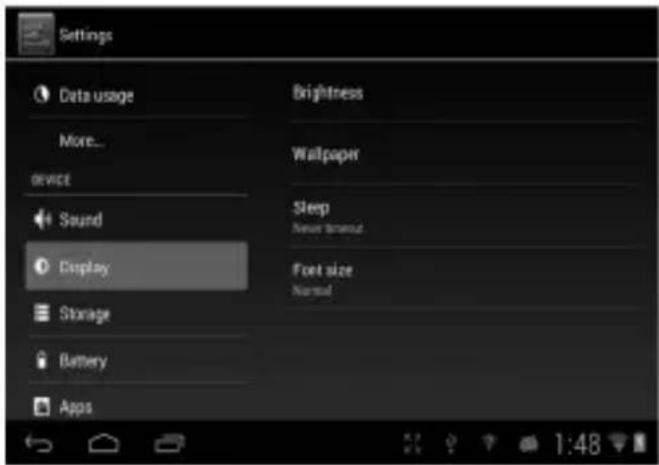

Adjust screen sleep time

1. On the application interface, press the menu button to popup setting menu.
2. Click Settings.
3. Click Display.
4. Scroll down the screen, thenclick screen overtime.
5. Popup Screen sleep Time Settings, choose standby time you want the standby time.

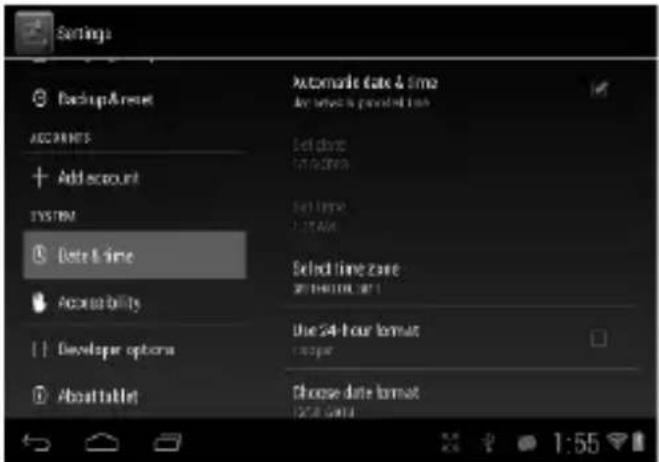

6.2 Date and time

According to preset, the system will automatically use date, time zone and time provided

by network. If you automatically usetime provided by the internet, you cannot manually adjust

the date, time and time zone.

1. On the application interface, press the menu button to popup setting menu.
2. Click Settings.
3. Scroll downthe screen, then click the date and time setting.

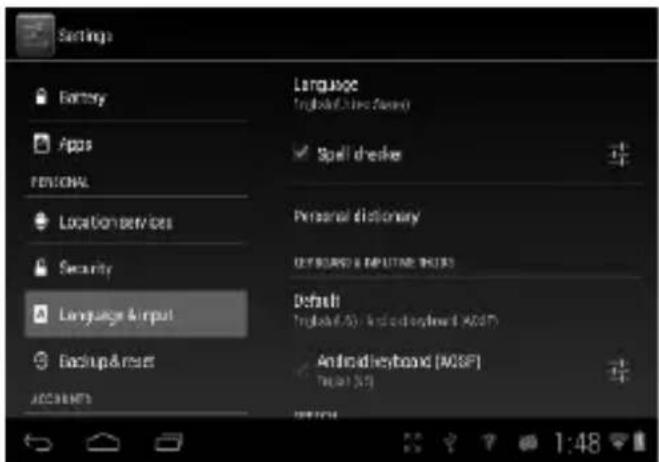

6.3 Set the language

1. On the application interface, pressthe menu button to popup setting menu.
2. Click Settings.
3. Click on language and keyboard.
4. Click to select language area, then choose words of your need.

Scroll down the list to

see more of the language.

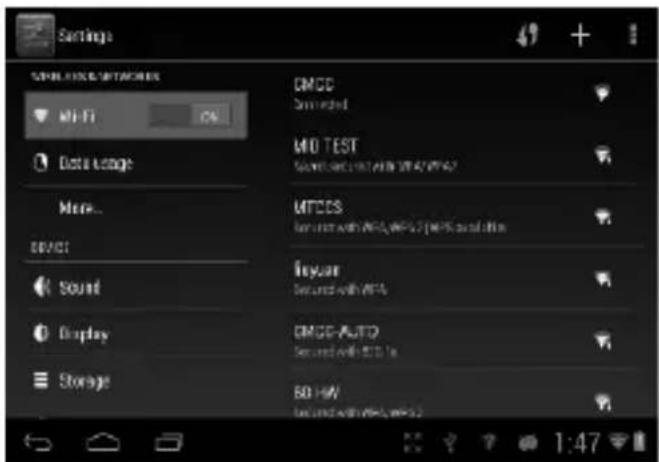

6.4 WIFI connection

You can connect MID to Wi-Fi network, operation for connection:

1. In the application interface, click the menu button, then popup settings menu.
2. Click settings.
3. Click wireless and network.
4. Click Wi-Fi, thenstart Wi-Fi
5. Click Wi - Fi SettingsMID will automatically scan available Wi - Fiwireless networks.
6. Choose the Fi network which you want to connect. If it has add password, it will popup a input password window, then input relevant password.
7. Click on the link

Specification

OS	Android 4.1
CPU	AM8726MXS Dual-Core ARM Cortex A9 family CPU@1.5GHz
Memory	1G DDR3
Storage	8GB
Display	10.1 inches digital panel (25.65CM)
Resolution	1024x600
Touch Panel	Capacitive (G+G)
WIFI	802.11b/g/n
USB	1 x USB 2.0 OTG
TF Card	Up to 32GB
Camera	Double Camera (Front:0.3M/Back:2.0M)
Earphone	3.5mm, Stereo
Power adapter	DC5V 2.5A
Battery	5600mAh,Li Polymer
Speaker	8Ω/1W x 2
Size	268x176x10(mm)

Specifications are subject to change without notice.

This symbol indicates that when the end-user wishes to discard this product, it must be sent to separate collection facilities for recovery and recycling. By separating this product from other household-type waste, the volume of waste sent to incinerators or land-fills will be reduced and natural resources will thus be conserved.

In order to fulfill ruling UNE EN-60065, we indicate that if the flexible wire is damaged, it can only be substituted by a technical service recognized by NEVIR, S.A., As per special tooling is required.
