Product Type	Fire-resistant safe with digital keypad lock
Brand	First Alert
Model	2754DBF
Dimensions (approx.)	Exterior: 13.5 x 11.8 x 17.7 inches
Weight (approx.)	24 lbs (10.9 kg)
Power Source	4 AA alkaline batteries (1.5V each)
Battery Life	~1 year under normal use
Fire Rating	30 minutes at up to 1200°F (649°C), interior below 350°F (177°C)
Lock Type	Electronic keypad with programmable 3-8 digit passcode
Override Access	Emergency override key lock
Security Lockout	15-minute lockout after 3 incorrect passcode attempts
Emergency Escape Latch	Yes (interior lever to open from inside)
Mounting Options	Wall or floor mounting with bolts (not included)
Interior Shelves	Removable shelf (included)
Maintenance	Replace batteries annually; clean with mild glass cleaner and soft cloth
Warranty	5 years limited (defects in material/workmanship)
Spare Parts Availability	Replacement keys and combinations available from BRK Brands (notarized statement required)
Customer Support	1-800-323-9005 (Mon-Fri, 7:30am-5pm CST)
Manual Language	English (PDF available for download)

Frequently Asked Questions - 2754DBF FIRST ALERT

How do I program my personal passcode?

Lift the keypad cover and press the reset button. The ready light will flash and beep. Within 10 seconds, enter your new code (3-8 digits) twice, followed by the # key. The lock will confirm.

What should I do if I forget my passcode?

Use the emergency override key to open the safe. Then reset the passcode by following the programming steps. Keep the override key in a secure location away from the safe.

How do I open the safe using the override key?

Remove the override key lock cover, insert the key and turn it counterclockwise (hold). Rotate the handle clockwise, then pull the door open. If the handle does not turn, rotate it slightly counterclockwise first.

What does a flashing red light every 2 seconds mean?

This indicates low batteries. Replace the 4 AA batteries immediately. Clean battery contacts before installing new ones.

How do I replace the batteries?

Remove the battery cover inside the safe (use override key if needed). Install 4 AA batteries in the correct polarity, then replace the cover. You should hear a beep and see a flash.

What is the emergency interior escape latch?

This feature, available only on model 2754DBF, is a lever inside the safe that allows opening from the inside in case someone becomes locked in. Pull down the lever to release the latch.

How can I mount the safe to the floor or wall?

Use the pre-drilled holes in the back or bottom of the safe. Secure with appropriate bolts (not included) into a wall stud or concrete floor. For wall mounting, ensure the safe is level.

What should I do if the safe locks me out?

After 3 incorrect passcode attempts, the safe will lock out for 15 minutes. Wait 15 minutes and try again with the correct passcode. If you are locked out permanently, use the override key.

How do I clean and maintain the safe?

Use a mild cleaner like window cleaner on a soft cloth to wipe the exterior. Avoid abrasive cleaners. Dry thoroughly. For humidity control, open the safe for 20 minutes every two weeks.

How can I get a replacement key or passcode?

Contact BRK Brands at 1-800-323-9005. You will need the model number, serial number, key number, and a notarized statement of ownership. Fees may apply.

USER MANUAL 2754DBF FIRST ALERT

BRK Brands, Inc., ("BRK") warrants that for a period of five (5) years from the date of purchase, this product will be free from defects in material and workmanship. BRK, at its sole option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement or repair will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.

This warranty is only valid for the original retail purchaser from the date of initial retail purchase and is not transferable. You must keep the original sales receipt. Proof of purchase is required to obtain warranty performance. BRK dealers, service centers, or retail stores selling this product do not have the right to alter, modify or in any way change the terms and conditions of this warranty.

This warranty does not apply to the finish on the product. This warranty does not cover normal wear and tear of parts or damage resulting from any of the following: negligent use or misuse of the product, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than BRK or an authorized service center, improper installation, or exposure to extremes of heat or humidity. Further, the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes.

BRK shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. BRK is also not responsible for: costs associated with removing or installing the product; damage or loss of the contents of the product; nor for the unauthorized removal of the contents; or damages incurred during shipment.

Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above Warranty Period. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state, or province to province, or jurisdiction to jurisdiction.

Operation & Installation Guide

EXECUTIVE SAFE

If you have any questions that cannot be answered by reading this manual, call Consumer Affairs at 1-800-323-9005

© 2010 BRK Brands, Inc., a Jarden Corporation company (NYSE: JAH) 3901 Liberty Street Road, Aurora, IL 60504-8122 All rights reserved.

www.FirstAlert.com

Models 2583DF / 2743DF / 2754DBF

• Read carefully
• Keep for reference
  ■ Do not keep inside of safe

First Alert®

Home and Office Security Safes

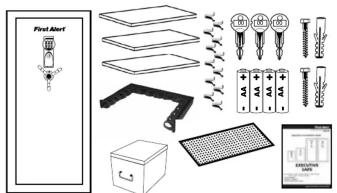

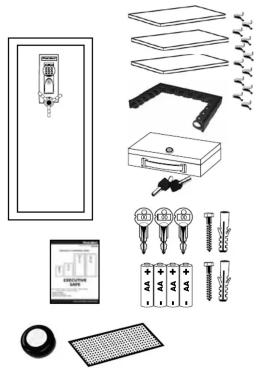

Contents

Use, care and support

2583DF

2743DF

2754DBF

Collection of electronic components and tools including a refrigerator, battery pack, screwdriver, and circuit board (no text or labels visible)

Safe Identification Record

Digital Passcode Record - Model 2583DF / 2743DF / 2754DBF
Your Passcode must be at least 3 digits and no more than 8 digits followed by the # key.

Important: DO NOT RETURN SAFE TO STORE

If you are missing parts, have difficulty programming your safe or have any other questions pertaining to its proper use and care, DO NOT RETURN your safe to the store. Please contact Consumer Affairs at 1-800-323-9005, 7:30 am – 5:00 pm Central Standard Time, Monday through Friday. To assist us in serving you, please have the model number and date of purchase available when calling.

Appropriate use of your safe

This Executive Safe protects records and many other valuables. Testing shows that the interior temperature of the safe remains below 350^ F ( 177^ C) for 30 minutes during a fire up to 1200^ F ( 649^ C) when used properly. Your safe must be closed and latched in order to properly protect the contents from fire.

Important:

Because pearls sustain heat damage at temperatures below 350^ F, we advise that you DO NOT store pearls in this safe.

Safe Care and Maintenance

When properly maintained, your safe will continue to operate and accurately read the authorized Passcode for many years. In order to ensure optimum performance of your safe, please follow these simple precautions:

Replace Batteries – For best results and performance, we recommend that the batteries be replaced at least once a year or sooner depending on amount of use.

Clean Hands - Never attempt to operate the digital keypad if your hands have excessive dirt, debris or liquids on them.

Clean Safe – To clean the surface of your safe, it is recommended that you use a mild cleaner (e.g., window cleaner) to avoid scratching or discoloring the surface. Always wipe dry and NEVER use abrasive cleansers on the safe or digital keypad.

Moisture – We recommend that you place delicate items such as pictures or intricate jewelry into an air-tight container before storing them in your safe. Avoid placing your safe in areas of high humidity. For optimum performance, the safe should be opened and aired out for at least 20 minutes every two weeks.

For future reference, store this Operation and Installation Guide in a secure area away from the safe. DO NOT DISCARD!

How to Obtain Warranty Service

If service is required, do not return the product to your retailer. In order to obtain warranty service, contact the Consumer Affairs Division at 1-800-323-9005, 7:30 am – 5:00 pm Central Standard Time, Monday through Friday. To assist us in serving you, please have the model number and date of purchase available when calling.

For Warranty Service return to:

First Alert, Inc.,

Attn: Warranty Safe Returns

23610 So. Banning Blvd.

Carson, CA 90745

Ordering Replacement Keys

If you lose or forget the combination or lose the safe key, you can obtain a copy of the combination or a replacement key from BRK Brands, Inc. You must supply the following information to assure accurate processing:

■ Name / Address / Telephone.

■ Safe Model Number / Serial Number

■ Key Number (located on the key and on the Emergency Override Key lock).

- Notarized statement of ownership.

- For replacement keys, indicate number of keys requested. Please ignore if

recovering a lost combination.

■ Method for how you would like to receive the combination or keys.

Please send all the information via fax at 630-851-7995

or mail BRK Brands, Inc., 3901 Liberty Street Road, Aurora, IL 60504-8122

Checks or Money Orders are required for orders received by mail and should be made payable to First Alert. Contact our Consumer Affairs Department for costing information prior to ordering.

Mail to: First Alert

Consumer Affairs

3901 Liberty St Rd

Aurora, IL 60504

Shelves and mounting

Initial set-up

Shelf install

Three-step illustration showing a hand holding a tool, with three views of the tool (no text or symbols present)

Floor mounting

Wall mounting

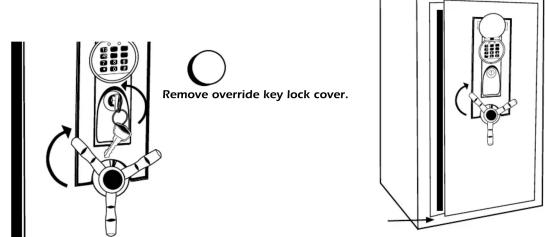

Override key use

Insert key and turn counterclockwise and hold. Rotate handle clockwise then pull door open.

Important:

If the spindle handle will not rotate clockwise after the key is turned, then rotate the spindle handle slightly counterclockwise until it stops, then rotate clockwise again to open.

Important:

The override key is used to gain access to the safe to change batteries or if the digital lock fails to operate. This key should be stored in a secure place away from your safe.

Battery install

Important:

Clean the battery contacts in the battery compartment and on the batteries before installing new batteries.

Programming Personal Passcode

Closing safe

Lift keypad cover

Press reset button

Ready light flashes along with a beep

Lights will then remain solid green. Enter your Personal Passcode twice within 10 seconds

Personal Passcode entry

Lift keypad cover

Ready light flashes along with a beep

Lights will then remain solid green. Enter your Personal Passcode + # within 10 seconds

Rotate handle clockwise, then pull door open

Important: Important

If the spindle handle will not rotate clockwise after the key is turned, then rotate the spindle handle slightly counterclockwise until it stops, then rotate clockwise again to open.

Push door closed then rotate handle counterclockwise fully into the locked position.

TROUBLE

SHOOTING:

If safe fails to open with your Personal Passcode, try the following:

1. Check to see if the batteries have been installed properly and replace if necessary.
2. Lock-out may have occurred. Wait 15 minutes before trying again.
3. Contact BRK Consumer Affairs Department.

EMERGENCY INTERIOR ESCAPE LATCH

Your safe is equipped with an Emergency Escape Latch to allow the safe to be easily opened from the inside in the unlikely event that someone should become locked inside the safe. To engage, pull down on the lever handle and push the door open.

NOTES

SECURITY LOCK-OUT PERIODS:

For added security, the safe will automatically "Lock-out" entry for 15 minutes after three attempts to open with an invalid Passcode.
