USER MANUAL QTXE110FLT BROAN

Register this product at www.broan.com/ register. For Warranty Statement, or to order Service Parts: go to broan.com or nutone.com and type the Model In the "Model Search" field at the top of the page. Broan, 926 W. State Street, Hartford, WI 53027 800-637-1453

READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS. OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back-drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit.
8. This unit must be grounded.

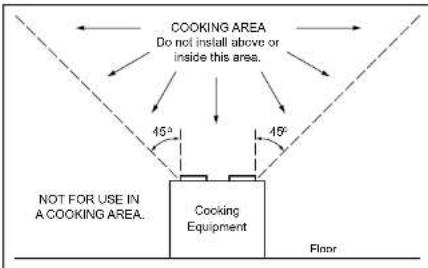

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. This product is designed for installation in ceilings up to a 12/12 pitch (45 degree angle). Duct connector must point up. DO NOT MOUNT THIS PRODUCT IN A WALL.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
4. Please read specification label on product for further information and requirements.

OPERATION

Use an on/off switch or speed control to operate this ventilator. See "Connect Wiring" for details. Use of speed controls other than the Broan Models 78V and 78W may cause a motor humming noise.

CLEANING & MAINTENANCE

For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum Interior of unit with the dusting brush attachment. The motor is permanently lubricated and never needs ciling. If the motor bearings are making excessive or unusual noises, replace the motor/blower wheel assembly.

TYPICAL INSTALLATIONS

Housing mounted to L-joists.

Housing mounted anywhere between I-joisls using hanger bars.

Housing mounted to joists.

Housing mounted anywhere between jolsts using hanger bars.

Housing mounted anywhere between trusses using hanger bars.

Housing mounted anywhere between trusses using hanger bars.

PLAN THE INSTALLATION

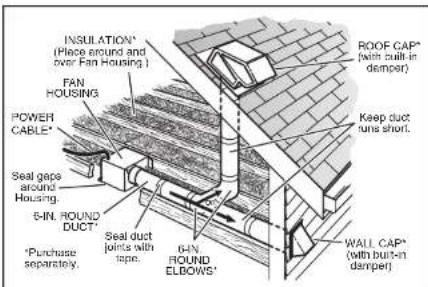

The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest: straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated airflow. Use a roof cap or wall cap that has a built-in damper to reduce backdrafts. Plan to supply the unit with proper line voltage and appropriate power cable.

INSTALL HOUSING & DUCT

1a. Mount housing to joist or I-joist.

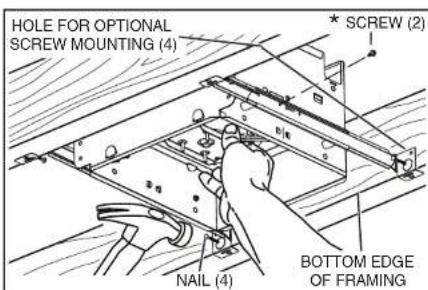

Use a pliers to bend housing TABS out to 90. ^D . Hold housing in place so that the housing tabs contact the bottom of the joist. The housing mounts with four (4) screws or nails. Screw or nail housing to joist through lowest holes in each mounting flange, then through highest holes. NOTE: Mounting to I-JOIST (shown) requires use of SPACERS (included) between the highest hole of each mounting flange and the I-Joist.

1b. Mount housing anywhere between brusses, joists, or I-joists using hanger bars. Sliding hanger bars are provided to allow for accurate positioning of housing anywhere between framing. They can be used on all types of framing (I-joist, standard joist, and truss construction) and span up to 24".

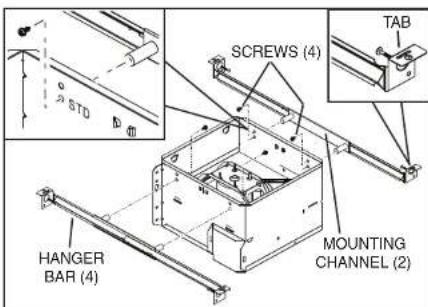

Attach the MOUNTING CHANNELS to the housing using the screws supplied. Make sure TABS face "up" as shown. Use the set of channel mounting holes (marked "STD") to mount the housing flush with the bottom of the drywall. Use the other set of holes (not marked) to mount the housing flush with the top of the drywall.

Extend hanger bars to the width of the framing. Hold ventilator in place with the hanger bar tabs wrapping around the bottom edge of the framing. Mail ventilator to framing or fasten with screws (not provided) through holes near nails. ^ To ensure a noise-free mount: Secure hanger bars together with screws or use a pliers to crimp mounting channels tightly around hanger bars.

2. Attach damper/ducl connector.

Snap damper / duct connector onto housing. Make sure connector is flush with top of housing and damper flap falls closed.

Line drawing of a hand holding a magnifying glass over a tray with a small object (no text or symbols)

3. Install 6-inch round ductwork.

Connect 6-inch round ductwork to damper / duct connector. Run ductwork to a roof cap or wall cap. Tape all ductwork connections to make them secure and air light.

Technical line drawing of a mechanical component with no visible text or symbols

CONNECT WIRING


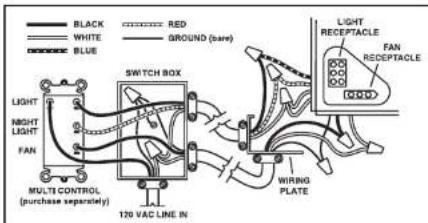

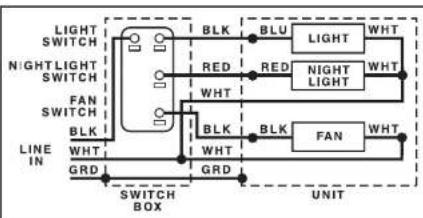

1. Connect electrical wiring.

Run 120 VAC house wiring to installation location. Use proper UL approved connector to secure house wiring to wiring plate. Connect wires as shown in wiring diagrams.

INSTALL GRILLE

1. Finish ceiling. Install ceiling material. Cut out around housing.

2. Plug in wiring. Plug wiring into the proper receptacles.

3. Attach grille to housing. Squeeze grille springs and insert them into slots on each side of housing.

Technical line drawing of a mechanical component with no visible text or symbols

1. Push grille against ceiling.

Line drawing of hands cleaning a rectangular object with a cloth (no text or symbols)

1. Remove light lens. Carefully insert a small flat-blade screwdriver between grille and lens. Pry lens out.

Illustration of hands using a tool to clean or spread a rectangular object (no text or symbols visible)

1. Install light bulbs. Fluorescent bulbs supplied. Purchase a 4W incandescent night-light bulb. Insert bulbs into their sockets. Replace lens.

Diagram of a mechanical component with internal spring and housing, enclosed in a square frame (no text or symbols)

Serie QTXE

Ventilador/Lámpara

Fluorecente/

Lámpara de noche

Diagram of a mechanical component with internal spring and housing, enclosed in a rounded square frame (no text or symbols)
