CG9411 - Coffee grinder VOX - Free user manual and instructions

Product Type	Coffee Grinder
Brand	VOX
Model	CG9411
Voltage	220-240V ~ 50-60Hz
Capacity	85 g (max)
Maximum Operating Time per Use	30 seconds (continuous)
Maximum Continuous Operation Before Rest	3 minutes (then 30 minutes rest)
Grinding Control	By pressing time (coarse to fine)
Safety Features	Cover must be in place; auto stop when cover released; overheat protection
Cleaning	Only top cover immerseable; body must not be immersed or placed in dishwasher
Material of Bowl	Stainless steel (estimated)
Blade Material	Stainless steel
Suitable Foods	Dry, brittle foods like coffee beans, spices, grains
Not Suitable Foods	Moist, very hard, oily, gummy items (chocolate, nuts, grains)
Warnings	Do not run empty; unplug when not in use; keep away from children
Included Accessories	User manual (multilingual)
Dimensions (estimated)	Approx. 12 x 12 x 20 cm
Weight (estimated)	Approx. 0.8 kg

Frequently Asked Questions - CG9411 VOX

How do I use the VOX CG9411 coffee grinder?

Place up to 85g of coffee beans in the steel bowl. Put the top cover on the body. Plug into a 220-240V outlet. Press the top cover to start grinding; release to stop. Do not exceed 30 seconds continuous use. Let the grinder rest for at least 30 minutes after 3 minutes of total operation.

What is the capacity of the grinder?

The maximum capacity is 85 grams of coffee beans. Do not overfill to ensure proper grinding and avoid damage.

Can I grind other foods besides coffee?

Yes, you can grind dry, brittle foods like spices and grains. However, do not grind moist, extremely hard, or oily items such as chocolate, nuts, ginger, or cinnamon sticks. These may damage the unit.

How do I clean the grinder?

Unplug the unit. Only the top cover can be immersed in water. Wipe the body with a damp cloth. Do not immerse the motorized base in water or place it in a dishwasher. Clean the bowl and blades thoroughly after each use.

Why does the grinder stop during use?

The grinder has a safety feature that prevents continuous operation beyond 3 minutes. If it stops, let it rest for at least 30 minutes before using again. Also, ensure the cover is properly placed.

Can I grind frozen coffee beans?

Yes, frozen coffee beans can be ground directly from the freezer. The grinder is designed to handle dry, brittle beans even when frozen.

What voltage does the grinder require?

The VOX CG9411 operates on 220-240V at 50-60Hz. Always check that your outlet matches this rating before use.

How do I adjust the grind coarseness?

The grind coarseness is controlled by the pressing time. Press longer for a finer grind, shorter for a coarser grind. Experiment to achieve your preferred consistency.

Is the grinder safe to use around children?

Supervision is required. Keep the grinder out of reach of children. The blades are sharp and the appliance should be operated only by capable adults.

Where can I find replacement parts or service?

Contact VOX authorized service centers for repairs or replacement of the cord. Do not attempt to disassemble the unit yourself. Refer to the manual for service information.

USER MANUAL CG9411 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

CG - 9411

OPERATING INSTRUCTIONS COFFEE GRINDER

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

COFFEE GRINDER INSTRUCTION MANUAL

CG - 9411

Read this manual thoroughly before using and save it for future reference

IMPORTANT SAFEGUARDS

Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions.
2. Before use check that the voltage of wall outlet correspond to the one shown on the rating plate.
3. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
4. If the supply cord is damaged it must be replaced by the manufacturer or a authorized service agent or a qualified technician in order to avoid a hazard.
5. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
6. Care shall be taken when handling the cutting blades, emptying the bowl and during cleaning.
7. Do not let cord hang over edge of table or hot surface.
8. Do not immerse the motorized base in liquid, or place in dishwasher. Damage to the unit will occur if submerged in liquid or filling the liquid into the container. Only the top cover may be immersed.
9. Close supervision is necessary when your appliance is being used near children or infirm persons.
10. Ensure fingers are kept well away from moving parts.
11. Do not remove cover until blade has completely stopped.
12. Do not attempt operation without the cover being in place.
13. Do not run the appliance without load.
14. The use of accessory not recommended by the manufacturer may cause injuries to persons.
15. Immediately turn off the appliance and send it to the authorized service agent for repair if abnormal sound, abnormal taste, excessive heat and smoke are found during use.
16. Remove the dust and other foreign objects from the appliance before use.
17. It is forbidden to disassemble, repair and rebuild the body.
18. After each use, ensure that the motor stops completely before disassemble.
19. Do not plug and unplug the appliance with wet hands or wet towels.
20. Do not drag or bind the power cord.
21. Do not shake or drop the appliance strongly.
22. Check grinding chamber for presence of foreign objects before using.
23. This appliance is not intended for used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have

been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

1. Children should be supervised to ensure that they do not play with the appliance.
2. Misuse may cause potential injury.
3. Do not operate the appliance for other than its intended use.
4. Do not use outdoors.

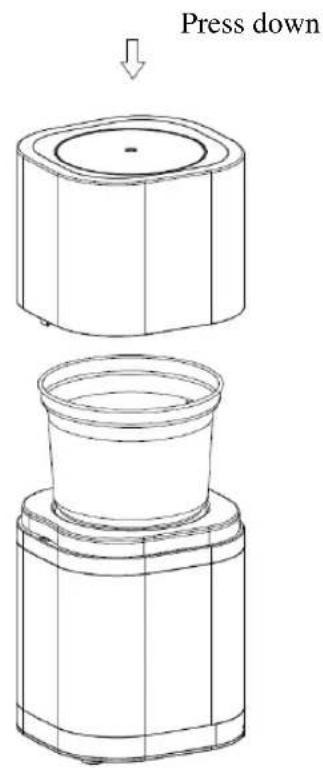

KNOW YOUR COFFEE GRINDER

Put the top cover into the body And press the top cover to start the switch

BEFORE THE FIRST TIME

1. Carefully unpack your coffee grinder and remove all packing materials.
2. To remove any dust that may have accumulated during packaging.

CAUTION: Never immerse the body in water for cleaning and do not fill the grinding unit with water for cleaning.

OPERATION

I. POINT MOVING BEAN GRINDER

1. Put the coffee beans into a steel bowl with a capacity of no more than 85g.
2. Put the top cover in the upper body.
3. Turn on electricity 220-240V 50-60HZ.
4. press the top cover to grind beans.
5. The thickness of grinding beans can be adjusted according to the pressing time and the time should not exceed 30 second.
6. Release the switch button to stop grinding beans.
7. The device can not work continuously for 3 minutes, if the working time is more than 3 minutes it must rest for 30 minutes before it can work.

GRINDING TIPS

1. The coarse ground coffee is generally used for percolators and coffee urns. Medium ground coffee is used for drip coffee makers and steam-type espresso machines. A fine ground coffee is used for espresso machines with an electric pump.
2. For the freshest, most flavorful coffee, grind only enough for the pot you are making. Coffee beans keep up to 2 months in the freezer in an airtight container and can be ground while still frozen. Coffee grounds left in your grinder can become stale and affect the flavor of freshly ground coffee. Be sure to clean grinding chamber, blades after each use.
3. This grinder can only grind dry, brittle foods. It will not grind anything moist, extremely hard, or gummy such as whole ginger, chocolate, sesame seeds or oily spices such as cinnamon, cloves or nutmeg. Do not grind peanuts or grains such as wheat, rice, barley, or dried corn. Attempting to grind any of these foods may damage the unit. Never use it to chop ice cubes.

ENVIRONMENT FRIENDLY DISPOSAL

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or numbers present)

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

RUS

КОФЕМОКА

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

VAŽNA BEZBEDNOSNA UPUTSTVA

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

PRT

MOINHO DE CAFÉ

MANUAL DE INSTRUÇÕES

CG-9411

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

ΜΥΛΟΣΚΑΦΕ

ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ

CG-9411

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or numbers present)

Symbol of a trash bin crossed with no visible text or labels

VAŽNE SIGURNOSNE UPUTE

Technical line drawing of a cylindrical mechanical component with a lid and base, showing top and side views (no text or symbols)

Postavite gornji poklopac na kućište uređaja i pritisnite gornji poklopac za aktiviranje prekidača

PRIJE PRVE UPORABE

1. Pažljivo raspakirajte mlinac za kavu i uklonite sav materijal za pakiranje.
2. Uklonite prašinu s uređaja ako se nakupila na pakiranju.

Symbol of a trash bin crossed with no visible text or labels

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

МЕЯНИЦА ЗА КАФЕ

Technical line drawing of a cylindrical mechanical component with an arrow indicating assembly (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or numbers present)

Technical line drawing of a mechanical component with two views: top shows top cylindrical part, bottom shows front view (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)
