Product Type	Chest Freezer
Model	FZ142
Brand	Khind
Net Capacity	137 L
Gross Capacity	142 L
Voltage	220-240 V~ 50 Hz
Rated Power Input	150 W
Rated Current	1.3 A
Energy Consumption	0.93 kWh/24h
Refrigerant	R600a / 48 g
Compressor	1/7 HP, Hermetic
Lamp	Yes, 3 W
Number of Doors	1
Door Lock & Key	Yes
Basket Included	1
Wheel Rollers	4
Net Weight	26 kg
Gross Weight	30 kg
Internal Dimensions (LxWxH)	437 x 360 x 715 mm
External Dimensions (LxWxH)	635 x 565 x 850 mm
Temperature Control	Rotary knob (OFF, 1-7)
Defrosting Method	Manual defrost
Safety Features	Earthing required; flammable refrigerant R600a; child supervision
Cleaning	Use lukewarm water; no abrasive cleaners; unplug before cleaning

Frequently Asked Questions - FZ142 Khind

How do I set the temperature on the Khind FZ142 freezer?

Turn the thermostat control knob on the control panel. The settings range from OFF to 7. Turning clockwise lowers the temperature (increases cooling). For normal use, position 2 or 3 is recommended. The 'Power' (red) light indicates power is on, and the 'Run' (green) light shows when the compressor is running.

How do I defrost the freezer?

When frost builds up more than 5 mm, defrost by: 1) Removing frozen food and unplugging the unit. 2) Leaving the lid open and scraping off frost with a plastic scraper. 3) Placing a bowl of hot water inside to speed up thawing. 4) Wiping dry and closing the lid before restarting. Never use sharp metal tools.

Why is the green light (Run) off even though the freezer is plugged in?

The green light indicates the compressor is running. If it is off, the compressor may not be running due to the thermostat reaching the set temperature, a faulty thermostat, or a compressor issue. Check the red 'Power' light first. If red is on and green is off, the freezer may be in a cooling cycle pause. If it stays off for too long, consult customer service.

Can I store carbonated drinks or bottles in the freezer?

No. Do not store bottled or canned drinks (especially carbonated ones) in the freezer compartment as they may explode. Only store suitable frozen food items.

How much clearance is needed around the freezer?

Leave at least 4 inches (10 cm) on all sides of the freezer for proper ventilation. This allows heat from the compressor and cabinet to dissipate freely.

What should I do if the freezer door is difficult to open?

If the door is hard to open due to internal vacuum, use a blunt tool (like a screwdriver) to gently lift a portion of the door gasket to let air in, then try again. Avoid using sharp items.

How often should I clean the freezer?

It is recommended to clean the freezer every 30 to 45 days. Use warm water only, and dry thoroughly. Do not use chemical, steel, wooden or abrasive cleaners.

What does the red 'Power' light indicate?

The red light indicates that power is connected to the freezer. If it is off, check the power supply, fuse, or plug connection. If the power is on and the light remains off, the bulb or indicator may be faulty.

Is the Khind FZ142 freezer noisy?

Normal operation includes sounds like refrigerant flowing (like water) and compressor hum. The compressor surface may reach 70-90°C. If the unit is excessively noisy, ensure it is placed evenly on the floor and check that the compressor and condenser are properly installed.

What type of refrigerant is used and is it flammable?

The refrigerant is isobutane (R600a), which is flammable. Do not damage the refrigerant circuit. If leakage occurs, avoid flames and ventilate the area. The appliance must be disposed of according to local regulations.

USER MANUAL FZ142 Khind

Abstract grayscale graphic with white silhouettes of a globe and Earth, no text or symbols present

- Chest Freezer / 冷冻柜 / Peti Dingin Sejuk

Instruction Manual / 说明指示书 / Buku Panduan

Please read this manual carefully before operating this product. Keep this manual handy for further reference. 请在使用此产品前，详读此说明书，并将之收稿以作日后参考。

This manual is also available online.

www.khind.com.my

P/N: 40-50907-02

⚠ Safety Precaution Information

1.1 Safety and warning information

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
3. Must use separate, well-earthed and 3 core cable & plug top.
4. Do not squeeze, fold, knot or damage the cord.
5. Keep children away from package and its parts. Danger of suffocation from folding cartons and plastic film.
6. Do not climb, sit, stand or lean on the unit.
7. When repairing or cleaning the appliance, pull out the plug.
8. When pulling out the plug, do not pull cord to avoid cord damage.
9. The appliance should be recycled by appointed institutions. Personal handling may cause danger. Please follow according to local regulations regarding the disposal of the appliance for its flammable blowing gas.
10. This appliance is intended for household used only, do not use outdoors.

DANGER

1. Do not put flammable & explosive material inside (e.g. alcohol, gasoline etc).
   Risk of explosion and fire!
2. Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment.
   Risk of explosion!
3. Do not touch food or metal container in the freezer compartment with wet hands. Do not put frozen food straight from the freezer compartment into your mouth.
   Risk of low-temperature burns!
4. Do not store explosive substances such as aerosol cans with a flammable propellant in this aerosol. The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility which is nevertheless flammable.

WARNING

1. Do not damage the refrigerant circuit. Refrigerant leakage may ignite or cause eye injuries. Wash the eyes at once and see a doctor.
2. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. (e.g. heaters, electric ice maker, etc.)
   Do not use microwave oven, rice cooker and voltage regulator on the top of the appliance.
3. Keep ventilation holes, in the appliance enclosure or in the built-in structure, clear of obstruction.
4. To avoid hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
5. Do not use electrical appliances inside the food storage compartment of the chest freezer.
6. When positioning the appliance, ensure the supply cord is not trapped or damaged.
7. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Safety Precaution Information

1.2 Reminder Before Use

1. Keep as upright as possible during handling, tilt <45°, never upside down or horizontally and do not roll unit on an uneven surface at high speed.
2. The freezer should be placed in ventilation area avoiding direct sunlight, heat source and rain. There should be no corrosive gases in surrounding air.
3. Keep stable placing and adjusting the four castors when necessary.
4. All packaging material should be removed. Do not use bottom foam as vibrator proof material.

1.3 Installation

The freezer should be placed on the even floor, preferably in a well ventilated room and as far away as possible from any source heat. Any side of the freezer should be at least 4"(10cm) from the wall so that the warm air from the compressor motor and the mild heat from the cabinet's exterior are all circulate freely.

1.4 Electrical Connection

Connect this appliance to the electricity supply using a 13A three pin plug (single receptacle power source) WARNING - this appliance must be earthed. The wires in this mains lead are colored in accordance with the following code:

$$ \begin{array}{l} \text { Green } - \text { Earth } \ \text { Blue } \quad - \quad \text { Neutral } \ \text { Brown - Live } \ \end{array} $$

Ensure that all connections are tight and that there are no loose strands or wire left free or insulations on the leads trapped under the terminal in the plug, also that the cord clamp on the plug grips the outer sheath of the cord.

1.5 Daily Usage

• Do not put large amount of food into the unit at one time.
• Let the compressor run for 1-2 hours for the first time.
• Warm food must be cooled down to normal temperature before put into the unit.
  • Make sure that there is enough space around the food
• Raw food can be put into the basket provided for freezing at any one time.
  • Always cover the frozen food with plastic sheet before putting into the freezer. This prevent difficulty of taking frozen food out later from the freezer.
• Do not keep carbonated, cans drinks / stuffs and bottle inside the freezer.

Safety Precaution Information

ALERT:

In case of failure in door opening, due to the internal vacuum effect, use a screw driver or any similar shape but NOT SHARP item to lift up a portion of the gasket to allow air flowing into the unit then try to open the door again.

1.6 Environmental Protection

This appliance should not be disposed with other household wastes at the end of its working life. In order to prevent any possible harm to the environment or human health from the uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where purchasing this product from or their local government office for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

1.7 Service

Any Electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person. The product must be serviced by an authorized service center and only genuine spare parts must be used.

1.8 Cleaning & Maintenance

1. Always ensure that the electrical mains is turned off and unplug before cleaning the appliance.
2. Do not open the door frequently and too long to save energy. Opening the door for prolonged period may cause the freezer unable to perform optimum cooling.
3. Do not use chemical, steel, wooden or abrasive cleaners to clean the appliance.
4. Never use sharp instruments to scrape off frost or ice.
5. After cleaning, wipe the appliance until it is completely dry.
6. Use warm water to clean the oil and stains on the door gasket in order to keeps its elasticity.
7. This product should be service by authorised service agent.
8. Under no circumstances should you attempt to repair the appliance by yourself.
9. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning.

Product Information

1. The refrigerating system for this freezer is mainly comprised of fully-closed refrigerating compressor, an interior evaporator, closely compacted, properly processed with a good cooling result, it is convenient for use, quiet and saves electricity.
2. The hard Polyaminister foam (made from spot high-pressured foaming) is used for the thermal insulation which result in good performance and durability.
3. The interior door case is non-poisonous and odourless and formed by easy to clean ABS plastic. It is made of a specially treated embossed aluminium sheet, which result in a generally good clean looking and durable unit.
4. The cabinet and door are made of imported cold-rolled sheets which have been bonderized and electrostatic-painted, is consistent in thickness, corrosion resistant, flexible and scratch resistant.

Penggunaan Harian

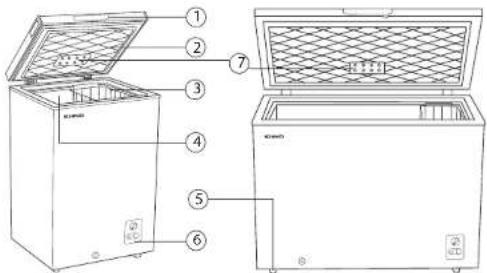

Parts identification

1. Handle with Key Lock
2. Freezer Door
3. Basket
4. Freezer Cabinet
5. Castors
6. Control Panel
7. Lamp

*Pictures are for illustration purpose only.

Specifications

Model	FZ99	FZ295	FZ142	FZ208
Voltage	220-240V~ 50Hz		220-240V~ 50Hz
Rated Power Input (Watt)	140W	180W	150W	165W
Rated Lamp Power Input	3W		3W
Rated Current (Ampere)	1.2A	1.9A	1.3A	1.5A
Energy Consumption	0.81kW·h/24h	1.49kW·h/24h	0.93kW·h/24h	1.01kW·h/24h
Net Capacity	96L	295L	137L	206L
Gross Capacity	99L	300L	142L	208L
Refrigerant	R600a/36g	R600a/58g	R600a/48g	R600a/52g
Compressor :	(1/7) HP		(1/7) HP
Type-hermetic (HP)
Lamp	Yes		Yes
Compressor Fan	-		-
Door Quantity	1	1	1	1
Door Lock & Key	Yes		Yes
Basket Quantity	1	1	1	1
Wheel Roller Quantity	Tidak	4	4	4
Net Weight	24kg	40kg	26kg	32kg
Gross Weight	27kg	45kg	30kg	36kg
Internal Product Dimension (LxWxH)	437 x 360 x 715mm	984 x 465 x 685mm	437 x 360 x 715mm	984 x 465 x 685mm
External Product Dimension (LxWxH)	553 x 503 x 850mm	1120 x 635 x 858mm	635 x 565 x 850mm	889 x 565 x 850mm
Box Dimension (LxWxH)	581 x 591 x 890mm	1158 x 658 x 890mm	663 x 581 x 890mm	918 x 581 x 890mm

*Specifications are subject to change without prior notice.

Daily Usage

5.1 Temperature Setting

1. The temperature of the freezer can be controlled by using the thermostat control knob on the control panel.

2. According to different ambient temperatures, types and quantity of stored foods, proper adjustment of the thermostat control knob can make the interior temperature controlled within an appropriate temperature range.

3. There are OFF, 1 \~ 7 settings on the control panel. The temperature number settings do not represent the specific temperature. If the knob is turned to OFF position, the compressor will stop and the freezer will not operate. Turning the thermostat control knob in clockwise direction will increase the compressor's operating time, reduce the freezer's downtime, and reduce the interior temperature of the freezer. Turn the thermostat knob in anti-clockwise direction will shorten the compressor's working time, prolong the freezer's downtime, and will increase the interior temperature of the freezer.

4. "Run" & "Power" Indicator light is to determine if there is power or not and if the refrigerating system is working.

5. "Power" indicator (Red Light): Red light is ON when power is connected to the freezer

6. "Run" indicator (Green Light): Green light is ON when compressor is running, or is OFF when compressor is not running.

Alert:

a. The temperature will be affected by:

• Room temperature
• How often the door is opened
• How much food is stored
• Position of the appliance

b. Please remember each time the lid is opened, cold air escapes and the internal temperature rises. Therefore, never leave the lid open and ensure it is closed immediately after food is put in or removed.
c. DO NOT frequently power ON / OFF the freezer.
d. If there is an electricity cut-off, please wait for 5 minutes before operating the appliance again to avoid damage to the compressor.
e. DO NOT DEEP freeze for a long time for more than 24 hours, it is not good for the refrigerating system. Turn back the knob to the normal cold working condition (position 2 or 3) when the articles are frozen.

Penggunaan Harian

5.1 Termostat

1. Before using the freezer it must be cleaned thoroughly with lukewarm or clean water to remove away dust or dirt at the interior surface of the freezer. This is to avoid contamination of food.
2. After cleaning, switch on the freezer and set the thermostat control knob at max position, without putting any food for at least 1-2 hours. This is to ensure that the cold air in the freezer has reached a suitable temperature for freezing food. As a result, frozen food can preserve its freshness and taste for a longer period.
3. After stabilising the temperature, the thermostat control is set to the appropriate setting according to the food load.

ALERT:

a. During transportation, the oil in the compressor may have flowed into the refrigerator system. Let the unit stand for at least 2 hours in order to avoid the system from chocking.
b. During startup (i.e. 1-2 hours), DO NOT BE ALARMED by the heat on the external cabinet. This is normal as the condenser is concealed around the internal surface of the cabinet.

5.3 Defrosting

1. Complete defrosting will in course of time become necessary. This should be carried out if the frost built up cannot be so craped away or if it begins to interfere with frozen food storage.
   Procedures:
   I. Take out the frozen food, turn the freezer off at the main supply and leave the lid open.
   II. Scrape away as much frost as possible, thawing of the reminder can be accelerated by placing a bowl of hot water inside the cabinet. As the solid frost loosens, scrape it away with a plastic scraper (not provided) and then wipe over the cabinet and the lid and dry thoroughly.
   III. When the cabinet is completely dry and clean, close the lid, switch on main supply. Proceed as for instruction on "OPERATION OF THE FREEZER".

ALERT:

a. This appliance should not be left unused for a long period. To stop using the appliance, disconnect the main power, clean the interior & dry it completely. Open the door for 2-3 days to ensure it is dry completely.
b. Never use sharp metal utensils to shovel off the frosting layers.
c. It is suggested that the freezer be cleaned periodically, generally clean it every 30-45 days.
d. Never use water to rinse the freezer.

5.4 Troubleshooting

1. If hearing the sound of water flowing in the unit, this is the refrigerant flowing sound inside the pipe.
2. If there is some dew on the surface of the unit, please wipe with dry cloth.
3. The temperature on the compressor surface can reach about 70°C\~90°C during its working time.
4. Should you find that your freezer does not work properly, please refer to the following table.

IMPORTANT:

If the problem stated in the following list cannot be solved, please call KHIND CUSTOMER SERVICE

PERSONNEL, its service agent or similarly qualified person. Do not attempt to repair the unit by yourself.

Daily Usage

Phenomenon Red Light is OFF
Possible Reason With Input Voltage Without Input Voltage
	Fuse has blown	Poor connection of plug and socket	Circuit control board failure	The socket of the red indicator light is loose	The red light bulb is broken

Phenomenon Green Light is OFF
Possible Reason Compressor is running Compressor does not run

Phenomenon Compressor Does Not Stop Running
Possible Reason The temperature in the freezer is too high After reaching desired cooling level
	Too much frost on the evaporator. Frost thickness level more than 5mm	Too often open the freezer door	Too much food in the freezer	Temperature sensor at evaporator was out of position	Thermostat does not work properly

Phenomenon Freezer is too noisy
Possible Reason	Freezer is not placed evenly on the ground	Compressor and condenser are installed incorrectly

1.4 Sambungan Elektrik

规格

型号	FZ99	FZ295	FZ142	FZ208
额定电压	220-240V~50Hz		220-240V~50Hz
额定功率	140W	180W	150W	165W
额定灯照明率	3W		3W
额定电流	1.2A	1.9A	1.3A	1.5A
耗电量	0.81kWh/24h	1.49kW·h/24h	0.93kW·h/24h	1.01kW·h/24h
净容量	96L	295L	137L	206L
毛容量	99L	300L	142L	208L
制冷剂	R600a/36g	R600a/58g	R600a/48g	R600a/52g
温度控制	(1/7) HP		(1/7) HP
灯照	有		有
压缩机风扇	-		-
柜门数量	1	1	1	1
柜门锁和钥匙	有		有
冷冻柜篮子	1	1	1	1
轮子	没有	4	4	4
净重	24kg	40kg	26kg	32kg
毛重	27kg	45kg	30kg	36kg
产品内部尺寸(长×宽×高)	437 x 360 x 715mm	984 x 465 x 685mm	437 x 360 x 715mm	984 x 465 x 685mm
产品外部尺寸(长×宽×高)	553 x 503 x 850mm	1120 x 635 x 858mm	635 x 565 x 850mm	889 x 565 x 850mm
箱子尺寸(长×宽×高)	581 x 591 x 890mm	1158 x 658 x 890mm	663 x 581 x 890mm	918 x 581 x 890mm

*以上规格如有任何更改，恕不另行通知。

日常使用

5.1 温度控制钮
