USER MANUAL VC9K20 Khind

USER MANUAL

SERIAL NO.

KHIND®

Experience More

ROBOTIC VACUUM

VC9K20

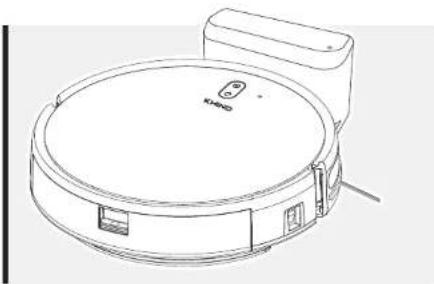

Line drawing of a circular vacuum cleaner with attached device (no text or symbols)

KHIND CARE Mobile App

Mobile App

Download to register for E-Warranty & enjoy hassle-free after-sales services.

1-800-88-0032

khind.com.my

IMPORTANT

Please read this manual carefully before operating this product. Keep this manual handy for further reference,

P/N: 40-51717-00

Safety Precaution Information

Safety & Warning Information

1. Read the instruction manual carefully and follow the instruction closely.
2. This appliance is intended for household use only; commercial use will void warranty.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
   Children should be supervised to ensure that they do not play with the appliance.
4. Use only the attached parts which are supplied by the manufacturer.
5. This appliance can only use the adaptor provided by KHIND inside the packaging.
6. Check to ensure your electricity supply matches that the voltage shown on the rating plate. The appliance must only be used as rated voltage.
7. If the adaptor is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
8. Insert the adaptor to the AC mains securely. Do not operate the adaptor or charging base with wet hands.
9. Keep appliance away from ovens and stoves etc.
10. Do not approach the fire source or the heat source, and avoid direct sunlight.
11. This appliance is not suitable for outdoors use or on wet surfaces. Use only on dry, indoor surfaces.
12. Do not use the appliance in a suspended area without protective fences.
13. Do not use the appliance if any parts appear to be faulty, missing or damaged.
14. Ensure all parts are securely assembled before using the appliance
15. Do not run the Robotic Vacuum during charging.
16. Do not unplug the adaptor by pulling on the cable. To unplug, grasp the adaptor, not the cable.
17. Do not use the try to ride on the main unit, place heavy objects on it or apply strong impacts to it
18. Do not use the appliance under extremely hot or cold environments. It is recommended to use the appliance in the environment of 0°C \~ 40°C.
19. Before each use, please clean the inner and suction mouth of the dust container, clean out the hair, cotton fibre and dust. Do not jam the suction of the dust container.
20. Do not immerse any part of the appliance into the water or other liquids. (except for those parts and accessories that can be washed with water).

Risk of Personal Injury

1. Charge the appliance for 5-6 hours before initial use
2. Never use the appliance without the HEPA Filter or Dust Container in place.

3. Do not use the appliance in areas where flammable or combustible liquids may be present.

4. When using the Robotic Vacuum for the first time, a smell or vapour may be given off. This will dissipate after few uses.

5. Keep hair, loose clothes, fingers and all parts of the body away from openings and moving parts.
6. Do not insert any objects into openings or cover the appliance or charging base.
7. Take extra care when cleaning and vacuuming at the staircase area.
8. In order to prevent damage to the product and reduce risk of fire and/or personal injury, the following objects are strictly prohibited from being sucked up:
   • Any large or broken objects such as glass.
9. Anything that is burning or smoking such as cigarettes, matches or hot ashes.
   • Liquid spills
   • Reactive liquids (solvents, corrosives, detergents)
10. Flammable or explosive substances such as alcohol, thinners etc.
11. Pet litter or anything with pet waste attached.
12. Pins, needles, toothpicks, coins, metals, plastics, food wrap, other wrapping films.
13. Long pieces of string and belts
    • Fringes of coverings and floor cushions or carpets
    • The ends of the table cloths and curtains that reach to the floor.
    • Damp or wet items.
14. In order to prevent injury, fire or electric shock due to falling of the main unit or charging base, please do not use in the following places:
15. Spring layer or corridor without fence.
    • In narrow areas where the main unit cannot turn around.
    • In entrance halls, stairways or steep slopes.
16. Segment difference or concrete floors with hard or uneven surfaces.
17. On top of refrigerators or high area locations with limited space (such as surface of the table/chair).
18. Do not use the appliance on the carpets or flooring that can be easily damaged, such as waxed floors, marble floors, mirrored surfaces (glass, mirror) etc.
19. Do not use it on damaged tiles, carpets, or old fatami mats.
20. Discontinue usage and send to nearby KHIND Service Centre if encounter the below situations: -
21. Battery runtime changes abruptly or the battery has been damaged.
22. Charging base/ dock station, AC adaptor, plug or main lead are damaged.
23. Do not touch the rotating wheels or side brushes.
24. Do not block the sensors, infrared transmitters and receivers on the main unit or charging base by putting tape or stickers on them or blocking with cloth
25. Do not block the suction port or exhaust port.
26. Keep pets out of the way in their enclosures or in other areas.
27. Turn off the main power switch, unplug from the socket - outlet before cleaning or maintenance or when children or pets are present.
28. Use only the charger supplied by KHIND. If other chargers are used, this can cause damage to the battery, product or personal property.
29. Store the appliance indoors, in a cool and dry place.

Safety Concern with Li-ion Batteries

1. Before charging, please check whether the adaptor and dock station are properly connected.
2. The battery is not fully charged at the time of purchase, so please charge the appliance before initial use. Full charging takes about 4 - 5 hours.
3. It is recommended to recharge the appliance in area where the temperature is between 5°C and 35°C. The unit cannot charge properly if the room is too cold or too hot.
4. If the operating time reduces significantly even after proper recharging, it means that the battery has reached the end of its service life. Please send in to KHIND Customer Service for battery replacement.
5. In extreme application conditions or temperature conditions, the battery may leak. If the liquid of the battery has fluid to flow out and stick to the skin, please flush with water in time. If the liquid accidentally enters the eye, wash immediately with water and seek medical advice.
6. Do not litter the battery together with the general household waste so as to prevent contamination of the environment. It should be safely discarded and recycle at the appropriate collection site.
7. When not using the charging dock station for a long period of time, please unplug it.

WARNING!

Do not incinerate the appliance even if it is severely damaged.

The battery can explode and result in fire hazard.

Please dispose the battery according to local laws and regulations.

Parts Identification

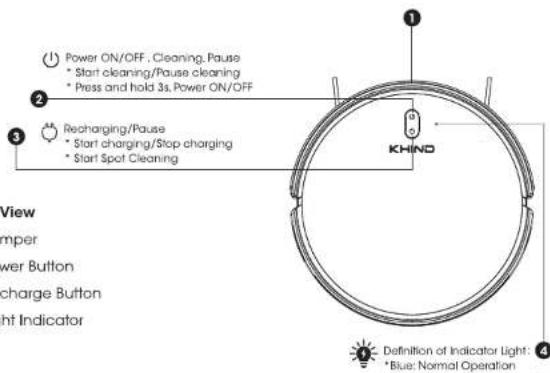

A. Top View

1. Bumper
2. Power Button
3. Recharge Button
4. Light Indicator

Definition of Indicator Light:

*Blue: Normal Operation

*Red: Abnormal warning or low battery

*Blue Flashing; Recharging

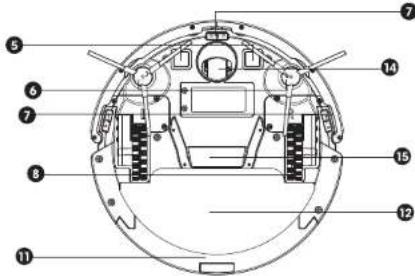

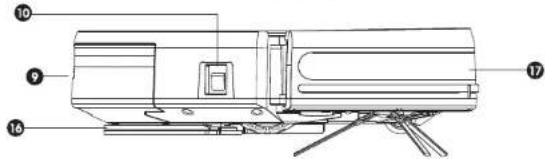

B. Bottom View

1. Electrode
2. (Left) & (Right) Side Brushes
3. Cliff Sensor
4. Drive Wheels
5. 2-in-1 Dust Box
6. Power Switch
7. Dust Box Buckle
8. Mop Board
9. Cliff Sensor
10. Universal Wheel
11. Suction Inlet
12. Mop Board
13. Infrared Lens

C. Charging Base

1. Power Adaptor Plug
2. Signal Indicator
3. Infrared Lens
4. Charging Plate

D. Remote Control

1. Automatic Cleaning
2. Start / Pause
3. Spot Cleaning Mode
4. Water Flow Adjustment
5. Recharge Button
6. Direction Control
7. Edge Cleaning Mode
8. Suction Adjustment

Packing List

Mop Cloth x2

(1 piece on the Mop Board, 1 piece in package)

Robotic Vacuum *1 (The Mop Board has been installed)

Charging Base*1

Side Brushes*4 (Left) Side Brushes *2 (Right) Side Brushes*2)

Filter*2 (1 piece in Dust Box, 1 piece in package)

User Manual*1

AAA Batteries for Remote Control*2

Mop Cloth*2 (1 piece on the Mop Board)

Cleaning Kit*1

Remote Control*1

Adaptor*1

*Pictures are for illustration purposes only.

Specifications

Model	VC9K20
Power	28W
Motor	Brushless Motor
Adaptor Input Voltage	AC 100 - 240V - 50/60Hz
Adaptor Output Voltage	19V: 0.6A
Battery Type	Lithium - Ion Battery Pack
Battery Voltage	14.4V 2500mAh
Filtration Type	HEPA Filter, Sponge Filter & Net Filter
Dust / Water Container	Dust 200mL / Water 230mL
Suction Power	1600 Pa
Operation Time	120 min
Coverage Area	120m^2
Charging Time	5 - 6 hours
Noise Level	<72 dB
Net Weight	2.5kg
Product Dimension (LxWxH)	300 x 300 x 75mm

*Specifications are subject to change without prior notice.

Quick Install Guide

a. Please remove the protective foams from the main unit and install the Left and Right Side Brush correctly.

b. Place the charging base on a flat ground against the wall. Do not place any objects within 19.6 inches by sides and 59.05 inches in front of the charging dock. (Tips: Please tie the extra wires length together)

c. Power on and full charge the device before use.

9

C. Use of Cleaning Function

1. Remove the Map Board before using cleaning function by clasping the middle of the Map Board.

1. Install the Side Brushes in correct position corresponding "L / R", and press down vertically until the sound "dak" is heard.

1. Short press the ⏻ Power Button or ⏱ Auto Button to start the cleaning function.

1. Short press the ⏻ Power Button on the device to pause or press the ▶ Start / Pause button by Remote Control to pause the device.

1. Recharge, if the device is in low battery, it will automatically return for charging. It can also return to base by pressing 📋 Recharge button on device and Remote Control.

1. Working Mode
   a. Automatic Cleaning - the device will sweep in a zigzag way or random way and finishes entire area in order and efficient. It will automatically return to the base after completed cleaning or battery life left 15%.
   b. Spot Cleaning - Press "⊕" button on Remote Control, the device performs cleaning in a spiral clockwise from the inside to outside. After the maximum radius 24.6 inches, it returns to the starting point and cleaning is completed.
   c. Edge Cleaning - Press "☐" button on Remote Control, the device cleans the periphery of indoor fixed objects and returns to the Charging Base after all edges cleaning completed.
   d. Manual Mode - the device can be controlled by the arrow key in Remote Control as moving direction.

2. Water Flow Adjustment - Press "①" from Remote Control to choose 3 different modes including high, mid and low, otherwise it is set as default with mid.

1. Suction Adjustment - Press "③" from Remote Control to choose 3 different suction level including strong, normal and quiet, otherwise it is set as default with normal.

7

Method of Usage

A. Preparations Before Usage

1. Clear up objects such as clothing, loose papers, power cords and cables, cords for blinds or curtains and any fragile objects before start operating the robot.

Line drawing of a minimalist living room interior with furniture and objects (no text or symbols)

Line drawing of a minimalist living room interior with sofa, coffee table, and wall (no text or symbols)

1. Set up protective fences or barricades at the entrance of the stairs, upper floor edges, corridor, kitchen, bathroom and other rooms to avoid any incident and damage the robot.

Line drawing of a wooden fence with a circular drain cover and a cross symbol (no text or labels)

Architectural line drawing of a balcony with railing and circular base (no text or symbols)

Note: Do not use the device to clean up puddle of water.

Simple line drawing of a room corner with a circular object, abstract shapes, and a cross symbol (no text or labels)

Simple line drawing of a room corner with a circular object and a checkmark symbol (no text or labels)

B. Use of Mopping Function

1. Press the Dust Box Buckle and pull the Dust Box to remove the water tank from robot.

Diagram of a robotic vacuum cleaner with internal components and directional arrows indicating motion (no text or symbols)

1. Pour small amount of water into the Water Tank and close its cover tightly.

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

1. Install the Dust Box / Water Tank back to the robot.

Diagram of a circular device with internal components and directional arrows indicating rotation or movement (no text or symbols)

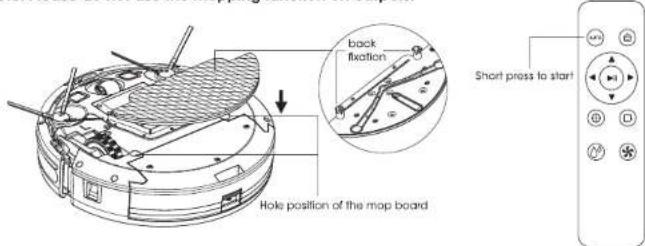

1. Place the raised part of the Mop Board into Mop Cloth pocket, and then press the Mop Cloth to hold light on the Velcro.

1. Press the fixation down against the hole on the Mop Board till the sound "clak" appears. (When the mopping board is installed, and the robot will automatically be in mopping mode after it is turned on.)
2. Gently flip the device over, place it on the floor and turn on the power. Then short press Power button (☐) or Auto button ⏻ to start the mapping function.

Note: Please do not use the mopping function on carpets.

8

11

D. Maintenance

Note: Recommended to clean at least once a week to keep it at best performance.

1. Suction Inlet cleaning - wipe the suction port with a clean dry cloth.

1. Side Brushes cleaning

a. Remove the Side Brushes by pulling out vertically.

b. Reinstall it after cleaning the entanglement and dirt.

Note:

1. Please confirm the correct position corresponding to the left (L) and right (R) Side Brush installation.

2. Side Brushes are recommended to be replaced every 3 months to ensure the cleaning effect.

3. Water Tank, Dust Box and Filter cleaning

a. Press the Water Tank/ Dust Box Buckle and pull it out.

b. Press the Filter Buckle and open the filter cover to remove the trash in Dust Box.

c. Remove the Primary filter, HEPA filter and Sponge Wash them with water or clean with cleaning tools but they have to be fully dry before putting them back for use.

Filter Buckle

Primary Filler

HEPA

Sponge

Note:

1. Do not dry the filters with heater or hair dryer or expose to sunlight.
2. Let the filters dry naturally by putting at dry places for approx. 8 - 12 hours depending on condition.

d. Make sure the Water Tank is filled with water before using the mopping function. Press the button on the Water Tank / Dust Box and pull it out. Open the Water Tank cover, fill up with water and fasten the cover. Reinstall the 2-in-1 Dust Box in the opposite direction from which it was removed.

Note: Do not add detergent into the water and do not wash or soak the Water Tank.

1. Mop Board cleaning

a. Remove the Mop Board vertically from the device.

b. Wash the dirty Mop Cloth and fully dry it before fasten it back to the Mop Board.

c. Install the Mop Board to the device.

Note:

1. Do not use the mopping function on carpets.
2. Make sure the Mop Cloth is clean before operation to keep its best performance.

12

13

1. Equipment signal sensor maintenance.

Note: Clean at least once a month to avoid misdetection.

a. Wipe the front anti-collision sensor with a soft dry cloth.

c. Clean the charging contact area with a soft dry cloth.

Technical line drawing showing a circular component with internal components and a rectangular device (no text or symbols)

b. Wipe the sensor with a soft dry cloth.

d Clean the signal transmission area maintenance with a soft dry cloth.

1. Battery maintenance
   a. Keeping the device in charging status would help to maintain battery performance as it does not over loss electricity and battery life can be longer.
   b. If it is not in use for a long time, please fill charge and turn off to be stored.
   c. Charging at least every 3 months, avoiding the battery to cause overhang damage
   d. Must use original power adaptor when charging
   e. Lithium battery is full charged randomly for ready to use. No need to be charged with whole 12 hours.

Troubleshooting

Problem	Solution
Unable to boot	When the battery is low, place the device on the Charging Base, align it with the contact point, and the device will start up automatically.Check whether the plug of the device power adaptor is properly connected and the power supply of the socket is normal.
Unable to charge	Bad contact, please clean the dirt on the charging contact point, or unplug the continuous brush.The device is too far away from the Charging Base. Please place the device near the charging base.
Unable to return for recharge	Shut down and restart.
Abnormal running	The main brush, side brush or wheel may be entangled with foreign objects, please clean it after stopping the device.
Abnormal noise when cleaning	The Dust Box is full, please clean the Dust Box
Decreased cleaning ability or dust drop	The filter is clogged, please clean or replace it.The brush is entangled by foreign objects, please clean the brush.

14
