ICM-3000TKS - Coffee maker Imarflex - Free user manual and instructions

Product Type	Drip Coffee Maker
Brand	Imarflex
Model	ICM-3000TKS
Capacity	1.2 liters (approx. 10 cups)
Power Consumption	1000 W
Voltage	220-240 V, 50/60 Hz
Dimensions (L x W x H)	24 x 20 x 35 cm
Weight	2.5 kg
Material	Plastic housing with stainless steel warming plate
Filter Type	Reusable permanent filter (included)
Water Level Indicator	Yes, transparent water tank with markings
Keep Warm Function	Yes, automatic keep warm for 2 hours
Auto Shut-Off	Yes, after brewing completion
Anti-Drip System	Yes, allows pouring mid-brew
Control Type	Single button on/off with indicator light
Cleaning & Maintenance	Descaling recommended monthly; removable filter basket
Safety Features	Overheat protection, automatic shut-off
Warranty	1 year limited warranty

Frequently Asked Questions - ICM-3000TKS Imarflex

How do I clean my Imarflex ICM-3000TKS coffee maker?

Unplug the machine and let it cool. Wash the carafe, filter basket, and permanent filter with warm soapy water. Wipe the exterior with a damp cloth. Do not immerse the base in water.

How often should I descale the coffee maker?

Descale every 1-2 months depending on water hardness. Use a mixture of white vinegar and water (1:2 ratio) and run a brew cycle, then rinse with fresh water.

What type of filter does the ICM-3000TKS use?

It comes with a reusable permanent filter. You can also use standard #4 paper filters if preferred.

Can I use ground coffee directly?

Yes, place ground coffee (medium grind) into the permanent filter or a paper filter. Use about 1 tablespoon per cup.

How long does it take to brew a full pot?

Brewing a full 10-cup pot takes approximately 10-15 minutes, depending on water temperature and grind size.

Does the coffee maker have an automatic shut-off?

Yes, the machine shuts off automatically after brewing. The keep warm plate remains on for about 2 hours, then turns off.

Why is my coffee not hot enough?

Ensure the warming plate is clean. Preheat the carafe with hot water. Also, use fresh coffee and avoid small batches as they cool faster.

What should I do if the coffee maker leaks?

Check that the carafe is properly placed, the filter basket is correctly inserted, and the lid is closed. Clean any debris from the anti-drip valve.

Is the ICM-3000TKS compatible with a timer?

No, this model does not have a programmable timer. It operates manually with a single button.

What is the warranty period for this product?

The Imarflex ICM-3000TKS comes with a 1-year limited warranty against manufacturing defects. Keep your proof of purchase.

USER MANUAL ICM-3000TKS Imarflex

MULTI-FUNCTION SERIES

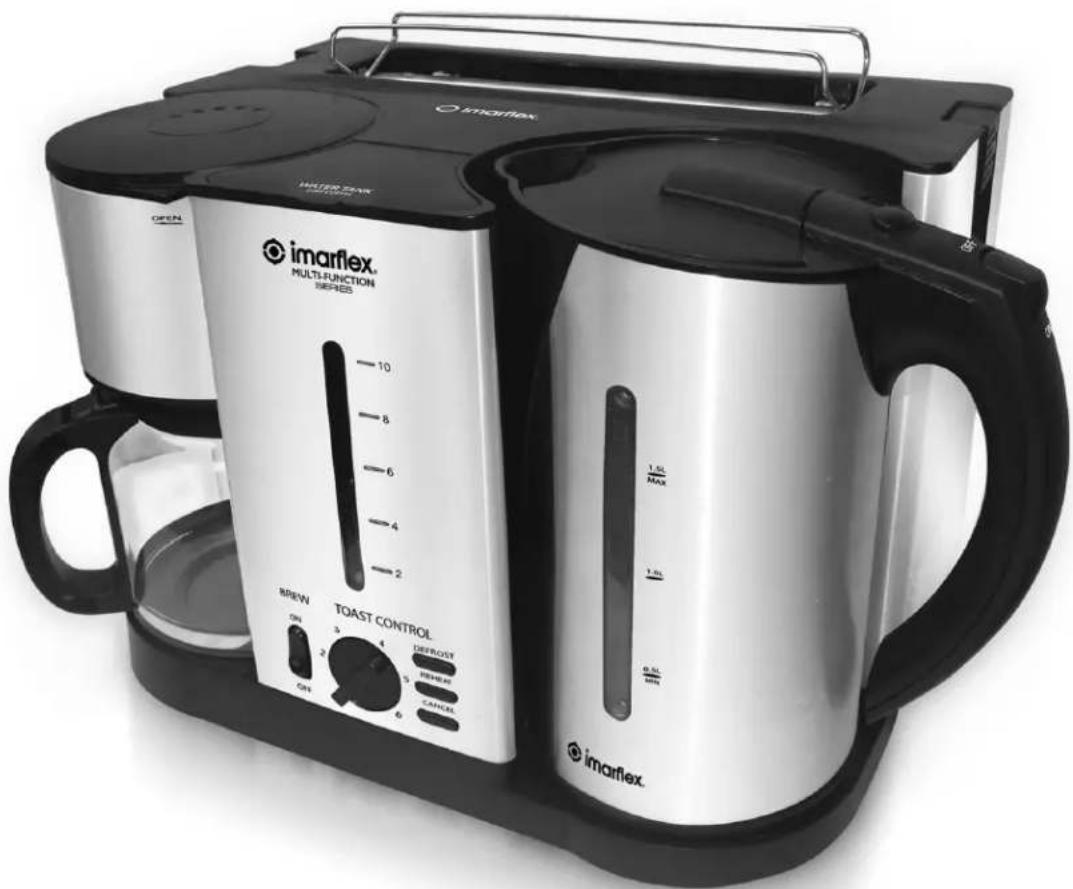

Exterior view of a modern imarflex multi-function coffee maker with open lid and control panel (no visible text or symbols on main body)

SPECIFICATION

MODEL NO : ICM-3000TKS

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 3000 Watts

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the coffee maker, check if the voltage indicated corresponds with the electric outlet (230Va.c.).
3. Do not use two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest lmarflex authorized service center.

5. Do not place the unit near gas stove, electric burner or heated oven.

6. Put the unit on flat surfaced; keep it away from the edge of counter to avoid accident.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. Do not allow cord to touch hot surface of the unit.

10. To avoid electric shock, do not immerse the plug or the unit in water.

11. The use of accessory not recommended by appliance manufacturer may result in fire, electric shock or injury to the user.

12. Avoid placing the carafé on a wet or cold surface especially when hot.

13. Do not use the carafé if it has a crack or the handle is not stable.

14. Do not use carafé for other purposes.

15. Do not use the coffee maker if the water tank is empty.

16. Do not operate the kettle if empty.

17. Extreme caution must be exercised when using an appliance containing hot water.

18. Always pay attention when pouring boiling water; slowly and carefully pour water without tipping the kettle too fast.

19. Always ensure that the lid is closed and do not lift it while water is boiling. Scalding may occur if the lid is removed during the boiling cycle.

20. Oversize food, metal packages or utensils must not be inserted in the toaster as they may cause fire or electric shock.

21. Do not use the unit for outdoor use.

22. Do not use this unit other than its intended use.

23. For household use only; not intended for any business purposes

24. After use, always switch OFF and unplug the unit from the convenience outlet.

25. Save this instruction manual for reference.

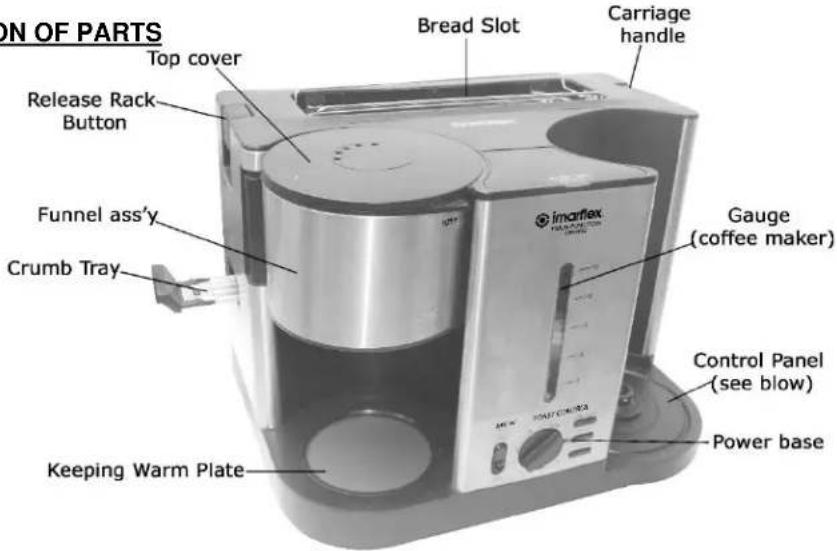

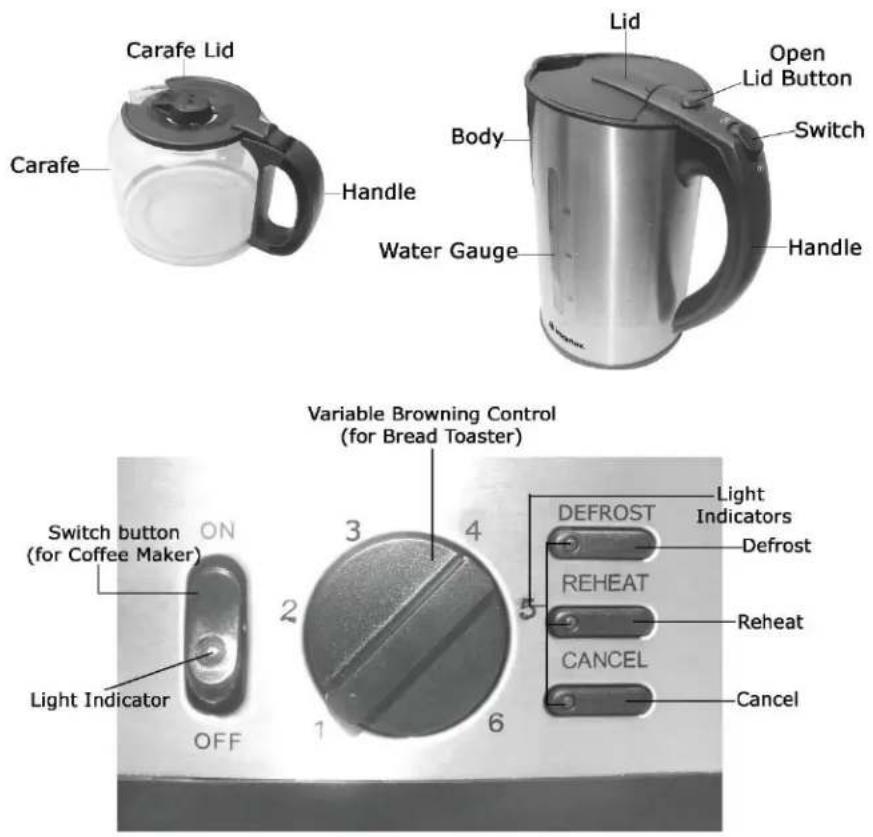

DESCRIPTION OF PARTS

HOW TO USE

For the first use, some manufacturing residue or oil remained in the toaster or heating element, this will emit smoke and odor. This is normal and will not occur after several times of use.

COFFEE MAKER

Remove all packaging materials. Check if all accessories are complete and the unit is free from any damaged.

1. For initial use, fill water tank with fresh water up to MAX capacity then process without coffee. Discard and repeat the process once more. Now your Coffee Maker is ready to use.

2. Plug the unit into a convenience outlet, always make it sure that the unit is in OFF position.

3. Swing out the Funnel; place the Filter Basket Holder with the Filter Basket and make it sure that is properly assembled.

4. Put ground coffee into the filter basket using a measuring spoon, standard measurement is one scoop of ground coffee (7 to 8 grams) for a cup of water (8oz.), but you may adjust according to personal taste, and then close the funnel.

5. Fill carafe with the desired amount of water. Open the lid of the water tank, pour water from the carafé and close then.

Note: Do not fill water tank above its maximum level as indicated on water gauge.

1. Wipe and place the carafe into the keep warm plate.

2. Switch the unit ON.

3. During the brew cycle, the water will automatically drip into the carafé.

NOTE: The appliance is designed with a pause-and-serve feature, if you wish, at any time during brewing cycle, you can temporarily remove carafe to pour and serve a cup of hot coffee. The brewing cycle will not be interrupted and no coffee will drip from the unit, simply return the glass carafe onto the warming plate to restart the brewing cycle, but do not remove the glass carafe longer than 30 seconds.

1. Remove carafe to serve after the brewing cycle, (about one minute later after the coffee stops dripping out).

NOTE: The coffee you get will be less than the water you have poured, as some water is absorbed by coffee ground.

CAUTION: When pouring coffee, make sure that the angle of the carafe do not exceed 45 degrees in reference to the vertical position, you can pour the coffee slowly until the carafe is empty, be careful not to over tilt and spill the hot contents of the carafe. The hot contents of the carafe burn the skin on contact.

careful not to over tilt and spill the hot contents of the carafe. The hot contents of the carafe burn the skin on contact.

1. After brewing, the appliance will automatically switch to the warming mode, which will continue to keep your coffee warm until you press the button to the "O" position. It is suggested that warming time shall be not more than 1 hour; aroma and coffee taste will decrease as long as it is exposed. For the best coffee taste, serve it just after brewing.

2. After use, switch OFF and unplug the unit from the convenience outlet

NOTE: Always turn off the unit if the carafé is empty.

HINTS FOR GREAT-TASTING COFFEE

1. A clean coffee maker is essential for making great-tasting coffee. Regularly clean the coffee maker as specified in the “CLEANING AND MAINTENANCE” section.
2. Always use fresh tap water in brewing coffee.
3. Store unused ground coffee in a cool, dry place. After opening a package of ground coffee, store it in an airtight container to maintain its freshness.
4. For the best coffee taste, buy whole coffee beans and finely grind them just before brewing.
5. Do not reuse ground coffee since this will greatly reduce the coffee flavor. Reheating coffee is not recommended as coffee is at its peak flavor after brewing.
6. Clean the coffee maker when over-extraction caused oiliness. Small oil droplets on the surface of brewed, black coffee are due to the extraction of oil from the ground coffee.
7. Oiliness may occur more frequently if heavily roasted coffees are used.

KETTLE

If you are using the kettle for the first time, it is recommended that you should clean your kettle before use, by boiling a full kettle of water twice and then discard the water.

1. Remove the kettle from the base before filling with water
2. Open the Lid by press the Open Lid Button. Fill water not more than its "max" level then close the Lid (leaving it open will not automatically shut off the unit during operation)
3. Place the kettle on the base.
4. Switch ON. The heat light indicator will turn ON.
5. Once the water boils, the unit will automatically turn OFF.
6. Unplug the unit from the convenience outlet.
7. Lift the kettle and then pour the water.
8. The kettle will not re-boil unless the switch is pressed again.

TOASTER

For the first use, preheat the toaster at least 3 minutes to remove the smoke and odor.

1. Plug the unit into the convenience outlet.
2. Put slice bread into the bread slot (it can insert four slices at a time).
   Note: Make sure the crumb tray is in place before using.
3. Set the Browning Control Knob, there are 7 settings, 1 & 2 are for light toast, 3 & 4 are for golden brown and 7 is for dark brown.

Note:

1. Toasting color for one slice is darker than that for double bread at the same setting.

2. If toasting continuously, color for the latter bread is darker than the interior bread at the same level.

3. Press down the Carriage Handle until it locks, the light indicator on "Cancel" button will be illuminated and toast will begin at once.

Note: Toasting process can be cancelled at any time by pressing the "Cancel" button.

1. Once the bread is done to pre-set color, the bread will pop-up automatically.

2. If you want to reheat the cold toasted bread, press the "Reheat" button and the light indicator will be illuminated. In this mode toasting time is fixed, the carriage handle will automatically pop-up once the set time is finished.

3. If the bread has been taken from refrigerator, set the browning control knob to desired position, press the carriage handle down until it's in proper position, press "Defrost" button and the light indicator will be illuminated. The bread will be toasted according to the set color

COMBINED USE

1. The toaster and the coffee maker; coffee maker and kettle can operate at the same time. Please refer to "How to Use" for the instruction.

Note: The toaster and the kettle cannot be use at the same time, once the toaster is operating, the kettle cannot be use and vice versa.

CLEANING AND MAINTENANCE

COFFEE MAKER

How to clean the Water Tank:

1. Pour water on the water tank with one pint vinegar.
2. Put the carafé into the keep warm plate.
3. Switch the unit ON.
4. After one minute switch OFF.

5. Allow the vinegar inside the water tank for at least 30 minutes. Switch ON. The water will flow into the carafé after boiling.

6. Empty carafé and rinse it thoroughly.

7. Pour water on the water tank and repeat the brewing cycle.

8. Switch OFF.

9. Wash the carafé once more.

NOTE: Do not use damp cloth to clean the water tank, this will leave some residue of lint and may clog your coffee maker, simply rinse with fresh tap water periodically.

Removing Mineral Deposits on the Water Tank

To keep your coffee maker operating efficiently, periodically clean mineral deposits left by the water according to the water quality in your area and the frequency of use, we recommend removing mineral deposits as follows:

1. Fill the tank with water and de-scaling solution to the max level as indicated on water gauge (the scale of water and solution is 4:1; the detail refers to the instruction of the solution. Please use "household solution"; you may also use the citric acid instead of the solution (the one hundred parts of water and three parts of citric acid).
2. Insert glass carafe onto the warming plate.
3. Make sure that the filter (without ground coffee) and funnel are assembled properly.
4. Switch the unit on and allow it to process the de-scaling solution.
5. After processing one-cup solution, switch off the appliance.
6. Leave the solution for 15 minutes and repeat steps 3-5.

7. Switch ON the appliance and run off the solution until the water tank is completely empty.

8. Rinse the unit by processing with fresh water at least 3 times.

How to clean the Keep Warm Plate and the Filter Basket:

1. Unplug and allow the unit to cool OFF before cleaning.
2. Wipe the plate with damp cloth and wipe it dry.
3. Wash the Filter Basket and Filter Basket Holder with soap and water.

How to clean the Carafé

1. Make it sure that it is completely cool.
2. Wash the carafé using a mild detergent.
3. To remove stains, fill carafé with water and mild soap, allow these inside the carafé overnight.
4. Rinse the carafé thoroughly.
5. Do not clean with cleansers, steel wool pads, or other abrasive materials.

KETTLE

1. Unplug the unit from the convenience outlet before cleaning.
   2 The body of the kettle may be cleaned using a damp cloth. Do not use abrasive materials to avoid scratches.
2. Wash the filter with soap and water.
3. Refer to the instruction below in cleaning the unit using the following:

- Soap and Water

a. Combine soap and water. Pour into the Kettle up to the maximum level for 1 hour.
b. Discard the solution.
c. Fill the kettle with clean water up to "max" level and boil.
d. Repeat several times until the odor of the soap has been removed.
e. Rinse thoroughly.
f. Rinse the kettle thoroughly.

- Vinegar

a. Combine one part of vinegar and water. Pour into kettle up to "max" level Switch ON and wait for the unit to turn OFF.
b. Leave the solution inside the kettle for overnight.
c. Discard the solution.
d. Fill the kettle with clean water up to "max" level and boil again.
e. Repeat several times until the odor of vinegar has been removed.

TOASTER

1. Make sure to unplug and allow to cool down before moving or cleaning the unit. Use a wet damp cloth in cleaning.
2. Pull-out the Crumb Tray from the unit and wash thoroughly.
3. Do not use abrasive materials to avoid scratches.

REMINDER: Please do not forget to fill up and send the warranty card
