Product Type	Universal Remote Control
Brand	Insignia
Model	NS-RMT8D21
Device Control	Up to 8 devices: TV, STB, Streaming, Blu-ray, DVD, Audio, AUX, Sound
Range	30 ft (9.1 m)
Dimensions (H x W x D)	1.8 x 0.8 x 8 in (45.7 x 20.3 x 203.2 mm)
Weight	Approximately 0.3 lbs (136 g) with batteries
Power Source	2 x AA batteries (not included)
Backlight	Yes, full button backlight
Learning Function	Yes, can learn functions from original remotes
Pre-Programmed Brands	Samsung, Comcast Xfinity, Roku, Sony, Yamaha, and more
Setup Methods	SimpleSet (brand-based), Device Codes (4-digit), Function Learning
Activities	Watch TV, Listen to Music, Watch Movie (customizable device combinations)

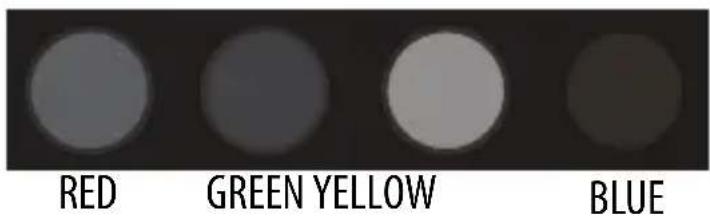

Channel Shortcut Macros	4 color buttons (Red, Green, Yellow, Blue) for up to 10 channels each
App Shortcut Macros	3 buttons (A, B, C) for streaming service shortcuts
Audio Lock	Locks volume control to a single device
AV Shift	Input button temporarily controls TV navigation for 10 seconds

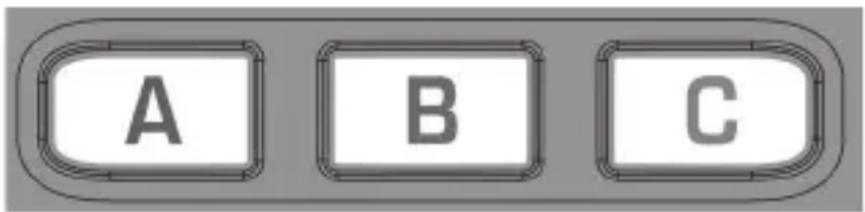

Power Macro	Press and hold Power to turn all Activity devices on/off
Package Contents	Remote control, User Guide, Device Codes list
Cleaning and Maintenance	Wipe with a dry, soft cloth. Avoid liquids and abrasives.
Safety Precautions	Do not expose to heat, water, or excessive moisture. Remove batteries if not used for long periods.
Reparability	No user-serviceable parts. Refer servicing to qualified personnel.
Warranty	1-year limited warranty (U.S. and Canada)

Frequently Asked Questions - NS-RMT8D21 INSIGNIA

How do I program my Insignia NS-RMT8D21 remote to control my TV?

Use one of three methods: SimpleSet (if your brand is listed, press and hold SETUP then the numeric key for your brand), Device Codes (enter a 4-digit code for your brand), or Function Learning (point your original remote at the Insignia remote and teach it functions).

What should I do if the remote does not turn on my device after programming?

First, ensure the remote is in the correct mode (press the device button like TV or STB). Check that the batteries are fresh and installed correctly. If still not working, try the next code in the list or use the learning function to teach missing commands.

Can I use the remote to control a Roku streaming device?

Yes. Press the STREAM button to control your streaming device. Use SimpleSet by pressing the STREAM button, then SETUP, then the number for your brand (e.g., 7 for Roku). Alternatively, use device codes or function learning.

How do I set up the Watch TV Activity?

Press and hold SETUP until the LED blinks twice, then press the Watch TV (☐) button. Enter the number for the combination you want (default 1 for TV+STB+AUDIO). The remote will group those devices for seamless control.

Why is the volume not controlling my soundbar?

Enable the Audio Lock feature: press and hold SETUP, enter 993, then press the device button for your soundbar (e.g., AUDIO or SOUND). Now volume buttons always control that device regardless of the current mode.

How do I program the colored buttons for channel shortcuts?

Select the device for live TV (e.g., STB). Hold SETUP and the colored button (Red, Green, Yellow, Blue) until the LED blinks twice. Enter the channel number, press the same colored button, enter next channel, etc. To finish, hold SETUP until the LED blinks twice.

What is the range of the remote and can I use it through walls?

The remote has a 30 ft (9.1 m) range but requires a direct line of sight to the device's infrared sensor. It may not work through walls or obstructions.

How do I replace the batteries?

Slide off the battery cover on the back. Insert two AA batteries matching the + and - symbols. Replace the cover. Remove batteries if not using the remote for a long time to prevent leakage.

My remote buttons are not lighting up. How do I turn on the backlight?

Press the Backlight button (last button, labeled with a light icon). The backlight will turn on for a few seconds. If it does not work, ensure the batteries are fresh.

Is there a warranty for this remote?

Yes, the Insignia NS-RMT8D21 comes with a 1-year limited warranty from the date of purchase. It covers defects in materials or workmanship. Contact Insignia at 1-877-467-4289 or visit a Best Buy store for service.

USER MANUAL NS-RMT8D21 INSIGNIA

Eight-device Universal Remote

IMPORTANT SAFEGUARDS....2

Features....3

Package contents 3

Remote control buttons....4

Setting up your universal remote control .....6

Installing the batteries 6

Programming and using your remote control . . . 7

Using channel shortcut macros....13

Using app shortcut macros 15

Understanding and using Activities. 16

Troubleshooting 20

Specifications 21

ONE-YEAR LIMITED WARRANTY 21

ESPAÑOL 24

Introduction

Thank you for purchasing the Insignia Eight-device Universal Remote Control. This remote can be used to control a TV, a streaming device, a set top box, a Blu-ray or DVD player, a sound bar or audio receiver, and an auxiliary device, and boasts several extra features to make the most of your living room experience.

This manual will help you to set up your Insignia universal remote control to control eight of your devices and take advantage of its features.

IMPORTANT SAFEGUARDS

1 Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Refer all servicing to qualified service personnel.
6Remote control batteries should not be exposed to excessive heat such as sunshine, fire, or the like.

Features

• Controls up to eight devices – your TV, Streaming device, Blu-ray Player, soundbar, cable box/satellite receiver (STB), and Auxiliary device
• Easy pre-programming connects to your major brand devices without needing a code
• A long 30 ft. (9.1 m) range helps you to minimize remote switching
• Learn-ability feature enables this remote to learn additional functions from your original remote
• Shortcuts let you program specific keys for quick access to your favorite channels and streaming apps
• Fully backlit keys help you operate this remote in dim lighting
  • Audio lock feature adjusts the volume of your soundbar without changing devices
• Premiere design blends ergonomics and key layout for easy, enjoyable use
• 2 AA batteries required (not included)

Package contents

• Eight-device universal remote control
• U s e r G u i d e
- Device Codes

Remote control buttons

# BUTTON PRESS TO...
1 Input Change the signal source.
2	( L Music)	Combines control of your AUDIO device with your TV, STB, STREAMING, or BLURAY devices. See Understanding and using Activities on page 16.
3	( W TV)	Combines control of your TV with your STB, and AUDIO devices. See Understanding and using Activities on page 16.
4 STREAM Control your STREAMING device.
5 TV Control your TV.
6 BLU Control your Blu-ray player.
7 AUDIO Control your Audio device.
#	BUTTON PRESS TO...
8	◀◀ (reverse)	Fast reverse device playback.
9 (stop) Stop device playback.
10	▶II (play/pause)	Play or pause device playback.
11	LIVE Return to live TV from time shift or recording.
12	GUIDE Display the program guide.
13	INFO Display information about current shows or channel.
14	Menu navigation	Navigate onscreen menus.
15	BACK Go back one step in an onscreen menu.
16	VOL + / VOL -	Increase or decrease the volume.
17	Green Access news channels.
18	Red Access sports channels.
19	A, B, and C	Access programmable app shortcuts
20	Number buttons	Select channels on the current device. On audio devices, press to select inputs.
21	Dash Select sub-channels or select extra functions in the Menu mode of your set top box.
22	SETUP Enter the setup menu for your Insignia universal remote control.
23	(power) Turn on the selected device.
24	(Watch Movies)	Combines control of your TV, streaming device, and audio. See Understanding and using Activities on page 16.
25	STB Control your set top box.
26	AUX	Control your auxiliary device (such as a second TV)
27	DISC Control your DVD player.
28	SOUND	Control your sound devices, including sound bars, AV receivers and Hi-Fi
29	▶▶ (fast forward)	Fast forward device playback.
30	REC Record content.
31	REPLAY	Repeat the last 30 seconds.

# BUTTON PRESS TO...
32 LIST Show a list of recordings.
33 MENU Show the setup menu for the selected device.
34 OK Select items on the menu.
35 HOME Go to the home menu.
36 EXIT Exit the menu.
37 LAST Go to the last channel viewed.
38 CH+/CH-	Go to the next or last channel.
39 MUTE Mute the volume of the current device.
40 Blue Access kids channels.
41 Yellow Access movie channels.
42 ENTER Enter the channel selected on the numeric buttons.
43 Backlight Turn the button backlight on or off.

Setting up your universal remote control Installing the batteries

Your remote control requires two AA batteries (not included).

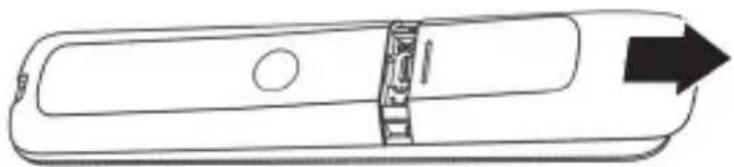

1 Remove the battery compartment cover from the back of your remote control.

Line drawing of a cylindrical device with a handle and internal components, no text or symbols present

2Insert two AA batteries (not included) into the battery compartment, making sure that the + and - symbols on the batteries match the + and - symbols inside the battery compartment.

3Replace the battery compartment cover.

CAUTIONS:

• Do not spill water or any liquid on your remote control.
• Do not place your remote control on a wet surface.
• Do not place your remote control in direct sunlight or near sources of excessive heat.
• If your remote control is not going to be used for a long time, remove the batteries to avoid any damage that may be caused by leakage and corrosion.

Programming and using your remote control

Your Insignia universal remote control is pre-programmed to control eight of the most popular devices, right out of the box. If you have one of the following devices, try putting the batteries in and pressing the corresponding device button (for example TV or STB), and then press a few function buttons to see if your remote controls your device.

PRESS THIS BUTTON	DEVICE CONTROLLED
TV Samsung TV
STB Comcast Xfinity Set Top Box
STREAM Roku streaming box
BLURAY Samsung Blu-ray player
AUX Roku TV
AUDIO Yamaha receiver
DVD Sony DVD player
SOUND Samsung sound bar

If your device is not one of those listed above, or you have extra devices to set up, there are three ways to do this. The easiest is SimpleSet which is used for the most common brands and devices.

Setup method 1 - SimpleSet

If the brand of your device is shown in the SimpleSet tables below, you can use the SimpleSet system. Locate the brand of your device and note the numeric button associated with it.

TV + AUX

TV BRAND PRESS
LG	1
Insignia 2
Phillips, Magnavox 3
Roku, Element 4
Samsung, Panasonic 5
Sharp, Hisense 6
Sony, Sanyo 7
TCL, RCA 8
Toshiba, Westinghouse 9
VIZIO 0

STREAM

BRAND PRESS
AirTV, Sling TV 1
Apple 2
Microsoft	3
Netgear	4
NVIDIA	5
Onn	6
Roku	7
Sony	8
Western Digital	9
Xiaomi	0

STB (set top box)

STB BRAND PRESS
Bell, Bell Fibe TV, Bell MTS, Sasktel 1
Comcast/Xfinity 2
Cox Communications 3
DIRECTV, AT&T, Sky Mexico 4
DISH Network, Dish Mexico, Izzi Telecom	5
Optimum, Suddenlink, Altice USA 6
Rogers, Cogeco, Vidéotron 7
Shaw, Cable Axion, Eastlink 8
Spectrum 9
Verizon, Frontier Communications, TELUS	0

AUDIO + SOUND

BRAND PRESS
Bose 1
Denon 2
JBL, Polk Audi	3
LG	4
Insignia	5
Onkyo	6
Samsung	7
Sony	8
Yamaha	9
VIZIO, Sonos	0

BLURAY and DVD

BRAND PRESS
LG, Sharp 1
Insignia 2
Panasonic 3
Philips, Magnavox 4
Pioneer 5
Samsung 6
Sony 7
Toshiba8
VIZIO, RCA 9
Yamaha 0

1Turn on your device and point your Insignia universal remote control at it (if you are setting up a streaming device, make sure a movie or TV program is playing).

2Press the device button you want to set up (for example TV).

3 Press and hold the SETUP button until the LED on your remote button blinks twice.

4Press and hold the number button for your brand and device, as listed in the tables above (for example, 3 for a Phillips TV). Your remote will send the power signal every three seconds.

5Release the button as soon as your device turns off. The LED blinks twice and your remote will now operate your device.

Note: If one or more buttons do not work as expected, start again at step 2. Your remote will start with the next code in memory.

Setup method 2 - device codes

If your device brand is not listed in the SimpleSet tables, you can set up your device by using device codes.

1Turn on your device and point your Insignia universal remote control at it.

2Press the device button you wish to set up (for example - TV).

3 Press and hold the SETUP button until the LED on your remote button blinks twice.

4Enter the first four-number code listed for your brand (for example, 1840 for LG). The LED blinks twice when the last number of the code is entered.

5Point your remote towards your device and press the ⏻ (power) button. If the device turns off, your remote is ready to use. If not, repeat steps 2-5 with the next code in the list.

Note: If your original remote did not have a Power button, try testing with a different button at step 5. For example, try pressing Play or Pause when setting up your streaming device, then see if the device responds.

Setup method 3 - function learning

Your Insignia universal remote control can learn any function from any other working remote control. This is a one-time setup that lets you control any infrared controlled device you have. It also lets you add a button function that may be missing to a spare button on your Insignia universal remote control.

To do this, make sure that you have all of your original remote controls handy, and that they have fresh batteries.

1 Point the original remote control at your Insignia universal remote control from approximately two inches away.

2Press the button on the original remote control for the device you want to learn functions.

3 Press and hold the SETUP button on your Insignia universal remote control until the LED under the device button blinks twice.

4Press 975. The LED blinks twice.

5Press the button you want to learn (for example the TV Power button). The LED begins to blink rapidly.

6Press the corresponding button on the original remote (for example the ⏻ [power] button). The LED blinks twice to indicate the button has learned correctly.

7 Repeat steps 5 and 6 for each button you want to learn.

Notes:

• Your Insignia universal remote can learn from multiple remotes, but there can only be one function per button.
• Some remotes send commands differently. If you find that a function cannot be learned, try holding down the button on the original remote instead of pressing and releasing.

8When your remote has learned all the functions you want, press and hold the SETUP button until the LED under the device button blinks twice.

Hints

- If the LED shows one long blink at step 6, the function was not learned. Try again, beginning at step 5.

- If you find one or more buttons don't work properly after set up, you can re-enter the learning mode at any time by repeating the procedure from step 1.

- If one or more of your original remotes aren't working, you can still set up your Insignia universal remote control by using SimpleSet or the device code setup.

Deleting a learned function

You can delete a learned function and return that button to its original state.

1 Press the button for the device for which you want to delete the function.
2 Press and hold the SETUP button until the LED under the device button blinks twice.
3 Enter 976. The LED blinks twice.
4Press the button you want to reset twice. The LED blinks twice and the learned function has been deleted.

Locking the volume control

If you primarily use one device for controlling volume, for example the TV, it's possible to program your Insignia universal remote control to only control that device when you use the VOL +, VOL -, or MUTE buttons.

1 Press and hold the SETUP button until the LED on your remote button blinks twice.
2 Enter 993. The LED blinks twice.
3Press the device button for the device to always control the volume (for example TV). The LED blinks twice.

Now, pressing the VOL +, VOL -, or MUTE buttons controls the audio device, no matter what device you are controlling.

Unlocking the volume control

You can unlock the volume control and return your Insignia universal remote control to controlling each device's volume individually.

1 Press and hold the SETUP button until the LED under the device button blinks twice.
2 Enter 993. The LED blinks twice. The volume control is now unlocked.

Using channel shortcut macros

In addition to their normal functionality, the red, green, yellow, and blue buttons can be reprogrammed to select your favorite channels by genre. Initially, if you press each of these buttons, they have the same

function as your original remote. However, you can reprogram them so that when the buttons are held down for three seconds they send a channel number, then when held down again for three seconds, they will send another channel number. You can group these channels by genre, such as sports, news, movies, and kids.

Adding channel shortcut macros

For example, if the first three sports channels are 200, 201, and 239, you can assign shortcuts to these channels on the red (Sports) button.

1 Select the device you normally use to watch live TV. For example, the STB button to select your set top box.
2 Hold down the SETUP button and the red (Sports) button until the LED blinks twice.
3 Enter the first channel number. In this case, 200.
4Press and release the red (Sports) button.
5Enter the next channel number. In this example 201.
6Press and release the red (Sports) button again.
7 Repeat steps 3 and 4 for each channel shortcut you want to add.
8After entering the last channel number you want, press and hold the SETUP button. The LED blinks twice and the shortcuts are now programmed.

When watching live TV, hold down the red (Sports) button for three seconds and the first programmed channel is selected (in this example channel 200). Hold down the red (Sports) button again for three seconds and the next programmed channel is selected (in this example channel 201).

Using the same procedure, you can program each of the colored buttons with different groups of channel numbers. Each colored button has a different icon (sports, news, movies, and kids) to help you remember the types of channels that you have programmed there. You can program up to 10 different channel numbers per button.

Canceling channel shortcut macros

You can also reset the colored buttons to default.

1 Press the device button you have programmed (for example STB).
2 Press and hold the SETUP button and the colored button you want to reset (for example the green [News] button) until the LED blinks twice.
3Press the green (News) button again.
4 Press and hold the SETUP button until the LED blinks twice. The button is now reset.

Using app shortcut macros

Your Insignia universal remote control features three app shortcut buttons that can be used to open apps on your smart devices. If your original remote control has a Netflix, Amazon Prime Video, and/or YouTube button, the app shortcut buttons can be programmed to perform the same function. Even if your original remote control did not have buttons like this, but still had the ability to connect to a streaming service, you can use these buttons as shortcuts by programming a macro to them.

Most AV devices which are connected to the internet, such as smart TVs, have one or more applications they can run to access TV viewing via the internet. Examples of these would be Netflix, YouTube, Amazon Prime, or Hulu.

Adding app shortcut macros

To program the macro, you need to know the device you normally use to access the service, and the sequence of buttons you need to press to bring up the service you want. For example, some Panasonic TVs can start Netflix by pressing the Apps button, then Menu Down twice, and finally the OK button.

1 Determine the sequence required for your device, then turn the device on.

2 Hold down the app shortcut button (A, B, or C) until the LED blinks twice and stays lit.

3Press the device button for the device you want to use for the macro (for example Stream).

4Press the appropriate buttons in the normal sequence. Your remote will operate your device and the macro is recorded in real time.

5After you have finished the sequence and the streaming service has started on your device, hold down the app shortcut button (A, B, or C) until the LED blinks twice and turns off. The macro is now stored.

Tips

• Make sure that your Insignia universal remote control is operating the device you want to use to access the streaming service before programming.

- If the macro doesn't work as expected, repeat the same sequence to try to program it again.

- When programming, wait for your device to respond. Your remote will remember the timing.

• The app shortcut macro is tied to one device. Make sure you are watching the correct device.

Understanding and using Activities

Using a standard universal remote control, if you want to control several different devices you need to press different device buttons in order to control each device individually. Using your Insignia universal remote control, you can create an Activity, with which you can group a combination of devices and not have to switch control between them.

For example, if want to control the input of your TV, the channels and guide of your DirecTV STB, and the volume of your sound bar, you would need to swap between these devices by pressing the TV and STB buttons. On your Insignia universal remote control, these devices can be grouped into a single Activity. So by pressing the button for the Watch TV Activity (☐), the input button will control the TV, the VOL +, VOL -, and MUTE buttons will control the sound bar, and all of the other buttons will control the set top box.

Your Insignia universal remote control has three Activity modes, specifically Watch TV (☐), Listen to Music and Watch Movie (☐).

Each of these modes has several devices you can combine.

Watch TV Activity

• Combination 1 – TV + STB + AUDIO (default)
  • Combination 2 - TV + STB
  • Combination 3 - TV + AUDIO
• Combination 4 – TV + SOUND
• Combination 5 - TV + STB + SOUND

Listen to Music Activity

• Combination 1 – TV + BLU + AUDIO (default)
• Combination 2 - TV + BLU + SOUND
• Combination 3 – TV + STREAM + AUDIO
• Combination 4 - TV + STREAM + SOUND
• Combination 5 – AUDIO only

Watch Movie Activity

• Combination 1 – TV + STREAM + AUDIO (default)
• Combination 2 - TV + STREAM
• Combination 3 - TV + BLURAY
• Combination 4 - TV + BLURAY + AUDIO
• Combination 5 - TV + STREAM + SOUND
• Combination 6 - TV + BLU + SOUND

If you set the default devices for any Activity on your Insignia universal remote control (for example TV, STB, and Audio for the Watch TV Activity), that Activity will be set up automatically on your remote.

You can also program Activities yourself.

1 Press and hold the SETUP button until the LED under the device button blinks twice. The LED under the current device button stays lit.

2Press the Activity button you want to set up (for example, Watch TV (☐)).

3Press the number of the combination you want to set (for example 3, for TV + audio in the Watch TV Activity). The LED blinks twice.

4Press the Activity button ( ☐). You can return to controlling by device by using any device button.

Setting up by Activity

As well as selecting your device combinations, Activities can be used to set up a combination of devices. If you have a combination of devices of the below brands, you can use this to easily set up your Insignia universal remote control to control all three devices with just one step using three digits.

The combination of devices for each Activity is:

Watch TV

• TV + STB + AUDIO

Listen To Music

• TV + BLU + AUDIO

Watch Movie

• TV + STREAM + AUDIO

If you want to use one of those combinations for your Activity, the next step is to check if you have the devices below:

DEVICE BRAND DIGITS
	TV STB STREAM BLURAY AUDIO
DIGIT	BRAND BRAND BRAND BRAND BRAND
1	Samsung DirectTV Apple Samsung Samsung
2	Sony Dish Network	Xbox One Sony Vizio
3	LG Verizon Frontier FiOS	Roku	LG	Yamaha
4	Panasonic AT&T		Vizio	Onkyo
5	Vizio			Pioneer
6	TCL Roku			LG
7	Insignia

If you have the right combination, just note the digit for each device.

For example, if you have a Sony TV, a DirecTV receiver, and an Onkyo Audio device like a sound bar, you can use the buttons 2, 1, and 4 to represent your combination and set up a Watch TV Activity for that combination.

1 Hold down the Activity key you want to set up until the LED blinks twice.

2Enter the three digit code for your three devices (for example, 2, 1, and 4).

3The LED blinks twice and all three of your devices and the Watch TV Activity are now set up. From now on, the TV Device button will control a Sony TV, the STB Device button controls a DirecTV receiver and the Audio device button controls an Onkyo sound bar, and your Watch TV Activity combines all three of these.

You can repeat this for the Listen to Music and Watch Movie Activities, replacing the second digit with the brand of Blu-ray player or Streaming box, as long as they are listed above. If not, you should use the SimpleSet or Code Setup methods listed earlier.

Using the AV shift

The INPUT button selects the input on your TV (most TVs use a menu to select from a list of inputs). When the INPUT button is pressed in an Activity, the MENU ▲, ▼, ◀, ▶, and OK buttons temporarily (for 10 seconds) control the TV. If the OK button is pressed, or no button is pressed for 10 seconds, these buttons revert to controlling the relevant device for the Activity (for example STB in the Watch TV Activity).

Using the power macro

If you press and hold the ⏻ (power) button for two seconds in any Activity, your remote sends the power signal to each device within that Activity. For example, pressing the ⏻ (power) button in the default setting for the Watch TV Activity turns both the TV and set top box on or off.

Troubleshooting

CAUTION: Do not try to repair your remote yourself. Doing so invalidates the warranty.

PROBLEM SOLUTION
The LED does not turn on when a button is pressed.	Replace the batteries.
The LED turns on, but my remote does not control my device.	Make sure that your remote is programmed to your device.Make sure that your remote is set to the correct mode (TV, STB, STREAM, AUDIO, AUX, or BLURAY).
I have tried all of the codes for my device's brand, but none of them work.	See Setup method 2 - device codes on page 11.
After programming, some of my remote's functions don't work	If you still have your original (working) remote, you can teach your new remote its functions. See Setup method 3 - function learning on page 11.

Specifications

Dimensions (HxWxD)	1.8 x .8 x 8 in. (45.7 x 20.3 x 203.2 mm)
Range 30 ft. (9.1 m)
Control Eight devices
Power requirements	Two AA batteries (not provided)

ONE-YEAR LIMITED WARRANTY

Definitions:

The Distributor* of Insignia branded products warrants to you, the original purchaser of this new Insignia-branded product ("Product"), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period").

For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy branded retail store or online at www.bestbuy.com or www.bestbuy.ca and is packaged with this warranty statement.

How long does the coverage last?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a Best Buy retail store location or from a Best Buy online website (www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. To obtain warranty service, in the United States and Canada call 1-877-467-4289. Call agents may diagnose and correct the issue over the phone.

Where is the warranty valid?

This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.

What does the warranty not cover?

This warranty does not cover:

- Food, beverage, and or medicine loss/spoilage.

- Customer instruction/education

• Installation

- Set up adjustments

• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
• Accidental damage

- Misuse

- A b u s e

- Negligence

- Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of other than a private home.

- Modification of any part of the Product, including the antenna

- Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

- Damage due to incorrect operation or maintenance

- Connection to an incorrect voltage or power supply

- Attempted repair by any person not authorized by Insignia to service the Product

- Products sold "as is" or "with all faults"

- Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)

- Products where the factory applied serial number has been altered or removed

- Loss or Theft of this product or any part of the product

- Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to five (5) pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels that may not function normally.)

- Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Insignia:

1-877-467-4289

www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its affiliated companies.

*Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richfield, MN 55423 U.S.A

©2022 Best Buy. All rights reserved.

ESPAÑOL

Índice

Introducción....24

MEDIDAS DE SEGURIDAD IMPORTANTES.....24

Line drawing of a cylindrical device with a handle and arrow indicator (no text or symbols)

Four circular gradient spots on a dark background, no text or symbols present

ROJO VERDE AMARILLO AZUL

INSIGNIA is a trademark of Best Buy and its affiliated companies.

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richfield, MN 55423 U.S.A

©2022 Best Buy. All rights reserved.

7601 Penn Avenue South, Richfield, MN 55423 E.U.A.
