Product Type	Rechargeable Shaver (WET/DRY)
Model Number	ES-BST2Q
Brand	Panasonic
Power Source	AC Adaptor (Model RE7-87), 100-240 V automatic voltage conversion
Motor Voltage	3.6 V DC
Charging Time	Approx. 1 hour
Usage Time (Full Charge)	Approx. 2 weeks (based on 3-minute dry shave per day at 20-30 °C)
Battery Type	Built-in rechargeable lithium-ion battery
Battery Life	3 years
Wet/Dry Use	Yes, suitable for wet shaving with lather and shower use
Waterproof	Yes, can be cleaned with water
Trimmer	Yes, pop-up trimmer for sideburns and long hairs
Shaving Sensor	Yes, automatically adjusts power based on beard thickness
Switch Lock	Yes, prevents accidental operation
Cleaning Method	Wash with water and hand soap; use included cleaning brush
Replacement Outer Foil	Model WES9087 (replace once a year)
Replacement Inner Blades	Model WES9068 (replace once every two years)
Accessories Included	Carrying holder, cleaning brush, oil, travel pouch
Intended Use	Household use only

Frequently Asked Questions - ES-BST2Q PANASONIC

Will the battery deteriorate if not used for an extended period?

Yes, if unused for over 6 months. Perform a full charge at least once every 6 months to prevent deterioration.

Can I charge the shaver after every use?

Yes, the lithium-ion battery can be charged after every use without affecting battery life.

Why should the adaptor be disconnected after charging?

For safety and to save energy. Charging longer than 1 hour does not affect battery performance, but disconnecting is recommended.

What is the constituent of the dedicated oil?

The oil is liquid paraffin.

Why does the appliance beep twice after being switched off?

It indicates that the battery capacity is running low. Please charge the shaver.

How do I unlock the power switch if it is locked?

Press the power switch for more than 2 seconds until the switch lock lamp turns off.

Why is the shaving sensor not responding?

It may be due to beard thickness, beard trimmings in the head, low battery, or insufficient oil on the blades. Clean and apply oil as needed.

How should I clean the shaver?

Turn off and disconnect. Use hand soap and water, close the cleaning shutter, and run the shaver. Rinse and shake off water, then dry. Apply oil after cleaning.

When should I replace the system outer foil?

Replace the system outer foil (model WES9087) approximately once a year, or sooner if damaged.

When should I replace the inner blades?

Replace the inner blades (model WES9068) approximately once every two years, or sooner if shaving performance declines.

USER MANUAL ES-BST2Q PANASONIC

Operating Instructions

(Household) Rechargeable Shaver

ES-BST6Q

ES-BST2Q

English....3

中文 21

한글 37

ไทย....55

Two identical black-and-white photo of a pair of hairbrushes with textured surfaces (no text or symbols visible)

Panasonic

Operating Instructions

(Household) Rechargeable Shaver

ES-BST6Q

ES-BST2Q

Contents

Safety precautions...... 4

Intended use 8

Parts identification....8

Before use....9

Charging the shaver....10

How to use 11

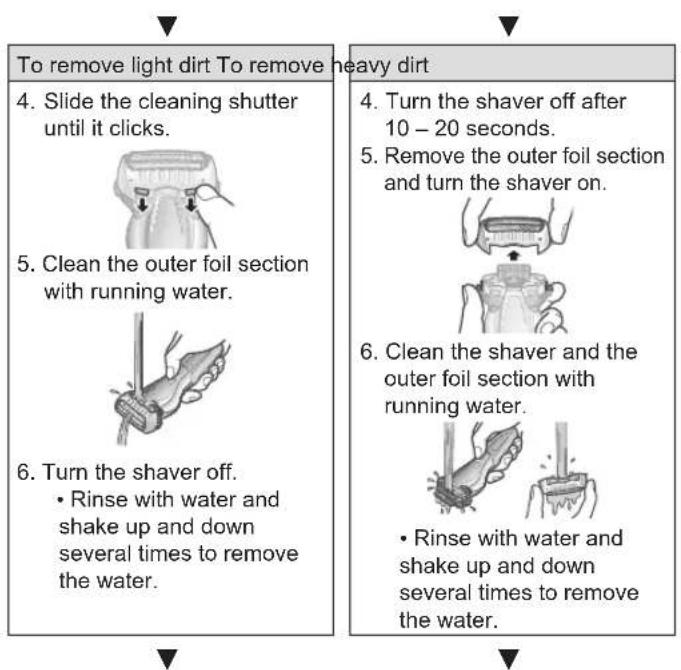

Cleaning the shaver .....14

Replacing the system outer foil and the inner blades....16

FAQ....17

Troubleshooting 17

Battery life....19

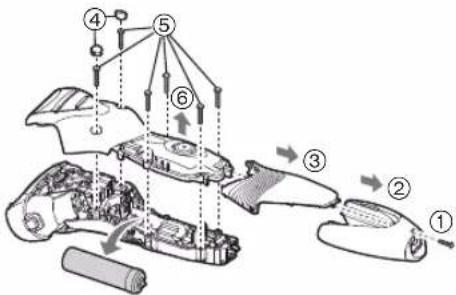

Removing the built-in rechargeable battery....20

Specifications 20

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

▶ This product

This shaver has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.

- Doing so may cause overheating, ignition, or explosion.

Do not modify or repair.

- Doing so may cause fire, electric shock, or injury. Contact an authorized service center for repair (battery change etc).

Never disassemble except when disposing of the product.

Doing so may cause fire, electric shock, or injury.

▶ In case of an abnormality or malfunction Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.


- The main unit, charging stand, adaptor or cord is deformed or abnormally hot.

• The main unit, charging stand, adaptor or cord smells of burning.
• There is an abnormal sound during use or charging of the main unit, charging stand, adaptor or cord.
• Immediately request inspection or repair at an authorized service center.

WARNING

▶ Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

Do not immerse the AC adaptor and the charging stand in water or wash with water.

Do not place the AC adaptor and the charging stand over or near water filled sink or bathtub.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

Do not damage, modify, or forcibly bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord.

- Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Do not use anything other than the supplied AC adaptor and the charging stand for any purpose.

Also, do not use any other product with the supplied AC adaptor and the charging stand. (See page 9.)

- Doing so may cause burn or fire due to a short circuit.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor.

Fully insert the adaptor.

- Failure to do so may cause fire or electric shock.

Disconnect the AC adaptor when cleaning the shaver with water.

- Failure to do so may cause electric shock or injury.

Regularly clean the power plug, the appliance plug and the charging plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity.

▶ Preventing accidents

Do not place within reach of children or infants. Do not let them use it.

- Putting parts or accessories in the mouth may cause an accident or injury.

If oil is consumed accidentally, do not induce vomiting, drink a large amount of water and contact a physician.

If oil comes into contact with eyes, wash immediately and thoroughly with running water and contact a physician.

- Failure to follow these instructions may result in physical problems.

▶Take care of the following precautions as well This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Failure to do so may cause an accident or injury.

WARNING

The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

- Failure to do so may cause an accident or injury.

CAUTION

▶ Protecting the skin

Do not use excessive pressure to apply the system outer foil to your lip or other part of your face.

Do not apply the system outer foil directly to blemishes or injured skin.

Do not touch the blade section (metallic section) of the inner blade.

- Doing so may cause injury to skin or hand.

Do not forcefully press the system outer foil. Also, do not touch the system outer foil with fingers or nails when in use.

Do not use this product for hair on head or any other part of the body.

- Doing so may cause injury to skin or reduce the life of the system outer foil.

Check the system outer foil for cracks or deformations before use.

- Failure to do so may cause injury to the skin.

Be sure to place the carrying holder on the shaver when carrying around or storing.

- Failure to do so may cause injury to skin or reduce the life of the system outer foil.

▶ Note the following precautions

Do not wrap the cord around the adaptor when storing. - Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

Do not allow metal objects or trash to adhere to the power plug, the appliance plug or the charging plug. - Doing so may cause electric shock or fire due to a short circuit.

Do not disconnect the adaptor or the appliance plug by holding onto the cord. - Doing so may cause electric shock or injury.

Do not share your shaver with your family or other people.
- Doing so may result in infection or inflammation.

Do not drop or hit against other objects. - Doing so may cause injury.

Disconnect the adaptor from the household outlet when not charging.

- Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Handling of the removed battery when disposing

DANGER

- The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.

- Do not charge the battery after it has been removed from the product.

• Do not throw into fire or apply heat.
• Do not hit, disassemble, modify, or puncture with a nail.
• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.

- Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.

• Do not use or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.
• Never peel off the tube.
• Doing so may cause overheating, ignition, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately.

If the battery fluid leaks out and comes in contact with the eyes, do not rub the eyes, and thoroughly rinse with clean water, such as tap water.
- Failure to do so may cause eye injury. Consult a physician immediately.

CAUTION

If the battery fluid leaks out and comes in contact with the skin or clothes, rinse off with clean water, such as tap water.
- Failure to do so may cause inflammation.

Intended use

- This WET/DRY shaver can be used for wet shaving using shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean with water. The following symbol means suitable for use in a bath or shower.

Notes

• Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method.

• Do not bring the system outer foil into contact with hard objects. Doing so may damage the blades as they are very thin and deform easily.

• Do not dry the main unit with a dryer or a fan heater.
  Doing so may cause malfunction or deformation of the parts.

• Do not leave the shaver exposed to direct sunlight with the foil frame detached.

Doing so may deteriorate the waterproof rubber and degrade waterproof function, which may cause to malfunction.

• Store the shaver in a place with low humidity after use.
  Failure to do so may cause malfunction due to condensation or rust.
• Keep both the inner blades inserted. If only one of the inner blades is inserted, the shaver may be damaged.
• If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time.

- The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

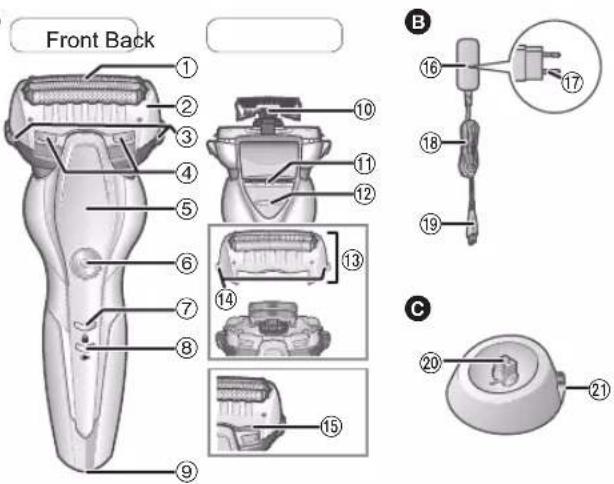

Parts identification

A

A Main body

① System outer foil
② Foil frame
③ Foil frame release buttons
④ Cleaning shutter
⑤ Finger rest
⑥ Power switch

To turn the shaver on and off and also lock and unlock the power switch.

⑦ Switch lock lamp (
⑧ Charge status lamp (→)
⑨ Appliance socket
⑩ Inner blades
⑪ Trimmer
⑫ Trimmer handle
⑬ Outer foil section
⑭ System outer foil release buttons
⑮ Water inlet

B AC adaptor (RE7-87)

⑯ Adaptor
⑰ Power plug
⑱ Cord
⑲ Appliance plug

© Charging stand (RC9-86)

ES-BST6Q

⑳ Charging plug
②1 Stand socket

Accessories

D Carrying holder
E Cleaning brush
F Oil
G Travel pouch ES-BST6Q

Before use

▶ Using the carrying holder

The shaver can be kept vertically. When transporting the shaver, you can use the carrying holder to protect the outer foil.

- When transporting the shaver, be sure to clean off any shavings before attaching the carrying holder.

▶ Attaching the carrying holder

Attach the carrying holder as illustrated.

- With the protrusion (a) facing the front, securely attach the carrying holder to the shaver aligned to the orientation of the shaver head until it clicks.

Illustration of a human hand holding a gray object with arrows indicating motion or force direction (no text or symbols)

▶ Removing the carrying holder

Remove the carrying holder while pressing down on both sides.

Charging the shaver

• Turn the shaver off.
• Attach the carrying holder so as not to scratch the system outer foil.
• Wipe off any water droplets on the appliance socket and the charging stand.

1 Insert the appliance plug into the shaver.

2 Plug in the adaptor into a household outlet.

- Charging is completed after approx. 1 hour. The charging time may differ with the charging capacity.

3 Disconnect the adaptor after charging is completed.

- Charging the battery for more than 1 hour will not affect battery performance.

Note

You cannot operate the shaver while charging.

While charging

The charge status lamp (▶glows red.

After charging is completed

The charge status lamp (▶ turns off.

Abnormal charging

The charge status lamp (→) will blink twice every second.

• After charging is completed, turning the power switch ON with the shaver plugged in will cause the charge status lamp (→) to light up and then turn off after 5 seconds.
  This shows that the shaver is fully charged.
• When charging the shaver for the first time or when it has not been in use for more than 6 months, the charging time may change or the charge status lamp (→) may not glow for a few minutes. It will eventually glow if kept connected.
• Recommended ambient temperature for charging is 10^ - 35^ . It may take longer to charge or the battery may fail to charge properly in extremely high or low temperatures. The charge status lamp (→) will blink twice every second when there is a problem with charging.

Charge the shaver within the recommended ambient temperature range.

- The shaver can be used for approximately 2 weeks with a full charge. (Based on one 3-minute dry-shave usages per day in an ambient temperature range of 20^ - 30^ .)

The number of usable days varies depending on the following conditions.

• Beard thickness
• Pressure applied to the skin
• Usage of wet shaving
• Usage in shaving foam mode

- If there is noise from the radio or other sources while using or charging the appliance, move to a different location to use the appliance.

Charging with the charging stand ES-BST6Q

1. Insert the appliance plug into the charging stand.
2. Place the shaver on the charging stand.
3. Plug in the adaptor into a household outlet.

How to use

▶ Usable facial cleansers, etc.

		Shaving	Shaving foam mode ES-BST6Q
Shaving agent	Shaving foam	√	—
	Shaving gel	√	✕
	Shaving cream	✕	✕
Facial cleanser	Facial cleansing foam (without scrubbing compounds)	√	√
	Facial cleansing foam (with scrubbing compounds)	✕	✕
	Facial soap	√	✕
Body soap etc.	Liquid	√	√
	Foam —	√

• Do not use anything other than above listed shaving agent/facial cleanser/body soap etc. as these may cause the blades to clog, or be unable to make foam.

Making foam ES-BST6Q

It is easier to make foam this way than by hand.

1 Take an appropriate amount of facial cleanser etc. in the palm of your hand.

2 Add an appropriate amount of water or hot water.

3 Hold the power switch for 2 seconds or more to switch to shaving foam mode.

The switch lock lamp ( 🔒 and charge status lamp ( ➤ blink alternately.

• The shaving foam mode ends after 15 seconds. The shaver can then be used to shave.
• To stop using the shaving foam mode and start shaving, press the power switch once.

- When the switch lock lamp 📋 blinks after the power switch is pressed, the shaver will not operate as it is locked. Press the power switch for more than 2 seconds to unlock. (See page 14.)

4 Press the blades gently in the palm of your hand, mix the facial cleanser etc. around and move the blades up and down to make foam.

- If there is insufficient foam, add slightly more water, hot water or facial cleanser etc. to make it easier to create foam.

Notes

• Before making foam, check that the blades are not broken or deformed, and that the cleaning shutter is closed.
• Do not use shaving agent (excluding foam), facial cleansing foam (with scrubbing compounds) or soap as these may cause the blades to clog, or be unable to make foam.

Shaving

1 Press and shave.

- The power cannot be turned on when the switch lock lamp (blinks, as the power switch is locked. Press the power switch for more than 2 seconds to unlock. (See page 14.)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Tips for better shaving

Apply the whole system outer foil perpendicularly against the skin and shave by slowly gliding the shaver over the face against the grain of the beard.

• The beard under the chin and around the throat can be shaved better by stretching the skin so the beard will stand.

• To prevent damaging the system outer foil, do not shave with only a part of the system outer foil.

Illustration of a hand holding a wrist with a dashed circle highlighting a specific area, no text or symbols present.

You can also use a pen grip to hold the shaver.

2 Press when finished.

When the battery capacity is low

The charge status lamp (→) blinks once every second when operating the shaver. The appliance beeps twice after switched off.

- You can shave 2 to 3 times after the charge status lamp (→blinks. (This will differ depending on usage.)

▶ Using the trimmer

Slide the trimmer handle up. Place at a right angle to your skin and move downwards to trim your sideburns.

▶ Tips for better usage

Apply the trimmer edge perpendicular to skin gently and move downward slowly.

Trimming sideburns Pre-shave of long beards

Illustration of a human face with a finger pointing to the eyebrow area, showing anatomical positioning (no text or symbols)

Notes

• The "shaving sensor", which automatically adjusts the power depending on the beard thickness, will operate.
  It will shave with high power on areas where the beard is heavy, and reduce the power on areas where the beard is thin, to reduce burden on the skin.
• Before shaving, check that the cleaning shutter is closed.
  • After wet shaving, wash the main body with water and apply oil to the system outer foil.
• Depending on the beard thickness or the amount of beard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.
• The appliance may not operate in an ambient temperature lower than approximately 5 °C.

• The shaving sensor may not respond depending on the type and quantity of the shaving gel or the quantity of the foam. This is not abnormal.
• To prevent erroneous operation, place your fingers on the finger rest while using the shaver.

Operation and display of the switch lock

▶Locking the power switch

1. Press once and then release.• The shaver starts operating.

2. Press for more than 2 seconds.• The switch lock lamp ( will light up for 5 seconds and turn off.• The shaver will stop operating.

3. Release

▶ Unlocking the power switch

1. Press for more than 2 seconds. • The switch lock lamp (a) will turn off.

1. Once the shaver starts operating, release

• The power switch cannot be unlocked while charging.
- The power switch is locked when the switch lock lamp ( ) blinks for 5 seconds and the shaver does not operate even though the power switch is pressed.

Cleaning the shaver

We recommend cleaning the shaver after each use.

1. Turn the shaver off and disconnect the AC adaptor.
2. Apply some hand soap and some water to the system outer foil.

3. Close the cleaning shutter.

4. Turn the shaver on.

- Hold the power switch for 2 seconds or more to switch to shaving foam mode.

ES-BST6Q

There are two ways to clean the shaver, depending on the actual dirt level.

To remove light dirt To remove

1. Slide the cleaning shutter until it clicks.

2. Clean the outer foil section with running water.

3. Turn the shaver off.

- Rinse with water and shake up and down several times to remove the water.

heavy dirt

1. Turn the shaver off after 10 – 20 seconds.

2. Remove the outer foil section and turn the shaver on.

3. Clean the shaver and the outer foil section with running water.

- Rinse with water and shake up and down several times to remove the water.

1. Wipe off any drops of water with a dry cloth.
2. Dry the outer foil section, the shaver, and the trimmer completely.

- Allow the shaver to dry in the shade, avoid direct sunlight.

1. Lubricate the shaver.

It will keep the movement of the blade smooth and maintain a comfort shave.

1. Apply one drop of oil to each of the system outer foils.
2. Raise the trimmer and apply a drop of oil.
3. Switch the shaver on, and run it for approximately five seconds.
4. Switch off the shaver, and wipe off any excess oil from the system outer foil with a soft cloth.

Notes

- Do not use any kitchen or bathroom detergents other than hand soap.

Doing so may cause malfunction.

- Do not wipe with thinners, benzine, alcohol etc.

Doing so may cause malfunction, or cracking or discoloration of the parts.

Wipe with diluted soapy water.

- Be careful not to hit the main body on the sink or any other object while draining the water. Failure to do so may cause malfunction.

Cleaning with the brush

Remove the outer foil section and the inner blades. (See this page.) Do not use any brush other than the supplied one.

▶ Cleaning with the long brush

Clean the outer foil section, system outer foil, the shaver body and the trimmer using the long brush.

▶ Cleaning with the short brush

• Clean the inner blades using the short brush by moving it in direction as illustrated.
• Do not move the short brush perpendicularly against the blades as it will damage the inner blades and affect their sharpness.

Replacing the system outer foil and the inner blades

system outer foil once every year

inner blades once every two years

▶ Removing the outer foil section

Press the foil frame release buttons and lift the outer foil section upwards.

▶ Attaching the outer foil section

After turning the water inlet surface to the front, securely attach the outer foil section to the shaver until it clicks.

▶ Replacing the system outer foil

1. Press the system outer foil release buttons and pull down the system outer foil.

- Do not press the system outer foil release buttons with excessive force. Doing so may bend the system outer foil, preventing complete attachment to the foil frame.

1. Align the water inlet surface and the system outer foil mark ( ) and securely attach together until it clicks.

▶ Replacing the inner blades

1. Remove the inner blades one at a time.
2. Insert the inner blades one at a time.

Illustration of two hands holding a device with a magnified inset showing the internal structure (no text or symbols)

Note

Do not throw away the foil frame.

▶ Replacement parts

Replacement parts are available at your dealer or Service Center.

Replacement parts for ES-BST6Q/ES-BST2Q	System outer foil WES9087
	Inner blades WES9068

FAQ

Question Answer

Will the battery deteriorate if not used for an extended period of time?

Can I charge the shaver after every use?

Why should the adaptor be disconnected after charge?

What is the constituent of the dedicated oil?

Why does the appliance beep twice after switched off?

The battery will deteriorate if not used for over 6 months, so make sure to perform a full charge at least once every 6 months.
The battery used is a lithium-ion, so charging after every use will have no effect on battery life.
Charging the battery for more than 1 hour will not affect battery
▶ performance, but disconnect the adaptor for safety and to save energy.
▶ Constituent of the oil is liquid paraffin.
The sound indicates that the battery capacity is running low. Please charge the appliance.

Troubleshooting

Perform the following actions. If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.

Problem Action

The power switch does not turn ON.

The power will not switch to OFF. ES-BST6Q

The shaving sensor does not respond.

▶ Unlock the switch lock. (See page 14.)
▶ Press the power switch twice while using in shaving foam mode.
Depending on the beard thickness or the amount of beard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.
The shaving sensor may not respond depending on the type and quantity of the shaving gel. This is not abnormal.
The shaving sensor may not respond when the remaining battery capacity is low. If this happens, recharge the shaver.
Apply oil. (See page 15.) The shaving sensor may not respond when there is not enough oil on the blades.

Problem Action		Problem Action
The shaving sensor responds even though the shaver is not in contact with the skin.	Clean the beard trimmings from the shaver.When the shaver is extremely dirty, remove the foil frame and wash with water.(See page 15.)	Operating time is short even after a full charge.	Although the shaver can be used for about 2 weeks after a full charge (assuming dry-shave usages for 3 minutes per day), the usable number of days might be lower depending on how or where the shaver is used (for example, when used for wet shaving).
	Replace the system outer foil and/or inner blades.Expected life of system outer foil and inner blades:System outer foil:Approximately 1 yearInner blades:Approximately 2 years		Apply oil.When the number of operations per charge starts to decrease, the battery is nearing the end of its life.
Foam cannot be made in shaving foam mode.ES-BST6Q	Making foam may be difficult depending on the type of facial cleansers etc., so adjust the amount of water or facial cleanser.	Shaver does not operate even after charging.	Use the appliance in an ambient temperature approximately 5 °C or higher.The battery has reached the end of its life.
Foam made in shaving foam mode contains shavings. ES-BST6Q	Before making foam, cleanly rinse off any shavings. (See page 14.)		The shaver will not operate with the AC adaptor connected.Please use the shaver after it has been sufficiently charged and the AC adaptor disconnected.
The shaver cannot be charged.	The recommended temperature for charging is 10 °C – 35 °C. If charged at a temperature other than the recommended temperature, the shaver may take longer to charge or may not charge at all.	The driving sound changes while shaving.	The shaver sensor is operating.The sound changes depending on the beard thickness.

Problem Action
Makes a loud sound.	Apply oil.The blades will not move smoothly when there is no oil on the blades, requiring more power.The shaver makes a high-pitched sound due to the linear motor drive.This does not indicate a problem.Confirm that the blades are properly attached.Clean the system outer foil with the brush.
The odor is getting stronger.	This can be improved by cleaning every time after shaving.
The shaver cannot be properly cleaned even after water is poured from the water inlet.	When the shaver is very dirty, first use the cleaning brush to remove beard trimmings.Or, remove the foil frame and wash with water.(See page 15.)
Shavings fly out in all directions.	This can be improved by cleaning every time after shaving.Clean the inner blades with the brush when shavings are adhering to the inner blades.Confirm that the cleaning shutter is firmly closed.
System outer foil gets hot.	Apply oil.Replace the system outer foil if it is damaged or deformed.(See page 16.)

Problem Action

You do not get as close a shave as before.

▶ Apply oil.

This can be improved by cleaning every time after shaving.

Replace the system outer foil and/or inner blades.

Expected life of system outer foil and inner blades:

System outer foil: Approximately 1 year Inner blades: Approximately 2 years

Battery life

The life of the battery is 3 years. The battery in this shaver is not intended to be replaced by consumers. Have the battery replaced by an authorized service center.

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing of the shaver.

Please make sure that the battery is disposed of at an officially designated location if there is one.

This figure must only be used when disposing of the shaver, and must not be used to repair it. If you dismantle the shaver yourself, it will no longer be waterproof, which may cause it to malfunction.

- Remove the shaver from the AC adaptor.

- Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.

- Perform steps ① to ⑥ and lift the battery, and then remove it.

• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

For environmental protection and recycling of materials

This shaver contains a Lithium-ion battery.

Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage	3.6 V---
Charging time Approx. 1 hour

This product is intended for household use only.

Panasonic

使用說明書

(家用)充電式鬚刨

ES-BST6Q

ES-BST2Q

目錄

安全須知....202

用途 285

部件說明....266

使用前....277

充電 277

使用方法....288

清洗 331

更換外層網面及內層刀片 33

常見問答集 344

疑難排解....334

電池壽命 366

拆除內置充電電池....36

規格 366

©

G

A 主體

Illustration of a human hand holding a small object with arrows indicating motion or force direction (no text or symbols)

▶ 拆下便攜座

按壓兩側，同時拆下便攜座。

充電

充電完成後，請拔除轉接器。

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

達成更好的剃鬚方式建議

Illustration of a hand holding a wrist with a dashed circle highlighting a specific area, no text or symbols present.

您也可以使用握笔方式握住鬃刨。

完成後，請按下。

電池電量不足時

Illustration of a hand holding a finger with an arrow pointing to the nose area, showing anatomical positioning (no text or symbols)

▶註

環保及資源回收

此鬚刨內藏鋰電池。

B

©

F

G

A 본체

Illustration of a human leg with a circular arrow and dashed lines indicating motion or force direction (no text or symbols)

▶ 휴대 홀더 분리

Line drawing of a hand holding a handheld device (no text or symbols)

최적 면도를 위한 도움 정보

Illustration of a hand holding a small object with a dashed circle highlighting a specific area, no text or symbols present.

Illustration showing a person applying facial massage to the ear with a hand gesture (no text or symbols)

▶ 메모

환경 보호 및 자원 재활용 정보

품명: Rechargeable shaver

모델명:ES-BST6Q/ES-BST2Q/RE7-87

상호명: Panasonic Corporation

제조자:Panasonic Corporation

(Panasonic Corporation Hikone Factory)

Made in Japan

제조일자:제품내 별도각인표시

R-REM-Pa3-ES-BST6Q

Panasonic

คู่มีอาการใช้งาน

Illustration of a human hand holding a small object with arrows indicating motion or force direction (no text or symbols)

Line drawing of a hand holding a small object, possibly a tool or device (no text or symbols visible)

Illustration of a hand holding a finger with a magnified inset showing anatomical structure (no text or symbols)

หมายเหตุ

© Panasonic Corporation 2018

⑤ EN, HK, KO, TH

Printed in Japan

ES9700BST6Q1J Y0418-0
