Product Type	Rechargeable Vacuum Cleaner (Household Use)
Model Number	MC-SBM20
Brand	Panasonic
Rated Power Input	220 W
Dimensions (Appliance)	W 220 mm x D 197 mm x H 1141 mm
Dimensions (Main Unit)	W 95 mm x D 187 mm x H 412 mm
Weight (Appliance)	1.6 kg
Weight (Main Unit)	1.0 kg
Dust Capacity	0.6 L (Maximum)
Battery Type	Rechargeable Lithium-ion Battery (Model AVA97V-1AG)
Battery Voltage	14.4 V
Battery Capacity	1700 mAh
Number of Battery Cells	4
Continuous Operating Time (ON - Crevice/Dusting Brush)	Approx. 40 minutes
Continuous Operating Time (ON - Floor Nozzle)	Approx. 30 minutes
Continuous Operating Time (HIGH - Floor Nozzle)	Approx. 6 minutes
Charging Time	Approx. 3 hours (from empty at 20°C)
Charging Adapter Input	100-240 V ~ 50-60 Hz, 0.35-0.2 A
Charging Adapter Output	16.5 V, 0.7 A
Cord Length	1.5 m
Power Modes	ON (Normal), HIGH (High Suction)
Floor Nozzle Type	Power Nozzle with Agitator (rotating brush)
Filtration System	Washable Filter, Sponge Filter, Upper Filter Unit
Indicator Lights	Battery Status Indicator (blue), Care Lamp (red)
Accessories Included	Extension Wand, Floor Nozzle, Charging Adapter, Crevice Nozzle, Dusting Brush

Frequently Asked Questions - MC-SBM20 PANASONIC

How long does it take to fully charge the Panasonic MC-SBM20 battery?

Charging time is approximately 3 hours when charging from empty at an ambient temperature of 20°C. The Battery Status Indicator Lamp (blue) blinks during charging and turns off when fully charged.

What is the battery life (operating time) of the MC-SBM20?

Operating time depends on the mode and attachments used. In ON mode, it runs approximately 40 minutes with the Crevice Nozzle or Dusting Brush, and 30 minutes with the Floor Nozzle. In HIGH mode, it runs approximately 6 minutes with the Floor Nozzle. These values are based on a fully charged battery at 20°C.

How do I clean the dust compartment and filters?

First, remove the dust compartment by pressing the detachment button. Dispose of the debris. Remove the Washable Filter, Sponge Filter, and Upper Filter Unit. Wash them under running water only (no detergent). Squeeze gently and dry completely in a shady, well-ventilated place before reinstalling. Do not use a washing machine, dryer, or hairdryer.

What should I do if the Care Lamp (red) lights up?

The Care Lamp (red) indicates that the dust compartment is full or the airflow is blocked. Turn off the vacuum, empty the dust compartment, and clean the filters. Also check the Extension Wand and Floor Nozzle for clogs. If the lamp stays on after cleaning, wash the dust compartment.<

Can I use the vacuum while it is charging?

No, the appliance cannot be used during charging. You must unplug the Charging Adapter from the Main Unit before use.

How do I replace the battery?

The battery is a consumable. When operating time significantly reduces, purchase a replacement battery (sold separately). To replace, slide and hold the battery cover, remove the old battery, and insert the new one. Ensure the appliance is off and unplugged before removal. Dispose of the old battery safely according to local regulations.

What should I do if the vacuum stops suddenly?

The vacuum may stop due to a protection device activating to prevent overheating of the motor or battery. Turn off the ON/OFF Operation Switch and wait 5 to 30 minutes for cooling. Then investigate the cause: empty the dust compartment, remove clogs from the Extension Wand or Floor Nozzle, clean entangled debris from the agitator, or allow the battery to cool down.

What is the correct way to store the vacuum for long periods?

If not using for one month or more, store the vacuum with a fully charged battery. Charge at least once a year to maintain battery health. Store in a clean, dry place away from high temperatures and direct sunlight.

Can I wash the main unit or floor nozzle with water?

No, do not wash the main unit, floor nozzle body, or extension wand with water. Only the washable filter, sponge filter, upper filter unit, and dust compartment can be washed. The agitator (brush) can be removed and washed separately. Wipe the main unit with a soft damp cloth.

What accessories are included with the Panasonic MC-SBM20?

The package includes: Main Unit, Extension Wand, Floor Nozzle (Power Nozzle with agitator), Charging Adapter, Crevice Nozzle, and Dusting Brush.

USER MANUAL MC-SBM20 PANASONIC

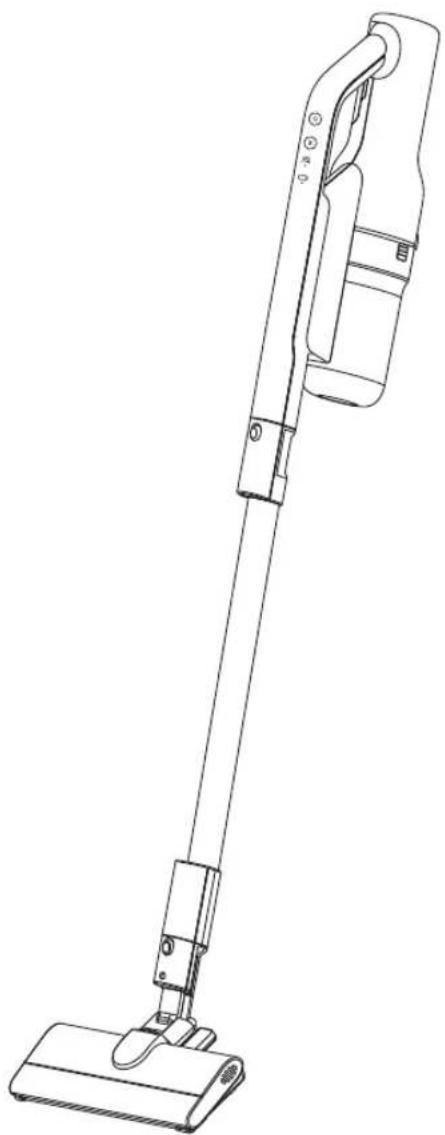

Line drawing of a vacuum cleaner with attached lever and base (no text or symbols)

Model No.

No. Model

型號

Số Model

No. Model

رقم الطراز

MC-SBM20

Operating Instructions Rechargeable Vacuum Cleaner

(Household Use)

Operating Instructions

Rechargeable Vacuum Cleaner

(Household Use)

Model No.

MC-SBM20

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

ENGLISH

TABLE OF CONTENT

IMPORTANT SAFETY INSTRUCTIONS FOR THE USER ....EN4

NOTES ON USE......EN6

PART IDENTIFICATIONS ....EN7

CHARGING......EN8

VACUUMING......EN9

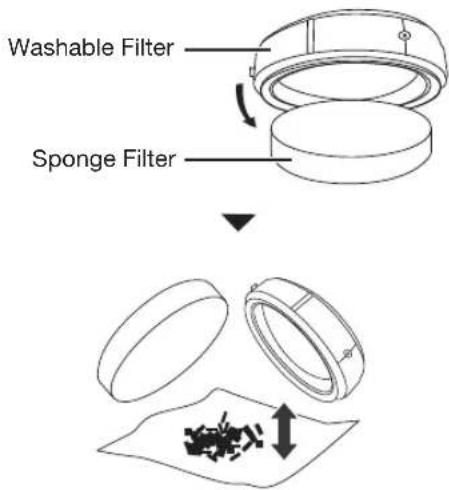

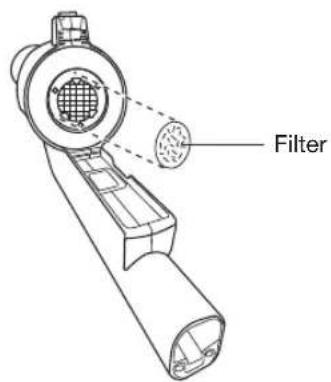

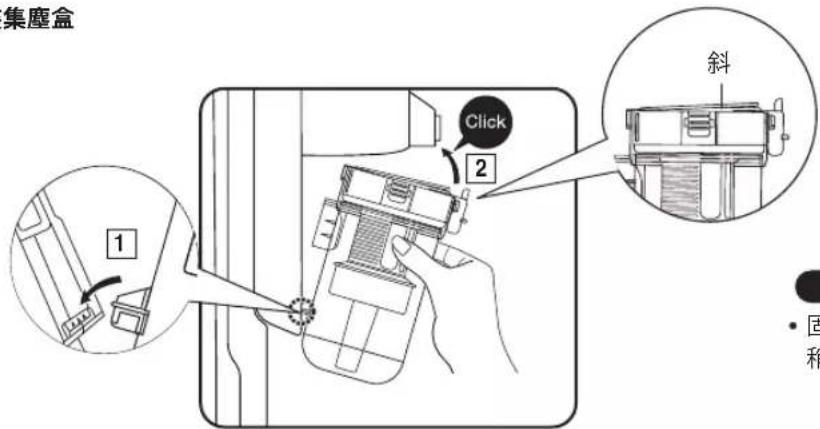

HOW TO CLEAN DUST COMPARTMENT......EN11

MAINTENANCE......EN13

TROUBLESHOOTING......EN16

REPLACE THE BATTERY (BATTERY DISPOSAL)......EN18

SPECIFICATIONS......EN19

: This symbol means indoor use only.

Thank you for purchasing this Panasonic product. Before using, please read this Operating Instructions completely in order to use this product properly and ensure its lasting operation. After reading this Operating Instructions, store it safely.

IMPORTANT SAFETY INSTRUCTIONS FOR THE USER

In order to prevent the risk of danger to the user of this product or those nearby and damaging property, be sure to follow the safety precautions outlined below.

- The following terms are used for precautions. They are separated depending on the degree of the danger or damage that may occur if their contents are ignored while using this product.

DANGER

This term warns you that death or high risk of serious injury may result by incorrect operation of the product.

Battery (Rechargeable lithium ion battery)

■ Do not mishandle.
- Do not use for other than MC-SBM20.
- Do not use batteries or adapters other than genuine rechargeable lithium-ion batteries and charging adapters. (Overcurrent may cause fluid leakage, overheating or explosion)
- Do not dispose of the Battery in a fire or expose it to heat.
- Do not charge, use or place in places with high temperatures, including near fire or in hot weather. (Danger of fluid leakage, overheating, ignition or explosion)
- Do not pierce with nails or subject to shock. Do not disassemble or alter.
- Do not expose to water or other liquids. (Danger of fluid leakage, overheating, ignition or electric shock)
- Do not short-circuit by allowing metals or other materials to come into contact with the terminals.
- Do not handle or store with metal objects such as necklaces or hairpins. (Short-circuit may cause fluid leakage, overheating or ignition)

WARNING

This term warns you that death or serious injury may result by incorrect operation of the product.

Battery (Rechargeable lithium ion battery)

■ Do not touch the Battery with wet hands. (Danger of overheating, ignition or electric shock)
- If battery liquid gets into your eyes, immediately wash with clean water. (Do not rub your eyes) (Danger of blindness) → Seek medical attention immediately.
- If the battery pack is leaking, place the battery in a sealed plastic bag and recycle it safely according to regulations of your residential area. (Liquid may contact resulting in skin irritation or injuries)
- For the purposes of recharging the Battery, only use the Charging Adapter provided with this appliance. Charging adapter (Model No. refer cover page.)

Main Unit and accessories

■ Do not disassemble, repair or modify.
(Danger of electric shock or fire)

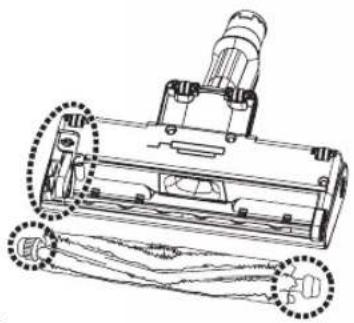

- Do not touch the floor nozzle's agitator when in operational state.
■ Do not suck up flammables or burning objects.

(Danger of explosion or fire)

Cigarettes, copier toner, kerosene, thinner, etc.

■ Do not mishandle.

- Do not plug or unplug the Charging Adapter with wet hands. (Danger of electric shock)

- Do not damage the Charging Adapter.
(Do not let it get tangled up in the floor nozzle's agitator, damage it, modify it, get it near heating appliances, bend it, twist it, nor forcibly pull on it, also do not put heavy objects on it, nor use it with it bundled up, etc.)
(Failure to do so may lead to electric shock or ignition due to short-circuit)
→ For repairs, consult with authorised Service Centre.

• Do not overload the outlet or wiring device. (Exceeding the rated value owing to too many connected plugs and the like may lead to fire due to heat generation)
• Do not use the Charging Adapter to charge rechargeable batteries of other than this product or non-rechargeable batteries. (Doing so may lead to battery leakage, heat generation or explosion due to excess current)
• Do not use a damaged Charging Adapter. (Doing so may lead to fire due to heat generation or ignition)
• Do not short-circuit the main unit connector or charging adapter plug with a metallic object. (Short-circuit may cause fluid leakage, overheating or ignition)

(There is a risk of getting your fingers caught and injured)

▶ In particular, pay attention to children.

■ Use the Charging Adapter correctly.

- Insert fully into the socket.

(Failure to do so may lead to electric shock or fire due to heat generation)

- The plug must be removed from the socket outlet before cleaning or maintaining the appliance.

(Danger of electric shock)

- Regularly wipe off dust with a dry cloth.

(Dust gathered can lead to poor insulation due to moisture, which can lead to fire)

■ Avoid dropping, impacting or wetting.

(Danger of overheating, ignition or electric shock)

■ If the cord is damaged, you need to replace the Charging Adapter to avoid danger.

(It may cause an electric shock or fire caused by short circuit)

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

(It may cause a burn, injury or electric shock)

In the event of an anomaly or failure, stop using immediately and unplug the Charging Adapter.

(Failure to do so may lead to smoke generation, ignition or electric shock)

Examples of anomalies and failures

- Pressing the operation switch does not start the appliances.

- Moving the Charging Adapter will turns on and off the Battery Status Indicator Lamp.

- The appliance makes an abnormal noise when used.

- The main unit deforms and/or becomes abnormally hot.

- A burning "smell" comes out of the Main Unit.

→ Immediately request authorised Service Centre for inspection or repair.

CAUTION

This term cautions you that injury or physical damage to property may result by incorrect operation of the product.

Battery (Rechargeable lithium ion battery)

- Do not place items on its top, or place it where you can drop it easily.

(Danger of overheating, ignition, electric shock or injuries)

■ If the battery leaks and the fluid gets onto your skin or clothes, wash carefully with clean water.

(Danger of skin irritation or injuries)

■ Store the Main Unit and the batteries in a clean, dry place.

(Danger of overheating, ignition or electric shock)

- The battery must be removed from the appliance before it is scrapped.

(Danger of ignition, electric shock or accidents)

Main Unit and accessories

■ Do not mishandle.

- Do not overthrow the Main Unit.

- Do not drag, roll or drop the Main Unit.

- If the floor nozzle's raised fabric, brush cover, roller, etc. are worn, or foreign matter such as sand or pebbles is adhering on them, do not use them.

→ Check the unit before use, and if there is worn out, consult with authorised Service Centre.

(This can cause scratching to the floor surface)

- Do not put metals on the contacts of the Main Unit, Extension Wand, etc.

- Do not pull the cord when unplugging the Charging Adapter.

(Failure to do so may lead to electric shock or ignition due to short-circuit)

■ Do not allow near fire.

(The exhaust may make the flame bigger increasing the risk of fire)

- Do not wash it with water (except the accessories and parts that can be washed with water), nor use it in bathrooms. (Danger of electric shock or fire)

■ Be sure to turn off the ON/OFF Operation Switch when leaning the appliance against walls, etc.

(There is a risk of injury, or the floor getting damaged due to the appliance falling over)

For long-term use

Do not use for commercial or other purpose than vacuuming.

■ Do not use to suck up the following or similar things. (This can cause malfunctions and odors)
• Chemical dehumidifiers
• Large amounts of a powder (such as the powder inside a fire extinguisher)
• Water and other liquids
- Things with pet excrement and the like
• Glass, pins, needles, toothpicks
- Long strings
- Damp materials
- Carpet fringes (tassels)
- Things that easily block the suction port (such as stockings)

- Do not vacuum a place with large amounts of sand, sand for pets or pebbles and the like. (This can cause malfunctions)

- Do not vacuum with the tips of the Main Unit or Extension Wand. (This can cause poor contact and damage due to the wearing of the tips, etc.)

- Do not use for long periods of time with the suction port blocked. (This can cause deformation due to overheating)

- Do not block the Exhaust Vent. (This can cause deformation due to overheating)

- Do not vacuum up large debris, nor vacuum when the dust level MAX line is exceeded. (This can cause clogging in the intake passage, Extension Wand, Floor Nozzle, etc.)

→ Remove large debris such as candy wrappers and tissue papers, etc. then vacuum. Dispose of the debris, before the dust level MAX line is exceeded.

- When removing the clogged up debris, refer to "TROUBLESHOOTING" (Page EN16).

- Ensure all washable parts are completely dry before fixing and use. This is to ensure long lasting of motor.

To avoid overheating the motor and / or Battery (protection device)

Continuing operation under the following conditions triggers the protection device which will stop and disable the appliance. (Page EN16)

• The Care Lamp lights up (Page EN11)
- Blocked suction port
- Blocked Extension Wand and / or Floor Nozzle

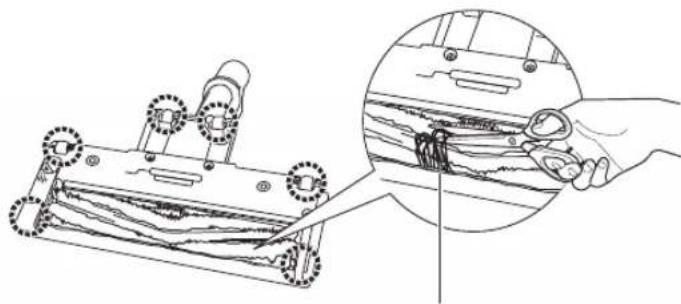

• Leaving the Agitator (brush) in the same place while it is rotating
- Letting the Agitator (brush) chew up foreign objects
- Operating it on HIGH in places where there are high temperatures

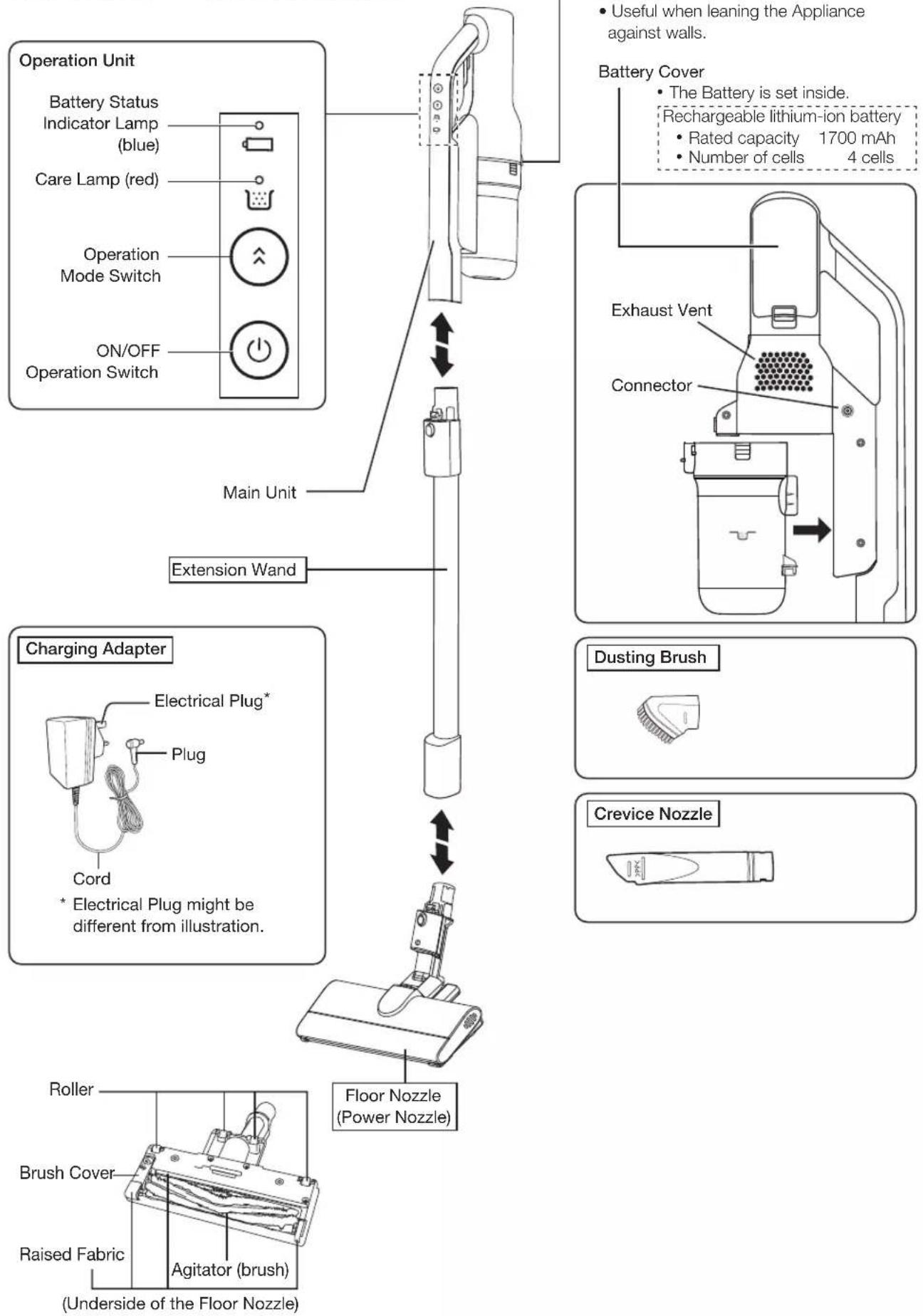

PART IDENTIFICATIONS

Check the included accessories.

Parts enclosed in □ are included accessories.

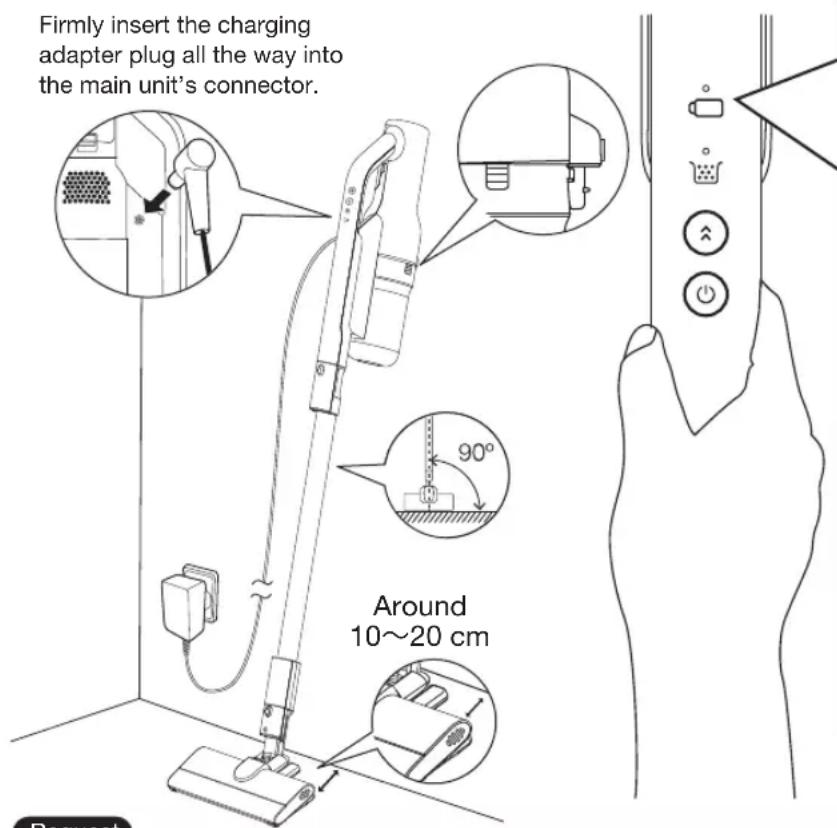

CHARGING

The battery is not fully charged at the time of purchase, so please be sure to charge it before use.

(Charging time: Approx. 3 hours)

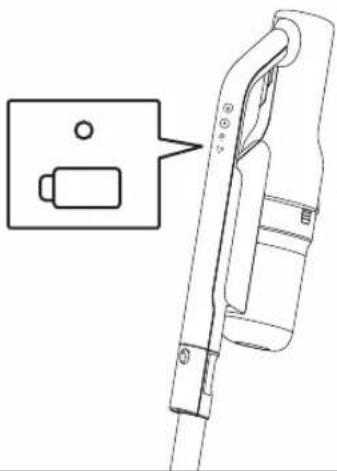

How to read the Battery Status Indicator Lamp (blue)

Blinking (blue) It is charging

The battery temperature changes depending on the usage conditions such as the ambient temperatures and usage times, etc. If the battery temperature is high, then it might take longer to charge it because it automatically waits until it reaches a temperature suitable for charging. (The maximum is about 5 hours)

Lights off Charging is completed

It goes out when charging is completed.

- There is an abnormality when it quickly flashes (about 0.3 seconds intervals). Refer to "TROUBLESHOOTING". (page EN16)

Request

- When unplugging the plug, do not hold onto the cord, instead hold onto the end of the plug. (This can cause malfunctioning due to the wire getting broken)

To help make the battery last longer

• When not using for one month or more, store it fully charged and be sure to charge once a year at the least. (If the Battery is stored without any residual power, it might no longer be able to be charged, or the battery's performance or lifespan might be reduced)
• When the appliance stops operating during vacuuming due to a depleted battery, operation may be resumed for a short time by pressing the ON/OFF Operation Switch again. However, do not operate in this way repeatedly. Doing so shortens the battery service life.
• Be sure to charge the Battery in a place with room temperature between 5 °C and 35 °C. The Battery cannot be charged correctly in a place with low room temperature, or high temperature such as under direct sunlight. The operating time may become shorter, or the charging time may become longer.

Request

• When the Battery Status Indicator Lamp (blue) does not light up, or when it lights off immediately, unplug the Charging Adapter plug from the Main Unit, and then plug it in again.
• When using it for the first time, if it has not been used for 6 months or longer, since the Battery might be over-discharged, its usage time may be short, so be sure to charge it before using it.
• If radio and TV are disturbed by electrical interference, then move them away from the Charging Adapter by 1 m or more.

Note

• The Main Unit and Charging Adapter become warm during charging, but this is normal.
• The operating time varies depending on the battery temperature and service conditions.
• The Charging Adapter consumes about 0.3 W of power even when it is not connected to the Main Unit.
• The Charging Adapter may make some noise, but this is normal.
• The appliance cannot be used during charging. To use, unplug the Charging Adapter from the Main Unit.

VACUUMING

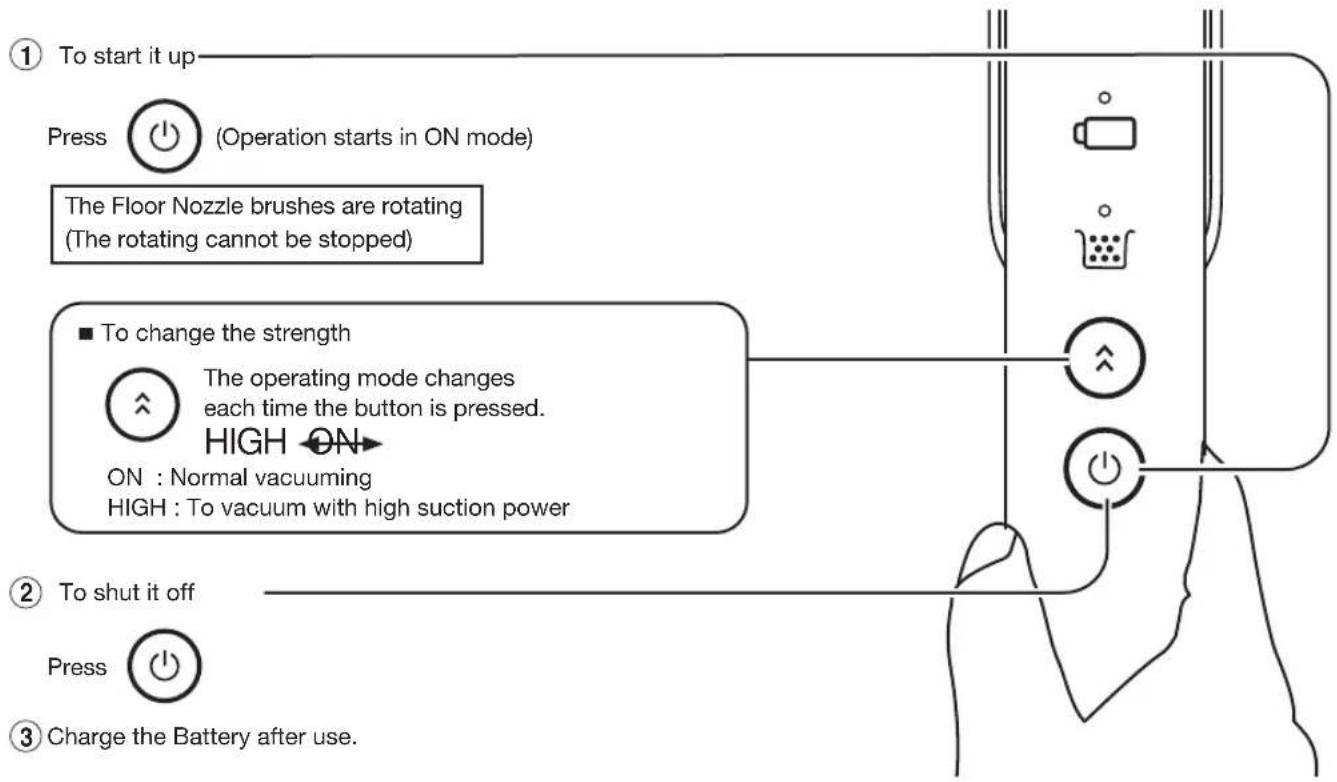

Request

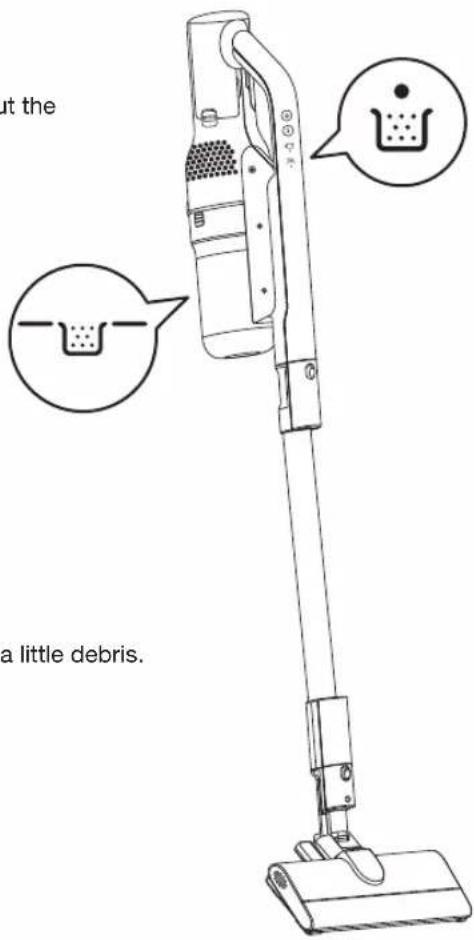

- Do not use force on the nozzle, and move it lightly and slowly along carpets and wood flooring. Move it back and forth on carpets. Debris can easily be taken up by pulling the nozzle towards yourself. (When vacuuming soft and easy to scratch floors such as cedar, cypress and vinyl floors, etc. and when floor waxes and polishing floor detergents are being used on them, the floors might get scratched up.)

■ The Battery Status Indicator Lamp lights up to let you know!

It indicates the remaining battery level while you are vacuuming.

Technical line drawing of a mechanical device with a close-up inset showing a component (no text or symbols)

Lights up (blue)

There is enough battery power. You can vacuum.

Flashing (blue)

The battery power is low. Charge it. (Refer details on page EN8)

Note

- If the battery runs out during operation, the over-discharge prevention device will automatically stop operation.

CLEANING TECHNIQUES

Use different accessories to match the places to be vacuumed.

Request

- Do not use on shiny surfaces such as piano. (Doing so may scratch the surface)

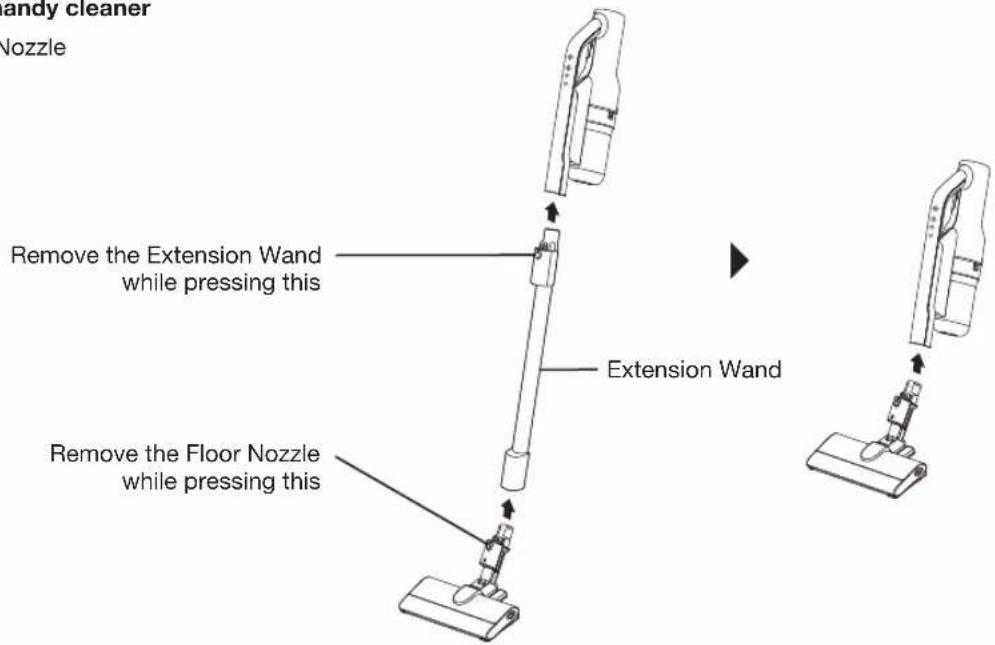

■ As a handy cleaner
Floor Nozzle

■ For window sashes...

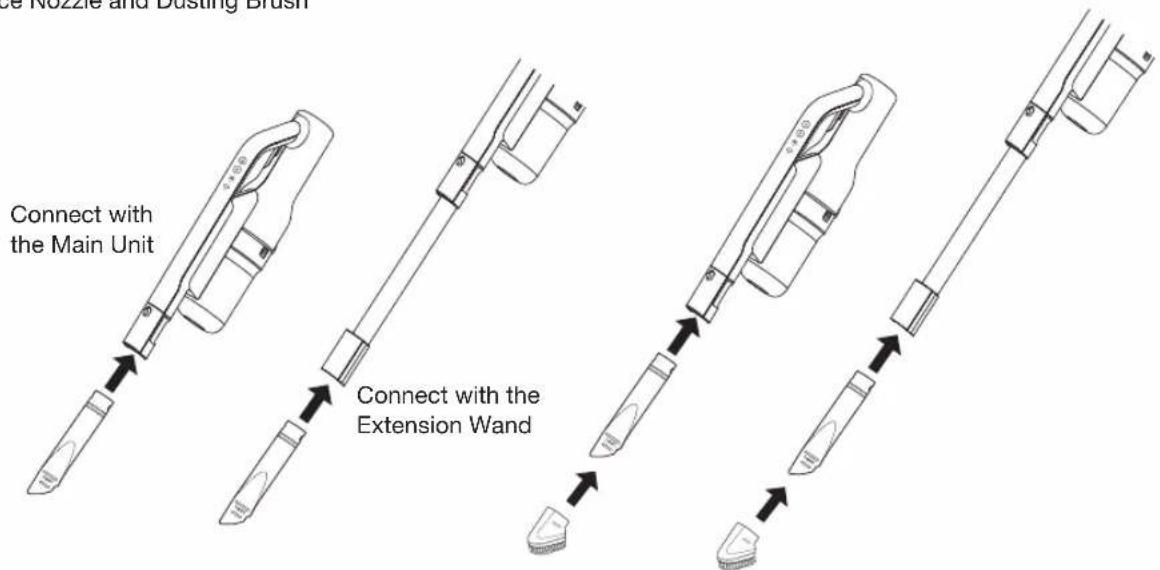

Crevice Nozzle and Dusting Brush

• For cleaning gaps between furniture, corners of sofas, gaps in flooring and etc.
• Dusting Brush is used to clean furniture, venetian blinds, and bookshelves. To be attached onto the Crevice Nozzle.

HOW TO CLEAN DUST COMPARTMENT

Check the Dust Level

Request

• Clear out the debris when The Care Lamp (red) is turn on.
• It is advisable to check the dust level ( — ) every week and clear out the debris before exceeded dust level.
  • Make sure the appliance is turn off.

Note

• With a new carpet, the dust box is quickly filled up with loose tufts. (Loose tufts will decrease with the number of vacuuming times)
• When the situations are as per the following, the lamp might not light up even if it is filled with debris.
• When there is a lot of pet hair and cotton debris (Directly check how much debris is accumulated)
• At the following times, the Care Lamp (red) might light up even if there is a little debris.
• When there is a lot of sand and dirt (discard the debris)
• When the Extension Wand / Floor Nozzle is clogged with debris (remove the debris)

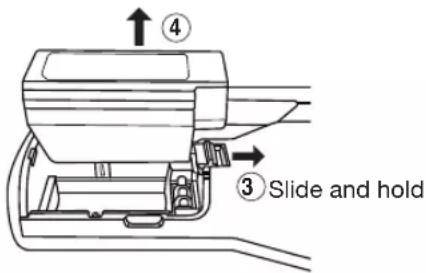

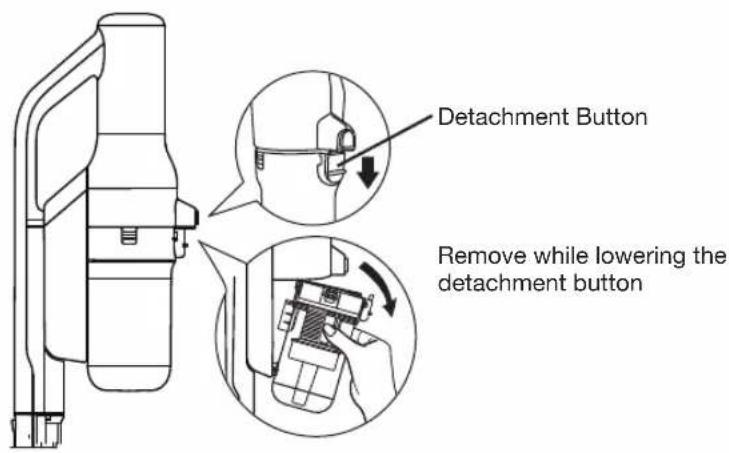

① Remove the Dust Compartment

② Remove Filters

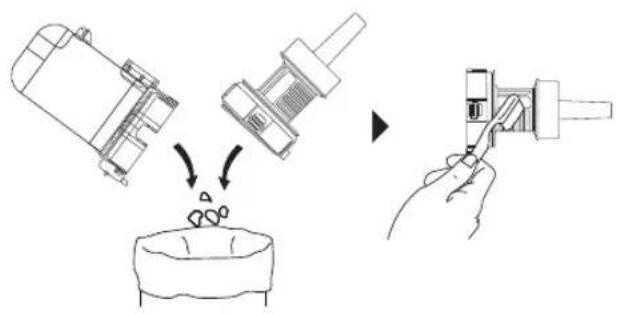

③ Dispose the trash and dust

If it is hard to get the debris to come out, shake, lightly tapping on it, use an old toothbrush, etc. *Toothbrush is not provided.

④ Clean the Washable Filter & Sponge Filter

⑤ Re-install into Dust Box

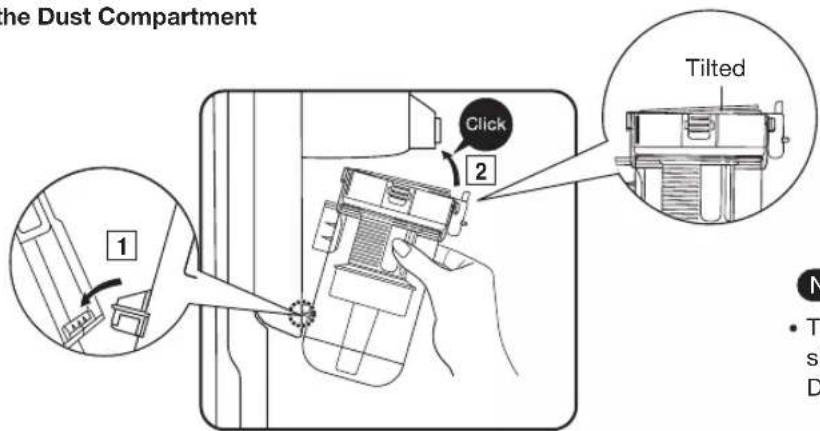

⑥ Fix the Dust Compartment

Note

- The surface of the Filter Unit is slightly tilted after re-install into the Dust Compartment.

Note

- If the suction power still low or the Care Lamp (red) still lights up after removing dust, recommend to wash the Dust Compartment. (Refer Page EN15)

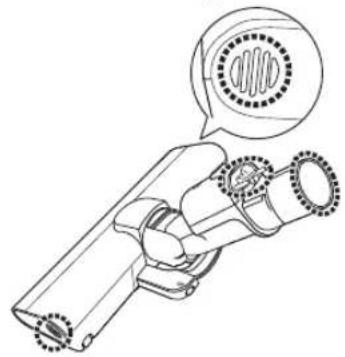

Floor Nozzle

Remove rubbish from the ○ area.

Technical line drawing of a mechanical component with a speech bubble containing a circular detail (no text or symbols)

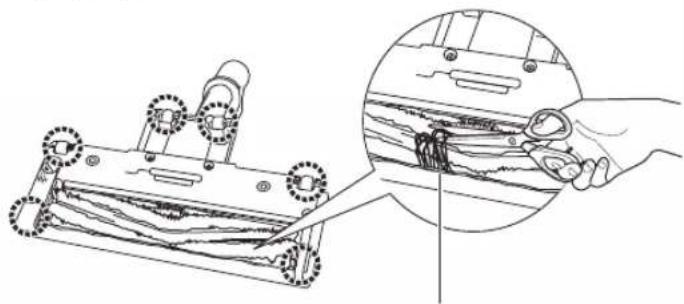

Use tweezers or scissors, etc. to remove entangled debris, etc.

Technical line drawing of a mechanical device with a magnified inset showing a hand holding a tool (no text or symbols present)

Cut away entangled debris, etc. with scissors along the groove.

■ When you want to wash the Agitator with water

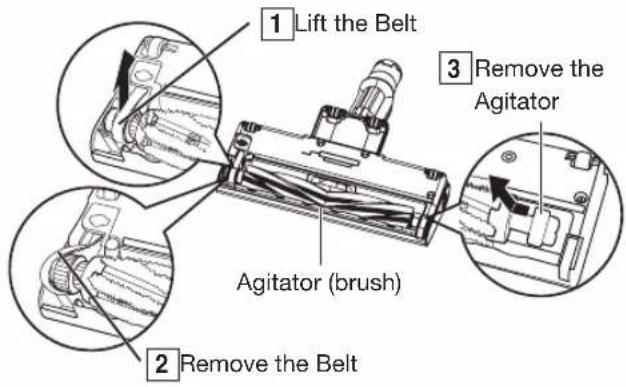

① Remove the Brush Cover

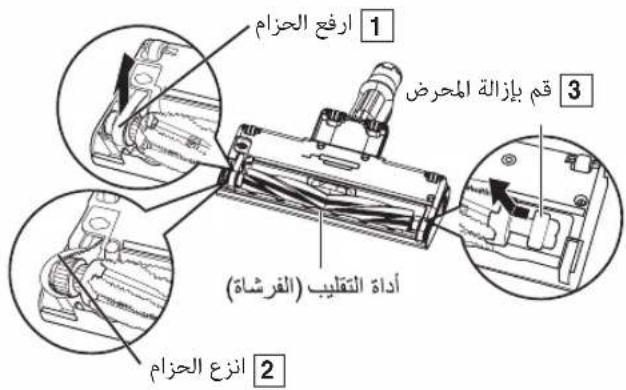

② Remove the Agitator (brush)

③ Remove rubbish from the ○ area.

Technical line drawing of a mechanical device with two circular annotations highlighting features (no text or symbols present)

④ Wash the Agitator (brush) with water

Line drawing of a mechanical component with a lever and base, no text or symbols present

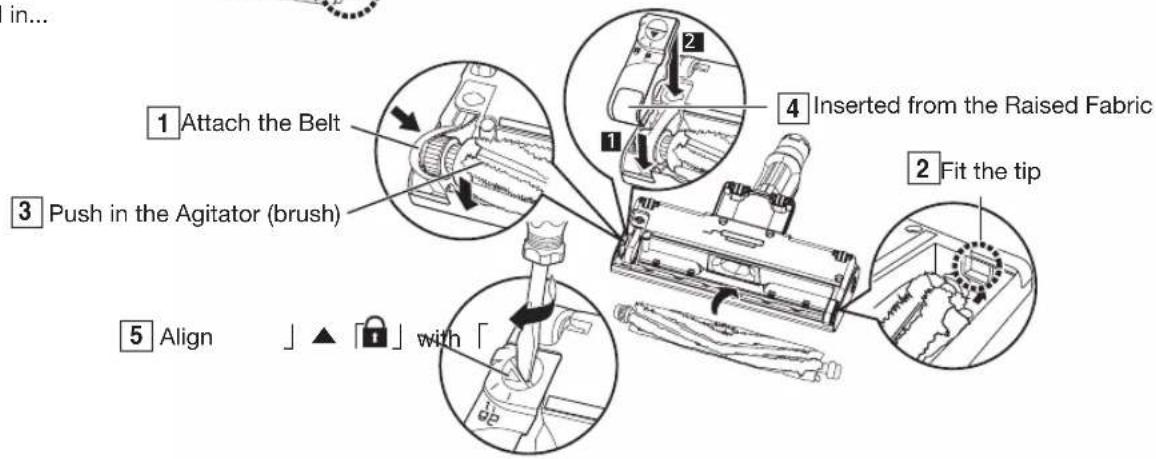

■ Install in...

MAINTENANCE

Request

• When washing with water...
• Be sure to drain and dry well.
  (Failure to do so may lead to smell and clogging)
• Do not expose to hot airflow from a hairdryer.
  (Pre-Filter: May lead to rubbish penetration and failure due to filter shrinkage)
• Do not use detergent, benzine, thinner, alcohol, etc. (May lead to cracks and discoloration)
• When using a wipe, follow its instructions.

Dust Compartment and Filters

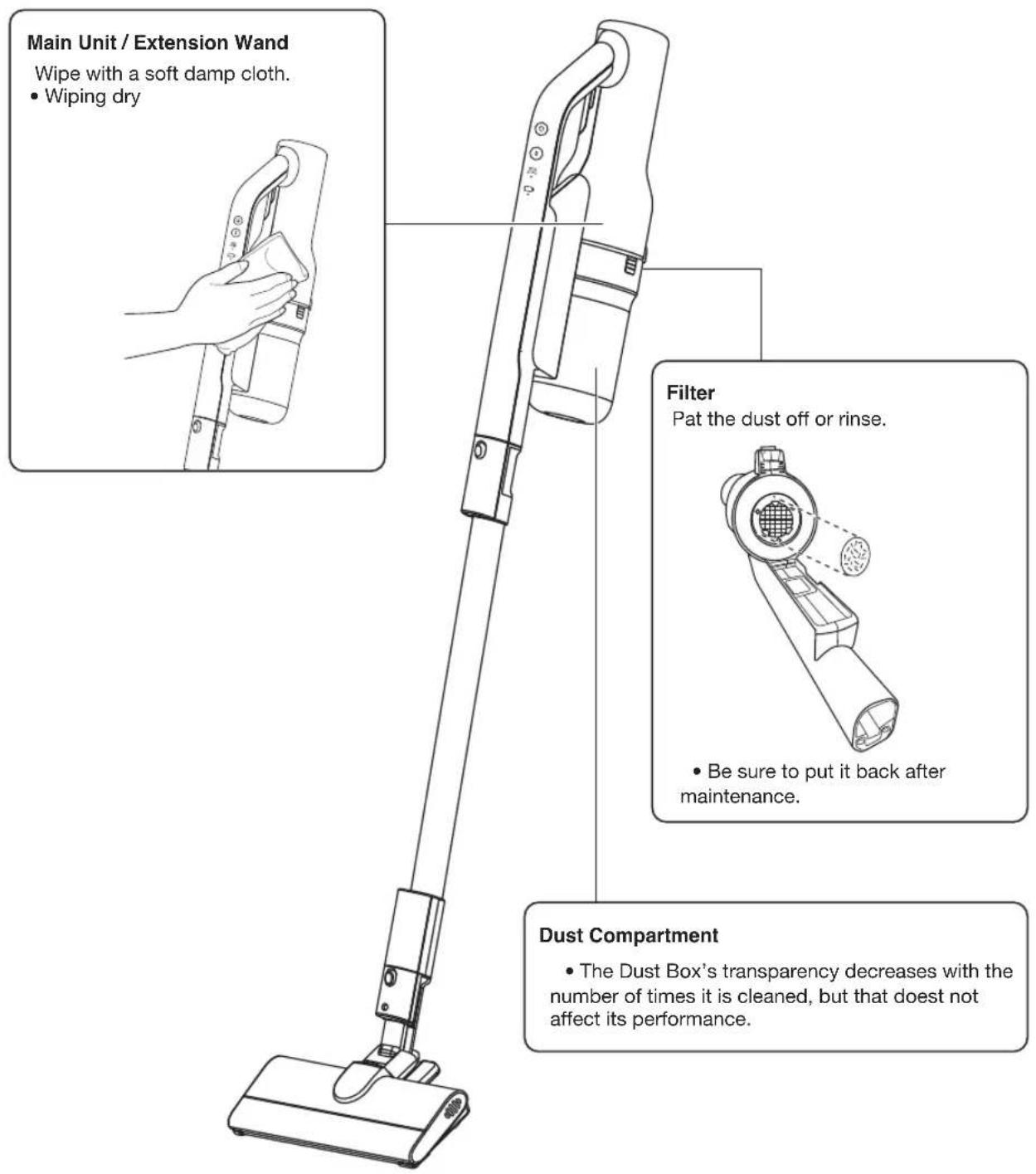

① Remove the Dust Compartment. (Refer details on Page EN11)

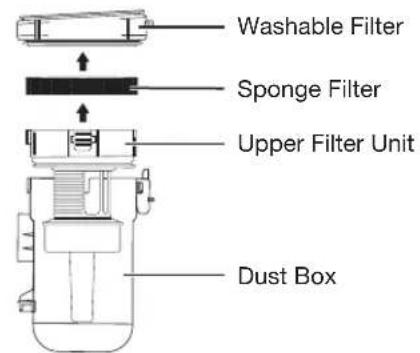

② Removing the Washable Filter, Sponge Filter, Upper Filter Unit from Dust Box.
③ Removing the Filter from Main Unit.

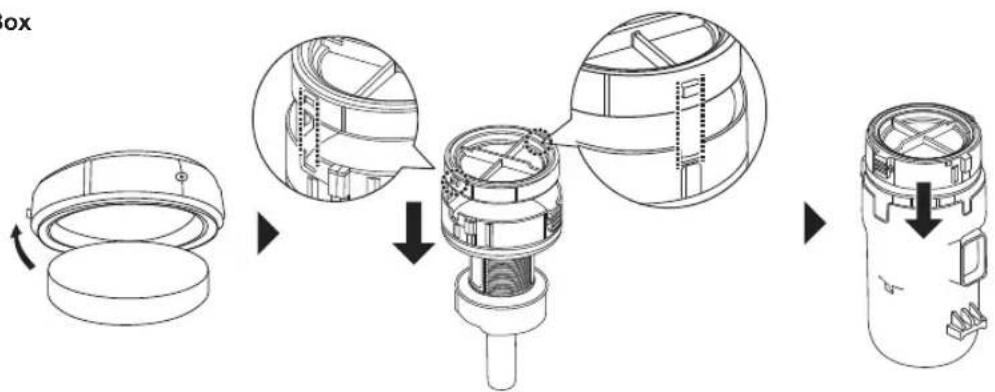

④ Wash the Washable Filter, Sponger Filter, Upper Filter Unit, Dust Box and Filter under running water only. Wipe the Dust Box, Upper Filter Unit with clean and soft cloth. Squeeze the Filter and Sponge Filter until clean. Then place in a shady and well ventilated spot until all parts are completely dry.

Line drawing of a hand using a tool to lift a mechanical component (no text or symbols)

Line drawing of a hand inserting a component into a mechanical assembly (no text or symbols)

⑤ Install the Filter, Dust Box, Upper Filter Unit, Sponge Filter, Washable Filter to the original location.

Note

• Do not wash the filters in a washing machine, wring out, dry in a clothes dryer or under the sun. This can cause filters to shrink and result in dirt getting into the motor and damaging it.
• Do not wash the Washable Filter by rubbing with hand or using tools, example brush, etc.
• Make sure the filters are inserted correctly to avoid dust from entering motor compartment.

Precaution

- Do not use the appliance to suck up liquid or wet dust.

TROUBLESHOOTING

■ Please check the following items before contacting the retailer for repairs.

PROBLEM CHECK HERE
It cannot be operated	Is the battery depleted? (Page EN8)
	In order to prevent the motor from overheating, is the protection device working?→1Turn off the Operation Switch2Wait 5 to 30 minutes (the motor cools down, and the protection device is released)3Investigate what caused (Page EN6) the protection device to workContinuously operated with a lot of dust accumulated in the Dust Compartment→Throw away the debris in the dust box, and clean it (Page EN11 & EN12)The Extension Wand and Floor Nozzle are clogged up with debris→Remove the debrisUsed with foreign matter entwined in the Agitator (brush)→Remove the foreign matter
The suction power weakens, or it stops operating even though nothing is being done
The Floor Nozzle's Agitator (brush) stops moving	In order to prevent the Battery from overheating, is the protection device working?→1Turn off the ON/OFF Operation Switch2Wait 5 to 30 minutes (the Battery cools down, and the protection device is released)3Investigate what caused (Page EN6) the protection device to workContinuously operated with a lot of dust accumulated in the Dust Compartment→Throw away the debris in the Dust Compartment, and clean it (Page EN11 & EN12)The Extension Wand and Floor Nozzle are clogged up with debris→Remove the debrisIf it is continually operated in HIGH operation in places where there are high temperatures, the protection device might work, and it might stop operating.
	Are debris or strings wrapped around, or jamming up the Agitator (brush)? (Page EN13)Depending on the floor surface types, such as long-pile carpets, the Agitator (brush) might not rotate, or it might slow down.
The suction power from the Floor Nozzle is weak	Is it full of debris?Is the Dust Compartment clogged up?→Clean it (Page EN11 & EN12)
The suction power is weak even in the “HIGH” operating mode	Turn off the ON/OFF Operation Switch, and retry operating it.Is each filter clogged up?→Clean them (Page EN11, EN12, EN14 & EN15)Is the Dust Compartment securely set in?Is the protection device working? (Page EN16)Are the air intake passage, Extension Wand, and Floor Nozzle clogged up with debris?→Remove the clogged up debris with a thin stick, etc.

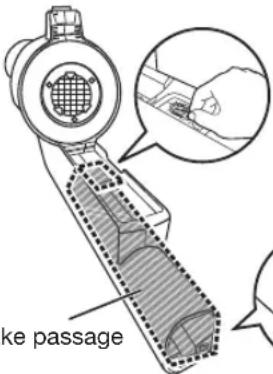

The suction power weakens while it is being operated	[Air inta]
The Battery Status Indicator Lamp (blue) does not light on	Is the Charging Adapter firmly plugged into the outlet?Is the Charging Adapter plug securely inserted into the Main Unit's Connector?
The Battery Status Indicator Lamp (blue) does not lights off (The charging times are long)	The charging times might take up to 5 hours at the most depending on the usage conditions such as the ambient temperatures and usage times.If the Battery Status Indicator Lamp does not lights off even though the Battery is charged for 5 hours or more, it can be considered to be defective, please consult with authorised Service Centre.
The Battery Status Indicator Lamp quickly flashes (about 0.3 second intervals)	Is the Charging Adapter Plug securely inserted into the Main Unit's Connector?→ Unplug the plug from the Main Unit, and reinsert itIs there any foreign matter on the Main Unit's Connector, or the Charging Adapter Plug?→ Remove the foreign matterWas the Battery charged in places where the ambient temperatures are high or low?→ Charge it in places where the room temperatures are 5 °C to 35 °C (Page EN8)Is the dedicated Charging Adapter being used?Is the Battery set in? (Page EN18)
The operating times are short even when it is charged up	Even if the Battery Status Indicator Lamp (blue) is pulsating, it might not be charged. (It is inoperable)If the Battery temperature is high, such as immediately after it has been operated, it will not be charged even if the Battery Status Indicator Lamp (blue) is pulsating since it automatically goes into standby for charging until a temperature suitable for charging is reached.Charge it until the Battery Status Indicator Lamp (blue) lights offWas the Battery charged in places where the ambient temperatures are high or low?→ Charge it in places where the room temperatures are 5 °C to 35 °C (Page EN8)When the usage times are significantly shortened even though it is being correctly charged, the battery's lifespan is over. (The Battery's lifespan varies depending on the usage conditions such as ambient temperatures and usage times)Replace the Battery (Page EN18)
The Care Lamp (red) lights up even though there is very little debris	When the situations are as per the following, the Care Lamp (red) lights up, but there are not abnormal.When sand and dirt, etc. are concentratedly sucked in.Clean the Dust Compartment (Page EN11 & EN12)When the Extension Wand and Floor Nozzle are clogged with debrisRemove the debris
The Care Lamp (red) does not light up even though there is a lot of debris	When there is a lot of pet hair, and cotton debris, it might not light up, but this is not an aberration.Discard the debris in the Dust Compartment (page EN11 & EN12)The Care Lamp (red) does not light up in the ON operation.Check that it is in HIGH operation
The operating sound makes high and loud ("Conk, conk" etc.) noises.	Is the Washable Filter, Sponger Filter and Upper Filter Unit, clogged up?Clean them (Page EN11, EN12)Are the Extension Wand and Floor Nozzle clogged up with debris?Is the nozzle tip blocked?
The smell of the debris is coming from the exhaust	Are you leaving the vacuum filled with strongly smelling sucked up debris in it?→If you are concerned about this, dispose of the debris (Page EN11, EN12)→Clean out each filter (Page EN11, EN12, EN14 & EN15)
If anomaly persists even after checking	Bring the product (Main Unit, Extension Wand, Floor Nozzle, Battery and Charging Adapter) along with the warranty to authorised Service Centre.

REPLACE THE BATTERY (BATTERY DISPOSAL)

The Battery is a consumable!

If the operating time reduces significantly even after proper recharging, it means the battery has reached the end of its service life. Please replace it to the new battery.

You can purchase the replacement battery (sold separately) at the place where you purchased the unit.

About the rechargeable lithium-ion battery

The usable time reduces as you continue to repeatedly use the unit. The life of the battery depends on factors such as the ambient temperature, and amount of time it is used, and the length of charge/discharge cycles will become shorter depending on usage conditions.

The used battery should not be disassembled and disposed it together with normal household waste. Please take it to appropriate collection points in accordance with your municipal rules. For more information, contact with the authorised Service Centre or your local authorities in charge of waste management.

Handling of used batteries

• Use adhesive tape to insulate the connector of the battery
• Do not disassemble the battery.

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a ruled paper line or separator), not a placeholder for text. According to Rule 2, such stylistic/background lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. This correctly represents the absence of any textual content in the GT and correctly matches the visual line as a stylistic element. Therefore, the OCR output should not contain any underscores or line representations that constitute a formatting error. The OCR should have outputted nothing (or at most whitespace) since no actual text is present. Outputting nothing for a non-placeholder line follows the rule and constitutes an error. Therefore, the OCR result is consistent with the Ground Truth.

Note

• Before removing the Battery, operate the Main Unit repeatedly until the Battery is discharged completely.
• The appliance must be switched off & unplugged when removing the battery.
• The Battery is to be disposed of safely.

SPECIFICATIONS

MODEL NO. MC-SBM20
Rated Power Input		220 W
Dimensions		(Appliance) W 220 mm x D 197 mm x H 1141 mm
		(Main Unit) W 95 mm x D 187 mm x H 412 mm
Weight		1.6 kg (Appliance)
		1 kg (Main until,)
Dust capacity		0.6 L (Maximum)
Battery used		Rechargeable lithium-ion batteryModel No. AVA97V-1AG		Nominal voltage	14.4 V ===
				Rated capacity	1700 mAh
				Number of cells	4 cells
Continuous operating time*		ON	Approximately 40 minutes (When using the Crevice Nozzle or Dusting Brush)
			Approximately 30 minutes (When using the Floor Nozzle)
		HIGH	Approximately 6 minutes (When using the Floor Nozzle)
Charging Adapter	Model No.	AVA61V-1AH (For all destination except Philippines, Vietnam, Indonesia and New Zealand),AVA61V-1AF (For Philippines only), AVA61V-1A1 (For Vietnam and Indonesia only),AVA61V-1AG (For New Zealand only)
	Input	100-240 V ~ 50-60 Hz 0.35-0.2 A(Power consumption : Charging - Approx. 11 W, Removed from Main Unit - Approx. 0.3 W)
	Output	16.5 V ⇌ A
	Charging time	Approx. 3 hours. (When charged from empty at ambient temperature of 20 °C)
	Cord length	1.5 m
Accessories		Extension Wand (1)• Floor Nozzle (1)• Charging Adapter (1)• Crevice Nozzle (1)• Dusting Brush (1)

* Fully charged, initial capacity of battery/at ambient temperature of 20 °C

Charging Information for battery pack

Nominal Specifications
Item	Specifications
Charging Current	0.7 A
Charging Voltage	16.5 V
Charging cut current	100 mA
Ambient (Charge)	0 - 45 °C
Charge Limits
Battery Pack Model Maximum	Charge Currents, A Maximum Charge Voltage, V
AVA97V-1AG	1.1 A 16.7 V

Panasonic Manufacturing Malaysia Berhad (196501000304)

No. 3, Jalan Sesiku 15/2, Section 15, Shah Alam Industrial Site,

40200 Shah Alam, Selangor Darul Ehsan, Malaysia

https://www.panasonic.com

Panasonic®

Buku Panduan

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

BAHASA MELAYU

KANDUNGAN

ARAHAN KESELAMATAN YANG PENTING UNTUK PENGGUNA......MA4

NOTA PENGGUNAAN....MA6

NAMA BAHAGIAN....MA7

PENGECASAN......MA8

PEMVAKUMAN....MA9

CARA MEMBERSIHKAN BEKAS HABUK ....MA11

PENYELENGGARAAN....MA13

PENYELESAIAN MASALAH....MA16

MENGGANTIKAN BATERI ( PELUPUSAN BATERI)......MA18

SPESIFIKASI....MA19

Technical line drawing of a handheld device with a close-up inset showing a button (no text or symbols)

Menyala (biru)

Kuasa bateri mencukupi. Anda boleh memvakum.

Berkelip (biru)

Kuasa bateri lemah. Cas bateri.

(Rujuk H. MA8)

Nota

- Sekiranya bateri habis semasa operasi, peranti pencegahan pelepasan berlebihan akan menghentikan operasi secara automatik.

TEKNIK PEMBERSIHAN

Diagram showing a mechanical assembly and a hand holding a tool, illustrating a process with no text or symbols.

Technical line drawing of a mechanical device with a magnified inset showing a hand holding a tool (no text or symbols present)

Technical line drawing of a mechanical device with two circular annotations highlighting features (no text or symbols present)

Line drawing of a mechanical component with a curved handle and internal structure (no text or symbols)

■ Memasang...

1 Pasang tali sawat

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand holding a mechanical component with a shaft and lever (no text or symbols)

No. 3, Jalan Sesiku 15/2, Section 15, Shah Alam Industrial Site,

40200 Shah Alam, Selangor Darul Ehsan, Malaysia

https://www.panasonic.com

Panasonic®

使用說明書

充電式吸塵機

(家庭用)

型號 MC-SBM20

Line drawing of a vacuum cleaner with handle and base mount (no text or symbols)

正體

目錄

用戶的重要安全指示....HK4

使用注意事項....HK6

各部位名稱....HK7

充電 HK8

吸塵....HK9

清理集塵盒的方法....HK11

保養維護....HK13

疑難排解....HK16

更換電池（電池處理）....HK18

規格....HK19

：此符號表示僅限室內使用。

Technical line drawing of a handheld device with a highlighted rectangular component (no text or symbols)

點亮（藍色）

電力足够。可以清掃。

閃爍（藍色）

電量低，請充電。

(參見第 HK8 頁)

摘要

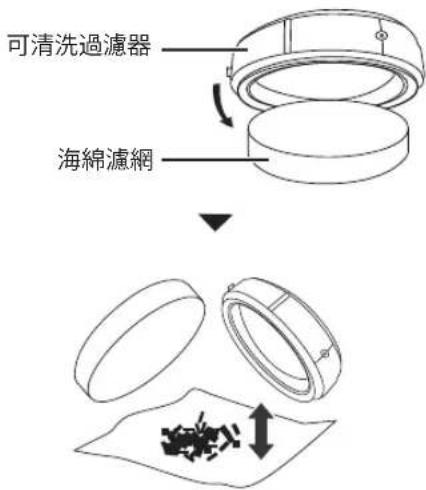

④ 清理可清洗過濾器和海綿濾網

⑥ 安装集塵盒

摘要

Technical line drawing of a mechanical device with a speech bubble containing a circular detail (no text or symbols)

用鑷子或剪刀等工具、去除纏繞的垃圾。

Technical line drawing of a mechanical device with a magnified inset showing a close-up of the component (no text or symbols present)

用剪刀沿著凹槽剪除纏繞的垃圾。

■ 水洗旋轉部方式

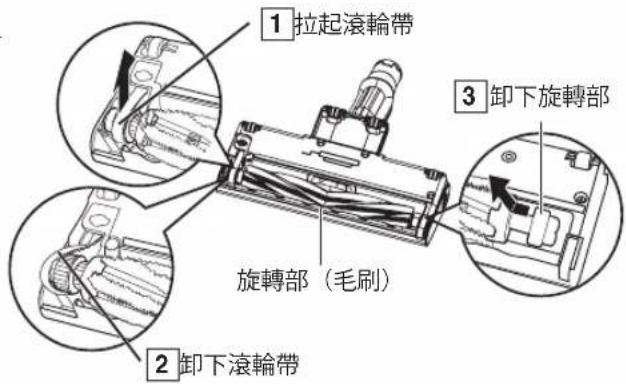

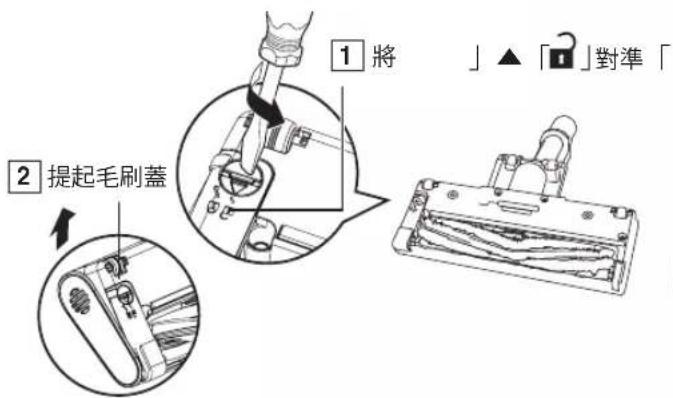

① 卸下毛刷蓋

② 卸下旋轉部（毛刷）

Technical line drawing of a mechanical device with two highlighted sections (no text or symbols)

④

Line drawing of a mechanical component with a lever and base, no text or symbols present

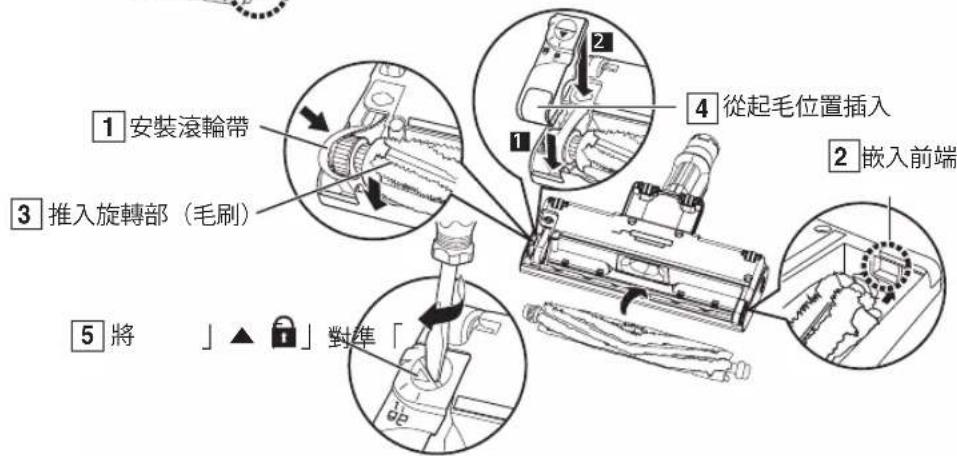

■ 進行安裝...

Line drawing of a hand using a tool to lift a mechanical component (no text or symbols)

Line drawing of a hand inserting a component into a mechanical assembly (no text or symbols)

No. 3, Jalan Sesiku 15/2, Section 15, Shah Alam Industrial Site,

40200 Shah Alam, Selangor Darul Ehsan, Malaysia

https://www.panasonic.com

Panasonic®

Hướng dẫn Sử dụng

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

TIẾNG VIỆT

NỘI DUNG

CÁC HƯỚNG DẮN QUAN TRỌNG VỀ AN TOÀN CHO NGƯỜI SỬ DỤNG ...... VN4

LƯU Ý KHI Sử DỤNG....VN6

TÊN CÁC BỘ PHÂN....VN7

SAC....VN8

HÚT BỘI....VN9

CÁCH LÀM SẠCH NGĂN CHÚA BỤI....VN11

VIÊC BẢO DƯỞNG ...... VN13

GIẢI QUYẾT VĂN ĐỀ....VN16

THAY PIN (XÙ LÝ PIN)....VN18

THÔNG SỐ....VN19

Technical line drawing of a handheld device with a button and connector (no text or symbols)

Sáng lên (Xanh)

Technical line drawing of a mechanical device with a speech bubble containing internal components (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing a hand holding a tool (no text or symbols present)

Line drawing of a mechanical component with a lever and threaded rod (no text or symbols)

Line drawing of a hand using a tool to lift a mechanical component (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

THAY PIN (XỦ' LÝ PIN)

No. 3, Jalan Sesiku 15/2, Section 15, Shah Alam Industrial Site,

40200 Shah Alam, Selangor Darul Ehsan, Malaysia

https://www.panasonic.com

Panasonic®

Petunjuk Penggunaan

Penghisap Debu Isi Ulang

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

BAHASA INDONESIA

DAFTAR ISI

PETUNJUK KESELAMATAN PENTING UNTUK PENGGUNA ID4

CATATAN TENTANG PENGGUNAAN....ID6

IDENTIFIKASI BAGIAN....ID7

PENGISIAN DAYA ID8

PENGHISAPAN ID9

CARA MEMBERSIHKAN KOMPARTEMEN DEBU....ID11

PEMELIHARAAN ID13

PENYELESAIAN MASALAH....ID16

MENGGANTI BATERAI (PEMBUANGAN BATERAI) ID18

SPESIFIKASI ID19

Technical line drawing of a handheld device with a highlighted internal component (no text or symbols)

Menyala (biru)

Technical line drawing of a mechanical device with a speech bubble containing a circular diagram (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing a hand holding a tool (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical component with a curved handle and threaded base (no text or symbols)

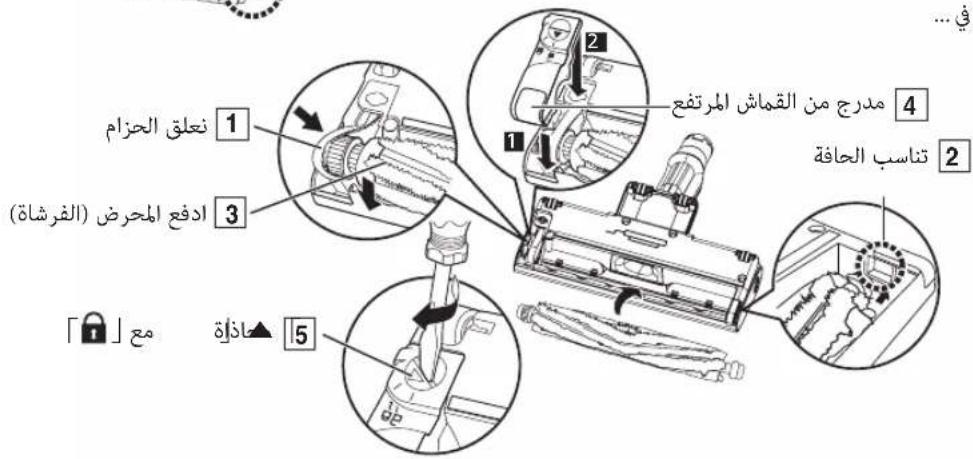

■ Pemasangan...

1 Pasang sabuk

Line drawing of a hand using a tool to lift a wall-mounted device (no text or symbols)

Line drawing of a hand inserting a component into a mechanical assembly (no text or symbols)

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Line drawing of a hand holding a device with control buttons (no text or symbols)

Technical line drawing of a handheld device with a button and connector (no text or symbols)

Technical line drawing of a mechanical device with a speech bubble containing a circular diagram (no text or symbols)

Technical line drawing of a mechanical clamp or bracket with internal components (no text or symbols)

Technical line drawing of a mechanical device with two circular annotations highlighting features (no text or symbols present)

Line drawing of a mechanical component with a curved handle and internal structure (no text or symbols)

التشبيت في...

Illustration of a hand using a tool to press or install a mechanical component (no text or symbols visible)

Line drawing of a hand holding a mechanical component with a shaft and lever (no text or symbols)

No. 3, Jalan Sesiku 15/2, Section 15, Shah Alam Industrial Site,

40200 Shah Alam, Selangor Darul Ehsan, Malaysia

https://www.panasonic.com
