Product Type	Monitor
Model	K27M100
Brand	EKO
Resolution	1920 x 1080
Display Colors	16.7 Million
Brightness	250 cd/m²
Power Source	DC 12V, 3A
Dimensions (with stand)	613 (W) x 220 (D) x 444.6 (H) mm
Dimensions (without stand)	613 (W) x 41.25 (D) x 362.2 (H) mm
VESA Mount Pattern	100 x 100 mm
Inputs	HDMI, VGA (D-Sub)
Audio Output	Headphone jack
Built-in Speakers	Yes (volume adjustable)

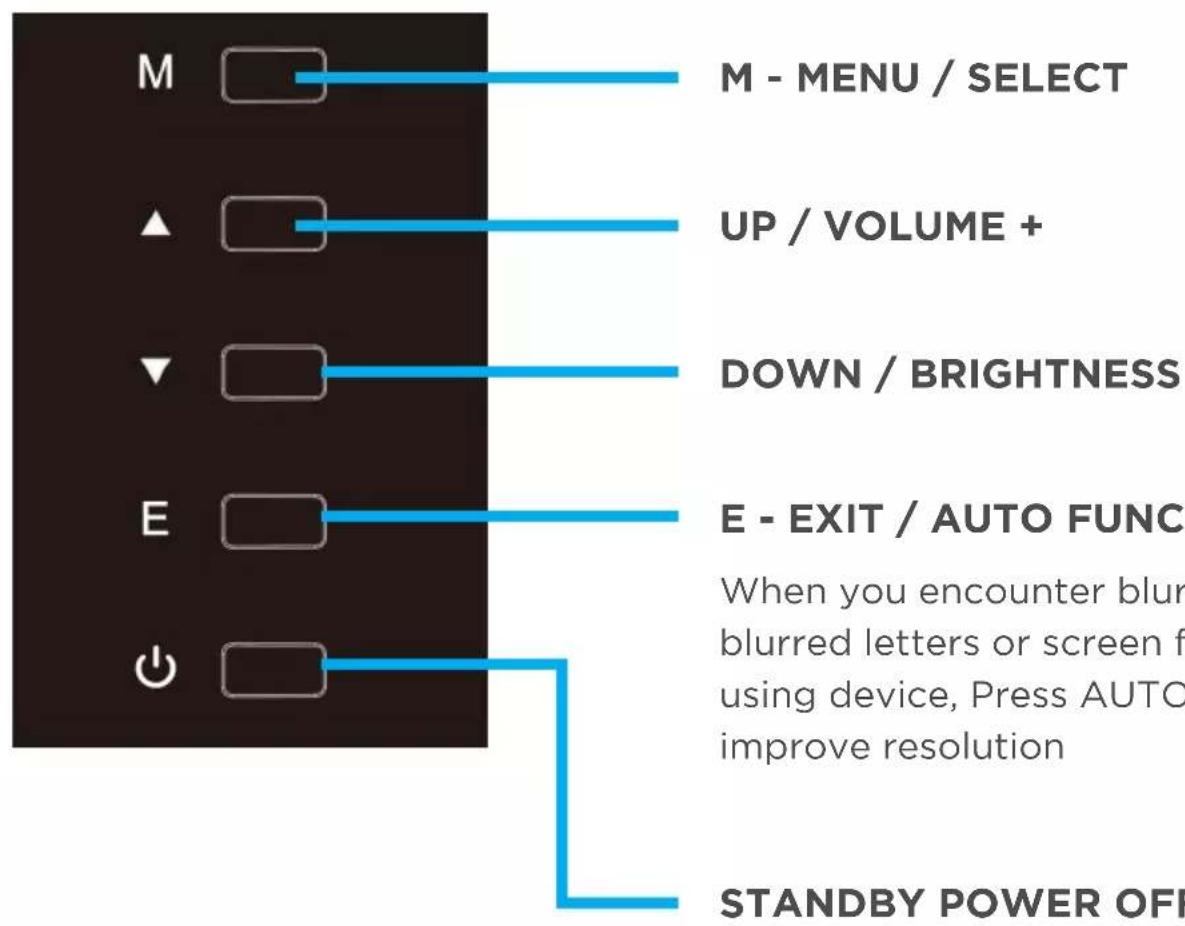

OSD Controls	Menu, Up/Volume+, Down/Brightness, Exit/Auto
Key Features	Brightness, Contrast, Black Level, DCR, Eco Mode, Image Setup, Color Temperature, LowBlue, Overdrive, FreeSync
Cleaning Instructions	Unplug and wipe with a dry cloth; no chemicals or wet cloth
Safety Precautions	Do not open; risk of electric shock. Use stable furniture. Keep away from moisture and heat.
Accessories Included	Instruction Manual, Monitor Stand, Warranty Card, HDMI Cable, Power Adaptor
Customer Support	[e-mail]

Frequently Asked Questions - K27M100 EKO

How do I attach the stand to the monitor?

Insert the neck stand into the base with the front of the neck facing left at a 45-degree angle, then twist counter-clockwise until it clicks. Lay the monitor flat and insert the assembly into the back. Do not apply excessive force.

Can I mount this monitor on a wall?

Yes, the monitor has a VESA pattern of 100x100 mm. You will need a compatible wall mount. We recommend professional installation to avoid damage or injury.

What are the available video inputs?

The monitor has one HDMI input and one VGA (D-Sub) input. You can switch between them via the OSD menu under Extra > Input Select.

How do I adjust the screen brightness?

Press the MENU button, navigate to Luminance, then select Brightness. Use the Up/Down buttons to adjust the value from 0 to 100.

Why is my screen blurry or displaying incorrectly?

Press the AUTO button (Exit/E) to automatically adjust the image for VGA input. For HDMI, ensure the source resolution matches 1920x1080. You can also manually adjust Clock and Phase under Image Setup.

How do I reduce blue light for eye comfort?

Go to the Reset menu (Extra menu on some models) and adjust the LowBlue setting. Increasing LowBlue reduces blue light emission.

How do I clean the monitor screen?

Unplug the monitor from the power outlet. Use a soft, dry cloth to gently wipe the screen and casing. Do not use any chemical cleaners, sprays, or wet cloths.

What does the Eco Mode do?

Eco Mode adjusts the monitor's energy consumption. It can be set to Standard, Optimize, or other modes via the Luminance menu. Lower settings reduce brightness and power usage.

Does the monitor support AMD FreeSync?

Yes, FreeSync can be enabled or disabled under the Extra menu. This feature synchronizes the monitor's refresh rate with your graphics card for smoother gameplay.

What should I do if the monitor has no power?

Check that the power adapter is securely connected to the monitor and the wall outlet. If the outlet is controlled by a switch, ensure it is on. If the issue persists, contact customer support.

USER MANUAL K27M100 EKO

Please read this manual carefully before using, and keep it for future reference.

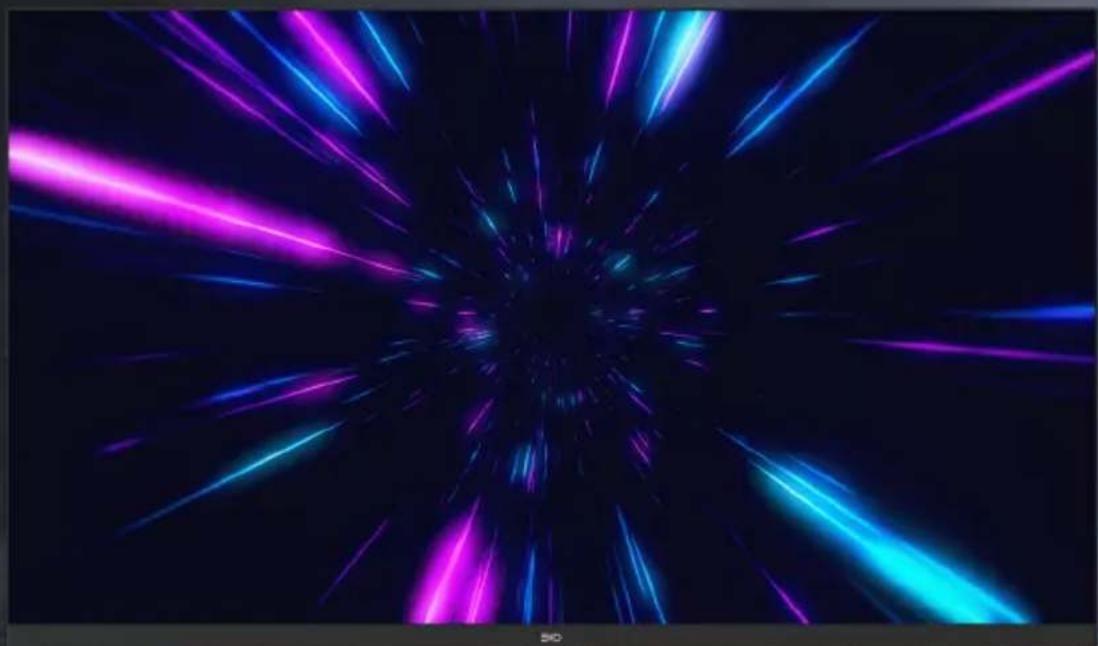

Abstract light burst visualization with magenta and blue streaks against a dark background (no text or symbols)

CUSTOMER SUPPORT

This product comes with warranty. For all product related enquiries or technical questions please use the following to get in touch:

02 8279 8606

[e-mail]

www.eko-entertainment.com.au or by scanning the QR Code.

CONTENTS

General	Safety				4
Installation
	Attaching	the	Stand
Wall or Arm Mounting Instructions			9
Controls	and	Connections
Operation
	Brightness				12
	Color	Setup.
	OSD	setting
	Reset				16
	MISC.				17
Specifications				18
Customer	Helpline				Last

GENERAL SAFETY

Read this manual thoroughly before you start using the Monitor.

Store this manual, the completed warranty card, your receipt and the product packaging.

The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

The cover (or back) of the unit should not be removed to prevent risk of electric shock.

This unit must be serviced by a qualified service personnel only.

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

The lightning flash with symbol within the triangle is intended to warn you of a non-insulated dangerous voltage in the product's enclosure that could be of sufficient magnitude to generate a risk of electric shock to persons.

The exclamation point within the triangle is intended to warn you to the presence of important operating and maintenance instructions in the documents included with the product.

IMPORTANT INFORMATION

The lightning flash symbol within the triangle is intended to warn you of non-insulated dangerous voltage the product's enclosure that could be of sufficient magnitude to generate a risk of electric shock to persons.

• Using Cabinets or stands recommended by the manufacturer of the monitor.
• Only using furniture that can safely support the Products.
• Ensure the Product is not overhanging the edge of the supporting furniture.
• Do not place the product on a high furniture without securing both the furniture and the product to a stable support.
• Do not place the product on cloth or other conductive materials.
• Warn children of the dangers of climbing on furniture to reach the monitor or its controls and to call for an adult to assist.

GENERAL SAFETY (CONT.)

IMPORTANT INFORMATION

• Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard
• Do not tamper or change or modify the product in any way.
• Only use Accessories outlined and recommended by the manufacturer.
• Please do not expose the product to splashing or water contact
• Please do not place any object on top of the product including objects filled with liquids such as vases.

Installation

Please follow instruction when installing this product in accordance with the instruction manual. This product must be positioned in a sufficiently stable location, it can be potentially hazardous due to falling and can cause injury, particularly to children if it positioned incorrectly.

• Before installing this Monitor, make sure your outlet voltage corresponds to the voltage stated on the product rating label
• Do not plug several devices into the same outlet. Doing so may cause the outlet to overheat and start a fire. Make sure the outlet is readily accessible during operation of the equipment.
• Do not cover the ventilation openings of the product with items such as newspapers, tablecloths, curtains etc or insert objects into the slots available on the products. As this could result in the product temperature rising and could cause a fire.
• If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center. Failure to do so may result in fire or electric shock.
• When not using the unit for long periods of time or when you are moving the unit please ensure to disconnect the power cord from the adapter.

GENERAL SAFETY (CONT.)

• Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire.
• The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
• To maintain the product do not use any chemical or cleaning agent or wet cloth, please only ensure to utilize a dry cloth to wipe it down from marks or dust and only after unplugging the product from the power socket.
• Please ensure to contact our call center for any repair or service required for the products.
• Make sure to always carry Monitor from the sides, always be sure to have assistance by another person. Do not carry the Monitor from the middle.

WARNING!

Toppling furniture and Monitor's can cause serious injury or death.

If a monitor is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the monitor.
• Only using furniture that can safely support the monitor.
• Ensuring the monitor is not overhanging the edge of the supporting furniture.
• Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.
• Not standing the monitor on cloth or other materials placed between the monitor and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the monitor or its controls.

GENERAL SAFETY (CONT.)

Please make sure upon positioning this product, the place is:

• Not wet or damp and Well ventilated
• Away from direct sunlight or heaters.
• Away from splashes or food.
• Protected from excessive dust or grease.
• Do not install this equipment in a confined space such as a bookcase or similar unit.
• Do not install the Monitor set near heat sources such as radiators, stoves or other audio visual equipment that produce heat.
• Do not place containers with liquids, if liquid falls inside the products it may result in short-circuit, fire or electric shock.
• Do not place small metallic objects on top of the unit. Metal object falls inside the product it may result in short-circuit, fire or electric shock.
• Do not use or store flammable or combustible materials near the unit. Doing so may result in fire or explosion. Do not place any naked flame sources, such as lit candles, cigarettes or incense sticks on top of the Monitor set.
  • Install the unit at a reasonable distance from the wall to ensure sufficient ventilation.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

INSTALLATION

Install the stand as described below, or if you want to mount it to a wall, please contact a professional installer. Please ensure the monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task.

Attaching the stand

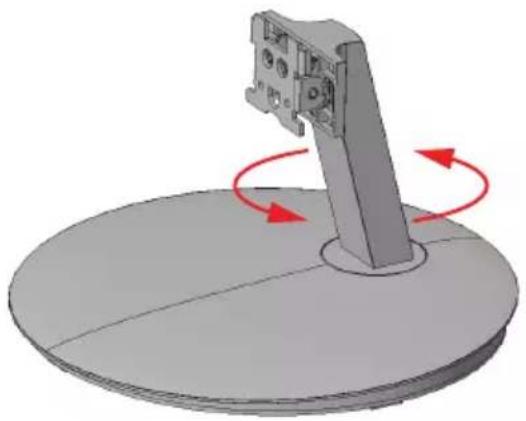

Step 1

Insert the neck stand into the base with the front of the neck facing left at a 45 degree angle and twist the neck stand counter-clockwise until you hear a clear sound and the neck stand is facing forward aligned with the base.

3D diagram of a mechanical assembly with red arrows indicating rotational motion around a central component (no text or symbols)

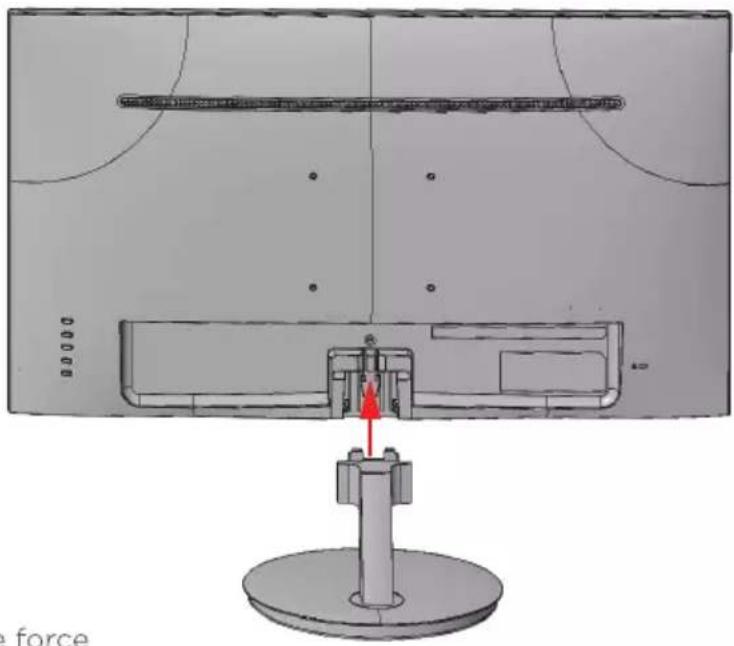

Step 2

Lay the monitor flat on the surface and stick the Neck Stand + Base assembly into the back of the monitor.

Technical diagram of a mechanical assembly with a force indicator and component layout (no text or symbols)

CAUTION! Do not apply excessive force as this may damage the screw holes.

INSTALLATION (CONT.)

Wall OR Monitor Arm Mounting Instructions

Please ensure the Monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task.

• We recommend you use a professional installer as we assume no liability for any eventual damage to the product or injury to yourself if you mount the Monitor on your own.

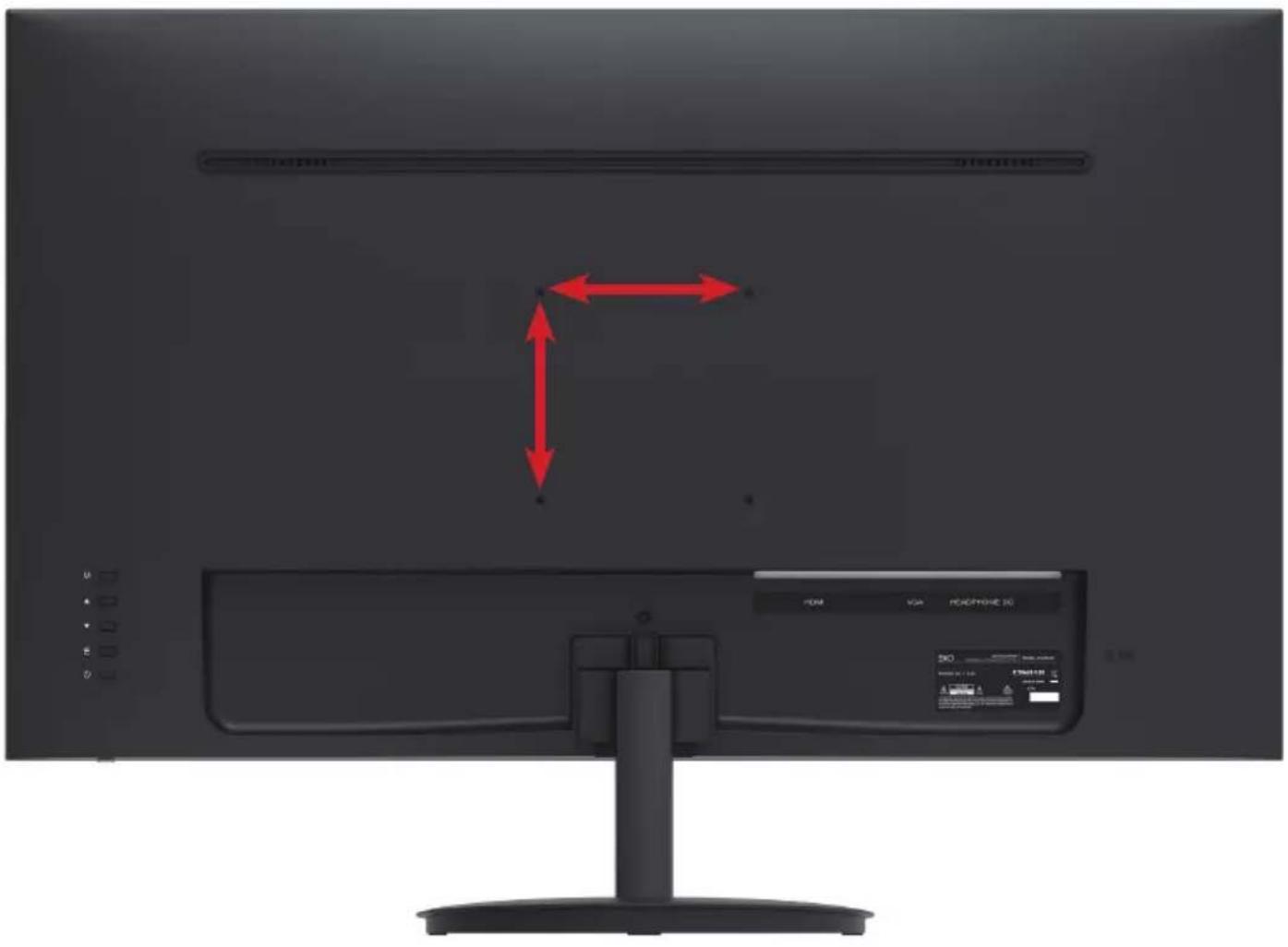

BACK OF MONITOR

VESA PATTERN: 100 (w) x 100 (h) mm

Computer monitor with red double-headed arrows indicating bidirectional movement, no visible text or symbols on the screen or background.

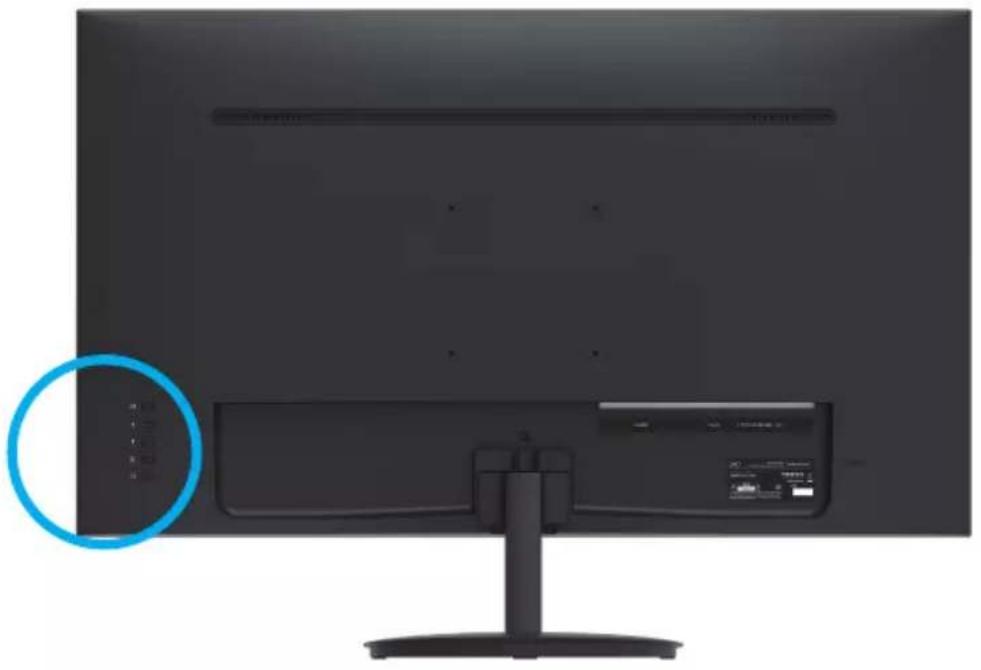

CONTROLS AND CONNECTIONS

Front view of a modern computer monitor with a blue circular overlay and control panel (no visible text or symbols)

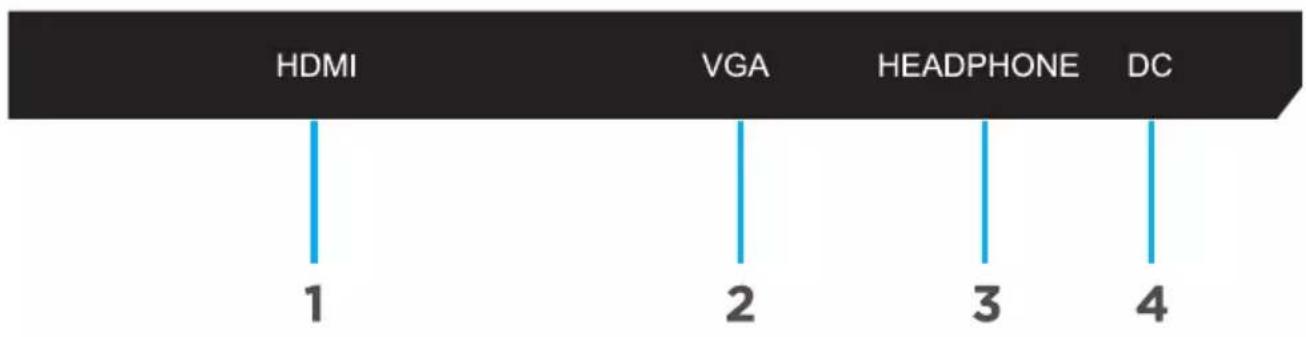

CONTROLS AND CONNECTIONS

1. HDMI
2. D-SUB (VGA)
3. HEADPHONE
4. DC IN (POWER)

OPERATION

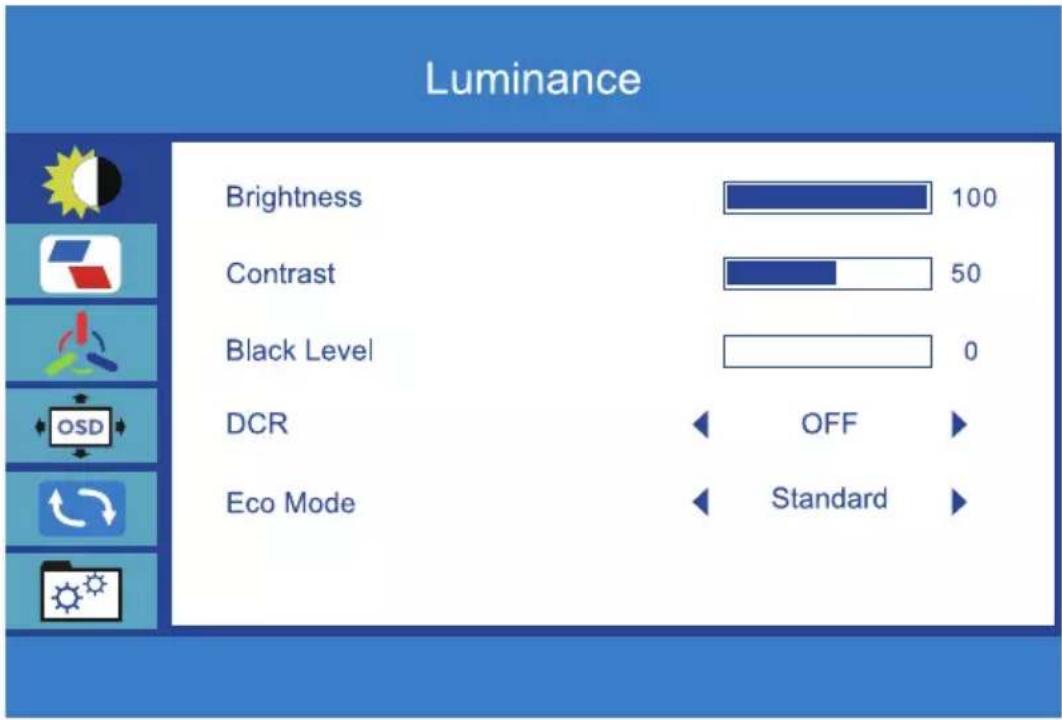

Luminance

Press MENU button, and the main menu page will appear as follows: (Luminance MENU), and then press MENU button to enter.

BRIGHTNESS

CONTRAST

BLACK LEVEL

DCR

ECO Mode

To adjust the brightness of the screen.

To adjust the contrast of the screen.

Adjusts the black levels of the display

Automatically judge the overall brightness of the screen

To adjust energy consumption of the display

OPERATION (CONT.)


Press ▼/▲ button to select IMAGE, and then press MENU button to confirm your selection. This item can adjust the configuration automatically.

Image Setup

H. POSITION To move image left and right.

V. POSITION To move image up and down.

CLOCK To minimize any vertical bars or stripes visible on the screen background.

The horizontal screen size will also change.

PHASE To adjust the focus of the display, this item allows you to remove any horizontal noise and clear or sharpen the image of characters.

IMAGERATIO Wide: Adjust the image ratio to widescreen mode.

4:3 : Adjust the image ratio to 4:3 mode

SHARPNESS Changes picture softness and clarity

OPERATION (CONT.)

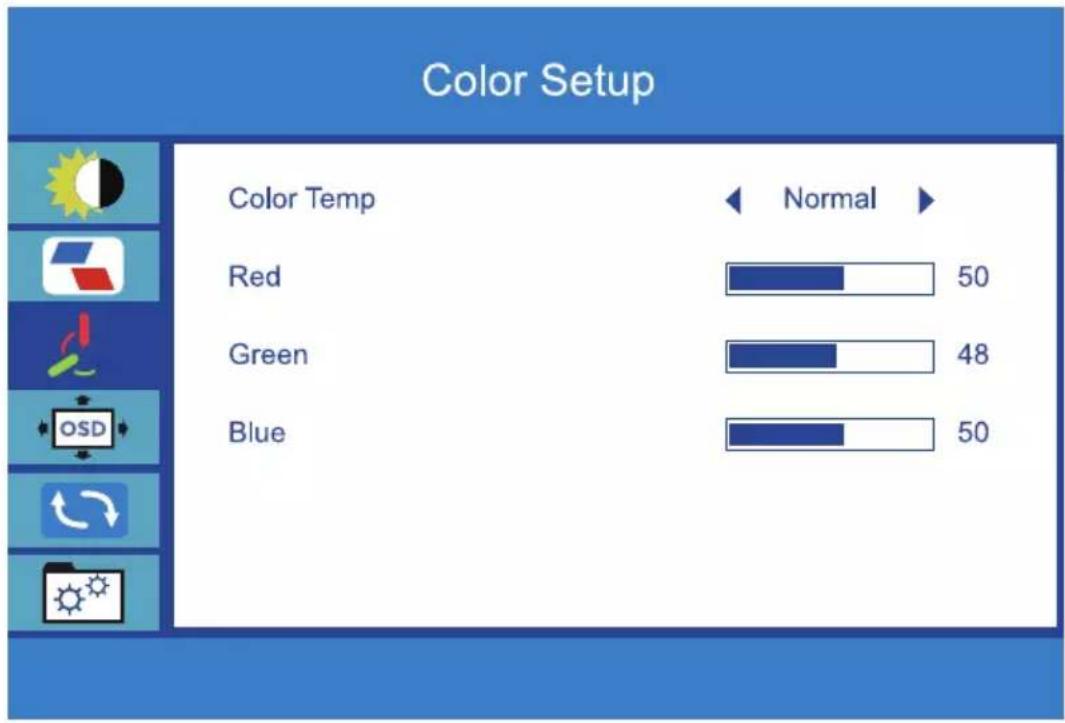

Color Setup

Press ▼/▲ button to select Color in the main menu, and then press MENU button to enter.

COLOR TEMP

User: To move image left and right. (RED, GREEN, BLUE)

Warm: Set to warm color temperature.

Cool: Set to cool color temperature.

Normal: Set to normal color temperature.

OPERATION (CONT.)

OSD Setup

Press ▼/▲ button to select Color in the main menu, and then press MENU button to enter.

OSD Setup

Language

H.Position

V.Position

Timeout

Transparence

50

50

10

0

LANGUAGE Select the language displayed in the OSD menu.

H. POSITION Adjust the horizontal position of the OSD.

V. POSITION Adjust the vertical position of the OSD.

TIMEOUT Adjust OSD display time.

TRANSPARENCE Adjust OSD transparency.

OPERATION (CONT.)

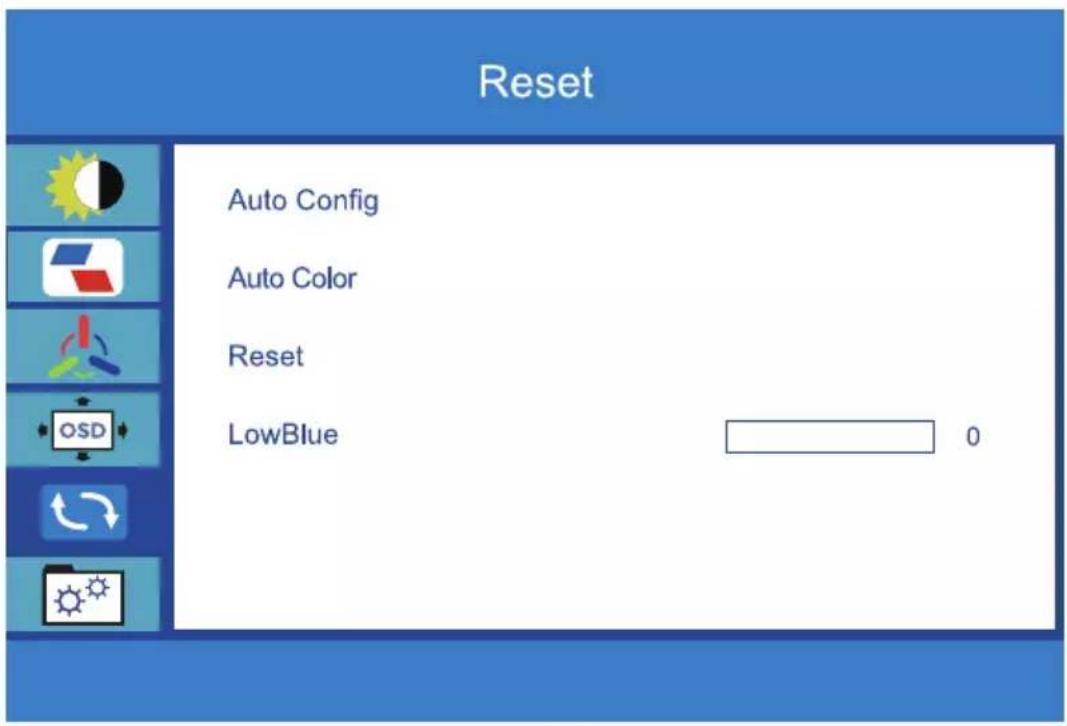

Reset

Press ▼/▲ button to select Reset in the main menu, and then press MENU button to enter.

AUTO CONFIG

Auto adjusts your VGA source to fit the display.

AUTO COLOR

Automatically adjust the color.

RESET

Restore factory settings.

LOWBLUE

Adjust the blue light to reduce eye fatigue.

OPERATION (CONT.)

Extra

Press ▼/▲ button to select Extra in the main menu, and then press MENU button to enter.

Extra

Input Select

Mute

Volume

Overdrive

FreeSync

INPUT SELECT Selects which input device is to be displayed on the monitor.

MUTE Turns on or off the Mute function, silencing the audio output of the monitor source.

VOLUME Adjusts the loudness of the speakers.

OVERDRIVE Adjusts Overdrive levels, increasing panel performance.

FREESYNC Turns on or off AMD FreeSync, enabling smoother gameplay.

SPECIFICATIONS

Resolution 1920 x 1080
Display Colours 16.7 Million
Brightness 250 cd/m2
Power Source DC 12V 3A
Dimensions	With stand: 613 (w) × 220 (d) × 444.6 (h) mm
	Without stand: 613 (w) × 41.25 (d) × 362.2 (h) mm
Accessories	1 x Instruction Manual Monitor Stand
	1 x Warranty Card 1 x HDMI Cable
	1 x Power Adaptor
