K27FSM - Monitor EKO - Free user manual and instructions

Product Type	Android Smart Monitor
Brand	EKO
Model	K27FSM
Screen Size	27 inches (estimated from model)
Resolution	1920 x 1080 (Full HD)
Display Colors	16.7 million
Contrast Ratio	3000:1
Brightness	250 cd/m²
Refresh Rate	60 Hz
Operating System	Android TV™ 11
Wi-Fi	802.11 b/g/n/ac
Ethernet	Yes
Power Source	DC 12V 4A
Power Consumption	48W
Dimensions (with stand)	613.9 (W) x 188 (D) x 440.5 (H) mm
Dimensions (without stand)	613.9 (W) x 40.8 (D) x 358.9 (H) mm
Inputs	HDMI 1 (ARC), HDMI 2, USB 1, USB 2, Earphone
USB Ports	2 (5V, max. 500mA each)
Remote Control	Bluetooth with Google Assistant, 2 x AAA batteries
Accessories Included	Remote control, AAA batteries (2), stand with screws, warranty card, instruction manual
Safety Features	VESA mount compatible (100x100 mm), anti-tip precautions, overheating protection, CE/FCC compliant
Maintenance	Clean with dry cloth only; do not use chemical agents or wet cloth
Spare Parts and Repairability	Contact customer support for any repair or service; no user-serviceable parts
General Information	Supports Google Assistant, Chromecast built-in, Google Play, and streaming apps (Netflix, YouTube, Prime Video, etc.)

Frequently Asked Questions - K27FSM EKO

How do I pair the Bluetooth remote control?

Press the BACK and VOL- buttons simultaneously for 3 seconds until the red light blinks. Then go to Settings > Remotes & Accessories > Add Accessory to complete pairing. If it fails, repeat the process.

Why is my remote not working?

Ensure batteries are inserted correctly (polarities match) and that they are fresh. Try pairing again. The remote can still be used without pairing but Google Assistant will not work until paired.

How can I connect my monitor to Wi-Fi?

During initial setup, select your Wi-Fi network and enter the password. You can also change it later via Settings > Network & Internet.

How do I set up Google Assistant?

Press the Google Assistant button on the remote. Ensure the remote is paired and you are signed into a Google account. You can enable or disable it in Settings > Device Preferences > Google Assistant.

How can I cast content to the monitor?

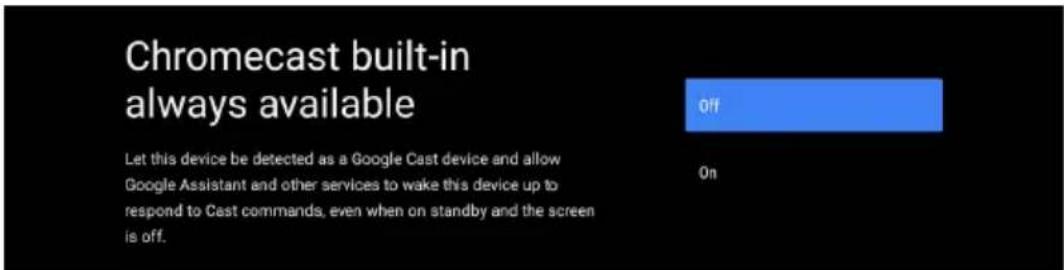

Ensure Chromecast built-in is enabled (Settings > Device Preferences > Google Cast). From your phone, open a compatible app and tap the Cast icon to cast to your monitor.

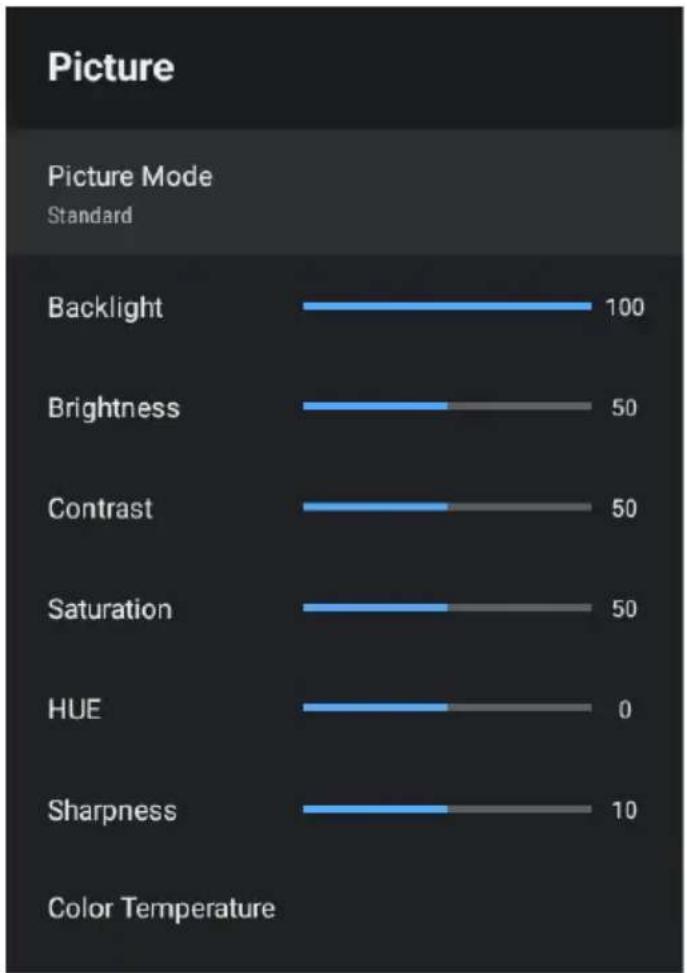

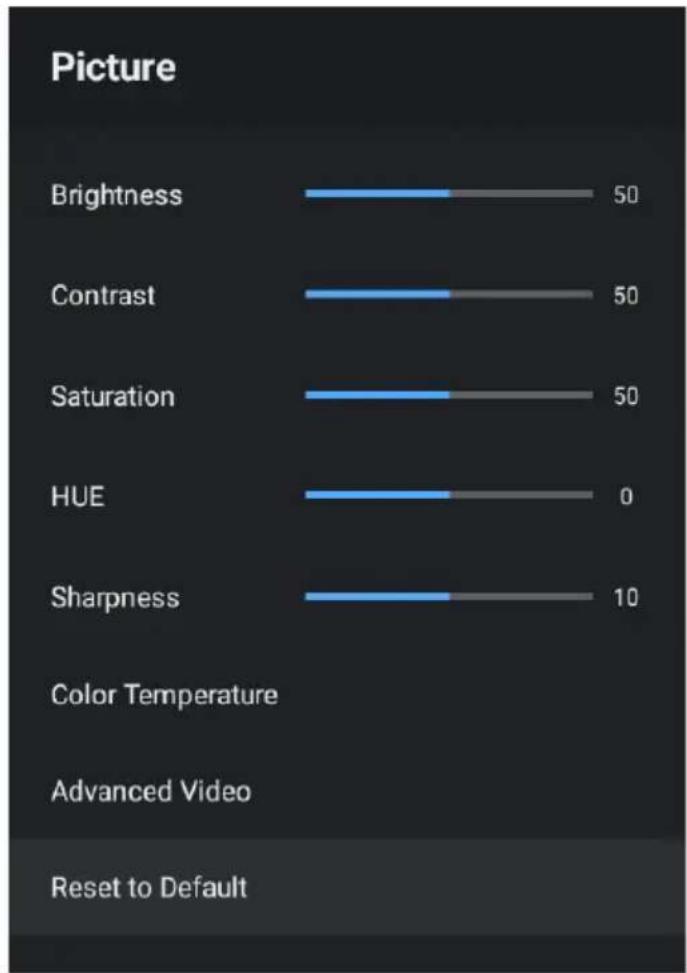

What picture modes are available?

Go to Settings > Device Preferences > Picture. Modes include Standard, Vivid, Sport, Movie, Game, Energy Saving, and User. You can also adjust backlight, brightness, contrast, saturation, hue, and sharpness.

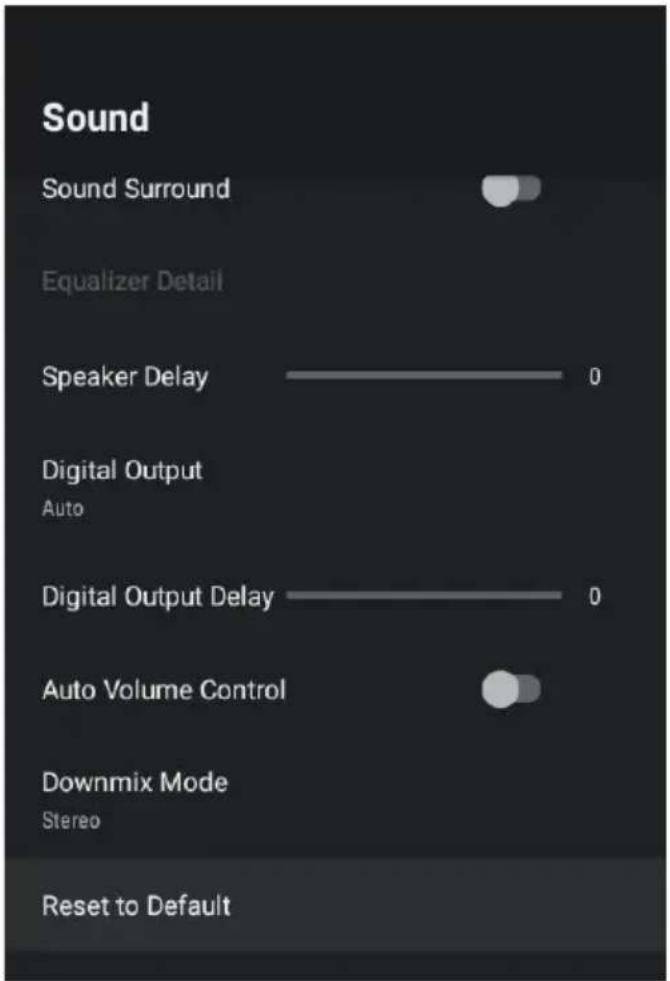

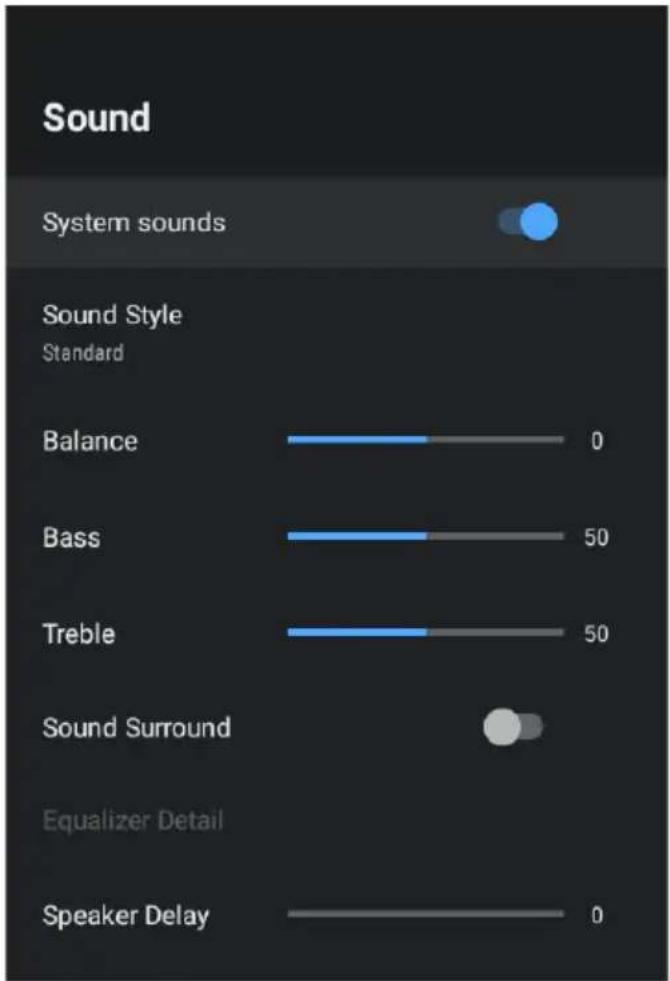

How do I change the sound settings?

Navigate to Settings > Device Preferences > Sound. Adjust Sound Style (Standard, Vivid, Sports, Movie, Music, News, User), balance, bass, treble, and surround sound. Digital output can be set to Auto, Bypass, PCM, etc.

Can I mount the monitor on a wall?

Yes, it has a VESA pattern of 100x100 mm. Use M4 x 8mm screws (not included). We recommend professional installation. Remove the stand before mounting.

How do I reset the monitor to factory settings?

Go to Settings > Device Preferences > About > Factory reset. This will erase all data and restore default settings.

What should I do if the monitor has no signal?

Check that the input source is correct (press the Source/Input button on the remote). Ensure the connected device is powered on. The monitor has a 'No Signal Auto Power Off' feature that turns off the display after 15 minutes of no signal.

USER MANUAL K27FSM EKO

Please read this manual carefully before using, and keep it for future reference.

CUSTOMER SUPPORT

This product comes with warranty. For all product related enquiries or technical questions please use the following to get in touch:

02 8279 8606

[e-mail]

www.eko-entertainment.com.au or by scanning the QR Code.

CONTENTS

General	Safety
Installation					8
Wall or Arm Mounting Instructions 9
Controls	and	Connections
Remote	Control
Initial	Setup

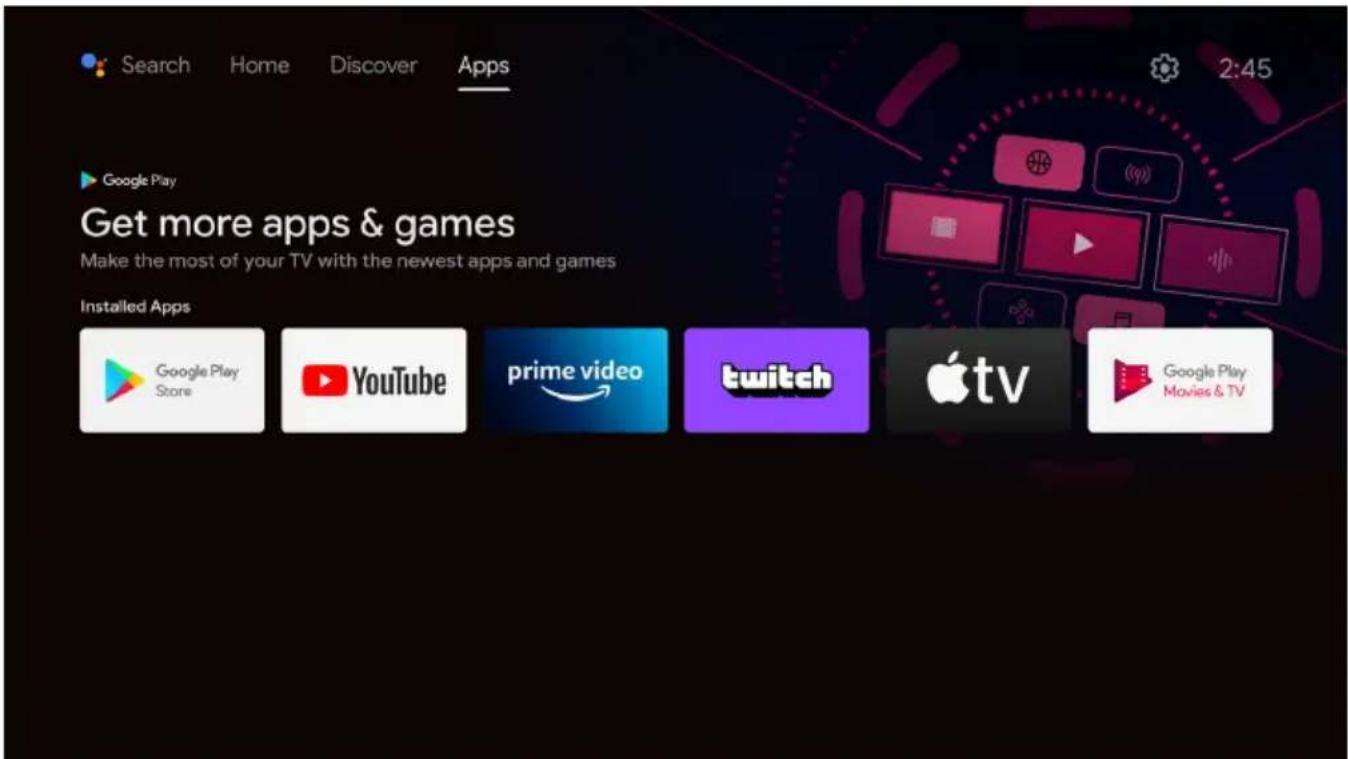

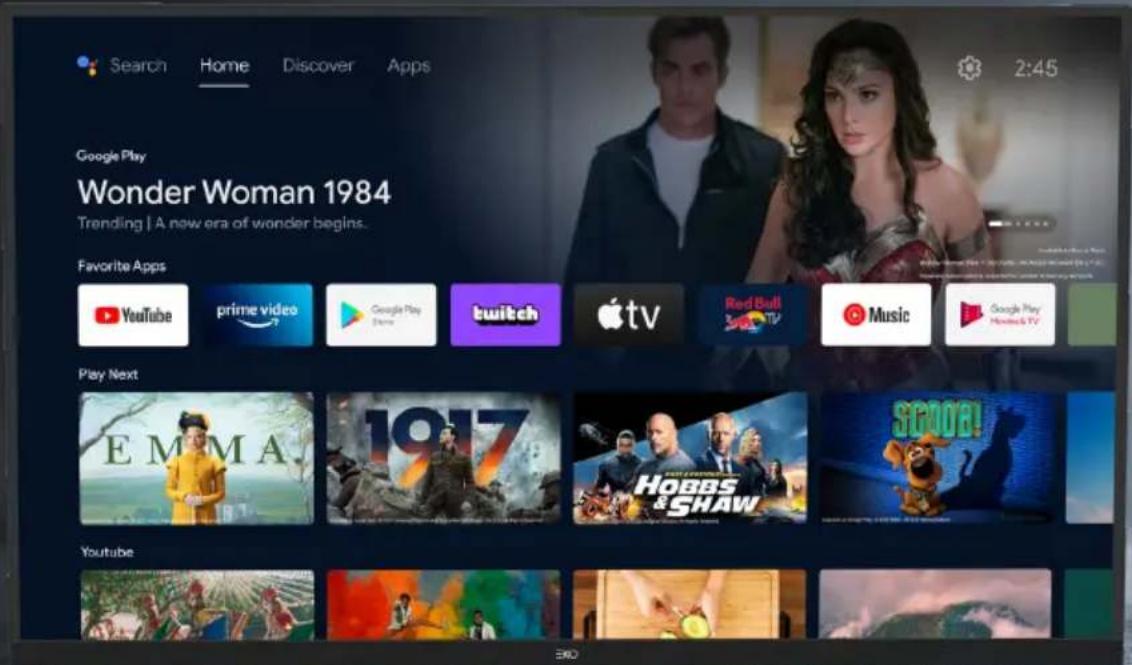

Android	Monitor^TM	-	Home	Screen
	Add	apps	to	Home	Screen
Google	Play
Google	Assistant

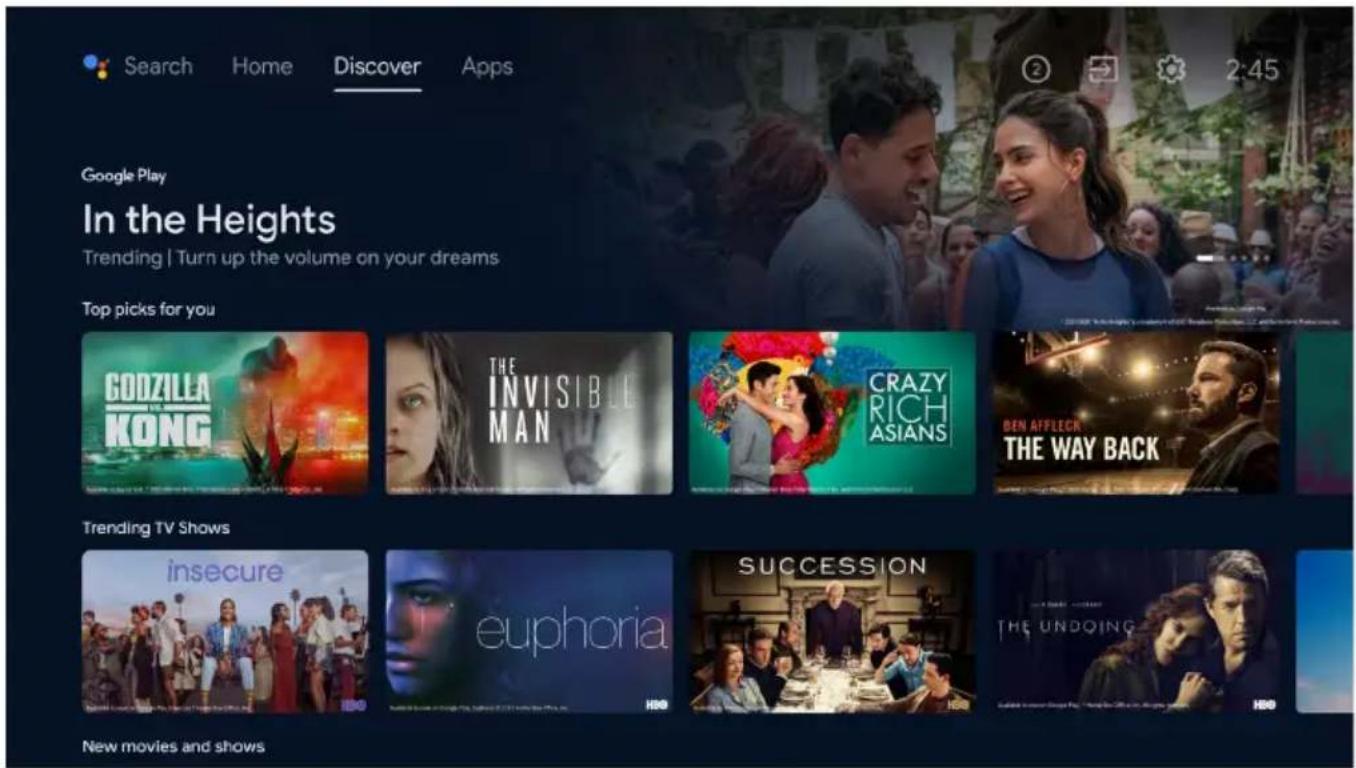

Discover

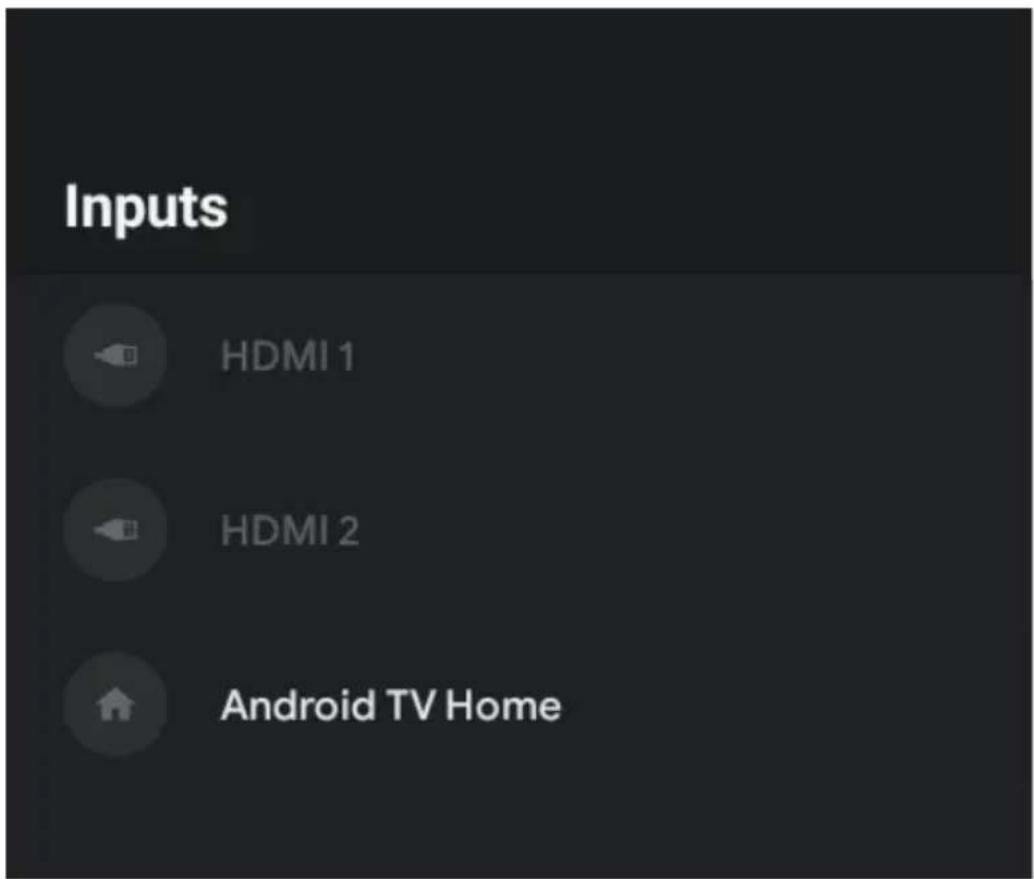

Input	Menu
Settings					25
	Network	&	Internet
Device Preferences
	About	&	Time	Settings

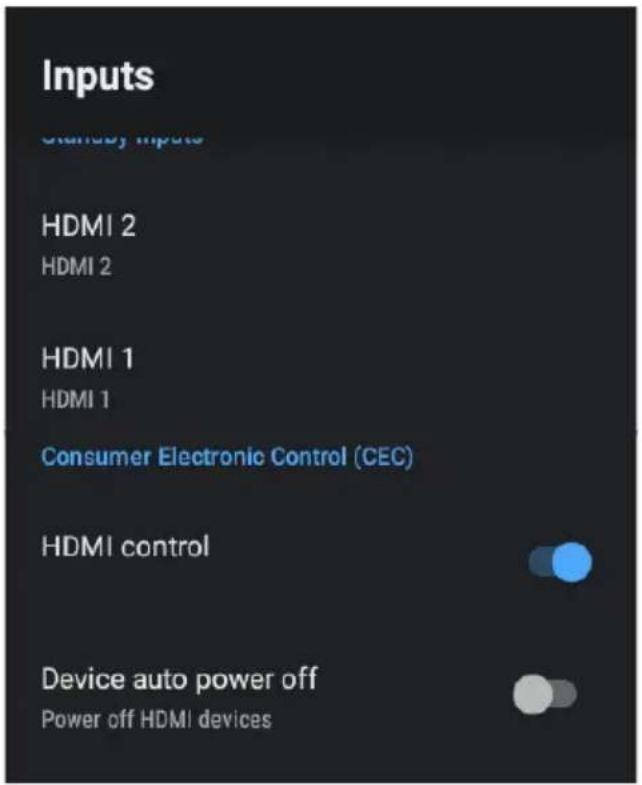

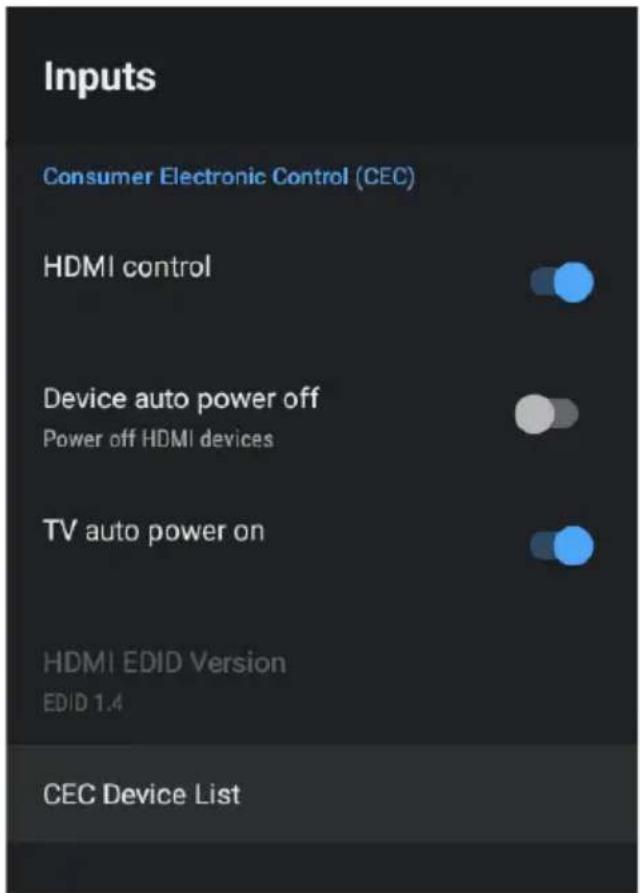

	Input	Settings

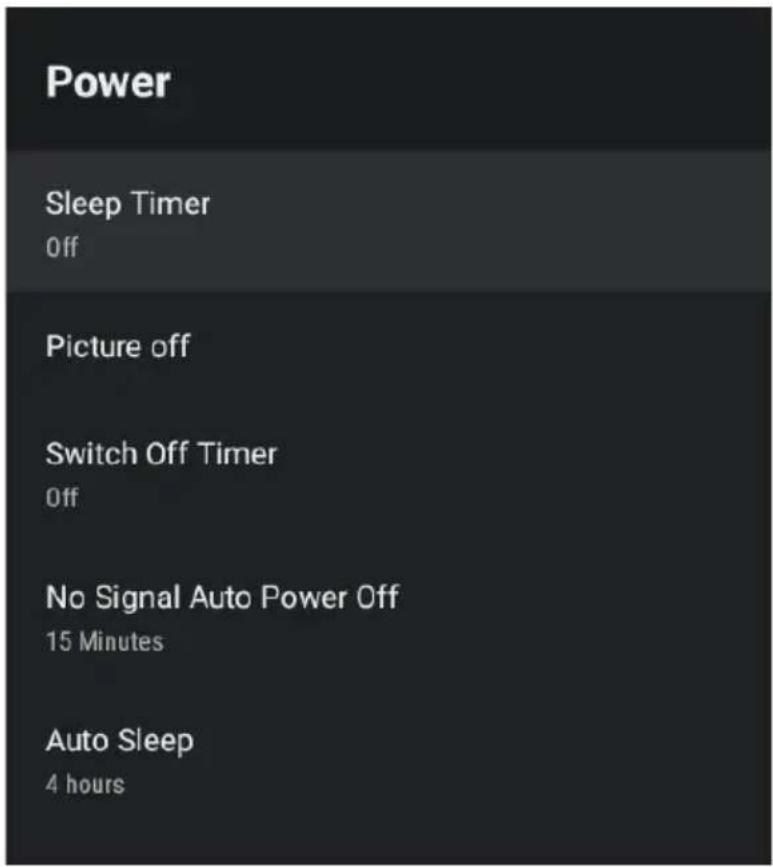

	Power	Settings
	Picture	Settings
	Sound	Settings
	Home Screen & Screen Saver				32

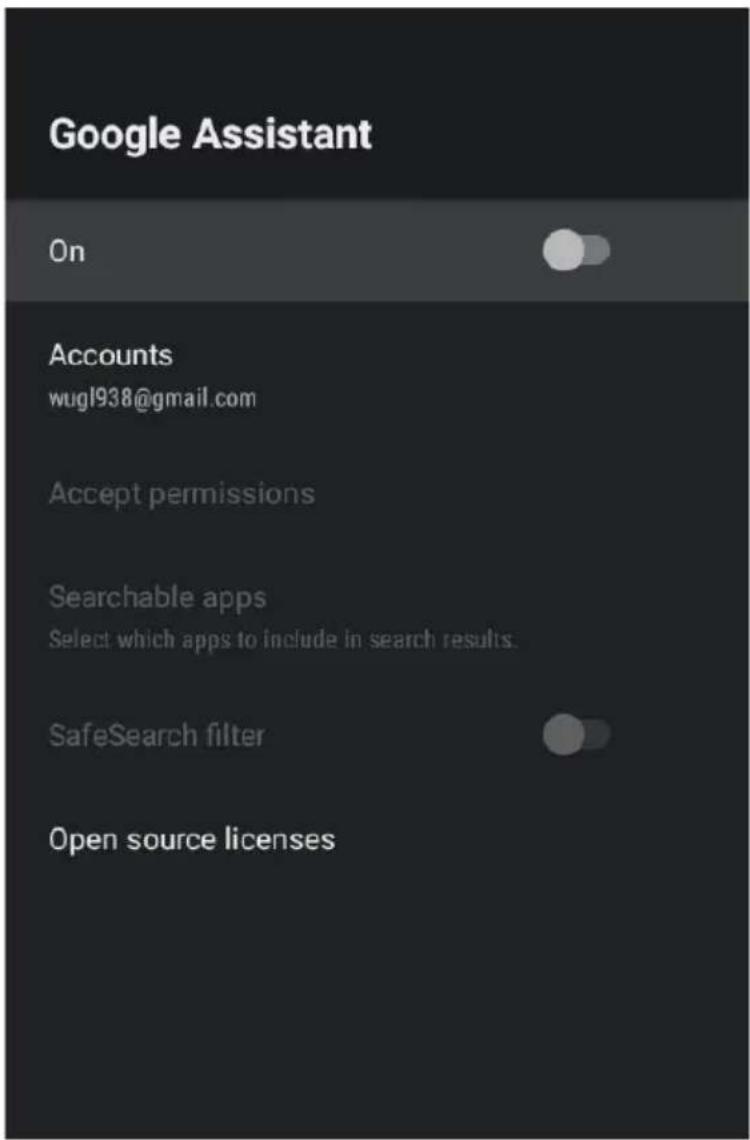

	Google	Assistant	Settings
FAQs					34
Specifications					35
Customer	Helpline

4

12

2

GENERAL SAFETY

Read this manual thoroughly before you start using the Monitor.

Store this manual, the completed warranty card, your receipt and the product packaging.

The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

The cover (or back) of the unit should not be removed to prevent risk of electric shock.

This unit must be serviced by a qualified service personnel only.

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

The lightning flash with symbol within the triangle is intended to warn you of a non-insulated dangerous voltage in the product's enclosure that could be of sufficient magnitude to generate a risk of electric shock to persons.

The exclamation point within the triangle is intended to warn you to the presence of important operating and maintenance instructions in the documents included with the product.

IMPORTANT INFORMATION

The lightning flash symbol within the triangle is intended to warn you of non-insulated dangerous voltage the product's enclosure that could be of sufficient magnitude to generate a risk of electric shock to persons.

• Using Cabinets or stands recommended by the manufacturer of the monitor.
• Only using furniture that can safely support the Products.
• Ensure the Product is not overhanging the edge of the supporting furniture.
• Do not place the product on a high furniture without securing both the furniture and the product to a stable support.
• Do not place the product on cloth or other conductive materials.
• Warn children of the dangers of climbing on furniture to reach the monitor or its controls and to call for an adult to assist.

GENERAL SAFETY (CONT.)

IMPORTANT INFORMATION

• Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard
• Do not tamper or change or modify the product in any way.
• Only use Accessories outlined and recommended by the manufacturer.
• Please do not expose the product to splashing or water contact
• Please do not place any object on top of the product including objects filled with liquids such as vases.
• Danger of explosion if battery is incorrectly placed. Replace with same or equivalent type.

Installation

Please follow instruction when installing this product in accordance with the instruction manual. This product must be positioned in a sufficiently stable location, it can be potentially hazardous due to falling and can cause injury, particularly to children if it positioned incorrectly.

• Before installing this Monitor, make sure your outlet voltage corresponds to the voltage stated on the product rating label
• Do not plug several devices into the same outlet. Doing so may cause the outlet to overheat and start a fire. Make sure the outlet is readily accessible during operation of the equipment.
• Do not cover the ventilation openings of the product with items such as newspapers, tablecloths, curtains etc or insert objects into the slots available on the products. As this could result in the product temperature rising and could cause a fire.
• If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center. Failure to do so may result in fire or electric shock.
• When not using the unit for long periods of time or when you are moving the unit please ensure to disconnect the power cord from the adapter.

GENERAL SAFETY (CONT.)

• Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire.
• The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
• Batteries from the remote control must be only removed by an adult, the adult must ensure to keep them out of reach of infants and children. Seek medical attention immediately if a child has swallowed a battery.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
• To maintain the product do not use any chemical or cleaning agent or wet cloth, please only ensure to utilize a dry cloth to wipe it down from marks or dust and only after unplugging the product from the power socket.
• Please ensure to contact our call center for any repair or service required for the products.
• Make sure to always carry Monitor from the sides, always be sure to have assistance by another person. Do not carry the Monitor from the middle.

WARNING!

Toppling furniture and Monitor's can cause serious injury or death.

If a monitor is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the monitor.
• Only using furniture that can safely support the monitor.
• Ensuring the monitor is not overhanging the edge of the supporting furniture.
• Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.
• Not standing the monitor on cloth or other materials placed between the monitor and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the monitor or its controls.

GENERAL SAFETY (CONT.)

Please make sure upon positioning this product, the place is:

• Not wet or damp and Well ventilated
• Away from direct sunlight or heaters.
• Away from splashes or food.
• Protected from excessive dust or grease.
• Do not install this equipment in a confined space such as a bookcase or similar unit.
• Do not install the Monitor set near heat sources such as radiators, stoves or other audio visual equipment that produce heat.
• Do not place containers with liquids, if liquid falls inside the products it may result in short-circuit, fire or electric shock.
• Do not place small metallic objects on top of the unit. Metal object falls inside the product it may result in short-circuit, fire or electric shock.
• Do not use or store flammable or combustible materials near the unit. Doing so may result in fire or explosion. Do not place any naked flame sources, such as lit candles, cigarettes or incense sticks on top of the Monitor set.
  • Install the unit at a reasonable distance from the wall to ensure sufficient ventilation.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

INSTALLATION

Install the stand as described below, or if you want to mount it to a wall, please contact a professional installer. Please ensure the monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task.

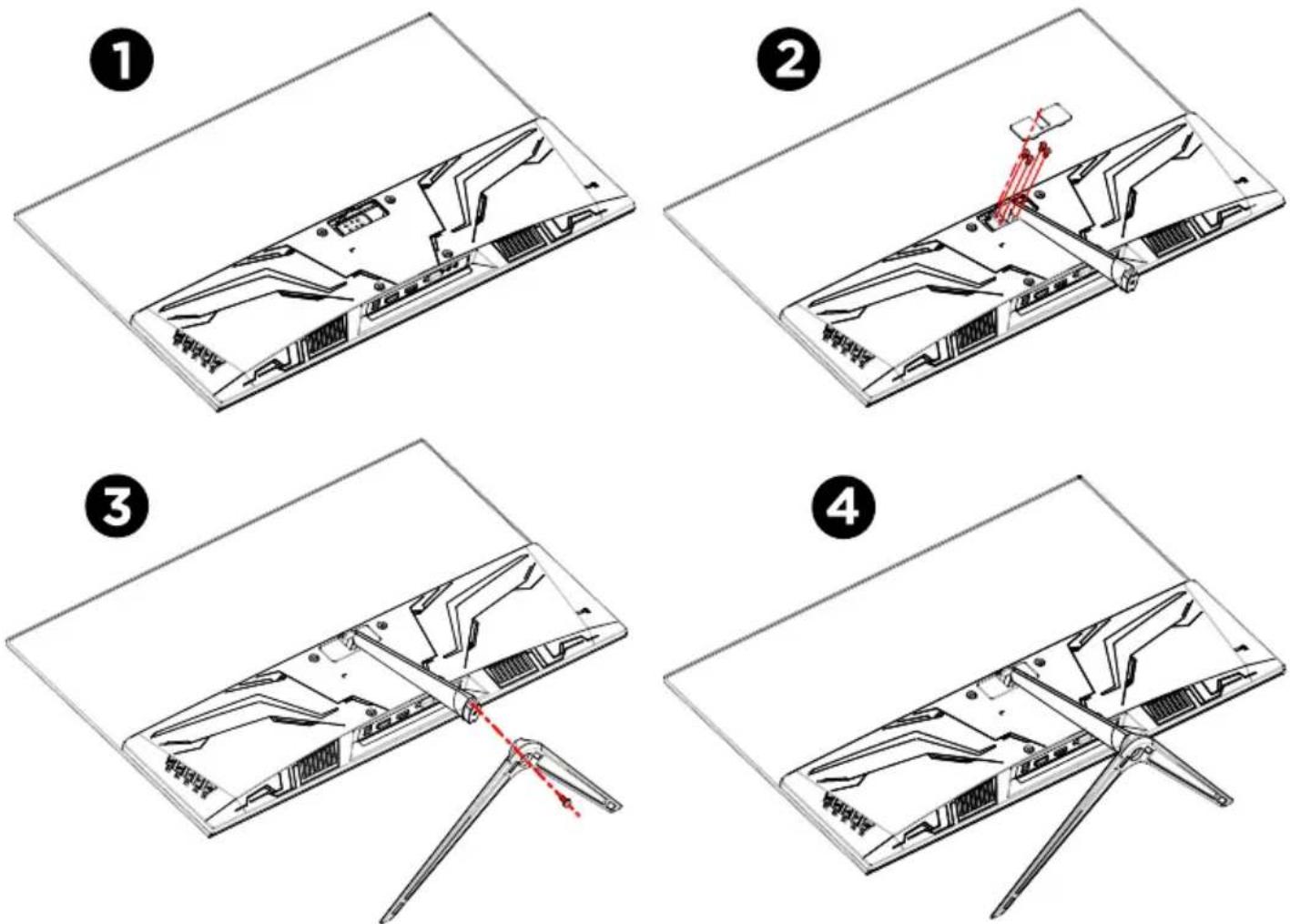

Attaching the stand

Step 1 Place a soft cushioned material on top of a flat surface to prevent damaging the screen panel. Then place the Monitor screen flat on top, with the screen side facing down, as illustrated below.

Step 2 Align the stand leg to the installation point, as illustrated below.

Tighten the screws (supplied) with a screwdriver to affix the stand to the panel.

Place the Cap ontop of the hole, it will click into place.

Step 3 Align the V stand to the base of the installed stand and tighten with screw.

Step 4 Now that both parts of the stand is tightened and complete, you can now stand the monitor up to be used.

CAUTION!

Do not apply excessive force as this may damage the screw holes.

INSTALLATION (CONT.)

Wall OR Monitor Arm Mounting Instructions

Please ensure the Monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task.

• We recommend you use a professional installer as we assume no liability for any eventual damage to the product or injury to yourself if you mount the Monitor on your own.

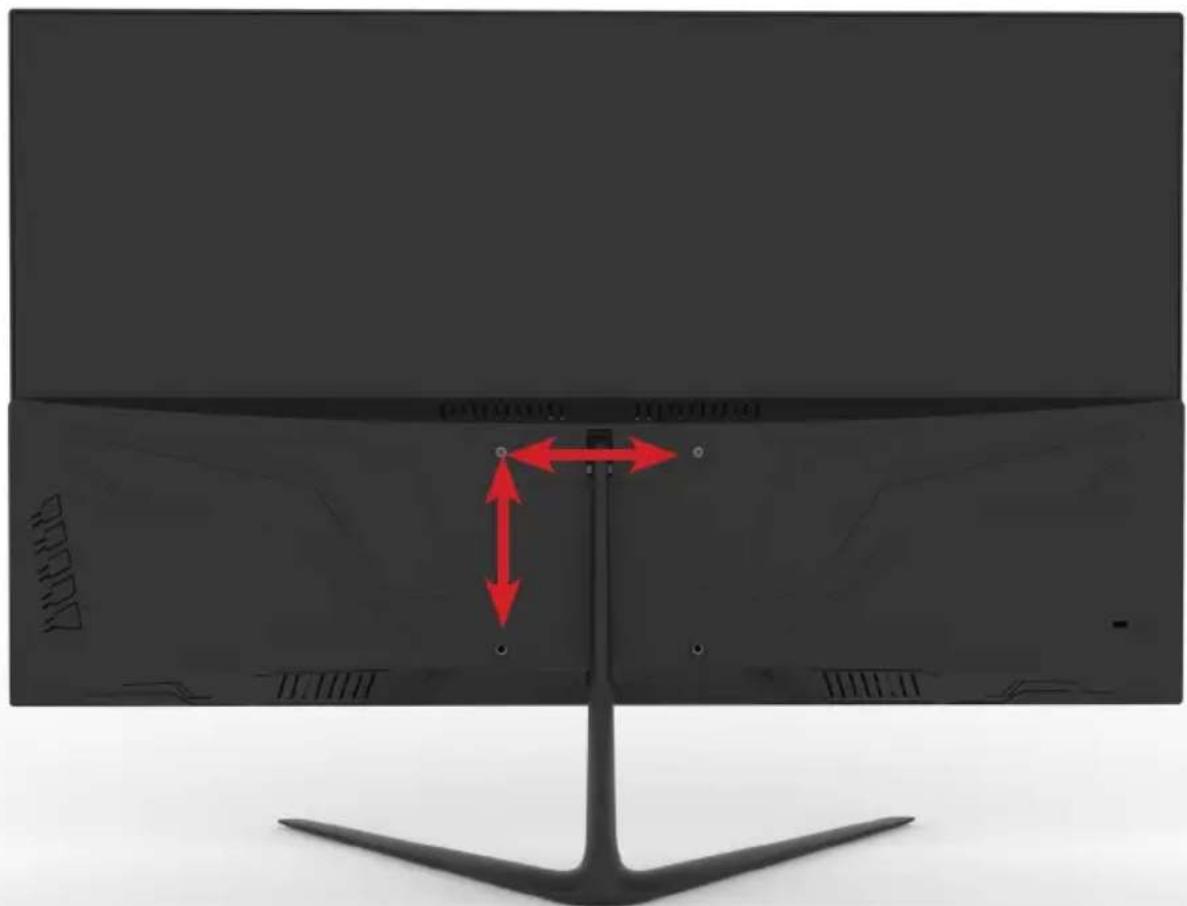

BACK OF MONITOR

VESA PATTERN: 100 (w) x 100 (h) mm

M4 x 8 mm

Top-down view of a black monitor with red bidirectional arrows pointing to a central screen (no text or symbols visible)

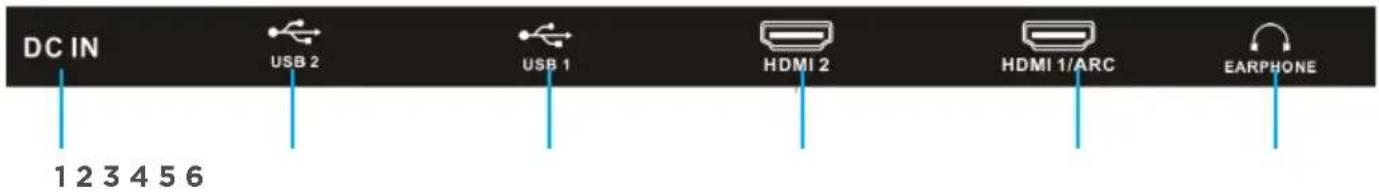

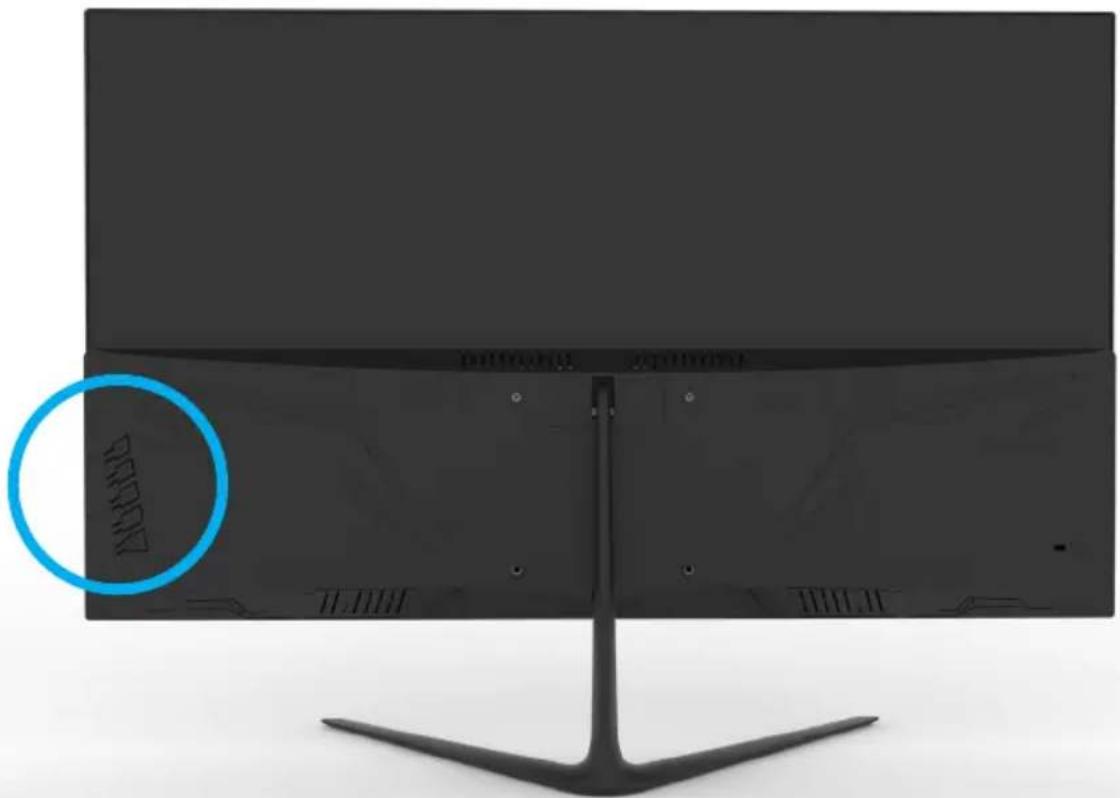

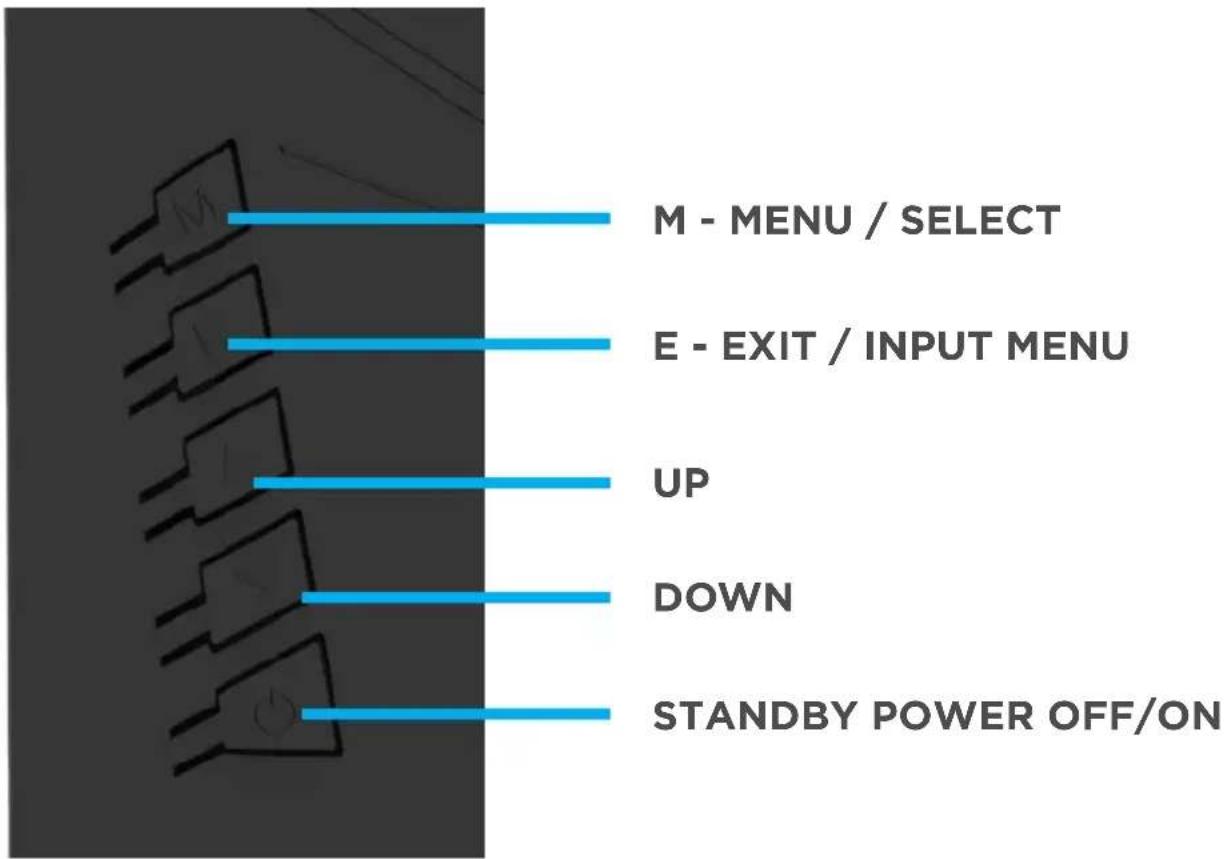

CONTROLS AND CONNECTIONS

CONTROLS AND CONNECTIONS

1. DC IN (POWER)
2. USB 2
3. USB 1
4. HDMI 2
5. HDMI 1 (ARC)
6. EARPHONE PORT

USB connection

Insert a USB storage device into the USB port to record, playback of video/music/photo.

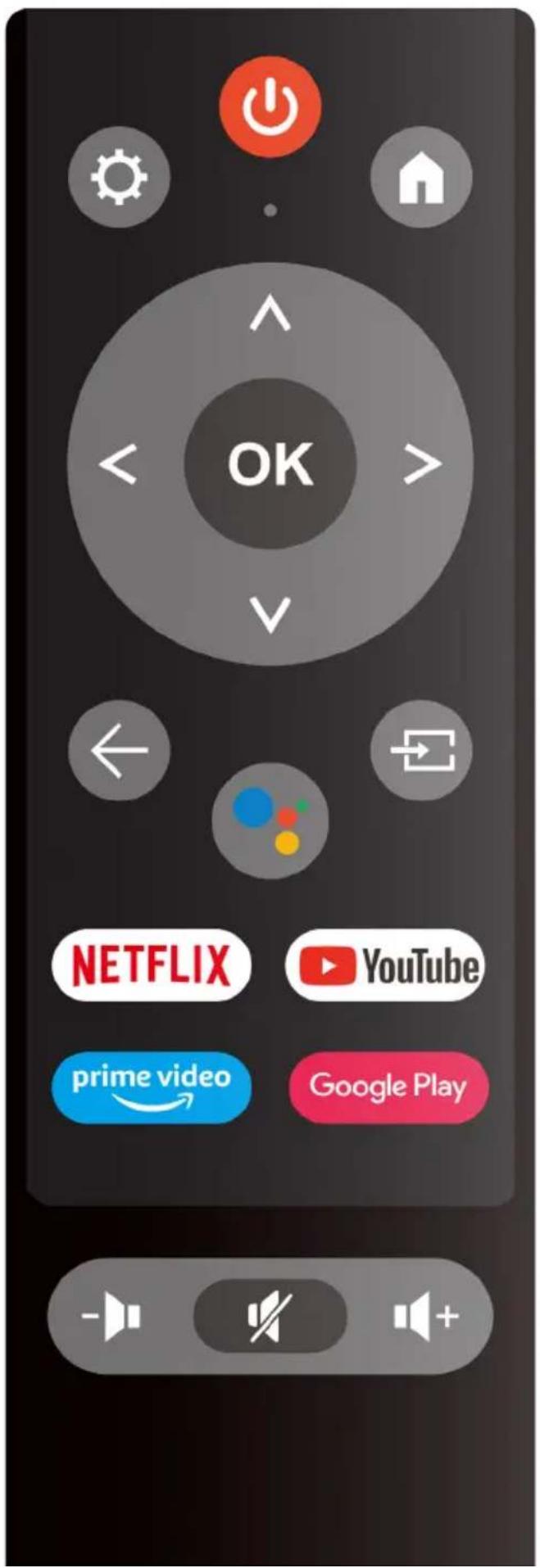

REMOTE CONTROL

REMOTE CONTROL (CONT.)

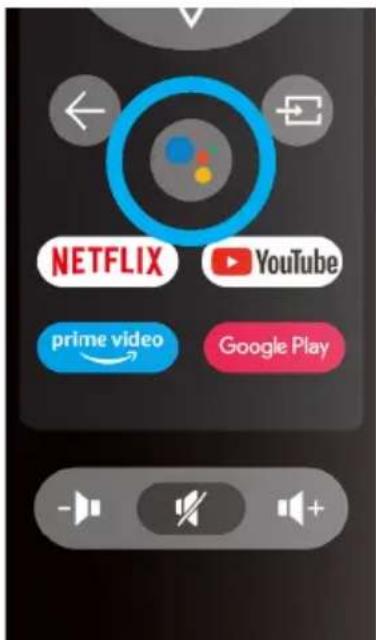

Keys	Function
Power (⏻)	Switch between working and standby status.
Mute (◄×)	Turn on/off the sound.
NETFLIX	Open application.
YouTube	Open application.
prime video	Open application.
Google Play	Open application.
	Turn on Bluetooth remote control pairing or press the Google Assistant key to control your TV with your voice.(Google Assistant is not available in certain languages and countries. Availability of services varies by country and language.)
Setup (⚙️)	Open setting menu.
◀,▶,▲,▼	Select items or adjust values.
OK	In TV mode, open channel list.In OSD menu operation, confirm the operation.
Back (⇐)	Return to previous menu interface.
Home (なし)	Show home page.
VOL+/-	Turn up/down the volume.
Source (⇨)	Show signal source menu.

REMOTE CONTROL (CONT.)

Using the Remote Control

• Do not mix old and new batteries in the remote
• Do not use different types of battery
• If you do not intend to use the unit for a long time, please remove batteries from the remote to avoid accident.
• Keep batteries away from children and pets.
• Never throw batteries into a fire.
• Do not drop, or impact the remote control as it void warranty immediately.
  • The remote control operate at a range of 5 to 6M effectively
• Do not expose the remote control sensor to a bright light.

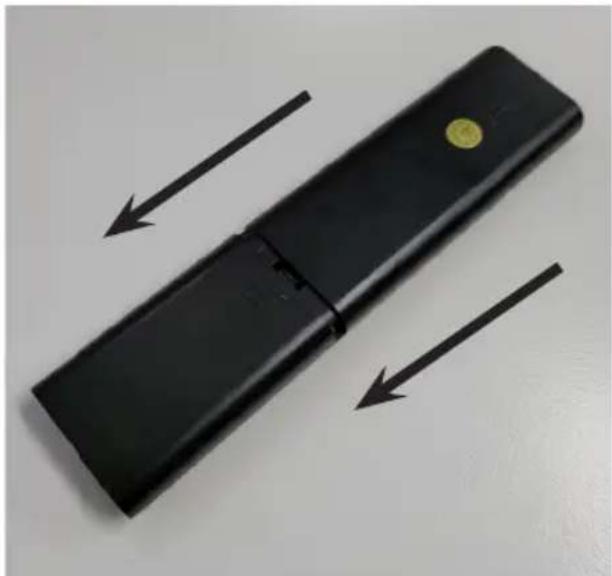

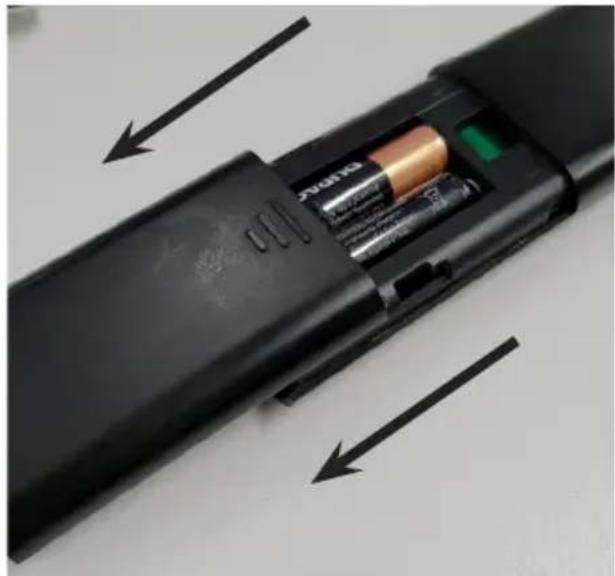

How to open back of remote control to replace batteries

1. Look for the hole at the back side, middle of the remote. Use this hole to open the cover.
2. Place/Replace the batteries making sure that the 2x AAA batteries (included) polarities (+/-) match the battery compartment polarities (+/-).
3. When closing the back cover, place the bottom side edge of the battery compartment cover in first, then the top side. When pushed in will click shut.

Black remote control device with directional arrows indicating movement or force (no text or symbols visible)

Close-up of a black remote control with visible battery and internal components, no text or symbols present

INITIAL SETUP

For the first initial setup, on screen setup wizard will guide you through setting up your Monitor. Please follow according to onscreen guide to setup your Monitor correctly.

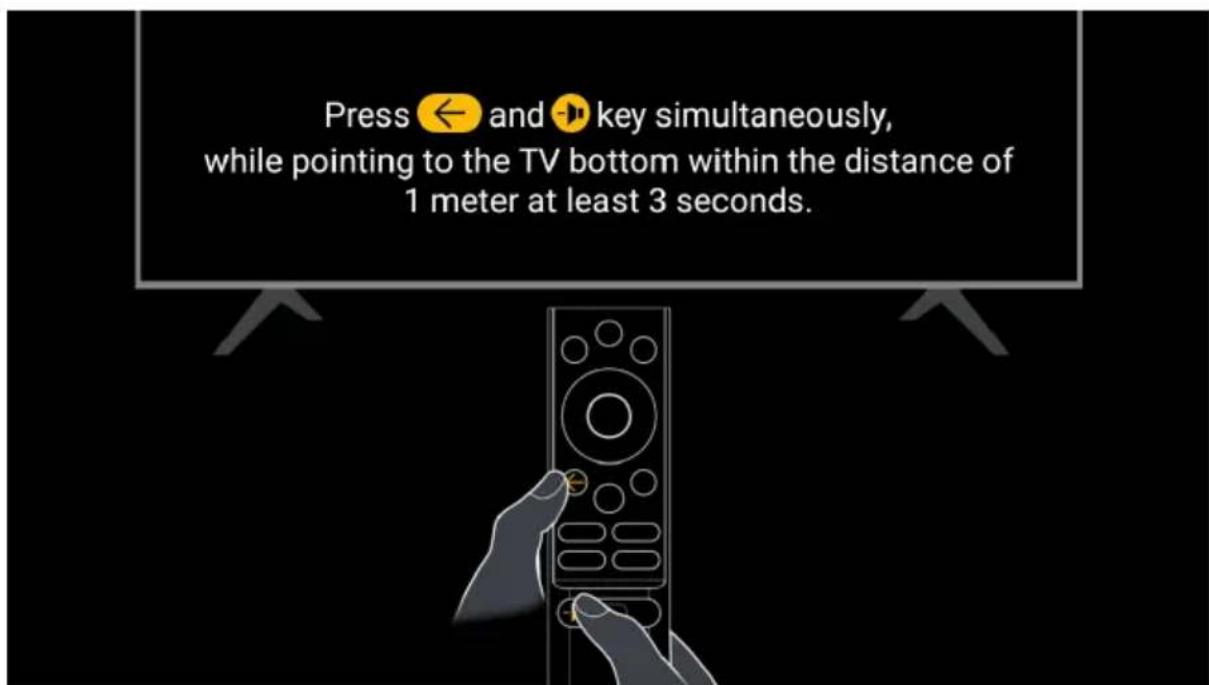

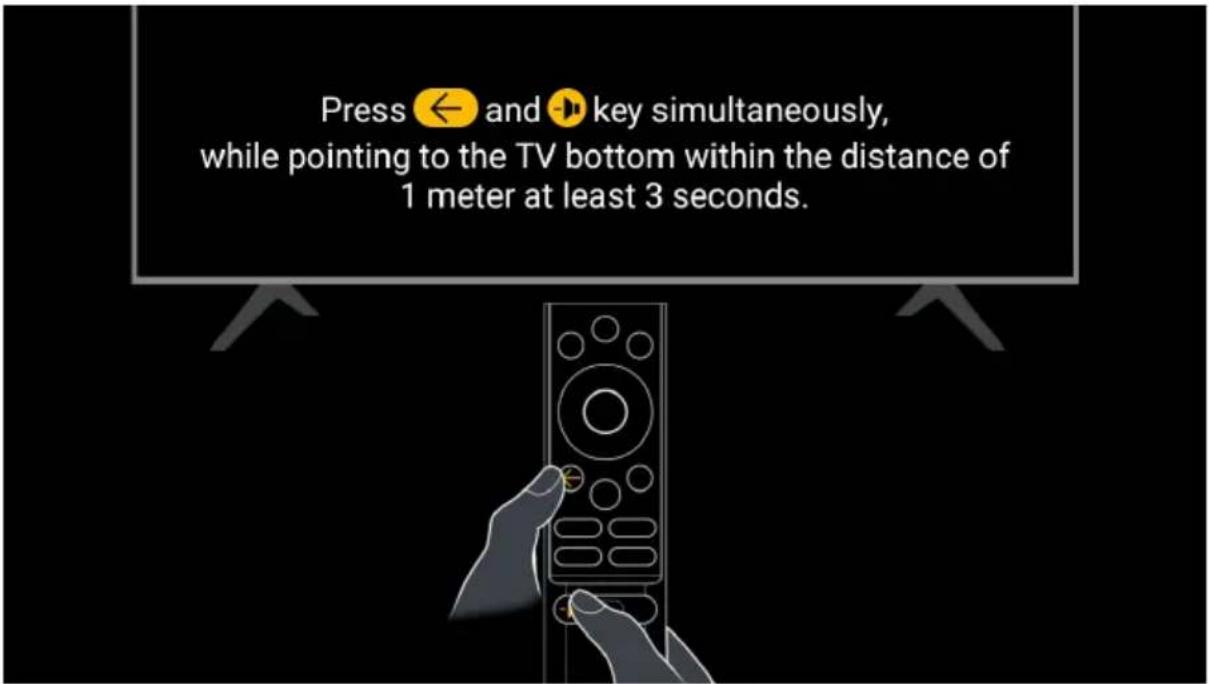

Be sure to follow the below prompts to pair your Bluetooth remote control. After the pairing is successful, you can now operate the Monitor.

Press BACK & VOL- (volume down) buttons for 3 seconds until red light starts to blink.

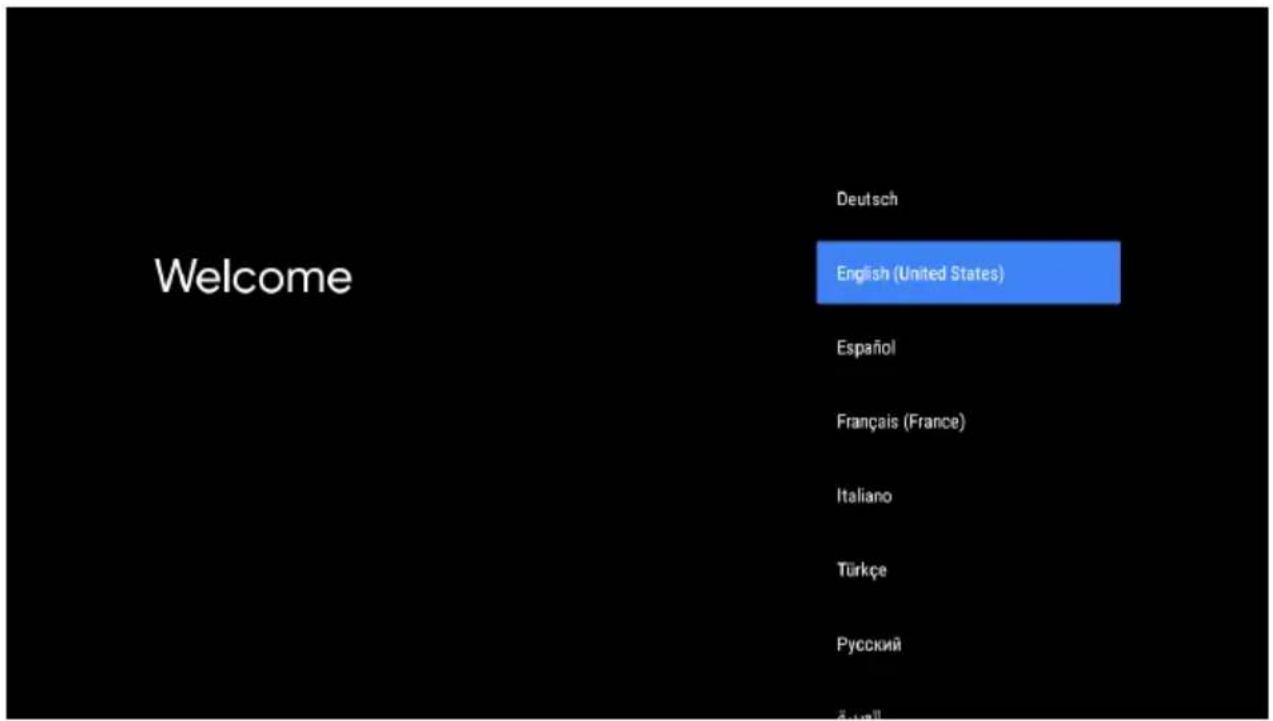

Use the ▲/▼ buttons to select system language, then press OK/SELECT to confirm.

INITIAL SETUP (CONT.)

If you just want to use your Monitor normally, please select "SKIP"

To connect your Android™ smartphone to your Monitor, Select "Continue".

Quickly set up your TV with your Android phone?

You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV

Continue

Skip

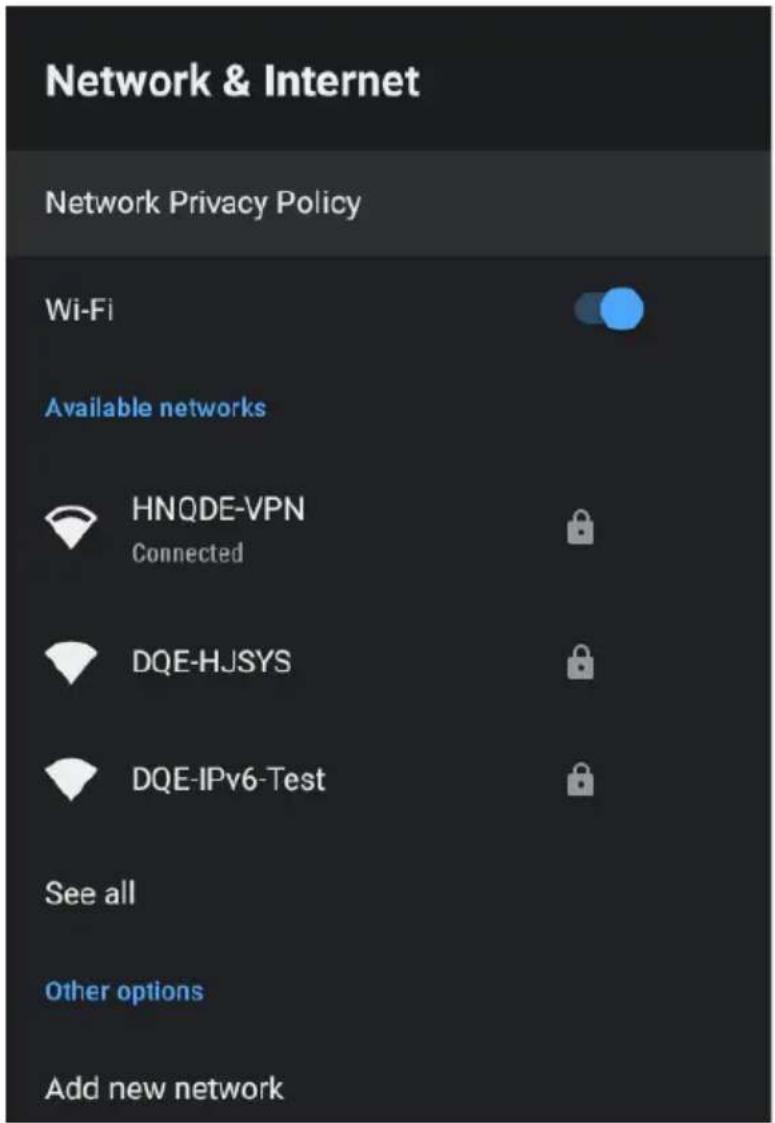

Press ▲/▼ to select your Wi-Fi you wish to connect to, enter the password and then confirm to connect.

Select your Wi-Fi network

You can also connect an Ethernet cable to connect to the internet.

DQE-IPv6-Test

By accepting the Google Terms of Service to improve the product experience, Select "ACCEPT" to proceed with this condition.

Google

Google Services

Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy.

Click "Accept" to confirm your selection of these Google services settings.

Accept

Use location

Allow Google and apps with your permission to use location estimated from Wi-Fi. Google may collect location data periodically and use this data in an anonymous way to improve location accuracy and location-based services

Help improve Android

Automatically send diagnostic information to Google

Services and your privacy

Google Assistant sends services you talk to a unique code

INITIAL SETUP (CONT.)

Select "YES" if you want your location identified on your Android Monitor. (Note: Select "YES" if you want Google to inform you on weather more accurately based on location).

Google

Location

Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Yes

No

By Agreeing and selecting "YES", you agree to automatically send diagnostic information to Google to help improve your Google experience.

Google

Help improve Android

Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Yes

No

INITIAL SETUP (CONT.)

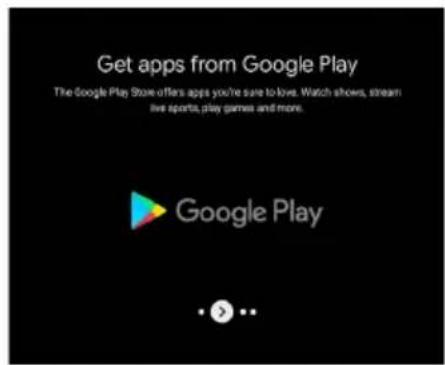

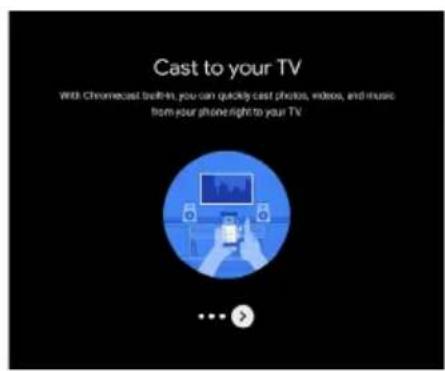

Informational screens will now appear, you can scroll through steps by press "RIGHT" directional button to continue.

Select the country you are using the device in with the ▲/▼ directional buttons.

INITIAL SETUP (CONT.)

Select the TimeZone you are using the device in with the directional buttons.

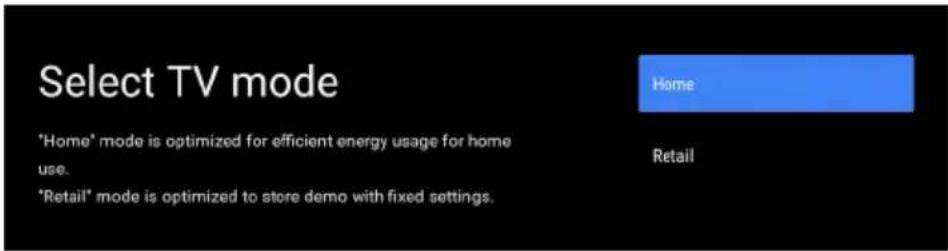

Please be sure in this step, select "HOME" if you are using this Monitor for use at home. Make sure to confirm once you have selected "HOME".

Make sure to set Chromecast built-in™ to ON, so you can cast all your favorite movies, shows, apps, games, and more directly to your Monitor.

Android Monitor™ - HOME SCREEN

Once you have completed initial setup, you will now enter the Android Monitor home screen.

1. Press the Google Assistant button on your remote to do more on your Monitor with your voice.
2. HOME - Main page to enter Live Monitor, view your pre-installed and downloaded applications.
3. DISCOVER - Sign into your Google Account to get recommendations from your streaming services - organized into topics and genres based on what you watch.

Go to Page 23 to learn more.

1. APPS - Apps you have downloaded and apps you can search for to install.
2. SETTINGS: Select this if you want to access Monitor settings.
3. TIME: Displaying current time.
4. Each row past this point will display recommended content from the apps you already have installed.

Add Apps

At the end of this row of apps, Select the + box and add your app that you have downloaded and installed to the home screen of your Android Monitor.

1. Movies or Shows available to play next.

GOOGLE PLAY

Google Play

To have access and to download applications from Google Play, you must sign in with a Google Account.

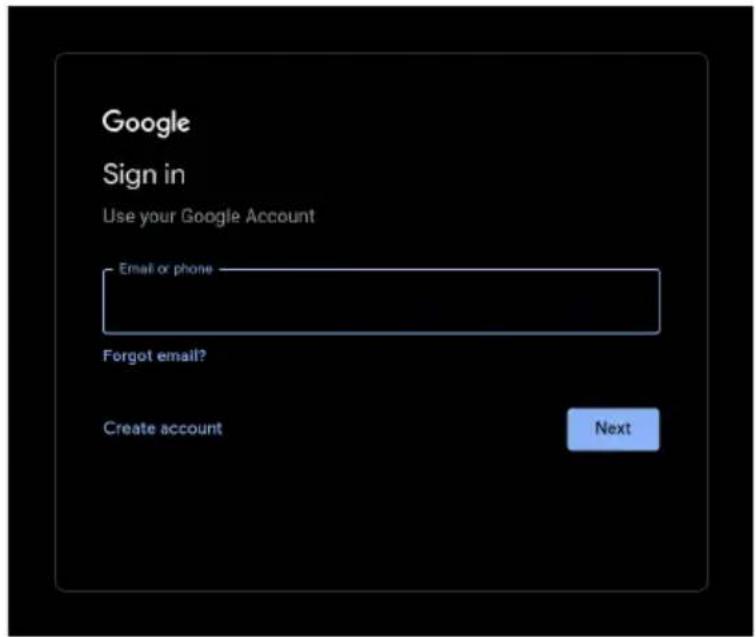

Once you open Google Play, you will be prompted to sign in or create a new account.

Once you have signed in, you will be brought to the below page, scroll through the list of applications available for download OR go to the search button, and search via entering text or pressing the Google Assistant button on the remote control.

GOOGLE ASSISTANT

Do more on your Monitor with your voice. Press the Google Assistant button on your remote to quickly search 400,000+ movies and shows, get recommendations to match your mood, control smart home devices, and more.

Ask Google to search for the latest blockbuster, stream shows, or open multiplayer games. Have it dim the lights by connecting smart home devices. Manage tasks and see your calendar. Or ask it questions and see the answers on your Monitor.

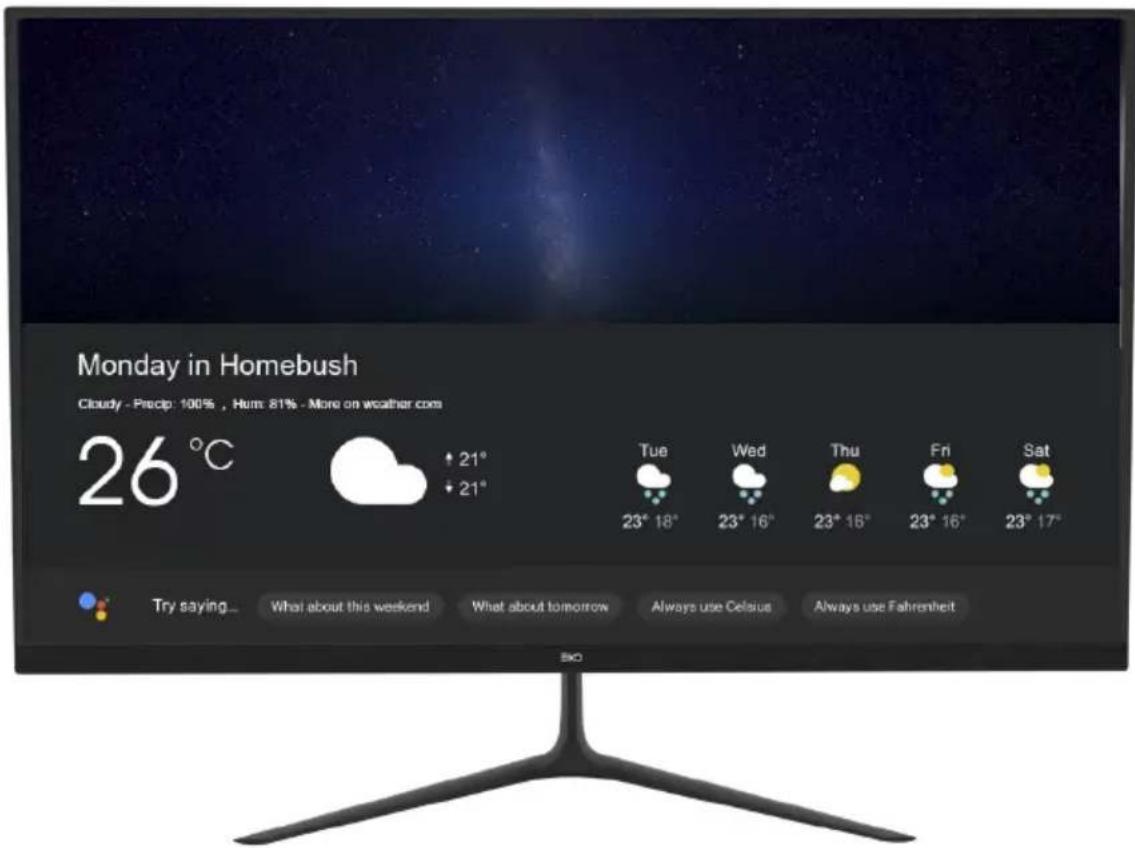

"What's the weather today?"

DISCOVER

Discover new movies and shows from the services you already have access to. Suggestions based on what you've watched and what interests you make it easier to find your next favorite.

If you havent already signed into Google Play using your Google Account. When selecting DISCOVER tab on the top of home page, you will be prompted to sign in.

Note: if already signed in, your Google Account will already appear.

1. Once signed into Google, you can select the apps you want recommendations for within the DISCOVERY section of Android Monitor.
2. Select (Tick) the apps you would like recommendations for.
3. Allow up to 10 seconds for Android Monitor to gather recommendations.
4. DISCOVER section will now display Movies or Monitor Shows recommended for you to watch.

INPUT MENU

To access INPUT menu, press the INPUT button on your remote control to have quick access to INPUT menu.

The options that are AVAILABLE will be highlighted, PORTS that are not in use, you will not be able to access.

SETTINGS

To access SETTINGS menu, select SETTINGS (#5 on page 20) via the HOME screen.

Settings

Set your device name

Use this name when casting photos, videos, and more from your phone

General Settings

Network & Internet

NETGEAR65

Accounts & sign-in

Apps

Device Preferences

Remotes & accessories

NETWORK & INTERNET

To access NETWORK menu, select Settings (#5 on page 20) menu and go down and select Network & Internet.

DEVICE PREFERENCES - ABOUT

To access ABOUT menu, select

SETTING icon (#5 on page 20) via the HOME screen. Then go down and select "ABOUT".

About

System update

Device name

Factory reset

Status

Network, serial numbers and other information

Legal information

Model

40D

Android TV OS version

11

Software Version

TIME

To access DATE & TIME menu, select SETTING icon (#5 on page 20) via the HOME screen. Then go down and select "DATE & TIME".

Date & Time

Automatic date & time

Use network-provided time

Set date

February 28, 2022

Set time

10:19 AM

Set time zone

Use broadcast-provided timezone

Use 24-hour format

1:00 PM

INPUT SETTINGS MENU

To access INPUT SETTINGS menu,

1. Select SETTING icon (#5 on page 20) via the HOME screen.
2. Select "Device Preferences"
3. Then go down and select "INPUTS".

POWER SETTINGS MENU

To access POWER SETTINGS menu,

1. Select SETTING icon (5) via the HOME screen.
2. Select "Device Preferences"
3. Then go down and select "POWER".

Sleep Timer - Options of Off, 10 mins, 20 mins, 30 mins, 40 mins, 50 mins,

60 mins, 90 mins and 120 mins to auto turn off your Monitor.

Picture Off - Turn off your display (recommended not to select this option.

No Signal Auto Power Off - Turns your Monitor off if no signal is detected.

PICTURE SETTINGS MENU

To access PICTURE SETTINGS menu,

1. Select SETTING icon (5) via the HOME screen.
2. Select "Device Preferences"
3. Then go down and select "PICTURE".

Picture Mode - Options to choose from - Standard, Vivid, Sport, Movie, Game, Energy Saving, User.

SOUND SETTINGS MENU

To access SOUND SETTINGS menu,

1. Select SETTING icon (5) via the HOME screen.
2. Select "Device Preferences"
3. Then go down and select "SOUND".

Sound Style - Options to choose from - Standard, Vivid, Sports, Movie, Music, News, User.

Speakers - Monitor Speakers or External Speaker

(This will force the Monitor to output sound through the chosen option).

Digital Output - Auto, Bypass, PCM, Dolby Digital Plus, Dolby Digital.

(It is recommended to select AUTO, as this will automatically detect quality of sound being procued by content).

HOME SCREEN

To access HOME SCREEN menu,

1. select SETTING icon (#5 on page 19)

via the HOME screen.

1. Select "Device Preferences"

2. Then go down and select

"HOME SCREEN".

Home screen

Apps

Reorder apps

Reorder games

Open source licenses

Android TV Home

Android TV Core Services

SCREEN SAVER

To access SCREEN SAVER menu,

1. select SETTING icon (#5 on page 19) via the HOME screen.

2. Select "Device Preferences"

3. Then go down and select "SCREENSAVER".

Screen saver

Screen saver

Backdrop

When to start

After 5 minutes of inactivity

Start now

GOOGLE ASSISTANT

To access Google Assistant in the Settings menu

1. Select SETTING icon (#5 on page 19) via the HOME screen.

2. Select "Device Preferences"

3. Then go down and select "Google Assistant".

Accounts will only be accessible if you have connected a Gmail account on Google Play. A Gmail account is needed in order to download and install applications on Google Play.

FAQS

MY REMOTE CONTROL ISN'T PAIRING WITH MY SMART MONITOR?

If your remote control is not pairing or becomes disconnected, please reconnect it and pair it again in the Settings menu:

1. Press SETTINGS Icon

2. Select "REMOTES & ACCESSORIES"

3. Select "ADD ACCESSORY"

4. Press BACK & VOL- buttons at the same time for 3 seconds.

Once you detect your Bluetooth Remote control, the remote will automatically start to pair.

If it doesnt connect, try the process again until it pairs, otherwise contact our call centre: [e-mail]

NOTE: NOTE: You can still use your remote control without pairing. However, Google Assistant will not be available until the remote control is paired.

ANDROID MONITOR REMOTE CONTROL - APP

If you want to control your Monitor via your smart device. Search for:

"Android Monitor remote control" app and download. Once following prompts to connect your smart device to your Android Monitor, you will then be able to control your Monitor from your smart phone.

SPECIFICATIONS

Operating System AndroidTM 11 for Android TVTM
Resolution 1920 x 1080
Display Colours 16.7 Million
Contrast ratio: 3000 : 1
Brightness 250 cd/m2
Refresh Rate 60Hz
ETHERNET / WiFi Yes/ 802.11 b/g/n/a/ac
Multimedia Playback Format under USB Mode	Movie: MPEG, TS, TRP, TP, MP4, MOV, 3GP, AVI, MKV, RM
	Music: MPEG1, LPCM, DTS, DTS VORBIS, LPCM
	Photo: JPEG, PNG, BMP, MPO
Power Source DC 12V 4A
Power Consumption 48W
USB 5V	--- max. 500mA
Dimensions	With stand: 613.9 (w) × 188 (d) × 440.5 (h) mm
	Without stand: 613.9 (w) × 40.8 (d) × 358.9 (h) mm
Accessories	1 x Instruction Manual 2 x AAA Batteries
	1 x Remote Control Monitor Stand with screws
	1 x Warranty Card

EKO

CUSTOMER SUPPORT:

[e-mail]

DISTRIBUTED BY:

Ayonz Pty Ltd
