K27FM - Monitor EKO - Free user manual and instructions

Product Type	Monitor
Brand	EKO
Model	K27FM
Screen Size	27 inches (estimated from model number)
Resolution	1920 x 1080 (Full HD)
Display Colors	16.7 million
Contrast Ratio	3000:1
Brightness	250 cd/m²
Refresh Rate	60Hz
Aspect Ratio	16:9
VESA Mount Pattern	100 x 100 mm
Power Source	DC 12V, 4A
Power Consumption	48W
Dimensions (with stand)	613.9 (W) x 188 (D) x 440.5 (H) mm
Dimensions (without stand)	613.9 (W) x 40.8 (D) x 358.9 (H) mm
Inputs	HDMI, VGA
Audio Output	3.5mm Earphone port
Stand	Included with screws
ECO Modes	Standard, RTS, FPS, Text, Movie, Game
Low Blue Light	Adjustable
FreeSync	On/Off
OSD Languages	English, French, German, Chinese, Italian, Spanish, Portuguese, Turkish, Polish, Dutch, Russian, Korean, and more
Warranty	Included (details in manual)

Frequently Asked Questions - K27FM EKO

How do I connect the monitor to my computer?

Use an HDMI or VGA cable to connect the monitor to your computer. For audio, connect a 3.5mm cable from the monitor's Earphone port to your computer's audio output if needed.

How do I attach the stand?

Place the monitor face down on a soft surface. Align the stand leg to the installation point, tighten with screws, place the cap, then align the V-stand base and tighten with screw.

Can I mount this monitor on a wall?

Yes, it supports VESA 100x100 mm mount. Use a professional installer. Ensure the monitor is unplugged before mounting.

How do I access the OSD menu?

Press the MENU button on the monitor. Use UP/DOWN buttons to navigate, MENU to select, and EXIT to go back.

What are the ECO modes for?

ECO modes adjust picture settings for different content: Standard, RTS, FPS, Text, Movie, and Game. Select via the OSD menu under Brightness.

How do I enable Low Blue Light?

Go to Color Temp. menu, select Low Blue Light, and adjust the level using UP/DOWN buttons. This reduces blue light emission for eye comfort.

What is FreeSync and how do I use it?

FreeSync reduces screen tearing by synchronizing the monitor's refresh rate with your graphics card. Enable it in the MISC. menu under FreeSync. Requires a compatible GPU.

How do I clean the monitor?

Unplug the monitor. Use a dry, soft cloth to wipe the screen and casing. Do not use chemical cleaners or wet cloths.

What should I do if the monitor does not turn on?

Check the power cable connection and ensure the outlet is working. If using a power adapter, verify it is DC 12V 4A. Contact customer support if the issue persists.

How do I reset the monitor to factory settings?

Go to the Reset option in the OSD menu and press MENU to confirm. This restores all settings to default.

USER MANUAL K27FM EKO

Please read this manual carefully before using, and keep it for future reference.

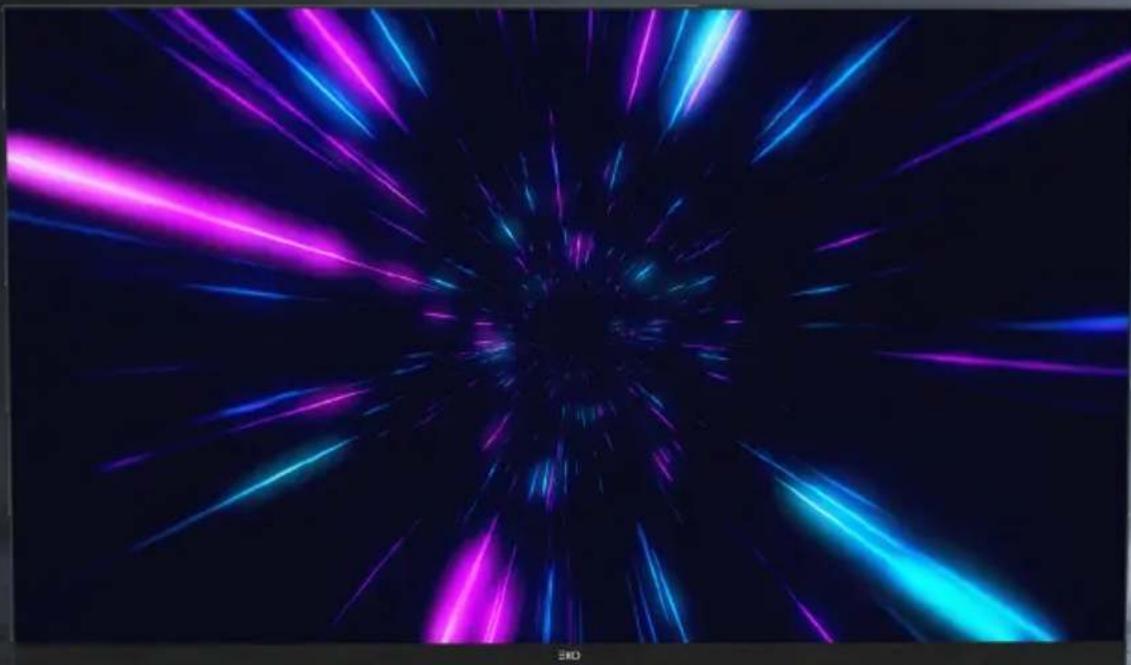

Abstract light burst pattern with magenta and blue streaks against a dark background (no text or symbols)

CUSTOMER SUPPORT

This product comes with warranty. For all product related enquiries or technical questions please use the following to get in touch:

02 8279 8606

[e-mail]

www.eko-entertainment.com.au or by scanning the QR Code.

CONTENTS

General	Safety
Installation
	Attaching	the	Stand
Wall or Arm Mounting Instructions		9
Controls	and	Connections
Operation
	Brightness		12
	Color	Temp.
	Language		16
	Reset		17
	MISC.		18
Specifications			19
Customer	Helpline		Last

4

13

GENERAL SAFETY

Read this manual thoroughly before you start using the Monitor.

Store this manual, the completed warranty card, your receipt and the product packaging.

The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

The cover (or back) of the unit should not be removed to prevent risk of electric shock.

This unit must be serviced by a qualified service personnel only.

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Warning symbol: black exclamation mark inside a triangle (no text or numbers)

The lightning flash with symbol within the triangle is intended to warn you of a non-insulated dangerous voltage in the product's enclosure that could be of sufficient magnitude to generate a risk of electric shock to persons.

The exclamation point within the triangle is intended to warn you to the presence of important operating and maintenance instructions in the documents included with the product.

IMPORTANT INFORMATION

The lightning flash symbol within the triangle is intended to warn you of non-insulated dangerous voltage the product's enclosure that could be of sufficient magnitude to generate a risk of electric shock to persons.

• Using Cabinets or stands recommended by the manufacturer of the monitor.
• Only using furniture that can safely support the Products.
• Ensure the Product is not overhanging the edge of the supporting furniture.
• Do not place the product on a high furniture without securing both the furniture and the product to a stable support.
• Do not place the product on cloth or other conductive materials.
• Warn children of the dangers of climbing on furniture to reach the monitor or its controls and to call for an adult to assist.

GENERAL SAFETY (CONT.)

IMPORTANT INFORMATION

• Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard
• Do not tamper or change or modify the product in any way.
• Only use Accessories outlined and recommended by the manufacturer.
• Please do not expose the product to splashing or water contact
• Please do not place any object on top of the product including objects filled with liquids such as vases.
• Danger of explosion if battery is incorrectly placed. Replace with same or equivalent type.

Installation

Please follow instruction when installing this product in accordance with the instruction manual. This product must be positioned in a sufficiently stable location, it can be potentially hazardous due to falling and can cause injury, particularly to children if it positioned incorrectly.

• Before installing this Monitor, make sure your outlet voltage corresponds to the voltage stated on the product rating label
• Do not plug several devices into the same outlet. Doing so may cause the outlet to overheat and start a fire. Make sure the outlet is readily accessible during operation of the equipment.
• Do not cover the ventilation openings of the product with items such as newspapers, tablecloths, curtains etc or insert objects into the slots available on the products. As this could result in the product temperature rising and could cause a fire.
• If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center. Failure to do so may result in fire or electric shock.
• When not using the unit for long periods of time or when you are moving the unit please ensure to disconnect the power cord from the adapter.

GENERAL SAFETY (CONT.)

• Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire.
• The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
• To maintain the product do not use any chemical or cleaning agent or wet cloth, please only ensure to utilize a dry cloth to wipe it down from marks or dust and only after unplugging the product from the power socket.
• Please ensure to contact our call center for any repair or service required for the products.
• Make sure to always carry Monitor from the sides, always be sure to have assistance by another person. Do not carry the Monitor from the middle.

WARNING!

Toppling furniture and Monitor's can cause serious injury or death.

If a monitor is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the monitor.
• Only using furniture that can safely support the monitor.
• Ensuring the monitor is not overhanging the edge of the supporting furniture.
• Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.
• Not standing the monitor on cloth or other materials placed between the monitor and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the monitor or its controls.

GENERAL SAFETY (CONT.)

Please make sure upon positioning this product, the place is:

• Not wet or damp and Well ventilated
• Away from direct sunlight or heaters.
• Away from splashes or food.
• Protected from excessive dust or grease.
• Do not install this equipment in a confined space such as a bookcase or similar unit.
• Do not install the Monitor set near heat sources such as radiators, stoves or other audio visual equipment that produce heat.
• Do not place containers with liquids, if liquid falls inside the products it may result in short-circuit, fire or electric shock.
• Do not place small metallic objects on top of the unit. Metal object falls inside the product it may result in short-circuit, fire or electric shock.
• Do not use or store flammable or combustible materials near the unit. Doing so may result in fire or explosion. Do not place any naked flame sources, such as lit candles, cigarettes or incense sticks on top of the Monitor set.
  • Install the unit at a reasonable distance from the wall to ensure sufficient ventilation.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

INSTALLATION

Install the stand as described below, or if you want to mount it to a wall, please contact a professional installer. Please ensure the monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task.

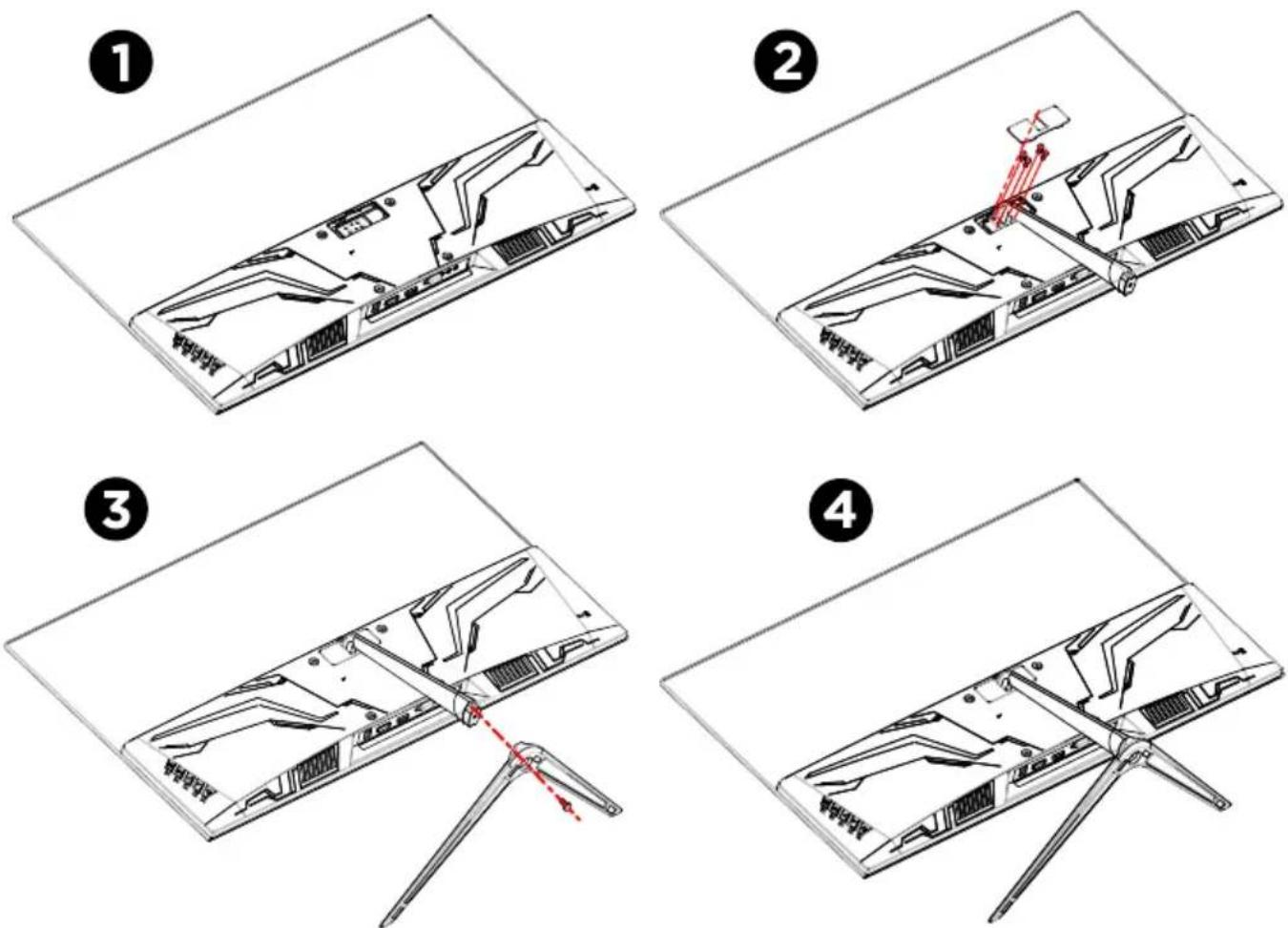

Attaching the stand

Step 1 Place a soft cushioned material on top of a flat surface to prevent damaging the screen panel. Then place the Monitor screen flat on top, with the screen side facing down, as illustrated below.

Step 2 Align the stand leg to the installation point, as illustrated below.

Tighten the screws (supplied) with a screwdriver to affix the stand to the panel. Place the Cap ontop of the hole, it will click into place.

Step 3 Align the V stand to the base of the installed stand and tighten with screw.

Step 4 Now that both parts of the stand is tightened and complete, you can now stand the monitor up to be used.

CAUTION! Do not apply excessive force as this may damage the screw holes.

INSTALLATION (CONT.)

Wall OR Monitor Arm Mounting Instructions

Please ensure the Monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task.

• We recommend you use a professional installer as we assume no liability for any eventual damage to the product or injury to yourself if you mount the Monitor on your own.

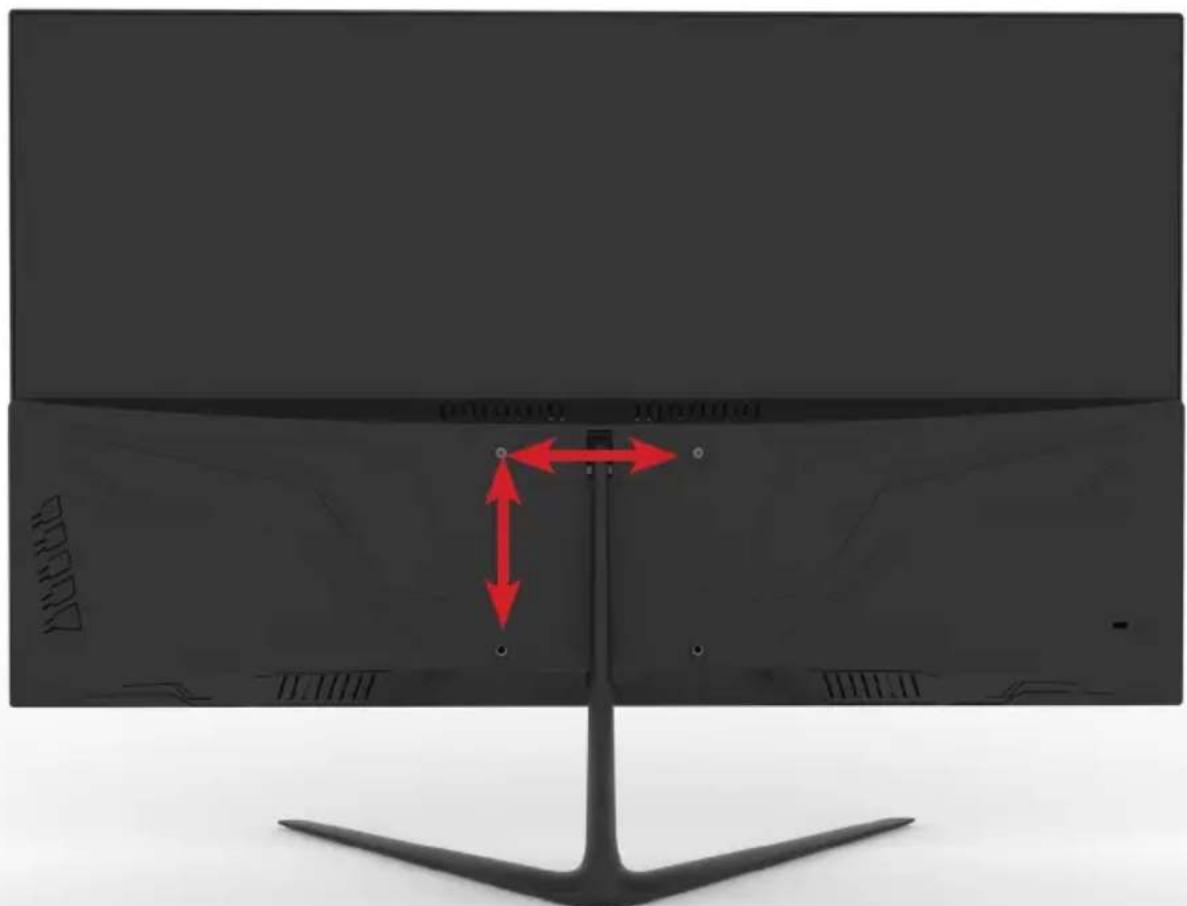

BACK OF MONITOR

VESA PATTERN: 100 (w) x 100 (h) mm

M4 x 8 mm

Top-down view of a black monitor with red directional arrows indicating movement or alignment, mounted on a stand (no text or symbols visible)

CONTROLS AND CONNECTIONS

M - MENU / SELECT

E - EXIT / INPUT MENU

UP / VOLUME +

DOWN / BRIGHTNESS

STANDBY POWER OFF/ON

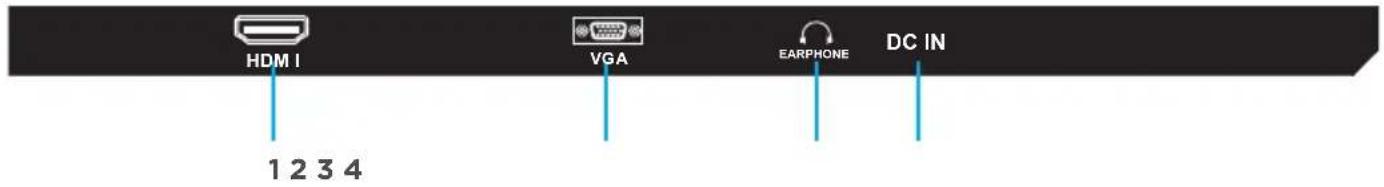

CONTROLS AND CONNECTIONS

1. HDMI 1
2. VGA
3. EARPHONE PORT
4. DC IN (POWER)

OPERATION

BRIGHTNESS

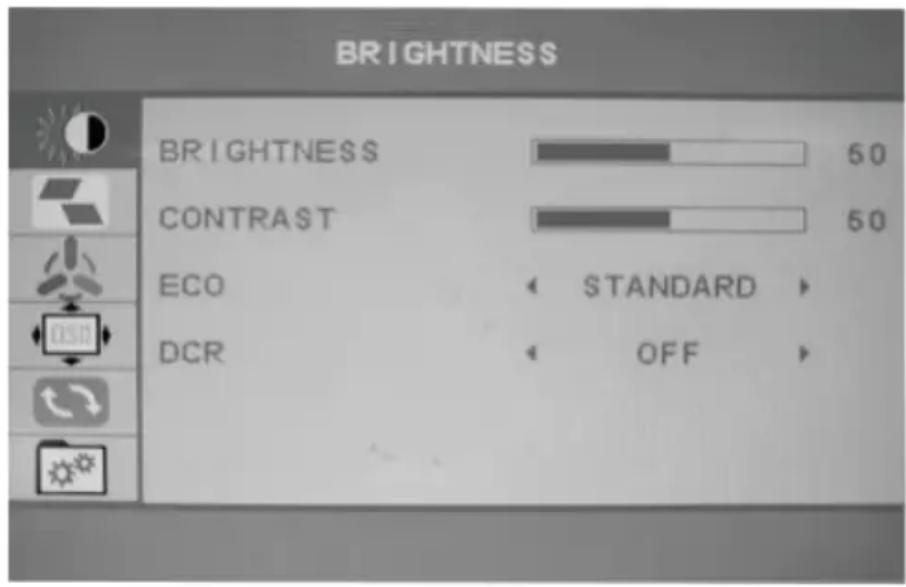

Press MENU button, and the main menu page will appear as follows: (BRIGHTNESS MENU), and then press MENU button to enter.

Brightness

Press ▼/▲ button to select Brightness, then press MENU button to confirm your selection and press ▼/▲ button to adjust. This item can adjust the optical fiber output of the entire picture, and it will affect the dark region of the picture. (0-100)

Contrast

Press ▼/▲ button to select Contrast, and then press MENU button to confirm your selection and press ▼/▲ button to adjust. This item can adjust the highlight intensity of the picture, (0-100) but the shadow of the picture is invariable.

ECO

Press ▼/▲ button to select ECO, and then press MENU button to confirm your selection and press ▼/▲ STANDARD, RTS, FPS, TEXT, MOVIE, GAME Mode.

DCR

Press ▼/▲ button to select DCR, press MENU button to confirm your selection and press ▼/▲ ON/OFF.

OPERATION (CONT.)

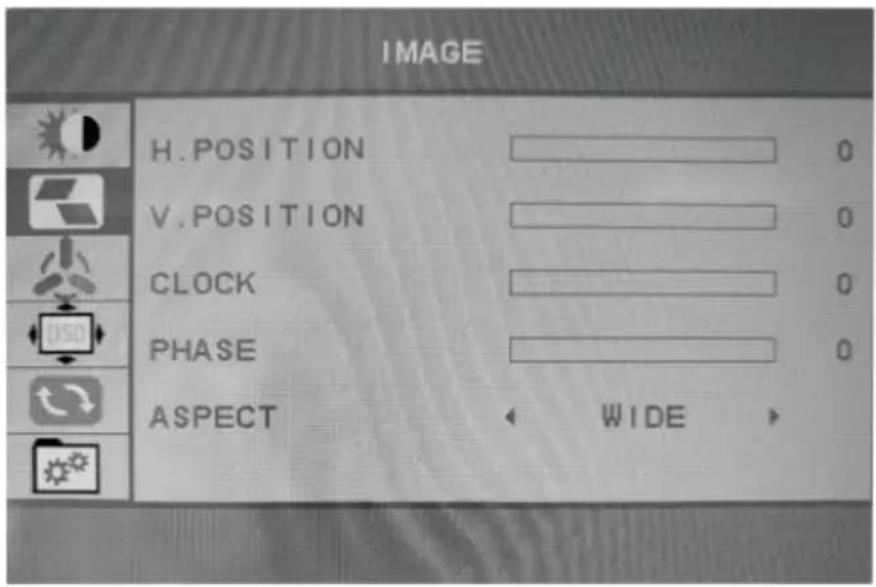

Press ▼/▲ button to select IMAGE, and then press MENU button to confirm your selection. This item can adjust the configuration automatically (VGA Mode).

H. Position

Press ▼/▲ button to select H. Position, and then press MENU button to confirm your selection.

Press ▼ button image will move toward the left side. Press▲ button image will move toward the right side.

V. Position

Press ▼/▲ button to select V. Position, and then press MENU button to confirm your selection.

Press ▼ button image will move down. Press ▲ button image will move up.

CLOCK

Press ▼/▲ button to select Clock, and then press MENU button to confirm your selection and press ▼/▲ button to adjust.

PHASE

Press ▼/▲ button to select Phase, and then press MENU button to confirm your selection and press ▼/▲ button to adjust.

ASPECT

Press ▼/▲ button to select Phase, and then press MENU button to confirm your selection and press ▼/▲ button to adjust. (WIDE or 4:3).

OPERATION (CONT.)

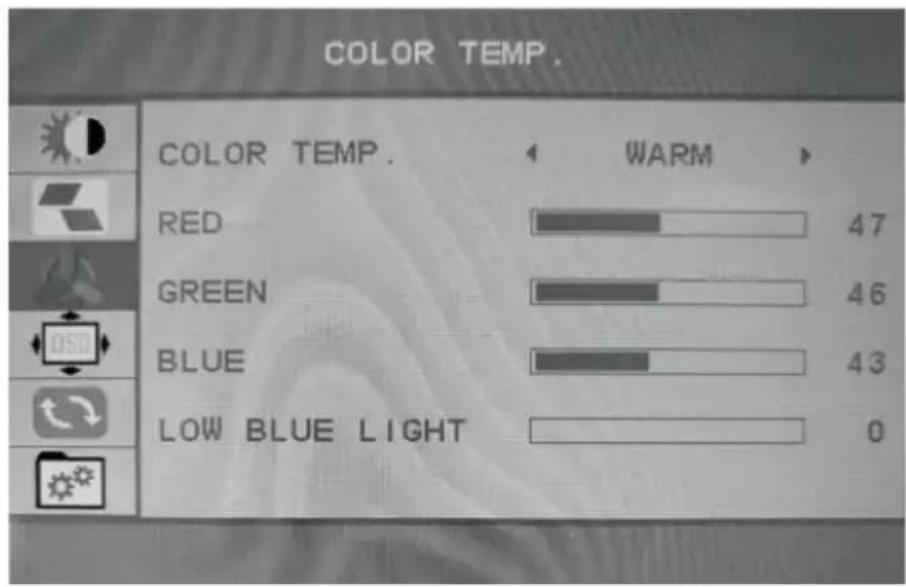

COLOR TEMP.

Press ▼/▲ button to select Color in the main menu, and then press MENU button to enter.

Press ▼/▲ button to select COLOR TEMP, and then press MENU button to confirm your selection and press ▼/▲ button to adjust.

This item can change the value of RGB to adjust the image tune.

COLOR TEMP: WARM / USRE / COOL

Press ▼/▲ button to select User, and then press MENU button to customize temperature.

RED(R)

Press ▼/▲ button to select Red, and then press MENU button to confirm your selection and press ▼/▲ button to adjust the value of the three primary colors of red.

Press ▲ button to increase the number, and the picture color will become redder as the increasing number.

Press ▼ button to decrease the number, and the picture color will become greener as the decreasing number.

GREEN(G)

Press ▼/▲ button to select Green, and then press MENU button to confirm your selection and press ▼/▲ button to adjust the value of the three primary colors of green.

Press ▲ button to increase the number, and the picture color will become greener as the increasing number.

Press ▼ button to decrease the number, and the picture color will become redder as the decreasing number.

OPERATION (CONT.)

BLUE(B)

Press ▼/▲ button to select Blue, and then press MENU button to confirm your selection and press ▼/▲ button to adjust the value of the three primary colors of blue.

Press ▲ button to increase the number, and the picture color will become bluer as the increasing number.

Press ▼ button to decrease the number, and the picture color will become more yellow as the decreasing number.

LOW BLUE LIGHT

Press ▼/▲ button to select low blue light, and then press MENU button to confirm your selection and press ▼/▲ button to adjust low blue light

OPERATION (CONT.)

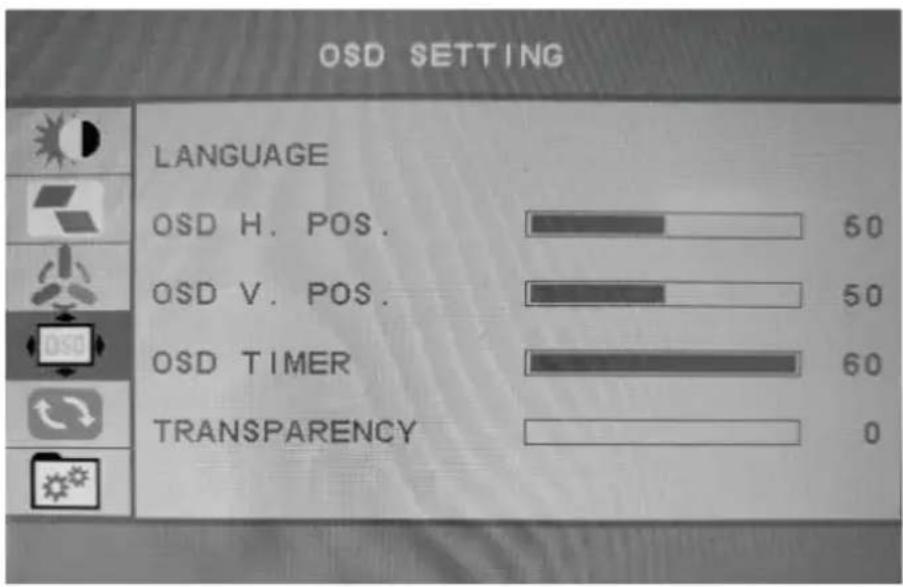

LANGUAGE

Press MENU button to LANGUAGE, Press ▼/▲ select LANGUAGE (Options: English / French / Deutsch / Chinese / Italian / Spanish / Portugueserrurkish / Polish / Nederlands / Russian / Korean...)

OSD H.POS

Press ▼/▲ button to select OSD H.Position, and then press MENU button to confirm your selection and press ▼ button OSD menu will move toward the left side. Press▲ button OSD menu will move toward the right side.

OSD V.POS

Press ▼/▲ button to select OSD V.Position, and then press MENU button to confirm your selection and press ▼ button OSD menu will move down. Press ▲ button OSD menu will move up.

OSD TIMER

Press ▼/▲ button to select Menu Time, and then press MENU button to confirm your selection. Press ▼/▲ button to adjust. This item can change the OSD menu display time.

TRANSPARENCY

Press ▼/▲ button to select transparency, and then press MENU button to confirm your selection and press ▼/▲ button Regulate OSD transparency (0-100).

OPERATION (CONT.)

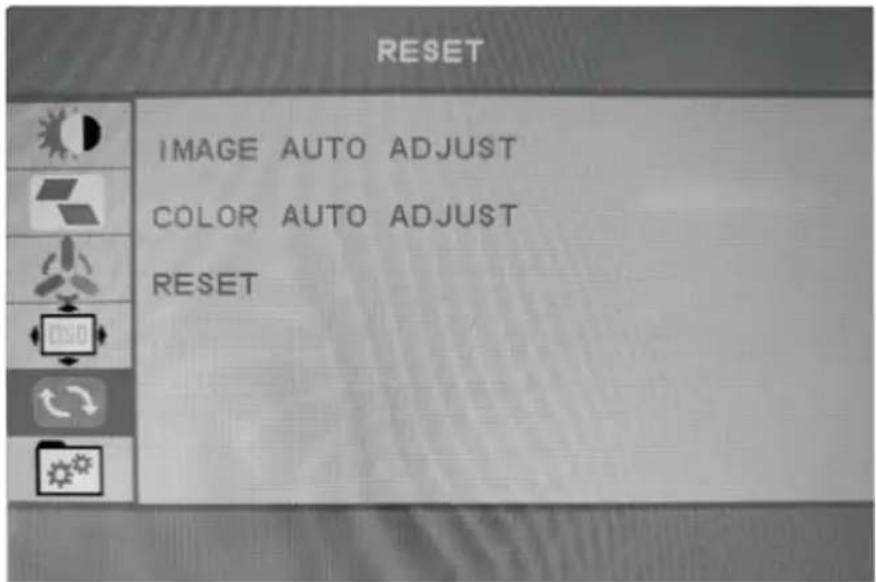

RESET

Press ▼/▲ button to selec reset in the main menu, and then press MENU button to enter.

IMAGE AUTO ADJUST

VGA mode press ▼/▲ button to select image auto adjust, and then press MENU button to confirm your selection and press ▼/▲ button to choose image press MENU button auto adjust.

COLOR AUTO ADJUST

VGA mode press ▼/▲ button to select color auto adjust, and then press MENU button to confirm your selection and press ▼/▲ button to choose color press MENU button auto adjust.

RESET

press ▼/▲ button to select reset, and then press MENU button to confirm your selection and press MENU button to choose reset monitor.

OPERATION (CONT.)

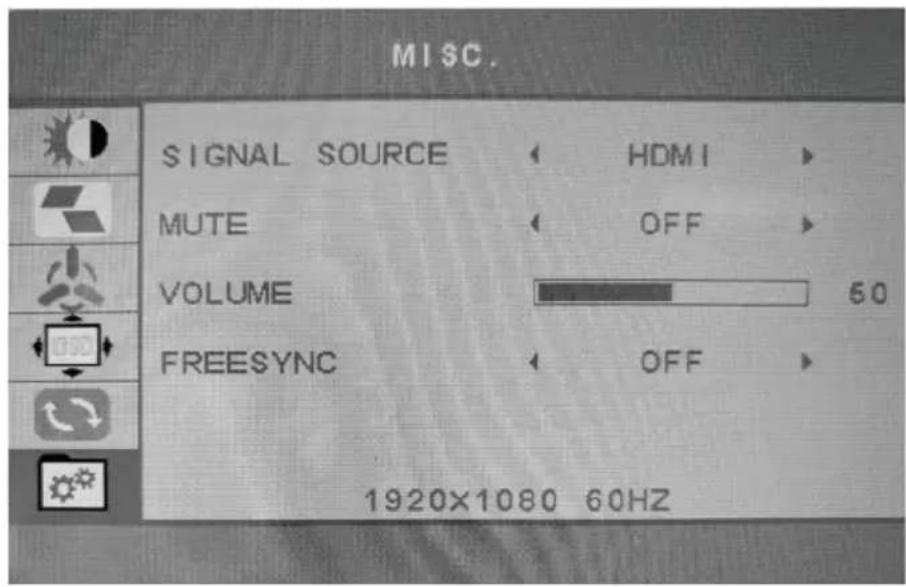

MISC.

Press ▼/▲ button to select misc. in the main menu signal source, and then press MENU button to HDMI/VGA.

MUTE

Press ▼/▲ button to select mute, and then press MENU button to confirm your selection and press ▼/▲ button to on/off adjust.

VOLUME

Mute is off, Press ▼/▲ button to select volume, and then press MENU button to confirm your selection and press ▼/▲ button to adjust the volume. (0-100)

FREESYNC

Press ▼/▲ button to select freesync, and then press MENU button to confirm your selection and press ▼/▲ button to on/off adjust.

Note: For VOLUME function, please ensure the audio is connected to the sound card of the computer or to the output source of any media player with 3.5mm stereo socket.

SPECIFICATIONS

Resolution 1920 x 1080
Display Colours 16.7 Million
Contrast ratio: 3000 : 1
Brightness 250 cd/m2
Refresh Rate 60Hz
Power Source DC 12V 4A
Power Consumption 48W
Dimensions	With stand: 613.9 (w) × 188 (d) × 440.5 (h) mm
	Without stand: 613.9 (w) × 40.8 (d) × 358.9 (h) mm
Accessories	1 x Instruction Manual Monitor S	Stand with screws
	1 x Warranty Card

EKO

CUSTOMER SUPPORT:

[e-mail]

DISTRIBUTED BY:

Ayonz Pty Ltd
