JLR013989 - Washing machine Jocel - Free user manual and instructions

Product Type	Freestanding Washing Machine
Brand	Jocel
Model	JLR013989
Rated Capacity	7.0 kg
Maximum Spin Speed	1200 rpm
Dimensions (H x W x D)	845 x 595 x 410 mm
Net Weight	52 kg
Power Supply	220-240 V ~ 50 Hz
Rated Power	2100 W
Water Pressure	0.02-0.8 MPa
Energy Efficiency Class	E
Spin Drying Efficiency Class	B
Programs	Mix, Super Quick, 20°C, Eco 40-60, Anti-Allergy, Synthetics, Delicates/Silk, Drum Clean, Rinse+Spin, Spin
Display	Digital LED (time, speed, temperature, error codes)
Control Panel Features	Power, Start/Pause, Speed, Temp, Rinse, Delay, Child Lock
Door Lock	Automatic lock during cycle and when water temperature exceeds 60°C
Drum Clean Program	Yes (90°C, 600 rpm)
Noise Level (Spin)	76 dB(A)
Standby Power Consumption	0.5 W
Off Mode Power Consumption	0.5 W
Water Connection	Cold water inlet (3/4" thread)
Drain Hose Length	Up to 4 m (extendable)
Included Accessories	Inlet hose, "U" piece, transit bolt caps, user manual

Frequently Asked Questions - JLR013989 Jocel

How do I remove the transit bolts before installation?

Remove all transit bolts at the back using a tool, then plug the holes with the supplied caps. Failure to remove them may cause vibration, noise, or damage. Keep the bolts for future transport.

What should I do if the washing machine is not level?

Adjust the four feet: use a spanner to loosen the locknut, turn the adjustable foot to raise/lower, then tighten the locknut. The machine must stand level on all feet to prevent vibration.

How do I connect the drain hose?

You can connect it directly to a sink (forming a loop to prevent backflow) or to a standpipe (using the supplied "U" piece). The standpipe top should be 60-90 cm above floor level. The hose can be extended up to 4 m.

What is the correct way to load detergent and fabric softener?

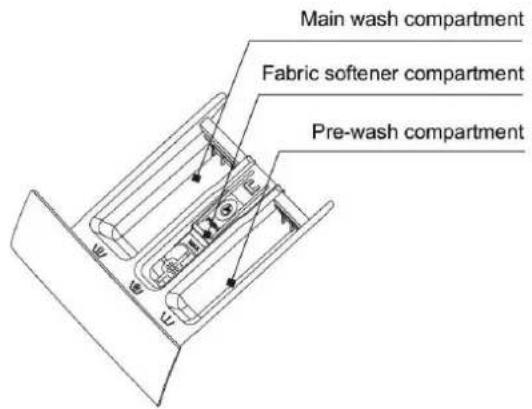

Open the drawer. Pour detergent into the main wash compartment (marked "II" or similar) and fabric softener into the compartment marked with a ♣ or ♣ symbol. Do not exceed the maximum level. Use low-foaming powder for all temperatures.

The machine displays error code E01. What does it mean?

E01 indicates that the water is filling too slowly. Check that the water tap is fully open, the drain hose is not positioned too low, and that the water inlet valve is not damaged. If needed, replace the inlet valve.

How do I clean the drain pump filter?

Disconnect power, open the lower cover with a screwdriver, place a container under the pump, unscrew and remove the filter, clean it carefully, and reinstall. Clean every 2 months or when error E03 appears.

Can I interrupt a cycle to add laundry?

Yes, press the Start/Pause button for 3 seconds. The machine will drain if water level is too high. The reload function is unavailable if the water temperature is too high. Do not open the door while the machine is running if the water is hot.

What is the Eco 40-60 programme?

The Eco 40-60 programme is for normally soiled cotton laundry washable at 40°C or 60°C in the same cycle. It is the most efficient in terms of combined water and energy consumption and is used for energy label testing.

How do I activate the child lock?

Press the 'Program' and '' buttons simultaneously for a few seconds after the machine starts. The child lock icon will light up. To deactivate, press the same buttons again for a few seconds.

What should I do if my machine freezes in winter?

If the room temperature drops below 0°C, turn off the tap, unscrew the inlet hose, unhook the drain hose, place both ends in a bowl, run a spin programme to empty water, then disconnect. When restarting, ensure the room is above 0°C.

USER MANUAL JLR013989 Jocel

Front view of a white JOCEL washing machine with circular vent and control panel (no visible text or symbols on the device body)

JLR013989

MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES INSTRUCTION MANUAL

Illustration of a person pointing upward with one finger (no text or symbols)

Illustration of a person standing beside a washing machine with a crossed-out X symbol (no text or labels)

Line drawing of a washing machine with sun and exhaust smoke, no text or symbols present

Illustration of a child cleaning a washing machine with a hand gesture and a crossed-out X symbol (no text or symbols present)

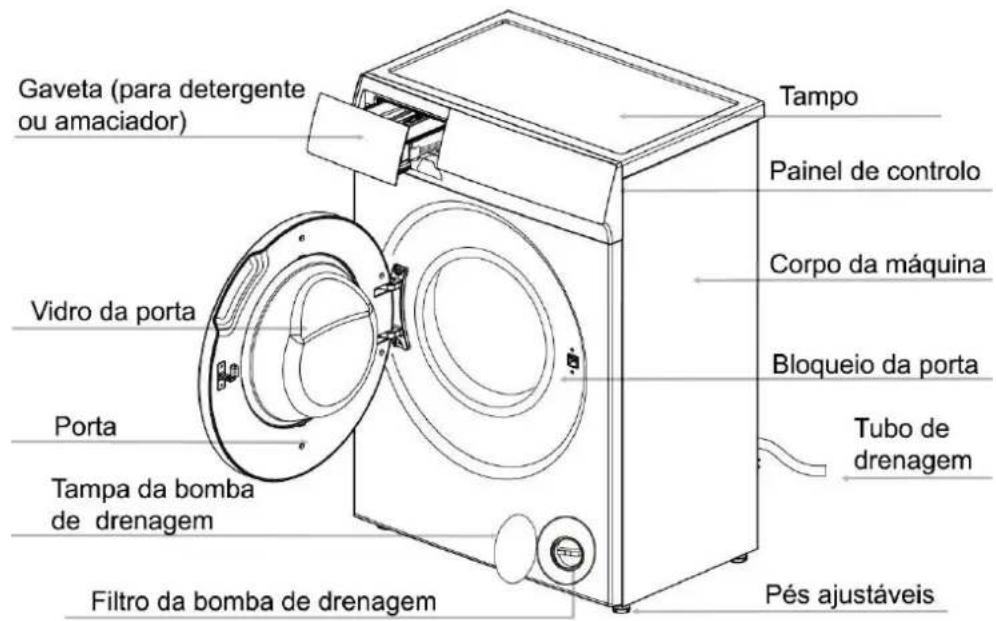

PARTES E CARACTERÍSTICAS

Line drawing of two household appliances: a cardboard box and a washing machine (no text or symbols)

Acessórios

Diagram of a plumbing drain with pipe fittings and valve (no text or labels)

Diagram of a pipe fitting with a curved arrow indicating direction (no text or symbols)

Illustration of a hand holding a pipe fitting above a faucet, with no text or symbols present.

Diagram of a door with a cross mark indicating a warning or hazard symbol (no text or labels present)

Illustration of hands using a mechanical device to adjust or install a component (no text or symbols visible)

Line drawing of a hand using a tool to clean or store items on a counter (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Technical line drawing of a mechanical component with a cylindrical part inserted into a housing (no text or symbols)

Nota

Simple line drawing of a curved surface with an arrow pointing to a circular hole (no text or symbols)

Illustration of a hand washing a basin with a tool, no text or symbols present

Illustration of two hands holding a small electronic component with a screwdriver (no text or symbols visible)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Illustration of a person pointing upward with one finger (no text or symbols)

Illustration of a person using a washing machine with a cross mark on the front panel (no text or symbols)

Line drawing of a washing machine with a sun and a cross mark, no text or symbols present

Illustration of a child cleaning a washing machine with a hand pointing at it (no text or symbols present)

PARTES Y CARACTERÍSTICAS

Line drawing of two household appliances: a cardboard box and a washing machine (no text or symbols)

Accesorios

Ajuste de nivel

Diagram of a pipe outlet with a valve and fittings (no text or labels)

Diagram of a washing machine connected to a pipe with a 30cm height measurement (no text or symbols present)

Diagram of a pipe fitting with a valve, no text or symbols present

Illustration of a faucet and hand holding a tool, no text or symbols present

Diagram of a door opening with a circular vent and a cross mark indicating a warning or hazard (no text or symbols present)

Illustration of hands using a tool to lift a component (no text or symbols visible)

Line drawing of a hand using a tool to clean or store items on a machine (no text or symbols visible)

Illustration of a hand using a tool to interact with a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical component with a knob inserted into a housing (no text or symbols)

Nota

Simple line drawing of a block with an arrow pointing to a circular object (no text or symbols)

Illustration of a hand washing a basin with a sink (no text or symbols)

Illustration of two hands holding a small object with a tool, no text or symbols visible

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Thank you for choosing our Washing Machine.

It is essential to read this manual carefully before it is installed and used for the first time.

PREFACE

This washing machine conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.

To avoid the risk of accidents and damage to the washing machine, please read this manual carefully before using it for the first time. They contain important information on its installation, safety, use and maintenance.

Keep this manual in a safe place for future reference.

Index

Safety notices....50

Parts and features.... 53

Installation.... 54

The functions of the control panel.... 57

How to use washer....60

Cleanness and maintenance.... 62

Troubleshooting guide....64

Parameters....63

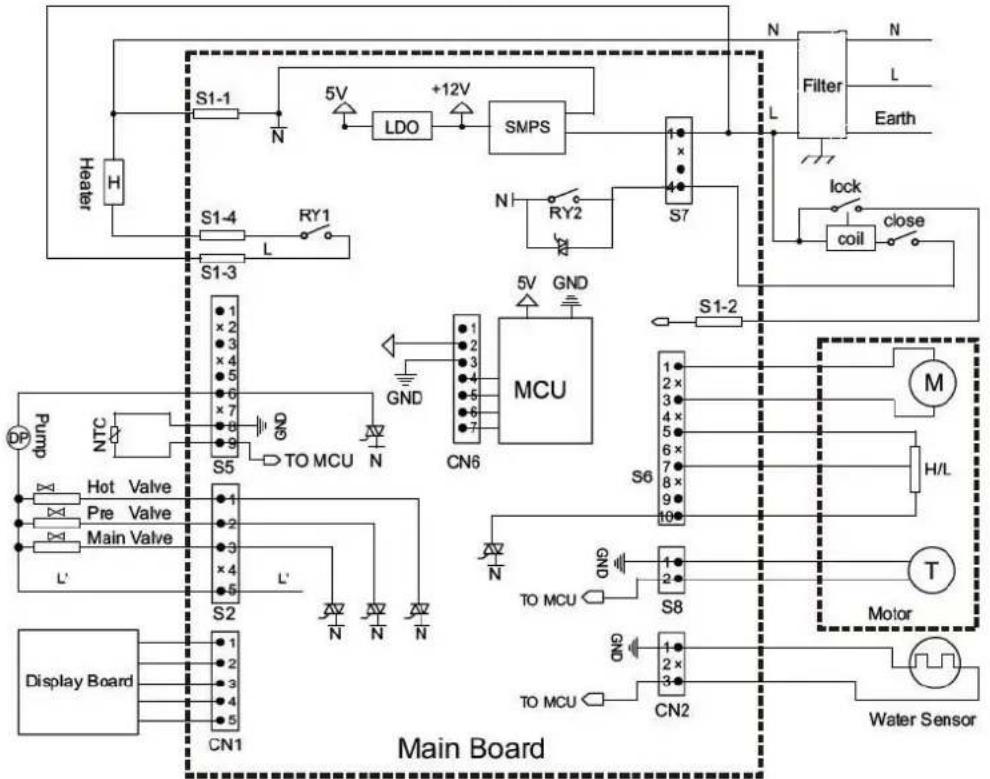

Electric diagram.... 68

General warranty terms....69

Declaration of conformity....70

SAFETY NOTICES

WARNING

Read and understand thoroughly these safety instructions before use. The items indicated here are very important safety precautions, which must be followed. We cannot be held liable for damage caused by non-compliance with the warning and safety instructions or resulting from incorrect use or operation. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised. The new hose-sets supplied with the appliance are to be used and the old hose-sets should not be reused.

Illustration of a person pointing upward with one finger (no text or symbols)

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This appliance is intended to be used in household and similar applications such as:

– Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfasts type environments;
- Areas for communal use in blocks of flats or in launderettes.

• For washing machines having ventilation openings on the base, the washing machines cannot be washing on the carpet.
• Before setting the washing machine, check it for any externally visible damage. Do not install or use a damaged washing machine.
  • Before connecting the washing machine, ensure that the connection data on
  the plate (voltage and current) match the electricity supply. if in any doubt, consult a qualified electrician.

- The electrical safety of this washing machine can only be guaranteed when continuity is complete between it and an effective earthing system which complies with current local and national safety regulations. It is most important that this basic safety requirement is present and regularly tested, and where there is any doubt the household wiring system should be inspected by a qualified electrician.

Illustration of a person standing beside a washing machine with a cross mark on the front panel (no text or symbols)

The manufacturer cannot be held liable for the consequences of an inadequate earthing system.

- Do not connect the washing machine to the mains electricity supply by an extension lead. Extension leads do not guarantee the required safety of the appliance.

- Unauthorized repairs could result in unforeseen dangers for the user, for which manufacturer cannot accept liability. Repairs should only be undertaken by an approved service technician.

- Ensure current is not supplied to the machine until after maintenance of repair work has been carried out.

Note: THIS WASHING MACHINE MUST BE EARTHED.

CORRECT USE

- If the connection cable is damaged or broken, it must only be replaced by an approved service technician to protect the user from danger.

- Faulty components must only be replaced by genuine manufacturer original spare parts. Only when these parts are fitted the safety standards of the machine can be guaranteed.

- To avoid the risk of personal injury or damage to the washing machine, do not install it in place where it is damp and where it suffers from rainfall.

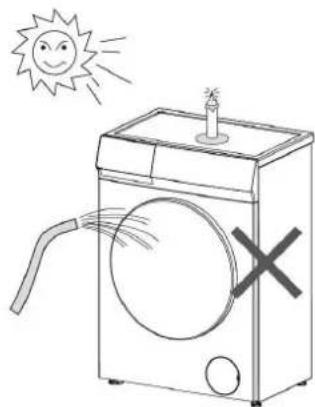

- Do not install the washing machine in place where it suffers from the sun directly, in which plastic or components will be damaged. It will be shortened the life of your washing machine.

- Do not install the washing machine in place where temperatures below freezing may occur. Frozen hoses may burst or split. The reliability of the electronic control unit may be impaired at temperatures below freezing point.

- Do not shoot the washing machine with water when you clean it.

- Keep the washing machine away from fire or heat sources.

- Before using the washing machine for the first time, make sure that the transit bolts at the rear of the machine have been removed. During spinning, transit bolts which is still in place may result in damage to both the machine and adjacent furniture or appliances.

- Turn off the tap if the machine is to be left for any length of time (e.g., holiday), especially if there is no floor drain (gully) in the immediate vicinity.

- Take care to ensure that foreign objects (e.g., nails, pins, coins, paper clips) do not find their way into the machine with the laundry. These may damage components of the machine (e.g., drum), which in turn can result in damage to the laundry.

Simple line drawing of a washing machine with a sun and a cross mark, no text or symbols present

• Do not wash water-repellent things (e.g., raincoats) with washing machine.
• Only remove laundry from the washing machine once the drum has stopped turning. Reaching into a moving drum is extremely dangerous and could result in injury.

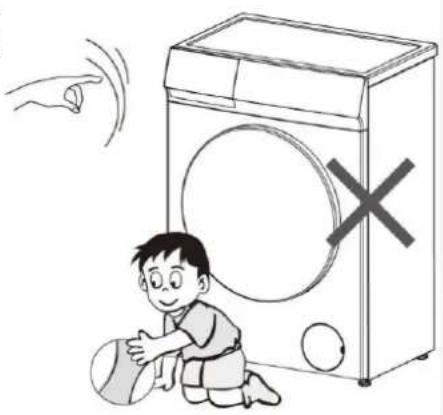

✿ SAFETY WITH CHILDREN

- Keep children away from the washing machine at all times. To avoid the risk of injury do not allow children to play on or near it or to play with its controls. Supervise children whilst you are using it.

- Older children may only use the washing machine if its operation has been clearly explained to them and they are able to use it safely, recognizing the dangers of misuse.

- For machines with a 'porthole' door, remember that the porthole glass will be hot when washing at very high temperatures. Do not let children touch it.

Illustration of a child washing a washing machine with a hand pointing at it (no text or symbols present)

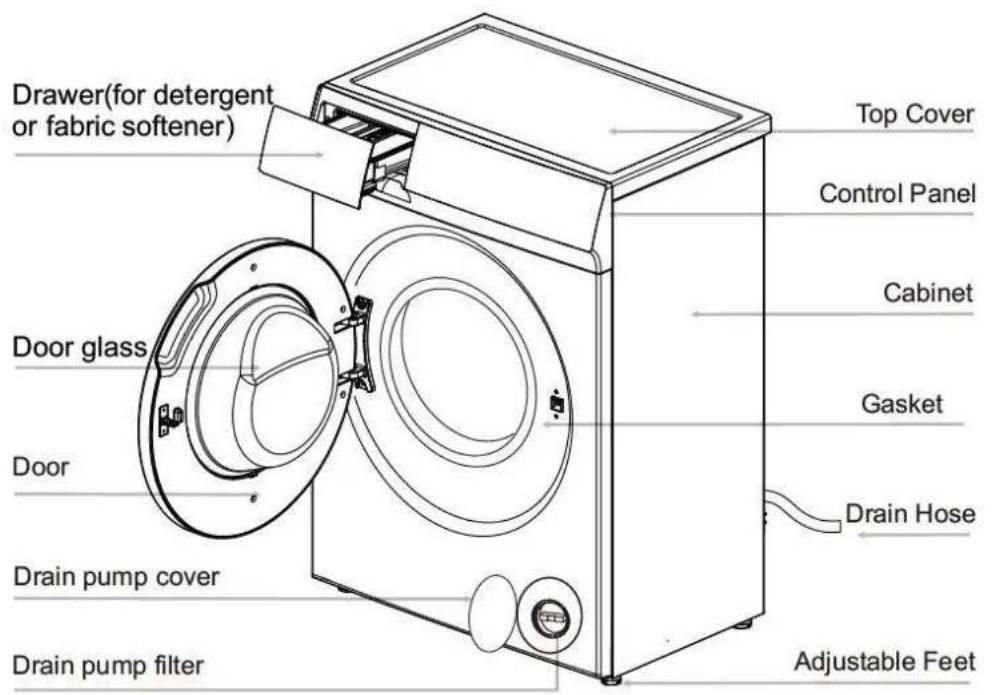

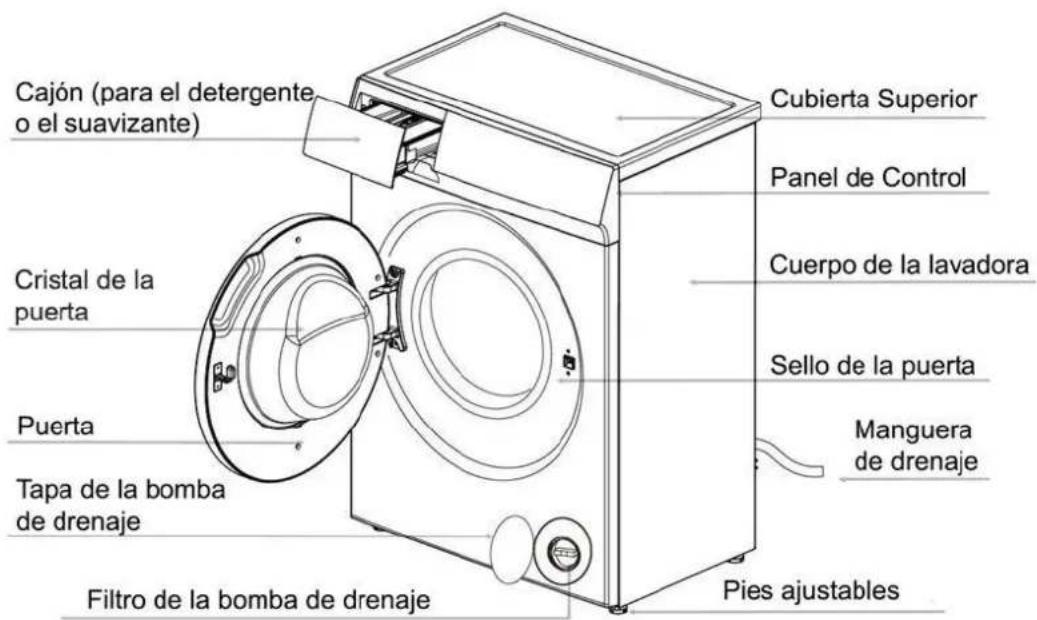

PARTS AND FEATURES

Note

Unscrew the drain pump filter to let water run out when the machine is not used for a long time.

Note

The drawing of machine in the manual is only used for instruction. It may be vary from the mode you buy.

INSTALLATION

1. Backout packing

- Remove all the packing (including the foam base) or the vibration and noise may occur.

- Dispose all the wrappage safety and keep them out of the reach of children. Danger of suffocation!

- It is normal that water drops appear on the packing plastic bag and the door glass, which are resulted from the water left in the tub for checking out.

Line drawing of a cardboard box and a washing machine (no text or symbols)

2. Accessories

Make sure that you have received all of the items shown below.

Accessories	Name	Qty.	Accessories	Name	Qty.
	Inlet hose	1		“U” piece	1
	Transit bolts caps	4		Manual	1

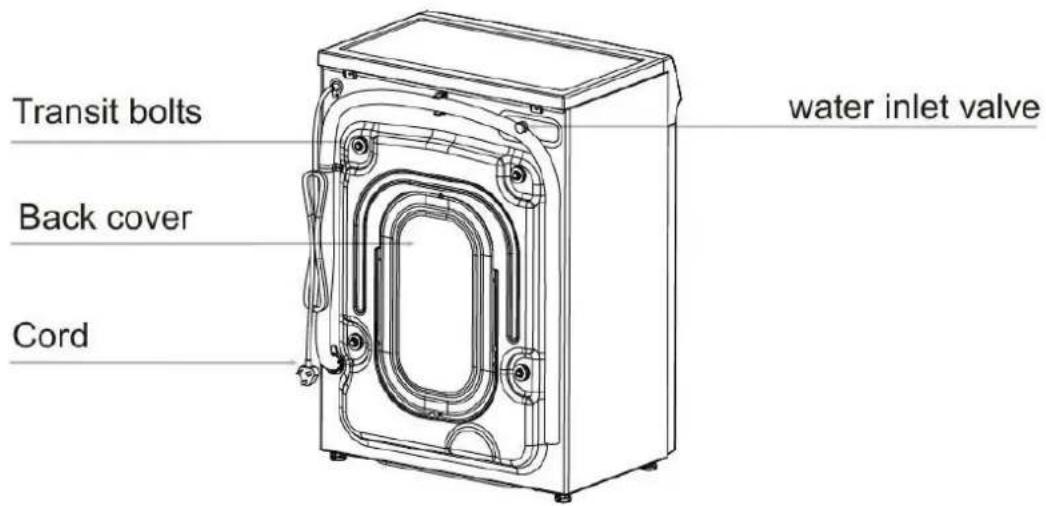

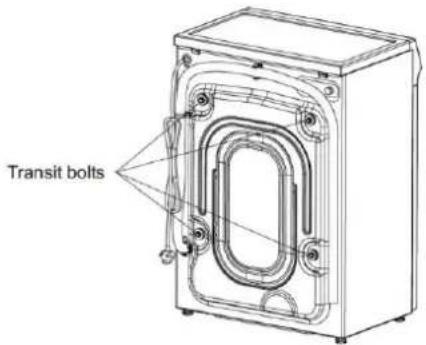

3. Removing transit bolts

• Remove all the transit bolts at the back of the machine with tools.
• Plug the holes with the transit bolts caps supplied.

Note

Strong vibration, noise or failures may occur if the transit bolts are not removed

- Keep the transit bolts for future transportation. Whenever the machine is transported, the transit bolts must be refitted

USE PROCESS

❖ Installation place requirement

- A concrete floor is the most suitable installation surface for a washing machine, being far less prone to vibration during the spin cycle than wooden floorboards or carpeted surface.

- The machine must be level and securely positioned. The distance between the machine and wall must be more than 10 cm.

- To avoid vibrations during spinning. the machine should not be installed on soft floor coverings.

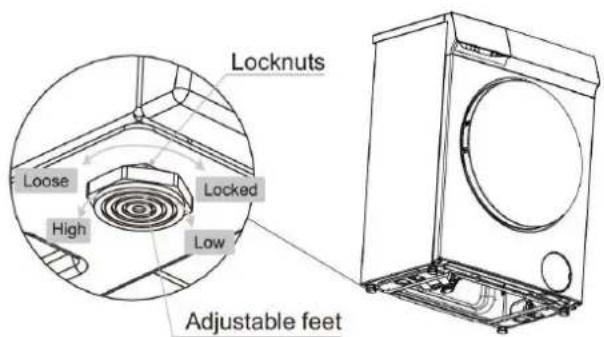

◆ Level adjustment

The machine must stand perfectly level on all four feet to ensure safe and proper operation. Incorrect installation may cause vibrations and noise and may cause the machine to move about.

To do these when the machine is not level:

- Using the spanner turn locknut in a clockwise direction. Then turn locknuts together with adjust feet to unscrew.

- Hold adjust feet securely with a pipe wrench.

- Turn locknut again using the spanner until it sits firmly up against the housing.

Note

Vibration and noise may occur if the locknuts do not sit firmly up against the houses.

Drain hose connection

1. Direct into a sink

If the outlet spigot has not been used before, remove any blanking plug that may be in place

Push the drain hose onto the spigot and secure with a clip if required, ensure a loop is formed in the drain hose to prevent waste from the sink entering the washing machine.

If required, the drain hose can be extended to a length of 4 m.

Simple line drawing of a pipe fitting with a valve (no text or symbols)

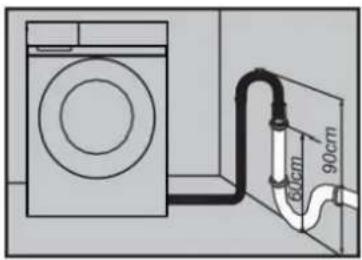

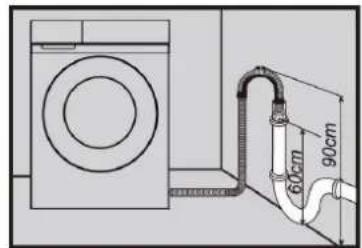

2. Connected securely to a standpipe

Firstly, form a hook in the end of the drain hose using the "U" piece supplied. Place the drain hose into your standpipe, which should have an internal diameter of approximately 30mm thus ensuring there is an air break between the drain hose and standpipe.

When discharging into a standpipe ensure that the top of the standpipe is no more than 90cm and no less than 60cm above floor level.

Diagram of a washing machine connected to a 30cm pipe fitting (no text or symbols present)

Water inlet connection

Connect the inlet hose supplied with the machine to a tap with a 3/4" thread. Do not use previously employed hoses.

Installation should comply with local water authority and building regulations requirements.

Illustration of a hand gripping a wall-mounted device (no text or symbols visible)

Illustration of a hand holding a wrench near a faucet (no text or symbols)

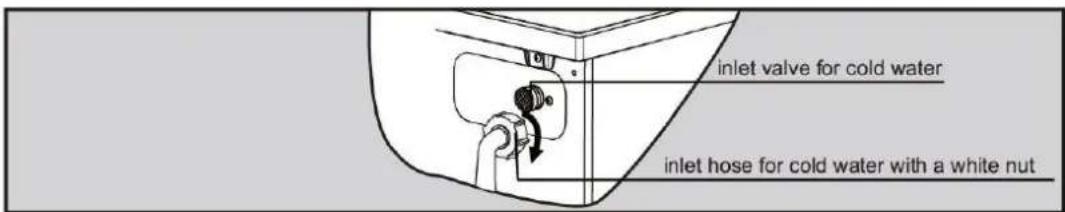

When there is a inlet valve at the back of the machine, it must be connected to a cold water supply. If there are two inlet valve, one is connected to a cold water supply and the other is connected to a hot water supply. Follow the indication of the picture below to complete the connection.

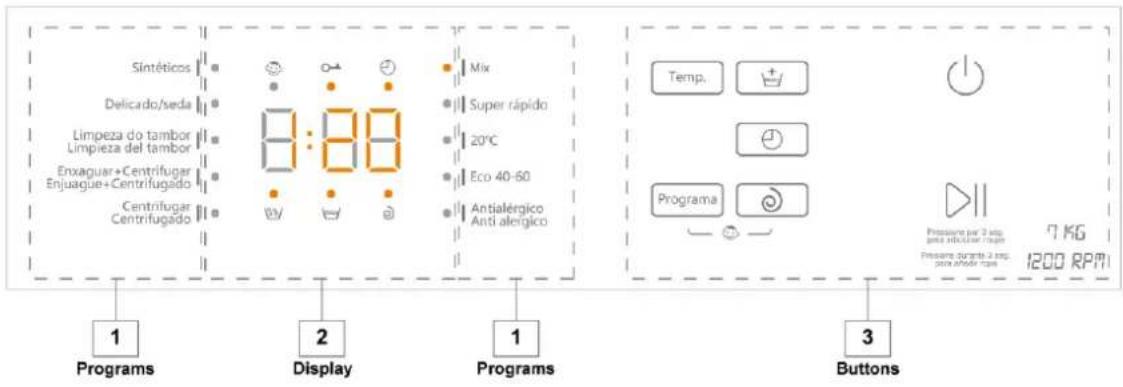

THE FUNCTIONS OF THE CONTROL PANEL

Display: This icon shows the time, speed, rinse times, Error code.

Display

The display shows the current settings, options or relevant information.

8:88	The digital indicator can show:Programme duration (e.g.120)Speed (e.g. 120, on behalf of 1200 rpm)Temp (e.g. 20, on behalf of 20°C)Rinse times (e.g. 2)Delay times (e.g. 12h)Error code (e.g. E0l)
	Delay time: the light under this icon will be lighting once the display shows the delay time.
	Door lock: the light under this icon will be lighting when door lock is working.
	Child lock: the light under this icon will be lighting once child lock function is selected.
	Washing phase: the light above this icon will flicker during the washing phase.
	Rinse phase: the light above this icon will flicker during the rinse phase.

Spin and drain phase: the light above this icon will flicker during the spin and drain phase.

Buttons

The following is the instruction of the buttons and their setting options.

1. Power ( ⏻ )

Press this button to turn the machine on or off.

2. Start/pause (▶II)

Press this button to start or pause a wash cycle. To reload the laundry during a wash cycle, press this button for 3 seconds, and the machine will drain if the water level is too high. The reload function is unavailable if the temperature of the water is too high.

3. Speed

Press this button repeatedly to change the spin speed.

4. Temp

Press this button repeatedly to change the wash temperature.

5. Rinse

Press this button repeatedly to change the rinse times.

6. Delay

Press this button repeatedly to change the delay time.

7. Child lock ("Program + Ⓞ")

When the machine starts, press the "Program" and "💡" buttons at the same time for a few seconds and the light under the icon "💡" is lighting, and the function works. Press the same buttons a few seconds to cancel this function.

When the function works, all buttons are not available, except for the button "

Note

For your safety, do not press the “💡” button and get out clothes while the machine is running. Because the temperature of water may be high and it may scald you.

The door lock will open automatically at the end of a wash cycle while the temperature of the drum is cool down.

Programs

Options and functions for programs

Program	Max. Load	Max. Temp (°C)	Max Spin speen (rpm)	Type of Wash and Recommendations	Washing Symbol
Mixed	4	60	1200	Lightly to normally soiled robust laundry made of cotton, linen, artificial fibres and their blends. Only wash similar colours together in one wash load.
Super Quick	2	--	1200	Small loads of items which require freshening up and which can be washed in a Cotton programme.
20°C	7	20	1200	Cottons, linens or cotton mix fabrics.
Eco 40-60	7	--	1200	Normally soiled cotton laundry. Most favourable programme in terms of combined water and energy consumption. Basis for the values indicated on the Energy Label.
Anti-Allergy	4	90	1000	Washing clothes at 90°C, which would help for sterilization and disinfection.
Synthetics	3.5	60	1200	Synthetic or mixed fabrics, underwear, coloured garments, non-shrink shirts
Delicates/Silk	2	40	600	Fine laundry made of delicate fabrics or silk, which needs gentle treatment
Drum Clean	0	90	600	This program is used to clean the drum. Do not put any clothes into the drum while running this program.
Rinse+Spin	--	--	1200	This program can by used for rinsing Items. Do not add any detergent.
Spin	--	--	1200	Separate spin for cotton and linen items.

HOW TO USE WASHER

Before washing clothes for the first time, you must run a complete cycle without clothes. To do these:

1. Connect the power and turn on the tap.
2. Press the button “⏻” to turn on the machine and choose the program 20°C.
3. Touch the "button."

It can remove the water out which left in the tub because of manufacturer's checking out.

4. Washing preparation

1. Connect the inlet hoses well and turn on the tap.
2. After making sure the power socket is grounded reliably, insert the power plug into the power socket.
3. Place the drain hose well.

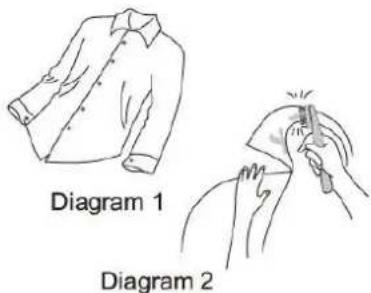

5. Preparation of clothes

1. Sort the laundry by colour and by care label. Most garments have a textile care label in the collar or side seam.
2. Make sure all the pockets are empty, Foreign objects (e.g., nails, coins, paper clips, etc.) can cause damage to garments and components in the machine.
3. Close any zips, fasten hooks and eyes etc before washing.
4. Dark textiles often contain excess dye and should be washed separately several times before being included in a mixed load. Always wash whites and coloureds separately.
5. Badly soiled areas, stains etc. should be pre-treated with liquid detergent, stain removers etc.
6. Turn over the clothes which pill easily and is with woolen surface before putting them into the machine.

Line drawing of a sleeveless garment with a bandage, labeled 'Diagram 3' (no text or symbols on the garment itself)

6. Put clothes into the washer

Unfold the laundry and load loosely in the drum. Mixing both large and small items give better wash results and also helps distribute the load evenly during spinning. The most efficient use of energy and water is achieved when a full load is washed. However, do not overload as this causes creases and reduces cleaning efficiency.

Diagram of a door with internal components and a cross symbol, no text or labels present

Make sure that no garments are nipped between the door and the seal.

USING THE DETERGENT DRAWER

1. Open the drawer and add adequate detergent into main wash compartment marked “” or “II”.
2. Add the fabric softener into compartment marked “ ♣ ” or “ ♣ ”. Do not exceed the maximum level mark.
3. Close the drawer

The right amount to dispenser will depend on the following:

• The quantity of laundry
• The soiling level of the laundry

- Lightly soiled

No visible dirt or stains. Possibly slight body odor.

- Normally soiled

Visibly dirty and/or just a few slight stains.

- Heavily soiled

Visible dirt and stains and/or dried on soiling.

• The water hardness level.

It is recommended to use low foaming powder for all washing temperature programs.

7. Washing steps

1. Turn on the water tap, and connect the power.
2. Open the door, and put the cloth into the drum one by one.
3. Close the door, and put suitable amount of detergent and fabric softener into the dispenser, then close the drawer.
4. Choose a program you need.
5. Press "▶" button to start the washing machine.
6. When the cycle is finished, there is a warning tone sound.

When washing cycle is finished, the machine will change into standby mode. And the machine will be sleeping after 10 minutes without any control on the control panel.

The machine is fitted with a balance control device, which ensures the machine is stable during the spin. To protect the machine, it will cut in if the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after about 20 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistributed the load manually and reselect the spin program.

8. Door lock

• When the machine is started, the door lock is locked
• When the temperature inside the drum is above 60 °C, the door lock is locked.
• When the water is above a certain level, the door lock is locked.
• When the washing cycle is finished, the door lock is unlocked.

Important:

Do not try to open the door when the washing cycle is not finished or power supply is cut off during the washing cycle, because the temperature may be high and you may be scalded.

CLEANNESS AND MAINTENANCE

Disconnect the machine from the mains electricity supply and withdraw the plug from the socket before cleaning the machine.

The washing machine must not be hosed down.

9. Cleaning the exterior

Clean the exterior with a mild non-abrasive cleaning agent or soap and water using a well wrung-out cloth. Wipe dry with a soft cloth.

Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning agents. These might damage plastic surfaces and other components because of the chemicals they contain.

10. The washing drum

Clean the drum every 3 months by using the "Drum Clean" program.

11. Cleaning the drawer

Remove detergent residues regularly. Clear the drawer following these:

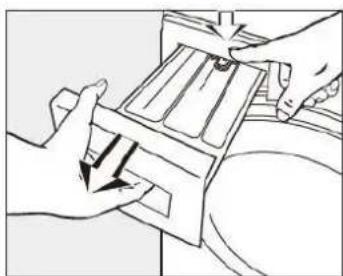

• Pull out the drawer until a resistance is felt. Press down the release catch and at the same time pull the drawer right out of the machine.
• Remove the siphon from compartment and clean it.

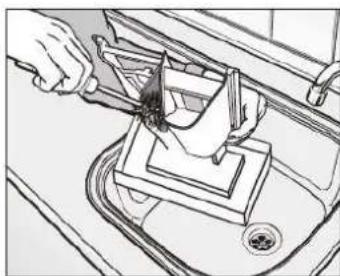

• Clean the dispenser using a brush and warm water.

Illustration of hands operating a mechanical device with arrows indicating motion (no text or symbols)

Line drawing of a hand using a tool to clean or store items on a machine (no text or symbols visible)

12. Cleaning the drawer housing

Use a bottle brush to remove detergent residues inside the drawer housing.

13. Cleaning the water inlet filter

Use pointed nose pliers to withdraw the plastic filter. Clean, put back secure. This filter should be checked every 6 months or so, or more often if there are frequent interruptions to the water supply.

Illustration of a hand using a tool to adjust or install a component, no text or symbols visible

Line drawing of a mechanical component with a tool inserted into a housing (no text or symbols)

Note

The filter must be put back in place after cleaning.

14. Cleaning the drain pump filter

Simple line drawing of a mechanical component with a circular feature and an arrow indicating direction (no text or symbols)

1. Disconnect the machine from the mains electricity supply and open the lower cover with a screwdriver.

Illustration of a hand washing a basin with a pipe (no text or symbols)

1. Place a container under the pump.Unscrew and remove the filter.

Illustration of hands holding a small mechanical component (no text or symbols visible)

1. Clean the filter carefully

Important:

If the machine is exposed to temperatures below 0^ C, certain precautions should be taken.

The filter should be cleaned every 2 months or when there is fault that the “E03” is on the screen.

TROUBLESHOOTING GUIDE

Problem	Error Code	Possible Cause	Solutions
The water of machine fills overtime.	EOI	1. Water tap is not open.2. Drain hose is put down.3. Water inlet valve is damaged.	1. Open the water tap.2. Hook up the hose.3. Change the water inlet valve.
There is a Door lock alarm	EO2	1. The door is not locked well.2. Garments is caught between the door and seal.3. Door lock is damaged	1. Lock the door well.2. Put the garment into the drum.3. Change the door lock.
The machine Drains overtime.	EO3	1. The drain hose is squashed or kinked.2. The drain pump filter is block.3. The drainage system pipes are blocked	1. Check the drain hose.2. Clean the filter.3. Check the drainage system and clean it.
Water overflows the machine./ Water sensor works abnormal.	EO4	1. The water inlet valve is damaged.2. The connection between the water sensor and wire is not secure.3. The water sensor is damaged.	1. Change the water inlet.2. Check the connection and ensure it is secure.3. Change the water sensor.
The motor does not work.	EO5	1. The connection between the motor and wire is not secure.2. The motor is protected because of over-heat.3. The motor is damaged.	1. Check the connection and ensure it is secure.2. Check if the machine is overloaded.3. Switch off the machine, and retry when the motor becomes cool.4. Change the motor.
There is a heater fault.	EO6	1. The connection between the heater and wire is not secure.2. The heater is damaged.	1. Check the connection and ensure it is secure.2. Change the heater.
There is a temperature sensor fault.	EO7	1. The connection between the temperature sensor and wire is not secure.2. The temperature sensor is damaged.	1. Check the connection and ensure it is secure.2. Change the temperature sensor.

PARAMETERS

Supplier's name or trade mark: JOCEL, LDA

Supplier's address:

General product parameters:

Parameters	Value		Parameters	Value
Rated capacity (kg)	7.0		Dimensions in cm	Height	845
				Width	595
				Depth	410
EEIw	90.8		Energy efficacy class	E
Washing efficiency index	1.04		Rinsing effectiveness (g/kg)	4.9
Energy consumption in kWh per cycle, based on the Eco 40-60 program. Actual energy consumption will depend on how the appliance is used.	0.783		Water consumption in liter per cycle, based on the Eco 40-60 program. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	44
Maximum temperature inside the treated textile (°C)	Rated capacity	43	Remaining moisture content (%)	Height	51
	Half	41		Width	53
	Quarter	36		Depth	55
Spin speed (rpm)	Rated capacity	1200	Spin-drying efficiency class	B
	Half	1200
	Quarter	1200
Programme duration (h:min)	Rated capacity	3:15	Type	Free-standing
	Half	2:30
	Quarter	2:30
Airborne acoustical noise emissions in the spinning phase (dB(A) re 1 pW)	76dB		Airborne acoustical noise emissions classes (Spinning phase)	B
Off-mode(W)	0.5		Standby mode (W)	0.5
Delay start (W) (if applicable)	/		Net worked standby(W)	/
Minimum duration of the guarantee offered by the supplier: two years
This product has been designed to release silver ions during the washing cycle			No

PARAMETER		UNIT	VALUE
Rated capacity for the Eco 40-60 programme, at 0.5 kg intervals.		kg	7.0
Energy consumption of the Eco 40-60 programme at rated capacity.		kWh/ciclo	1.09
Energy consumption of the Eco 40-60 programme at half rated capacity.		kWh/ciclo	0.64
Energy consumption of the Eco 40-60 programme at quarter rated capacity.		kWh/ciclo	0.49
Weighted energy consumption of the Eco 40-60 programme.		kWh/ciclo	0.783
Energy Efficiency Index.		—	90.8
Water consumption of the Eco 40-60 programme at rated capacity.		L/ciclo	55
Water consumption of the Eco 40-60 programme at half rated capacity.		L/ciclo	39
Water consumption of the Eco 40-60 programme at quarter rated capacity.		L/ciclo	35
Weighted water consumption.		L/ciclo	44
Washing efficiency index of the Eco 40-60 programme at rated capacity.		—	1.04
Washing efficiency index of the Eco 40-60 programme at half rated capacity.		—	1.04
Washing efficiency index of the Eco 40-60 programme at quarter rated capacity.		—	1.04
Rinsing effectiveness of the Eco 40-60 programme at rated capacity.		g/kg	4.9
Rinsing effectiveness of the Eco 40-60 programme at half rated capacity.		g/kg	4.9
Rinsing effectiveness of the Eco 40-60 programme at quarter rated capacity.		g/kg	4.9
Programme duration of the Eco 40-60 programme at rated capacity.		h/min	3:05
Programme duration of the Eco 40-60 programme at half rated capacity.		h/min	2:30
Programme duration of the Eco 40-60 programme at quarter rated capacity.		h/min	2:30
Temperature reached for minimum 5 min inside the load during Eco 40-60 programme at rated capacity.		°C	43
Temperature reached for minimum 5 min inside the load during Eco 40-60 programme at half rated capacity.		°C	41
Temperature reached for minimum 5 min inside the load during Eco 40-60 programme at quarter rated capacity.		°C	36
Spin speed in the spinning phase of the Eco 40-60 programme at rated capacity.		rpm	1200
Spin speed in the spinning phase of the Eco 40-60 programme at half rated capacity.		rpm	1200
Spin speed in the spinning phase of the Eco 40-60 programme at quarter rated capacity.		rpm	1200
Remaining moisture content for the Eco 40-60 programme at rated capacity.		%	51
Remaining moisture content for the Eco 40-60 programme at half rated capacity.		%	53
Remaining moisture content for the Eco 40-60 programme at quarter rated capacity.		%	55
Weighted remaining moisture content		%	53
Airborne acoustical noise emissions during Eco 40-60 programme (spinning phase).		dB(A) re 1 pW	75
Power consumption in ‘off mode’		W	0.5
Power consumption in ‘standby mode’		W	0.5
Does ‘standby mode’include the display of information?		—	/
Power consumption in ‘standby mode’ in condition o network standby (if applicable)		W	/
Power consumption in ‘delay start’(if applicable)		W	/
Power	220-240V~,50Hz
Rated Power	2100 W
Water Pressure	0.02-0.8 Mpa
Net Weight /Gross Weight	52/56Kg
Outer dimension(WxDxH)	845x595x420 mm

The Eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C , together in the same cycle, and that this programme is used to assess the compliance with the EU Ecodesign legislation.

Electric Diagram
        S6["S6"]
        S8["S8"]
        T["M"]
    end

Correct Disposal of this product

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This symbol on the product, or in its packaging. Indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment, by ensuring this product is disposed of correctly. You will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product, for more detailed information about the recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased the product.

Important:

If the machine is exposed to temperatures below 0^ C, certain precautions should be taken.

1. Turn off the water tap.
2. Unscrew the inlet hose.
3. Unhook the drain hose from the rear support and position the end of this hose and that of the inlet hose in a bowl. Run the spin programme.
4. Disconnect the appliance.
5. Screw the inlet hose and reposition the drain hose.
6. When you intend to start the machine up again, make sure that the room temperature is above 0°C.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc.
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. If the appliance has not been installed by an Accredited Technician.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.
3. With the modification or disappearance of the nameplate of the appliance.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252910350

Fax: [phone]

E-mail: [e-mail]

www.jocel.pt

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below:

Product WASHING MACHINE

Brand JOCEL

Model JLR013989

Complies with the following European directives and standards implementation.

Low Voltage

2014/35/EU

EN 60335-2-7: 2010 + A1:

2013 + A11: 2013 + A2: 2019

EN 60335-1: 2012 + A11:

2014 + A13: 2017 + A1: 2019

+ A14: 2019 + A2: 2019

EN 62233: 2008

Electromagnetic Compatibility

2014/30/EU

EN 55014-1:2007+A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

Country of Origin: P.R.C.
