Brand	Gemini
Model	GMC2V
Product Type	Multi-functional Breakfast Maker (Cooker with Griller)
Power Supply	220-240V ~ 50-60Hz
Total Power Consumption	1500W (Griller: 800W, Cooker: 350-700W)
Capacity (Cooking Pot)	0.8 liters Max.
Product Dimensions (with cooking pot)	445(W) x 200(H) x 260(D) mm
Product Dimensions (with frying pan)	449(W) x 130(H) x 260(D) mm
Cooker Control	Knob with High/Low/Off positions; indicator light
Griller Control	Timer knob adjustable from 0 to 30 minutes or Keep Heating (ON); indicator light
Functions	Cooking (hot plate) and grilling (top heating element) independently controlled
Included Accessories	Cooking pot, frying pan, baking plate (recommended for grilling)
Housing Material	Not specified (likely plastic/metal)
Heating Plate	Keep surface clean; requires periodic cleaning of residue
Safety Features	Automatic shut-off when knob at 0/OFF; do not immerse in water; keep away from children
Cleaning Instructions	Unplug and cool before cleaning; use soft cloth with neutral detergent; do not use abrasive cleaners or immerse main body
Usage	Household use only
Repair	Contact service center for any repairs; do not disassemble yourself
Warranty	Not specified
Country of Origin	Not specified

Frequently Asked Questions - GMC2V GEMINI

What is the total power consumption of the Gemini GMC2V?

The total power consumption is 1500W, with the griller at 800W and the cooker adjustable between 350-700W.

How do I control the cooker and griller separately?

The cooker is controlled by a knob with High, Low, and Off settings. The griller uses a timer knob adjustable from 0 to 30 minutes or Keep Heating (ON). Each has its own indicator light and operates independently.

What should I do if the indicator light does not turn on?

Check the power supply, ensure the power socket is working and has proper contact. Verify that the voltage matches the product rating (220-240V). If the problem persists, contact service.

Can I use metal utensils or abrasive cleaners on the cooking surfaces?

No. Use only soft cotton cloth or sponge with neutral detergent. Hard brushes or scrapers may damage the non-stick surface. Avoid gasoline, thinner, or polishing agents.

Is the Gemini GMC2V suitable for outdoor use?

No. The appliance is designed for indoor household use only. Keep it in a dry place and away from moisture.

What is the capacity of the cooking pot?

The maximum capacity is 0.8 liters.

Why does my food get burnt or remain uncooked?

Ensure you select the correct temperature (High/Low for cooker) and appropriate griller time. Frozen food should be thawed before cooking. Also, place food on the baking plate for grilling, not directly on the heating element.

Can I leave the appliance unattended while in use?

No. Always supervise the appliance during operation, especially when children are nearby.

How do I clean the heating plate?

After unplugging and cooling, wipe the heating plate with a damp cloth. For stubborn residue, use a soft sponge with mild detergent. Do not let liquid flow into the product.

What should I do if the power cord is damaged?

Stop using the appliance immediately. Contact the service center for a replacement. Do not attempt to replace the cord yourself.

USER MANUAL GMC2V GEMINI

Multi-functional Breakfast Maker

多功能早餐機

MODEL NO.型號：GMC2V

Before using your product for first time, please read this instruction manual.

1. Please read these instructions carefully and retain them for reference.
2. This appliance is not intended for use by persons (including children under 8 years old) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
3. Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.
4. Use this appliance solely in accordance with these instructions.
5. Never use the appliance outdoors and in a humid room.
6. Before use, ensure the power supply same as indicate at the appliances. The power supply should have earth wire.
7. Appliances should place at a stable platform and keep away from children.
8. When power cable damages, please contact service center for replacement. Do not replace it by own.
9. Any faulty operation, must turn off the power and unplug the power supply. Do not unplug while your hand is wet, it will cause electric shock.
10. Do not pull the cable along sharp object / sharp edges, crimp the wire or let it hang down. Also put away from hot and wet condition. Do not insert any metal object into to the heat dissipation holes / gaps, otherwise it cause electric shock.
11. Do not place the product on the surface or beside extreme heat condition, such as oven etc.
12. It is forbidden to use this product on an unstable / inclined platform to avoid accident such as injury or fire cause by products falling over.

13. Keep away from children or in-experienced person to operate this products.

14. While in process, it is normal the pot body is always hot when pouring water or soup out, please lift the pot by hold the handle. Do not touch the pot body with hands directly, this would get hurt.

15. Please keep the surface of the heating plate clean. After using it for a period of time, you need to clean the dirt on the surface of the heating plate.
16. Do not allow liquid to flow into the product during cleaning, and to avoid danger do not allow the power cord, plug, main body, etc. to dip in the water.
17. The accessories is specially designed ONLY for this product and cannot be used on a naked flame.

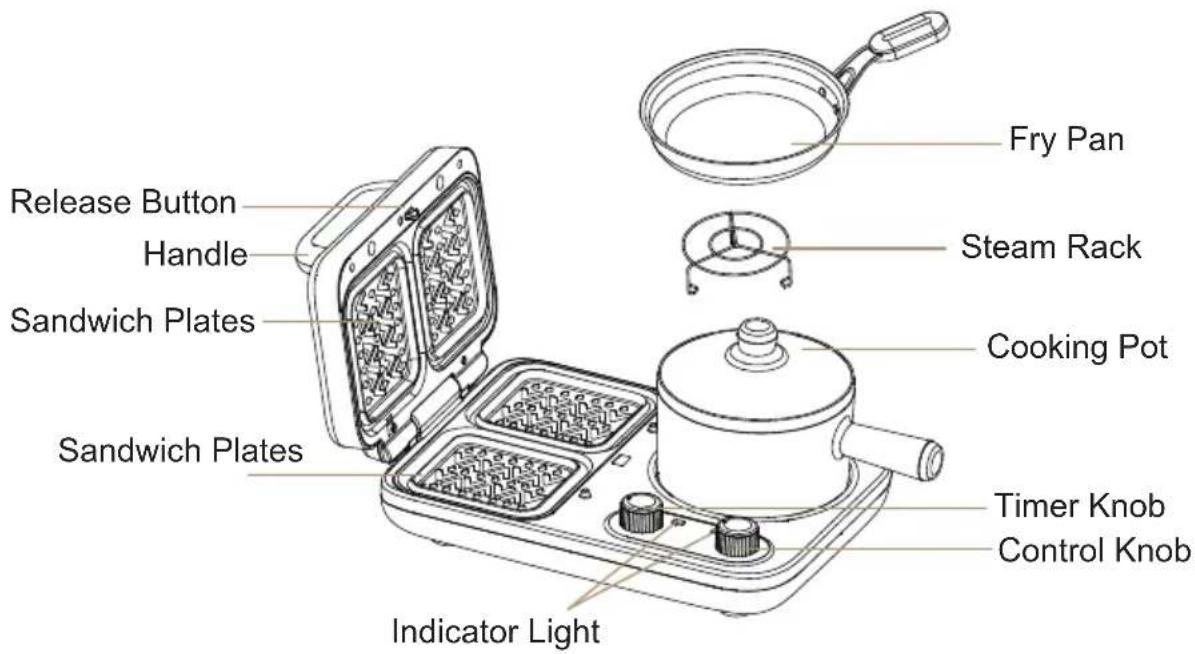

PRODUCT REVIEW

This unit is for HOUSEHOLD USE ONLY

Note :

The picture is for reference only, assemblies maybe different from the picture.

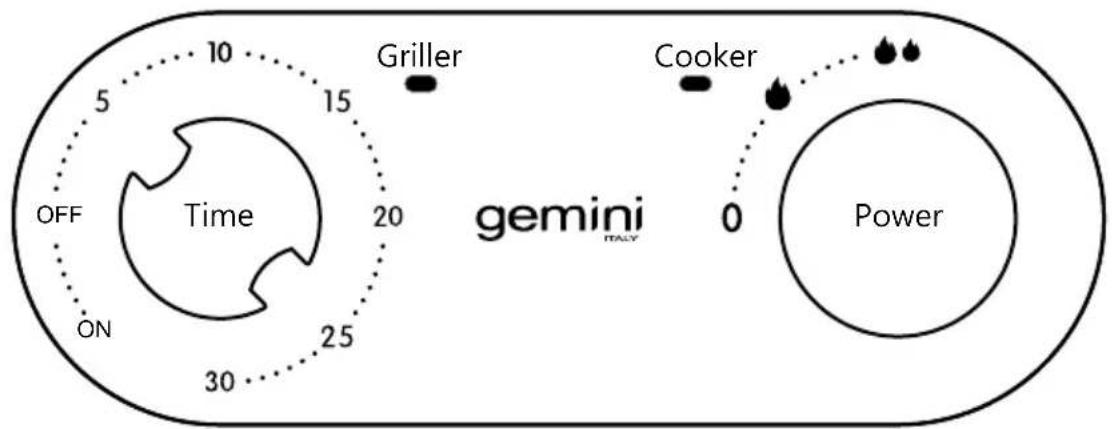

PANEL INSTRUCTION

Cooker control knob:The power can be adjusted according to the user's demand, and different power can be selected: High and Low power, "COOKER" indicator light will ON. When the knob is adjusted to "0", the power is off, and the indicator light is off. When the knob is adjusted to "♠" or "♠"the cooker is turned on. At this time, the heating plate works, and the indicator light of the heating plate is on. (this light is related to the heating plate, but not to the griller).

Griller timer adjustment knobAdjust the knob according to desired time, the optional range is 0-30 minutes or Keep heating (ON). For first time use, the knob is adjusted to "OFF", the griller is in the power-off state, and the griller indicator light is not on. When the knob is adjusted to select other time or Keep heating(ON), the griller is connected to the power, and the "GRILLER" lights are on when the heating plate is working, the griller indicator light is on (this light is related to the griller, but not to the cooker).

Tips :

The cooker and the griller are controlled by control knob and timer knob separately, hence they work separately and are not affected by each other.

CLEANING AND MAINTENANCE

1. Before cleaning, unplug the power plug and wait for the product to cool completely.
2. The inner and outer surface, fry pan and cooking pot of the product can be cleaned with soft cotton cloth or sponge dipped with neutral detergent, and then cleaned with clean water.
3. It is not allowed to use hard brushes and articles to wash and scrape, so as to avoid damaging the inner surface of products and the protective layer of grill plates, cooking pot and frying pan.
4. Do not use gasoline, thinner, polishing agent and other toxic and corrosive cleaning agents for cleaning.
5. Before using the product, the cleaned parts must be clean and then plugged in.
6. It is strictly forbidden to immerse the main body of the product in water and other liquids.

Common problems and analysis

Warning:

If the following abnormal phenomena occur during use, it is not the fault of the machine. Please check it carefully before sending it out for maintenance.

Fault phenomenon	Potential reason Suggested method
Indicator light not ON	Power failure	Check and maintain power supply equipment
	The power socket has no power or poor contact
	The power supply voltage is not consistent with the rated voltage of the product
The cooking time is too long	Is the food fried directly without thawing	The food need thawed before cooking
Uncooked / scorched food	The selected temperature or time is not correct	Set proper cooking temperature and time
There is a peculiar smell	Fried and roasted food without baking plate	Place the food on a baking plate and cook it
	Foreign objects on plate or heat element plates	Clean the foreign objects

Notice:

If you still cannot solve these abnormal phenomenon after analyzed above problems, please contact with service department. It is strictly forbidden for non-professionals to disassemble the machine.

SPECIFICATIONS

Model No.: GMC2V

Mains Voltage & Frequency: 220-240V \~ 50-60Hz

Power: 1500W(Griller 800W, Cooker 350-700W)

Capacity: 0.8 liters Max. (cooking pot)

Product Dimension:

445(W) x 200(H) x260(D) mm (With cooking pot)

449(W)x130(H)x260(D)mm (With the frying pan)

*The final product specification may be varied according to a different lot of material and actual input voltage power of the usage area.
