USER MANUAL GIC21WH GEMINI

2200W INDUCTION COOKER AND POT SET

2200瓦電磁爐料理鍋組合

Read the operation manual carefully before using and well keep it in a safe place for

future reference.

Contents

Product structure ....

Reminder

Safety precautions and safety protection ....

Operating Instructions

Daily maintenance ....

Appropriate cookware ....

Common faults and solutions ....

Product specifications ....

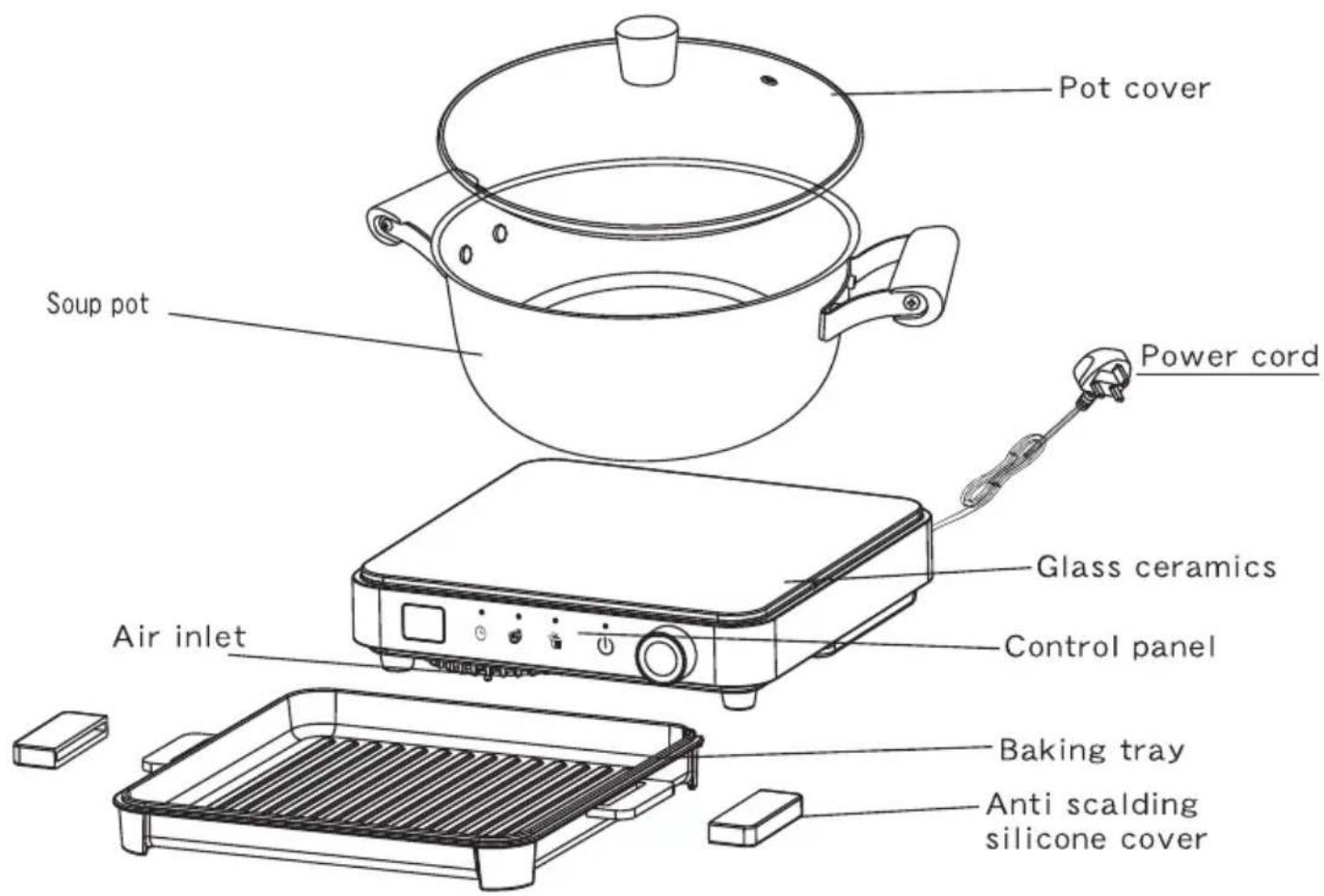

Product structure

Pot cover Soup pot Power cord Glass ceramics Control panel Air inlet Baking tray Anti scalding silicone cover

Low temperature zone

Oil outlet

High temperature zone

Technical line drawing of a heat exchanger or cooling unit with vertical slats and a red circle highlighting the interior (no text or symbols)

Reminder

1. The fan of the induction cooker will rotate after power on. It is normal to have a slight drip sound when using the induction cooker.

(Especially when using belly pan and too thin pan for cooking, the sound will be particularly obvious) This soup pot is designed with a cast aluminum double bottom pot, which has the advantages of fast heat transfer, non-stick and easy to clean. Due to the vibration technology, there may be high-frequency sound duringuse. The greater the power, the stronger the sound. It is normal and feelfree to use it. This induction cooker complies with safety standards.

1. It is normal for white coated pans and white crystal plates to change color after dry burning, sauce stains and long-term use.

2. It is normal for soup pans and baking pans to bulge slightly in the middle when cooking or baking things dry.

3. Soup pot is not recommended for dry cooking or barbecue. Soup pot is most suitable for cooking hot pot, steaming, cooking food, etc.

4. The baking tray has a high temperature area and a low temperature area. The high temperature area can barbecue food, and the low temperature area can heat and preserve cooked food, You can also put some flavorings, vegetables, etc.

5. The anti scalding silicone sleeve can only be put on the baking pan when you want to take the baking pan. Please take down the silicone sleeve after use. When the anti scalding silicone sleeve is long, it will be hot when it contacts the baking pan.

6. The pot cover is a metal product and cannot be soaked in water for a long time. After cleaning, it is recommended to dry it with a towel and store it in a dry place.

7. It is recommended that soup pans and baking pans should not be directly burned with open fire to avoid discoloration of white coating.

8. Soup pans, baking pans and pot covers can only be cleaned with wet cloth, and can't be cleaned with wire brushes, cleaning cloths and metal brushes with metal components to avoid scratching the coating.

9. The soup pot, baking pan and pot cover cannot be cleaned with detergent with abrasive ingredients or corrosive detergent to avoid damage to the coating.

10. The soup pot, baking tray and pot cover cannot be put into the dishwasher for cleaning.
11. When using soup pans and baking pans, do not use a metal spatula or sharp tools to avoid scratching the coating.
12. It is recommended to use wood shovel or silica gel shovel.

How to use soup pot and baking tray

1. This baking tray is specially designed for authentic Korean barbecue, and the middle part is a high-temperature frying area. The surrounding area is a heat preservation area (suitable for cheese sauce, various vegetables, millet grains, etc.). When the middle area is a high-temperature frying and baking area, the food oil will naturally move to the surrounding area to make a smokeless barbecue effect.
2. Use baking tray: use steam to make food more delicious when baking. It is recommended to use with the pot cover when necessary.
3. In order to avoid excessive dry burning of the baking pan during preheating, please do not leave the product during cooking. Excessive dry burning will cause coating damage and discoloration.
4. It is recommended to use silica gel and wooden tools when using soup pans and baking pans. Do not use a metal spatula or sharp tools to avoid scratching the coating.
5. It is not recommended to use the baking tray as a hot pot.
   6.Soup pot can be used for hot pot, soup, porridge, cooking food, etc.
6. It is not recommended that consumers directly use hotpot or baking pan, which will cause coating damage and discoloration.

Safety precautions

• Please strictly follow the instructions to avoid any danger and loss.
• This product is suitable for home use, not for commercial use. Please follow the instructions in this instruction.

• Do not touch the heating area during or after use to avoid scalding.

• Place the machine body on a horizontal surface, with a clearance of more than 10cm from the air outlet and the wall.

• If the power cord is damaged, stop using it immediately and bring the product to our maintenance department for maintenance.
• Please do not wash the body of the induction cooker directly with water to avoid damage or electric leakage.
• Keep away from high temperature heating appliances, avoid high ambient temperature, and affect the operation of this product.
• Please do not use the induction cooker on gas stove, electric stove or metal desktop.
• Please do not let the cooker dry burn on the induction cooker.
• If it is necessary to heat the sealed food, the package must be opened before starting the work.
• Do not put flammable or metal objects between the panel and the pot.
• Please unplug the power plug after using the induction cooker every time.
• There will be residual heat on the rear panel. Please do not touch it. If you need to clean it, please wait for heat dissipation for about 5-8 minutes.
• Please do not insert/put any foreign matters into the machine body to avoid machine failure.
• Do not allow children to operate the induction cooker. Please place the induction cooker out of the reach of infants/children.
• If the panel is broken, please cut off the power immediately and bring the product to our after-sales center for maintenance.
• Home appliances should not use an additional timer or independent Trent control systemperation.
• If the power cord is damaged, please stop using the product immediately and must be replaced by an agent or qualified person to avoid danger.
• Warning: if there is a crack on the glass-ceramics or the surface of the fuselage, please stop using the product immediately to avoid electric shock.
• Children should be supervised to make sure they don't play with the device.
• Children over 8 years old, persons with weak body, sense, intelligence, inexperience and knowledge can use this machine after they have been given instructions on how to use it safely and are aware of possible dangers. Children

should not play with this product, cleaning and maintenance can not be handled by children.

Safety protection

1. Small object detection function: to prevent danger when small metal objects are heated, pots and tools with a diameter of less than 8cm, small objects (such as knives and forks, spoons, small tea cups, etc.) will not be cooked, the buzzer will beep for prompt, and will automatically shut down after 1 minute.

2. Internal over temperature protection: when the internal temperature of the product exceeds 100 °C , it will automatically stop working.

3. High and low voltage protection: if the voltage is lower than 100V ( ± 10V) or higher than 270V ( ± 10V), the product will automatically stop working.

4. Unmanned automatic shutdown function: if no operation command is given after 2 hours of continuous startup and cooking (only for self determined manual operation cooking procedure), the induction cooker will automatically shut down.

5. Panel overheating protection function: if the temperature of the panel center exceeds 240 °C, the electromagnetic will automatically stop heating (Some functions automatically shut down).

After the temperature returns to normal, it will automatically resume heating (some functions need to be powered on again source On Key Restart).

1. Internal overheating protection function: when the internal temperature of the electromagnetic tank is too high, the heating will be stopped automatically.

Operating Instructions

Standby: power on, beep, LED "--", in standby mode.

Power on: press " ⏻" once in standby mode, a beep will sound, and the LED will display "--" to enter the standby heating mode.

Heating function: turn the knob or press "☐" in the preparation state, and the LED displays the preset fire level "P1" to start working.

Switching function: press the "💡" preset level "C6" or "◀" key to switch the frying or timer function.

Adjust power: turn the knob clockwise or anticlockwise to adjust the fire power, and the LED displays the corresponding fire level.

"adjustable range P1-P8, 8 level in total."

" " Under the frying and baking function, the adjustable range is C1 - C6, with 6 level in total.

"①" timing key, adjustable range 1-99 minutes.

Timing: Press " ⏻" in the working state to flash the timing display. The default initial time is "00". The flashing display time of the nixie tube is "00". When the knob is turned clockwise once, it adds 10 minutes. When it is turned counterclockwise once, it subtracts 1 minute. When the time setting is completed, it does not move for 5-7 seconds, and the digital code jumps back to the power display, indicating that the setting is successful.

Example: (For example, for 15 minutes, turn the knob clockwise twice to display 20 minutes, and then turn it counterclockwise for 5 times. To reduce 5 minutes, it can be set as 15 minutes).

Shutdown: In the working state, press to stop working, the induction cooker returns to the standby state, the fan of the induction cooker will rotate to start the automatic cooling function, and the fan will automatically shut down after cooling.

Daily maintenance

1. Ensure the plug connection is normal

- Before cleaning, pull out the power plug from the socket to avoid electricity before use, check the contact between plug and socket to ensure normal connection, so as to avoid danger during use.

1. Clean the panel

- Slight dirt: please wipe it with soft wet cloth - Avoid deformation or breakage of the machine body. Do not use volatile, thinner or liquid cleaner for cleaning. Cleaning with a cloth containing chemicals will damage the surface of the glass panel please do not put this product into the dishwasher/dish dryer for cleaning.

1. Remove oil stain

- Clean with a small amount of toothpaste or neutral detergent with a soft wet cloth, and then wipe it with a clean wet cloth.

- Do not wash directly with water to avoid electric shock and soil damage.

1. Clean the housing

- Please wipe the body with a soft cloth. The dust at the air inlet and outlet can be cleaned with a soft brush or a narrow nozzle of a vacuum cleaner.

1. Clean the pot and cover

- Please do not use a hard tool to scratch the dirt on the pots and pans and covers. If you scratch the paint on the pots and pans and covers, it will rust .Clean with a soft cloth or sponge. Do not rust when soaking in water for a long time. Wash with water and take it out wipe off the water.

Appropriate Cookware

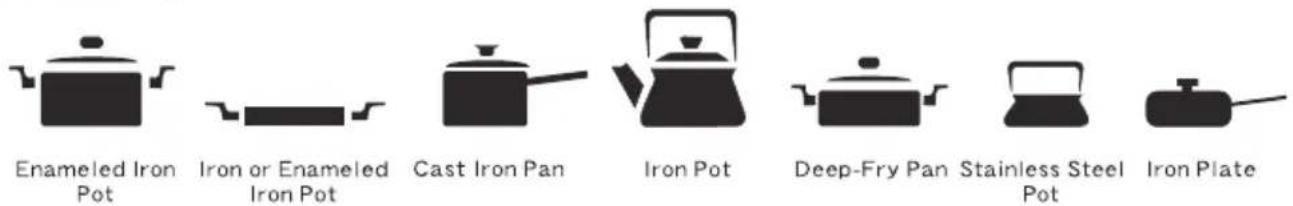

Usable pans and pots:

Steel or cast iron, enameled iron, stainless steel, flat-bottom pans/pot with diameter from 12 to 24cm.

(Because of the different material of pots in market, the cooking effect and time are different.)

Enameled Iron Pot Iron or Enameled Iron Pot Cast Iron Pan Iron Pot Deep-Fry Pan Stainless Steel Pot Iron Plate

Non-usable pans and pots:

Heat-resistant glass, ceramic container, copper, aluminum pans/pots, round bottom pans/pots with bottom measuring less than 12cm.

Ceramic Pot

Glass

Pot with unflat base

Aluminum/Copper Pot

Pot with less than 12cm diameter

Pot with foot on base

Common faults and solutions

Discrimination and elimination of simple faults
Since the machine adopts the most advanced microcomputer detection and control technology, the phenomenon that occurs during the operation of the induction cooker does not mean that there is a fault. Please check it according to the following instructions first.

number	phenomenon	Possible causes	solution
1	The fan continues to work for a period of time after shutdown	Electronic system cooling	Normal phenomenon
2	The induction cooker works for a period of time, The shutdown does not work, indicating "E3"	1、The air inlet of the induction cooker fan is blocked2、The fan of induction cooker stops running3、The ambient temperature of the induction cooker is too high. Check whether there are heating appliances around	1、Clean and remove the blockage at the air inlet2、Repaired by professional maintenance personnel3、Improve environmental conditions
3	The induction cooker works for a period of time, Shutdown does not work, indicating "E2"	1、Dry burning in empty pot 2、If the temperature rise of the object to be heated is too high	eliminate the cause of dry burning, and continue to start the work after the surface of the heating area of the electromagnetic furnace cools down
4	The induction cooker does not work, indicating the "E6"	temperature sensor fault	repaired by professional maintenance personnel
5	The induction cooker does not work, indicating that the "E5"	cooker panel temperature sensor fault is repaired	repaired by professional maintenance personnel
6	The induction cooker does not work, indicating that the "E0"	Power supply voltage is too low	shut down the induction cooker, and try again after the voltage is stable
7	The induction cooker does not work, indicating that the "E1"	power supply voltage is too high	shut down the induction cooker, and try again after the voltage is stable

Error code

In case of improper installation and use of the induction cooker, abnormal power supply or failure of the induction cooker, the LED number on the panel will display an error code.

Error Code	Error Reason
E0	The supply voltage is too low
E1	Power supply voltage is too high
E2	furnace surface temperature is too high
E3	The temperature inside the machine is too high
E5	Furnace surface temperature sensor failure
E6	Power device temperature sensor failure

Note: For safety, if the power cord plug is damaged, please contact our after-sales service center for repair during the maintenance period.

Product specifications

Model	GIC21WH
Voltage	220-240V~ 50Hz-60Hz
Power	2200W
Induction cooker size	62(H) x250(W) x265(D)mm
Pot cover size	75(H) x255(W) x255(D)mm
Soup pot size	105(H) x257(W) x305(D)mm
Baking tray size	30(H) x255(W) x295(D)mm

目錄

操作面板及各部件名稱……

温馨提示

安全注意事項及安全保護……

操作說明 ……

日常保養……

適用鍋具

常見故障及處理方法……

產品規格……

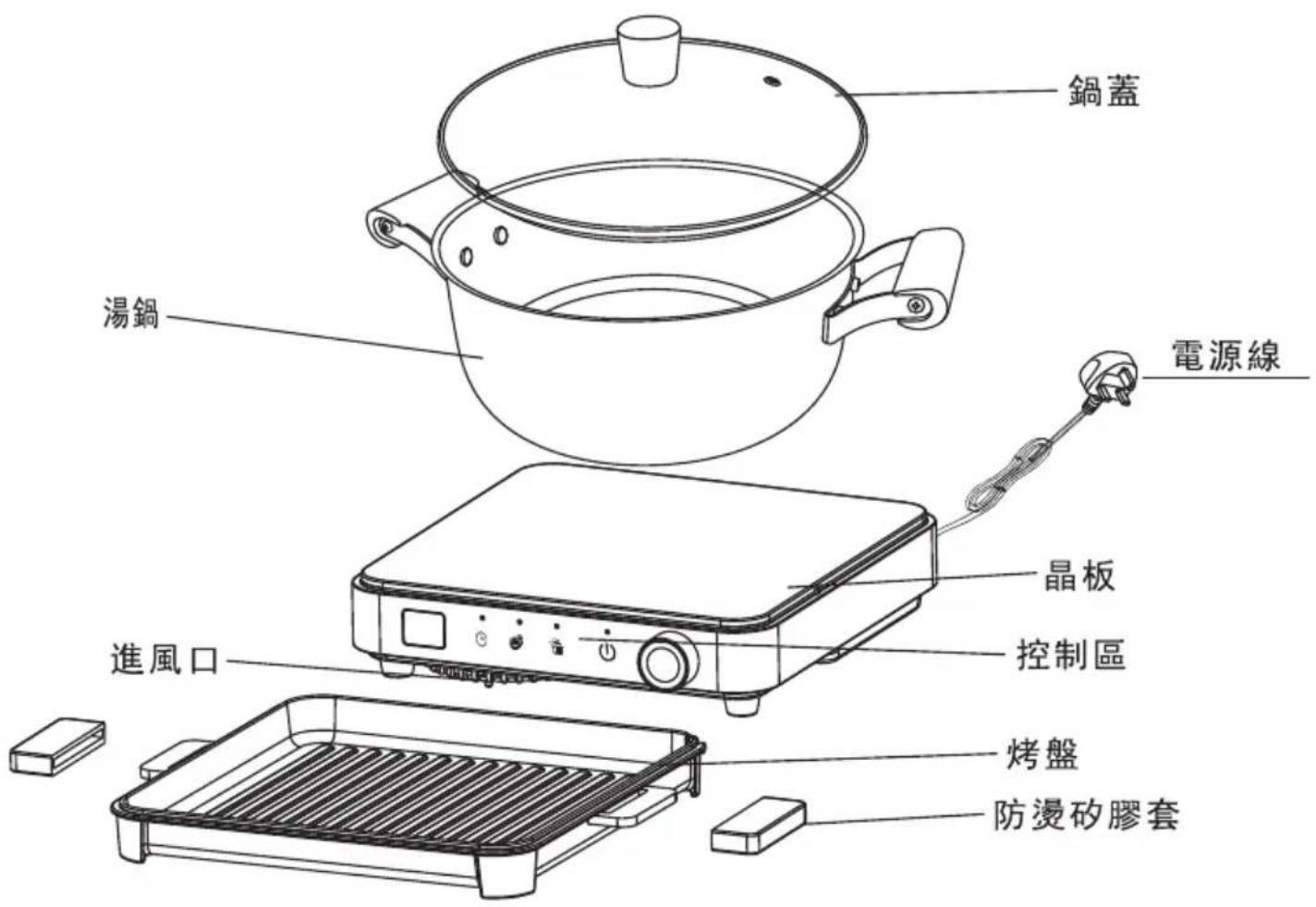

部件名稱

購買日期 Date of Purchase:

單據編號 Invoice No.:

The product specifications may be changed without prior notice.

Please contact customer service for details if necessary.

說明書內容以英文版本為準

If there is any inconsistency or ambiguity

between the English version and the Chinese version, the English version shall prevail.
