Fresco H-52 - Juicer Izzy - Free user manual and instructions

Product Type	Juicer
Model	Fresco H-52
Brand	Izzy
Dimensions (H x W x D)	Approximately 30 x 20 x 25 cm
Weight	Approximately 3.5 kg
Power Supply	AC 220-240 V, 50/60 Hz
Power Consumption	500 W
Motor Type	Induction motor
Speed Settings	2 speeds (low and high)
Juice Capacity	1 liter
Pulp Container Capacity	1.5 liters
Feeding Tube Diameter	75 mm
Material	Stainless steel and BPA-free plastic
Dishwasher Safe Parts	Yes, all removable parts
Safety Features	Safety lock arm, overload protection, non-slip feet
Spare Parts Available	Yes, replacement jugs, blades, and filters
Reparability	Repairable with available spare parts
Warranty	2-year limited warranty

Frequently Asked Questions - Fresco H-52 Izzy

How do I assemble the Izzy Fresco H-52 juicer?

Align the pulp container, juice jug, and filter basket. Lock the arm into place until you hear a click. Refer to the user manual for detailed steps.

Can I juice whole fruits without cutting?

The feeding tube is 75 mm wide, so small fruits like apples or oranges can be inserted whole. Larger items should be cut into pieces to fit.

How do I clean the juicer?

Disassemble the parts and rinse immediately after use. All removable parts are dishwasher safe. Use a brush to clean the filter mesh.

What is the maximum operating time?

The juicer has an automatic overload protection. It is recommended to run for no longer than 2 minutes continuously, then let it cool for 1 minute.

Why does the juicer stop during operation?

This may be due to overload or jamming. Turn off the unit, unplug it, and remove any stuck food. Allow the motor to cool before restarting.

Can I make nut milk with this juicer?

Yes, you can make nut milk by juicing soaked nuts along with water. Use the low speed setting for best results.

Is the juicer suitable for leafy greens?

Yes, the Fresco H-52 can handle leafy greens like spinach and kale. For best yield, roll the leaves into a tight ball before feeding.

Where can I purchase spare parts?

Spare parts are available through Izzy's official website or authorized retailers. Common parts include juice jugs, filters, and blades.

How do I prevent pulp from entering the juice?

Ensure the filter basket is properly installed and not damaged. Clean the filter after each use to maintain optimal separation.

What is the warranty period?

The Izzy Fresco H-52 comes with a 2-year limited warranty covering manufacturing defects. Register your product online for full coverage.

USER MANUAL Fresco H-52 Izzy

Close-up of a glass juicer with a spherical lid and 'fresco' branding, no visible text or symbols on the device itself.

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (pls see below “Guarantee and Customer Service”)

- Make sure your electricity supply is the same as the one shown on the underside of the appliance.

• Always plug your device into an earthed outlet. Failure to comply with this requirement may result in electric shock and possible serious injury.

- Never leave the appliance unattended when operating.

- Close supervision is necessary when your appliance is being used near children. Ensure that they do not play with the appliance.

- This appliance is not intended for use by people with reduced physical sensory or mental capabilities, children or those with lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety

- Switch off and unplug:

- Before fitting or removing parts.

- After each use.

- Before cleaning.

- Never use the appliance for any other use than indicated.

• The device is intended for indoor use. Do not use the device outdoors.

- The device is intended only for domestic use. Any other use will cancel the warranty.

• Always use the citrus press on a secure, dry, clean and heat resistant surface.

- Do not operate or place the device or parts in places of high humidity or where it may get wet.

- Never let the power unit, cord or plug get wet. If the appliance does get wet, immediately remove the power cord from the wall outlet and do not put your hands in the water. Never run the wet appliance and contact one of the authorized BENRUBI service centers.

- Misuse of your citrus press may result in injury.

- Do not let the power cord of the appliance hang over the edge of a table or bench top or touch any hot surface.

• Never leave the power cable wrapped during use. Unwind it completely.
• Never use highly corrosive or abstractive cleaning agents. Never use metal scouring pads for cleaning.
• Do not move the appliance when it is in operation.
• Do not touch the appliance with wet or damp hands.
• Do not use an extension power cord.
• Check the power cord periodically for possible damages. If the power cord or the plug of the appliance has been damaged, do not use the appliance and contact an authorized BENRUBI Service Center.
• In case of a possible damage, do not attempt to repair the appliance by yourself. Please contact one of the authorized BENRUBI servic centers.
• Any repair made by a unauthorized BENRUBI Service Center CANCELS THE GUARANTEE.
• Any misuse of the device cancels the warranty.
• Use only original spare parts
• The appliance conforms to EU directive 2014/30/EU on Electromagnetic Compatibility, the 2014/35/EU Low Voltage Directive, the 2011/65/EU RoHS Directive, the directive 2009/125/EC for eco design and the EC regulation no. 1935/2004 on materials intended to contact with food.

SAVE THESE INSTRUCTIONS

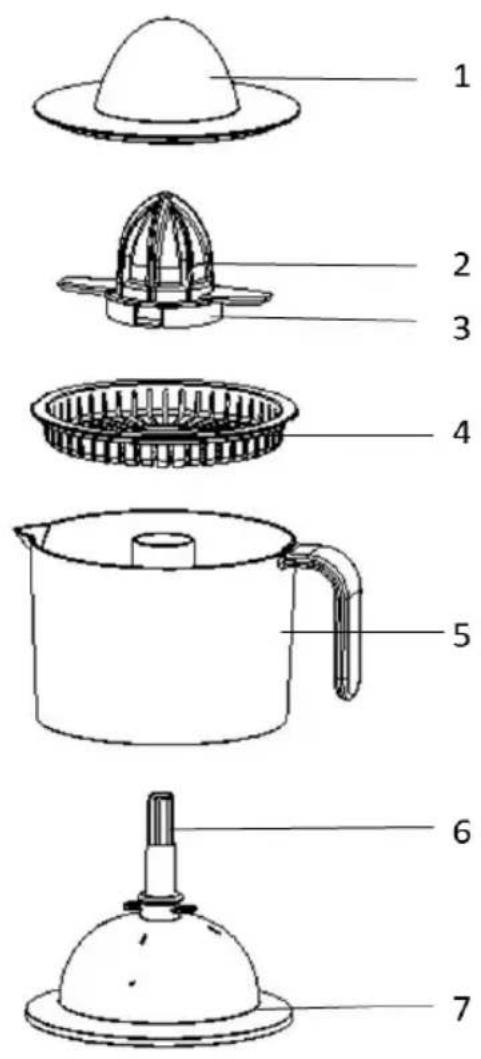

Parts of the Appliance

1. Lid
2. Large cone (for large fruits e.g. grapefruits, oranges)
3. Small cone (for small fruits e.g. lemons, limes)
4. Strainer
5. Juice container
6. Rotating shaft
7. Base/motor

Before the First Use

- Wash the accessories of the appliance. See "care and cleaning".

Using the Appliance

1. Place the juice container (5) at the base of the device (7).
2. Place the strainer (4) on top of the juice container (5).
3. Attach the small cone (3) to the rotating shaft (6). If you want to use the large cone (2) attach it on top of the small cone (3)
   NOTE: The notches of the large cone should snap onto the two wings of the small cone.
4. Plug in the appliance. Be sure to unfold the entire cord.
5. Cut the fruit in half and place the one half on the cone of your choice.
6. Press the fruit on the top of the cone. The device automatically begins operating as pressing the fruit. The motor of the appliance will automatically stop when stop pressing the fruit.
7. When you finish, remove the plug from the socket.

ATTENTION: Do not apply excessive pressure for better maintenance of the appliance.

Tips for Good Results

The appliance has dual rotation function for better results.

• Use only fresh fruits.
• Consume the juices immediately so as to reserve all the vitamins. Do not store the ju prepared in metal containers.
• Prepare juices using citrus as the base. Mix lemon and orange juice to make a power juice that is rich with Vitamin C.
• Enrich your cocktails with freshly squeezed juice for better taste.
• Add freshly squeezed lemon juice to your tea. It will enrich its taste and it will boost your immu system.

Care and Cleaning

1. Always unplug the appliance before cleaning.
2. Disassemble the device by removing the cones, the strainer, the juice container and rotating shaft.
   Cones, strainer, juice container and rotating shaft: Wash in warm soapy water or in the top basket of the dishwasher. Dry thoroughly.
   Base / motor: Wipe with a damp cloth. Dry thoroughly.
3. Re-assemble the unit before storing.

Technical Characteristics

Model: Citrus press H-52

Rated voltage / Frequency: 220-240V \~50-60Hz

Power: 60 W

Juice container capacity: 1Lt

Safe Appliance Disposal

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

- BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by present purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRUBI Company to replace or repair the defective product.

- The warranty does not cover damages resulting from normal wear, breakage, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure to implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.
• Burns due to exposure to heat or flame.

- Damage from thermal shock (sudden temperature change or change of voltage).

FOR MORE INFORMATION CONTACT:

H. BENRUBI & FILS SA

27 Aghiou Thoma str, GR15124

Maroussi – Athens

Tel.: [phone], Fax: [phone]

e-mail: [e-mail]
