Product Type	PC Gaming Monitor
Brand	LC-Power
Model	M32-QHD-144-C
Screen Size	32 inches
Resolution	2560 x 1440 (QHD)
Refresh Rate	144 Hz
Aspect Ratio	16:9
Curved Screen	Yes
Panel Type	Not specified (likely VA or IPS)
Connectivity	HDMI, DisplayPort, DVI (depending on model), Audio Output
VESA Mount	75 x 75 mm
Stand	Included, detachable
OSD Buttons	M (Menu), Up, Down, E (Exit), Power
LED Indicator	Solid blue (normal), flashing blue (no source), red (no signal/low voltage)
ECO Modes	Standard, Text, Movie, Game, FPS, RTS
Gameplus	Crosshair overlays for FPS games
Input Voltage	100-240 V AC
Power Consumption	Not specified (typical ~40-50 W)
Weight (with stand)	Not specified (estimated ~8 kg)
Dimensions (with stand)	Not specified
Package Contents	Monitor, stand base and stem, power cable, screws, screwdriver
Cleaning Instructions	Use a soft, dry cloth. Do not use harsh chemicals.
Safety Precautions	Place on stable surface; avoid liquid exposure; use provided cables.
Repair/Spare Parts	Contact retailer for after-sales service.

Frequently Asked Questions - M32-QHD-144-C LC-Power

How do I install the stand on my LC-Power M32-QHD-144-C monitor?

Keep the foam under the monitor. Attach the base to the stem with 3 screws (P-head 12mm), then attach the stand plate to the stem with 2 screws (K-head 12mm). Insert the stand plate into the monitor's back until it clicks. Remove foam and place upright.

Can I mount this monitor on a wall?

Yes, it supports VESA 75x75 mm mounts. Remove the stand plate by pressing the release button, then remove the 4 original screws. Use the included no. 2 screws (2x30mm, 2x26mm) to attach the VESA mount (not included).

What ports are available on the monitor?

Ports depend on the model but may include: HDMI, DisplayPort, DVI for video, and an Audio Output for sound. Check your unit for availability.

How do I use the on-screen display (OSD) menu?

Press the M button to enter the OSD. Use the Up/Down arrows to navigate, and E button to exit. The M button also enters submenus.

What does the LED indicator mean?

Solid blue: monitor is on and working. Flashing blue: no video source detected. Red: no horizontal/vertical signal or low voltage. Ensure cables are connected and PC is on.

How do I switch between ECO modes and Gameplus?

Press any button to activate the navigation window. Press Up arrow to cycle ECO modes (Standard, Text, Movie, Game, FPS, RTS). Press Down arrow to select Gameplus crosshair overlays for better aiming in shooting games.

What is the maximum resolution and refresh rate?

The monitor supports 2560x1440 (QHD) resolution at 144 Hz refresh rate. For optimal performance, use a DisplayPort or HDMI connection.

Does the monitor have built-in speakers?

No built-in speakers are mentioned. However, there is an Audio Output port to connect external speakers or headphones.

How do I clean the monitor screen?

Use a soft, dry cloth to gently wipe the screen. Avoid using harsh chemicals, alcohol, or abrasive materials. For stubborn smudges, slightly dampen the cloth with water.

What should I do if the monitor does not display anything?

Check that the power cable is connected and the monitor is turned on (LED should light). Ensure the video cable (HDMI/DP/DVI) is properly connected to both the monitor and the PC. Verify the PC is outputting video. If LED flashes blue, there may be no signal; try a different cable or port.

USER MANUAL M32-QHD-144-C LC-Power

PC gaming monitor series

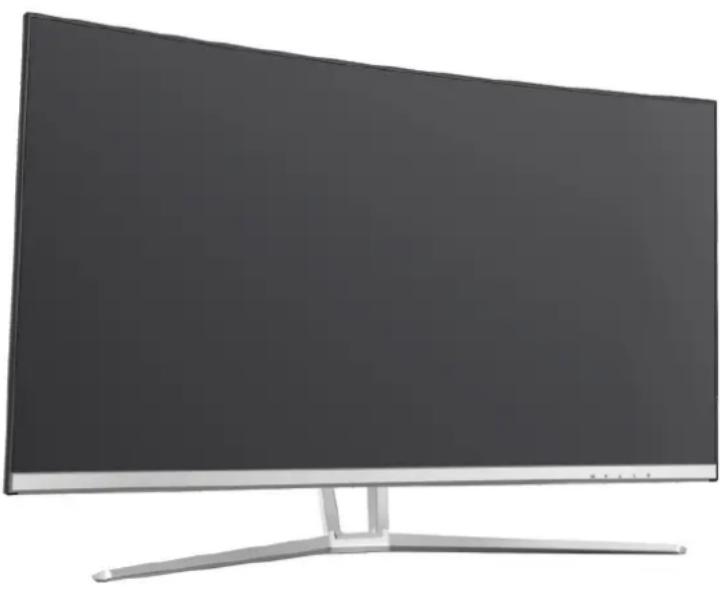

Modern flat-screen monitor with a curved top and stand (no text or symbols visible)

1. Product overview

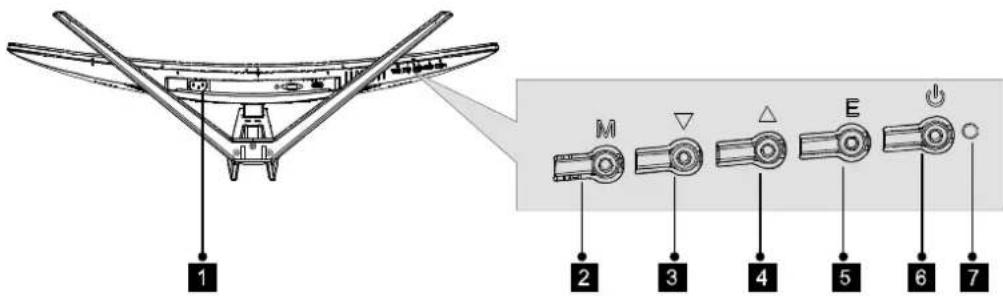

1.1 Monitor buttons

1. Power connector: Insert the power cable here.
2. M - menu button: Press to enter the OSD menu or to enter sub menus.
3. DOWN arrow button Press to move down in the menus
4. U arrow button: Press to move up in the menus.
5. E - exit button: Press to exit the menu.
6. Power button: Press to turn the monitor on and off
7. LED indicator: Changes colour to indicate the status. Refer to chapter 6 for more details

Note: The E button can also be used to switch between two color gamuts when a compatible graphics card and either HDM or DP connections are used.

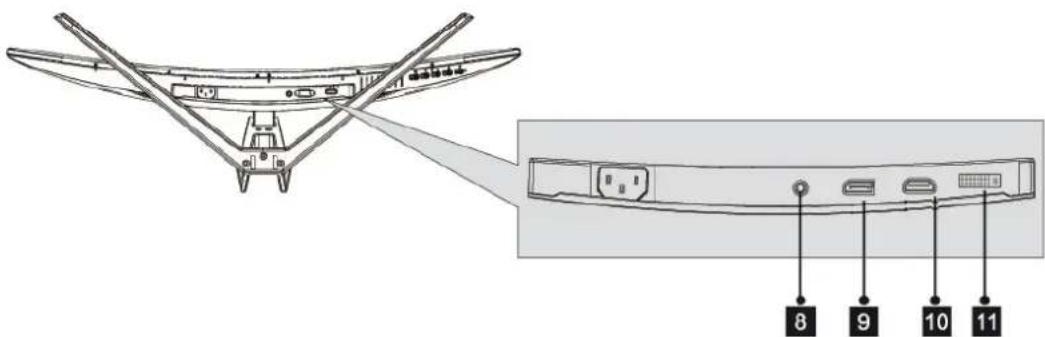

1.2 Monitor ports | please check if available on your purchased model

1. Audio output: Connect the audio cable from your computers audio output to receive the audio signal on your monitor.
2. DP port: Connect your monitor with the DP | DisplayPort| port of your computer.
3. HDMI port: Connect your monitor with the HDMI port of your computer.
4. DVI port: Connect your monitor with the DVI port of your computer.

2. Stand installation

Keep the foam underneath the monitor before attaching the stand.

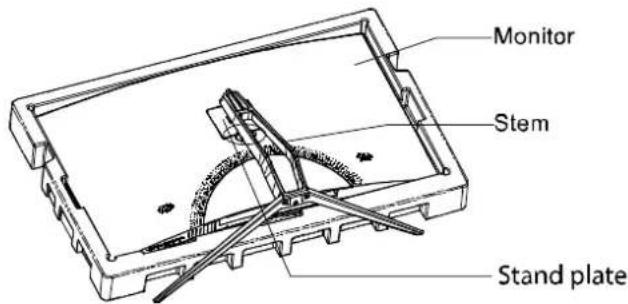

1. Open the packaging, take out the product with the foam parts still attached, and gently place it on a desktop or table. Use the included screwdriver and three no. 1 screws to fasten the base to the stem.

1. Remove the foam covering the back of the monitor, then press the button to remove the stand plate. Use two no.1 screws to fasten the stand plate to the stem.

1. Insert the stand's plate into the opening on the back of the monitor. It should click into place. Make sure the stand is securely attached to the back of the monitor, then remove the remaining foam part from the monitor and put it on a table or desk.

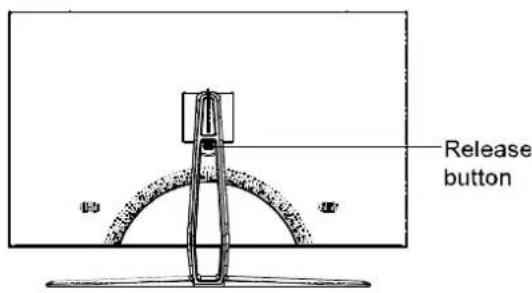

If needed, the stand can easily be detached from the monitor by pressing the button near the stand plate. Make sure the monitor is laid on a flat surface before removing the stand.

Section 3: VESA mount installation

The monitor packaging includes screws which may be used when attaching the monitor to a VESA 75x75 mm type mount. No VESA mount or mounting accessory is included in delivery.

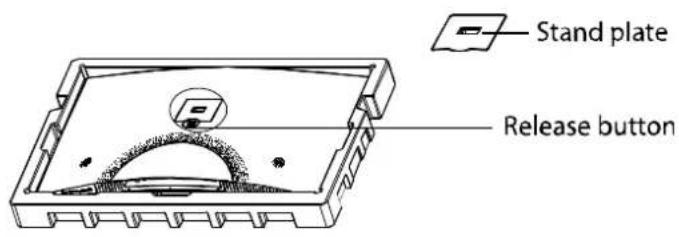

1. Open the packaging, take out the product with the foam parts still attached, and gently place it on a desktop or table. Remove the extra parts and the foam part covering the back of the monitor. Press the button to remove the stand plate. If the monitor is already attached to the stand, remove the stand.

Technical line drawing of a mechanical component with internal cavities and mounting brackets (no text or symbols)

1. Remove the 4 original screws from the opening on the back of the monitor.

2. Follow the instruction manual of your VESA mount, stand or accessory and install the monitor on the wall or fixture as desired. Remember to use the included no. 2 screws when attaching any mount etc. to the back of the monitor. Refer to the image for correct screw placement:

Diagram of a curved structure with dotted fill and two horizontal lines, no text or symbols present

Use 2x screw no. 2 / 30 mm

Use 2x screw no. 2 / 26 mm

Use only the no. 2 screws (2 pcs. with 30 mm, 2 pcs. with 26 mm) provided for this type of installation. Do not discard the original screws as these may be needed for future use.

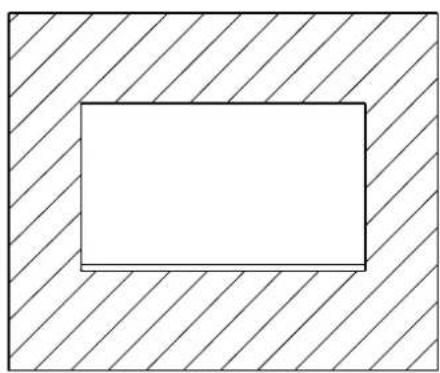

Simple geometric diagram with a rectangle inside a square, surrounded by diagonal hatching (no text or symbols)

Section 4: Connectivity options

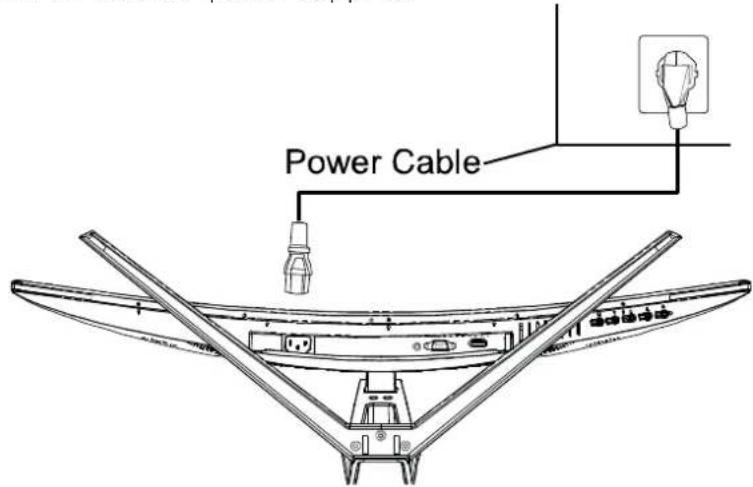

4.1 Connect the power cable

Connect the included power cable to the power connector of the monitor, then plug it into a wall outlet. The same procedure applies for external power supplies.

4.2 Video and audio port connectivity (depending on your model)

Please use a matching cable to connect your monitor and your computer. Depending on your model, the existing ports may be DP | DisplayPort, HDMI or DVI for video signals.

Also the monitor may have an audio output port or included speakers for audio signals.

Section 5: Basic operation

1. Connect your monitor to the PC's graphics card or mainboard video output.

For an optimal refresh rate of the monitor, it is recommended to use the DP or HDM connection.

1. Connect the power cable to your monitor and to a wall outlet.

2. Press the power button on the monitor (see section 1.1) to turn the monitor on.

Section 6: Indicator light

The indicator light is located on the bottom of the monitor

Bottom view

* Solid blue light indicates that power is on and the monitor is operating normally.
* Fashing blue light indicates that no video source has been detected.
* Red light indicates that no horizontal or vertical signal has been detected or that the voltage is low.

Please ensure your computer is on and all video cables are correctly connected.

Section 7: ECO modes and Gameplus switching

1. Press any button | M, ▼, ▲, E, ⏻ to activate the navigation window

Five icons on a light blue background: home, game controller, eco, grid, and power button (no text or symbols)

1. Press the ▼ button to switch to Gameplus modes. According to the needs of your game, choose the corresponding game icon. These game icons are primarily designed to optimize your aim during shooting games, though they can also be used for other scenarios.

1. Press the ▲ button to switch between ECO modes. These modes include Standard, Text, Movie, Game, FPS and RTS and can be used to optimize settings according to your activity. Standard mode is suitable for most activities.

Service

If you need technical support, please contact us via [e-mail] or visit www.lc-power.com. If you need after sales service, please contact your retailer directly.
