Product Type	Inverter Welding Machine
Model	ADWH-913V
Brand	Ozito
Input Voltage	230 V AC, 50 Hz
Output Current Range	20 - 130 A
Duty Cycle	20% at 130 A
Welding Process	MMA (Manual Metal Arc)
Electrode Diameter	1.6 - 3.2 mm
Dimensions (W x H x D)	200 x 100 x 150 mm
Weight	4.5 kg
Protection Class	IP21
Insulation Class	F
Cooling	Fan cooled
Features	Hot start, Anti-stick, Arc force
Maintenance	Clean dust from vents regularly; check cables for damage
Safety	Use welding helmet, gloves, and protective clothing; ensure proper grounding
Spare Parts	Electrode holder, ground clamp, welding cables, torch
Repairability	Repair by qualified technician; use genuine Ozito parts
Accessories Included	Electrode holder, ground clamp, cable, brush

Frequently Asked Questions - ADWH-913V Ozito

What type of welding does this Ozito ADWH-913V support?

The Ozito ADWH-913V is an MMA (Manual Metal Arc) welding machine, suitable for welding steel and stainless steel with coated electrodes.

What is the input voltage requirement?

It requires a 230 V AC power supply at 50 Hz. Ensure the circuit is properly rated.

What is the maximum welding current?

The maximum output current is 130 A, with a duty cycle of 20% at that current.

What size electrodes can I use?

You can use electrodes with diameters from 1.6 mm to 3.2 mm.

Does it have hot start and anti-stick features?

Yes, it includes hot start for easy arc ignition and anti-stick to prevent electrode sticking.

How much does the machine weigh?

The weight is approximately 4.5 kg, making it portable.

What safety precautions should I take?

Always wear a welding helmet with proper shade, gloves, and protective clothing. Ensure good ventilation and ground the workpiece.

How do I maintain the welding machine?

Regularly clean dust and debris from ventilation openings. Inspect cables for damage and replace if necessary.

Where can I find spare parts?

Spare parts such as electrode holders, ground clamps, and cables are available from Ozito service centers or authorized dealers.

What is the duty cycle?

The duty cycle is 20% at 130 A, meaning you can weld for 2 minutes in a 10-minute cycle before resting.

USER MANUAL ADWH-913V Ozito

WELDING HELMET WARNINGS

ozito

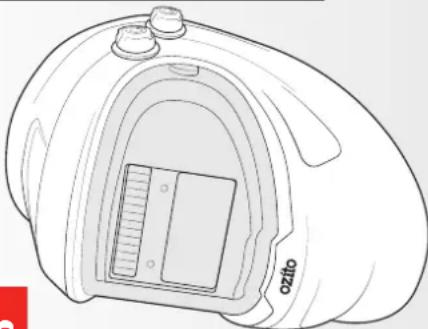

Line drawing of a welding helmet with visible internal components and 'ozito' branding (no text or symbols beyond label)

AUTO DARKENING WELDING HELMET

VARIABLE SHADE 5-9 9-13

INSTRUCTION MANUAL

Viewing Window: 92.5 x 42.5mm

Switching Time: ≤3/10,000s (Light to Dark) Power Supply: 3V Lithium Battery (CR2450)
& Solar Power
Light State: Shade 4
Dark State: Shade 5-9 | 9-13
Operating Temp.: -5 to 55°C
No. of Sensors: 2
weight: 0.94kg

ozito.com.au

WARRANTY

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.

IN ORDER TO MAKE A CLAIM UNDER THIS

WARRANTY YOU MUST RETURN THE PRODUCT

TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT.

PRIOR TO RETURNING YOUR PRODUCT

FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia: 1800 069 486

New Zealand: 0508 069 486

4. YEAR REPLACEMENT WARRANTY

Your product is guaranteed for a period of 12 months from the original date of

purchase. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty excludes consumable parts, for example: valve adapters and

ANSWER ANY QUESTIONS YOU MAY HAVE

RELATING TO THE WARRANTY POLICY OR PROCEDURE.

The following actions will result in the warranty being void.

If the tool has been operated on a supply voltage other than that specified on the tool. If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.

Failure to perform maintenance as set out within the instruction manual. If the tool is disassembled or tampered with in any way.

Professional, industrial or high frequency use.

24/7 expert advice. Do not store lens cartridge in a location near a heat source or in a high
Do not store them outbridge in a location near a heat source of in a high moisture environment.
do not store long cord
247 Export advice.
do not store lens cartridge in a location near a heat source or in a high
We not store long garments in a retail or near a heat source of air at high
moisture environment.
247 Export advice.
do not store lens cartridge in a location near a heat source or in a high
We not store long eartrage in a location near a heat source or in a high moisture environment.
moisture environment.
24/7 expert advice
2.1 Export advice
Do not store lens cartridge in a location near a heat source or in a high
maintive environment
moisture environment.
24/7 expert advice.
do not store lens cartridge in a location near a heat source or in a hinh
resistive environment
moisture environment.

[Non-Text]

[Non-Text]
batteries you have removed from a product immediately. That batteries can still
be dangerous.
I know think a child has swallowed or imported a button bottom contact the
I you think a child has swallowed or inserted a button battery, contact the Poisons Information Centre on 13 11 26 (Australia) or 0800 764 766 (NZ) for
24/7 expert advice.

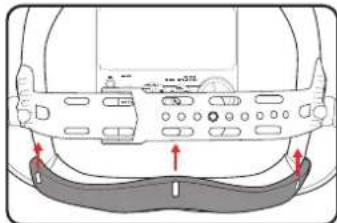

- Frequently clean the sweatband.
- Do not remove the auto darkening filter from the helmet. Never try to open
batteries you have removed from a product immediately. Flat batteries can still
be dangerous.
(2) 通过互联网投票系统进行网络投票, 可以现场投票和网络投票相结合的方式进行。
f you think a child has swallowed or inserted a button battery. contact the
Relieve Information Centre and 10-11-06 (Australia) or 0000-764-766 (N7) for
Poisons Information Centre on 15 11 26 (Australia) of 0800 764 766 (NZ) for
24.7 npgrad ndvinn
[Non-Text]
batteries you have removed from a product immediately. Flat batteries can still
be dangerous.
(2) 通过互联网投票系统进行网络投票, 可以现场投票和网络投票相结合的方式进行。
batteries you have removed from a product immediately. Flat batteries can still be dangerous.
(2) 通过互联网投票系统进行网络投票, 可以现场投票和网络投票相结合的方式进行。
f you think a child has swallowed or inserted a button battery. contact the
Relieve Information Centre and 10-11-06 (Australia) or 0000-764-766 (N7) for
Poisons Information Centre on 13 11 26 (Australia) of 0800 764 766 (NZ) for
247 expert advinn
[Non-Text]
batteries you have removed from a product immediately. Flat batteries can still
be dangerous.
1. 2017年，公司与上海浦东发展银行股份有限公司签订了《关于使用部分闲置募集资金进行现金管理的协议》。
you think a child has swallowed or inserted a button battery, contact the
Delaware Information Centre on 12.11.26 (Australia) or 0900-764-766 (N7) for
Poisons information centre on 15 11 26 (Australia) of 0000 764 766 (NZ) for
[Non-Text]
- The Auto darkening filter must have outside protective lens installed to prevent
potential irreparable damage. Do not use auto darkening welding helmet with
any of the lenses removed.
- Change scratched or broken lens that reduces visual field and protection level. - Frequently clean the sweephead.
- Frequently clean the sweatband. - Do not remove the auto darkening filter from the helmet. Never try to open
batteries you have removed from a product immediately. Flat batteries can suit be dangerous.
(2) 通过互联网投票系统进行网络投票, 可以现场投票和网络投票相结合的方式进行。
If you think a child has swallowed or inserted a button battery, contact the
1 Visuing information venue on 10 11 20 (Australia) of 0000 704 700 (NZ) IVI
[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

WARNING! The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Young children should be supervised to ensure that they do not play with the appliance.

THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR WELDING HELMET. Serious personal injury may occur if these warnings are

ignored.

- The auto darkening welding helmet is not suitable for laser welding and oxygen acetylene welding.

- Do not put the helmet near flames or in damp places.

- Before operation, please confirm that the welding or grinding function is correctly selected.

- Before operation, tear off the protective film from the lens.

- Cease using the helmet immediately if the filter does not darken on exposure

to UV/IR light. Contact Ozito customer service for further instructions. Arc rays

from the welding process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes and skin. Sparks fly off from the weld.

- Do not attempt to replace or modify parts of the helmet.

- Do not remove the filter protective plate or the filter.

- Do not use alcohol, petrol, or thinners to clean the filter.

- Do not immerse the helmet in water.

- Optimum operating temperature is between -5 to 55°C (23 to 131°F). The auto darkening function may react slower outside of this range.

- Contact Ozito customer service for further instructions if the protective films

Increase the customer service for smaller instructions is the procedure time are broken or scratched.

- Contact Ozito customer service for further if the filter protective plate is broken

or scratched. To prevent damage to the filter, do not use hard objects near it.

- Clean the filter surface, sensors, and solar cells regularly. - This welding helmet does not provide protection against serious impact.

- This welding helmet does not provide protection against serious impact, explosives, or corrosive liquid damage.

1. Not applicable for data generating and from the enhanced sector by a space

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

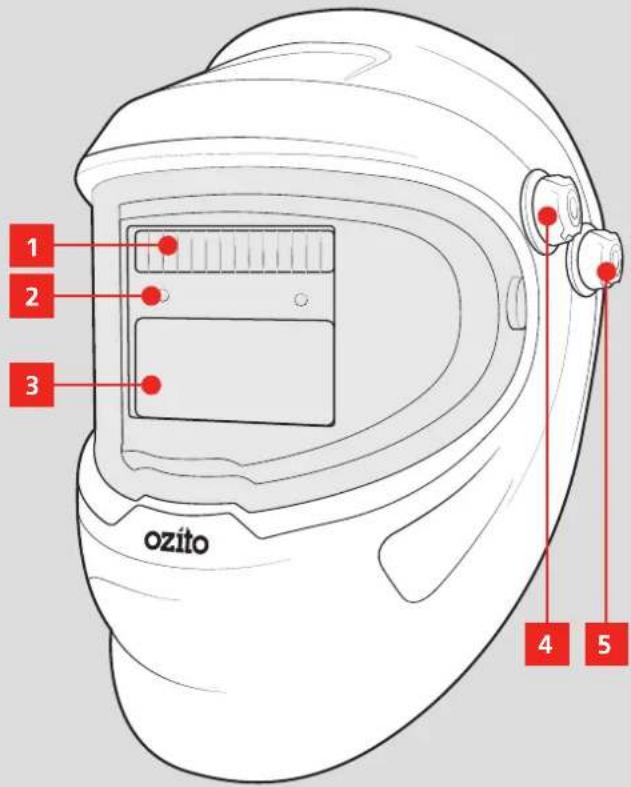

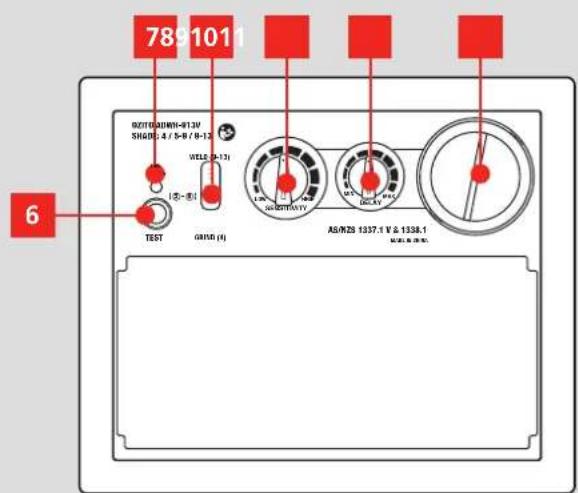

KNOW YOUR PRODUCT

AUTO DARKENING WELDING HELMET

1. Solar Panel
2. Low Battery Indicator
3. Arc Sensor
4. Mode Selector
5. UV/IR Filter

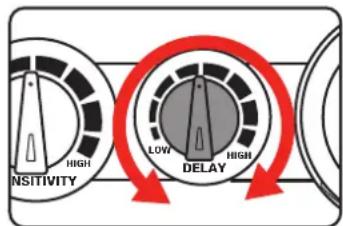

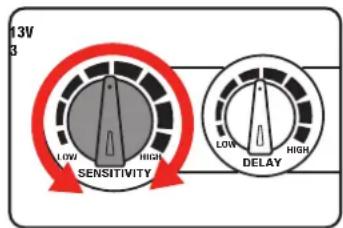

6. Sensitivity Control Dial

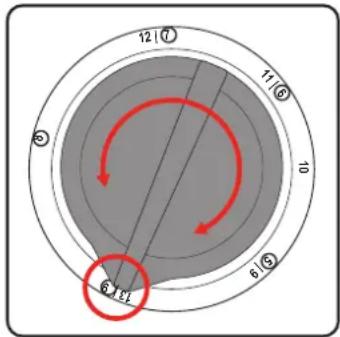

7. Shade Adjustment Dial
8. Delay Time Control Dial
9. Locking Knob
10. Lithium Battery Cover
11. Auto Darkening Test Button

ONLINE MANUAL

Scan this QR Code with your mobile device to take you to the online manual.

YEAR REPLACEMENT WARRANTY*

SETUP & PREPARATION

1. UV/IR FILTER

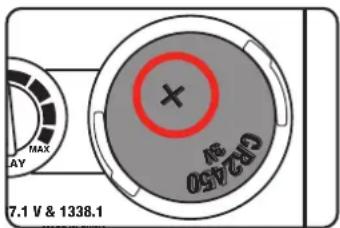

Checking The Battery

Before first use, pull and remove the plastic tab to engage the battery contact.

WARNING! ALWAYS CHECK THAT THE AUTO DARKENING FEATURE IS FUNCTIONING AS NORMAL BEFORE ATTEMPTING TO WELD. FAILURE TO DO SO MAY RESULT IN INJURY TO YOUR CORNEAS.

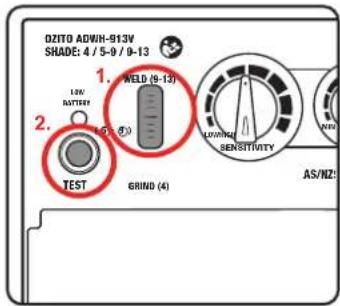

1. Set the mode slider to 'WELD'.

Note: The test function will not work if the slider is set to 'GRIND'.

1. Press the 'TEST' button. The viewing window should darken briefly before returning to normal.

Note: The timing between dark state to light state will correspond with the delay setting. Refer to Delay time in 3. Controls section.

Note: Remove the protective film from the lenses before use.

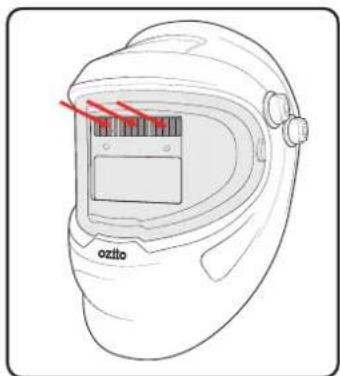

Solar Panel

WARNING! ENSURE THAT ALL OPERATING PARTS ARE CLEAN & UNDAMAGED BEFORE USE. SCRATCHED OR BROKEN PARTS SHOULD BE REPLACED IMMEDIATELY.

WARNING! DO NOT USE AUTO DARKENING WELDING HELMET IF THE SOLAR PANEL IS DAMAGED OR COVERED.

The solar panel works in conjunction with the battery to provide power to the welding helmet. The helmet will not work with the solar panel blocked.

2. ADJUSTING THE HEADBAND

Changing The Distance & Tilt Angle

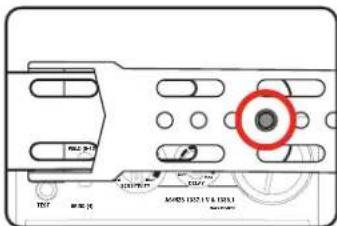

1. Loosen the locking knobs on both sides of the helmet by turning it anti clockwise.

Diagram of a door handle with a circular button and arrow indicating rotation (no text or symbols)

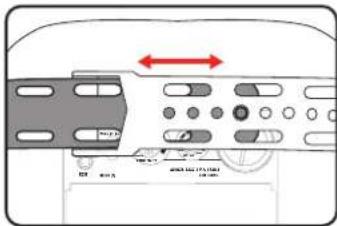

1. To change the helmet distance from your face, slide the cross pin forward or backwards in relation to the headband slots.

Diagram of a brain with a highlighted region and red arrow indicating direction (no text or labels)

1. To change the tilt angle of the helmet, hook the tab onto one of the 5 pin options.

Diagram of a mechanical component with a highlighted section (no text or symbols)

Note: Ensure the cross pins and tilt angle on both sides of the helmet match.

1. Retighten the locking knobs. Set the screw tightness so that the mask can be flipped up or down easily when nudged, but remains in position otherwise.

Note: When properly adjusted, your line of sight and the locking knobs should be connected by a straight line perpendicular to the viewing window.

Adjusting The Tightness

1. To loosen the headband, turn the band adjuster counterclockwise.

Diagram of a mechanical or anatomical component with a red circular arrow indicating rotational motion (no text or symbols present)

1. To tighten the headband, turn the knob clockwise.

2. Disengage the tab from the top strap of the headband.

1. Loosen or tighten the band as required, then press the tab back into one of the holes to lock the setting in place.

3. CONTROLS

WARNING! ENSURE THE LOW BATTERY INDICATOR LIGHT IS OFF & YOU HAVE VERIFIED THE WELDING HELMET IS WORKING PROPERLY WITH THE "TEST" FUNCTION BEFORE PROCEEDING TO WELD.

WARNING! WELDING HELMETS DO NO PROVIDE UNLIMITED EYE, EAR AND FACE PROTECTION.

WARNING! NEVER WELD WITH ANY OF THE LENS OR FILTERS REMOVED.

WARNING! BEFORE WELDING, ADJUST THE AUTO-DARKENING LENS SENSITIVITY SETTING TO MEET THE APPLICATION. ENSURE THE CORRECT SHADE IS USED FOR THE APPLICATION.

Sensitivity

Adjust this to suit ambient and welding light levels.

Low sensitivity is best for high current welding, whilst the high setting is suited for welding with small currents. The medium setting is suitable for the majority of indoor and outdoor welding activities.

1. To adjust, turn the dial to the lowest setting and face the helmet in the direction of use, exposing it to the surrounding light levels.
2. Gradually increase the sensitivity until the lens darkens.
3. Then lower the sensitivity just slightly below the setting in step 2.

Note: Slight re-adjustment may be necessary for certain applications or if the lens is flashing on and off.

Delay Time

The delay time controls the time taken for the helmet to switch between full dark and full light. This can be adjusted between 0.1s to 0.8s.

The short delay time is suitable for spot, seam or short welding sessions. The medium setting is suitable for the majority of indoor and outdoor welding. Use the long delay time for high current welding or to prevent eye fatigue during long welding sessions.

Mode Selection

Before use, peel off the protective film from the front and inner lens.

Shade number can be manually set by adjusting the mode selector from grind, shades 5-9 or 9-13. The specific shades can then be selected using the shade adjustment dial.

1. Set the mode selector to '5-9 (circled)' or '9-13' depending on the application.

1. Turn the shade adjustment dial to the desired shade level (circled numbers are for mode 5-9 and un-circled numbers are for mode 9-13.

WARNING! ALWAYS ENSURE THE CORRECT MODE AND SHADE IS SELECTED BEFORE WELDING.

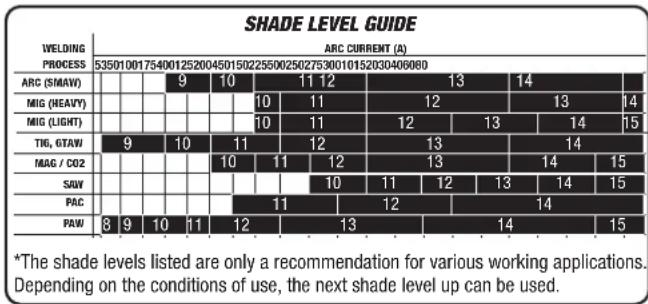

Note: Shade level should be based on the welding process and arc current being used. Refer to the lens shade level guide on the inside of the mask for guidance.

Note: Set the mode to 'GRIND' if using the helmet while grinding. The auto darkening function does not activate in GRIND mode.

WARNING! DO NOT WELD IN GRIND MODE, THE LENS WILL NOT DARKEN.

WARNING! ARC RAYS FROM THE WELDING PROCESS PRODUCE INTENSE VISIBLE AND INVISIBLE (ULTRAVIOLET & INFRARED) RAYS THAT CAN BURN EYES AND SKIN. SPARKS CAN ALSO FLY OFF FROM THE WELD, CAUSING BURNS.

MAINTENANCE

4. TROUBLESHOOTING

WARNING! THE AUTO DARKENING WELDING HELMET SHOULD NOT BE USED IF THE PROBLEMS MENTIONED BELOW ARE NOT CORRECTED.

Filter does not darken or flickers

• Check that the filter protector & filter is not scratched or dirty.
• Check that the arc sensors are clear and unobstructed.
• Welding current may be too low, adjust the sensitivity level to higher setting.
• Check that the low battery indicator light is not lit.
• Check that the battery is in good condition and installed properly. Try installing a new battery.

Filter reacts slowly

• Check that the ambient temperature is within the operating range.
• Check that the sensitivity is not set to minimum.
• Review the sensitivity recommendations and adjust the sensitivity.
• Clean the lens cover and sensors of any obstructions.
• Make sure the sensors are facing the arc; angles of 45^ or more may not allow the arc light to reach the sensors.

Filter is not clear

• Check that the filter protector is not stained.
• Check that the protective film has been removed.
• Check that there is enough ambient light in the work space.
• Check that the shade number is set correctly.
• Check front and inner lens is clear.

Helmet is slipping

• Check that the headband is adjusted correctly.
• Check that the locking knobs have been tightened sufficiently.

WARNING! KEEP COIN CELL BATTERIES OUT OF REACH OF CHILDREN.

Coin cell batteries pose a serious hazard to children. If ingested, a coin cell battery can lead to chemical burns, perforation of soft tissue and death. Severe burns can occur within 2 hours of ingestion. If you suspect a child has ingested a coin cell battery, seek medical attention immediately. The Poisons Information Centre can be contacted for expert advice 24/7 on 13 11 26 (Australia) or 0800 764 766 (New Zealand).

Flat batteries can still be hazardous. When replacing coin cell batteries, it is recommended to sticky tape both sides of used batteries, keep them out of reach of children and take them to your nearest recycling facility or dispose of them immediately.

Regularly examine the product and battery compartment to ensure the batteries are securely assembled. If the battery compartment is damaged or not secure, keep the product out of reach of children and contact Ozito customer service immediately.

Changing The Battery

The low battery indicator will light up red when the battery charge gets too low and indicates that the battery should be changed.

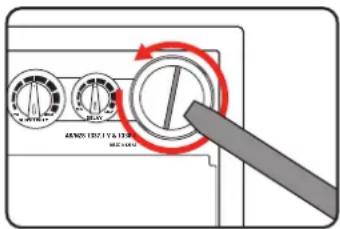

1. Place a flat head screwdriver (not supplied) into the battery cap slot and turn it counter-clockwise to unlock it. Remove the cap.

1. Replace the battery with a new CR2450 battery.

Note: The auto darkening helmet will not work if the battery is installed in the wrong orientation. The positive side of the battery should be facing out.

1. Fit the cap back into place and turn clockwise to secure it.

WARNING! DO NOT IMMERSE THE LENS ASSEMBLY OR THE HELMET IN WATER.

WARNING! DO NOT USE SOLVENTS OR ABRASIVE CLEANING DETERGENTS.

Cleaning The Sweatbands

1. Unhook the sweatband from the head strap.

Diagram of a helmet with red arrows indicating movement or force, no text or symbols present

1. Use a neutral detergent to clean the helmet shell, outer lens and sweat bands.
2. Allow the sweatband to air dry fully before re-attaching it to the head strap.

Cleaning The Lens Assembly

1. Push the tab down to un-clip the filter compartment.

1. Lift out the filter compartment, being careful not to yank on the sensor cables.

1. Clean the filter lens and sensors regularly by gently wiping with lens paper or a soft cloth.

Storage

Store it in a dry location which is not accessible to unauthorised persons.

WARNING! KEEP OUT OF REACH OF CHILDREN. THE BUTTON CELL BATTERY IS HARMFUL IF INGESTED.

DESCRIPTION OF SYMBOLS

V	Volts		Hz	Hertz
~	Alternating Current		[7x88]	Wear eye, ear & breathing protection
	Regulatory Compliance Mark (RCM)			Waming
		Read Instruction Manual

SPARE PARTS

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [e-mail]

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.
