Product Type	Vortex Sump Pump
Brand	Ozito
Model	PSDWV-500
Category	Pump
Max Flow Rate	12,000 l/h
Max Head	8 m
Max Immersion Depth	5 m
Min Priming Depth	200 mm
Power Cord Length	10 m
Max Particle Size	15 mm
Outlet Size	38 mm (1½")
Water Temperature Range	1°C to 35°C
Weight	10.6 kg
Voltage	230-240V AC
Frequency	50 Hz
Float Switch	Yes, adjustable
Manual Mode	Yes (continuous operation)
Thermal Overload Protection	Yes, automatic reset
Warranty	3 Year Replacement
Included Accessories	Hose adaptors (1", 1¼", 1½")
Recommended Use	Home domestic water pumping, not for drinking water

Frequently Asked Questions - PSDWV-500 Ozito

How do I adjust the float switch?

To adjust the float switch, change the cable length in the adjuster. There must be a minimum of 100mm of cable from the adjuster to the float. When the cable is fully extended, the pump will operate down to a water depth of 50mm and shut off automatically.

Can I use this pump for drinking water?

No, this pump is not suitable for drinking (potable) water. It is intended for pumping water in home domestic applications only.

What is the maximum particle size the pump can handle?

The pump can handle dirty water with non-solid particles up to 15mm in diameter. Do not use for liquids with larger particles.

How do I prime the pump?

When immersed and switched on, the pump will prime automatically within up to 20 seconds. Air can escape via the Air Bleed Valve. If needed, tilt the pump manually to help release air from the base.

What should I do if the pump does not start?

Check that the pump is connected to the mains power supply. Manually raise the float switch to see if it activates. If the impeller is stuck, turn off and inspect for obstructions. The thermal overload may be tripped; wait for the motor to cool down and it will restart automatically. If the motor is damaged, contact Ozito customer service.

How often should I clean the pump?

Clean the pump with clear water after each use. Keep the suction base free of debris at all times. Store in a dry, frost-free location.

Is the pump suitable for saltwater or corrosive liquids?

No, the pump must not be used for corrosive, abrasive, explosive or dangerous liquids. Only water should be pumped to avoid damage and fire hazard.

What type of power supply is required?

The pump requires a 230-240V AC, 50Hz power supply. It must be used with a residual current device (RCD) rated 30mA or less.

How can I operate the pump manually?

Hold the float switch in the vertical position to run the pump continuously regardless of water level. Warning: this mode must be supervised to prevent the pump running dry.

Where can I get spare parts?

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse. For further information, visit www.ozito.com.au or contact Ozito Customer Service at 1800 069 486 (Australia) or 0508 069 486 (New Zealand).

USER MANUAL PSDWV-500 Ozito

Max. Flow Rate: 12,000l/h

Max. Head 8m

Max. Immersion: 5m

Min. Priming Depth:200mm

Power Cord Length: 10m

Max Particle Size: 015mm

Outlet: 38mm (1½")

Water Temp.: 1°C - 35°C

Weight: 10.6kg

ozito.com.au

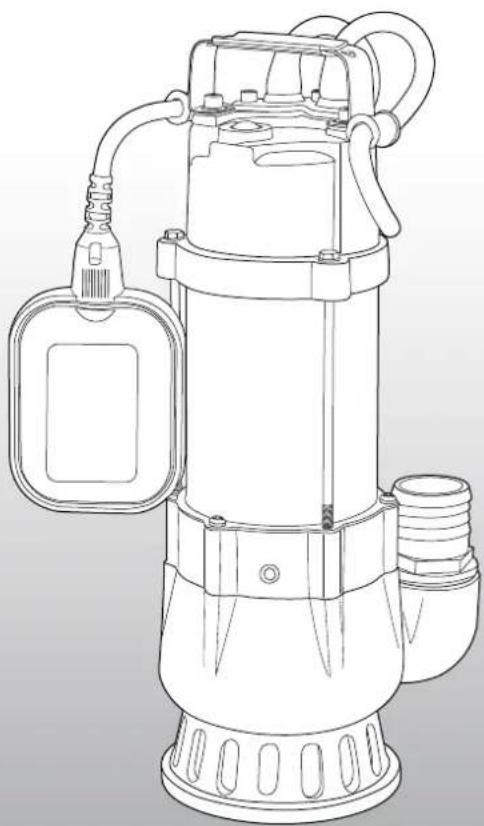

Line drawing of a small industrial water pump with attached piping and housing (no text or symbols)

STANDARD EQUIPMENT

Sump Pump

Hose Adaptors

3

YEAR REPLACEMENT WARRANTY

PSDWV-500

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting our customer service helpline above.

3 YEAR REPLACEMENT WARRANTY

Your product is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty excludes consumable parts, for example: O-rings, bearing, seals, gaskets, hose adaptors.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.

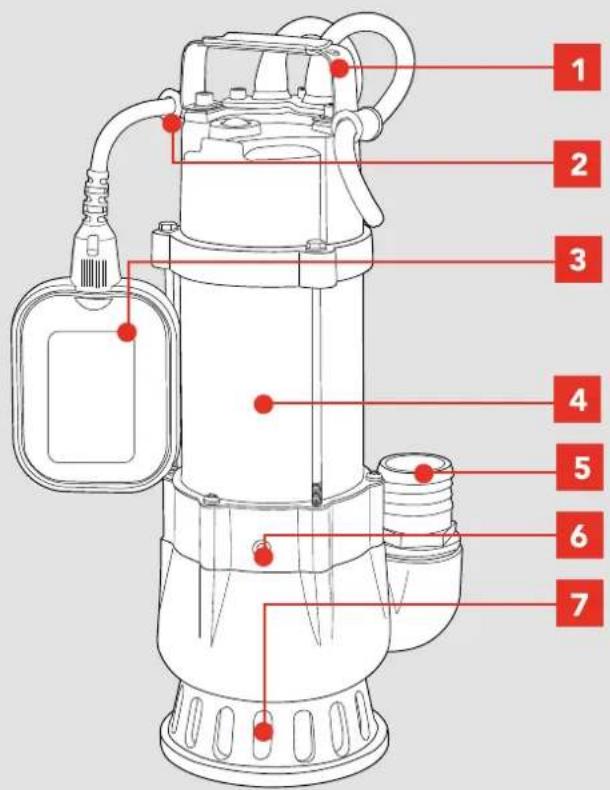

KNOW YOUR PRODUCT

VORTEX SUMP PUMP

1. Handle
2. Outlet
3. Float Switch Adjustor
4. Air Bleed Valve
5. Float Switch
6. Suction Base
7. Pump Housing

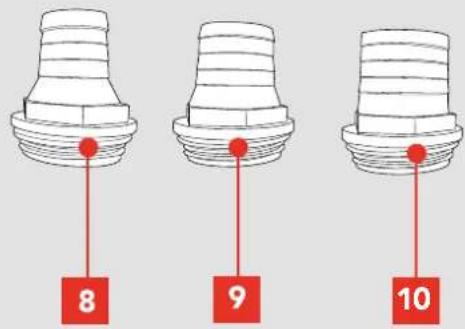

ACCESSORIES

1. Hose Adaptor 25mm (1")

2. Hose Adaptor 38mm (1½")

3. Hose Adaptor 32mm (1¼")

ONLINE MANUAL
Scan this QR Code with your mobile device to take you to the online manual.

ASSEMBLY

1. HOSE ADAPTOR

WARNING! ENSURE THE PUMP IS DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING ASSEMBLY.

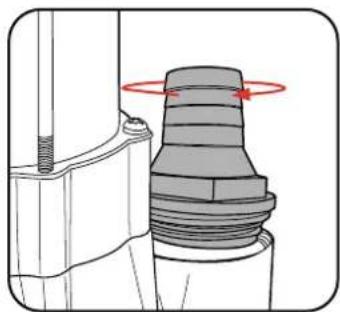

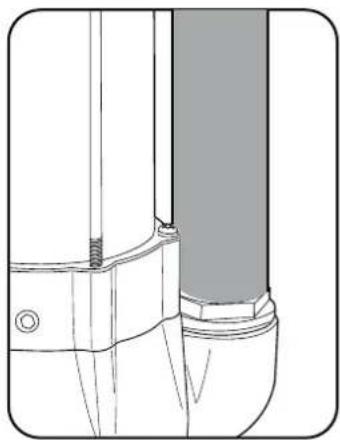

1. Screw a Hose Adaptor into the pump housing by rotating in a clockwise direction.

Mechanical component diagram showing a threaded shaft and threaded base with red rotation arrows indicating motion (no text or symbols)

1. Securely attach the hose/tube/pipe to the Hose Adaptor, fit hose clamps (not included) if you are using flexible hose or tube, and tighten well.

Illustration of a screwdriver and a coiled spring-coated band (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

NOTE: The maximum pumping rate is possible only when the largest possible line diameter; if smaller hoses or pipes are connected, the pumping rate will be reduced.

2. FLOAT SWITCH 3. MANUAL MODE

The pump is fitted with a float switch, which controls how the pump switches on and switches off automatically. 200mm of water is the pumps lowest starting level.

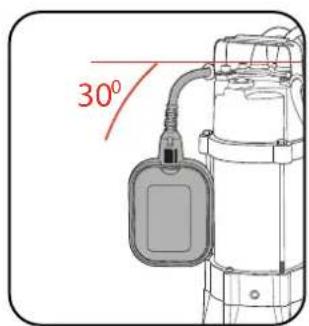

1. When the float switch is about 30^ higher than horizontal (start up level) or above the handle, the pump will turn 'on' and operate (water depth of 500mm).

2. When the float switch is 30^ lower than the horizontal or below the handle, the pump will turn 'off'. (water depth of approximately 150mm).

1. To set the pump to switch off at a higher water level, adjust the float switch cable length in the adjuster.

Diagram of a mechanical device with a red arrow indicating direction, no text or symbols present

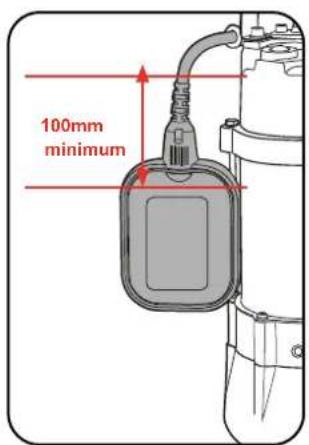

NOTE: There must be a minimum of 100mm of cable from the adjuster to the float.

1. When the float switch cable is extended fully the pump will function down to a water depth of 50mm and automatically shut off.

Diagram of a mechanical device with a lever and attached component, showing motion direction (no text or symbols)

WARNING! MAKE SUR THAT THE FLOAT SWITCH DOES NOT TOUCH THE BOTTOM BEFORE SWITCHING OFF TO AVOID THE RISK OF RUNNING DRY.

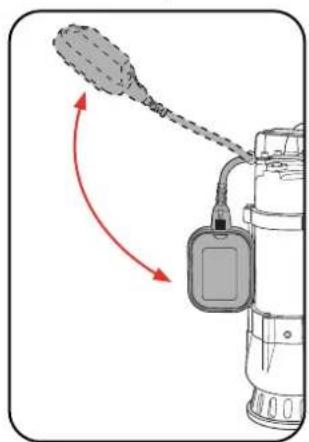

The pump float switch can also function in manual mode which allows the pump to continually operate regardless of the water level.

1. When the float switch is held in the vertical position the pump will run continuously.

Illustration of a mechanical device with a cylindrical component and attached housing (no text or symbols)

WARNING TO PREVENT THE PUMP RUNNING DRY, THIS OPERATION MODE IS ONLY ALLOWED UNDER SUPERVISION. THE PUMP MUST BE SWITCHED OFF AS SOON AS NO MORE WATER IS EMITTED FROM THE DISCHARGE LINE.

OPERATION

4. SETUP

Before starting, perform a few simple checks:

WARNING: NEVER CARRY, LIFT OR PULL UP THE PUMP BY THE POWER CORD. THIS WILL DAMAGE THE UNIT.

1. Ensure the outlet hose is connected correctly.

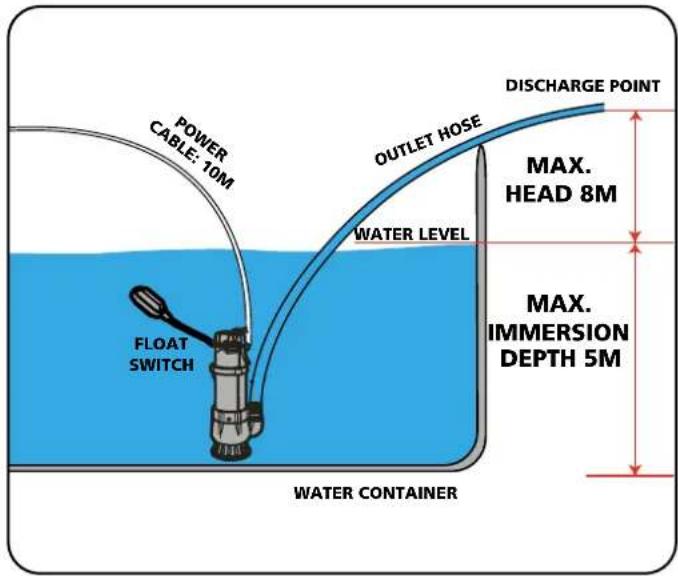

2. Ensure the distance from the surface of the water to the highest point that you wish to deliver the water does not exceed 8 metres.

1. Adjust the float switch adjustor to allow the pump to switch on and off at the desired water height.
2. Ensure that the container is large enough to allow the float switch to move freely and function effectively, a minimum area of 50x50x50cm is required.
3. Ensure the pump is placed on a flat and level surface, there are no obstructions to the suction base and it is clear of mud or sediment.

WARNING! THIS PRODUCT IS INTENDED FOR PUMPING WATER IN A HOME DOMESTIC APPLICATION. DO NOT USE IT FOR CORROSIVE, ABRASIVE, EXPLOSIVE OR DANGEROUS LIQUIDS.

WARNING! THE PUMP MUST NOT BE USED WHEN PEOPLE ARE IN THE WATER.

5. OPERATE

WARNING! THIS PUMP MUST BE USED WITH RESIDUAL CURRENT DEVICE RATED 30mA OR LESS.

WARNING: BEFORE SUBMERGING THE PUMP IN WATER, UNWRAP THE POWER CORD AND ENSURE THE PLUG IS CLEAR OF ANY DAMP LOCATIONS.

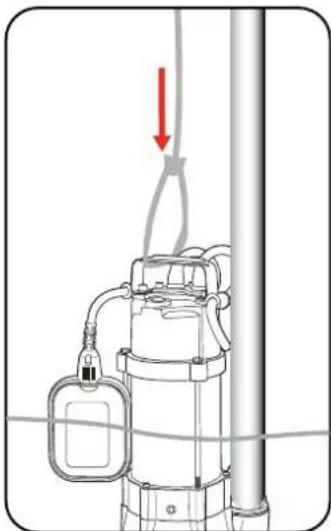

1. Immerse the pump in the water. For deep water, use a rope (not included) and secure it to the handle. Set the pump in the desired position within the work area or tank.

Technical diagram of a vertical pump assembly with a red arrow indicating force or direction (no text or symbols present)

1. Insert the plug into the mains power socket. Where possible avoid using extension cords as this can lead to a voltage drop which may cause power loss and overheating. Switch on the mains power to operate pump.

Illustration of hands connecting a cable to an electrical outlet (no text or symbols)

1. To stop operation, turn off the mains power. The pump will also stop operation automatically once the float switch reaches the minimum water depth.

WARNING! YOUR PUMP HAS THE CAPACITY TO PUMP DIRTY WATER WITH A NON SOLID PARTICLE SIZE OF UP TO 15MM IN DIAMETER.

Priming

When immersed and ON the pump will need to prime and purge the air inside the pump before water flows at the outlet. This can take up to 20 seconds. If operating the pump

manually tilting the pump to allow some air to escape from the base can help.

Air also escapes from the Air Bleed Valve. When pumping, the water pressure will shut this valve off.

Technical line drawing of a mechanical component with a red circle highlighting a bolt (no text or symbols)

TROUBLESHOOTING

Problem Possible Cause	Solution
The pump does not start, or pump water	Pump is not connected to the power supplyFloat switch has not been activated, water level too lowThe impellor is stuckThe thermal overload protection is activatedThe motor is damaged	Check that the pump is connected to the mains power supplyManually raise the position of the float switchTurn pump off and inspect and clean obstructionWait for the motor to cool and it will automatically start operationContact Ozito customer service
The pump does not supply water when the motor is running	The suction base is obstructed/blockedAir lock in the hose/tube and/or pump (air bubbles)Discharge hose/tube (not included) is kinked or damaged	Clean the suction base of any foreign matter and debrisPerform several start-ups in order to remove all the air or lift and tilt the pump slightly while the pump is runningUn-kink the discharge hose/tube. Or replace hose/tubeDisconnect the mains power and check the discharge outlet and filter for any foreign matter
The pump flow rate is reduced	The suction base is partially obstructed/blockedThe hose/tube is obstructedAir leak in the suction line or jointsIncorrect assembly leads to air and water leakage in the discharge lines	Clean the suction base of any foreign matter and debrisRemove the obstructionsCheck the suction line connections for air leaks and tighten or fix where foundEnsure the discharge lines are the correct length and all assembly instructions are adhered to
Pump will not turn off, even though the water level is low	The float switch is stuck in the “on” position	Ensure that the float switch is free to operate normally. Contact Ozito customer service if the problem still occurs
Hose/tube does not stay on the universal adaptor when water is travelling through	The hose/tube is slightly wider than the dimension of the universal adaptor	An adhesive can be used inside the hose/tube to prevent this or teflon tape can be fixed around the universal adaptor or a hose clamp can be used
The pump operates intermittently The	suction base is obstructed/blockedIncorrect voltage is being usedThe fluid contains particles thicker than ø15mmThe motor is faulty or damagedWater level is below 200mm	Clean the suction base of any foreign matter and debrisEnsure the pump is connected into 230-240V power supplyEnsure the pump is not being used with particles thicker than ø15mmContact Ozito customer serviceEnsure the water level is above 200mm

MAINTENANCE

WARNING! ENSURE THE PUMP IS DISCONNECTED FROM THE ELECTRICAL POWER SUPPLY BEFORE PERFORMING MAINTENANCE PROCEDURES.

1. When not in use, the pump should be stored in a dry, frost free location, keep out of children's reach.
2. Keep the pumps suction base clear of debris at all times.
3. The pump should be cleaned with clear water after each use.

Note: Ozito will not be responsible for any damage or injuries caused by repair of the pump by an unauthorised person or by mishandling.

DESCRIPTION OF SYMBOLS

	VoltsV		Hertz
[CBTD]	Alternating current	W	Watts
/min	Revolutions orreciprocation per minute		No load speed
[HWOK]	Litres	[368K]	Degrees celsius
[hr]	Per hour		Pressure rating (kilopascals)
[bar]	Pressure rating		Insulation class
[myc][22AS]	Polyvinyl chloride	[3XYX]	Diameter
	Regulator compliance mark	[4046]	Read instruction manual
[dctwx]	Warning	[dcw]	Litres per second
	Millibar		Ingress protection from water

ELECTRICAL SAFETY

WARNING! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage.

Read and understand the manual prior to operating this pump.

Save these instructions and other documents supplied with this pump for future reference. The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate.

Note: The supply of 230V and 240V on Ozito pumps are interchangeable for Australia and New Zealand. This pump is earthed in accordance with AS/NZS 60335-2-41.

Note: The power outlet used for the water pump must be protected by a 30mA residual current device or earth leakage circuit breaker. If the power outlet is external, ensure that it is weather proof. The water pump has a built-in thermal protection overload switch. The water pump stops if an overload occurs. The motor restarts automatically after it has cooled down.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this product. Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective. Then using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of this product or which is damaged or defective may result in a risk of fire and electric shock.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save these instructions

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate pumps in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Pumps create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a pump. Distractions can cause you to lose control.

2. Electrical safety

a. Pump plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) pumps. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the pump. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
d. When operating a pump, use an extension cord suitable for wet conditions. Use of a cord suitable for wet use reduces the risk of electric shock.
e. IThis pump must be used with a residual current device with rated residual current of 30mA or less. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a pump. Do not use a pump while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating a pump may result in serious personal injury.

b. Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying pump with your finger on the switch or plugging in pumps that have the switch on invites accidents.
c. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
d. When operating a pump outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

4. Pump use and care

a. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing pumps. Such preventive safety measures reduce the risk of starting the pump accidentally.

b. Maintain pumps. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the pumps operation. If damaged, have the pump repaired before use. Many accidents are caused by poorly maintained pumps.
c. Use the pump, and accessories etc., in accordance with these instructions and in the manner intended for the particular type of pump, taking into account the working conditions and the work to be performed. Use of the pump for operations different from intended could result in a hazardous situation.

5. Service

a. Have your pump serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the pump is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ADDITIONAL SAFETY WARNINGS FOR PUMPS

WARNING! This product is intended for pumping water in a Home Domestic application. Do not use it for corrosive, abrasive, explosive or dangerous liquids. Fluids other than water will damage the water pump and/or create a fire hazard. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

WARNING! This product is not suitable for use with drinking (potable) water.

This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Ensure the water pump is disconnected from mains power when installing.
• Do not install or operate the water pump in an explosive environment or near flammable material.
• Do not operate the water pump without liquid.
• Do not run the water pump dry.

WARNING! The water pump together with associated pipework operate under pressure. Do not disconnect water pump or pipework until internal pressure has been released. Failure to do this could result in personal injury and damage to property.

• Avoid inserting hands into the inlets/outlets of the water pump while it is connected to power.
• Before using the water pump, always inspect it visually. Do not use the pump if it is cracked and/or damaged. If the water pump is damaged, contact Ozito customer service.
• The water pump has a built-in thermal protection overload switch. The water pump stops if an overload occurs. The motor restarts automatically after it has cooled down.
  • The pump must not be used when people are in the water.
• Never work or perform maintenance on the pump without first making sure it has been disconnected from the mains power.
• Pollution of the liquid could occur due to leakage of lubricants Important:
  Avoid inserting hands into the mouth of the pump if it is connected to the mains.
  The electrical connection must always be made in a dry area. Make sure that electrical connections are protected from inundations.
  Protect the plug and the power cable from heat, oil or sharp edges.
  If damaged. The power cable must be replaced by a qualified electrician.

SPARE PARTS

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [e-mail]

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.
