Product Type	Submersible Water Pump
Brand	Ozito
Model	PSDW-750
Max. Flow Rate	15,000 L/h
Max. Head	8 m
Max. Immersion Depth	8 m
Min. Suction Depth	50 mm
Max. Particle Size	35 mm
Water Temperature Range	1°C – 35°C
Power Cable Length	11 m
Voltage	230–240 V ~ 50 Hz
Weight	5.2 kg
Protection Rating	IPX8
Float Switch	Yes, adjustable
Included Accessories	L-shape connector, universal adaptor
Warranty	3 years replacement
Duty Cycle	Continuous (thermal protection)
Intended Use	Home domestic water pumping
Non-Return Valve	Recommended for permanent installations

Frequently Asked Questions - PSDW-750 Ozito

How do I connect the pump to a hose?

Use the included universal adaptor. For a 25mm (1") pipe, no cutting needed. For 32mm (1 1/4") or a tap adaptor, cut the adaptor with a hacksaw as shown in the manual. Then screw the adaptor onto the L-shape connector which is already attached to the pump housing.

What does the float switch do and how do I adjust it?

The float switch automatically turns the pump on/off based on water level. For normal operation, allow the float cable to move freely; the pump will start when water depth reaches about 500mm and stop at 50mm. To stop at a higher level, insert the cable into the adjuster leaving at least 100mm free. The switch activates when the float is about 30° above horizontal (on) and 30° below (off).

Can I pump hot water or chemicals with this pump?

No. This pump is designed for clean water only, with a temperature range of 1°C to 35°C. Do not use it for corrosive, abrasive, explosive, or dangerous liquids. It is not suitable for drinking water.

Why won't my pump start?

Check that the pump is connected to mains power and that the float switch is not stuck in the off position. The water level must be at least 500mm deep for the float to activate. If the impeller is stuck, turn off and clean. If thermal protection has activated, wait for the motor to cool; it will restart automatically. If the motor is damaged, contact Ozito customer service.

How do I clean and maintain the pump?

Disconnect from power before cleaning. Regularly inspect and clean the suction base and impeller to remove debris. Ensure the float switch moves freely. Store in a dry place. For long-term storage, run the pump with clean water to flush out sediment.

What is the maximum depth the pump can be submerged?

The pump can be submerged up to 8 meters. However, for deep water, use a rope attached to the handle to lower it safely. Never lift the pump by the power cord.

Do I need a non-return valve?

For permanent installations with rigid pipes, yes. Install a non-return valve to prevent water from flowing back after the pump stops.

Why is the pump running but not pumping water?

The suction base may be blocked. Clean it. There may be an air lock in the hose: run the pump several times or tilt it slightly while running. Check the discharge hose for kinks or damage. Also ensure the outlet and filter are clear.

Can I use an extension cord?

Avoid if possible. If necessary, use an approved, fully unwound extension cord suitable for wet conditions and rated for the pump's power. A long extension cord can cause voltage drop and overheating. Always use a 30mA residual current device (RCD).

How do I obtain spare parts or service?

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse. For further assistance, contact Ozito Customer Service: Australia 1800 069 486, New Zealand 0508 069 486, or email [e-mail].

USER MANUAL PSDW-750 Ozito

Max. Flow Rate: 15,000l/h

Max. Head 8m

Max. Immersion: 8m

Min. Suction Depth 50mm

Max Particle Size: 035mm

Water Temp.: 1°C - 35°C

Weight: 5.2kg

ozito.com.au

Line drawing of a portable water purifier with handle, socket, and bulb (no text or symbols)

WHAT'S IN THE BOX

Submersible Pump

L-Shape Connector

Universal Adaptor

3

YEAR REPLACEMENT WARRANTY

PSDW-750

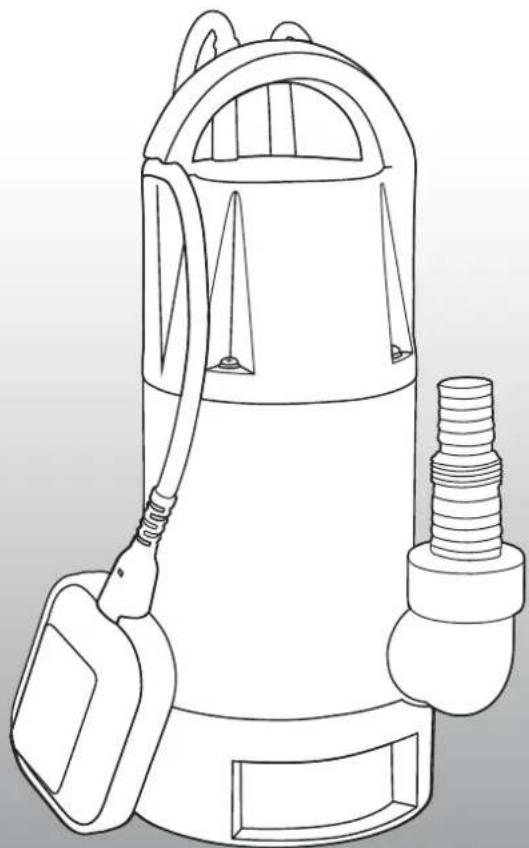

KNOW YOUR PRODUCT

SUBMERSIBLE PUMP

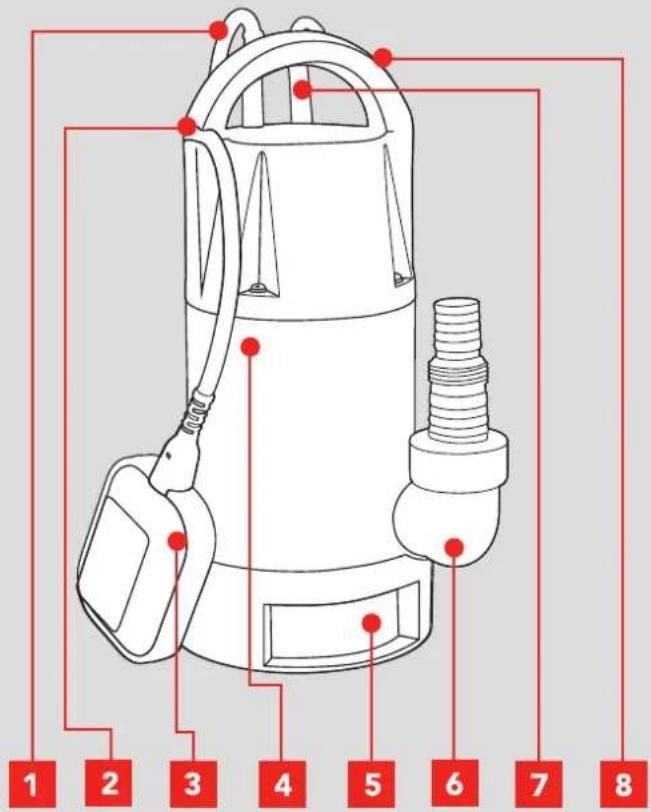

1. Float Switch Cable 5 Suction Base
2. Float Switch Adjustor 6 Outlet
3. Float Switch 7 Power Cable
   4 Pump Housing 8 Handle

ACCESSORIES

1. L-Shape Connector
2. UniversalAdaptor

ONLINE MANUAL

Scan this QR Code with your mobile device to take you to the online manual.

SETUP & PREPARATION

1. UNIVERSAL ADAPTOR

Ensure the pump is disconnected from the power supply before performing any of the following operations.

Preparing the Universal Adaptor

The universal adaptor is designed to fit various sizes of pipes and fittings.

To fit a 25mm (1") rigid pipe or flexible tubing

(temporary or permanent application)

. No cutting of the universal adaptor is required. It is ready to be fitted with a 25mm (1") rigid pipe or flexible tubing (not included).

Illustration of a mechanical component with threaded shaft and flanged base (no text or symbols)

To fit a 25mm (1") tap adaptor

(temporary application only)

1. Cut the universal adaptor using a hack saw

Diagram of a mechanical component with a cylindrical base and threaded shaft, showing a red arrow indicating direction (no text or symbols present)

1. It is now ready to be fitted with a 25mm (1") screw on tap adaptor (not included).

Illustration of a mechanical component with red motion arrows indicating rotational movement (no text or symbols)

To fit a 32mm (1 ^1/4 ")

rigid pipe or flexible tubing

(temporary or permanent application)

. Cut the universal adaptor using a hack saw. It is now ready to be fitted with a 32mm (1¼") rigid pipe or flexible tubing (not included).

Diagram of a mechanical component with threaded shaft and base, showing a tool interacting with it (no text or symbols present)

NOTE: TO USE THE PUMP IN PERMANENT INSTALLATIONS WITH RIGID PIPES, INSTALL A NON-RETURN VALVE TO AVOID THE FLUID BEING RE-CIRCULATED ONCE THE PUMP HAS STOPPED.

2. L-SHAPE CONNECTOR 3.

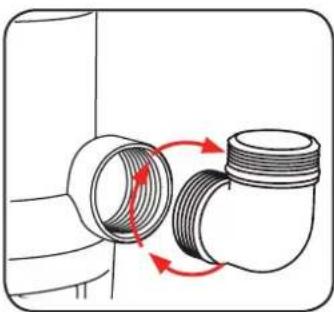

1. Screw the L-shape connector into the pump housing by rotating in a clockwise direction

Diagram of two pipe fittings with red arrows indicating rotation or movement (no text or symbols)

1. Make sure the L-shape connector is firmly tightened so that the O-ring is compressed between the pump housing and the L-shape connector. This ensures no leakage will occur at this point.

Line drawing of a pipe fitting with threaded end (no text or symbols)

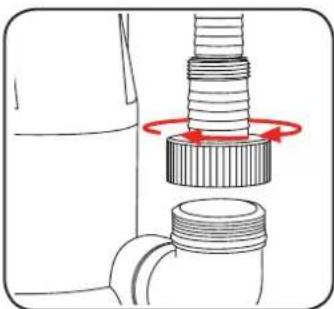

1. Screw the prepared universal adaptor clockwise onto the L-shape connector NOTE. The hose/tube/tap adaptor should not be connected at this stage.

Diagram of a mechanical assembly with threaded components and a red circular motion indicator (no text or symbols)

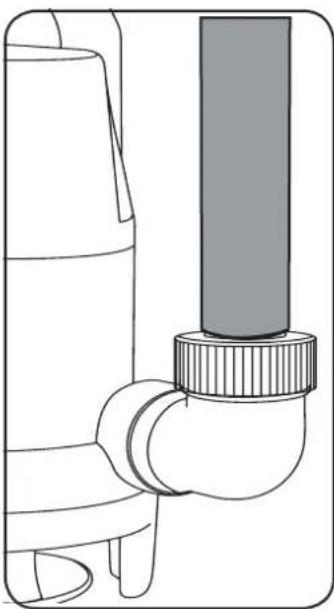

1. Securely attach the hose/tube/tap adaptor to the universal adaptor, fit hose clamps if you are using flexible hose or tube, and tighten well.

Technical line drawing of a mechanical component with a cylindrical shaft and flange (no text or symbols)

Illustration of a screwdriver and a coiled spring (no text or symbols)

FLOAT SWITCH

The pump is fitted with a float switch, which controls how the pump switches on and switches off.

1 When the float switch cable is able to move freely The pump will function down to a water depth of 50mm and automatically shut off

1. To set the pump to switch off at a higher water level, insert the float switch cable into the adjuster

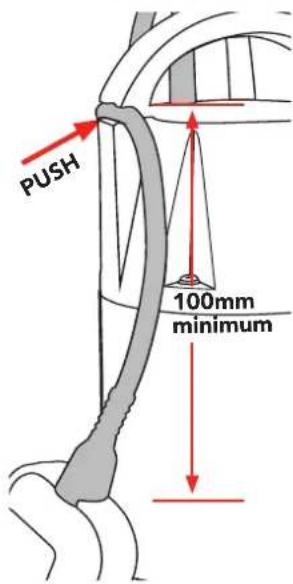

NOTE: There must be a minimum of 100mm of cable from the adjuster to the float.

Diagram of a mechanical component with a red arrow pointing to a specific part (no text or symbols present)

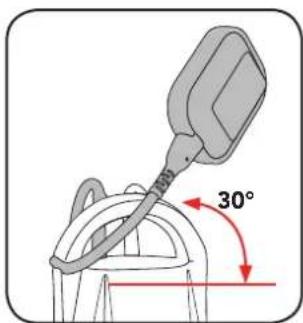

1. When the float switch is about 30^ higher than horizontal (start up level) or above the handle, the pump will turn 'on' and operate (water depth of 500mm)

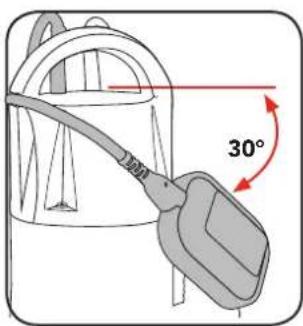

1. When the float switch is 30^ lower than the horizontal or below the handle, the pump will turn 'off'. (water depth of approximately 150mm)

4. SETUP

CAUTION: NEVER CARRY, LIFT OR PULL UP THE PUMP BY THE POWER CORD. THIS WILL DAMAGE THE UNIT.

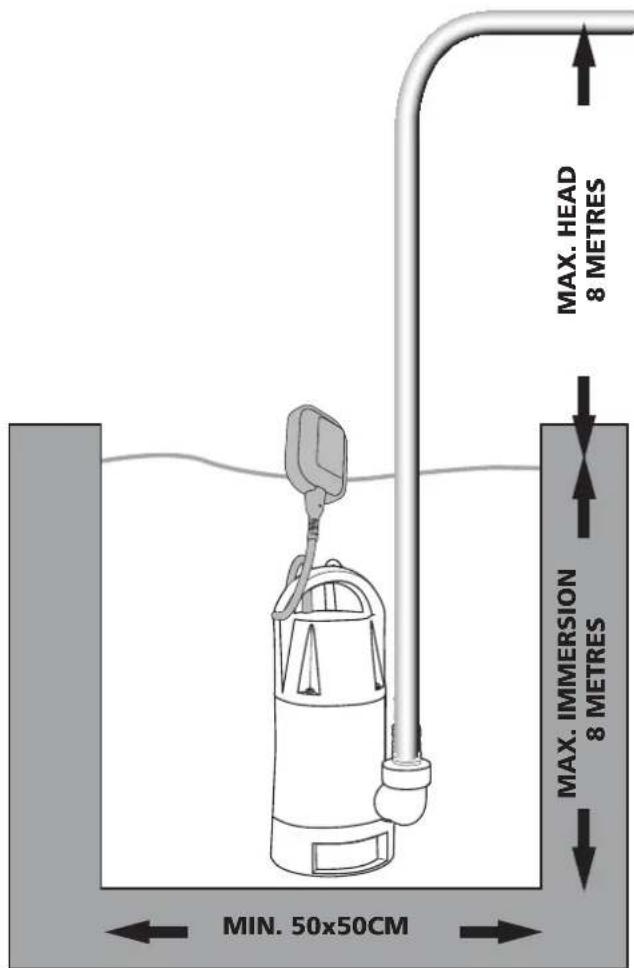

1. Ensure the distance from the lowest to the highest point that you wish to distribute the water does not exceed 8 metres

1. Ensure that the container is large enough to allow the float switch to move freely and function effectively, A minimum of area of 50x50x50cm is required.
2. Ensure the pump is placed on a flat and level surface, there are no obstructions to the suction base and out of mud or sediment.

CAUTION: THIS PRODUCT IS INTENDED FOR PUMPING WATER IN A HOME DOMESTIC APPLICATION. DO NOT USE IT FOR CORROSIVE, ABRASIVE, EXPLOSIVE OR DANGEROUS LIQUIDS.

5. OPERATE

IMPORTANT: BEFORE SUBMERGING THE PUMP IN WATER, UNWRAP THE POWER CABLE AND ENSURE THE PLUG IS CLEAR OF ANY DAMP LOCATIONS.

This pump must be used with a residual current device with rated residual current of 30mA or less.

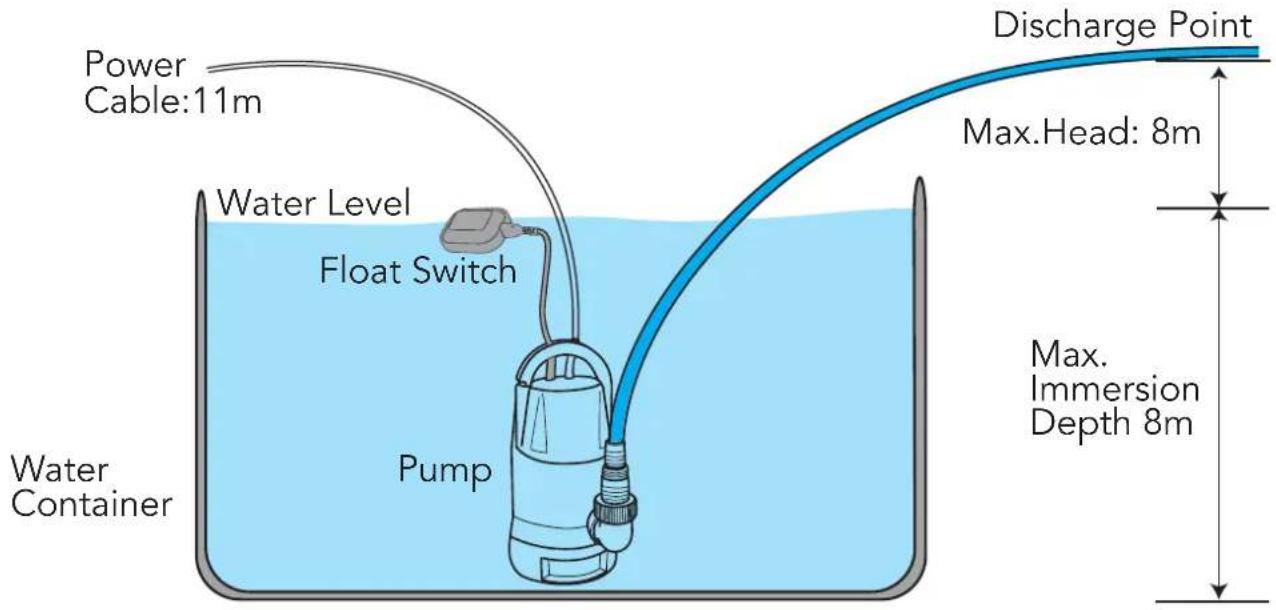

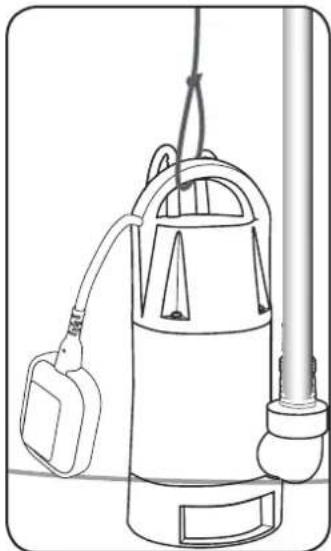

1. Immerse the pump in the water. For deep water, use a rope (not included) and secure it to the handle. Set the pump in the desired position within the work area or tank.

Line drawing of a small water level pump with attached tubing and a hanging rod (no text or symbols)

1. Insert the plug into the mains power socket. Where possible avoid using extension cords as this can lead to a voltage drop which may cause power loss and overheating. Switch on the mains power to operate pump.

Illustration of a hand holding an electrical outlet plug (no text or symbols visible)

1. To stop operation, turn off the mains power. The pump will also stop operation automatically once the float switch reaches the minimum water depth (50mm).

CAUTION: YOUR PUMP HAS THE CAPACITY TO PUMP WATER WITH A NON SOLID PARTICLE SIZE OF UP TO 35MM IN DIAMETER.

INSTALLATION

TROUBLESHOOTING

Problem Possible Cause Solution
The pump does not start, or pump water	Pump is not connected to the power supplyFloat switch has not been activated, water level too lowThe impeller is stuckThe thermal overload protection is activatedThe motor is damaged	Check that the pump is connected to the mains power supplyManually raise the position of the float switchTurn pump off and inspect and clean obstructionWait for the motor to cool and it will automatically start operationContact Ozito customer service
The pump does not supply water when the motor is running	The suction base is obstructed/blockedAir lock in the hose/tube and/or pump (air bubbles)Discharge hose/tube (not included) is kinked or damaged	Clean the suction base of any foreign matter and debrisPerform several start-ups in order to remove all the air or lift and tilt the pump slightly while the pump is runningUn-kink the discharge hose/tube. Or replace hose/tubeDisconnect the mains power and check the discharge outlet and filter for any foreign matter
The pump flow rate is reduced	The suction base is partially obstructed/blockedThe hose/tube is obstructedAir leak in the suction line or jointsIncorrect assembly leads to air and water leakage in the discharge lines	Clean the suction base of any foreign matter and debrisRemove the obstructionsCheck the suction line connections for air leaks and tighten or fix where foundEnsure the discharge lines are the correct length and all assembly instructions are adhered to
Pump will not turn off, even though the water level is low	The float switch is stuck in the “on” position	Ensure that the float switch is free to operate normally. Contact Ozito customer service if the problem still occurs
Hose/tube does not stay on the universal adaptor when water is travelling through	The hose/tube is slightly wider than the dimension of the universal adaptor	An adhesive can be used inside the hose/tube to prevent this or teflon tape can be fixed around the universal adaptor or a hose clamp can be used
The pump operates intermittently The pump operates intermittently	The suction base is obstructed/blockedIncorrect voltage is being usedThe fluid contains particles thicker than 35mmThe motor is faulty or damagedWater level is below 50mm	Clean the suction base of any foreign matter and debrisEnsure the pump is connected into 230-240V power supplyEnsure the pump is not being used with particles thicker than 35mm.Contact Ozito customer serviceEnsure the water level is above 50mm

ELECTRICAL SAFETY

WARNING! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage.

Read and understand the manual prior to operating this pump.

Save these instructions and other documents supplied with this pump for future reference. The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate.

Note: The supply of 230V and 240V on Ozilo pumps are interchangeable for Australia and New Zealand. This pump is earthed in accordance with AS/NZS 60335-2-41.

Note: The power outlet used for the water pump must be protected by a 30mA residual current device or earth

leakage circuit breaker. If the power outlet is external, ensure that it is weather proof. If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer to avoid a hazard. The water pump has a built-in thermal protection overload switch. The water pump stops if an overload occurs. The motor restarts automatically after it has cooled down.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this product. Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective. Then using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of this product or which is damaged or defective may result in a risk of fire and electric shock.

GENERAL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save these instructions

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate pumps in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Pumps create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a pump. Distractions can cause you to lose control. 2. Electrical safety
a. Pump plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) pumps. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the pump. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
d. When operating a pump, use an extension cord suitable for wet conditions. Use of a cord suitable for wet use reduces the risk of electric shock.
e. IThis pump must be used with a residual current device with rated residual current of 30mA or less. Use of an RCD reduces the risk of electric shock.

1. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a pump. Do not use a pump while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating a pump may result in serious personal injury.

b. Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying pump with your finger on the switch or plugging in pumps that have the switch on invites accidents.
c. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
d. When operating a pump outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

1. Pump use and care

a. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing pumps. Such preventive safety measures reduce the risk of starting the pump accidentally.
b. Maintain pumps. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the pumps operation. If damaged, have the pump repaired before use. Many accidents are caused by poorly maintained pumps.
c. Use the pump, and accessories etc., in accordance with these instructions and in the manner intended for the particular type of pump, taking into account the working conditions and the work to be performed. Use of the pump for operations different from intended could result in a hazardous situation.

a. Have your pump serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the pump is maintained.

b. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ADDITIONAL SAFETY INSTRUCTIONS FOR PUMPS

WARNING! This product is intended for pumping water in a Home Domestic application. Do not use it for corrosive, abrasive, explosive or dangerous liquids. Fluids other than water will damage the water pump and/or create a fire hazard. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

WARNING! This product is not suitable for use with drinking (potable) water.

This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Ensure the water pump is disconnected from mains power when installing.
• Do not install or operate the water pump in an explosive environment or near flammable material.
• Do not operate the water pump without liquid.
• Do not run the water pump dry.

SPARE PARTS

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486 New Zealand 0508 069 486

E-mail: [e-mail]

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.

WARNING! The water pump together with associated pipework operate under pressure. Do not disconnect water pump or pipework until internal pressure has been released. Failure to do this could result in personal injury and damage to property.

- Avoid inserting hands into the inlets/outlets of the water pump while it is connected to power.

- Before using the water pump, always inspect it visually. Do not use the pump if it is cracked and/or damaged. If the water pump is damaged, contact Ozito customer service.

- The water pump has a built-in thermal protection overload switch. The water pump stops if an overload occurs. The motor restarts automatically after it has cooled down.

• The pump must not be used when people are in the water.

- Never work or perform maintenance on the pump without first making sure it has been disconnected from the mains power.

- Pollution of the liquid could occur due to leakage of lubricants Important:

Avoid Inserting hands into the mouth of the pump if it is connected to the mains.

The electrical connection must always be made in a dry area. Make sure that electrical connections are protected from inundations.

Protect the plug and the power cable from heat, oil or sharp edges.

If damaged, The power cable must be replaced by a qualified electrician.

DESCRIPTION OF SYMBOLS

V	Volts	Hz	Hertz
~	Alternating current	W	Watts
/min	Revolutions orreciprocation per minute	No No	load speed
I	Litres	°C	Degrees celsius
p/hr	Per hour	kPa	Pressure rating (kilopascals)
bar	Pressure rating	F	Insulation class
PVC	Polyvinyl chloride	IPX8	Ingress protection from water
[XXXX]	Regulator compliance mark	⚠️	Warning
	Read instruction manual

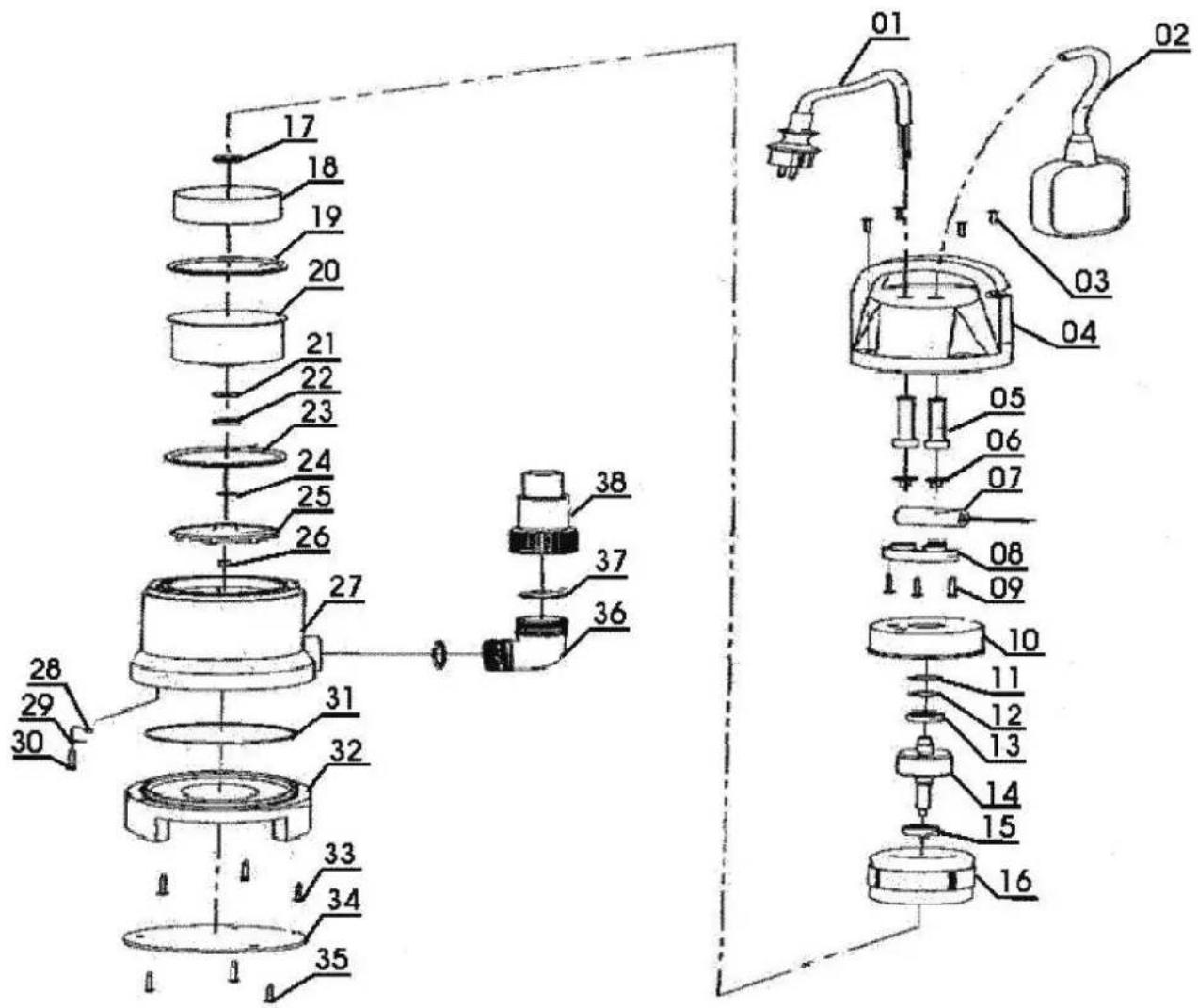

The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed.

Item No.

Description Part No.

Item No.

Description Part No.

How To Order

Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any further questions, please contact Ozito Customer Service on:

Australia: 1800 069 486

New Zealand: 0508 069 486

[e-mail]

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting our customer service helpline above.

3 YEAR REPLACEMENT WARRANTY

Your product is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty excludes consumable parts, for example: o-rings, bearing, seals, gaskets, universal adaptors, L-shaped connector.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
