Product Type	Submersible Water Pump
Model	PSCP-1100
Brand	Ozito
Power Rating	1100 W
Voltage	230 V
Frequency	50 Hz
Max Flow Rate	170 L/min
Max Head	9 m
Max Particle Size	5 mm
Max Liquid Temperature	35 °C
Min Submersion Depth	100 mm
Outlet Diameter	1" BSP (25 mm)
Cable Length	10 m
Weight	5.2 kg
Dimensions (L x W x H)	200 x 200 x 350 mm
Protection Class	IPX8
Housing Material	Stainless Steel / Plastic
Impeller Type	Centrifugal
Thermal Protection	Yes
Float Switch	Yes (automatic)
Non-return Valve	Built-in

Frequently Asked Questions - PSCP-1100 Ozito

How do I prime the pump before use?

Ensure the pump is fully submerged in water. The Ozito PSCP-1100 is a submersible pump and does not require manual priming; simply place it in water and it will start automatically when the float switch is activated.

What is the maximum depth the pump can operate at?

The pump can be submerged up to a depth of 9 meters (max head). Ensure the water level does not fall below the minimum submersion depth of 100 mm.

Can I use this pump for dirty or muddy water?

Yes, it can handle particles up to 5 mm in size. For larger debris, use a pre-filter to avoid clogging.

How do I clean the pump after use?

Disconnect from power. Remove debris from the intake screen by rinsing with clean water. Store in a dry, frost-free place.

Why is the pump not switching on?

Check if the float switch is stuck or if the water level is too low. Ensure the power cord is properly connected and the thermal protection has not tripped (allow to cool).

What is the recommended maintenance schedule?

Inspect the pump regularly for damage. Clean the intake screen after each use. Check the cable for cuts or wear. Replace seals if leaking occurs.

Can I run the pump dry?

No, running the pump dry can damage the seals and motor. The pump requires water for cooling and lubrication.

Is the pump suitable for continuous operation?

The pump is designed for intermittent use. Do not run continuously for more than 2 hours without allowing it to cool down.

What type of outlet connection does the pump have?

The outlet is a 1-inch BSP male thread. You can adapt to garden hoses or other fittings using an adapter.

How do I store the pump during winter?

Drain all water from the pump. Clean and dry it thoroughly. Store in a frost-free location to prevent damage from freezing.

USER MANUAL PSCP-1100 Ozito

SUBMERSIBLE CONSTANT PRESSURE PUMP

1100W

INSTRUCTION MANUAL

SPECIFICATIONS

Motor: 1100W

Max. Flow Rate: 6,000l/h

Max. Head 45m

Max. Immersion: 12m

Max Delivery Pressure: 4.5 bar

Power Cord Length: 15m

Max Particle Size: ∅1mm Clean Water

Outlet: 25mm (1") Female

Water Temp.: 1°C - 35°C

Weight: 10.4kg

ozito.com.au

3

YEAR REPLACEMENT WARRANTY

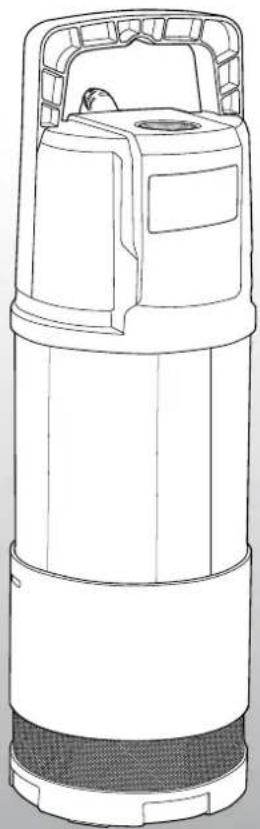

Line drawing of a cylindrical device with lid and base (no text or symbols)

STANDARD EQUIPMENT

Submersible Pump

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting our customer service helpline above.

3 YEAR REPLACEMENT WARRANTY

Your product is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty excludes consumable parts, for example: O-rings, bearing, seals, gaskets.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.

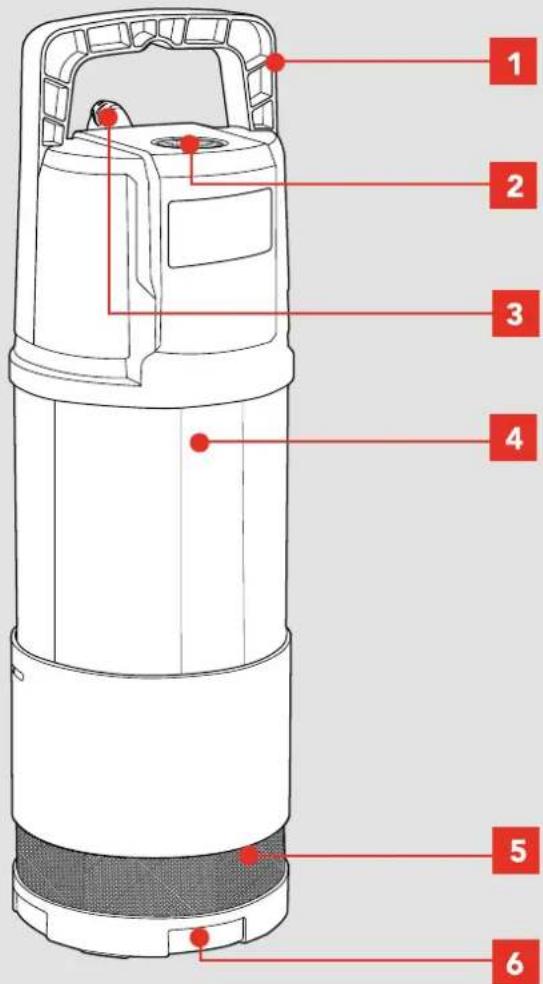

KNOW YOUR PRODUCT

SUBMERSIBLE CONSTANT PRESSURE PUMP

1. Handle

2. Pump Housing

3. Outlet

4. Intake Filter Screen

5. Power Cord

6. Base

ONLINE MANUAL
Scan this QR Code with your mobile device to take you to the online manual.

ASSEMBLY

1. HOSE ADAPTOR

WARNING: ENSURE THE PUMP IS DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING ASSEMBLY.

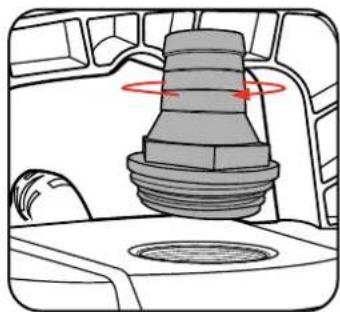

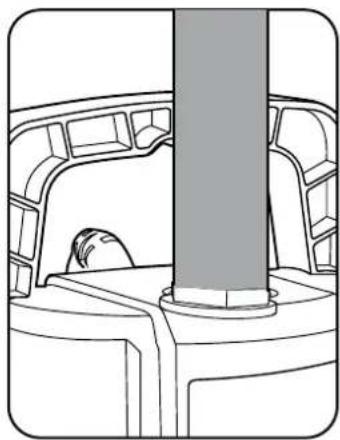

1. Screw a suitable connector (not included) into the pump housing outlet by rotating in a clockwise direction.

Technical diagram of a mechanical component with concentric grooves and a red rotation arrow (no text or symbols)

1. Securely attach the hose/tube/pipe to the Hose Adaptor, fit hose clamps (not included) if you are using flexible hose or tube, and tighten well.

Illustration of a screwdriver and a coiled spring (no text or symbols)

Technical line drawing of a vehicle interior showing dashboard, wheelbase, and structural components (no text or symbols)

NOTE: The maximum pumping rate is possible only with the largest possible line diameter; if smaller hoses or pipes are connected, the pumping rate will be reduced.

2. SETUP 3. OPERATE

Before starting, perform a few simple checks:

WARNING: NEVER CARRY, LIFT OR PULL UP THE PUMP BY THE POWER CORD. THIS WILL DAMAGE THE UNIT.

1. Ensure the outlet hose is connected correctly.

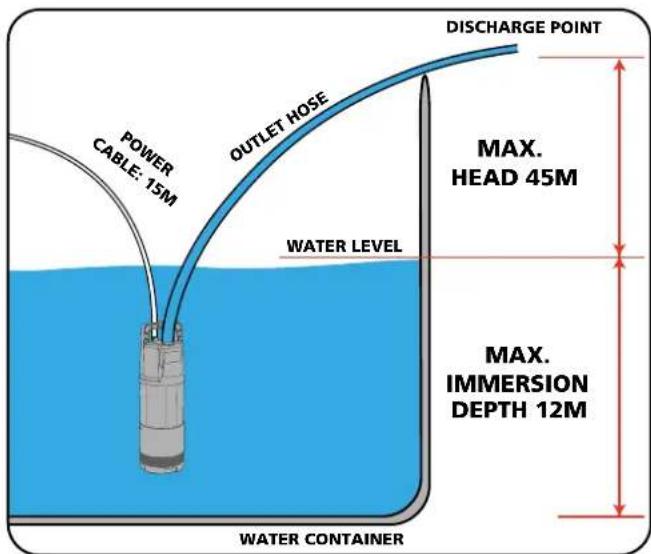

2. Ensure the distance from the surface of the water to the highest point that you wish to deliver the water does not exceed 45 metres

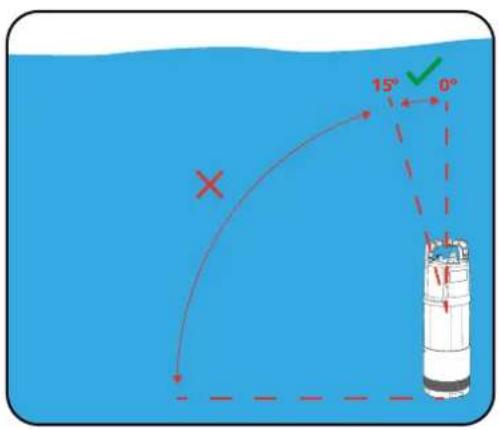

1. Ensure the pump is placed on a flat and level surface, there are no obstructions to the suction base and it is clear of mud or sediment.

WARNING! THIS PRODUCT IS INTENDED FOR PUMPING WATER IN A HOME DOMESTIC APPLICATION. DO NOT USE IT FOR CORROSIVE, ABRASIVE, EXPLOSIVE OR DANGEROUS LIQUIDS.

1. Ensure the pump is stable and wont fall over.

WARNING! THIS PUMP MUST BE USED WITH RESIDUAL CURRENT DEVICE RATED 30mA OR LESS.

WARNING! BEFORE SUBMERGING THE PUMP IN WATER, UNWRAP THE POWER CORD AND ENSURE THE PLUG IS CLEAR OF ANY DAMP LOCATIONS.

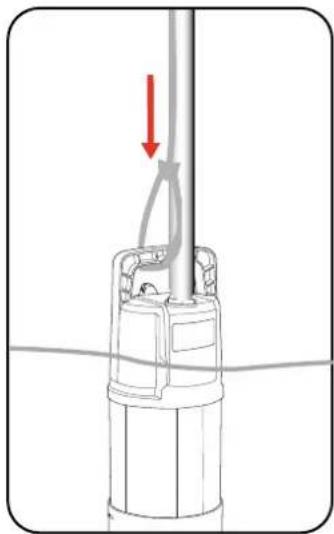

1. Immerse the pump in the water. For deep water, use a rope (not included) and secure it to the handle. Set the pump in the desired position within the work area or tank.

NOTE: Ensure that the pump is at least 120mm under the surface of the water.

Diagram of a mechanical device with a red arrow indicating force or direction, no text or symbols present

1. Insert the plug into the mains power socket. The pump will start 3 seconds after the power is switched on.

Illustration of hands inserting a plug into an electrical outlet (no text or symbols)

1. To stop operation, turn off the mains power.

WARNING! YOUR PUMP HAS THE CAPACITY TO PUMP CLEAN WATER WITH A NON SOLID PARTICLE SIZE OF UP TO 1MM IN DIAMETER.

WARNING! THE PUMP MUST NOT BE USED WHEN PEOPLE ARE IN THE WATER.

MAINTENANCE

Automatic mode

The pump builds up pressure (e.g. the water tap is closed) and then switches off automatically. This is due to the integrated non-return valve, the pressure in the hose will be maintained until water is removed again.

When the pressure drops below 2.5 bar, the pump will switch on again automatically.

Dry-Running Protection

The pump will be switched off automatically when there is no longer any water for pumping.

The pump will perform a restart test for water in cycles of 30 seconds ON / 5 seconds OFF (4x) in a 24 hour period.

As soon as the pump is immersed again in water to a depth of at least 120mm, it will be ready for operation again.

WARNING! ENSURE THE PUMP OUTLET IS CLOSED COMPLETELY WHEN NOT IN USE, PARTIALLY OPENED OUTLET MAY DAMAGE THE PUMP.

4. CLEANING

WARNING! ENSURE THE PUMP IS DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING OPERATIONS.

WARNING! THE PUMP SHOULD BE CLEANED WITH CLEAR WATER AFTER EACH USE.

If a lot of deposits collect in the housing, the bottom part of the pump must be dismantled as follows:

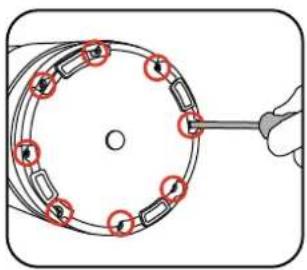

1. Undo the 8 screws on the underside of the pump and remove the base.

2. Remove the filter screen.

Diagram of a mechanical component with red circular elements and a tool, no text or symbols present

Technical diagram of a mechanical component with red directional arrows indicating rotation or force (no text or symbols)

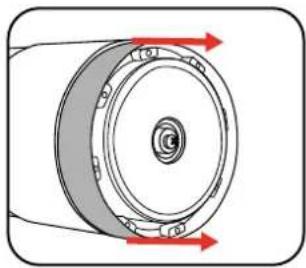

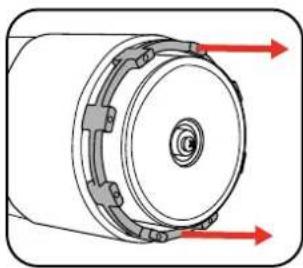

1. Remove the extension ring.

2. Remove the water cover.

Technical diagram of a mechanical component with red arrows indicating direction (no text or symbols)

Technical diagram of a mechanical component with red directional arrows indicating rotation or force (no text or symbols)

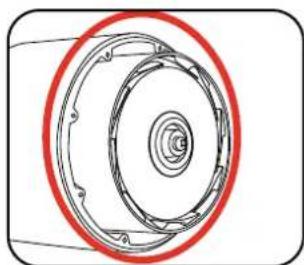

1. Clean all parts removed and the exposed base of the pump with clean water.

Diagram of a circular mechanical component with concentric rings and mounting holes, enclosed in a red circle (no text or symbols)

WARNING! DO NOT PUT DOWN OR REST THE PUMP ON THE EXPOSED BASE.

1. Assemble in reverse order.

- When not in use, the pump should be stored in a dry, frost free location, keep out of children's reach.

Note: Ozito will not be responsible for any damage or injuries caused by repair of the pump by an unauthorised person or by mishandling.

TROUBLESHOOTING

Problem Possible Cause	Solution
The pump does not start, or pump water	Pump is not connected to the power supplyFloat switch has not been activated, water level too lowThe impellor is stuckThe thermal overload protection is activatedThe motor is damaged	Check that the pump is connected to the mains power supplyManually raise the position of the float switchTurn pump off and inspect and clean obstructionWait for the motor to cool and it will automatically start operationContact Ozito customer service
The pump does not supply water when the motor is running	The suction base is obstructed/blockedAir lock in the hose/tube and/or pump (air bubbles)Discharge hose/tube (not included) is kinked or damaged	Clean the suction base of any foreign matter and debrisPerform several start-ups in order to remove all the air or lift and tilt the pump slightly while the pump is runningUn-kink the discharge hose/tube. Or replace hose/tubeDisconnect the mains power and check the discharge outlet and filter for any foreign matter
The pump flow rate is reduced	The suction base is partially obstructed/blockedThe hose/tube is obstructedAir leak in the suction line or jointsIncorrect assembly leads to air and water leakage in the discharge lines	Clean the suction base of any foreign matter and debrisRemove the obstructionsCheck the suction line connections for air leaks and tighten or fix where foundEnsure the discharge lines are the correct length and all assembly instructions are adhered to
Hose/tube does not stay on the connector/adaptor when water is travelling through	The hose/tube is slightly wider than the dimension of the connector/adaptor.	An adhesive can be used inside the hose/tube to prevent this or Teflon tape can be fixed around the connector/adaptor or a hose clamp can be used
The pump operates intermittently The	suction base is obstructed/blockedIncorrect voltage is being usedThe fluid contains particles thicker than 1mmThe motor is faulty or damaged	Clean the suction base of any foreign matter and debrisEnsure the pump is connected into 230-240V power supplyEnsure the pump is not being used with particles thicker than 1mmContact Ozito customer service

DESCRIPTION OF SYMBOLS

	VoltsV	Hz	Hertz
~	Alternating current	W	Watts
/min	Revolutions orreciprocation per minute	No	No load speed
I	Litres	°C	Degrees celsius
p/hr	Per hour	kPa	Pressure rating (kilopascals)
bar	Pressure rating	F	Insulation class
PVC	Polyvinyl chloride	∅	Diameter
	Regulator compliance mark		Read instruction manual
	Warning	L/s	Litres per second
	Millibar		Ingress protection from water

ELECTRICAL SAFETY

WARNING! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage.

Read and understand the manual prior to operating this pump.

Save these instructions and other documents supplied with this pump for future reference. The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate.

Note: The supply of 230V and 240V on Ozito pumps are interchangeable for Australia and New Zealand. This pump is earthed in accordance with AS/NZS 60335-2-41.

Note: The power outlet used for the water pump must be protected by a 30mA residual current device or earth leakage circuit breaker. If the power outlet is external, ensure that it is weather proof. The water pump has a built-in thermal protection overload switch. The water pump stops if an overload occurs. The motor restarts automatically after it has cooled down.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this product. Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective. Then using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of this product or which is damaged or defective may result in a risk of fire and electric shock.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save these instructions

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate pumps in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Pumps create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a pump. Distractions can cause you to lose control.

2. Electrical safety

a. Pump plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) pumps. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the pump. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
d. When operating a pump, use an extension cord suitable for wet conditions. Use of a cord suitable for wet use reduces the risk of electric shock.
e. IThis pump must be used with a residual current device with rated residual current of 30mA or less. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a pump. Do not use a pump while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating a pump may result in serious personal injury.

b. Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying pump with your finger on the switch or plugging in pumps that have the switch on invites accidents.
c. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
d. When operating a pump outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

4. Pump use and care

a. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing pumps. Such preventive safety measures reduce the risk of starting the pump accidentally.

b. Maintain pumps. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the pumps operation. If damaged, have the pump repaired before use. Many accidents are caused by poorly maintained pumps.
c. Use the pump, and accessories etc., in accordance with these instructions and in the manner intended for the particular type of pump, taking into account the working conditions and the work to be performed. Use of the pump for operations different from intended could result in a hazardous situation.

5. Service

a. Have your pump serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the pump is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ADDITIONAL SAFETY WARNINGS FOR PUMPS

WARNING! This product is intended for pumping water in a Home Domestic application. Do not use it for corrosive, abrasive, explosive or dangerous liquids. Fluids other than water will damage the water pump and/or create a fire hazard. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

WARNING! This product is not suitable for use with drinking (potable) water.

This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Ensure the water pump is disconnected from mains power when installing.
• Do not install or operate the water pump in an explosive environment or near flammable material.
• Do not operate the water pump without liquid.
• Do not run the water pump dry.

WARNING! The water pump together with associated pipework operate under pressure. Do not disconnect water pump or pipework until internal pressure has been released. Failure to do this could result in personal injury and damage to property.

• Avoid inserting hands into the inlets/outlets of the water pump while it is connected to power.
• Before using the water pump, always inspect it visually. Do not use the pump if it is cracked and/or damaged. If the water pump is damaged, contact Ozito customer service.
• The water pump has a built-in thermal protection overload switch. The water pump stops if an overload occurs. The motor restarts automatically after it has cooled down.
  • The pump must not be used when people are in the water.

• Never work or perform maintenance on the pump without first making sure it has been disconnected from the mains power.

• Pollution of the liquid could occur due to leakage of lubricants Important:
  Avoid inserting hands into the mouth of the pump if it is connected to the mains.
  The electrical connection must always be made in a dry area. Make sure that electrical connections are protected from inundations.
  Protect the plug and the power cable from heat, oil or sharp edges.
  If damaged, The power cable must be replaced by a qualified electrician.

SPARE PARTS

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [e-mail]

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.
