| Product Type | Ceiling Fan |
| Brand | Westinghouse |
| Model | 7202135 (Urban Gale) |
| Net Weight | 5.0 kg |
| Power Supply | 240V~50Hz |
| Blades | 3 blades |
| Control Type | Wall-mounted rotary control (Off, Low, Medium, High) |
| Light Kit | Included (lamp with lampshade) |
| Light Source | Replaceable bulb (specific type not specified) |
| Installation | Downrod or flush mount (downrod supplied; longer rod optional) |
| Minimum Mounting Height | 2.3 m from floor to blades |
| Intended Use | Indoor only |
| IP Rating | IP20 (not suitable for damp areas) |
| Safety Features | All-pole disconnection, overvoltage category III, secure ceiling attachment |
| Compliance | AS/NZS Approval No. SAA-181731-EA |
| Country of Origin | Made in China |
| Warranty | Not specified in manual; refer to manufacturer |
Frequently Asked Questions - 7202135 WESTINGHOUSE
User questions about 7202135 WESTINGHOUSE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Ventilateur domestique in PDF format for free! Find your manual 7202135 - WESTINGHOUSE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 7202135 by WESTINGHOUSE.
USER MANUAL 7202135 WESTINGHOUSE
SAA-Urban Gale-Australia-WH18

Westinghouse
OWNER'S MANUAL
Urban Gale
Please write model number here for future reference:
7202135


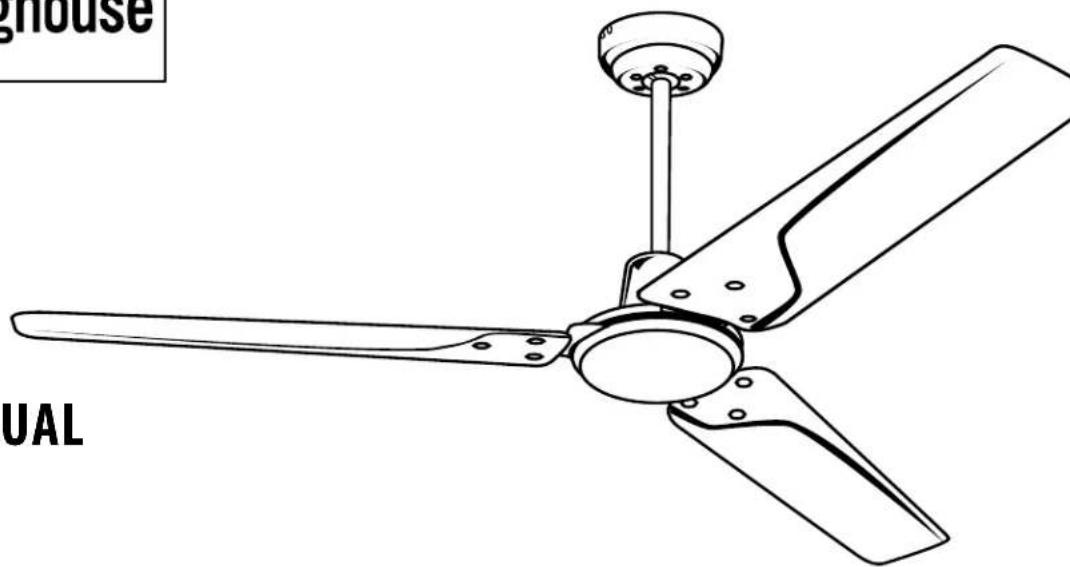

Line drawing of a three-blade office fan with a headlamp and labeled 'UAL' (no text or symbols on the diagram itself)Net Weight:
5.0 KGS
240V\~50Hz
SAFETY TIPS
READ AND SAVE THESE INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- Proceed with caution. Read all instructions before beginning the installation.
- Only an authorized electrician should execute the installation.
- The installation height, i.e. the distance between the blades and the floor, should be at least 2.3 m.
- (-1.0m-1) Always maintain the distance between the lamp and inflammable materials (curtains, wall, etc.), as indicated on the pictogram.
- Make sure the fan is securely fastened at the ceiling.
- WARNING! Do not use a dimmer type switch to control the fan speed.
- WARNING! To prevent injuries, make sure the blades are not bent and that there are no objects with in the area of rotation.
- WARNING! Due to European safety regulations, if the flush mount option is elected, the fan must not be re-installed utilizing the downrod. If attempted, this may cause a serious injury. When assembling the fan, please follow your local safety regulations.
- WARNING: Do Not use this fan in the same room at the same time as a gas or fuel burning fire, unless the flue has been tested under these conditions of use by a competent person.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Suitable for use indoors.
- Before disassembling light kit, make sure the power supply is disconnected from the main supply. Power supply can be on only after installation is completed.
- The lampshade should not be removed from the light bulb when the power supply is on.
- Replacement of light bulb is only possible when the light kit has cooled down, and the power supply is disconnected from the main supply.
- Make sure the lampshade is in the fixed position when operating the product.
- Means for all poles disconnection having a contact separation that provide full disconnection under over voltage category III conditions must be incorporated in the fixed wiring in accordance with national wiring rules.
- IP20 The fan is designed for indoor use. It is not designed for installation in a bathroom or any damp area. Please ensure that the lamp does not come into contact with water.
- WARNING: If unusual oscillating movement is observed, immediately stop using the ceiling fan and contact the manufacturer, its service agent or suitably qualified persons.
- The replacement of parts of the safety suspension system device shall be performed by the manufacturer, its service agent or suitably qualified persons.
- The fixing means for attachment to the ceiling can be fixed with a sufficient strength to withstand 4 times the weight of the ceiling fan.
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
TOOLS REQUIRED
Phillips Screwdriver
Wire Cutters
Pliers
Step Ladder
FeAtUres
DOWNROD
INSTALLATION
VAULTED CEILING
INSTALLATION
(sold separately)
PrePARInG fOr InStAllAt10n
1


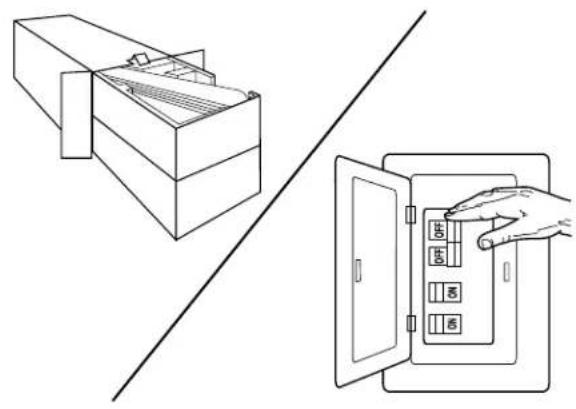

Line drawing showing a cabinet with drawers and an open electrical cabinet with a hand inserting a switch (no text or symbols)Unpack and inspect fan carefully to be certain all contents are included. Turn off power at fuse box to avoid possible electrical shock.
2


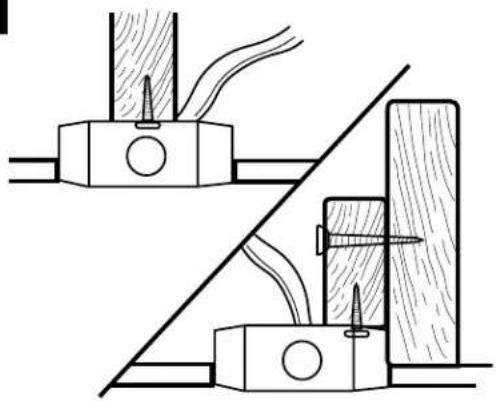

Technical diagram showing two mechanical assembly steps with no visible text or symbolsUse metal outlet box suitable for fan support (must support 35 lbs). Before attaching fan to outlet box, ensure the outlet box is securely fastened by at least two points to a structural ceiling member (a loose box will cause the fan to wobble).
MOUntInG brACKet InStAllAtlOn
3


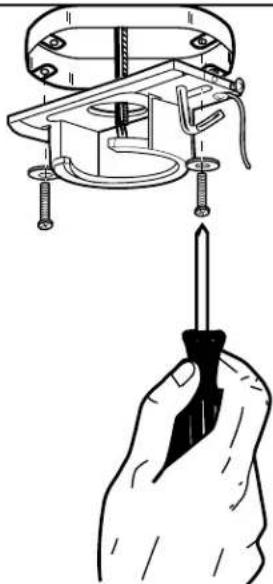

Diagram showing a hand holding a screwdriver inserted into a mechanical component (no text or symbols present)Install mounting bracket to outlet box in ceiling using the screws and washers provided with the outlet box.
WlrlnG OPtIOnS
4

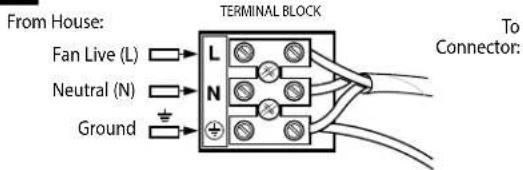

Wiring:

Follow diagram above to make wiring connections to the terminal block on the mounting bracket.
MOUNTING
5

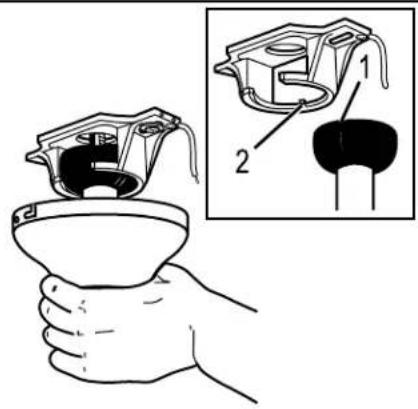

Carefully lift fan assembly onto mounting bracket. Rotate fan until notch on down-rod ball (1) engages the ridge on the mounting bracket (2). This will allow for hands free wiring.
6

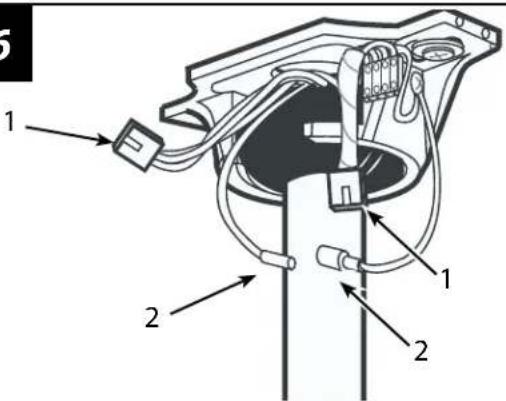

With bracket holding fan assembly, attach the male/female plug connection (1) from the fan to the terminal block. Attach the ground wire (2) from the downrod to the mounting bracket.
PrePARInG fOr InStAllAtlOn
7

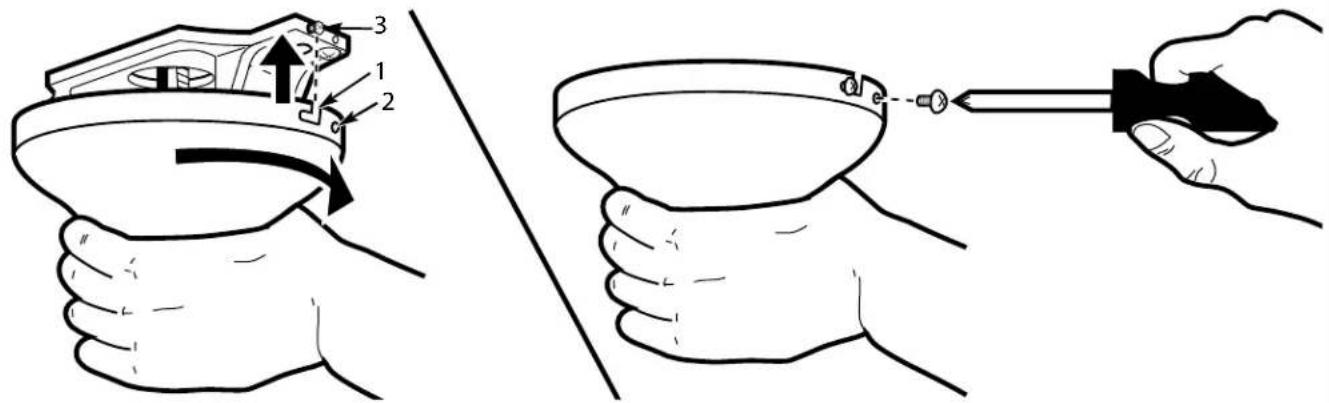

For downrod fans, slide the canopy up to the mounting bracket.

The canopy has two mating slots (1) and two mating holes (2). Position both slots on canopy directly under and in line with two screws in the mounting bracket (3). Lift the canopy, allowing the two screws to slide into the mating slots. Rotate the canopy until both screws from the mounting bracket drop into the slot recesses. Tighten screws securely. Install two screws into the mating holes of the canopy and tighten to secure the canopy to the mounting bracket.
PrePARInG fOr InStAllAtlOn
8


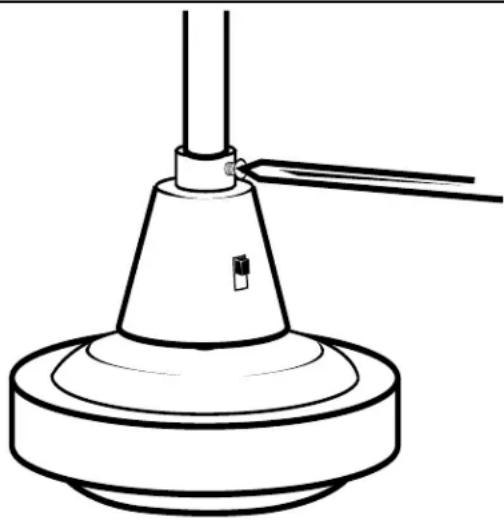

Line drawing of a mechanical component with a conical base and protruding rod (no text or symbols)Loosen set screw in lower canopy and slide to within 1/4"/7mm of the motor. Tighten set screw(s) in the lower canopy. Make sure there is at least 1/4"/7mm clearance maintained around the motor and lower canopy.
bIAde InStAllAtlOn
9

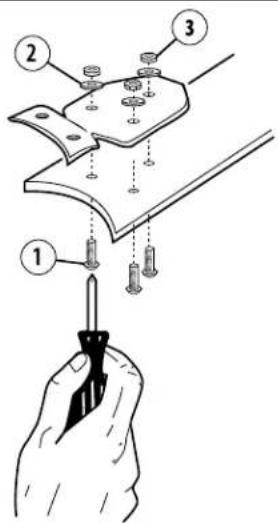

Attach blade brackets to blades using the blade bracket screws (1), metal washers (2), and nuts (3).
10


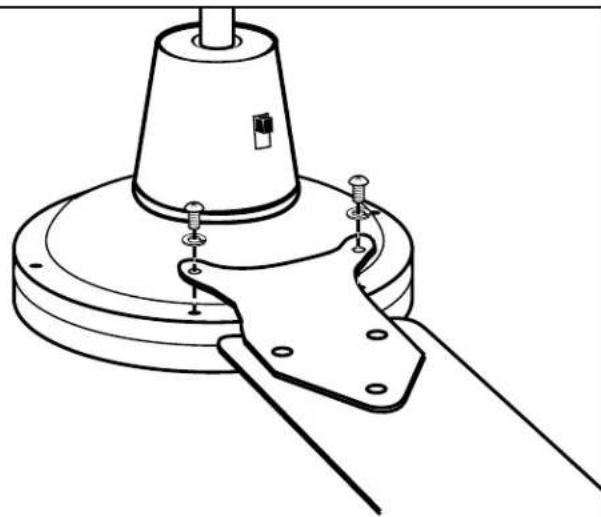

Technical line drawing of a mechanical assembly with a conical component and mounting bracket (no text or symbols)Install blades to top of motor using screws and washers. See above drawing for reference.
WALL COntrOI InStAllAtlOn
11

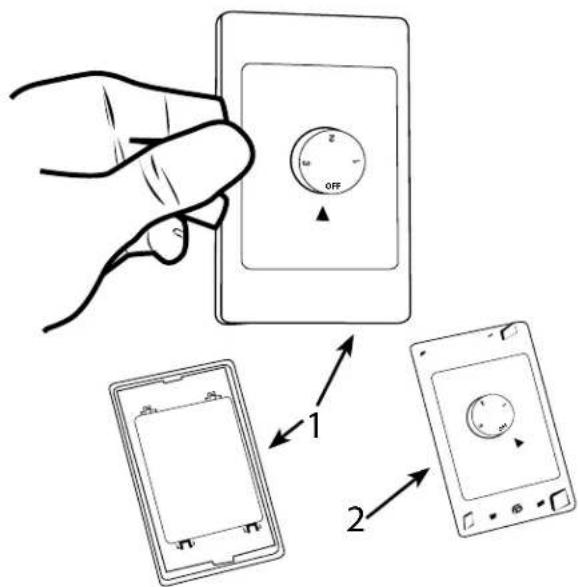

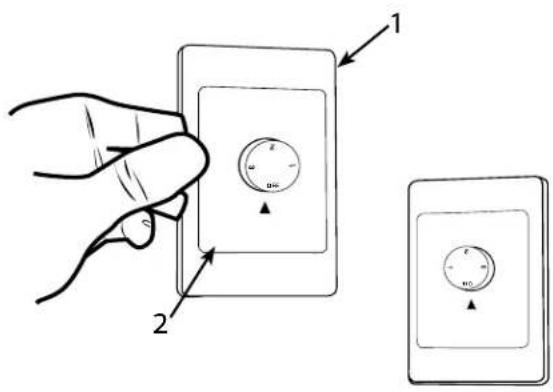

Remove the front cover of the wall control by unsnapping the cover (1) from the control unit (2).
WlrInG t0 tHe WALL COntrOl
12

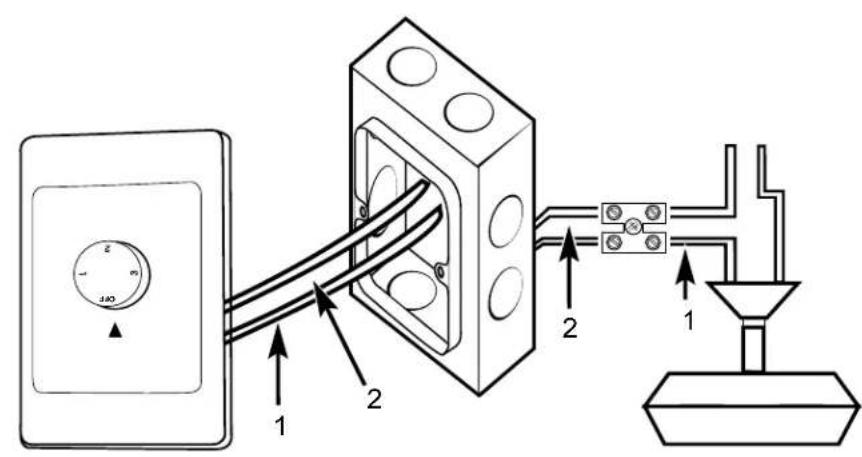

Connect the fan control wire from the fan to the terminal block on the wire marked "For fan-L", as line art shown on "1"; Connect the 240V hot house wire to the terminal block on the wire marked "TO AC-L240V/50HZ", as line art shown on "2".
OPerAtlOn WALL COntrOl
InStAll WALL COntrOI t0 OUtlet bOX
13

Operation:
Fan Rotary Control
OFF - Fan Speed OFF
3 - Fan Speed HIGH
2 - Fan Speed MEDIUM
1 - Fan Speed LOW
14

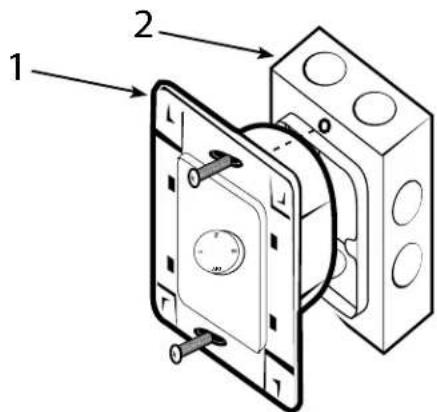

When wiring is complete, make sure no bare wires are exposed from the terminal connections on the back of the fan control unit. Push wiring back into wall outlet box, and secure the wall outlet unit (1) to the outlet box (2) with screws provided
SAA-Urban Gale-Australia-WH18
InStAll WALL COntrOl t0 0Utlet bOX
15

Replace the front cover of the wall control unit by snapping the cover (1) onto the control unit (2).
trOUBLesH00tING GUIDE
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation, or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Troubleshooting chart. If a problem cannot be remedied, please consult with your authorized electrician and do not attempt any electrical repairs yourself.
TROUBLE SUGGESTED REMEDY
| 1. If fan does not start: | 1. Check main and branch circuit fuses or circuit breakers.2. Check wire connections as performed in step #4 of installation.CAUTION: Make sure main power is turned off.3. Make sure forward/reverse switch is firmly in up or down position.Fan will not operate when switch is in the middle.4. If the fan still will not start, contact a qualified electrician.Do not attempt to troubleshoot internal electrical connections yourself. |
| 2. If fan sounds noisy: | 1. Check to make sure all screws in motor housing are snug (not over tightened).2. Check to make sure the screws which attach the fan blade holder to the motor are tight.3. Some fan motors are sensitive to signals from Solid State variable speed controls.DO NOT USE a Solid State variable speed control.4. Allow “break-in” period of 24 hours. Most noises associated with a new fan will disappear after this period. |
| 3. If fan wobbles: | All blades are weighed and grouped by weight. Natural woods vary in density which could cause the fan to wobble even though all blades are weight-matched. The following procedures should eliminate most of the wobble. Check for wobble after each step.1. Check that all blades are screwed firmly into blade holders.2. Check that all blade holders are tightened securely to motor.3. Make sure that canopy and mounting bracket are tightened securely to ceiling joist.4. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and possibly result in smoother operation. |
| 4. If light does not work: | 1. Check to see that the wire connections in the switch housing are connected.2. Check for faulty light bulbs.3. If light kit will still not operate, contact a qualified electrician for assistance. |

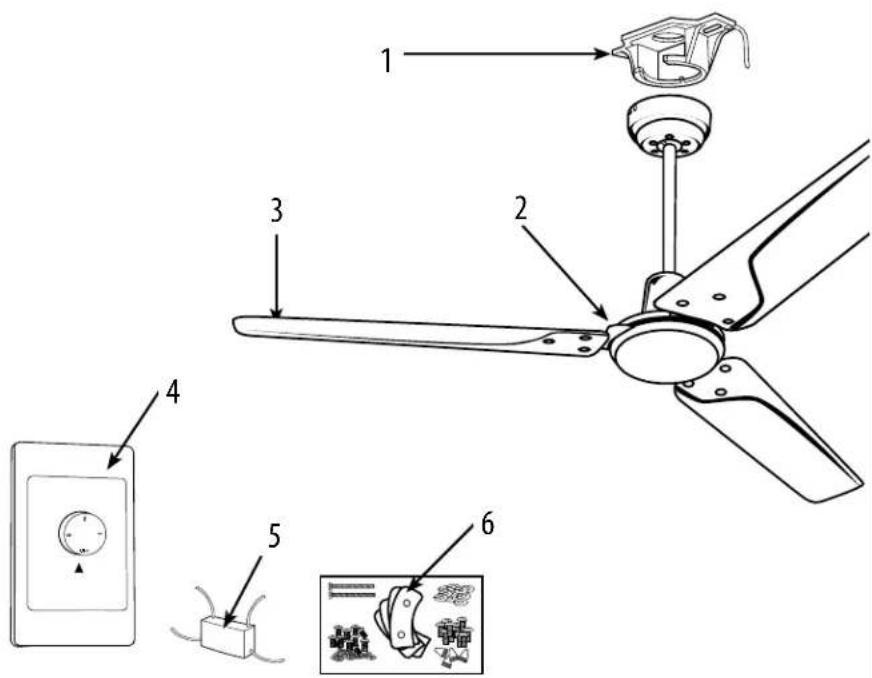

| # Description1....Mounting Bracket2....Blade Bracket3....Blade4....Wall Control5....Capacitor6....Hardware Pack | ![]() |
SAA-Urban Gale-Australia-WH18
Westinghouse Lighting, Philadelphia, PA 1029-19154, U.S.A. www.westinghouselighting.com

WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF
are trademarks of Westinghouse Electric Corporation.
Used under license by Westinghouse Lighting
All rights reserved.
Made in China


AS/NZS Approval No. SAA-181731-EA
