Product Type	Ceiling Fan
Brand	Westinghouse
Model	Zander
Blade Span	52 inches (estimated)
Number of Blades	5
Blade Finish	Reversible (Combo-Blade with two finishes)
Mounting Type	Downrod or Flush Mount (optional)
Motor	AC motor, permanently lubricated bearings
Control Type	Remote Control (included)
Number of Speeds	3 (Low, Medium, High)
Direction	Reversible (forward/reverse) via remote
Light Kit	Compatible (light function on remote)
Power Source	120V AC, 60Hz (typical)
Maximum Outlet Box Weight Capacity	15.9 kg (35 lbs)
Fan Weight	Approximately 8-10 kg (estimated)
Minimum Ceiling Height	7 feet from floor to blade trailing edge
Installation Requirements	Mount to fan-rated outlet box (marked acceptable for fan support)
Remote Battery	2 x AAA batteries (not included)
Warranty	Standard manufacturer warranty (refer to manual)
Maintenance	Check connections twice a year; clean with soft brush or lint-free cloth; no oiling needed

Frequently Asked Questions - Zander WESTINGHOUSE

How do I pair the remote control with the fan?

After restoring power, press and hold the OFF button for 5 seconds within 60 seconds. You will hear 4 short beep sounds indicating successful pairing.

What should I do if the fan does not start?

Check main and branch circuit fuses or breakers. Verify wire connections per installation step #16. Ensure the forward/reverse switch is fully in up or down position. If still not working, contact a qualified electrician.

How can I reduce wobbling?

Ensure all blade screws are tight, blade holders are secure, and canopy/mounting bracket are tightened to ceiling. If wobble persists, interchange two adjacent blades to redistribute weight.

Can I use a solid state speed control with this fan?

No, do not use any solid state fan speed control device or variable speed control as it may cause fire or electric shock.

How do I clean the fan?

Use only a soft brush or lint-free cloth to avoid scratching. Do not use water, as it may damage the motor or cause electrical shock.

What is the Combo-Blade feature?

Combo-Blades have two different finishes on each side. You can flip the blades to change the look of your fan to match your decor.

How do I change the fan direction?

Use the reverse switch on the remote transmitter. Forward (counterclockwise) for cooling in warm weather; reverse (clockwise) for circulating warm air in cool weather. Turn fan off and wait for it to stop before changing.

Why is the fan noisy?

Check that all motor housing screws are snug but not overtightened. Ensure blade holder screws are tight. Allow a 24-hour break-in period. Do not use solid state speed controls.

What type of light bulbs does the fan use?

The manual does not specify bulb type. Check the light kit socket for recommended bulb type (typically medium base candelabra or E12).

How often should I check the fan connections?

Twice a year, inspect support connections, brackets, and blade attachments to ensure they are secure.

USER MANUAL Zander WESTINGHOUSE

OBSERVE THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT TO OUTLET BOX MARKED 'ACCEPTABLE FOR FAN SUPPORT OF 15.9 KG (35 LBS) OR LESS' AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX AND/OR SUPPORT DIRECTLY FROM BUILDING STRUCTURE. MOST OUTLET BOXES COMMONLY USED FOR THE SUPPORT OF .LUMINARIES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT

1. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards (ANSI/NFPA 70), including fire-rated construction.
2. Use this unit only in the manner intended by the manufacturer. If you have any questions contact the manufacturer.
3. After making the wire connections, gently push connections into outlet box with wire nuts pointing up. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box and ungrounded conductor on the other side of the outlet box.
4. Before you begin installing the fan, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
5. Be cautious! Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.
6. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
7. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the floor to the trailing edge of the blade.
8. To reduce the risk of fire, electric shock, or personal injury, this fan must be mounted to an outlet box marked suitable for fan support, and use the mounting screws provided with the outlet box. (Mounting must support at least 35 lbs.)
9. WARNING! Do not bend blade holders during installation to motor, balancing or during cleaning. Do not insert foreign object between rotating blades.

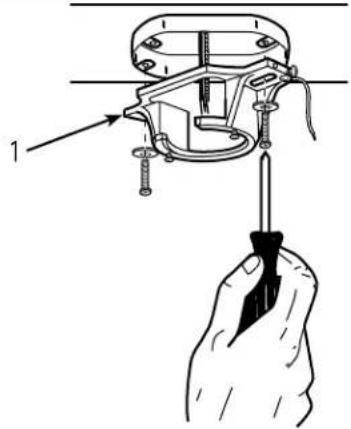

10. Attach the mounting bracket using only the hardware supplied with the outlet box. Fan is only to be mounted to an outlet box marked "Acceptable for Fan Support".
11. WARNING! To reduce the risk of fire or electric shock, do not use this fan with any solid state fan speed control device, or variable speed control.
12. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application.
13. NEVER place a switch where it can be reached from a tub or shower.
14. The combustion airflow needed for safe operation of fuel-burning equipment may be affected by this unit's operation. Follow the heating equipment manufacturer's guideline safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
15. Before servicing or cleaning unit, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means can not be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
16. All set screws must be checked and re-tightened where necessary before installation.
17. The appliance is not intended for use by young children or infirmed persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

TOOLS REQUIRED

Phillips Screwdriver

Wire Cutters

Pliers

Step Ladder

Pure mechanical cross-section diagram without any text, numbers, or symbols

For normal ceilings

Para techo normales

Features

CaraCterístiCas

Two side-by-side diagrams showing a curved, grainy wooden plank with contour lines, no text or symbols present.

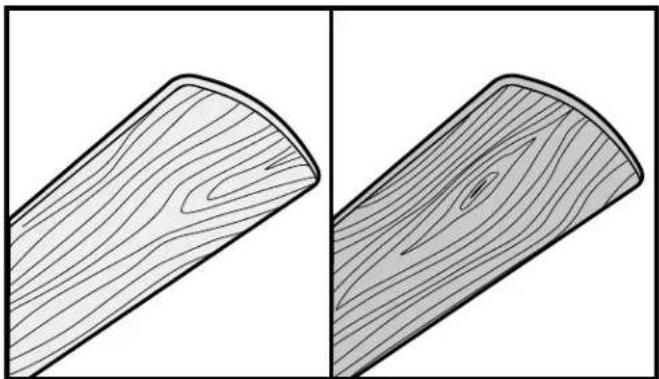

COMBO-BLADE

Combo-Blades feature two high quality finishes on one blade. Select the one that best complements your decor, or change the style with just a flip of the blade.

NOTE: Combo-Blade finishes vary, depending upon model.

ASPAS DE DOBLE CARA

Simple line drawing of a funnel with a handle and base, no text or symbols present

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Loosen but don't remove the screws at the bottom of canopy; remove the mounting bracket from the canopy.
Afloje pero no quite los tornillos en la parte inferior del dosel; extraiga el soporte de montaje del dosel.

4

If installing downrod supplied with fan, proceed to page 8, step 6.

If installing with longer downrod than supplied with fan, proceed to page 11, step 9.

Remove clamp pin (1) and cross pin (2) from downrod (3).

Place downrod assembly (1) into canopy (2) and coupling cover (3). Feed motor wires though the downrod assembly (1).

Insert downrod into downrod coupling. Make sure to align hole in downrod with the hole in downrod coupling. Install cross pin (1) through coupling and downrod. Insert keeper pin (2) into cross pin until it snaps into place. Tighten set screws (3) in coupling. Slide coupling cover (4) over the downrod coupling. PROCEED TO PAGE 15, STEP 15.

Illustration showing two hands holding a cylindrical object with a loop, one being lifted by an arrow (no text or symbols)

Re-install pin into extended downrod, and slide downrod ball up to the top of the downrod. Re-install set screw to secure ball to downrod. Note: Some extended downrods have a pre-drilled set-screw hole. If a pre-drilled hole is present in the extended downrod, tighten the set screw into the pre-drilled hole in the extended downrod. If no pre-drilled hole exists in the extended downrod, tighten the set screw against the downrod to secure the downrod ball. Process to Page #8 Step 6.

Simple line drawing of a laboratory apparatus with a central bowl and two tubes, no text or symbols present.

Remove the two screws holding the decorative cover to the top of the motor housing. This will allow access for securing the blades to the motor.

Insert the blades through the slots on the motor housing as shown, and use the provided blade screws and fabric washers to tighten the blades to the pre-attached blade brackets.

Simple line drawing of a laboratory apparatus with a beaker, tube, and base (no text or symbols)

Replace the decorative cover onto the top of the motor housing, securing with the two screws previously removed.

Carefully lift fan assembly onto mounting bracket. Rotate fan until notch on downrod ball (1) engages the ridge on the mounting bracket (2). This will allow for hands free wiring.

Make wiring connections from the house and the motor to the remote receiver as shown above. Connect using wire nuts (provided).

Line drawing of a hand turning a mechanical component with visible wiring (no text or symbols)

Once wiring step has been completed, slide the wired remote receiver in between the mounting bracket and the top of the downrod ball for downrod fans.

Loosen the 2 screws on the bottom of mounting bracket. (do not remove) Raise the canopy up and align the keyholes on the bottom of the canopy with the 2 screws on the bottom of mounting bracket. Rotate the canopy until both screws from the mounting bracket drop into the slot recesses. Tighten screws securely.

Line drawing of a ceiling fan with a hand adjusting the socket (no text or symbols)

Technical diagram of a mechanical component with directional arrows indicating rotation or movement (no text or symbols)

Line drawing of a remote control panel with internal compartments and buttons (no text or symbols)

Remote Control Operation

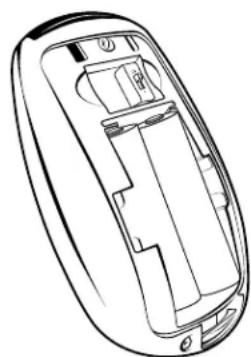

NOTE: This remote is to use 2 x AAA batteries.

This remote control is preset up a pair of codes when being manufactured. After install the unit and restore the power of your fan, press and hold the "OFF" button for 5 seconds. You must press the "OFF" button within 60 seconds of restoring power to the fan. After hearing 4 short beep sounds, the speed setting process is completed.

1. Fan Control

High speed – When you press the "HI" key, you will hear 3 long beep sounds indicating the fan is starting up; Med speed – When you press the "MED" key, you will hear 2 long beep sounds indicating the fan is starting up; Lo speed – When you press the "LO" key, you will hear 1 long beep sounds indicating the fan is starting up; Fan Off – When you press the "OFF" key, you will hear 4 short beep sounds indicating the fan is turning off;

1. Light On/Off – When you press the "LIGHT" key, you will hear 1 short beep sound indicating when you are turning the lights on or off.

Turn on the power and check operation of fan.

Speed settings for warm or cool weather depend on factors such as room size, ceiling height, number of fans and so on.

The reverse switch in remote transmitter controls direction, forward or reverse.

Warm weather/down position - (Forward) Fan turns counterclockwise direction. A downward air flow creates a cooling effect as shown in illustration A.

This allows you to set your air conditioner on a higher temperature setting without affecting your comfort.

Cool weather/up position - (Reverse) Fan turns clockwise direction. An upward airflow moves warm air off the ceiling area as shown in illustration B.

This allows you to set your heating unit on a lower setting without affecting your comfort.

NOTE: Turn off and wait for fan to stop before changing the setting of the forward/reverse slide switch.

Maintenance

1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure.
2. Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning. This could damage the motor, or the wood, or possibly cause electrical shock.
3. Use only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer coating to minimize discoloration or tarnishing.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.

If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation, or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Trouble Shooting chart. If a problem cannot be remedied, please consult with your authorized electrician and do not attempt any electrical repairs yourself.

TROUBLE SUGGESTED REMEDY

1. If fan does not start: 1. check main and branch circuit fuses or circuit breakers.
2. check wire connections as performed in step #16 of installation. CAUTION: Make sure main power is turned off.
3. Make sure forward/reverse switch is firmly in up or down position. Fan will not operate when switch is in the middle.
4. If the fan still will not start, contact a qualified electrician. Do not attempt to troubleshoot internal electrical connections yourself.
5. If fan sounds noisy: 1. check to make sure all screws in motor housing are snug (not over tightened).
6. check to make sure the screws which attach the fan blade holder to the motor are tight.
7. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT USE a Solid State variable speed control.
8. Allow "break-in" period of 24 hours. Most noises associated with a new fan will disappear after this period.
9. If fan wobbles: All blades are weighed and grouped by weight. Natural woods vary in density which could cause the fan to wobble even though all blades are weight-matched. The following procedures should eliminate most of the wobble. check for wobble after each step.
10. check that all blades are screwed firmly into blade holders.
11. check that all blade holders are tightened securely to motor.
12. Make sure that canopy and mounting bracket are tightened securely to ceiling joist.
13. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and possibly result in smoother operation.
14. If light does not work: 1. check to see that the wire connections in the switch housing are connected.
15. check for faulty light bulbs.
16. If light kit will still not operate, contact a qualified electrician for assistance.

Guía Para s0luCi0nar PrOBleMas

ETL-ES-Zander-R-WH14

ETL-ES-Zander-R-WH14

ETL-ES-Zander-R-WH14

Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A. www.westinghouselighting.com

W, WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF are trademarks of Westinghouse Electric Corporation. Used under license by Westinghouse Lighting All rights reserved. Made in China
