USER MANUAL TR4110BL1 SMEG

PRECAUTIONS 33

General safety instructions	33
Installation	37
Appliance purpose	38
This user manual	38
Manufacturer's liability	39
Identification plate	39
Disposal	39
Information for European Control Bodies	39
Energy efficiency technical data	39
To save energy	39
Information on power consumption in off/stand-by mode	39
Light sources	40
How to read the user manual	40

DESCRIPTION 40

General description	40
Hob	41
Control panel	41
Other parts	42
Accessories	42
USE	43
Preliminary operations	43
Using the accessories	43
Using the hob	43

Using the storage compartment (where present)	44
Using the oven	44
Digital programmer	45
Cooking advice	47
Cooking information table (multifunction oven) 47
Cooking information table (auxiliary oven)	48

CLEANING AND MAINTENANCE 49

Cleaning the appliance	49
Cleaning the hob	49
Knobs	49
Cleaning the door	50
Cleaning the oven cavity	51
Cleaning the roof of the oven (only for some models/cavities)	52
Vapor Clean (on some models only)	52
Extraordinary maintenance	53

INSTALLATION 54

Gas connection	54
Gas types and Countries	57
Burner and nozzle characteristics tables	57

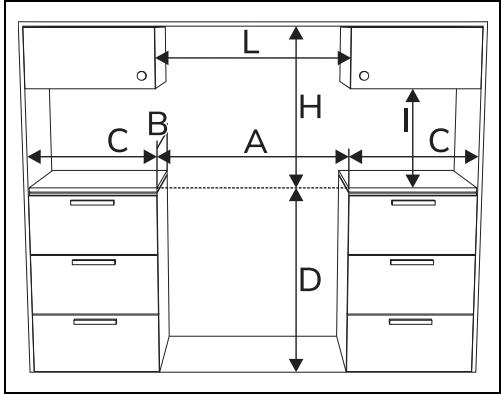

Positioning	58
Electrical connection	60
Instructions for the installer	60

We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance's aesthetic and functional qualities. For further information on the product: www.smeg.com

PRECAUTIONS

General safety instructions Risk of personal injury

• WARNING: During use the appliance and its accessible parts become very hot. Keep children well away from the appliance.
• Protect your hands by wearing oven gloves when moving food inside the oven.
• Never try to put out a fire or flames with water: Turn off the appliance and smother the flames with a fire

blanket or other appropriate cover.

• This appliance may only be used by children aged 8 years and over, and by people of reduced physical, sensory or mental capacity, or lacking in experience in the use of electrical appliances, provided that they are supervised or have been given instructions on the safe use of the appliance and of the hazards associated with it.
  • Children must not play with

the appliance.

- Keep children under the age of eight at a safe distance unless they are constantly supervised.

- Keep children under the age of 8 away from the appliance when it is in use.

- Cleaning and maintenance must not be carried out by unsupervised children.

- Make sure that the flame-spreader crowns are correctly positioned in their housings with their respective burner caps.

- Be aware of how rapidly the cooking zones heat up. Do not place empty pans on the heat. Danger of overheating.

- The cooking process must always kept under control. A short cooking process must be continuously monitored.

- Fats and oils can catch fire if they overheat. Do not leave the appliance unattended while preparing foods containing oils or fats. If fats or oils catch fire, never put water on them. Place the lid on the pan and turn off the relevant cooking zone.

- Do not place metal objects, such as dishes or cutlery, on the surface of the hob during cooking as they may overheat.

- WARNING: leaving food

unattended when cooking using fat or oil can be dangerous and can cause a fire. DO NOT attempt to extinguish a fire with water. Turn off the appliance and smother the flames, for example with a lid or a blanket.

- The appliance becomes very hot during use. Take care never to touch the heating elements inside the oven(s).

- Do not insert pointed metal objects (cutlery or utensils) into the slots in the appliance.

- Do not pour water directly onto very hot trays.

- Keep the oven door closed during cooking.

- If you need to move food or at the end of cooking, open the door 5 cm for a few seconds, let the steam come out, then open it fully.

- The surfaces inside the storage compartment (where fitted) may become very hot.

- Do not open the storage compartment (where present) when the oven is on and still hot.

- The items inside the storage compartment (where present) could be very hot after the oven has been used.

- Do not rest any weight or sit on the open door of the

appliance.

- Switch off the appliance immediately after use.

- Do not pull the cable to unplug the appliance (if installed).

- DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE STORAGE COMPARTMENT (IF AVAILABLE) OR NEAR THE APPLIANCE.

- DO NOT USE AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILST IT IS IN USE.

- DO NOT MODIFY THIS APPLIANCE.

- Always wear personal protective equipment (PPE) before carrying out any work on the appliance (installation, maintenance, positioning or moving).

- Do not clean the appliance if it is still hot or in operation.

- Before performing any work on the appliance, switch off the power supply.

- WARNING: Make sure that the appliance has been switched off and disconnected from the mains power supply or that the mains power has been switched off before replacing the interior lighting bulbs.

- The bulbs used in this appliance are specific for household appliances; do

not use them for home lighting.

- Installation and servicing should be carried out by qualified personnel in accordance with current standards.

- Do not try to repair the appliance yourself or without the assistance of a qualified technician.

- If the power cable becomes damaged, contact technical support immediately to arrange for it to be replaced in order to avoid possible hazards.

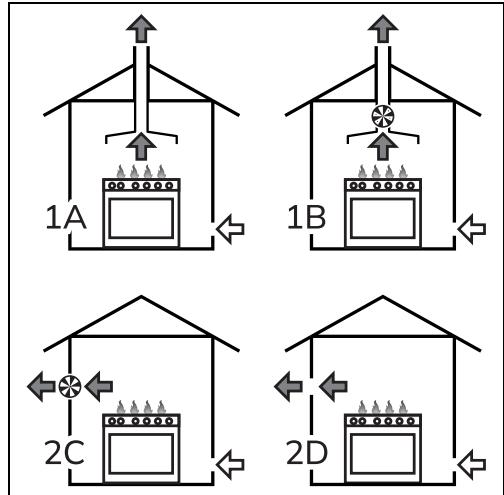

- WARNING: A gas cooking appliance produces heat, humidity and combustion products in the room where it is installed. Make sure the kitchen is well ventilated, especially when the appliance is in use: keep the natural ventilation openings open or install a mechanical ventilation device.

- Intensive and prolonged use of the appliance may require additional ventilation, for example opening a window or more effective ventilation; for example by increasing the power of any mechanical suction devices.

Risk of damaging the appliance

- Do not use harsh or abrasive detergents or sharp metal scrapers to

clean the glass door of the oven since they may scratch the surface and cause the glass to shatter.

• Use wooden or plastic utensils.
• Do not use steam jets to clean the appliance.
• Do not obstruct ventilation openings and heat dispersal slots.
• Do not sit on the appliance.
• Racks and trays should be inserted as far as they will go into the side guides. The mechanical safety locks that prevent them from being removed must face downwards and towards the back of the oven.

• CAUTION: Never leave the appliance unattended when cooking using fats or oils. Risk of fire. Be very careful.
• Risk of fire: Do not store objects on the cooking surfaces.
• Do not spray any spray products near the oven.
• DO NOT FOR ANY REASON USE THE APPLIANCE AS A SPACE HEATER.
• Do not use plastic kitchenware or containers

for cooking.

• Do not put sealed tins or containers in the oven.
• Remove all trays and racks which are not required during cooking.
• Do not cover the bottom of the oven cavity with aluminium or tin foil sheets.
• Do not place pans or trays directly on the bottom of the oven cavity.
• If necessary, you can use the tray rack (supplied or sold separately, depending on the model) by placing it on the bottom as a support for cooking.
• If you wish to use greaseproof paper, place it so that it will not interfere with the hot air circulation inside the oven.
• Do not use the open door to rest pans or trays on the internal glass pane.
• Cooking vessels or griddle plates should be placed inside the perimeter of the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill, remove the excess from the hob.
• Take care not to spill acid substances such as lemon juice or vinegar on the hob.
• Do not use steam jets to clean the appliance.
• Do not put empty pans or frying pans on switched on

cooking zones.

• Do not use rough or abrasive materials or sharp metal scrapers.
• Do not use cleaning products containing chlorine, ammonia or bleach on parts made of steel or that have metallic surface finishes (e.g. anodizing, nickel- or chromium-plating).
• Do not wash removable parts such as the hob pan support grids, flame-spreader crowns and burner caps in the dishwasher.
• Never use the oven door to lever the appliance into place when fitting.
• Avoid exerting too much pressure on the door when open.
  • Take care that no objects are stuck in the doors.
• Do not use the handle to lift or move this appliance.
• Do not spray cleaning products directly onto the door, as they may get into areas that are difficult to access and rinse off. Over time, they may react with painted panels or steel.
• To avoid damaging the racks, do not drag the pans; lift and reposition them instead.

Installation

- THIS APPLIANCE MUST NOT BE INSTALLED IN

BOATS OR CARAVANS.

• This appliance must not be installed on a pedestal.
• Do not use the handle to lift or move the appliance.
• Position the appliance into the cabinet cut-out with the help of a second person.
• To avoid potential overheating, the appliance must not be installed behind a decorative door or a panel.
• Before installation, make sure that the local distribution conditions (type and pressure of the gas) and the regulation of the appliance are compatible.
• This appliance is not connected to a system for extracting combustion products. It should be installed and connected in compliance with current installation regulations. Pay particular attention to the requirements regarding ventilation.
• The settings for this appliance are shown on the gas setting label.
• Have the gas connection performed by authorised personnel.

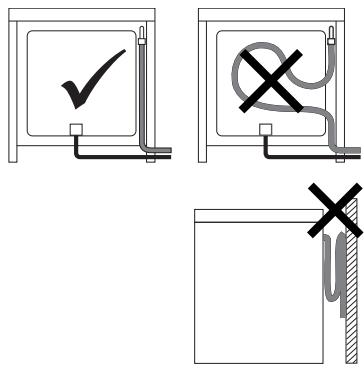

• Installation using a hose must be carried out so that the length of the hose does not exceed 2 metres when fully extended for steel hoses and 1.5 metres for rubber hoses.

• The gas connection hoses must not come into contact with moving parts of the built-in module (for example a drawer) and must not be routed through a space that could cause it to be pinched.

• If required, use a pressure regulator that complies with current regulations.
• After carrying out any operation, check that the tightening torque of gas connections is between 10 Nm and 15 Nm.
• At the end of the installation, check for any leaks with a soapy solution, never with a flame.
• Have the electrical connection performed by authorised technicians.
• The appliance must be connected to earth in compliance with electrical system safety standards.
• Use cables that can withstand temperatures of at least 90°C.
• The tightening torque of the screws of the terminal supply wires must be 1.5 - 2 Nm.
• Fit the power line with an all-pole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions, pursuant to installation

regulations.

- This appliance can be used up to a maximum altitude of 2,000 metres above sea level.

For this appliance

- The swing doors are not held in place when open and may tend to close again. During use, pay attention not to come into contact with the internal glass pane to prevent burns.

Appliance purpose

This appliance is intended for cooking food in the home environment. Every other use is considered improper. It must also not be used:

• In kitchen areas provided for employees in shops, offices and other work environments.
  • in farms/farmhouses.
• By guests in hotels, motels and other types of residential environments.
  • In bed and breakfasts.

This appliance may only be installed and used indoors.

This user manual

• This user manual is an integral part of the appliance and must therefore be kept in its entirety and within the user's reach for the whole working life of the appliance.
• Read this user manual carefully before using the appliance.
• The explanations in this manual include images, which describe all that regularly appears on the display. However, it

should be kept in mind that the appliance may be equipped with an updated version of the system, and as such, all that appears on the display may differ from those in the manual.

Manufacturer's liability

The manufacturer declines all liability for damage to persons or property caused by:

• use of the appliance other than that specified;
• failure to comply with the instructions in the user manual;
• tampering with any part of the appliance;
  • use of non-original spare parts.

Identification plate

The identification plate bears the technical data, serial number and brand name of the appliance. Do not remove the identification plate for any reason.

Disposal

This appliance conforms to the WEEE European directive (2012/19/EU) and must be disposed of separately from other waste at the end of its service life.

The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment, in accordance with current European directives.

Power voltage Danger of electrocution

• Disconnect the mains power supply.
• Unplug the appliance.

To dispose of the appliance:

• Cut the power cable and remove it.
• Deliver the appliance to the appropriate recycling centre for electrical and electronic equipment waste, or return it to the retailer when purchasing an equivalent product, on a one for one basis.

Our appliances are packaged in non-polluting and recyclable materials.

- Deliver the packing materials to the appropriate recycling centre.

Plastic packaging Danger of suffocation

- Do not leave the packaging or any part of it unattended.

Plastic packaging Danger of suffocation

- Do not let children play with the plastic bags.

Information for European Control Bodies

Fan forced mode

the ECO function used to define the energy efficiency class complies with the specifications of European standard EN 60350-1.

Energy efficiency technical data

Information in accordance with the European energy labelling and ecodesign regulations is contained in a separate document accompanying the product instructions.

These data are present in the "Product information sheet" that can be downloaded from the website at the page dedicated to the product in question.

To save energy

• Only preheat the appliance if the recipe requires you to do so.
• Unless otherwise indicated on the package, defrost frozen foods before placing them in the oven.
• When cooking several types of food it is recommended to cook the foods one after the other to make the best use of the already hot oven.
• Use dark metal moulds: They help to absorb the heat better.
• Remove all trays and racks which are not required during cooking.
• Stop cooking a few minutes before the time normally used. Cooking will continue for the remaining minutes with the heat which has accumulated inside the oven.
• Reduce any opening of the door to a minimum to avoid heat dispersal.
• Keep the inside of the oven clean at all times.

Information on power consumption in off/stand-by mode

Technical data on the appliance's power consumption in off/stand-by mode can be found at www.smeg.com under the page corresponding to the product in question.

Light sources

- This appliance contains user-replaceable light sources.

- The light sources contained in the appliance are declared suitable for operation at ambient temperature ≥300° C and intended for use in high

temperature applications such as ovens.

- This appliance contains light sources of efficiency class "G".

How to read the user manual

This user manual uses the following reading conventions:

Warning/Caution

Information/Advice

DESCRIPTION

General description

1 Hob
2 Control panel
3 Auxiliary oven seal
4 Auxiliary oven light
5 Auxiliary oven door
6 Multifunction oven door
7 Left multifunction oven light

8 Fan
9 Left multifunction oven seal
10 Right multifunction oven light
11 Storage compartment
12 Right multifunction oven door
13 Right multifunction oven seal

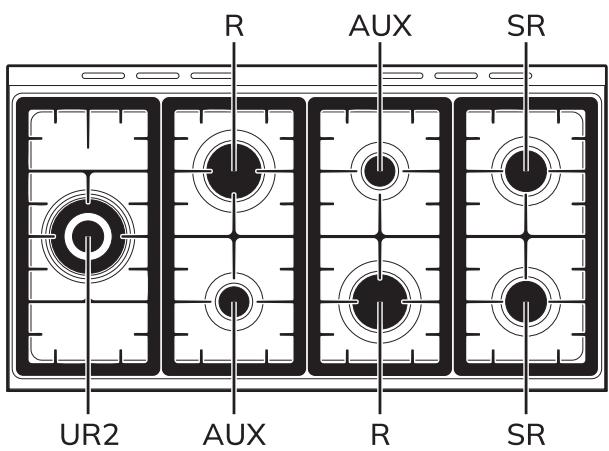

AUX = Auxiliary Burner

SR = Semi-rapid Burner

R = Rapid Burner

UR2 = Ultra Rapid Burner

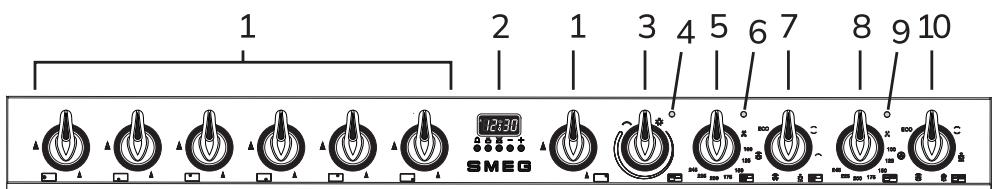

Control panel

1 Hob burner knobs

For lighting and adjusting the hob burners. Press and turn the knobs anti-clockwise to

A in order to light the relative burners.

Turn the knobs to the zone between the maximum △ and minimum △ setting to adjust the flame. Return the knobs to the

position to turn off the burners.

2 Programmer clock

For displaying the current time, setting programmed cooking operations and the minute minder timer.

The programmer clock only controls the upper multifunction oven.

3 Auxiliary oven variable grill knob

It turns on the light inside the oven or starts the grill heating element to a temperature ranging from a minimum of 50° C to a maximum of 245° C.

4 Auxiliary oven variable grill indicator light

The indicator light comes on to indicate that the auxiliary oven is heating up. It turns off as soon as it reaches the set temperature. It flashes regularly to indicate that the temperature set inside the oven is kept constant.

5 Left multifunction oven left temperature knob

This knob allows you to select the cooking temperature and the Vapor Clean temperature.

Turn the knob clockwise to the required value, between the minimum and maximum setting.

6 Left multifunction oven indicator light

The indicator light comes on to indicate that the oven is heating up. It turns off as soon as it reaches the set temperature. It flashes regularly to indicate that the temperature set inside the oven is kept constant.

7 Left multifunction oven left functions knob

The oven's various functions are suitable for different cooking modes. After selecting the required function, set the cooking temperature using the temperature knob.

8 Upper multifunction oven indicator light

The indicator light comes on to indicate that the oven is heating up. It turns off as soon as it reaches the set temperature. It flashes regularly to indicate that the temperature set inside the oven is kept constant.

9 Upper multifunction oven temperature knob

This knob allows you to select the cooking temperature and the Vapor Clean temperature.

Turn the knob clockwise to the required value, between the minimum and maximum setting.

10 Upper multifunction oven functions knob

This knob allows you to select the cooking temperature and the Vapor Clean temperature.

Turn the knob clockwise to the required value, between the minimum and maximum setting.

Other parts

Shelves

The appliance features shelves to position trays and racks at different heights. The insertion heights are indicated from the bottom upwards (see General description).

Cooling fan

The fan cools the oven and comes into operation during cooking. The fan causes a steady outflow of air that exits from the rear of the appliance and which may continue for a brief period of time even after the appliance has been turned off.

Do not obstruct ventilation openings and heat dispersal slots.

Interior lighting

The appliance's interior lighting comes on:

• Multifunction oven: when any function is selected, apart from the ECO function.
• Auxiliary oven: when the variable grill knob is turned to the ⚙ symbol or to the cooking temperature.

Accessories

• Not all accessories are available on some models.
• The accessories intended to come into contact with food are made of materials that comply with the provisions of current legislation.
• Original supplied and optional accessories can be requested to Authorised Assistance Centres. Use only original accessories supplied by the manufacturer.

Wok support

Useful when using a wok.

Deep tray

Useful for collecting fat from foods placed on the rack above and for cooking pies, pizzas, baked desserts, biscuits, etc.

Tray rack

To be placed over the top of the tray; for cooking foods which may drip.

Rack

Useful for supporting containers with food during cooking.

Preliminary operations

See General safety instructions.

• Remove any protective film from the outside or inside of the appliance, including accessories.
• Remove any labels (apart from the technical data plate) from the accessories and shelves.
• Remove and wash all the appliance accessories (see chapter "CLEANING AND MAINTENANCE").

First heating

1. Set a cooking time of at least one hour (see paragraph "Using the oven").
2. Heat the empty oven compartment at the maximum temperature to burn off any residues left by the manufacturing process.

When heating the appliance

• air the room;
• don't stay.

Carry out a first pre-heating cycle for each of the cavities in the appliance.

Using the accessories

Racks and trays

Racks and trays have to be inserted into the side guides until they come to a complete stop.

- The mechanical safety locks that prevent the rack from being removed accidentally must face downwards and towards the back of the oven cavity.

Gently insert racks and trays into the oven until they come to a stop.

Clean the trays before using them for the first time to remove any residues left by the manufacturing process.

Tray rack

The tray rack has to be inserted into the tray. In this way fat can be collected separately from the food which is being cooked.

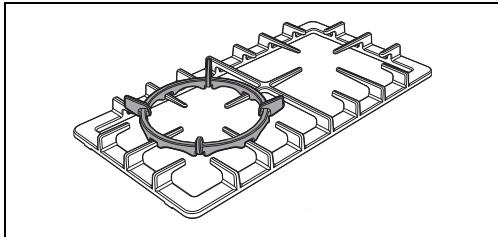

Trivets and reduction pan supports

The trivets and reduction pan supports must be placed on the hob pan supports. Make sure they are placed properly.

Using the hob

All the appliance's control and monitoring devices are located together on the front panel. The burner controlled by each knob is shown next to the knob. The appliance is equipped with an electronic ignition device. Simply press the knob and turn it anticlockwise to the maximum flame symbol, until the burner ignites. If the burner does not light in the first 15 seconds, turn the knob to 📋 and wait 60 seconds before trying again. After lighting, keep the knob pressed in for a few seconds to allow the thermocouple to heat up. The burner may go out when the knob is released: In this case, the thermocouple has not heated up sufficiently.

Wait a few moments and repeat the operation. Keep the knob pressed in longer.

In case of an accidental switching off, a safety device will be tripped, cutting off the gas supply, even if the gas cock is open. Return the knob to ⏻ and wait at least 60 seconds before lighting it again.

Correct positioning of the flame-spreader crowns and burner caps

Before lighting the hob burners, make sure that the flame-spreader crowns are correctly positioned in their housings with their respective burner caps. Make sure that the holes 1 in the flame-spreader crowns are aligned with the igniters 3 and thermocouples 2.

Practical tips for using the hob

For better burner efficiency and to minimise gas consumption, use pans with lids and of suitable size for the burner, so that the flames do not reach up the sides of the pan. Once the contents come to the boil, turn down the flame far enough to ensure that the liquid does not boil over.

Burner	Pan diameter
AUX	12 - 14 cm
SR	16 - 24 cm
R	18 - 26 cm
UR2	18 - 28 cm

Using the storage compartment (where present)

See General safety instructions.

The storage compartment is in the bottom of the cooker. To open it, pull it towards you. It can be used to store cookware or metallic objects necessary when using the appliance.

Using the oven

See General safety instructions.

Opening and closing the door of the multifunction oven

Multifunction ovens are equipped with a swing door. To open, pull the door handle towards you. To close, push the doors until you hear a mechanical “click”.

Switching on the oven

To switch on the oven:

1. Select the cooking function using the function knob.
2. Select the temperature using the temperature knob.

Ensure that the programmer clock shows the cooking duration symbol 🎨, otherwise it will not be possible to turn on the oven.

Press the 🎨 and 🎨 buttons at the same time to reset the programmer clock.

List of traditional cooking functions

Not all functions are available on some models.

STATIC

Traditional cooking, ideal for preparing a single dish. For example cooking roast meats, fatty meats, bread, pies.

CIRCULAIRE + BOTTOM

Allows you to quickly finish cooking food that is already cooked on the surface but not internally. Ideal for quiches, suitable for all kinds of dishes.

GRILL

Produces excellent grilling and gratinating results. When used at the end of cooking, gives a uniform browning to dishes.

RAPID DEFROST

Activating the fan on its own ensures a uniform distribution of room temperature air inside the oven, allowing any type of food to be defrosted.

FAN ASSISTED

Intense and uniform cooking. Ideal for biscuits, cakes and cooking on more than one level.

CIRCULAIRE

The heat is distributed quickly and uniformly. Suitable for all dishes, ideal for cooking on multiple levels without mixing smells or flavours.

FAN WITH GRILL

Allows optimal grilling, even for thick slices of meat. Perfect for larger cuts of meat.

ECO

ECO

This function is particularly suitable for cooking on a single shelf with low energy consumption. It is recommended for all types of food except those that may produce a large amount of moisture (e.g. vegetables).

To obtain maximum energy savings and reduce cooking times, it is recommended to place food in the oven without preheating.

When using the ECO function, avoid opening the door during cooking.

Cooking (and preheating) times are longer with the ECO function and may depend on the amount of food in the oven.

VAPOR CLEAN (on some models only)

This function facilitates cleaning using the steam produced by a small amount of water poured onto the depression on the bottom.

Digital programmer

Minute minder timer button

Cooking duration button

End of cooking button

Value decrease button

Value increase button

Ensure that the programmer clock shows the cooking duration symbol 🎨, otherwise it will not be possible to turn on the oven.

Press the 🎨 and 🎨 buttons at the same time to reset the programmer clock.

Setting the time

If the time is not set, the oven will not switch on.

On the first use, or after a power failure, the digits will be flashing on the appliance's display.

1. Press the 🎨 and 🎨 buttons at the same time. The dot between the hours and the minutes flashes.
2. The time can be set using the — and + buttons. Keep the button pressed in to increase or decrease rapidly.
3. Wait 5 seconds. The dot between the hours and the minutes stops flashing.
4. The 📊 symbol on the display indicates that the appliance is ready to start cooking.

Timed cooking

Timed cooking is the function which allows a cooking operation to be started and then ended after a specific length of time set by the user.

1. After selecting a cooking function and temperature, press the 🎨 button.
2. Use the — or + button to set the duration.
3. Wait approx. 5 seconds without pressing any button in order for the function to activate. The current time and the 🎨 and 🔒 symbols will appear on the display.
4. At the end of cooking the heating elements will be deactivated. On the display, the symbol turns off, the symbol flashes and the buzzer sounds.
5. To turn the buzzer off, simply press one of the programmer clock buttons.
6. Press the 🎨 and 🎨 buttons at the same time to reset the programmer clock.

It is not possible to set a cooking time of more than 10 hours.

To display the remaining cooking time, press the 🎨 button.

To reset the program, press the 🎨 and 🔊️ buttons at the same time. The oven will then have to be switched off manually.

Programmed cooking

Programmed cooking is the function that allows timed cooking to be stopped at a time set by the user.

1. Set the cooking time as described in the previous point Timed cooking.
2. Press the 📋 button. The cooking end time will appear on the display (current time plus cooking duration).
3. Press the — or + button to set the cooking end time.
4. Wait approx. 5 seconds without pressing any button in order for the function to activate. The current time

and the A symbol appear on the display.

1. At the end of cooking the heating elements will be deactivated. On the display, the 🎨 symbol turns off, the ⚠ symbol flashes and the buzzer sounds.

To reset the program, press the 🎨 and 🔊 buttons at the same time. The oven will then have to be switched off manually.

To display the remaining cooking time, press the 🎨 button. To display the end of cooking time, press the 🎨 button.

Minute minder timer

The minute minder timer does not stop the cooking operation but rather informs the user when the set time has run out.

The minute minder timer can be activated at any time.

1. Pressing button 📁 causes 1:00 to appear on the display and the light flashes.
2. Use the — or + button to set the duration.
3. Wait approx. 5 seconds without pressing any button to finish setting the minute minder. The current time and the 🎨 and 🔒 symbols appear on the display.

A buzzer will sound when the set time is reached.

1. Press the decrease — button to turn the buzzer off.

The minute minder timer can be set from 1 minute to a maximum of 23 hours and 59 minutes.

To display the time remaining, press the 🔒 button.

Deleting the set data

Press the 🎨 and 🎨 buttons at the same time to reset the programs set.

Setting the volume of the buzzer

The buzzer can have 3 tones.

When the buzzer is in operation, press the

— button to change the setting.

Cooking advice

General advice

• Use a fan assisted function to achieve consistent cooking at several levels.
• It is not possible to shorten cooking times by increasing the temperature (the food could be overcooked on the outside and undercooked on the inside).

Advice for cooking meat

• Cooking times vary according to the thickness and quality of the food and to consumer taste.
• Turn the food to brown on both sides.
• Use a meat thermometer when roasting meat, or simply press on the roast with a spoon. If it is hard, it is ready; if not, it needs to be cooked for a few more minutes.

Advice for cooking with the Grill

• Meat can be grilled even when it is put into the cold oven or into the preheated oven if you wish to change the effect of the cooking.
• With the Fan with grill function (if present), we recommend that you preheat the oven before grilling.
• We recommend placing the food at the centre of the rack.
• With the Grill function, we recommend that you set the temperature to the maximum value to optimise cooking.

Advice for cooking desserts/pastries and biscuits

• Use dark metal moulds: They help to absorb the heat better.
• The temperature and the cooking time depend on the quality and consistency of the dough.
  • To check whether the dessert is cooked

right through: At the end of the cooking time, put a toothpick into the highest point of the dessert. If the dough does not stick to the toothpick, the dessert is cooked.

- If the dessert collapses when it comes out of the oven, on the next occasion reduce the set temperature by about 10° C, selecting a longer cooking time if necessary.

Advice for cooking on two shelves:

• We recommend using two racks (they can be obtained from Authorised Assistance Centres).
• To facilitate the flow of air, place the moulds/ovenware at the centre of the racks and make sure that their width/diameter does not exceed 30 cm.
• Position the racks keeping an empty shelf between them.
• Depending on the type of food and the increased quantity in the oven, cooking on two levels may take slightly longer compared to cooking on a single shelf.
• We suggest using the following functions when cooking on two shelves: CIRCULAIRE and CIRCULAIRE+BOTTOM.

Advice for defrosting and proving

• Place frozen foods without their packaging in a lidless container on the first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on the second level and a tray on the first level. In this way, the liquid from the defrosting food drains away from the food.
• The most delicate parts can be covered with aluminium foil.
• For successful proving, a container of water should be placed in the bottom of the oven.

Cooking information table (multifunction oven)

Food	Weight (Kg)	Function	Shelf	Temp. (°C)	Time (minutes)
Lasagne	3 - 4	STATIC	1	220 - 230	45 - 50
Pasta bake	3 - 4	STATIC	1	220 - 230	45 - 50
Veal roast	2	CIRCULAIRE	2	180 - 190	90 - 100
Pork loin	2	CIRCULAIRE	2	180 - 190	70 - 80
Sausages	1.5	FAN WITH GRILL	3	260	15

The times indicated in the table do not include preheating times and are provided only as a guide.

Food	Weight (Kg)	Function	Shelf	Temp. (°C)	Time (minutes)
Roast beef	1	CIRCULAIRE	2	200	40 - 45
Roast rabbit	1.5	CIRCULAIRE	2	180 - 190	70 - 80
Turkey breast	3	CIRCULAIRE	2	180 - 190	110 - 120
Roast pork neck	2 - 3	CIRCULAIRE	2	180 - 190	170 - 180
Roast chicken	1.2	CIRCULAIRE	2	180 - 190	65 - 70
					1st surface	2nd surface
Pork chops	1.5	FAN WITH GRILL	3	260	15	5
Spare ribs	1.5	FAN WITH GRILL	3	260	10	10
Bacon	0.7	GRILL	4	260	7	8
Pork fillet	1.5	FAN WITH GRILL	3	260	10	5
Beef fillet	1	GRILL	4	260	10	7
Salmon trout	1.2	CIRCULAIRE	2	160 - 170	35 - 40
Monkfish	1.5	CIRCULAIRE	2	160-170	60 - 65
Turbot	1.5	CIRCULAIRE	2	160-170	45 - 50
Pizza	1	FAN ASSISTED	2	260	8 - 9
Bread	1	CIRCULAIRE	2	190 - 200	25 - 30
Focaccia	1	CIRCULAIRE	2	180 - 190	20 - 25
Bundt cake	1	CIRCULAIRE	2	160	55 - 60
Tart	1	STATIC	2	170	30 - 40
Ricotta cake	1	CIRCULAIRE	2	160 - 170	55 - 60
Jam tarts	1	CIRCULAIRE	2	160	20 - 25
Paradise cake	1.2	CIRCULAIRE	2	160	55 - 60
Profiteroles	1.2	CIRCULAIRE	2	180	80 - 90
Sponge cake	1	CIRCULAIRE	2	150 - 160	55 - 60
Rice pudding	1	CIRCULAIRE	2	160	55 - 60
Brioches	0.6	CIRCULAIRE	2	160	30 - 35

The times indicated in the table do not include preheating times and are provided only as a guide.

Cooking information table (auxiliary oven)

Food	Weight (Kg)	Function	Shelf	Temp. (°C)	Time (minutes)
Sausages	1.5	GRILL	2	MAX	13 - 15
					1st surface 2nd surface
Pork chops	1.5	GRILL	2	MAX	15 5

The times indicated in the table do not include preheating times and are provided only as a guide.

Food	Weight (Kg)	Function	Shelf	Temp. (°C)	Time (minutes)
Spare ribs	1.5	GRILL	2	MAX	10	10
Bacon	0.7	GRILL	2	MAX	7	8
Pork fillet	1.5	GRILL	2	MAX	10	5
Beef fillet	1	GRILL	2	MAX	10	7

The times indicated in the table do not include preheating times and are provided only as a guide.

CLEANING AND MAINTENANCE

Cleaning the appliance

See General safety instructions.

Cleaning the surfaces

To keep the surfaces in good condition, they should be cleaned regularly after use. Let them cool first.

Ordinary daily cleaning

Always and only use specific products that do not contain abrasives or chlorine-based acids.

Pour the product onto a damp cloth and wipe the surface, rinse thoroughly and dry with a soft cloth or a microfibre cloth.

Food stains or residues

Do not use steel sponges and sharp scrapers as they will damage the surface.

Use normal, non-abrasive products and a wooden or plastic tool, if necessary. Rinse thoroughly and dry with a soft cloth or a microfibre cloth.

Do not allow residues of sugary foods (such as jam) to set inside the oven. If left to set for too long, they might damage the enamel lining of the oven.

Cleaning the hob

Cooking hob pan support grids

Remove the pan support grids and clean them in lukewarm water and non-abrasive detergent. Make sure to remove any encrustations. Dry them thoroughly and return them to the hob.

The continuous contact between the pan supports and the flame can cause modifications to the enamel over time in those parts exposed to heat. This is a completely natural phenomenon which has no effect on the operation of this component.

Flame-spreader crown and burner caps

For easier cleaning, the flame-spreader crowns and the burner caps can be removed. Wash them in hot water and non-abrasive detergent. Carefully remove any encrustation, then wait until they are perfectly dry. Replace the flame-spreader crowns, making sure that they are correctly positioned in their housings with their respective burner caps.

Igniters and thermocouples

For correct operation the igniters and thermocouples must always be perfectly clean. Check them frequently and clean them with a damp cloth if necessary. Remove any dry residues with a wooden toothpick or a needle.

Knobs

Do not use aggressive products containing alcohol or products for cleaning steel and glass when cleaning the knobs, as these products could cause permanent damage.

The knobs should be cleaned with a soft cloth dampened with lukewarm water, then dried carefully. They can be removed by

pulling them out from their housings.

Cleaning the door

Cleaning the door glazing

The glass in the door should always be kept thoroughly clean. Use absorbent kitchen roll. In case of stubborn dirt, wash with a damp sponge and an ordinary detergent.

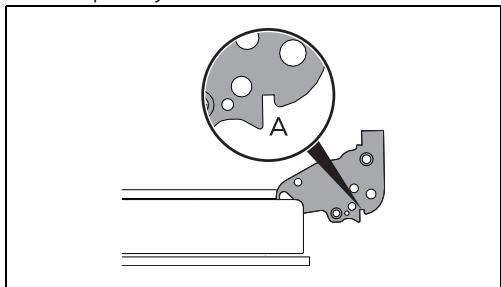

Removing the door (auxiliary oven only)

For easier cleaning it is recommended to remove the door and place it on a tea towel.

To remove the door proceed as follows:

1. Open the door completely and insert two pins into the holes on the hinges indicated in the figure.

1. Grasp the door on both sides with both hands, lift it so that it forms an angle of around 30° and remove it.

1. To reassemble the door, put the hinges in the relevant slots in the oven, making sure that grooved sections A are resting completely in the slots.

1. Lower the door and once it is in place remove the pins from the holes in the hinges.

Removing the internal glass panes

For easier cleaning the internal glass panes of the door can be removed.

Use kitchen paper to clean. In case of stubborn dirt, wash with a damp sponge and neutral detergent.

Multifunction oven door

1. Remove the internal glass pane by gently pulling the top part, following the movement indicated by the arrows in order to release the 4 pins from their housings on the door.

1. Then, pull the glass panel upwards, paying attention to the brackets at the bottom of the door.

1. After removing the inner glass, it is possible to access the drip catcher strip.

1. Place the internal glass panel back onto the brackets after cleaning. Make sure that you centre and then insert the 4 pins firmly into their housings on the door with the help of the strips at the right and left in order to achieve a perfect fit.

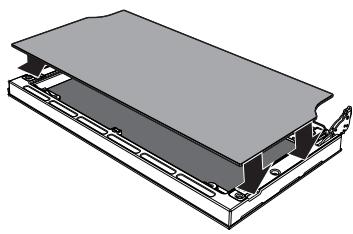

Auxiliary oven door

1. Remove the internal glass panel by pulling the rear part gently upwards, following the movement indicated by the arrows (1).
2. Then, pull the front part upwards (2). This way, the 4 pins attached to the glass detach from their housings in the oven door.

1. Remove the intermediate glass pane by lifting it upwards.

1. Replace the intermediate glass panels after cleaning.
2. Reposition the internal glass panel, taking care to centre, then insert and secure the 4 pins into their slots in the oven door by applying slight pressure.

Cleaning the oven cavity

In order to keep your oven in the best possible condition, clean it regularly after letting it cool down.

Avoid letting food residue dry inside the oven cavity, as this could damage the enamel.

Take out all removable parts before cleaning.

For easier cleaning, it is recommended to remove:

• the door;
  • The rack/tray support frames.

In the event you are using specific cleaning products, we recommend running the oven at maximum temperature for 15-20 minutes in order to eliminate any residue.

Drying

Cooking food generates moisture inside the appliance. This is a normal phenomenon and does not affect the appliance's

operation in any way.

Each time you finish cooking:

1. Let the appliance cool down.
2. Remove any dirt from inside the appliance.
3. Dry the interior of the appliance with a soft cloth.
4. Leave the door open until the inside of the appliance has dried completely.

Removing racks/trays support frames

Removing the rack/tray support frames enables the sides to be cleaned more easily. To remove the rack/tray support frames:

- Pull the frame towards the inside of the oven cavity to unhook it from its groove A, then slide it out of the seats B at the back.

- When cleaning is complete, repeat the above procedures to put the rack/tray support frames back in.

Cleaning the roof of the oven (only for some models/cavities)

See General safety instructions.

Improper use Risk of damage to the appliance

- Do not excessively flex the element during cleaning.

The appliance is equipped with a tilting grill element that allows for easy cleaning of the roof of the oven cavity.

1. Free the upper heating element by gently lifting it and rotating its retaining latch by 90 degrees.

1. Gently lower the heating element until it stops.

1. When you have finished cleaning, place the heating element back in position and turn the retaining latch to lock it in place.

Vapor Clean (on some models only)

See General safety instructions.

The Vapor Clean function is an assisted cleaning procedure that facilitates the removal of dirt. Thanks to this process, it is possible to clean the inside of the oven very easily. The dirt residues are softened by the heat and water vapour for easier removal afterwards.

Preliminary operations

Before starting the Vapor Clean cycle:

• Completely remove all accessories from inside the oven.
• Remove the temperature probe, if present.
• Remove the self-cleaning panels, if present.
• Pour approx. 120 cc of water onto the floor of the oven. Make sure it does not overflow out of the cavity.
• Spray a water and washing up liquid solution inside the oven using a spray nozzle. Direct the spray towards the side walls, upwards, downwards and towards the deflector.

We recommend spraying approx. 20 times at the most.

Do not spray the deflector if it has a self-cleaning coating.

• Close the door.
• During the assisted cleaning cycle, wash the self-cleaning panels (where fitted), which were previously removed, separately in warm water and a small

amount of detergent.

Vapor Clean cycle setting

1. Turn the functions knob to symbol 🎨 or
   (where present).
2. Turn the temperature knob to the symbol.
   or
3. Allow the cleaning cycle to run for 18 minutes.

Vapor Clean End

1. Turn the function knob to 0 to exit from the function.
2. Open the door and wipe away the less stubborn dirt with a microfibre cloth.
3. Use a non-scratch sponge with brass filaments on hard to remove deposits.
4. In case of grease residues use specific oven cleaning products.
5. Remove the residual water inside the oven.
6. Replace the self-cleaning panels and the rack/tray support frames, if fitted.

For greater hygiene and to avoid foods taking on unpleasant odours:

• We recommend drying the inside of the oven with a fan assisted function at 160° C for around 10 minutes.
• If self-cleaning panels are fitted, we recommend that you dry the inside of the oven with a simultaneous catalytic cycle.

We recommend wearing rubber gloves for these operations.

We recommend removing the door in order to make the manual cleaning of the parts that are difficult to reach easier.

Extraordinary maintenance

Seal maintenance tips

The seal should be soft and elastic.

- To keep the seal clean, use a non-abrasive sponge and wash with lukewarm water.

Replacing the internal light bulb

Power voltage Danger of electrocution

• Unplug the appliance.

• Wear protective gloves.

• Completely remove all accessories from inside the oven.

• Remove the rack/tray support frames.
• Use a tool (e.g. a spoon) to remove the bulb cover.

Take care not to scratch the enamel of the oven cavity wall.

1. Slide out and remove the light bulb.

Do not touch the halogen light bulb directly with your fingers, use an insulating material.

1. Replace the light bulb with one of the same type (40 W).
2. Refit the cover. Ensure the moulded part of the glass (A) is facing the door.

1. Press the cover completely down so that it attaches perfectly to the bulb support.

The appliance must be installed by a qualified technician and according to the regulations in force.

For installation in the UK, please refer to the leaflet “Local installation specification for UK gas appliances”, supplied.

Gas connection

See General safety instructions.

Connection to the gas mains can be made using a continuous wall steel hose in compliance with the guidelines established by the standards in force. To use other types of gas, see the chapter “Adaptation to different types of gas”. The appliance's gas connector has a 1/2 ” external thread (ISO 228-1).

Connection with a rubber hose

Verify that all following conditions are met:

• The hose is attached to the hose connector with safety clamps
• No part of the hose is in contact with hot walls (max. 50 °C)
• The hose is not under traction or tension and has no kinks or twists
• The hose is not in contact with sharp objects or sharp corners
• If the hose is not perfectly airtight and leaks gas, do not try to repair it; replace it with a new hose
  • verify that the hose is not past its expiry

date (serigraphed on the hose itself).

Connection using a rubber hose complying with current standards is only permitted if the hose can be inspected along its entire length.

The inside diameter of the hose must be 8 mm for LPG and 13 mm for Natural gas and Town gas.

Make the connection to the gas mains using a rubber hose whose specifications comply with current standards (verify that the reference standard is stamped on the hose).

Carefully screw the hose connector 3 onto the appliance's gas connector 1 ( 1/2 " thread ISO 228-1), placing the seal 2 between them. Hose connector 4 can also be screwed to hose connector 3, depending on the diameter of the gas hose used.

After tightening the hose connector(s), push gas hose 6 onto the hose connector and secure it with the clamp 5, which must be compliant with current regulations.

Connection with a steel hose

Make the connection to the gas mains using a continuous wall steel hose whose specifications comply with the applicable

standard.

Carefully screw the connector 3 to the gas connector 1 of the appliance, placing the seal 2 between them.

Connection with a steel hose with bayonet fitting

Carry out the connection to the gas mains using a steel hose with bayonet fitting compliant with B.S. 669.

Apply insulating material to the thread of the gas hose connector 4 and screw the adapter 3 onto it. Screw the assembly onto the movable connector 1 of the appliance, inserting the seal provided 2 between them.

Connection with a steel hose with conical fitting

Make the connection to the gas mains using a continuous wall steel hose whose specifications comply with the applicable

standard.

Carefully screw the hose connector 3 to the appliance's gas connector 1 ( 1/2 " thread ISO 228-1), placing the seal 2, provided, between them. Apply insulating material to the thread of connector 3 and then screw the steel hose 4 onto the connector 3.

Connection to LPG

Use a pressure regulator and make the connection on the gas cylinder following the guidelines set out in the standards in force. The supply pressure must comply with the values indicated in the “Burner and nozzle characteristics table”.

Room ventilation

The appliance should be installed in rooms that have a permanent air supply in accordance with the standards in force. The room where the appliance is installed must have enough air flow for the regular combustion of gas and the necessary air change in the room itself. The air vents, protected by grilles, must be the right size to comply with current regulations and positioned so that no part of them is obstructed, not even partially.

The room must be kept adequately ventilated in order to eliminate the heat and humidity produced by cooking: In particular, after prolonged use, you are recommended to open a window or to increase the speed of any fans.

Extraction of the combustion products

The combustion products may be extracted

by means of hoods connected to a natural draught chimney whose efficiency is certain or via forced extraction. An efficient extraction system requires precision planning by a specialist qualified in this area and must comply with the positions and clearances indicated by the applicable standards.

When the job is complete, the installer must issue a certificate of conformity.

1 Extraction using a hood
2 Extraction without a hood

A Extraction with a single natural draught chimney
B Extraction with a single chimney with extractor fan
C Extraction directly outdoors with wall-or window-mounted extractor fan
D Extraction directly outdoors through wall

Air

Combustion products

Extractor fan

Adaptation to different types of gas

In case of operation with other types of gas, the burner nozzles must be changed and the minimum flame adjusted on the gas cocks.

Replacing nozzles

1. Remove the pan supports, burner caps and flame-spreader crowns to access the burner cups.
2. Replace the nozzles using a 7-mm wrench according to the type of gas to be used (see the "Burner and nozzle characteristics table").
3. Replace the burners in their respective housings.

Adjusting the minimum setting for natural or town gas

Light the burner and turn it to the minimum position. Extract the gas cock knob and turn the adjustment screw next to the gas cock spindle (depending on the model) until the correct minimum flame is achieved.

Refit the knob and verify that the burner flame is stable. Turn the knob rapidly from the maximum to the minimum setting: The flame should not go out. Repeat the operation on all gas cocks.

Adjusting the minimum setting for LPG

Tighten the screw located at the side of the

cock spindle clockwise all the way.

Following adjustment to a gas other than the one originally set in the factory, replace the gas setting label on the appliance with the one corresponding to the new gas. The label is inserted inside the nozzle pack (where present).

Lubricating the gas cocks

Over time the gas cocks may become difficult to turn and get blocked. Clean them internally and replace the lubrication grease.

Lubrication of the gas cocks should be performed by a specialised technician.

Gas types and Countries

Gas types		IT	GB IE	FR BE	ES	PT	RU	SE DK	FI NO	PL	HU
1 Natural Gas G20
G20	20 mbar	●	●		●	●	●	●	●	●
G20/25	20/25 mbar			●
2 Natural Gas G20
G20	25 mbar										●
3 Natural Gas G25.1
G25.1	25 mbar										●
4 Natural Gas G2.350
G2.350	13 mbar									●
5 LPG G30/31
G30/31	28-30/37 mbar	●	●	●	●	●	●
G30/31	30/30 mbar							●	●		●
6 LPG G30/31
G30/31	37 mbar									●
7 Town Gas G110
G110	8 mbar	●						●

It is possible to identify the available gas types based on the country the appliance is to be installed in. Refer to the heading number to identify the correct values in the “Burner and nozzle characteristics tables”.

Burner and nozzle characteristics tables

1	Natural Gas G20 - 20 mbar	AUX	SR	R	UR2
	Rated heating capacity (kW)	1.0	1.8	3.0	4.2
	Nozzle diameter (1/100 mm)	72	97	115	155
	Pre-chamber (printed on nozzle)	(X)	(Z)	(Y)	(H3)
	Reduced flow rate (W)	400	500	800	1200
2	Natural Gas G20 - 25 mbar	AUX	SR	R	UR2
	Rated heating capacity (kW)	1.1	1.8	3.0	4.2
	Nozzle diameter (1/100 mm)	72	94	110	145
	Pre-chamber (printed on nozzle)	(X)	(Z)	(H8)	(H3)
	Reduced flow rate (W)	400	500	800	1200
3	Natural Gas G25.1 - 25 mbar	AUX	SR	R	UR2
	Rated heating capacity (kW)	1.1	1.8	3.1	4.1
	Nozzle diameter (1/100 mm)	77	100	134	152
	Pre-chamber (printed on nozzle)	(F1)	(Y)	(F3)	(F3)
	Reduced flow rate (W)	400	500	800	1200
4	Natural Gas G2.350 - 13 mbar	AUX	SR	R	UR2
	Rated heating capacity (kW)	1.0	1.8	3.0	3.8
	Nozzle diameter (1/100 mm)	94	120	165	190
	Pre-chamber (printed on nozzle)	(Y)	(Y)	(F3)	(F3)
	Reduced flow rate (W)	400	500	800	1200
5	LPG G30/31 - 30/37 mbar	AUX	SR	R	UR2
	Rated heating capacity (kW)	1.0	1.75	3.0	4.0
	Nozzle diameter (1/100 mm)	50	65	85	100
	Pre-chamber (printed on nozzle)	-	-	-	-
	Reduced flow rate (W)	400	500	800	1300
	Rated flow rate G30 (g/h)	73	127	218	291
	Rated flow rate G31 (g/h)	71	125	214	286
6	LPG G30/31 - 37 mbar	AUX	SR	R	UR2
	Rated heating capacity (kW)	1.1	1.9	3.0	4.2
	Nozzle diameter (1/100 mm)	50	65	81	95
	Pre-chamber (printed on nozzle)	-	-	-	-
	Reduced flow rate (W)	450	550	900	1500
	Rated flow rate G30 (g/h)	80	138	218	305
	Rated flow rate G31 (g/h)	79	136	214	300
7	Town gas G110 – 8 mbar	AUX	SR	R	UR2
	Rated heating capacity (kW)	1.0	1.8	2.8	3.4
	Nozzle diameter (1/100 mm)	145	185	260	340
	Pre-chamber (printed on nozzle)	(/8)	(/2)	(/3)	0190
	Reduced flow rate (W)	400	500	800	1000

The nozzles not provided are available at Authorised Service Centres.

Positioning

See General safety instructions.

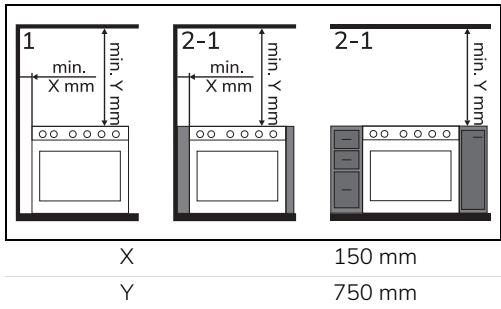

Depending on the type of installation, this appliance belongs to classes:

Class 1	Free-standing
Class 2 - subclass 1	Built-in

The appliance can be placed against walls that are higher than the work surface, at a minimum distance of X mm from the side of the appliance. Any wall units installed above the appliance's worktop must be positioned at least Y mm from it.

X
Y
150 mm
750 mm

If a hood is installed above the appliance, refer to the hood instructions manual to make sure the correct clearance is left.

Appliance overall dimensions

A	1103 mm
B	600 mm
C1	min. 150 mm
D	898 - 920 mm
H	750 mm
I	400 mm
L2	1103 mm

¹ Minimum distance from side walls or other flammable material.
² Minimum cabinet width (=A)

Appliance dimensions

Position of gas connection

Position of electrical connection

Levelling the appliance

The appliance must be level on the floor in order to ensure greater stability:

- Screw or unscrew the feet at the bottom until the appliance is stable and level on the floor.

Assembling the upstand

The upstand must always be positioned and secured correctly on the appliance.

1. Loosen the 6 screws (A) on the back of the hob and unscrew the two screws (B) underneath.

1. Place the upstand on the hob. Align the 6 bottom slots of the upstand with the 6

screws on the back of the hob that were previously loosened.

1. Tighten the 6 screws on the back of the hob and the 2 screws underneath.

The upstand provided is an integral part of the product. It must be fastened to the appliance prior to installation.

Mounting the plinth

The plinth must always be positioned and secured correctly on the appliance.

1. Place the plinth in the front bottom part of the appliance.
2. Screw the two side screws to fasten the plinth to the appliance.
3. Cover the holes of the plinth with the plugs provided.

The plinth provided is an integral part of the product; it must be fastened to the appliance prior to installation.

See General safety instructions.

General information

Check the mains characteristics against the data indicated on the plate.

The identification plate bearing the technical data, serial number and brand name is visibly positioned on the appliance.

Do not remove this plate for any reason.

The appliance must be connected to ground using a wire that is at least 20 mm longer than the other wires.

The appliance can work in the following modes:

220-240 V 1N\~

3 × 6 mm²

three-core cable

380-415 V 2N\~

4 × 4 mm²

four-core cable

220-240 V 2\~

3 × 6 mm²

three-core cable

220-240 V 3\~

4 × 4 mm²

four-core cable

380-415 V 3N\~

5 × 1.5 mm²

five-core cable

The values indicated refer to the cross-section of the internal conductor.

The aforementioned power cables are sized taking into account the coincidence factor (in compliance with standard EN 60335-2-6).

Fixed connection

Fit the power line with an all-pole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions, pursuant to installation regulations.

For the Australian/New Zealand market:

The circuit breaker incorporated in the fixed

connection must comply with AS/NZS 3000.

Instructions for the installer

• If you use a plug to connect to the power supply, the plug must be accessible after installation.
• Do not bend or trap the power cable.
• The appliance must be installed according to the installation diagrams.
• Do not try to unscrew or force the threaded elbow of the fitting. You may damage this part of the appliance, which may void the manufacturer's warranty.
• Use soap and water to check for gas leaks on all connections. DO NOT use naked flames to search for leaks.
• Turn on all the burners separately and at then all together to make sure that the gas valve, burner and ignition are working properly.
• Turn the burner knobs to the minimum position and check that the flame is stable for each individual burner and all the burners together.
• If the appliance does not work correctly after having carried out all the checks, contact your local Authorised Service Centre.
• Once the appliance has been installed, please explain to the user how to use it correctly.
