LCHOBTC16 - Cooker Logik - Free user manual and instructions

Brand	Logik
Model	LCHOBTC16
Product Type	Built-in Ceramic Hob
Number of Cooking Zones	4
Heating Technology	Radiant
Zone 1 Diameter	20.0 cm
Zone 2 Diameter	16.5 cm
Zone 3 Diameter	20.0 cm
Zone 4 Diameter	16.5 cm
Overall Dimensions (W x D x H)	590 x 520 x 5 mm
Rated Voltage	220-240 V ~
Rated Frequency	50 Hz
Power Consumption	5500-6600 W
Energy Consumption (Hob)	190.9 Wh/kg
Control Type	Touch Controls
Timer	Yes, up to 99 minutes
Key Lock	Yes
Residual Heat Indicator	Yes ("H" display)
Auto Shutdown	Yes
Over-Temperature Protection	Yes
Cleaning	Use ceramic hob cleaner; avoid abrasive scourers
Spare Parts & Accessories	Available at Partmaster.co.uk

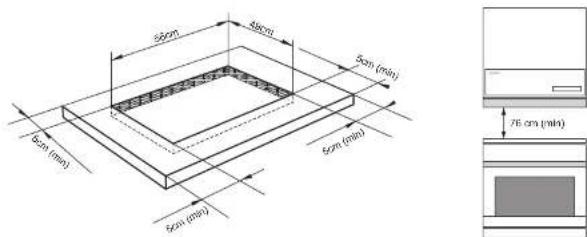

Installation Requirement	Minimum 5 cm space around cutout, 76 cm min distance to cupboard

Frequently Asked Questions - LCHOBTC16 Logik

How do I turn on the ceramic hob?

Touch the ON/OFF control. After turning on, you will hear an audible tone and all indicators will light up then go out, indicating standby mode.

Why are the touch controls unresponsive?

The controls may be locked. Unlock them by touching and holding the Keylock control for a while. Alternatively, ensure the control area is dry and clean, and use the ball of your finger.

How do I lock the controls to prevent accidental operation?

Touch the Keylock control. The timer indicator will show 'Lo'. To unlock, touch and hold the Keylock control for a few seconds.

What does 'H' mean on the display?

'H' indicates that the cooking zone is still hot (residual heat). It will disappear when the surface cools to a safe temperature.

How do I set the timer to turn off a cooking zone?

Touch the power level controls of the desired zone until the red light illuminates. Then set the time using the + and - timer controls. The zone will automatically switch off when the time elapses.

What should I do if something spills on the touch controls?

Switch off the hob, soak up the spill, and wipe the control area with a clean damp sponge or cloth. Ensure it is dry before turning the hob back on.

Can I use any type of cookware on this ceramic hob?

Use cookware with flat and smooth bases, the same size as the cooking zone. Avoid pans with jagged edges or curved bases, and always lift pans instead of sliding them to prevent scratches.

How do I clean burnt-on sugar or spills?

Remove immediately while the glass is warm (but not hot) using a ceramic hob scraper held at a 30° angle. Then clean with a ceramic hob cleaner and wipe dry.

What is the auto shutdown feature?

If a cooking zone is left on for an extended period, the hob will automatically shut off. Shutdown times vary by power level (e.g., 8 hours for low settings, 2 hours for high settings).

Where can I find spare parts and accessories?

Visit Partmaster.co.uk or call 0344 800 3456 (UK customers). They offer over 1 million spares and accessories for delivery.

USER MANUAL LCHOBTC16 Logik

Four circular diagrams with grid patterns, no text or symbols present

Contents

Safety Warnings....4

Unpacking....7

Product Overview 8

Top View 8

Control Panel....8

Before Using Your New Ceramic Hob 9

Choosing the Right Cookware....9

Using the Touch Controls 10

Using Your Ceramic Hob....10

To Start Cooking 10

When You Have Finished Cooking ....11

Locking the Controls 11

- To Lock the Controls 11

- To Unlock the Controls ....11

Over-Temperature Protection 12

Residual Heat Warning 12

Auto Shutdown 12

Using the Timer....12

Timer Overview 12

Using the Timer as a Minute Minder....12

Setting the Timer to Turn Cooking Zones Off 13

Cooking Guidelines 15

Cooking Tips....15

- Simmering, Cooking Rice 15

- Searing Steak 15

- For Stir-Frying 15

Heat Settings....16

Cleaning and Maintenance....17

Safety Warnings

Your safety is important to us. Please read this information before using your ceramic hob.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
  • Alterations to the domestic wiring system must only be made by a qualified electrician.
  • Failure to follow this advice may result in electrical shock or death.

Important safety instructions

• Read these instructions carefully before installing or using this appliance.
  • No combustible material or products should be placed on

• This appliance must be installed and earthed only by a suitably qualified person.
- This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the mains power supply.
- Failure to install the appliance correctly could invalidate any warranty or liability claims.

Operation and Maintenance

Electrical Shock Hazard

• WARNING: Do not cook on a broken or cracked ceramic hob. If the ceramic hob surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the ceramic hob off at the socket before cleaning or maintenance.

Hot Surface Hazard

• WARNING: During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool.
• Never leave metal objects (such as kitchen utensils) or empty pans on the ceramic hob as they can become hot very quickly.
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of the reach of children.
• Failure to follow this advice could result in burns and scalds.

Cut Hazard

• The razor-sharp blade of a ceramic hob scraper is exposed when the safety cover is

Important safety instructions

• WARNING: Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.
• Never try to extinguish fire with water. Switch off the appliance and cover the flame with a lid or fire blanket.
• WARNING: Danger of fire. Never use your appliance as a work or storage surface.
  • After use, always turn off the cooking zones and the ceramic hob as described in this manual (i.e. by using the touch controls).
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing on the ceramic hob could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in use.

- The hob must not be used to warm the room, the heating zones must only be switched on after a pot or pan is placed on top and switched off before removing the pot or pan.

- Do not stand on your ceramic hob.

- Do not use pans with jagged edges or drag pans across the ceramic glass surface as this can scratch the glass.

- Do not use scourers or any other harsh abrasive cleaning agents to clean your ceramic hob, as these can scratch the ceramic glass.

- If the mains cable is damaged, it must be replaced by a qualified technician.

- Do not operate your ceramic hob by means of an external timer or separate remote-control system.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been

continuously supervised.

Thank you for purchasing your new Ceramic Hob.

We recommend that you spend some time to read this manual in order to fully understand how to install and operate it correctly.

Read all the safety warnigs carefully before use and keep this manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Main Unit

Brackets × 4

GB818 / MA*10-PFH Screw × 4 for securing the bracket

Product Overview

Top View

1. Max. 1200 W Zone
2. Max. 1800 W Zone
3. Max. 1200 W Zone
4. Max. 1800 W Zone
5. Glass Plate
6. ON/OFF
7. Control Panel

Control Panel

Before Using Your New Ceramic Hob

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your ceramic hob.

Choosing the Right Cookware

Do not use cookware with jagged edges or a curved base.

Three identical cooking pots with crossed-out X marks, no text or symbols present

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

Four identical cooking pots with crossed-out kitchen pan symbols, no text or labels present

Always lift pans off the ceramic hob - do not slide, or they may scratch the glass.

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger.
• You will hear an audible tone each time a touch is registered.
- Make sure the controls are always clean, dry, and that there is no object (e.g. an utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Using Your Ceramic Hob

To Start Cooking

1. Touch the ON/OFF control.

After turning on, you will hear an available tone. All the indicators light up then go out, indicating that the ceramic hob has entered standby mode.

1. Place a suitable pan on the cooking zone that you wish to use.

Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

When You Have Finished Cooking

1. Turn the cooking zone off by scrolling down to - or touching ⏻ and Ⓕ controls together. Make sure the display shows -.

Or, turn the whole cooktop off by touching the ON/OFF ① control.

2. Beware of hot surfaces

H will display to show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

⊖ H ⊕

Locking the Controls

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls are disabled, but you can still turn off the unit.

To Lock the Controls

Touch the Keylock control. The timer indicator will show * * Lo

To Unlock the Controls

Touch and hold the ☑lock control for a while.

Over-Temperature Protection

A temperature sensor monitors the temperature inside the ceramic hob.

When an excessive temperature is monitored, the ceramic hob will stop operation automatically.

Residual Heat Warning

When the hob has been operating for some time, there will be some residual heat. The letter "H" appears to warn you to keep away from it.

Auto Shutdown

Another safety feature of the hob is auto shutdown. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

Power Level 123456789
Default Working Timer (Hour) 888	4442	2	2

Using the Timer

You can use the timer in two different ways:

- You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.

• You can set it to turn one cooking zone off after the set time is up.

• You can set the timer for up to 99 minutes.

Timer Overview

1. Set the time by touching the or control of the timer.

• Touch the-or Controls of the timer once to increase or decrease by 1 minute.
• Touch and hold the ⊖ or Ⓗ control of the timer to increase or decrease by 10 minute.

• If the setting time exceeds 99 minutes, the timer will automatically return to - - .

• Touching the -control together, the timer is cancelled, and the -- will show in the minute display.

• When the timer is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.
• When the set time has elapsed, an available tone will sound for 30 seconds and -- will show in the display.

Setting the Timer to Turn Cooking Zones Off

1. Touch the or controls of the corresponding cooking zone you want to set the timer for.

The red light of the desired cooking zone will illuminate.

1. While the power level indicator is flashing, set the time by touching the or controls of the timer.

- Touch the

+ patrols of the timer

once to increase or decrease by 1 minute.

- Touch and hold the - or + controls of the

timer to increase or decrease by 10 minutes.

• If the setting time exceeds 99 minutes, the

timer will automatically return to

1. Touch the and controls together to cancel the timer. -- will show in the minute display.

1. When the time is set, the timer will begin to count down immediately.

The display will show the remaining time and the timer indicator will flash for 5 seconds.

The red dot next to the power level indicator will illuminate indicating that zone is selected.

1. When the set time has elapsed, the corresponding cooking zone will switch off automatically.

Cooking Guidelines

Take care when frying as oil and fat heat up very quickly. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

Cooking Tips

• When food comes to the boil, reduce the temperature setting.
  • Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimise the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

Simmering, Cooking Rice

• Simmering occurs below boiling point, at around 85^ , when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flour thickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

Searing Steak

To cook juicy flavoursome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more 'well done' it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

For Stir-Frying

1. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.

Heat Settings

The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the ceramic hob to find the settings that best suits you.

Heat setting Suitability

1 - 2 ·delicate warming for small amounts of foodmelting chocolate, butter, and foods that burn quicklygentle simmeringslow warming

3 - 4 ·reheatingrapid simmeringcooking rice

5 - 6 ·pancakes

7 - 8 ·sauteingcooking pasta

9 ·stir-fryingsearingbringing soup to the boil

Cleaning and Maintenance

What? How? Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	1. Switch the power to the ceramic hob off.2. Apply a ceramic hob cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.	When the power to the ceramic hob is switched off, there will be no 'hot surface' indication but the cooking zone may still be hot!Take extreme care.Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.Never leave cleaning residue on the ceramic hob: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass	Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for ceramic glass ceramic hobs, but beware of hot cooking zone surfaces:1. Switch the power to the ceramic hob off.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the ceramic hob.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 3 for 'Everyday soiling on glass' above.	Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls	1. Switch the power to the ceramic hob off.2. Soak up the spill.3. Wipe the touch control area with a clean damp sponge or cloth.	The ceramic hob may make an available tone or turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the ceramic hob back on.

Hints and Tips

Problem Possible Causes What To Do
The cooktop cannot be turned on.	No power. Make sure the ceramic hob is connected to the mains power supply and that it is switched on. Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked. Unlock the controls. See section 'Using your ceramic hob' for instructions.
The touch controls are difficult to operate.	There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.	Make sure the touch control area is dry and use the ball of your finger when touching the controls.
The glass has been scratched. Rough-edged cookware.		Use cookware with flat and smooth bases. See 'Choosing the right cookware'.
		See 'Cleaning and Maintenance'.

Specification

Model LCHOBTC16
Rated Voltage 220 – 240V--
Rated Frequency 50 Hz
Overall Dimension (W x D x H) 590 × 520 × 5% (in mm)
Power Consumption 5500 – 6600 W

Product Fiche

	Symbol Value Unit
Model - LCHOBTC16-
Type of hob - Built-in hob -
Number of cooking zones and/or areas	-4 zones -
Heating technology (induction cooking zones and cooking areas, radiant cooking zones, solid plates)	-	Radiant cooking zones	-
For circular cooking zones or areas: diameter of useful surface area per electric heated cooking zone, rounded to the nearest 5 mm	∅	Zone 1: 20.0Zone 2:16.5Zone 3: 20.0Zone 4:16.5	cm
For non-circular cooking zones or areas: length and width of useful surface area per electric heated cooking zone or area, rounded to the nearest 5 mm	LW - cm
Energy consumption per cooking zone or area calculated per kg	ECElectric cooking	Zone 1: 180.7Zone 2: 192.9Zone 3: 180.7Zone 4: 209.1	Wh/kg
Energy consumption for the hob calculated per kg	ECElectric hob 190.9 Wh/kg
Standby/off power Ps/Po 0.38	W
The values are tested and calculated according to the regulation EU66-2014.

Installation

Preparing the Worktop

Cut out the work surface following the dimensions shown in the drawing below.

For the purpose of installation and use, a minimum distance of 5cm space must be left around the cut out.

Be sure the thickness of the work surface is around 33mm. Use a heat-resistant work surface material to avoid deformation caused by the heat from the hob. The minimum distance between the hob and the cupboard should be at least 76cm.

Ensuring Adequate Ventilation

Always make sure the ceramic cooker hob is well ventilated and that the air inlet and outlet are not blocked. This hob requires an adequate supply of fresh, cool air to fully function. The base of the hob must have direct unrestricted ventilation to the room where the hob is installed. Follow the requirements below.

Fastening the Fixing Brackets

The unit should be placed on a stable, smooth surface (use the packaging).

1. Turn the hob upside down, place it on a soft surface and fasten the brackets to the appropriate holes. DO NOT tighten the screws at this stage.

2. Apply sealing strips around the edge of the hob.

• The hob must be installed by qualified personnel or technicians.

• The hob should not be mounted above cooling equipment, dishwashers and rotary dryers.

- All surfaces around the hob should be able to withstand the heat generated by the hob.

- Never use a steam cleaner to clean the hob.

- Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to

remove the hob from the aperture, particularly if it needs to be serviced.

Connecting the Hob to the Mains Power Supply

1. Remove the screw A.

1. Push the top plate back and then lift it up.

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker the method of connection is shown below.

3 × 6 ~mm^2 / 3 × 2.5 ~mm^2

• This appliance must be earthed.
- For this connection a power lead of wire type H05W-F should be used.

PELN

• If the mains cable is damaged and needs to be replaced, this should be done by a qualified person using the proper tools, so as to avoid any accidents.
• If the ceramic hob is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.

• The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.
  • The mains cable must not be bent or compressed.
  • The mains cable must be checked regularly and only replaced by a qualified person.

• Assemble the cable clamp, be aware that the ellipse hole on cable clamp must match the ellipse hole on. Fix the top plate,

1. Fix the top plate.

Team Knowhow

Help with all life's kit

For general information about this appliance and handy hints and

tips, please visit:

www.TeamKnowhow.com/discover or call 0344 561 1234.

Partmaster

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door

the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment may be used in the local area.
