LFTC60W16 - Cooker Logik - Free user manual and instructions

Product Type	Free-Standing Twin Cavity Electric Cooker
Brand	Logik
Model	LFTC60W16 / LFTC60B16
Overall Dimensions (W x D x H)	600 mm x 600 mm (640 mm max) x 900 mm
Net Weight	45 kg
Supply Voltage	230-240 V ~ 50 Hz
Hob Type	Ceramic (Vitroceramic)
Number of Cooking Zones	4
Hob Zone 1 (Front Left) – Diameter / Power	145 mm / 1200 W (230 V) – 1300 W (240 V)
Hob Zone 2 (Rear Left) – Diameter / Power	180 mm / 1700 W (230 V) – 1850 W (240 V)
Hob Zone 3 (Front Right) – Diameter / Power	145 mm / 1200 W (230 V) – 1300 W (240 V)
Hob Zone 4 (Rear Right) – Diameter / Power	180 mm / 1700 W (230 V) – 1850 W (240 V)
Upper Cavity (Grill) Volume	36 L
Lower Cavity (Main Oven) Volume	63 L
Main Oven Energy Class	A
Main Oven Energy Consumption (Conventional)	0.85 kWh/cycle
Main Oven Temperature Range	50 – 285 °C
Oven Lamp Specification	230 V ~ 50 Hz, 25 W, E14 (300 °C resistant)
Main Oven Heating Element Power	2000 – 2200 W
Grill Heating Element Power	1600 – 1750 W
Special Functions	Defrost (fan only), Grill, Conventional Baking
Number of Oven Shelf Guides	5
Adjustable Feet	Yes (max 30 mm lift)
Stability Bracket	Supplied and mandatory to fit
Supplied Accessories	Grill rack, grill pan, grill pan handle, 2 oven shelves
Recommended Cleaning Method	Mild detergent and soft cloth; do not use abrasive cleaners or steam cleaners

Frequently Asked Questions - LFTC60W16 Logik

How do I use the ceramic hob?

Rotate the control knob to the desired heat level (1-6). Level 1 is for simmering, level 6 for high heat. Always lift pans onto the hob and do not slide them to avoid scratches. Use flat-bottomed cookware with a lid for best efficiency.

How do I use the main oven for the first time?

Remove any packaging, wipe the interior with a damp cloth, and heat the oven at maximum temperature for 45 minutes. This burns off protective residues. A small amount of smoke and odor is normal during the first 15 minutes.

How do I use the grill function?

Preheat the grill on maximum for 15-20 minutes. Use the supplied grill pan and rack. Place the shelf in guide slot 1 or 2, ensuring at least 30 mm between food and element. The grill door must be kept open at a 30° position during use. Do not leave the handle in place while grilling.

How should I clean the ceramic hob?

Use a cleaner specifically designed for ceramic hobs. Wipe with a soft cloth or sponge. Do not use abrasive pads or harsh chemicals. If the surface is cracked, switch off the appliance immediately and contact an authorized repair agent.

What should I do if the oven temperature seems inaccurate?

Check that you are using the correct temperature setting and shelf position. For critical recipes, use an oven thermometer to verify the actual temperature. Adjust the setting as needed.

How do I replace the oven lamp?

Ensure the cooker is switched off and cool. Unscrew the protective cover, replace the bulb with a 230V~50Hz, 25W, E14 bulb rated for 300°C. Refit the cover securely.

Why does my hob make clicking noises?

Clicking or crackling noises are normal and are caused by the construction of the cookware (different metals expanding and shrinking). This does not indicate a fault.

What are the safety precautions for children?

The appliance becomes hot during use. Keep young children away. Children aged 8+ may use it only under supervision. Do not store items on cooking surfaces to avoid fire hazards.

How do I install the cooker?

Installation must be done by a qualified electrician. The cooker must be placed on a level surface with a minimum 100 mm gap to side furniture (can be reduced to 20 mm if non-combustible material is used). Use the supplied stability bracket. Connect to a 32 A switched supply with 3-core 4 mm² cable.

What energy-saving tips are recommended?

Cook meals together when possible, keep preheating short, do not open the oven door during cooking, and turn off the oven at the end. For the hob, use flat-bottomed pans with lids, minimize liquid and fat, and reduce heat once boiling.

USER MANUAL LFTC60W16 Logik

Free-Standing Twin Cavity Electric Cooker

LFTC60W16 / LFTC60B16

Exterior view of a black double boiler oven with control knobs and open door (no visible text or symbols)

|

|

Contents

Safety Warnings 4

Unpacking....6

Product Overview 7

Front View 7

Top View 7

Control Panel....8

Before Using Your Cooker 8

First Time Use of the Hob 8

Choosing the Right Cookware 8

Using Your Hob 9

First Time Use of the Oven 10

Using the Oven 10

Replacing the Anti-tilting Oven Shelf 10

Using the Oven Control....11

Baking Tips....11

Energy Saving 11

Using the Grill 12

General Advice....13

Cleaning the Outside of the Cooker....13

Cleaning the Ceramic Hob 13

Cleaning the Cooker Door Glass....14

Cleaning the Inside of Your Cooker 14

Removing the Grill Door 14

Replacing the Oven Lamp....15

Safety Warnings

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

• It is recommended that this appliance is installed by a qualified electrical engineer. The manufacturer is not responsible for any damage caused by incorrect installation.
• Check whether there is any damage to the appliance after you have unpacked it. If any damage is found, do not use the appliance and contact the store where you purchased it.
  • This appliance is for indoor domestic use only.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.
• For disconnection from the mains supply you must have a switch with a contact separation of at least 3.0 mm in all poles and rated 32 Amp that provides full disconnection, this must be incorporated in the fixed wiring in accordance with the local wiring rules.
• If the mains cable gets damaged, it should be replaced by an authorized service agent or qualified electrician in order to avoid a hazard.
• The oven must be used in a well ventilated location and installed on flat / level ground.
  • Only operate your appliance in a dry atmosphere.
• Keep the electrical cables of your other appliances away from hot areas; do not let them touch the appliance.

For example, at the condition is not allowed. If at the current level,

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.
  • Children should be supervised to ensure that they do not play with the appliance.
• During use the appliance becomes hot. Care should be taken to avoid touching the heating elements inside the oven or the hotplates.
• The appliance and its accessible parts become hot during use. Young children should be kept away.
• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover the flame e.g. with a lid or a fire blanket.
  • Danger of fire: Do not store items on the cooking surfaces.
• When the oven is hot never touch the oven glass or any other parts that get hot. Allow the oven to cool before touching these parts.
• Do not use harsh abrasives cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in the glass shattering.
• Before starting to use your appliance, keep curtains, tulle, paper or flammable materials away from your appliance. Do not keep combustible or flammable things in or on the appliance.
• Do not use steam cleaners for cleaning the appliance.

Thank you for purchasing your new Logik Free Standing Twin Cavity Electric Cooker.

You must read this manual in order to fully understand how to operate it correctly.

This cooker must be installed by a competent engineer. Please allow the installer to view the

Read all the safety instructions carefully before use and keep this manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a multi-tiered oven or oven unit with open doors and vented top (no text or symbols)

Grill Rack x 1

Grill Pan x

Grill Pan Handle x 1

Oven Shelf x 2

The Main Unit

Product Overview

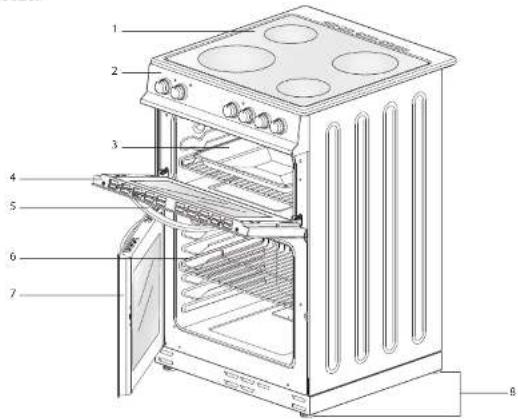

Front View

1. Hob
2. Top Oven Door Handle
3. Control Panel
4. Oven Shelf
5. Grill Tray
6. Main Oven Door
7. Top Oven Door
8. Adjustable Feet

Top View

Control Panel

1. Grill Control
2. Oven Control

3. Ceramic Heater Controls

4. Grill Indicator Lamp

5. Oven Indicator Lamp
6. Hob Indicator Lamp

Before Using Your Cooker

Before using your new cooker, please:

• Make sure all the controls are turned off.
- Read this Instruction/Installation Manual, taking special note of the 'Safety Warnings' section.
• Turn the mains power on.

First Time Use of the Hob

Operate your vitro ceramic hobs at level 6 for 5 minutes. This will remove any manufacturing residues there may be a small amount of smoke and a slight odour. This is normal and will stop after a few minutes.

Choosing the Right Cookware

Do not use cookware with jagged edges or a curved base.

Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.

• The heated areas will be seen to switch on and off even when higher heat settings are used. This is due to a safety device, which prevents the glass from overheating. Some switching on and off when cooking at high temperatures is quite normal, causes no damage to the hob and little delay in cooking times. Excessive switching may however be caused by the use of an unsuitable cookware or a saucepan which is smaller than the heated area. If excessive switching occurs, discontinue the use of the cookware.
  • To improve performance, and reduce energy, always use pans with close fitting lids.
• If the ceramic hob glass surface is cracked, switch of the appliance to avoid the possibility of electric shock. Contact an authorised repair agent.

Using Your Hob

1. Rotate the control to the heat level you wish to use for the selected cooking zone.

Two identical circular diagrams with square and circular symbols, no text or labels present

LEVEL 0 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6
OFF	Simmering(Low)	Cooking atmedium temperature	Cooking, frying and boiling(High)

First Time Use of the Oven

Ensure that nothing has been left in the oven. Remove any insert cards or plastic bags. Before connecting the power, use a damp cloth to carefully wipe the inner cavity wall and housing. Clean all the detachable parts in hot, soapy water before using.

Heat the oven on maximum for 45 minutes. There may be a little smoke and odour upon initial start up (for about 15 mins). This is normal. It is due to the protective substance on the heating elements which protects the cooker from the effects of corrosion during shipping from the factory.

Using the Oven

• Under no circumstances should the oven be lined with aluminium foil as overheating may occur.
• Do not place dishes or baking trays directly onto the base of the oven as it becomes very hot and damage may occur.
• Bread may catch fire if the toasting time is too long. Close supervision is necessary during toasting.
• During use, this appliance becomes hot. Care should be taken to avoid touching hot surfaces, e.g., oven door, heating elements.
• Accessible parts may become hot when in use. Children should be kept away.

• Do not leave the handle in position when grilling. If the handle is left in position when grilling, it will get very hot.

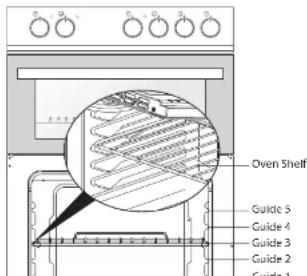

• On the wall of the inner cavity there are 5 different rack guide slots. You can place the rack at different heights to achieve the best cooking performance depending on the heat of the heating element and the size of the food. It is recommended to preheat the oven for 10 minutes.

• Always monitor the food during operation to ensure that you are not overcooking it.
• For heavy food, use a baking pan rather than the oven shelf.
• During cooking, do not open the door unnecessarily as you will lose heat and your cooking results may cooking times will be longer and energy use will be higher.
• Using cake tins when cooking cakes will give

Using the Oven Control

	Function Description
	Defrost FunctionDefrost function can be started by placing the frozen food into your oven and turning the oven control to the defrost sign or below. Ensure the oven light does not illuminate as this will activate the elements and start the cooking process. This function will not cook the food as only the fan operates, this will help to defrost the food in a very short time. Put the food to be defrosted on the shelf in the third guide slot position and place a tray onto a shelf on the bottom guide slot position to collect the water during defrost.
50100150200250M/FIX	Adjusting the temperatureThis design spreads the heated air equally in the oven and it is suitable for cooking with one or more trays.Turn the oven control to the desired temperature. It is recommended to preheat the oven for 10 minutes. Place the tray on the shelf.At the end of cooking time, as in all other cooking processes: turn the oven control to off. Take the cooking tray out and put it onto a safe place as it will be hot. Keep children away from the hot oven during and after cooking, until it has completely cooled down.

Baking Tips

1. Always place baking tins in the centre of the wire shelf.
2. Make sure you use bakeware that is oven proof.
3. Do not place bakeware too close to the rear of the oven wall.
4. You can influence the degree of browning by changing the temperature setting.
5. If a cake collapses after removing it from the oven:

• Use less liquid on your next attempt.

- Consider using a longer baking time or use a slightly lower temperature setting.

Using the Grill

Before using the Grill for the first time, heat the grill on maximum for 15 \~ 20 minutes. There may be a little smoke and odour upon initial start up (for about 10 mins). This is normal. It is due to the protective substance on the heating elements which protects the cooker from the effects of corrosion during shipping from the factory.

Function Description

Grill Function

This function is used for grilling. In order to grill, please use the grill pan supplied with your product. Turn your grill's control to the required setting.

At the end of grilling, as in all other cooking processes; turn the control to the "0" position (off). Take the grill pan out by using the supplied handle and put the pan onto a safe place. Keep children away from the hot oven during and after grilling, until it has completely cooled down.

- The Grill door must be kept open during this function. The door has a position in which the door is open at 30°. This is the minimum the door can be closed during use.

During use the appliance becomes hot. Care should be taken to avoid touching the heating elements inside the grill.

Place an oven shelf in either guide slot 1 or 2 position. There must be at least 30 mm between the food and the element.

Using the handle, insert the grill rack and tray onto the shelf in guide slot 1 or 2. The food to be cooked must be placed on the grill rack in the grill tray. The handle can be removed once the grill rack tray is in position. Check the food regularly to ensure you do not overcook it.

The grill pan has a detachable handle. Ensure when using the grill pan handle that it is centralised and secure as shown below.

Do not leave the handle in position when grilling. If the handle is left in position when grilling, it will get very hot.

General Advice

Before you start cleaning your cooker, please:

- Read the cleaning instructions and the 'Safety Warnings' sections.

• Turn the cooker off at the mains socket.
- Allow the cooker to completely cool down before cleaning and disconnect the appliance from the electrical supply.
• Do not use a steam cleaner.
- Do not keep flammable substances in, on or near the cooker.

- Wipe the oven clean after every use.

• Wipe up spills. Avoid leaving alkaline or acidic substances (such as lemon juice or vinegar) on the oven surfaces.
• Do not use cleaning products with a chlorine or acidic base.
• Never clean the interior, panel, lid, trays and all other parts of the oven with tools like a hard brush, cleaning mesh or knife. Do not use abrasive, scratching agents and detergents.
• After cleaning the interior parts of the oven with a soapy cloth, rinse it and then dry thoroughly with a soft cloth. Leave the doors open to allow the cavities to completely dry
• Never use flammable agents like acid, thinner and petrol when cleaning your oven.
  • Do not wash any part of your oven in a dishwasher.
• If you choose to use a commercial stainless steel cleaner, please read the label to make sure it does not contain chlorine compounds as these are corrosive and may damage the appearance of your cooker.
• Do not use abrasive cleaners, cloths or pads on the outside surfaces. Immediately wipe off any caustic cleaners if they are spilled onto the oven door handles.

Cleaning the Outside of the Cooker

Wipe the outside surfaces often, using warm water and a mild household detergent. Any stainless steel parts may also be cleaned with a suitable cleaner.

Cleaning the Ceramic Hob

- Ensure the cleaning material is designed for cleaning ceramic hobs and does not contain any particles which

Cleaning the Cooker Door Glass

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they may scratch the surface, which could result in the glass shattering.

Take care when handling parts with glass, knocks, chips, heavy handling and dropping could cause the glass to shatter.

Cleaning the Inside of Your Cooker

• Do not use abrasive cleaners, cloths or pads to clean the enamel.
- Clean the enamel on the inside of the cooker when it has cooled down, using household detergents or an ammonia-based cleaner. You may use an 'off the shelf' oven cleaner, if you carefully follow the manufacturers' instructions.
- The grill door can be removed to allow easier access to the inside of your grill cavity. (See "Removing the Grill Door" section)
- Wipe the cooker after every use with a soft cloth that has been dampened in soapy water. Wipe it again with a wet cloth and then dry it. Do not clean with dry or powder cleansers.
• Do not clean the cooker while the glass panels are hot.
- Clean the cooker with a glass cleaner which is designed to be used with cookers. Then rinse and then dry it with a dry cloth.

Removing the Grill Door

The grill door can easily be removed as follows:

1. Open the door completely.

1. Lift the door slightly. The notch on the bottom of the hinge will disengage.

2. Now pull the oven door forwards off the appliance. Releasing both hinge sections from the slots.

To replace the door, repeat the above steps in reverse order.

Illustration of a hand inserting a device into a rack, showing mechanical components (no text or symbols)

Replacing the Oven Lamp

Ensure that the cooker is switched off before replacing the lamp to avoid the possibility of an electric shock.

Let the oven cavity and the heating element cool down.

• Remove the protective cover by unscrewing.
• Unscrew and replace the bulb with a new one suitable for high temperatures (300°C).
• Refit the protective cover.

Bulb specifications 230V\~50 Hz, 25W, E14

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Hints and Tips

Problem Possible Causes What To Do
The cooker cannot be turned on.	No power. Make sure the cooker is connected to the mains socket and the socket is switched on. Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.
The glass has been scratched. Unsuitable, abrasive scourer or cleaning products being used.		Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals expanding/shrinking differently).	This is normal for cookware and does not indicate a fault.
The oven temperature is too high or too low.	Wrong temperature selected / or the wrong shelf position was used.	Check that the recommended temperatures and shelf position are being used. Be prepared to adjust the temperature up or down. If the temperature needed is critical use an oven thermometer.
The interior lighting lamp does not light.		The oven must be on for the lamp to light. If the lamp is defective you can change it. (See "Replacing the Oven Lamp" section.)

Product Fiche and Specifications

Brand Logik
Model LFTC60W16 / LFTC60B16
Product Type Electric Cooker
Mass of the appliance 45 Kg
Grill ( upper cavity)
Heat Source Electric
Volume 36 litres
Main Oven ( lower cavity)
Energy Efficiency Index - Fan Forced 104.3
Energy Class A
Energy Consumption (electricity) - Conventional	0.85 kWh/cycle
Heat Source Electric
Volume 63 litres
Number of Cavities 2
This product complies with EN 60350-1
Overall Dimension (W x D X H)	600(W) x 600(D) HOB (640(D) MAX) x 900(H) mm(Not including Controls or Handles)
Oven Lamp 25W
Thermostat 50 - 285°C
Oven Heating Element 2000 - 2200 W
Grill Heating Element	1600 - 1750 W
Supply Voltage	230 - 240V ~ 50 Hz
Vitroceramic Heater 145 mm	1200 W at 230V1300W at 240V
Vitroceramic Heater 180 mm	1700 W at 230V1850W at 240V
Type of Hob Electric
Number of Cooking Tages	4

Energy Saving Tips and Energy Label

Main Oven

• Cook the meals together, if possible.
- Keep the pre-heating time short.
• Do not elongate cooking time.
• Do not forget to turn off the oven at the end of cooking.
• Do not open the oven door during cooking.

Hob

• Use cookware that has a flat base.
• Use the correct sized cookware for the cooking zone being used.
• Use a lid on your cookware.
- Minimize the amount of liquid or fat used.
- When liquids start boiling reduce the heat.

Installation

• The cooker must be installed by a competent person, if in doubt consult a qualified technician, and in compliance with local electrical, safety and building regulation standards.
• If the cooker is installed adjacent to furniture which is higher than the hob, a gap of at least 100 mm must be left between the side of the cooker and the furniture unless non-combustible materials (e.g., ceramic tiles, metal splashback, etc.) are used which then allows this distance to be reduced to 20 mm.
• The furniture walls adjacent to the cooker must be made of heat resistant material (check with your furniture supplier). The veneered synthetic material and the glue used must be resistant to a temperature of 100°C in order to avoid ungluing or deformations.
• The cooker may be located in a kitchen, a kitchen/diner or bed-sitting room but not in a room containing a bath or shower.
• Flammable materials such as curtains, wood, wallpaper, etc. must not be fitted immediately behind the appliance or within 500 mm of the sides.
  • Do not place next to a refrigerator.
  • This cooker must NOT be placed on a pedestal or base.
• It is essential that the cooker is positioned as stated or freestanding taking into account the distances of any combustible materials detailed above.

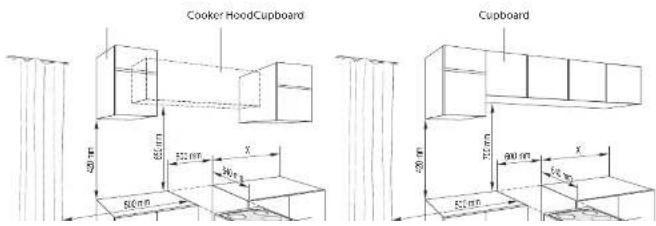

• Any cooker hoods must be installed according to the requirements of the cooker hood instruction/installation manual but no less than 650 mm.
  • Any cupboards placed directly above the cooker must be no less than 700 mm.

Adjusting the Feet

Using the fitted adjustable feet is MANDATORY. For safety reasons and to ensure adequate ventilation, the cooker chassis MUST NOT sit directly on the floor, a plinth, or other support surface.

The cooker stands on 4 levelling legs. As the levelling legs are adjusted at lower position, it is required to control whether the product is levelled before operating it. This adjustment can be made by turning the levelling leg clockwise to raise the cooker, if required. It is possible to raise the product a maximum of 30mm via the levelling leg. If the levelling legs are adjusted appropriately, the product must NOT be moved by dragging. The cooker must always be moved by lifting it up. The levelling leg can be adjusted by hand or a metal plate of the correct size to fit the slot.

Level the cooker by screwing the bottom of the feet in or out, as shown.

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Moving the Cooker

- Two people must always raise the cooker, as shown, to prevent damaging the adjustable feet. - Do not lift the cooker by the door handles. - DO NOT DRAG the cooker. Lift the feet clear of the floor.

Line drawing of two people inspecting a vintage oven on a tiled floor (no text or symbols)

Stability Bracket

The supplied stability bracket or a recognized cooker stability device MUST be fitted.

Electrical Connection

Electric cookers come without a power supply cable. The cooker is designed to operate on an electricity supply which conforms to the electrical data shown on the Rating Plate. The cooker can be connected to the mains only after you complete the connection at the junction box.

The following installation procedure must be carried out by a competent person. If in doubt consult a qualified electrician. The electrical installation must comply with the IEE Regulations, Building & local By-Laws.

For the installation of the supply cable carry out the following operations:

- Release both clips then open the junction box lid.

Colours of the wires in the mains lead should correspond with the markings identifying the terminals. Proceed as follows:

Green & Yellow wire to terminal marked "E" or.

Brown wire to terminal marked "L"

Blue wire to terminal marked "N".

Ensure all screws are adequately tightened. Do not over tighten as you may risk damaging the screw threads.

- Fix the supply cable in the cable clamp and then close the cover.

The power supply cable must have these minimum requirements:

• Type: H05W-F (PVC insulated and sheathed flexible cable)
  • Section: 3 core x 4 mm² This appliance must be earthed.

- The cooker must be connected to the mains supply via a switch providing full disconnection correctly fused with a capacity appropriate to that shown on the cooker Rating Plate and Incorporated in the fixed wiring in accordance with the latest wiring regulations. All electrical wiring from the consumer unit to the cooker, via the full disconnection switch must be of the correct rating.

The mains cable must be positioned away from any hot parts.

|

|

|

|

KNOWHOW

For general information about this appliance

www.knowhow.com/knowledgebank or call 0344 5611234.

Partmaster

Visit DarmaSTAR on UK today for the easiest way to buy electrical switches and accessories. With over 1 million
