001-177 - Lawn mower Meec Tools - Free user manual and instructions

Product Type	Lawn Mower
Brand	Meec Tools
Model	001-177
Engine Type	4-Stroke
Displacement	137.7 cm³
Power Output	2.1 kW
Cutting Width	46 cm
Cutting Height Range	25-75 mm (7 positions)
Grass Catcher Capacity	55 L
Fuel Tank Capacity	0.5 L
Oil Capacity	0.4 L
Weight	25.5 kg
Sound Pressure Level	124.83 dB(A) (K=3 dB)
Spark Plug Type	TORCH/LD/K7RTC/K7TC
Starting Method	Recoil (Pull Cord)
Mowing Height Adjustment	Central Lever (7 positions)
Safety Features	Engine Brake, Ejector Flap, Blade Brake
Maintenance	Check oil, clean air filter, sharpen blade, change spark plug
Recommended Oil	SAE30 4-Stroke Engine Oil
Storage	Drain fuel, change oil, store in ventilated area

Frequently Asked Questions - 001-177 Meec Tools

What type of oil should I use for the Meec Tools lawn mower (001-177)?

Use a good grade of 4-stroke engine oil, SAE30. Do not add any additives. Change the oil after the first 5 working hours.

How do I adjust the cutting height on this lawn mower?

Switch off the engine. Pull the lever out and move it to the desired position from 1 (25 mm) to 7 (75 mm). Release the lever to lock it in place.

What should I do if the engine does not start?

Check if there is fuel, clean or replace the spark plug, and ensure the spark plug gap is 0.76 mm. If flooded, remove and wipe the spark plug, then set throttle to high revs and start again.

How often should I clean or replace the air filter?

Clean the air filter every 12 working hours, replace after 36 working hours. In dusty conditions, clean more frequently.

How do I change the engine oil?

Place a container under the mower, open oil filler and drain plug, let oil drain, replace drain plug, refill with SAE30 oil to the MAX mark on dipstick. Do not screw dipstick in when checking.

What should I do if the mower is vibrating excessively?

Check that all screws and blade retainers are tightened. If blade is unbalanced, replace it. Also ensure the blade is sharp.

How do I store the lawn mower for a long period?

Drain the fuel tank or run engine until it stops due to lack of fuel. Change the oil, clean the mower, store upright in a well-ventilated area away from children.

Can I use the mower on wet grass?

It is recommended to avoid mowing wet grass as it can clog the blades and catcher. For best results, mow when grass is dry.

What safety precautions should I take when using the mower?

Wear heavy-duty shoes and long trousers. Keep bystanders away. Never tilt the mower when starting unless absolutely necessary. Switch off engine before clearing blockages.

How do I replace the blade?

Switch off engine, disconnect spark plug, wear gloves. Tilt mower on its side (oil filler up). Use a 16 mm spanner to unscrew the hex screw counterclockwise. Remove washer and blade, fit new blade on the lugs, tighten screw.

USER MANUAL 001-177 Meec Tools

Red and black lawn mower with visible blades and handle (no text or symbols)

GRÄSKLIPPARE

Care for the environment!

Must be discarded with household waste. This

product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Tilverkare/ Produsert/ Produzendi/ Manufacturer

Jula AB, Box 163, 512-24 SKARA

Distribuior/ Distribuior/ Oysirpludan/ Distribuir

Jula Pelanc Sp. 2010, u

Walborska 41, 08-28: Warsawa, Polska

Jula Marge 75, so hemserien 6–8.

147112K-RSKDJ.

EC DECLARATION OF CONFORMITY

EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EF SAMSVARSERKLÆRING

DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

certain that the design and manufacturing of this product in ygar all konstruktion och tilverkning av denna produkt belraflar at konstruksjon og produksjon av detta produkt oświadcza. ze budowa i sposob produkcji niniejszego produklu

LAWN MOWER / GRÄSKLIPPARE

GRÄSKLIPPARE / KOSIARKA DO TRAWY

137.7cc 2.1kW 46mm

Item number / Artikelnummer / Artikelnummer / Numer arlykulu

001-177

Outdoor Noise Directive 2000/14/EC, amended by 2005/88/EC

95 dB(A) 96 dB(A)

Annex VI / Bilaga VIVedlegg VI / Zalącznik VI

(1) M is a simple, well known of the following sub-implant:

In the case of the first time, the case is a result of the initial state.

Interlek Testing & Certification Ltd

Cty-Asyssun, Knowdell, Milan, Keimar, MIGI RAI

Bolyn, MNE0359

ND295

This product was CE marked in year -16

Vivens and arthess of the year

Jogas Backstad

to comp in the technical line

Pos 269, 2F-592 24 Open, Rsvian

to do go to do not be in.

Technical line drawing of a mechanical device with gears and wheels (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Line drawing of a manual lawn mower with a wheel and blade (no text or symbols)

Technical line drawing of a vehicle tire assembly with arrows indicating motion direction (no text or symbols)

Technical line drawing of a vehicle chassis with mechanical components and wiring (no text or symbols)

Line drawing of a cartoon-style off-road vehicle with visible wheels and engine components (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a spark plug with threaded shaft and threaded end (no text or symbols)

Technical line drawing of a car's front suspension system, showing chassis, wheels, and engine components (no text or labels)

Technical line drawing of a mechanical assembly with gears and a central component (no text or symbols)

SÄKERHETSANVISNINGAR

Utbildning

Johannes, 2014, Laura Handelwood, France

E. Voonbolter x 2 stk

F. Skruer x 2

G. Vingemullera

H. Tennpugg-søkkei

BILDE 1

Gressklipperens deler

1. Motorsperre

2. Vingemutter

3. Nedre hånotak

4. Utkostlake

5. Tanklokk

6. Tenapiugghette

7. Forhjul

8. Deksel

9. Ojepäfyllingslokk

10. Bakhjul

11. Spak for klippshydeinstilling

12. Oppsamer

13. Styring for starsnor

MONTERING

Håndtak

• Read these instructions carefully and familiarise yourself with the controls and how they are used.
• Never allow children, or anyone who is unfamiliar with the machine and these instructions, to use it. There may be local regulations for the minimum age of persons allowed to use the machine.
• Do not use the machine when other persons, especially children, or pets are in the vicinity.
  • The user is responsible for any accidents or risks to other persons or property.

Preparations

• Always wear heavy-duty shoes and long trousers when using the machine. Do not use the machine if you are barefoot or wearing green shades.
- Carefully inspect the area where the machine is to be used and remove any objects that can be thrown out.
- Repair/replace the muffler if it gets damaged.
- Always check the machine before use to make sure that the blades, blade screws and mower deck are not worn or damaged. If the blades or screws are worn or damaged, always replace the complete set to avoid imbalance.
- On machines with multiple blades, all the blades can move when just one blade is turned – risk of personal injury.

WARNING!

- Petrol is highly flammable and can in some circumstances be eliminated.

- Fill up with fuel before starting the engine. Never remove the fuel cap or add fuel while the engine is running. Allow the engine to cool before filling with fuel.

- Do not start the machine if fuel has been spilled. Move the machine away from any split fuel before starting. Be careful not to ignite spilled petrol.

- Replace the fuel cap and fuel tank cover properly.

Use

• Do not run the engine in confined spaces where noxious carbon dioxide can accumulate.
• Only use the machine in daylight, or in good artificial lighting.
• If possible, avoid using the machine when the grass is wet
  • Make sure you always have a good footing on sloping ground.
• Use the machine carefully. Never run with the machine.
• Mow across slopes, never up and down.
• Be very careful when changing direction on slopes.

- Do not mow very steep slopes.

- Be very careful when going backwards or pulling the machine towards you.

- Stop the blades if the machine has to be tilted when moving it over an ungrassed surface, or when moving to and from the area to be mowed.

- Never use the machine if the guards or covers are dismantled or damaged. Never use the machine without the safety devices fitted, e.g. ejector guide and/or

neutral mode before starting the engine.

- Start the engine carefully according to the instructions. Keep your feel away from the blades.

- Do not tilt the machine when starting the engine, unless this is necessary to start it. If the machine has to be tilted, do not tilt it more than is absolutely necessary. Lift up the end furthest away from the user.

- Do not stand in front of the ejector opening when starting the engine.

- Never put your hands or feet near, or under, rotating parts. Always keep at a safe distance from the ejector opening

- Never lift or carry the machine when the engine is running.

- Switch off the engine, release the spark plug lead from the spark plug, remove the ignition key where appropriate, and wait until all moving parts have completely stopped in the following situations.

— Before clearing blockages or cleaning the ejector.

Before checking, cleaning or doing any other work on the machine.

- If the blade strikes an object. Check the machine and repair any damage before using it again.

- If the machine starts vibrating abnormally (check immediately).

- Switch off the engine, release the spark plug lead from the spark plug, remove the ignition key where appropriate, and wait until all moving parts have completely stopped in the following situations.

— Before leaving the machine.

Before filling up with fuel.

- Reduce the throttle and close the fuel cock (if there is one) before stopping the engine.

Maintenance and storage

• Make sure that all the screw connections are properly tightened to keep the machine in safe condition.

- Never store the machine with fuel in the tank in areas with sources of heat.

- Allow the engine to cool before putting away.

- Keep the engine, muffler, battery compartment and area where fuel is stored free from grease, grass, moss, and leaves, etc. - fire risk.

- Check the catcher for wear or damage at regular intervals.

- Replace damaged or worn parts.

- If the tank needs emptying, do this outside.

WARNING!

- Do not use the machine if parts are missing or damaged – risk of serious personal injury.

• Recycle the packaging in accordance with local regulations.

- Two persons are needed to lift the lawn mower out of the packaging. Make sure there is enough space to put down the machine. Stand firmly with your feet apart, bend your knees and keep your back straight when lifting.

Symbols

Read the operating instructions before use.

Risk of personal injury as a result of ejected parts. Keep at a safe distance.

Risk of personal injury. Never open or remove safety devices when the engine is running.

WARNING: Exhaust fumes from the engine contain carbon monoxide, an odourless and highly dangerous gas - risk of serious personal injury and/or death. Never start or run the engine incopers or in an enclosed area.

Hot surfaces - risk of burn injuries.

Never refuel when the engine is running.

Wear safety glasses and ear protection when working with the lawn mower.

Guaranteed sound power level

Approved as per applicable directives.

Recycle discarded product in accordance with local regulations.

TECHNICAL DATA

Engine type 4-stroke

Displacement 137.7 cm ^3

Output 2.1 kW

Speed 2900 rpm

Ignition 10

Spark plug TORCH/LD/K7RTC/K7TC

Fuel volume 0.51

Oil volume 0.41

Grass catcher 551

Sound pressure level, 124.83 dB(A), K=3 dB

Measured sound power level: 10A

Working width 46 cm

Weight 25.5 kg

Always wear ear protection.

DESCRIPTION

Assembly parts

A. Mower deck

B. Cotcher

C Clamp

D. Bottom nondle

1. Coach bolts x 2

F. Screw x 2

G. Wing nuts

H. Spark plug spanner

FIG. 1

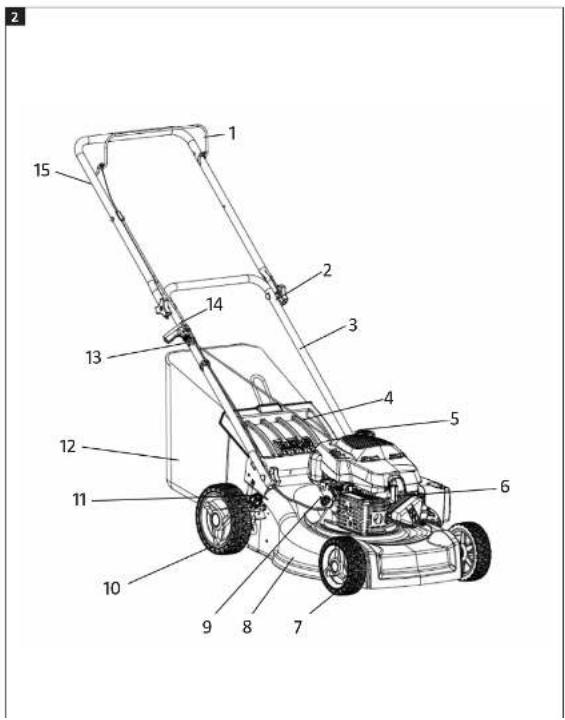

Lawn mower parts

1. Engine lock

2. Wine cut

3. Bottom handle

4. Ejector opening

5. Fuel cop

6. Spark plug cap

7. Front wheel

8. Cover

9. Oil filler cop

10. Back wheel

11. Control for moving height adjustment

12. Gross catcher

13. Guide for starter cord

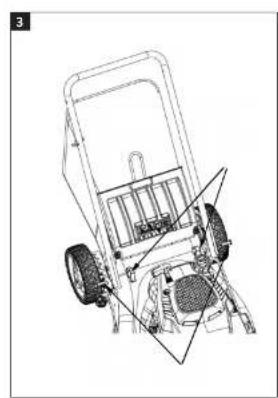

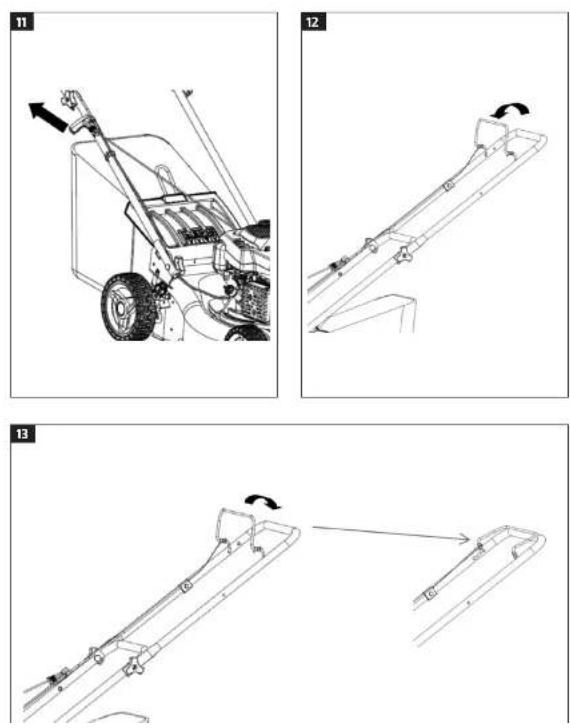

ASSEMBLY

Handle

1. Fit the bottom handle on the cover with a screw and wing nut on each side.
2. Fold out the top handle and lock in place by tightening the wing nuts and screws.

FIG. 3

NOTE:

Check that the guide for the starter cord is on the right side of the handle, seen from behind the lawn mower.

Starter cord

1. Hold the starter handle and carefully pull out the starter cord so that the handle just goes past the guide.
2. Hook the starter handle in the guide.

FIG. 5

Grass catcher

1. Fasten the grass catcher on the frame by hooking on all the plastic hooks.
2. Lift up the ejector flap with one hand and hook on the grass catcher.
3. Release the ejector flap to lock the grass catcher in place.

FIG. 6

USE

Intended use

is not liable for any personal injury or damage to equipment resulting from incorrect use. The full responsibility for any such personal injury or material damage rests on the user.

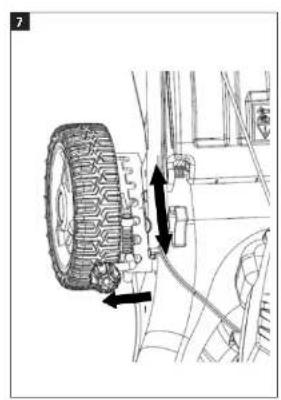

Adjusting the mowing height WARNING!

Switch off the engine before changing the mowing height.

1. The mowing height is set with the level for this.
2. Pull the lever out and move it to the position for the required mowing height. Release the lever to hook it in the required position.
3. The mowing height can be adjusted from 25 mm (position 1) to 75 mm (position 7).

FIG. 7

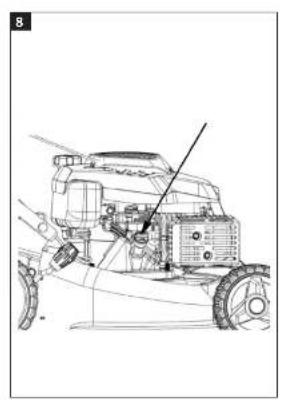

Checking the engine oil and topping up

1. Remove the oil filler cap and wipe the dipstick.

FIG. 8

1. Replace the dipstick, without screwing it in.

2. Remove the dipstick again and check the oil level. The oil level should be between the MAX and MIN markings. Top up with oil of the recommended grade (SAE3C) if the oil level is near or below the lower limit mark on the dipstick. Top up to the upper level marking. Do not overfill. Wipe off any spilled oil.

3. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 14.

WARNING!

The following procedures and settings should be carried out before starting the engine:

• Use a good grade of 4-stroke engine oil (SAE30). Do not put any additives in the oil.
• Change the oil the first time after 5 working hours to benefit the lifespan of the engine.
• The engine is supplied without oil and petrol. Always fill up with fuel and engine oil before using for the first time.

NOTE:

• Do not run the engine without enough oil – risk of serious engine damage. Do not use any oil grades other than those recommended by the manufacturer, this can reduce the lifespan of the engine.
• Place the lawn mower on a level surface with the engine switched off to check the oil.

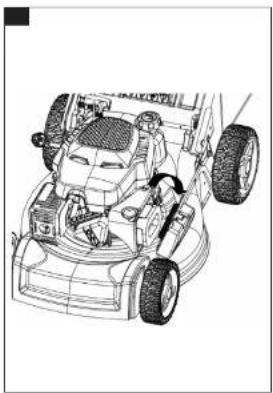

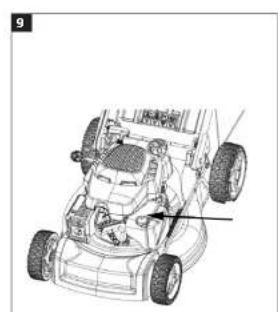

Refuelling

1. Clean the area around the fuel filler cap before opening. Open the fuel filler cap and check the fuel level.

FIG. 9

1. Fill up with fuel if the level is too low.
2. Avoid spilling fuel when filling. Do not overfill. The fuel must not come up the filler tube.
3. Wipe up any spilled fuel before starting the engine.
4. Replace and tighten the fuel cap by hand.

WARNING!

of the filler tube, so that the fuel can expand. Do not overfill the tank.

• Always be careful when handling fuel – it is highly flammable. Store out of the reach of children
• The engine is supplied without oil and petrol. Always fill up with fuel and engine oil before using for the first time.
• Only refuel in a well-ventilated area with the engine switched off. Keep petrol away from sparks and naked flames, and do not smoke where petrol is stored or when filling petrol. Avoid repeated or prolonged skin contact with fuel and/or inhalation of fuel fumes.

USE

WARNING!

• The blades start rotating when the engine starts.
• Before starting the engine, manoeuvre the engine lever several times to check the wire moves easily.
• Never start the engine indoors or in an enclosed area. Exhaust fumes from the engine contain carbon monoxide, an odourless and highly dangerous gas – risk of serious personal injury and/or death.
• Keep your hands, feet, hair, and loose-fitting clothes away from moving parts.
• The engine and exhaust pipe get very hot when in use – risk of burn injuries.
• Check before starting that the blade is correctly and securely fitted.
• Check that the spark plug lead is

Starting the engine

1. Press the primer pump 3–5 times before starting the engine. Hold the engine control lever pressed against the top handle.

FIG. 10

1. Stand behind machine. To start the engine, pull the starter cord slowly until it catches (after 10–15 cm) and then pull it quickly.

2. Let the starter handle return to its original position slowly when the engine has started.

FIG. 11

Switching off the engine

The engine and blade stop when the engine control lever is released.

FIG. 12

If the engine does not start

NOTE:

• If the engine will not start after pulling the starter cord several time this could be because the engine is flooded. Follow the instructions to wipe the spark plug and start the engine.
• Carefully screw in the spark plug by hand to avoid threading problems. A used spark plug should be tighten to 1/8 -1/4 of a turn after it seats to compress the sealing washer.
• Move the throttle lever to the stop position.
• Remove and wipe the spark plug, then replace.
• Move the throttle lever to the high revs

Lawn mowing

1. Set the required mowing height.
2. Start the engine according to the instructions and allow it to run.
3. Hold the top handle and engine control lever in a firm grip and push the lawn mower forward.

FIG. 13

WARNING!

• Failure to follow all the instructions and safety instructions can result in the risk of serious personal injury. Read all the instructions and safety instructions carefully before use.
• Never open the ejector flap when the engine is running and if the grass catcher is not fitted. The lawn mower blades can cause serious personal injury.
• Use the machine carefully. Never run with the lawn mower. Be very careful on uneven surfaces.
• Mow across slopes, never up and down.
• Be very careful when changing direction on slopes.
• Do not mow very steep slopes.

NOTE

• The best results are obtained when the grass is dry. Wet grass can block the blades and the catcher system.
• Grass grows at different rates, depending on the season. Always use the lowest mowing height setting when mowing for the first time at the start of the season, or when the grass is very dry.
• Do not mow more than 1/3 of the height of the grass.

the blades and deck. Use a brush, broom or other suitable tool.

Emptying the grass catcher

When cuttings fall onto the lawn behind the machine it is time to empty the grass catcher.

1. Lift up the ejector flap with one hand, grip the grass catcher handle with the other, and lift out the grass catcher. When the grass catcher is removed the ejector flap falls down and closes the ejector opening

2. Empty the grass catcher and replace.

NOTE:

• Switch off the engine and wait until all moving parts have completely stopped before removing the grass catcher.
• Remove any residual grass in the ejector opening with a brush. Do not use your hands or feet to clear the blades and deck. Use a brush, broom or other suitable tool. The grass catcher will not work properly if the mower deck or ejector opening are blocked by grass.

MAINTENANCE

WARNING!

Switch off the lawn mower and wait until all moving parts have completely stopped before carrying out maintenance and/or cleaning.

• Always clean the lawn mower after use.
- Do not allow grass and other debris to dry on the surfaces of the lawn mower.
- Dry, adhered grass and other debris can prevent the lawn mower from working properly.

Chalk that the direction is free from residual

NOTE:

Before putting the lawn mower on its side, empty the fuel tank. Do not tilt the lawn mower more than 90°.

Spark plug

1. Allow the engine to cool and disconnect the spark plug lead from the spark plug.
2. Remove the spark plug with a spark plug spanner.
3. Clean the spark plug with a wire brush.
4. Adjust electrode gap in 0.76 mm by using a feeler gauge.

FIG. 14

1. Carefully screw in the spark plug by hand to avoid threading problems.
2. When it seats, tighten with the spark plug spanner to compress the sealing washer.

Cleaning the air filter

The engine will not work properly if the air filter is blocked because of the reduction in the supply of air. Clean the air filter more often in dusty conditions.
1. Release the clip and remove the cover.

FIG. 15

1. Take out the filter.
2. Carefully tap the filter against a hard surface to clean it. Replace the filter if it is very dirty.
3. Replace the filter.
4. Place the cover pin in the slot.
5. Close the cover and lock in place with the clip.

to clean the filter. Clean the filter with compressed air, or by tapping it against a hard surface.

Changing the engine oil

1. Place a suitable container under the lawn mower.
2. Open the oil filler plug.
3. Open the oil drain plug and allow the hot oil to run out into the container.
4. Replace the drain plug when all the oil has run out.
5. Fill up with engine oil to the top marking on the dipstick.

NOTE:

• Do not screw in the dipstick when checking the level – just insert it up to the thread.
  • The oil should be at room temperature when changing.
• Dispose of old oil in accordance with local regulations.

Replacing blades

1. For reasons of safety blades should only be sharpened and fitted by an authorised service centre or other qualified personnel.
2. Hold the blade and undo the hex screw anticlockwise with a spannet.

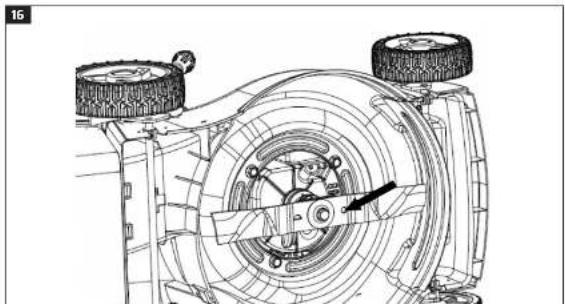

FIG. 16

1. Remove the washer and blade.
2. Fit a new or sharpened blade. Fit the blade on the two laps on the mounting flange, and lock in place with the washer

WARNING!

• Turn off the engine, release the spark plug lead from the spark plug, and wait until all moving parts have completely stopped before removing the blade.
• Wear safety gloves and remove the blade with a 16 mm spanner.
• Do not turn the lawn mower upside down, tilt it on its side towards the oil filler and reach in under the deck.
• Blades are sharp – risk of cut injuries. Handle the blade with care and wear safety gloves.
• If blades or screws are worn or damaged, always replace the complete set to avoid imbalance.
• Do not touch the blade with your bare hands.
• Keep the blade sharp for best mowing results. Sharpen or replace the blade if it is worn, damaged or blunt. A damaged or blunt blade affects the functionality of the lawn mower.

STORAGE

Short-term storage

No special preparations are required for storage less than 2 weeks. Follow the instructions before putting into storage.

1. Allow the engine to completely cool
2. Empty the grass catcher.
3. Clean the underside of the mower deck.
4. Store the lawn mower upright on a level surface.
5. Store the lawn mower out of the reach of children and unauthorised persons.

these instructions can make it difficult to start the lawn mower after storage and may result in extra service.

1. Empty the tank with a fuel pump.
2. Run the engine until the fuel tank is empty and the engine stops due to lack of fuel.
3. Change the oil at the end of every season. Empty the oil when the engine is warm and fill up with new oil.
4. Clean the engine's cooling fins and the casing.
5. Clean the lawn mower all over to prevent any paint damage.
6. Store the lawn mower in a well ventilated area.

WARNING!

• Do not empty the fuel tank in an enclosed area, or near naked flame or other source of heat.
• Do not smoke. Petrol and petrol fumes are highly flammable and can in some situations be explosive.

TRANSPORT

1. Empty the fuel tank, or run the engine until the fuel tank is empty and the engine stops due to lack of fuel.
2. Empty the oil when the engine is warm.
3. Release the spark plug lead from the spark plug.
4. Clean the engine's cooling fins and the casing. If possible, transport the lawn mower in its original pack.
5. Secure the lawn mower so that it cannot move if transporting it on a trailer.

MAINTENANCE SCHEDULE

WARNING!

Switch off the lawn mower, release the spark plug lead from the spark plug, and wait until all moving parts have completely stopped before carrying out maintenance and/or cleaning.

Follow the maintenance instructions for best functionality and useful life.

	12 working hours 24 working hours 36 working hours
Air filter Clean Clean Replace
Spark plug Check Clean Replace
Engine oil Check Replace Check

TROUBLESHOOTING

Problem Possible cause Action
The lawn mower is noisy and vibrates excessively.	Loose screw connections. Check screw connections and Lighten if necessary.
	The blade retainer screws are loose.	Check blade retainer screws and Lighten if necessary.
	Blade is unbalanced. Fill a new blade.
The engine will not start.	Defective spark plug. Replace spark plug.
	Worn or damaged blade. Replace blade.
	Run out of fuel. Fill up with fuel.
	Engine is I coded.	Unscrew, wipe and screw in spark plug.
The engine does not run smoothly.	Dirty air filler.	Clean the air filler.
	Dirty spark plug.	Clean the spark plug.
Uneven mowing.	Blunt blade	Sharpen the blade, or replace if necessary.
	Mowing height too low.	Set a suitable mowing height.
Not all the grass goes into the catcher.	tlunt blade. Sharpen the blade, or replace if necessary.
	The grass catcher is full. Empty the catcher.
	Wrong mowing height. Set a suitable mowing height.
	Wet grass. Wait until the lawn dries.
	The ejector opening or flap is blocked. Clean the ejector opening/flap.
	The underside of the mower deck is clagged up. Clean the underside of the mower deck.

NOTE:

• Contact the dealer if the problem can not be rectified with the help of the troubleshooting chart.
• Repairs that are not done correctly will invalidate the warranty and can result in extra costs.
• Repairs that are not carried out correctly can result in the risk of fatal or serious personal injury and/or damage to the environment.
• Only use spare parts recommended by the manufacturer. The use of other parts can result in personal injury, material damage, and/or damage to the environment. It will also invalidate the warranty.
