242-130 - Saw Meec Tools - Free user manual and instructions
Find the device manual for free 242-130 Meec Tools in PDF.
| Product Type | Circular Saw |
| Brand | Meec Tools |
| Model | 242-130 |
| Power Source | Corded Electric (230V~50Hz) |
| Rated Power | 1300 W |
| Blade Diameter | 185 mm (7.3 in) |
| Blade Bore | 20 mm |
| Max Cutting Depth at 90° | 65 mm (2.6 in) |
| Max Cutting Depth at 45° | 45 mm (1.8 in) |
| No-Load Speed | 5000 rpm |
| Weight | 4.5 kg (9.9 lbs) |
| Dimensions (LxWxH) | 310 x 230 x 270 mm |
| Cable Length | 2.5 m |
| Protection Class | Class II (Double Insulated) |
| Main Functions | Rip cutting, cross cutting, bevel cutting (up to 45°) |
| Safety Features | Blade guard, spindle lock, safety switch, anti-kickback |
| Maintenance | Clean sawdust after use, lubricate moving parts, check brush wear |
| Spare Parts Available | Yes (blades, brushes, carbon brushes, switches) |
| Repairability | Modular design; user-replaceable brushes and blade |
| Included Accessories | One carbide-tipped blade, rip fence, wrench, dust bag |
Frequently Asked Questions - 242-130 Meec Tools
User questions about 242-130 Meec Tools
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual 242-130 - Meec Tools and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 242-130 by Meec Tools.
USER MANUAL 242-130 Meec Tools
ate virin distation.
Ratten (1) andringar (2)
Vic ewertella problem, kontakla var. kondervoe pe
telefon 0511342000.
WWW.Li@ SE
Verne an mil set
In azie event, in work problems
Care for the environment
Must not be discarded with household waste! His
product means electrical or electronic components that
should be recycled. Leave the product for recycling at the
designated station e.g. the local authority's recycling
stalier
Jula reserves the right to make changes. In the event of
problems, please contact our customer service.
www.life.com
Tilverkare/Produceet/Produced/Manufacturer
Ibis 28, Rix 363, S37 24 SK08A
distributar/Distribu-gr/Distributer/Distributor
Jia Boand So Tso. ul
Malaysia 49, 53-786 Year ago, Foska
1) = Bercu AS, Salheirsower 6.8
147 DØRENSKOG
2018.04.18
苏如皋
EC DECLARATION OF CONFORMITY
EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE
EF SAMSVARSERKLÆRING
DEKLARACJA ZGODNOŚCI WE
Jula AB, Box 363, SE-532 24 SKARA, SWEDEN
certify that the design and manufacturing of this product
Machinery Directive 2006/42/EC
EN 61029-1:2009+A11, EN 61029-2-9:2012+A11
Electromagnetic Compatibility Directive 2014/30/EU
EN 55014-1:2006+A1+A2, EN 55014-2:2015
EN 61000-3-2:2014, EN 61000-3-11:2000
RoHS Directive 2011/65/EU
EN 50581:2012
This product was CE marked in year -14
Name and address of the person authorised
to compile the technical file
physics is essential (15:11.2–6).
SÄKERHETSANVISNINGAR
The same choice is a choice
Arbeidsstilling
- Aldri stå rett foran sagbladet og sagen, men hold deg på siden. På den måten beskytter du deg mot eventuelle kast.
- Hold armer, hender og fingre borte fra del roterende sagbladet.
• Før aldri armene i sagarmens bane.
Kappsaging
Read the operating instructions carefully before use
Save these instructions for future reference.
General safety information
- Failure to follow all instructions and safety information may result in electric shock, fire and/or serious injury.
- Read all the operating instructions before using the tool, and ensure you follow all safety information.
- The term 'power tool' in the safety information below refers to your mains-operated (corded) power tool or battery operated (coreless) power tool.
1) Work area
A. Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
B. Do not operate power tools in explosive environments, for example in the presence of flammable liquids, gases or dust. Power tools create sparks which can ignite dust or fumes.
C. Keep children and bystanders at a safe distance while operating a power tool. Distractions can cause you to lose control of the tool.
2) Electrical safety
A. The power tool plug must fit the power outlet. Never modify the plug in any way.
B. Never use an adapter together with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electrocution.
C. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electrocution if your body is earthed or grounded.
D. Do not expose power tools to rain or moisture. Water entering a power tool will increase the risk of electrocution.
E. Do not abuse the power cord. Never use the cord for carrying, pulling or unplugging the power tool. Ensure that the power cord is protected from heat and that it does not come into contact with oil, sharp edges or the tool's moving parts. Damaged or entangled cords increase the risk of electrocution.
E. When operating the power tool outdoors, only use an extension cord approved for outdoor use. Using a cord suitable for outdoor use reduces the risk of electrocution.
C. If operating a power tool in a clamp location is unavoidable, use a power supply that is protected with a residual current device (RCD). Using an RCD reduces the risk of electrocution.
3) Personal safety
EN
D. Avoid unintentional starting. Ensure the switch is in the off-position before plugging in the power cord and/or battery pack, lifting or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch in the no-position invites accidents.
E. Remove any adjusting key or wrench before starting the power tool. Any wrench or key left attached to a rotating part of the power tool may result in personal injury.
F. Do not overreach. Keep a proper footing and balance at all times. This will enable you to have better control of the power tool in unexpected situations.
C. Wear appropriate clothing. Do not wear loose-fitting clothes or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can get caught in moving parts.
II. If there is equipment for dust extraction and dust collection, this should be connected and used correctly. The use of such devices can reduce dust-related hazards.
4) Power tool use and care
A. Do not force the power tool. Use the correct power tool for your application. The tool will work better and be safer with the load for which it is designed.
B. Do not use the power tool if it cannot be switched on or off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
C. Remove the power cord and/or battery before making any adjustments, replacing accessories or storing the power tool. Such preventive safety measures reduce the risk of accidentally starting the power tool.
D. Power tools that are not being used should be stored out of the reach of children. Never let children or persons unfamiliar with the power tool or who have not read these instructions operate it.
C. Maintain the power tool. Check that moving parts are correctly adjusted and move freely, that no parts are incorrectly mounted or broken and that there are no other factors that can affect how it works.
F. If damaged, have the power tool repaired before using again. Many accidents are caused by poorly maintained power tools.
C. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
II. Use the power tool, accessories and blades, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. It may be dangerous to use power tools for purposes other than those for which they are intended.
5) Service
The power tool may only be serviced by qualified service personnel using identical spare parts. This will ensure that safety is maintained when using the power tool.
SPECIFIC SAFETY INFORMATION FOR THE CROSSCUT/MITRE SAW
- All warning symbols on the power tool must be clearly visible at all times.
- Do not place any objects on top of the tool. If the tool tips over or you accidentally touch the blade,
- Only guide the saw blade towards the workpiece when the machine is switched on. Otherwise, there is risk of kickback if the saw blade becomes wedged in the workpiece.
- Keep the handles dry, clean and free of oil and grease. Greasy and oily handles are slippery and may cause you to lose control.
- Operate the power tool only when the work area is clear of adjusting tools, wood chips, etc. Only the workpiece must be in this area. Small pieces of wood or other objects that come in contact with the rotating saw blade may strike the operator at high speed.
- Keep the floor clear of wood chips and material remainders, as these may cause you to slip or stumble.
- Always firmly clamp the workpiece. It is safer to secure it with a clamp than to hold it with your hand. Do not saw a workpiece that is not secured in place - the clearance of your hand in relation to the rotating saw blade is too small if it slips.
- Only use power tools suitable for the intended material - overheating may occur otherwise.
- If the saw blade should become jammed, switch the machine off and hold the workpiece in place until the saw blade comes to a complete stop. To prevent kickback, do not remove the workpiece until the saw blade has come to a complete stop. Correct the cause of the saw blade jamming before restarting the machine.
- Never use dull, cracked, bent or damaged saw blades. Unsharpened or improperly set saw blades produce narrow kerf. This causes excessive friction, blade binding and the risk of kickback.
- Always use the correct size blades and arbor holes (e.g. star-shaped or round). Saw blades that do not match the mounting hardware of the saw will soon run eccentrically, causing loss of control. Never use HSS (high speed steel) saw blades. This type of blade breaks easily.
- After working, do not touch the saw blade until it has cooled. The saw blade gets very hot while you are working.
- Never operate the tool without the insert plate. Replace defective insert plates. If there is a fault with the insert plate, the blade may injure you.
- Check the power cord regularly. If it is damaged, it should be replaced by an authorised service representative. If the extension cord is damaged, it should be replaced. This will ensure that safety is maintained.
• Always store the power tool safely. The storage location must be dry and lockable to protect the machine from damage in storage and prevent it from being operated by untrained persons. - Never leave the machine unattended before it has come to a complete stop. Cutting tools that are still running may cause injury.
- Never use a power tool when the cable is damaged. If the cable is damaged while working, do not touch it and pull out the plug. Damaged cords will increase the risk of electric shock.
SYMBOLS
The following symbols can be important for the operation of your power tool.
Ensure that you understand the symbols and their meanings.
 | Please read these instructions before use. |
 | Wear a dust mask. |
 | Wear safety goggles. |
 | Wear hearing protection. Exposure to noise can cause hearing impairment. |
 | Never put your hands in the sawing area when the machine is in use. Serious injuries can occur when inadvertently coming into contact with the saw blade! |
 | Keep arms, hands and fingers away from the sawing area. |
 | Warning! Do not look directly into the laser beam. The machine is fitted with a laser. This type of laser device does not normally present any risk of eye damage, but if you look directly at the laser beam, it may cause temporary blindness. |
TECHNICAL DATA
Nominal Voltage 230 V/50 Hz
Power 1,900 W
Unloaded rpm 4,800 rpm
Saw blade dimensions 254 x 30 x 2.8 mm
Sawing capacity 90° x 90° / 70 x 310 mm
45°×45°/40×210mm
45°×90°/40×310mm
90^×45^/70×210mm
Weight 13.4 kg
Sound pressure level, LpA 97 dB(A), K=3 dB
Sound power level, IwA 110 dB(A), K=3 dB
Vibration level 3.8 m/s², K=1.5 m/s²
Always use hearing protection!
The declared vibration and noise value, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure. The measurement values have been determined in accordance with EN 61029-2-9-2012.
WARNING! The actual vibration and noise level when using power tools may differ from the specified maximum value, depending on how the tool is used and what kind of workpiece is processed. It is therefore necessary to determine which safely precautions are required to protect the user, based on an estimate of exposure in actual operating conditions (taking into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling, in addition to the start-up time).
EN
DESCRIPTION
EN

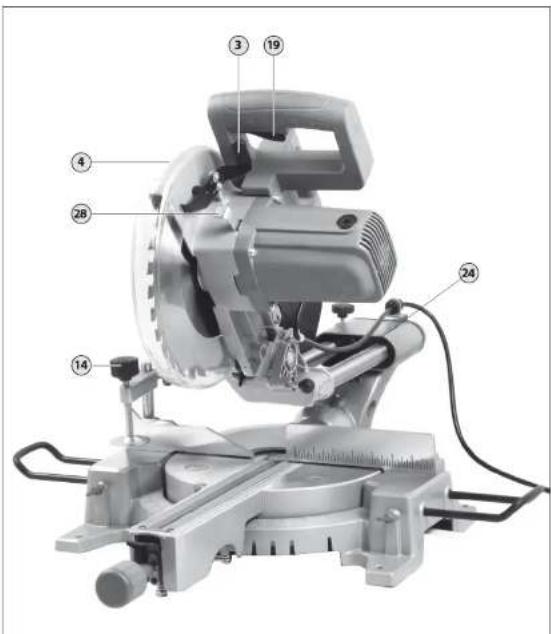

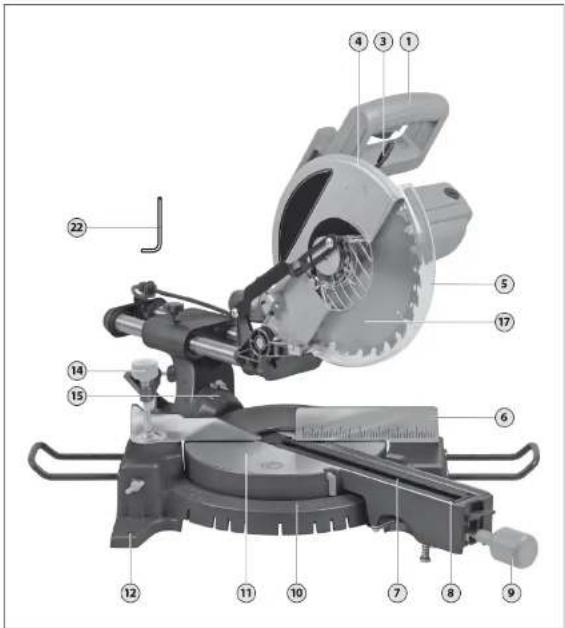

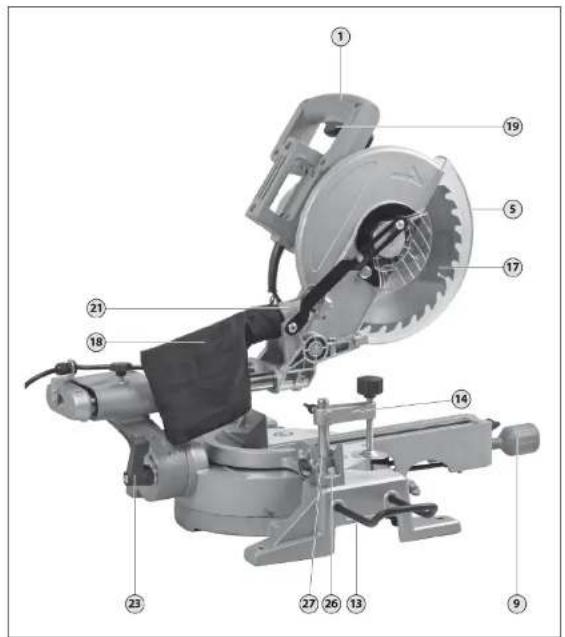

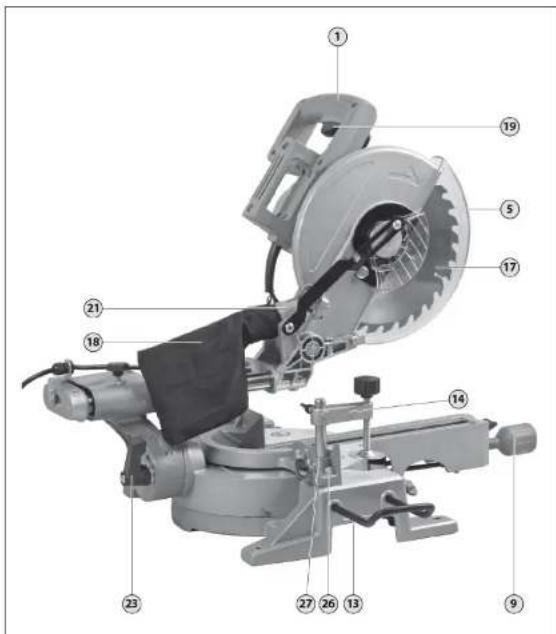

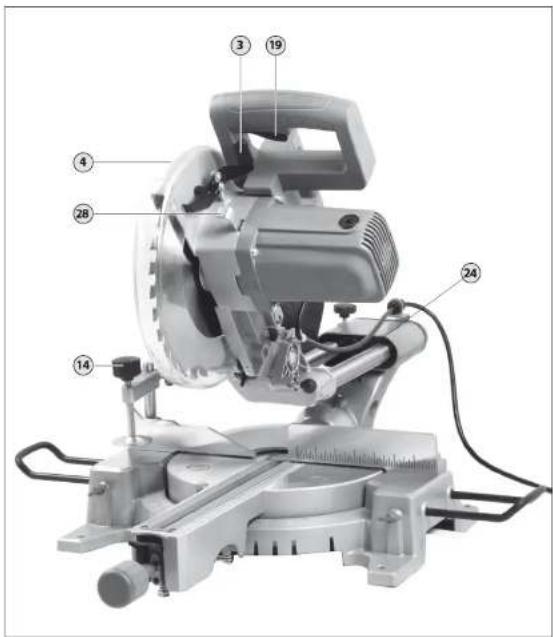

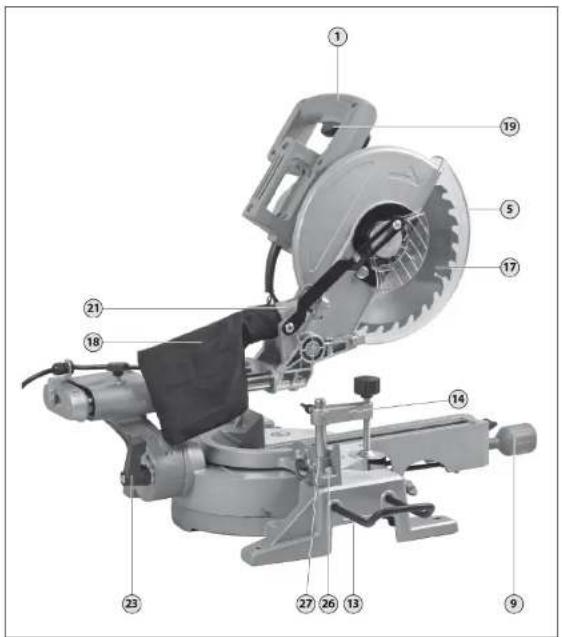

Crosscut/mire saw features
| 1 Handle | 15 Scale for milting angle (vertical) |
| 3 Saw arm release lever | 17 Saw blade |
| 4 Protective hood | 18 Dust bag |
| 5 Blade guard | 19 On/Off switch |
| 6 Fence | 21 Sawdust ejector |
| 7 Insert plate | 22 Hex. key |
| 8 Screws for insert plate | 23 Knob for locking milting angle (vertical) |
| 9 Handle for turning saw table | 24 Transport lock |
| 10 Scale for milting angle (horizontal) | 26 Allen screws for stop |
| 11 Saw table | 27 Holes for screw clamps |
| 12 Bench mounting holes | 28 Spindle lock |
| 13 Hand grip | |
| 14 Screw clamps |
OPERATION
Intended use
The power tool is designed to make straight lengthway and crossway cuts in wood. Horizontal litre angles from -46^ to +46^ as well as vertical bevel angles from 0^ to 45^ can be sawed. The power tool is designed to saw hardwood and softwood. It must not be used for sawing aluminium or other non-ferrous metals.
Connection
Ensure that the power tool is not started unintentionally. Remove the mains plug before assembling or adjusting the power tool. Ensure that the mains voltage is correct. The voltage for the power supply must match the information on the power tool rating label.
NB: Ensure that the power tool is not damaged. Before the power tool is used, the user must make sure that all protective devices are fully functional so that the power tool can be used properly. Make sure that all moving parts are functioning flawlessly, are not damaged and do not jam. All parts must be fitted properly and fulfil all conditions which ensure faultless operation. Damaged protective devices and parts must be replaced immediately by an authorised service centre.
Mounting to workbench
To ensure safe operation, the machine must be mounted on a stable, level surface (e.g. a workbench).
• Unpack all parts from their packaging.
- Remove all packing materials from the power tool and accessories.
EN
tions in the user or bystanders. Some types of dust, such as oak or beech dust, are considered carcinogenic, especially in connection with wood-treatment additives (e.g. chromate or wood preservative). Materials containing asbestos may only be worked on by specialists.
• Always use dust extraction.
- Ensure good ventilation of the workplace.
• We recommend wearing a P2 filter-class respirator. Observe the relevant regulations in your country for the materials you are planning to work with.
The dust/chip extraction can be blocked by dust, chips or workpiece fragments.
Switch the machine off and pull out the mains plug from the socket outlet. Wait until the saw blade has come to a complete stop. Determine the cause of the blockage and correct it.
Dust extraction (included)
Allach dust bag (18) to sawdust ejector (21). The dust bag must never come in contact with moving saw components. Always empty the dust bag in good time.
External dust extraction
You can also connect a vacuum hose to the sawdust ejector (21). The vacuum cleaner must be suitable for the material being used. When vacuuming dry dust, dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner.
Changing the saw blade
Before carrying out any work on the power tool, always pull out the mains plug. When mounting the saw blade, wear protective gloves to avoid injury. Only use saw blades whose maximum permitted speed is higher than the no load speed of the power tool. Only use saw blades that correspond with the specifications in these operation instructions, meet the requirements of SS-FN 847-1 and have correct markings in accordance with the standard. Only use saw blades recommended by the tool manufacturer which are suitable for sawing the materials.
Mounting the saw blade
NB: Always disconnect the tool from the mains before carrying out any work on the tool. If required, clean all parts to be mounted prior to assembly.
- Press the lever (3), move the blade guard (5) the whole way back to the material stop and lock it in this position.
- Place the new saw blade on the inner bracket.
- Make sure that the cutting direction of the teeth is correct. The arrow on the saw blade should point the same way as the arrow on the protective hood.
- Carefully slide down the blade guard again.
ADJUSTING THE MITRING ANGLE
NB: Never press the on/off switch (19) whilst adjusting the mitring angle. If the power tool starts, there is a serious risk of injury.
Adjusting horizontal mitring angle
The horizontal mitring angle can be set between 46^ (left) and 46^ (right). Pull the handle grip (9) to turn the sawing table (11) to the left or right until the angle marker shows the desired mitring angle.
Adjusting vertical mitring angle
The vertical mitring angle can be set between 0^ and 45^ .
-
Unscrew the locking knob (23).
-
Use the handle (1) to swing the saw arm until it is at the desired mitring angle.
- Hold the saw arm in position and tighten the locking knob (23). In order to quickly set the standard angles of 0^ and 45^ , there are end stops on the frame itself.
- Unscrew the locking knob (23).
- Pull the handle (1) to turn the saw arm.
- to the right stop (0°) or left stop (45°).
- Tighten the locking knob (23) again.
Starting the crosscut/mitre saw
Start the power tool by pressing and holding the switch (19). NB: For safety reasons, it is not possible to lock the switch (19) in its pressed position. It must be held down whilst in use. The saw arm cannot be lowered until the locking lever (3) is pushed. To be able to saw, both the switch and locking lever (3) must therefore be pushed.
Switching off the crosscut/mitre saw
Switch the machine off by releasing the on/off switch (19).
WORKING ADVICE
General sawing instructions
- Before sawing, it must first be ensured that the saw blade at no time can come in contact with the stops, screw clamps or other machine parts.
- Remove any mounted auxiliary stops or adjust them accordingly so that they are not in the way.
- Protect the saw blade against impact and shock.
- Do not subject the saw blade to lateral pressure.
Do not complete the following
EN
Working position
- Never stand in line with the saw blade in front of the machine – always stand to the side of the saw blade. This protects your body against possible kickback.
- Keep hands, fingers and arms away from the rotating saw blade.
- Never put your arms in the way of the saw arm.
Crosscut sawing
- Secure the workpiece in a way that is appropriate for its size.
- Set the desired horizontal and/or vertical mitring angle.
- Start the power tool.
- Push the lever (3) and pull the handle (1) to slowly lower the saw arm.
- Saw through the entire workpiece at a steady rate.
- Turn off the machine and wait until the saw blade has come to a complete stop.
- Slowly raise the saw arm.
Replacing the insert plate
The red insert plate (/) may become worn if the power tool is used for a longer period of time. Replace defective insert plates.
- Bring the power tool into the working position.
- Unscrew the screws (8) with a Phillips head screwdriver and remove the old insert plate.
- Insert a new insert plate and reinsert and retighten all the screws (8).
MAINTENANCE
NB: Before carrying out any work on the power tool, always pull out the mains plug. If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an authorised service centre.
Cleaning
For safe and proper working, always keep the power tool and its ventilation slots clean. The blade guard must always be able to move freely and close. Always keep the area around the blade guard clean. Remove dust and chips after each working procedure by blowing out with compressed air or with a brush.
Transportation
Before transporting the power tool, the following steps must be carried out:
Dut the consensus into bounded mode
- SÄKERHETSANVISNINGAR
- Arbeidsstilling
- Kappsaging
- Read the operating instructions carefully before use
- General safety information
- 1) Work area
- 2) Electrical safety
- 3) Personal safety
- EN
- 4) Power tool use and care
- 5) Service
- SPECIFIC SAFETY INFORMATION FOR THE CROSSCUT/MITRE SAW
- SYMBOLS
- TECHNICAL DATA
- Always use hearing protection!
- OPERATION
- Intended use
- Connection
- Mounting to workbench
- Dust extraction (included)
- External dust extraction
- Changing the saw blade
- Mounting the saw blade
- ADJUSTING THE MITRING ANGLE
- Adjusting horizontal mitring angle
- Adjusting vertical mitring angle
- Starting the crosscut/mitre saw
- Switching off the crosscut/mitre saw
- WORKING ADVICE
- General sawing instructions
- Working position
- Crosscut sawing
- Replacing the insert plate
- MAINTENANCE
- Cleaning
- Transportation
Brand : Meec Tools
Model : 242-130
Category : Saw
