BML-17-B - Headphones BRIGMTON - Free user manual and instructions

Product Type	Bluetooth Earphone (TWS)
Brand	Brigmton
Model	BML-17-B
Color	White
Dimensions (Earbuds)	Approximately 2.5 x 2.0 x 1.5 cm each
Dimensions (Charging Case)	Approximately 6.0 x 5.0 x 2.5 cm
Weight (Earbuds)	Approximately 4 g each
Weight (Charging Case)	Approximately 30 g
Power Input	DC 5V / 1A (certified charger)
Battery Capacity (Earbuds)	Approximately 40 mAh each
Battery Capacity (Charging Case)	Approximately 300 mAh
Charging Time (Earbuds)	Approximately 1 hour
Charging Time (Case)	Approximately 2 hours
Music Playback Time	Approximately 4 hours (at 50% volume)
Standby Time	Approximately 100 hours (earbuds)
Bluetooth Version	5.0
Bluetooth Range	Up to 10 meters
Driver Unit	8 mm dynamic
Frequency Response	20 Hz - 20 kHz
Impedance	32 Ω
Microphone	Built-in
Water Resistance	IPX4 (splash resistant)
Functions	Music play/pause, volume control, track skip, answer/end/reject calls, activate voice assistant
Maintenance & Cleaning	Wipe with a soft, dry cloth. Avoid contact with liquids.
Safety	Keep away from heat, humidity, and corrosive environments. Do not disassemble. Use certified charger. Stop use if discomfort occurs.
Spare Parts & Repairability	Not provided. Device is not user-serviceable.
General Information	Includes charging case that acts as power bank (can charge earbuds 4-5 times). Automatic pairing when opening case. Supports single earbud use. LED indicators for battery status.

Frequently Asked Questions - BML-17-B BRIGMTON

How do I pair the Brigmton BML-17-B headphones with my phone?

Open the charging case cover and remove the earbuds. They will automatically pair with each other. On your phone, enable Bluetooth and search for devices. Select the model BML-17-B to connect. A blue LED will indicate successful pairing.

Can I use only one earbud?

Yes. Open the case and take out only one earbud, then close the lid. Alternatively, take out both and turn off the one you don't want by pressing its button for 5 seconds. The remaining earbud will connect to your device. Note that for single earbud use, the left earbud controls volume and tracks, and the right earbud does the same.

How do I charge the headphones and the case?

Place the earbuds correctly in the charging case and close the lid. Connect the case to a power source using a certified DC 5V / 1A charger. The case has three red LEDs that indicate charging status: red while charging, blue when fully charged. The case itself can charge the earbuds about 4-5 times.

How do I turn the headphones on and off?

To turn on, open the charging case cover – the earbuds will power on automatically. If they are off, press and hold the button on each earbud for 3 seconds until you see a blue LED. To turn off, place them back in the case and close the lid. If away from the case, press and hold each button for 5 seconds until the LED turns red.

How do I control music volume and tracks?

Volume up: quickly press the left earbud button 2 times. Volume down: press the left earbud button 3 times. Next track: quickly press the right earbud button 2 times. Previous track: press the right earbud button 3 times. Each action is confirmed by a beep.

How do I answer or reject calls?

To answer an incoming call, press any earbud button once. To reject a call, press and hold any button for 2 seconds. To hang up during a call, press any button once.

How do I activate Siri or other voice assistants?

Press and hold any earbud button for 2 seconds to activate the default voice assistant (e.g., Siri, Google Assistant). You will hear a beep to confirm.

What do the LED lights on the charging case mean?

When charging the case: three red LEDs indicate charging in progress. When the case is fully charged, the middle LED turns blue, and after 10 seconds all LEDs turn off. When charging earbuds inside the case: two red LEDs (left and right) show charging; they turn blue when fully charged, then turn off after 10 seconds.

What should I do if the headphones are not connecting?

Ensure the earbuds are charged and within 10 meters of your device. Try placing them back in the case, closing the lid, and reopening to reset the pairing. If issues persist, forget the device on your phone's Bluetooth list and re-pair. Also check that your phone's Bluetooth is enabled.

How long does the battery last and how to maintain it?

Earbuds provide approximately 4 hours of playback time. The charging case can recharge them 4-5 times. To preserve battery life, avoid overcharging and charge at least once every 3 months if not used. Use only certified DC 5V / 1A chargers. Battery performance naturally degrades over time.

USER MANUAL BML-17-B BRIGMTON

Abstract black circular logo design with curved lines (no text or symbols)

BRIGMTON

surfing technology

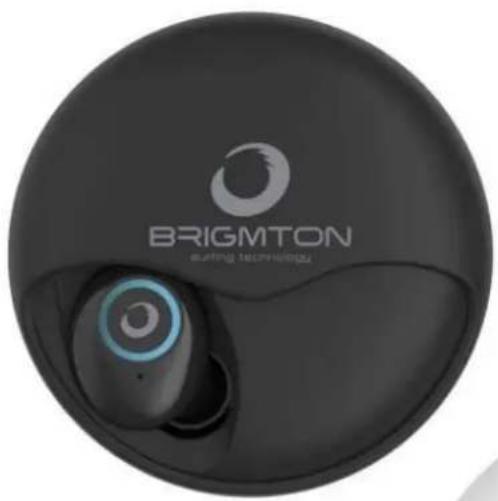

Black circular device with 'BRIGMTON' branding and a blue circular lens, no visible text or symbols beyond the brand logo.

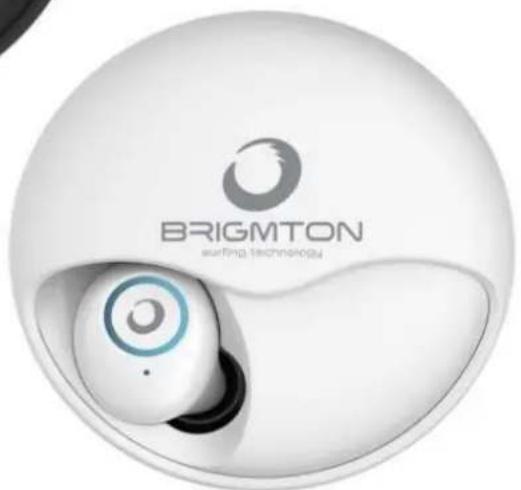

White spherical device with 'BRIGMTON surfing technology' logo and circular lens design (no additional text or symbols)

Close-up of a white wireless earbuds with a cable and three red dots on the side (no text or symbols visible)

Close-up of a white wireless earbuds with a cable and three colored dots on the chest (no text or symbols visible)

Close-up of a white wireless earbuds with a white cable and two red dots on the side (no text or symbols visible)

Close-up of a white wireless earbuds with a cable, showing no text or symbols on the device body.

White electronic device with a black connector and red dots at the bottom (no text or symbols visible)

White electronic device with a black sensor and blue indicator lights on the side (no text or symbols visible)

Abstract black circular logo design with curved lines (no text or symbols)

BRIGMTON

surfing technology

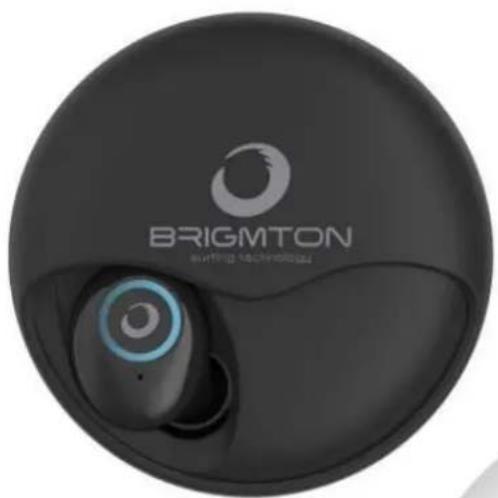

Circular black device with 'BRIGMTON' branding and a blue circular button, no visible text or symbols beyond the logo.

White spherical device with 'BRIGMTON' logo and 'surfing technology' text, no other visible content or symbols

INSTRUCTION MANUAL

BLUETOOTH EARPHONE

BML-17-B-N

CONTROLS AND ADJUSTMENT

PLAYING

BATTERY CHARGE

Before first use make sure that both the headset and the charging base are fully charged.

1. Make sure the headphones are properly connected in place.
2. Close the cover of the charging base, connect the box to a power outlet.
3. When you see the 3 red lights (left, middle and right) at the base of the load.

White electronic device with three red dots on a cable (no text or symbols visible)

1. When the headphones are fully charged, blue-red-blue will be displayed:

Close-up of a white wireless earbuds with a cable and three colored dots on the side (no text or symbols visible)

After 10 seconds, the blue lights will disappear and only the base will remain in charge, with only a red light appearing:

Close-up of a white wireless earbuds with a white cable and red indicator lights (no text or symbols visible)

When the light in the middle turns blue, the base will be charged:

Close-up of a white wireless earbuds with a cable, showing no text or symbols on the device body.

The charging base works like a "power bank" so you can charge the headphones an average of 4/5 times per charge. Position the headphones correctly inside and close the lid. Two red lights will be displayed indicating that the headphone batteries are being charged:

White electronic device with a black connector and red dots at the bottom (no text or symbols visible)

Once they are fully charged, the lights will be shown in blue:

White electronic device with a black connector and blue indicator lights (no text or symbols visible)

The blue lights will be paid after 10 seconds.

NOTES: If you do not use the headphones for a long period of time, charge the base and headphones at least once every 3 months. Unplug the charger once they are charged.

SWITCHED ON

To turn on the headphones, open the base cover. They will turn on and connect automatically. To turn them on from the off position press for 3 seconds each of the buttons on each handset. It will light blue.

To turn off the headphones, place the headphones in the wash and close the lid. If they are on and you want to turn them off, press each of the buttons on each headset for 5 seconds. They will light red.

PAIRED UP

A. Match 2 headphones:

1. Open the base cover and pull out the headphones will be paired with each other emitting a blue light.

2. Connect the bluetooth of your device, search and click on the model and the headphones will connect with your device.

NOTE: If one of the headphones has the battery low and is disconnected, you can charge that headset separately in the charging cradle. NOTE: When you have paired the two headphones with one device, if you turn off one, the other will automatically turn off.

B. Match 1 headset only:

1. Open the lid of the charging case, remove only one of the headphones and close the lid of the cargo box. You can also take out the two headphones and turn off one by pressing the desired headset for 5 seconds.

2. Open the bluetooth of your device, search and click on the model. That single headset will connect to your device.

NOTE: If you only use the left earphone, you can use the left button to raise and lower the volume and pass the tracks. If you only use the right earphone, you can use the right button to raise and lower the volume and pass the tracks.

OTHER FUNCTIONS

Music: To play or pause a song, press on any of the two headphones.

Volume:

+: Quick press 2 TIMES the left button.

-: Quick press 3 TIMES the left button.

Tracks: To pass the track:

Next: Quick press 2 TIMES the right button.

Previous: Quick press 3 TIMES the right button.

Calls: When a call comes in, click on any of the buttons to pick up. To reject a call, press and hold any of the buttons for two seconds. To hang up during the call, press on any of the two buttons.

Activate Siri / Others: Press and hold for two seconds.

Each action will be marked with a "beep" sound.

SECURITY / WARNING

1. Keep the device away from extreme heat, humidity or corrosive environments.

2. Please prevent the device from hitting or falling, misshapen, get wet, etc.

3. Do not disassemble the headphones or charging cradle.

4. Please do not overload the device for a long time, since decrease battery life.

5. Please stop using the device immediately if it causes discomfort or pain.

6. Use certified DC-5V / 1A chargers / adapters.

The recharging and unloading of the headphones repeatedly will decrease the performance of the battery over time, which is normal.

"Features can change without notice"

BRIGMTON

surfing technology

IMPORTED

FERSON ELECTRÓNICA, S.A.

CIF: A-41111881

SANTA CLARA DE CUBA 12

SEVILLA

ESPAÑA

DECLARATION OF CONFORMITY

Ferson Electrónica, S.A. declares under our responsibility that the equipment meets the requirements indicated in the following directives:

ECM DIRECTIVES

EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

IEC 60950-1

ETSI EN 300 328 V2.2.0 (2017-11)

ETSI EN 301 489-1 V2.2.0 (2017-03)

ETSI EN 301 489-17 V3.2.0 (2017-03)

EN 55032:2015

EN 55035: 2017

EN 62479: 2010

EU2015/863

Description of apparatus:

Model BRIGMTON BML-17

EARPHONES

CE

BRIGMTON

surfing technology
