2-in-1 Reversible Grill/Griddle DF-608B - Grill Ambiano - Free user manual and instructions

Product Type	2-in-1 Reversible Grill/Griddle
Brand	Ambiano
Model	DF-608B
Power Supply	120V ~ 60Hz, 1400W
Cooking Surfaces	Reversible non-stick plate: ribbed grill side and smooth griddle side
Temperature Control	Adjustable temperature probe with ON/OFF and indicator light
Handle Material	Cool-touch handles
Base Material	Heat-resistant; base can be immersed in water for cleaning
Cleaning	Removable plate: hand wash with warm soapy water; base can be immersed; do not use abrasive materials
Safety Features	Polarized plug, short power cord, overheat protection (indicator light)
Preheating Time	7–10 minutes
Cooking Guide	Included for fish, bacon, sausage, hamburgers, hot dogs, chicken, pork chops, steak (see manual)
Suitable Utensils	Nylon, plastic, or wooden utensils to avoid scratching non-stick surface
Warranty	2 years from date of purchase (full warranty by ALDI)
Customer Support	Phone: [phone] (Mon–Fri 10am–5pm EST), Email: [e-mail]
Included Accessories	Reversible grill/griddle plate, temperature probe, base, instruction manual
Usage	Indoor household use only; not for outdoor or commercial use
Storage	Cool completely before storing; keep in dry location; do not place heavy items on top
Environmental Disposal	Dispose in an environmentally friendly manner when no longer working
Electrical Safety	Polarized plug; do not use with damaged cord; unplug when not in use

Frequently Asked Questions - 2-in-1 Reversible Grill/Griddle DF-608B Ambiano

How do I clean the Ambiano 2-in-1 Reversible Grill/Griddle?

Ensure the unit is unplugged and completely cooled. Remove the temperature probe. Clean the grill/griddle plate and outer surface with a soft cloth or sponge and warm soapy water. The base may be immersed in water, but do not immerse the plate or probe. Use a plastic scouring pad for stubborn stains. Never use abrasive materials or metal scouring pads.

Can I immerse the entire unit in water?

No. Only the base may be immersed in water. The reversible grill/griddle plate and temperature probe must never be immersed in water or any other liquid. Clean the plate with a damp cloth or sponge.

How long does it take to preheat the grill/griddle?

Preheating takes approximately 7 to 10 minutes. Adjust the temperature probe to the desired setting and wait for the indicator light to indicate readiness.

Can I use metal utensils on the non-stick surface?

No. To avoid scratching the non-stick surface, use only nylon, plastic, or wooden utensils. Never cut food directly on the cooking surface.

What is the warranty period for this grill/griddle?

The grill/griddle comes with a 2-year full warranty from the date of purchase, offered by ALDI. Movable parts and consumables are covered for 6 months under normal use.

How do I switch between the grill and griddle surfaces?

The cooking plate is reversible. Simply lift the plate from the base, flip it over to the desired side (ribbed for grill, flat for griddle), and place it back on the base. Ensure the unit is cool and unplugged before changing surfaces.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer or a qualified electrician to avoid hazard. Do not operate the appliance with a damaged cord. Contact customer support at 1-888-367-7373.

Can I use the grill/griddle outdoors?

No. This appliance is intended for indoor household use only. Do not use outdoors or while standing in a damp area.

How should I store the grill/griddle?

Allow the grill/griddle to cool completely before storing. Store in a dry location, ideally in the original box. Do not place heavy items on top during storage. Keep the cord away from metal objects.

What is the power consumption of the grill/griddle?

The grill/griddle operates at 120V ~ 60Hz and has a nominal power of 1400W. It is recommended to use it on a separate electrical circuit to avoid overloading.

USER MANUAL 2-in-1 Reversible Grill/Griddle DF-608B Ambiano

Cleaning and maintenance....12

Other useful informaon 13

Technical specicaons 13

Storing 13

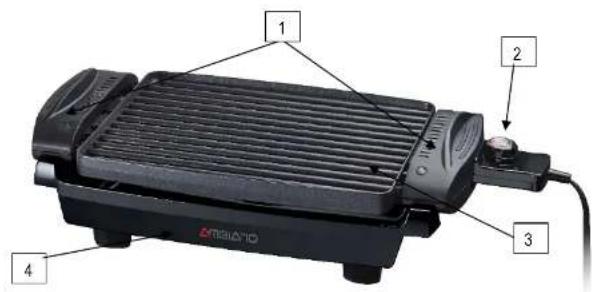

Parts list

Main parts

1. Handles
2. Temperature Probe
3. Reversible Grill/Griddle Plate
4. Base

Contents of packaging

■ Reversible Grill/Griddle with aached Temperature Probe Receptacle
■ Temperature Probe
- Base
- Instrucon Manual

Assembly

Assembly

Before rst use

Before initial use, please wipe down the Grill/Griddle with a so damp cloth and make sure there is no metal or foreign objects on the temperature probe.

NOTE: During rst use, the Grill/Griddle may give o a slight odor. This is due to the newness of the product and will dissipate with use.

Set up before use

1. Unpack the Grill/Griddle and other necessary parts from the box.
2. Remove any unwanted packaging materials such as cardboard, plascs or styrofoam.
3. Wipe clean all the parts with a so damp cloth or sponge. Rinse and dry thoroughly.
4. Assemble all the parts to the Grill/Griddle.
5. Place base on a heat resistant stable surface in a well venlated area.
6. Select ribbed grill side or smooth griddle side and place it on the base.
7. Make sure the temperature probe is turned to "O" OFF. Insert temperature probe into the receptacle in the handle. Plug the power supply cord into a wall outlet.

DO NOT USE ANY ABRASIVE MATERIAL TO CLEAN THE SURFACE

DO NOT IMMERSE THE GRILL/GRIDDLE AND/OR THE TEMPERATURE PROBE IN WATER OR ANY OTHER LIQUIDS

General informaon

When using electrical appliances, basic safety precautions should always be followed. Please read and save all instrucons.

1. To protect against electrical shock, do not immerse grill/griddle, probe, power cord, or plug in water or any other liquid.
2. If the power cord is damaged, the manufacturer or qualified electrician must replace it in order to avoid hazard.
3. Do not use outdoors or while standing in a damp area. For household use only. Do not leave the Grill/Griddle unaended.
4. Close supervision is necessary when any appliance is being used by or near children. This Grill/Griddle is not for use by children.
5. Do not operate the Grill/Griddle with a damaged power cord or plug or aer it has malfunctioned or is dropped or damaged in any manner. Return the Grill/Griddle to the warranty center for examination, repair, or electrical or mechanical adjustment.
6. Do not use any other temperature probe other than what is provided by the manufacturer.
7. Do not let the power cord hang over the edge of a table or counter or touch any hot surface.
8. Do not use the appliance for other than intended use.
9. Do not place on or near hot gas or electric burner, or in a heated oven.
10. Always each the temperature probe to the Grill/Griddle before plugging cord into the wall outlet.
11. To disconnect, turn the temperature probe knob to "O" OFF, then remove the plug from the wall outlet. Never leave the Grill/Griddle connected to the power outlet when not in use or when cleaning.
12. Do not clean the Grill/Griddle with metal scouring pads. Pieces can break o from the pad and touch electrical parts, creang a risk of electrical shock.
13. Cauon should be taken when handling this Grill/Griddle during and immediately aer cooking. Do not touch hot surfaces. Always use handles.
14. Do not move this Grill/Griddle when in use.
15. When in use, keep the Grill/Griddle a minimum of 10-12 inches away from

General informaon

1. For life-long performance of the Grill/Griddle, avoid dropping anything on the heang element.
2. Use only suitable utensils for non-sck surfaces to avoid scratching the surface.
3. ALWAYS ALLOW THE GRILL/GRIDDLE TO COOL COMPLETELY BEFORE CLEANING. Remove the temperature probe before cleaning.

SAVE ALL INSTRUCTIONS!

Safety instrucons

WARNING! Read and understand all instrucons. Failure to follow all instrucons listed below may result in electric shock, re or serious personal injury. The warnings, cauons, and instrucon discussed in this instrucon manual cannot cover all

possible condions and situaons that may occur. It must be understood by the operator that common sense and cauon are a factor which cannot be built into this product, but must be supplied by the operator.

CAUTION: A short power supply cord is provided to reduce the risk of personal injury resulting from becoming entangled in or tripping over a longer cord.

Extension cords are available from local hardware stores and may be used if care is exercised

in their use. If an extension cord is required, special care and cauon is necessary. Also the cord must be: (1) marked with an electrical rang of 125V, and at least 13 A., 1625 W., and (2) the cord must be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over accidentally.

Polarized plug

NOTE:

• This Grill/Griddle has a polarized plug (one blade is wider than the other).
- As a safety feature to reduce the risk of electrical shock, this plug is intended to t in a polarized outlet only one way.
- If the plug does not t fully in the outlet, reverse the plug.
- If the plug sill does not t, contact a qualified electrician. Do not aempt to defeat this safety feature.

Electric power

If electric circuit is overloaded with other appliances, your Grill/Griddle may not operate properly. The Grill/Griddle should be operated on a separate electrical circuit from other operating appliances.

Safety instrucons

1. Never leave the Grill/Griddle unaended while connected to the electrical outlet.
2. Use the Grill/Griddle on a stable work surface.
3. Do not unplug from the wall socket by pulling on the supply cord.
4. The appliance must be unplugged:

A. Aer use.

B. If it appears to be faulty.

C. Before cleaning or maintenance.

1. Extreme cauon must be used when moving the Grill/Griddle If It contains hot oil or other hot liquids.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. SAVE THESE INSTRUCTIONS!

User instrucons

User instrucons

THIS APPLIANCE CAN GET HOT DURING USE. PLEASE USE CAUTION!

How to use the reversible grill/griddle

1. Adjust the temperature probe to the desired temperature. NOTE: The power indicator light is also the temperature indicator for the grill/griddle.
2. Allow the unit to preheat 7 – 10 minutes. Place food directly on the Grill/Griddle. Cook food to desired doneness.
3. When cooking is nished, turn the temperature control knob to "O" OFF and remove the plug from the wall outlet.
4. IMPORTANT: Wait unl the Grill/Griddle has cooled down completely before removing the temperature probe, or aempng to clean the unit.
5. Hot oil and liquid may splash as grease and juices hit the drip tray. BE CAREFUL WHILE GRILLING!
6. DO NOT TOUCH any hot surfaces while cooking. The grill or griddle may become extremely hot while cooking and will remain hot while unit is cooling down.
7. DO NOT overload the grill/griddle surface.
8. DO NOT remove the temperature probe until the grill/griddle is turned OFF, unplugged and completely cooled.
9. DO NOT move the Grill/Griddle while in use.
10. DO NOT touch hot surfaces. Always use handles.
11. ALWAYS make sure that the unit is set to the "O" OFF posion when not in use and when unplugging from power outlet.

CAUTION: BE CAREFUL NOT TO TOUCH THE BASE UNIT AFTER COOKING AS IT REMAINS HOT!

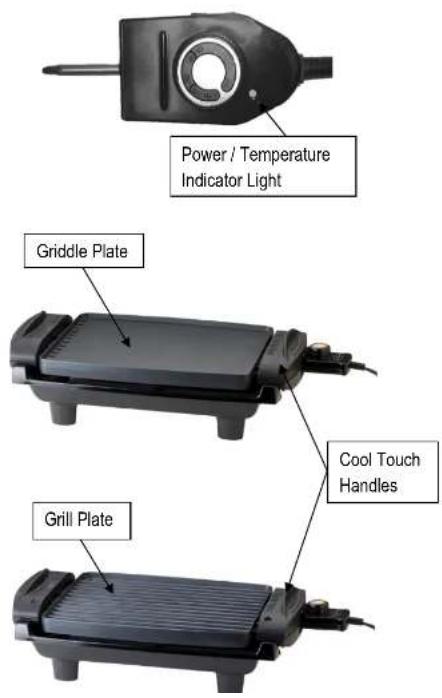

Features

Features

Cooking ps

Cooking ps

• If using bamboo or wooden skewers, soak skewers in water at least 30 minutes before use to prevent burning.
• Use only nylon, plasc, or wooden utensils to avoid scratching the non-sck surface. Never cut food on the non-sck surface.
• Cut food into small and equal pieces to ensure more even cooking.
• Frozen food should always be thawed before it is grilled.
• If you grill vegetables, sh or lean meat, spray the grilling surface with a cooking spray. If you are grilling meat with any amount of fat, or if the food has been marinated, there is no need to treat the grill prior to cooking.
• If using a marinade with oil, place grill near an exhaust hood. Oil or fat may produce smoke.

Cooking guide

FOOD	APPROXIMATE COOKING TIME	TEMPERATURE
Fish	10-15 minutes	300°F
Bacon	10-15 minutes	275°F
Sausage Links	20 minutes	275°F
Hamburgers	15-20 minutes	325°F
Hot Dogs	15 minutes	300°F
Chicken Breast	15-20 minutes each side	325°F
Pork Chops with Bone	10-12 minutes each side	300°F
Steak (rare)	4-6 minutes each side (depending on thickness)	350°F
Steak (well done)	7-9 minutes each side (depending on thickness)	350°F

Note: This chart is for your reference only. You may need to adjust cooking me and temperature according to the type, size, thickness of food and your own personal taste preference.

Cleaning and maintenance

CAUTION:

Always be sure that the Grill/Griddle is unplugged and completely cooled before cleaning or aempng to store the item.

It is important to clean your Grill/Griddle thoroughly aer each use to prevent scky build ups that are dicult to clean later. Proper cleaning of the Grill/Griddle can lead to a cleaner, beer tasng food.

1. When performing any cleaning or maintenance to this unit, turn the temperature probe to "O" OFF and be sure to unplug from the power outlet rst and allow item to cool completely before removing the temperature probe.
2. Remove the temperature probe from the unit. Gently remove the completely cooled grill/griddle and clean the surface and outer surface using a so cloth or sponge and warm soapy water. NEVER IMMERSE THE GRILL/GRIDDLE OR TEMPERATURE PROBE IN WATER OR ANY OTHER LIQUID.
3. Allow the base to cool completely before cleaning. Once cooled, clean the base with a so cloth or sponge and warm soapy water. The base may be immersed in water. Do not place the base in the dishwasher.
4. Remove stubborn stains or cooked on food with a plasc scouring pad and mild dish washing liquid.

Other useful informaon

Other useful informaon

Technical specicaons

Model Number DF-608B

Rang Voltage 120V - 60Hz

Nominal Power 1400W

Storing

• Allow the Grill/Griddle to cool completely before storing.
• Store the Grill/Griddle in a dry locaon in the original box if possible.
• Do not place any heavy items on top of Grill/Griddle during storage as this may result in possible damage.
• Store the cord in a clean, dry locaon away from metal objects. Always check the plug before use to assure metal items have not become aached.

Service center

If you have any quesons in regards to the operaon of this appliance or are in need of a spare part, please contact our service center at:

Tel: [phone]

Business Hours: Mon-Fri 10:00am – 5:00pm EST

Email: [e-mail]

Environmental protecon

If the Grill/Griddle should no longer work at all, please make sure that it is disposed of in an environmentally friendly way.

Contenido

Lista de componentes .....15

Contenido 15

Ensamblaje 16

Información general....17

*We recommend you keep the receipt with this warranty card

Locaon of purchase

Descripon of malfuncon:

Return your completed warranty card to:

Wachsmuth & Krogmann, Inc.

1015 Hawthorn Drive

Itasca, IL

60143

AFTER SALES SUPPORT

3878

888 367 7373

[e-mail]

MODEL:

DF-608B 03/2017

1.45%

ALDI INC. FULL WARRANTY CONDITIONS

Dear Customer:

The ALDI warranty is a fully warranty oering you the following benets:

Warranty period: 2 years from date of purchase.

6 months for movable parts and consumables under normal and proper conditions of use (e.g. rechargeable baeries).

Costs: Free repair/exchange or refund.

No transport costs.

ADVICE:

Please contact our service hotline by phone, e-mail or fax before sending in the device. This allows us to provide support in the event of possible operator errors.

In order to make a claim under the warranty, please send us:

The faulty item with all the component parts, the original receipt and the warranty card properly completed.

The warranty does not cover damage caused by:

Accident or unanticipated events (e.g. lightning, water, re).

Improper use or transport.

Failure to follow the safety and maintenance instrucons.

Other improper treatment or modicaon of the product.

Aer the expiraon of the warranty period, you may wish to have your product repaired at your own expense.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state but this warranty is not intended to exceed statutory minimum requirements beyond what is included above.

This warranty does not limit the statutory obligaon of the seller arising from any implied warranes. The period of warranty can only be extended in accordance with applicable law.
