Product Type	Drone (Quadcopter)
Brand	Overmax
Model	X-bee drone 5.2
Intended Use	Indoor and outdoor (age 14+)
Flight Time	Up to 10 minutes
Battery Type	Rechargeable Li-Polymer 7.4V 1000mAh
Battery Charging Time	Approximately 150 minutes (0.6A)
Controller Power	5 x AA batteries (not included)
FPV Function	Wi-Fi smartphone app (LS-Model) or built-in FPV monitor (micro SD slot)
Camera	Removable, installation via guides and cable
Special Functions	360-degree flip, Headless mode, Calibration
Propeller Installation	Marked propellers matching drone's markings
Synchronization	Move left stick forward/backward until beep
Safety Features	Auto-land at critical battery, low battery LED flash
Storage	Keep away from heat and moisture
Care and Cleaning	Prevent water exposure; wipe with dry cloth
Repairability	Replaceable propellers and battery
Compliance	CE, RoHS, R&TTE, EMC, Low Voltage directives

Frequently Asked Questions - X-bee drone 5.2 Overmax

What is the flight time of the X-bee drone 5.2?

The flight time is up to 10 minutes on a fully charged battery.

How long does it take to charge the drone battery?

Charging takes approximately 150 minutes using the supplied charger (0.6A).

How do I install the propellers correctly?

Each propeller is marked; install them on the corresponding marked positions on the drone's motor housings. Ensure they are securely fastened.

How to synchronize the drone with the controller?

Turn on both the drone and controller, then move the left stick forward, then backward. The controller will beep and drone LEDs glow steadily.

How do I install the camera?

Slide the camera into the guides on the drone, push forward until it snaps, then plug the camera cable into the drone's port.

Can I use my smartphone as an FPV screen?

Yes. Download the LS-Model app from Play Store or App Store. Connect your phone to the WIFIUFO-xxxx Wi-Fi network (no password), then open the app and tap 'PLAY'.

What is headless mode?

In headless mode, the drone's orientation is relative to the pilot, not the drone itself. Slide the Headless mode button up to enable; drone LEDs flash. Slide down to disable.

How to perform a 360-degree flip?

Ensure the drone is at least 3 meters above ground. Press the right stick to enter flip mode (controller beeps), then move the right stick in the desired direction to flip.

Is this drone suitable for beginners?

It is recommended for ages 14 and up. Beginners should practice under the supervision of an experienced pilot. Users under 18 require adult supervision.

What should I do if the drone loses control or drifts?

First, perform the calibration procedure: place drone on a flat surface, move both sticks to the upper left for 5 seconds. Also ensure proper synchronization and that the battery is charged.

USER MANUAL X-bee drone 5.2 Overmax

** The product is designed for people aged 14 and up**We suggest those, who are just getting started to operate drones, to contact a person with more experience in this field. The users under 18 years of age can operate the product under adult supervision only.The purpose of the safety notes is to protect the product and its users as well as bystanders and their property.Improper operation of the product can cause injuries and property damage.

SPECIALLY DESIGNED FOR INDOOR AND OUTDOOR USEThe product has been designed in a way so that it can be used both indoors and outdoors.Before using the product, make sure that the area you chose is free from obstacles. Also, when operating the product always keep a safe distance from people and animals.Do not operate the product near power lines.

PREVENT THE PRODUCT FROM GETTING WETBoth the drone and the controller are composed of many precision electronic components. Therefore, they must be prevented from getting wet. Exposure to water or moisture in any form can cause their malfunction or damage.DO NOT OPERATE OR EXPOSE THE PRODUCT TO RAIN OR MOISTURE

BATTERY INSTRUCTIONSTo avoid a potential fire hazard, please do not short circuit, puncture or reverse the polarity of batteries. Battery charging should always be done under adult supervision, and at a location out of the reach of children.DO NOT MIX NI-CAD AND ALKALINE BATTERIES

SAFETY NOTES FOR NI-MH BATTERIESMake sure the batteries are properly installed observing correct polarity (- - ).DO NOT MIX NI -CAD AND ALKALINE BATTERIESIf you plan not to use the quadcooler for extended period of time, remove the

SAFETY NOTES FOR LI-POLYMER BATTERIES

- Li-Polymer batteries have higher operational risks when compared to ones of other types. Therefore, using them, it is imperative to follow proper operational guidelines. The manufacturer and dealers assume no liability for any damage caused by improper usage. In order to avoid potential fire or explosion do not use any other charger except the one included with the product. DO NOT crush, disassemble, bum, or reverse the polarity of the batteries. To avoid short circuits, do not allow the metal parts to touch the battery terminals. NEVER PUNCTURE BATTERIES; OTHERWISE IT COULD CAUSE POTENTIAL FIRE HAZARD.

- Battery charging should always be done under adult supervision, and at a location out of the reach of children.

- In case of unnatural excessive heating of the batteries please stop using or charging them immediately. Otherwise, it may cause their swelling, deformation or explosion thereby increasing the risk of fire.

**PLEASE DISPOSE USED BATTERIES ACCORDING TO LOCAL REGULATIONS IN SPECIAL RECYCLE SPOTS. DO NOT DISPOSE OF OLD BATTERIES IN THE HOUSEHOLD TRASH DO NOT CHARGE BATTERIES OVERNIGHT

KEEP AWAY FROM HEAT

R/C models are made from various forms of plastic that is very susceptible to damage or deformation due to extremely high and low temperatures. Therefore, the product should not be used or stored in places where it would be exposed to extreme temperatures.

OBTAIN THE ASSISTANCE OF AN EXPERIENCED PILOT Although the product can be treated as a toy, it is not intended for those under fourteen years of age. Those, who are inexperienced in piloting remote-controlled drones, must know that there will be a slight learning curve until you become a skilled pilot. In order to rake it easier to gain this skill we recommend exercises under the supervision of professional drone pilots.

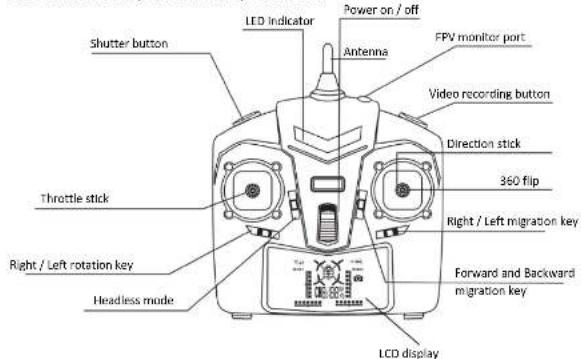

1. CONTROLLER (TRANSMITTER) DIAGRAM


Wi-Fi remote control

Front view of a handheld drone with dual motors and a control panel (no visible text or symbols)

(Mobile phone not included)

FPV remote control

Front view of a remote control device with a monitor displaying a landscape image (no visible text or symbols)

3. CONTROLLER (TRANSMITTER) BATTERY INSTALLATION

Use a screwdriver to open the battery cover.

Place 5 AA batteries in the battery compartment. Make sure the batteries are properly installed according to correct polarity (+ -). DO NOT MIX THE BATTERIES OF DIFFERENT TYPES

4. BATTERY CHARGING

Use the included charger to charge the battery of the drone.

** Use ONLY the supplied charger for charging.

Battery charging should always be done under adult

supervision.

LED Indicator

Green - on	Red - on
Charging completed	Charging...

Battery usage and charge duration reference

Battery type Battery specification		Single charge working time	Charging time
Rechargeable lithium-polymer (Li-Poly) battery	7.4V 1000mAh	Drone flight time: up to 10 minutes	About 150 minutes (charging current approx. 0.6A)
Zinc-carbon battery (Non rechargeable)	1.5V (GP 15G R4P)	Controller (transmitter) operation time: 18 hours	Non rechargeable (do not charge)

5. FPV HOLDER INSTALLATION / DEINSTALLATION

Place one end of the FPV holder on the controller's antenna, and then use the screwdriver to lighten the screw.

Once the holder is properly installed and secured, it is ready to use. The holder is compatible with devices of a diagonal of up to 6 inches.

In order to remove the holder, unscrew the screw on the tip and pull the holder out of the antenna.

6. FPV MONITOR AND MOBILE APP DESCRIPTION

FPV MONITOR:

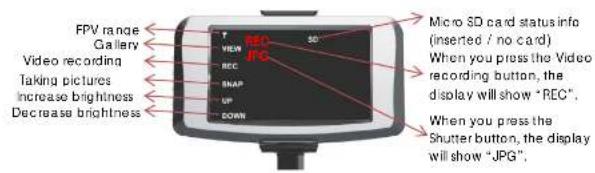

If you want to browse the gallery on the FPV monitor, please insert a micro SD card into the monitor's micro SD port.

The gallery features the following options:

WI-FI MONITOR:

In order to use an android or iOS smartphone as an FPV screen please complete the following steps:

Download the "LS-Model" app from "Play" store or "App store" and install it.
Enable Wi-Fi in your mobile phone.
Turn on your X-Bee Drone 5.2.

Go to your smartphone's Wi-Fi settings and search for "WIFIUFO-xxxx" network. Then establish the connection (no password needed).
➢ Run the installed LS-Model app and tap "PLAY"
The smartphone's screen will show the live images from the drone's camera.

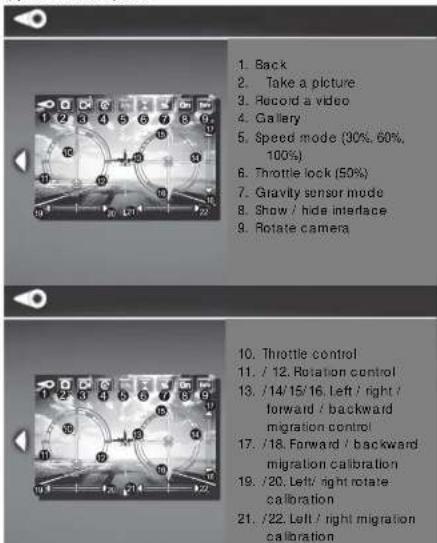

LS-Model app button description:

7. CONTROLLER (TRANSMITTER) AND RECEIVER SYNCHRONIZATION

Insert and connect the drone's battery.

Close the battery cover and turn on your X-Bee 5.2 by moving the Power switch on the bottom of the housing.

Turn the controller on.

Move the left stick forward, and then backward. The controller emits a beep sound and the drone's LEDs starts to glow steadily indicating correct synchronization.

8. DRONE'S ENGINES CALIBRATION

Place your X-Box Drone 5.2 on a flat and even surface. Move both sticks to the upper left corner positions, as shown in the picture. Hold these positions for 5 seconds. The drone's LEDs will blink several times, and then they will start to glow steadily. Now, you can release the sticks - the drone is ready to fly.

9. STARTING / STOPPING THE ENGINES

In order to start the engines, move the left stick to the lower-left corner and the right stick to the lower-right

In order to stop the engines, move the left stick down and hold the position until the engines stop (about 5 seconds).

1. FLIGHT CONTROL

Flying up / down	Move the throttle stick forward to fly the drone up.Move the throttle stick backward to fly the drone down.
Rotating left/ right	Move the throttle stick left / right to rotate the drone in a given direction.
Flying left/ right	Move the direction stick left / right to fly the drone in a given direction.
Flying forward and backward	Move the direction stick forward / backward to fly the drone in a given direction.
Left/ right rotate calibration	Press the "left rotation" key if the drone automatically rotates clockwise. Press the "Right rotation" key if the drone automatically rotates counterbackwise

Forward / backward migration calibration

Press the "Left migration" key if the drone automatically migrates to the right. Press the "Right migration" key if the drone automatically migrates to the left.

Press the "Forward migration" key if the drone automatically migrates backwards. Press the "Backward migration" key if the drone automatically migrates forwards

11. FUNCTIONS

360 flip

If you want to perform 360-degree stunts:

- Make sure the drone is at least 3 meters above the ground. - Press the right stick. The controller starts beeping, indicating that the drone is ready to fly 360-degree stunts.

Move the right stick forward, backward, left or right to flip the drone in the chosen direction. After the stunt, the drone quits the flip mode and automatically gets back to normal flying. The 360-degree stunts cannot be performed when the battery power is low (drone's LEDs flash).

Headless mode

Slide the Headless mode button up. The drone's LEDs start flashing, indicating that the drone is in the HEADLESS mode. If you want to switch your drone back to the normal control mode, slide the Headless mode button down. The drone's LEDs stop blinking.

When the drone's LEDs start flashing, it means that the battery power is low. In this case, please land your device and replace the battery. If no action is taken, the drone lands automatically when the battery power is critical (in the place of its current position).

12. CAMERA INSTALLATION / DEINSTALLATION

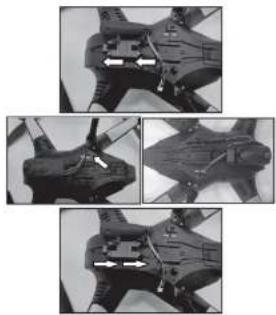

In order to attach a camera to the drone, slide it into the guides and push towards the front of the drone (as shown in the picture) until you hear a snap sound.

Plug the camera cable to the port placed on the drone's housing. Now, the camera is ready to use.

In order to unmount the camera, unplug its cable from the drone's port, move the camera toward the back of the drone, and then remove it from the guides.

Three-panel mechanical assembly diagrams showing internal components with arrows indicating movement or force (no text or symbols present)

13. PROPELLER INSTALLATION

in order to fly properly, the drone needs correct installation of the propellers. It is shown in the following picture:

Each propeller is marked. The corresponding marking is also indicated on the protective faceplate of the drone's LEDs.

1. INFORMACJE ODNOŚNIE BEZPIECZEŃSTWA UŻYTKOWANIA

Front view of a handheld drone with dual motors and a screen (no visible text or symbols)

PILOT FPV

Front view of a remote control device with a monitor displaying a landscape image (no visible text or symbols)

3. INSTALACJA BATERII W KONTROLERZE

Front view of a white handheld drone with dual motors and a small display screen (no visible text or symbols)

Front view of a remote control device with a screen displaying a landscape image (no visible text or symbols)

(Ecran FPV inclus)

3. INSTALAREA BATERIILOR IN CONTROLOR (TRANSMITATOR)

Front view of a handheld drone with dual motors and a screen (no visible text or symbols)

Front view of a handheld electronic device with dual motors and a screen displaying a landscape image (no visible text or symbols)

Declaration of Conformity

OVERMAX

You • unlimited

Product details

For the following

Product: Drone

Model(s): OV-X-BeeDrone 2.3

Declaration & Applicable standards

We, BrandLine Group Sp. 2 o.o., hereby declare under our sole responsibility that the of the above referenced product complies the following directives:

R&TTE Directive 1999/5/EC

EMC Directive 2004/108/EC

Low Voltage Directive 2006/95/EC

RoHS Directive 2011/65/EU

The following harmonized standards have been applied:

Safety and Health:

EN 62479: 2010

EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013

EMC:

EN 301 489-1 V 1.9.2 (2011-09)

EN 301 489-17 V 2.2.1 (2012-09)

RF Spectrum Efficiency:

EN 300 328 V1.8.1 (2012-06)

Representative

www.overmax.eu
