Product Type	Drone (Quadcopter)
Brand	Overmax
Model	X-bee drone 7.1 (OV-X-BeeDrone 7.1)
Battery Type	Rechargeable lithium-polymer (Li-Poly)
Battery Voltage	7.4V
Charging Time	Approximately 120 minutes
Flight Time	Up to 10 minutes
Controller Battery	4 AA batteries (non-rechargeable)
Speed Modes	3 modes: Slow, Normal, Fast
Headless Mode	Yes
Back Home Mode	Yes (returns to takeoff point, no auto-land)
Low Battery Auto-Landing	Yes (LED flash then auto land)
Recommended Age	14 years and older
Suitable Environment	Outdoor only, away from obstacles, people, animals, power lines, and airports
Charger Input	12V
Charging Current	0.6A

Frequently Asked Questions - X-bee drone 7.1 Overmax

How do I pair the transmitter with the drone?

Move the throttle stick to the lowest position, turn on the controller, then turn on the drone. Place the drone on a flat surface and move the throttle stick forward then backward. The controller beeps and LEDs glow steadily indicating synchronization.

How long does it take to charge the drone battery?

Charging the 7.4V Li-Poly battery with the included charger takes approximately 120 minutes.

What should I do if the drone drifts forward or backward?

Use the migration calibration keys: press 'Forward migration' if it drifts backward, or 'Backward migration' if it drifts forward.

How do I activate headless mode?

Press the headless mode button on the controller. The controller beeps to confirm. In this mode, forward flight direction is relative to the pilot, not the drone's orientation. Press the same button to deactivate.

What does the back home mode do?

The drone remembers its takeoff point during calibration. When you press the Back Home button, it flies back to that point regardless of its current position. To abort, move any control stick. Note: landing must be done manually.

Can I fly the drone indoors?

No, the drone is designed for outdoor use only. Flying indoors may cause damage or injury.

How do I know when the battery is low?

The drone's LEDs start flashing. Shortly after, the drone will automatically land. Steer it to a safe landing spot when you see the flashing LEDs.

What type of batteries does the controller use?

The controller requires 4 AA batteries, which are not rechargeable. Do not mix Ni-Cad and alkaline types.

How do I change flight speed?

Press the flight speed button to cycle through three modes: Mode 1 (slow) - one beep, Mode 2 (normal) - two beeps, Mode 3 (fast) - three beeps.

Is there a camera on the X-bee drone 7.1?

The manual indicates a section on taking pictures and shooting videos, but detailed specifications are not provided. It is likely the drone includes a camera, but please refer to the device itself for confirmation.

USER MANUAL X-bee drone 7.1 Overmax

** The product is designed for people aged 14 and up**● The users under 18 years of age can operate the product under adult supervision only. We suggest those, who are just getting started to operate drones, to contact a person with more experience in this field.● The purpose of the safety notes is to protect both the product and its users as well as bystanders and their property.● Improper operation of the product can cause injuries and property damage.

SPECIALLY DESIGNED FOR OUTDOOR USE● The product has been designed in a way so that it can be used only outdoors.Before using the product, make sure that the area you chose is free from obstacles. Also, when operating the product always keep a safe distance from people and animals.● Do not operate the product near power lines, in public places (crowded areas) and within airport protection zones.

PREVENT THE PRODUCT FROM GETTING WETBoth the drone and the controller are composed of many precision electronic components. Therefore, they must be prevented from geng wet. Exposure to water or moisture in any form can cause their malfunction or damage.DO NOT OPERATE OR EXPOSE THE PRODUCT TO RAIN OR MOISTURE

BATTERY INSTRUCTIONSTo avoid a potential fire hazard, please do not short circuit, puncture or reverse the polarity of batteries.Battery charging should always be done under adult supervision, and at a location out of the reach of children.● DO NOT MIX NI-CAD AND ALKALINE BATTERIES

SAFETY NOTES FOR NI MH BATTERIES● Make sure the batteries are properly installed observing correct polarity (+ -).DO NOT MIX NI-CAD AND ALKALINE BATTERIES● If you plan not to use the quadcopter for extended period of time, remove the batteries from the controller to avoid their leakage, which may damage the transmitter.PLEASE DISPOSE USED BATTERIES ACCORDING TO LOCAL REGULATIONS IN SPECIAL RECYCLE SPOTS.

SAFETY NOTES FOR LI-POLYMER BATTERIES● Li-Polymer batteries have higher operational risks when compared to ones of other types. Therefore, using them, it is imperative to follow proper operational guidelines. The manufacturer and dealers assume no liability for any damage caused by improper usage.● In order to avoid potential fire or explosion do not use any other charger except the one included with the product. DO NOT crush, disassemble, burn, or reverse the polarity of the batteries.● To avoid short circuits, do not allow the metal parts to touch the battery terminals. NEVER PUNCTURE BATTERIES, OTHERWISE IT COULD CAUSE POTENTIAL FIRE HAZARD.● Battery charging should always be done under adult supervision, and at a location out of the reach of children.● In case of unnatural excessive heating of the batteries please stop using or charging them immediately.Otherwise, it may cause their swelling, deformation or explosion thereby increasing the risk of fire.● PLEASE DISPOSE USED BATTERIES ACCORDING TO LOCAL REGULATIONS IN SPECIAL RECYCLE SPOTS.DO NOT DISPOSE OF OLD BATTERIES IN THE HOUSEHOLD TRASHDO NOT CHARGE BATTERIES OVERNIGHT

KEEP AWAY FROM HEATP/Q models are made from various forms of plastic that is very susceptible to damage or deformation due to

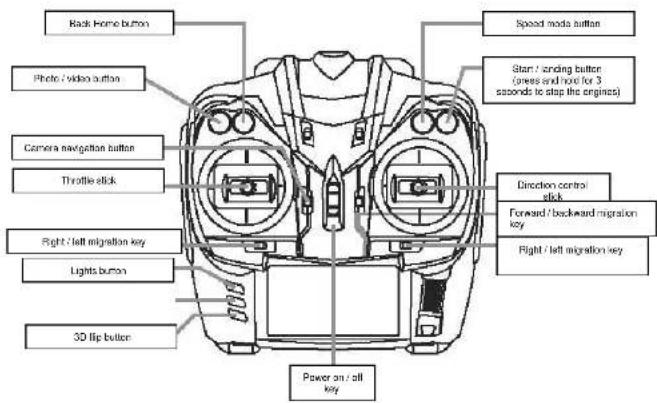

2. CONTROLLER (TRANSMITTER) DIAGRAM

3. CONTROLLER (TRANSMITTER) BATTERY INSTALLATION

Use a screwdriver to open the battery cover.

Place 4 AA batteries in the battery compartment. Make sure the batteries are properly installed according to correct polarity (+ -). DO NOT MIX THE BATTERIES OF DIFFERENT TYPES

Pure electrical circuit lines without any symbols

4. BATTERY CHARGING

Use the included charger to charge the battery of the drone. ** Use ONLY the supplied charger for charging. Battery charging should always be done under adult supervision.

LED indicator

Red and green - on	Red - on
Charging completed	Charging...

Charger specifications

Input	Charging current	Maximum voltage
12V	0.6A	7.4 ± 0.03V

Battery usage and charge duration reference

Battery type	Battery specification	Single charge working time	Charging time
Rechargeable lithium-polymer (Li-Poly) battery	7.4V	Drone flight time: up to 10 minutes	About 120 minutes (charging current approx. 0.6A)
Zinc-carbon battery(Non rechargeable)	1.5V(GP 15G R4P)	Controller (transmitter) operation time: 18 hours	Non rechargeable (do not charge)

5. TRANSMITTER AND RECEIVER SYNCHRONIZATION

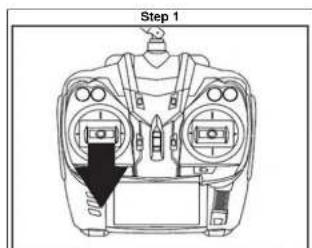

Move the throttle stick to the lowest position.

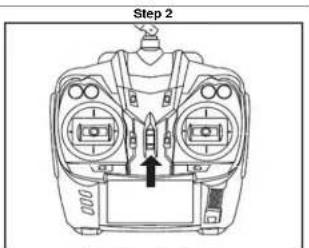

Turn the controller on.

Step 3

Use a screwdriver to open the battery cover. Place the battery in the drone's battery compartment and connect the battery plug to the drone's battery slot. Close the cover and tighten the screw.

Step 4

Diagram of a drone with four propellers and a central body, showing no text or symbols.

Turn your X-Bee Drone 7.1 on using the switch located on the upper side of the drone. The LEDs start to blink.

Step 5

Line drawing of a multi-rotor drone with four propellers and a central body (no text or symbols)

Place the drone on a flat and even surface.

Step 6

Line drawing of a 3D remote control device with directional arrows indicating motion (no text or symbols)

Move the throttle stick forward, and then backward. The controller emits the sound indicating that the connection with the drone has been established. The LEDs start to glow steadily indicating that

Auto-calibration

Switch the speed mode to "fast" (Mode 3). Place the drone on a flat and even surface. Move both sticks to the lower left corner positions, as shown in the picture. Hold these positions for 10 seconds. The drone's LEDs will blink several times, and then they will start to glow steadily. Now, you can release the sticks - the drone is ready to fly.

6. FLIGHT CONTROL

Press the start/landing button to start the engines.

Press the same button to land. Auto-landing can be used only if the drone is at a height of less than 20 meters from the ground. Using the above at a height of 20 meters, threatening drone fall from a considerable height and its damage.

To stop the engines, press and hold the start/landing button for 3-5 seconds.

The drone's LEDs start flashing when the battery power is low. Shortly after that, the drone automatically lands on the surface beneath (make sure to steer the drone to a safe landing spot the moment you receive the low-battery signal).

WARNING: Do NOT hold the start/landing button during the flight! Failure to comply with this

instruction may cause the drone to fall from a great height, doing damage to itself and resulting in

Flying up / down		Move the throttle stick forward to fly the drone up.Move the throttle stick backward to fly the drone down.
Rotating left/ right		Move the throttle stick left / right to rotate the drone in a given direction.
Flying forward and backward		Move the direction control stick forward / backward to fly the drone in a given direction.
Flying left/ right		Move the direction control stick left / right to fly the drone in a given direction.
Forward / backward migration calibration		Press the "Forward migration" key if the drone automatically migrates backwards.Press the "Backward migration" key if the drone automatically migrates forwards.
Left / right migration calibration		Press the "Left migration" key if the drone automatically migrates to the right.Press the "Right migration" key if the drone automatically migrates to the

Speed modes

The device supports three flight speed modes. Press the flight speed button to switch between slow, normal and fast mode. The current speed mode is indicated by a number of the beep sounds. Mode 1 - slow mode - one beep; Mode 2 - normal mode - two beeps; Mode 3 - last mode - three beeps.

7. HEADLESS MODE

How to turn on/off the headless mode?

Press the controller's button (indicated in the picture). The controller beeps indicating that the drone is in the HEADLESS mode. If you want to switch your drone back to the normal control mode, press the same button again.

In this mode, to make the operation of the drone easier, the forward flight direction is set regardless of the drone position.

If you want to set the front side of the drone anew, you must turn the device off and configure it again.

8. BACK HOME MODE

Before you start to fly the drone must be calibrated. During the calibration the device saves the starting (home) position. Then, once you press the "Back home" button, the drone starts to fly back towards the starting point regardless of its current position and location. In order to abort the "Back home" mode, just move the direction stick.

Note: the drone has NO autoland function. In order to land it, you need to control the device manually.

9. TAKING PICTURES AND SHOOTING VIDEOS
